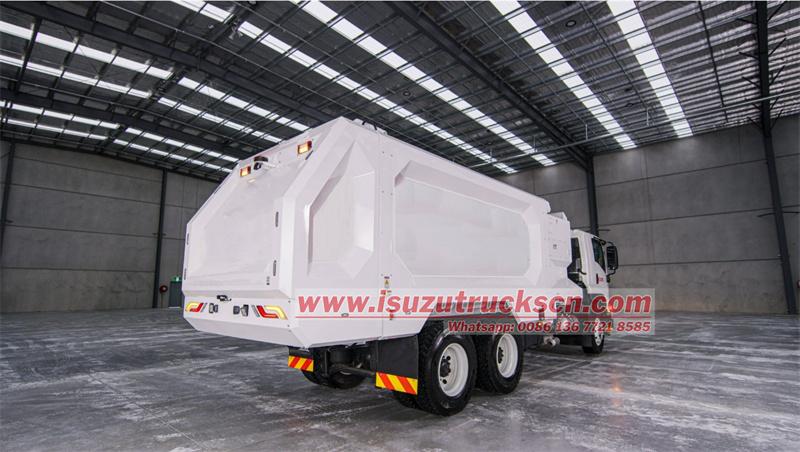

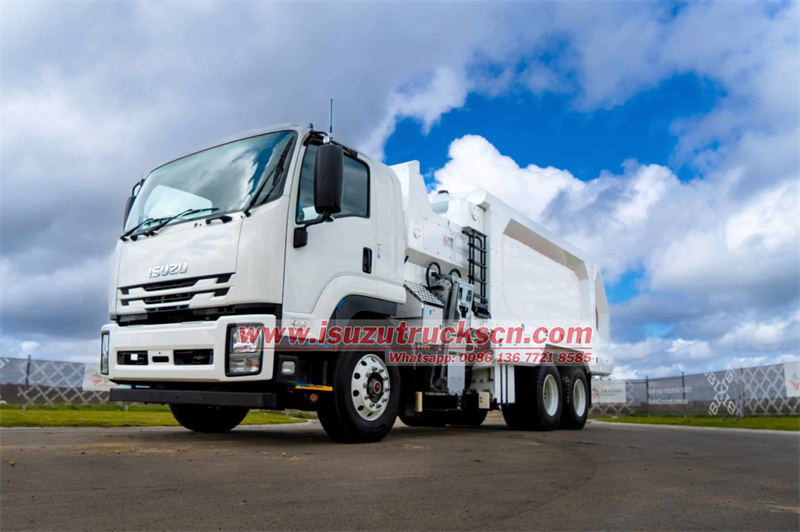

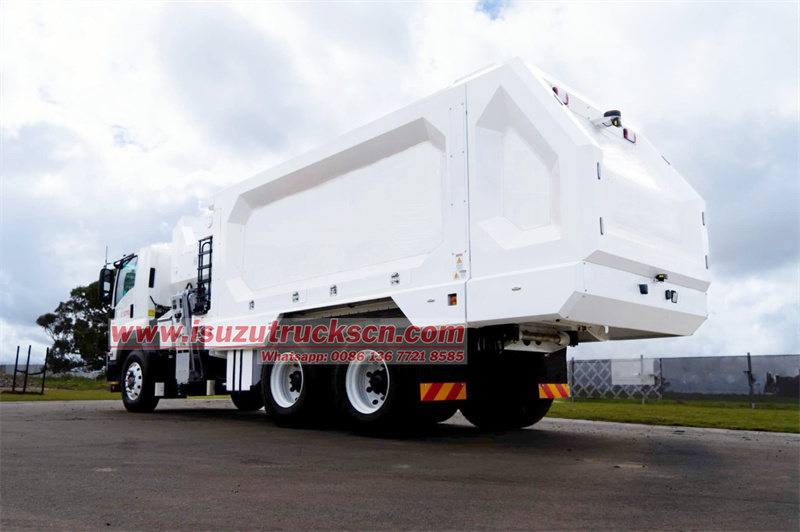

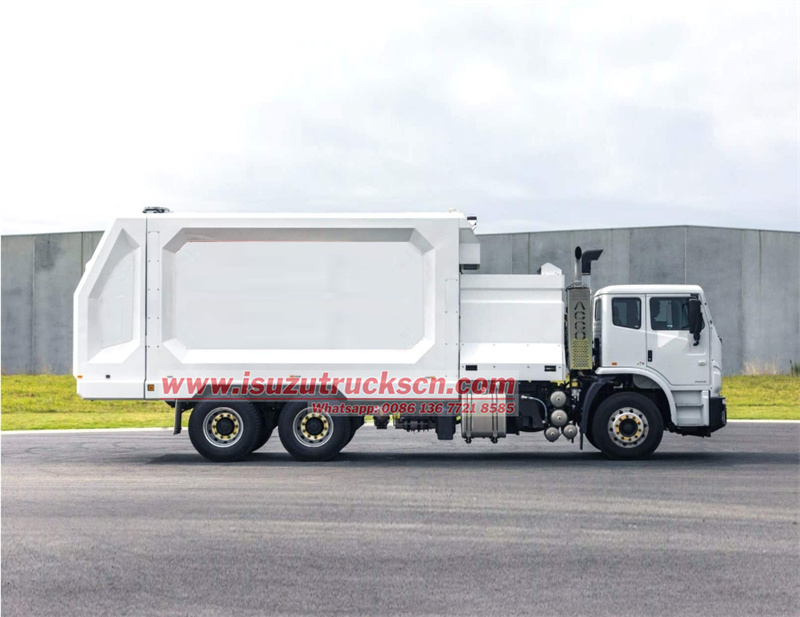

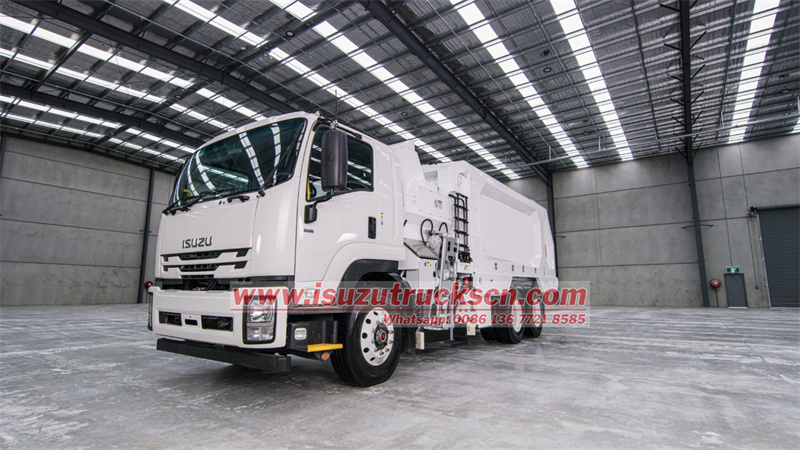

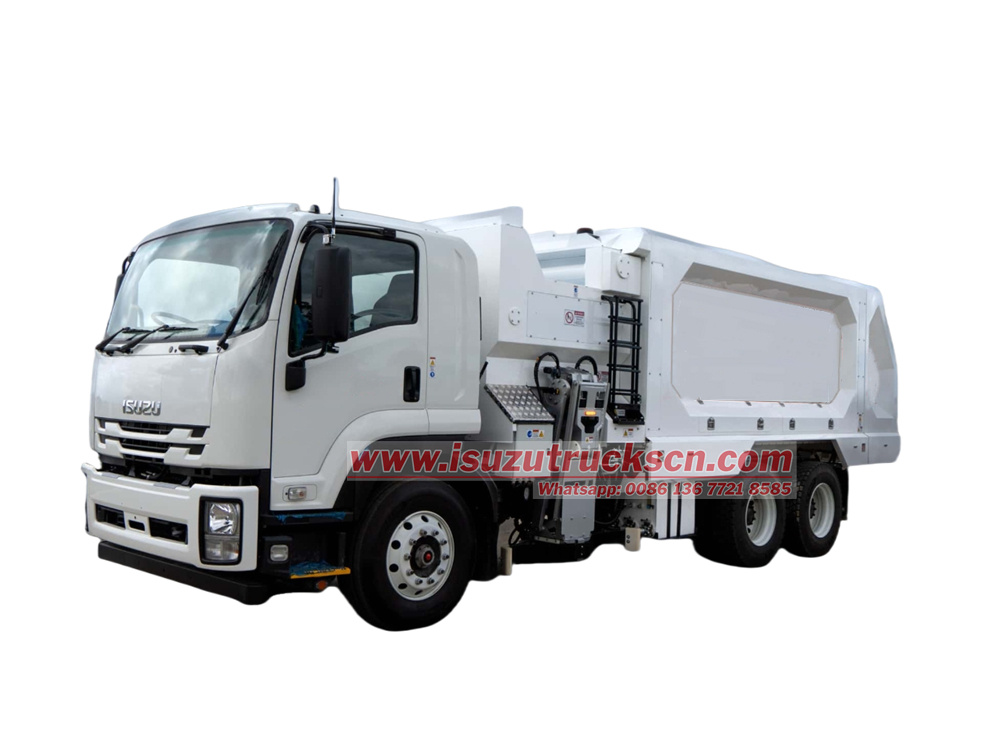

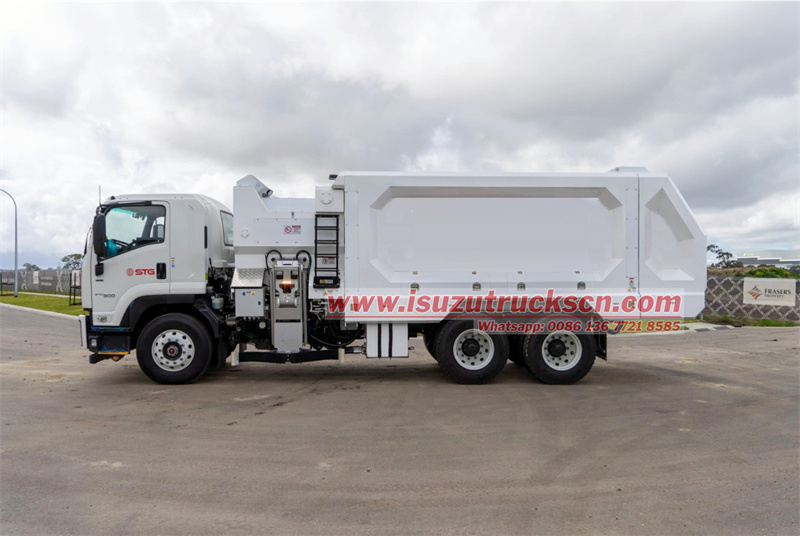

The Isuzu FVZ 6X4 side-mounted compactor garbage truck is modified based on the Isuzu FVZ 6x4 chassis. It has a wheelbase of 4650+1370mm and is equipped with an Isuzu 6HK1-TCG60 300HP engine and a Fast 9-speed gearbox. The front part of the upper body is a lifting rod, a flip mechanism and a filling mechanism, and the rear is a 20-cubic-meter square compression box with a sealed tailgate. It is suitable for garbage collection and transportation operations in urban streets, communities and towns.
Manufacturer:
Powerstar TrucksWork capacity:
20cbmDimension:
10520*2550*3540mmCabin type:
Isuzu FVZ GIGA 6x4 cabin,with A/CWheelbase:
4650+1370mmEngine power:
300HP/221kWEngine type:
Isuzu 6HK1-TCG60Axle drive:
6x4,LHDGear box:
FAST 9-speed,manualRemarks:
side loader flip mechanismThe Isuzu FVZ 6x4 side loader garbage truck automatically lifts the garbage bins using a side-mounted lever and compresses them, offering closed-loop transfer and secondary contamination prevention. It utilizes an electro-hydraulic control system. The truck's hoist utilizes a chain and hydraulic cylinder linkage to lift and tilt the garbage bins, automatically collecting garbage from multiple bins into the truck compartment and unloading it all at once at its destination. It features a fully sealed, self-loading and unloading system. The truck's top section is scientifically designed, featuring a lifting lever, tilting, and loading mechanism at the front, capable of quickly handling 240L/660L bins. The scraper and slide plates work together to compress the garbage, increasing the load capacity. The 20-cubic-meter square container at the rear is welded from high-strength steel plates, and the tailgate features dual hydraulic sealing strips and an automatic locking device, ensuring leak-free and odor-free transportation.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Product Features
1. Large Capacity and High Compression Ratio: The 20cbm container capacity far exceeds that of similar side-loaders. Combined with efficient compression technology, it can handle more trash cans in a single trip, reducing round trips by over 30%.
2. Fully Sealed Anti-Fouling Design: The dual-seal tailgate structure effectively prevents wastewater leakage, contributing to environmental protection.
3. Intelligent Operation: Equipped with a CAN-BUS electronically controlled hydraulic system, it supports one-touch automatic cycle operation (lift-flip-compress-reset), reducing operator effort.
4. Reliable and Durable: The Isuzu chassis and high-strength superstructure are designed to withstand demanding operating environments.
» Ⅱ. Product Parameter for Isuzu side loader garbage truck:
|
Isuzu FVZ 6x4 20cbm side loader garbage truck |
|
|
Chassis |
|
|
Size |
10520*2550*3540mm |
|
GVW/Curb Weight |
25000/11250kg |
|
Wheelbase |
4650+1370mm |
|
Front/Rear Axle |
7T/18T(2 axle) |
|
Tire |
295/80R22.5, 10+1 tires |
|
Engine |
|
|
Type |
Diesel, In-line 6-cylinder, water-cooled, four-stroke, with exhaust valve brake, direct injection, supercharged intercooling |
|
Make/Model |
Isuzu 6HK1-TCG60 |
|
Horse Power（HP) |
300HP/221kW |
|
Displacement |
7790ml |
|
Fuel tank (L) |
400L |
|
Emission standard |
Euro 6 |
|
Transmission |
|
|
Model |
FAST 9-speed,manual |
|
Operation |
Manual |
|
Cabin |
|
|
Driving |
Isuzu FVZ GIGA 6x4 cabin,with A/C,USB,direction assistance |
|
Passenger No. |
3 |
|
Garbage Container |
|
|
Capacity |
20 CBM |
|
Material |
Weather-resistant steel |
|
Thickness |
5mm thickness of body floor, 4mm thickness of side and roof. |
|
Sewage Tank |
Sewage water relief of sludge tank of capacity under garbage tank and tailgate with leakproof discharging outlet. |
|
hopper capacity |
2.3 m³ |
|
Leakage Proof Design |
Hydraulic locking is adopted between the rear door and the box body, and a specially reinforced rubber strip is used to seal between the garbage bin and the rear door assembly, which has good sealing performance and prevents secondary pollution |
|
Containers Lifting Devices |
|
|
Type |
Side loading with a bin lifting device of chain type or pull rod type works in two hydraulic cylinders on the top of the tank to ensure the lifting and lowering of |
|
Lifting Device |
Suitable to lift standard 240L/ 660L plastic containers. |
|
Control System |
Intelligent CAN-BUS control electronics，manual and electric for box lifting and lifting device operations. |
» Ⅲ. Product Details & Advantages:
Chassis Configuration
• Wheelbase: 4650+1370mm (dual-stage layout for enhanced stability)
• Powertrain: Isuzu 6HK1-TCG60 inline six-cylinder turbocharged diesel engine, 7.79L displacement, 300 horsepower (221kW), meeting Euro VI emission standards, delivering powerful power and excellent fuel economy.
• Transmission: Fast 9-speed manual transmission, offering smooth shifting and adaptability to diverse operating conditions.
Structural Design

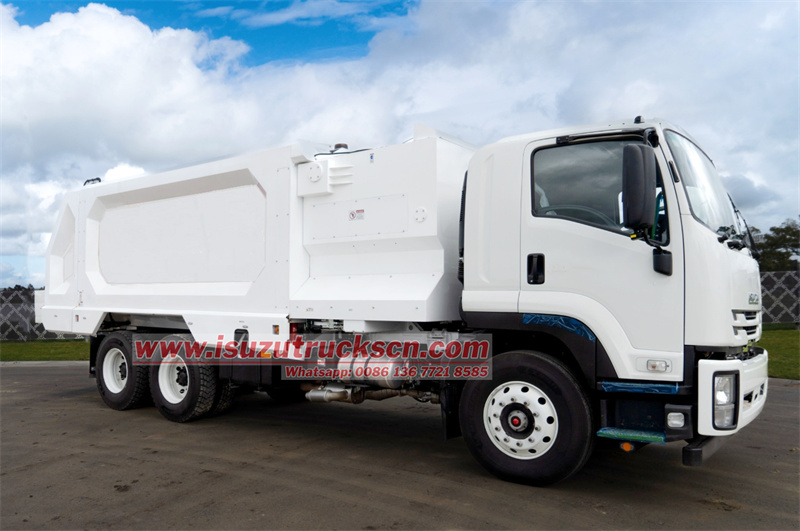

Isuzu GIGA 6x4 20cbm side loader rubbish truck collect garbage from the side of the vehicle. The loading mechanism on the side of the vehicle features a retractable arm. When the vehicle approaches a roadside trash can, the arm extends and grasps the can. The arm then lifts and tilts the can, emptying the contents into an opening on the side of the vehicle.

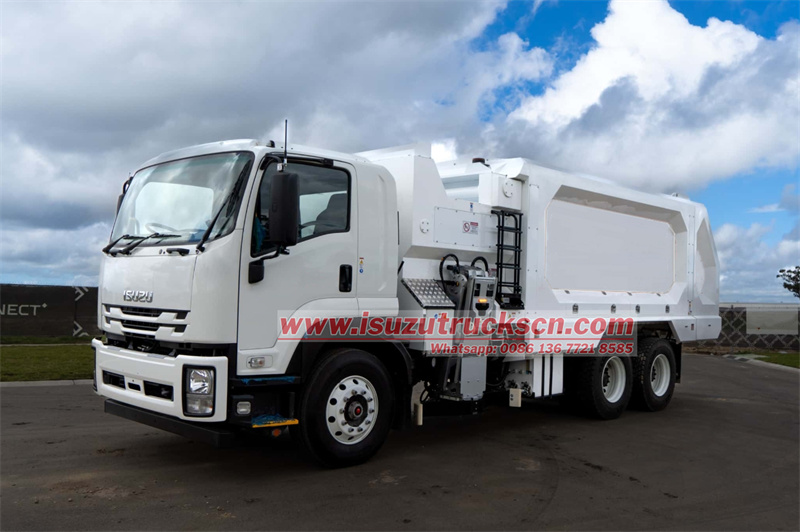

• Front: Integrated lifting lever, tilting mechanism (accommodating 240L/660L standard trash cans), and loading mechanism (a dual-compression design with a scraper and slide plate) enable rapid dumping and initial compression of garbage.

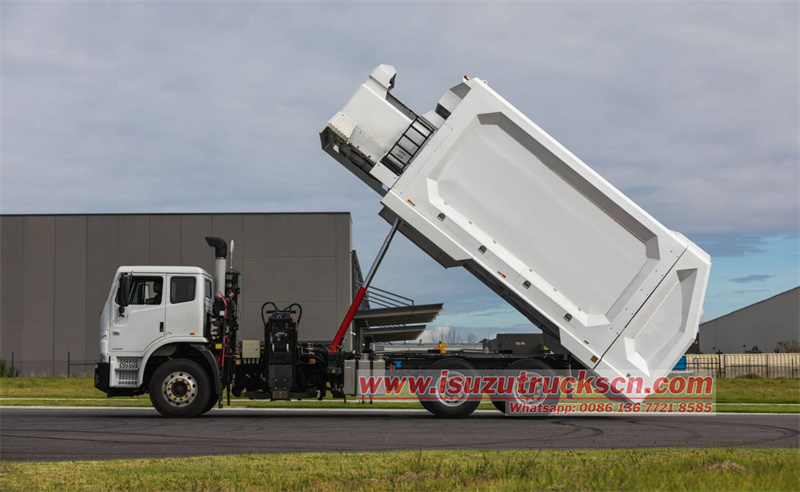

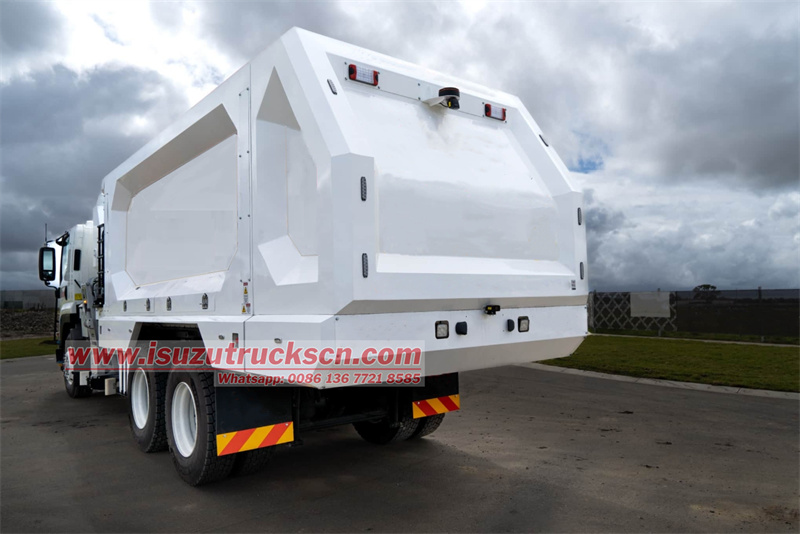

• Rear: The 20-cubic-meter square compression box is welded from high-strength, wear-resistant steel plates. The tailgate is equipped with dual hydraulic seals and an automatic locking device to ensure leak-free transport.
A built-in compactor pusher compresses the garbage loaded by the bucket elevator. The pusher can be operated in either full or partial stroke, allowing for flexible unloading methods. Furthermore, a wastewater tank effectively collects wastewater generated during the compression process, preventing environmental pollution.
Products--100% Customized Level One!
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» Ⅳ. Core Functions and Operating Principles
1. Garbage Collection and Transportation Process:

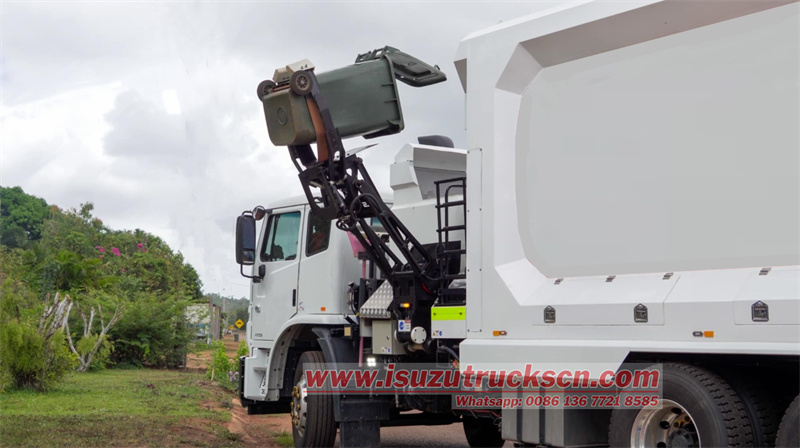

• Lifting and Tilting: A hydraulically driven lifting lever lifts the trash bin to the loading port, where the tilting mechanism automatically dumps the trash into the bin.
• Compression: The scraper and slide plates of the loading mechanism work together to compress the trash in both directions, achieving a compression ratio of up to 1:2.5, significantly increasing the load capacity per trip.
• Sealed Transport: When the bin is fully loaded, the tailgate is hydraulically closed and locked, with the sealing strips providing multiple layers of protection to prevent wastewater leakage and odor spread.
2. Power Transmission:
• The chassis engine drives the upper hydraulic pump via a power take-off (PTO), providing power for lifting, tilting, compression, and tailgate opening and closing. The Fast transmission's multi-speed design optimizes power output for heavy-duty applications such as climbing hills and fully loaded vehicles.
» Ⅴ. Application scenarios:
1. Urban Sanitation Operations
• Suitable for daily garbage collection and transportation in municipal roads, residential communities, commercial districts, and other locations. It efficiently handles standard 240L trash cans, meeting the garbage collection needs of densely populated areas.
2. Centralized Township Waste Transfer
• For decentralized garbage collection points in townships and rural areas, the side-mounted lifting and compression function significantly improves collection and transportation efficiency, reduces transfer frequency, and lowers operating costs.
3. Industrial Parks and Large Sites
• In high-waste-producing locations such as factories, logistics parks, schools, and hospitals, the 20m³ large-capacity compression box allows for extended operation, eliminating frequent trips to the waste disposal station.
