ISUZU GIGA 38m Truck-Mounted Mobile Concrete Mixer Pump Truck

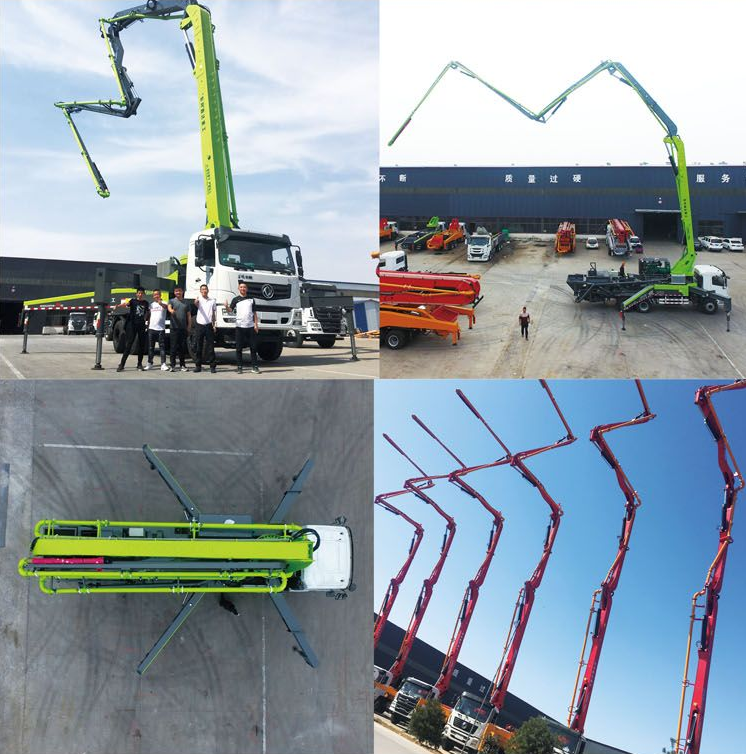

ISUZU GIGA Concrete Pump Truck Boom 27m-28m-30m-34m

Details

38M 42M Isuzu GIGA Concrete Pump Truck with 6UZ1-TCG50 380HP


Isuzu GIGA Concrete Pump Truck with 6UZ1-TCG50 380HP

Introduction


ISUZU GIGA Concrete Pump Truck (also called ISUZU GIGA Truck mounted concrete pump, ISUZU Cement pump truck with boom ) has 38m vertical reach with the height limit programmed to prevent boom contact with an obstruction or overhead hazard. The 38m concrete pump provides the users reliable pumping performance along with the highly wear resistant parts including delivery pipe, discharge port, transition bushing, concrete piston, wear plate, cutting ring and delivery cylinder that improve the pumping efficiency and reduce down time.



Advantages


  100% custom-made
  39 m to 62 m available
  Short delivery time 7~30 days
  Easy operation & Easy maintenance
  15 years spare parts & Technical support



Main Parameters




I.   Chassis
1
Chassis Brand
ISUZU GIGA
2
Engine Power
380HP 6UZ1-TCG50
3
Gearbox
ZF-8 shift
II.   Boom system
1
Max. Vertical   height(M)
38
2
Max. Horizontal   Concrete Placing radius (M)
34
3
Concrete placing   depth(M)
25
4
Control mode
Electric   proportion
5
Folding type of   boom
RZ type
6
Folding type of   boom
360°
7
Opening mode of   landing leg
X-R
8
Length of end   hose (MM)
3000
9
Concrete delivery   pipe dia.
125
III.   Electric Control System
1
Working voltage:
24
IV.   Hydraulic transmission system
1
Type of hydraulic   system
Open type
2
System working   pressure (Mpa)
31.5
3
Displacement of   main hydraulic oil pump (ml/r)
190
4
Hydraulic fuel   tank capacity (l)
600
5
Cooling mode of   hydraulic oil
Forced-air   Cooling
6
High-low pressure   changeover valve
None
VII.   Pumping system
1
Form of concrete   distribution valve
S Valve
2
concrete cylinder
230
3
Maximum feeding   height (MM)
1500
4
Hopper capacity   (M3 )
0.65
5
Slump of pumped concrete
160-220
6
Dimension of   allowable maximum aggregate (MM)
40

12

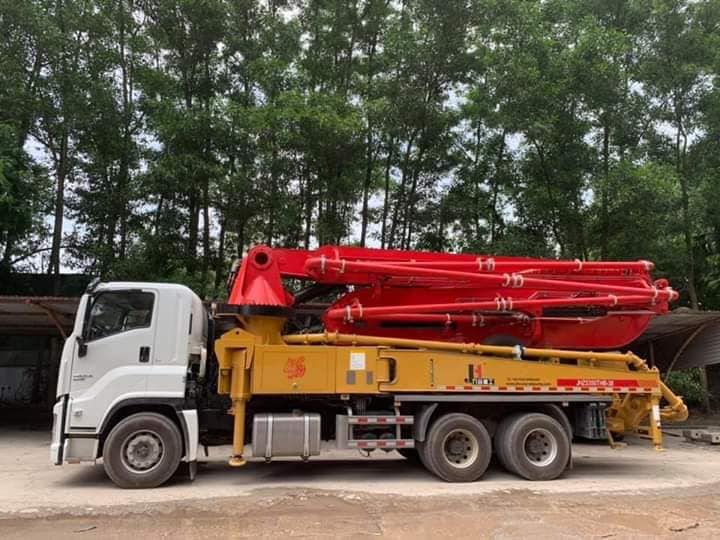

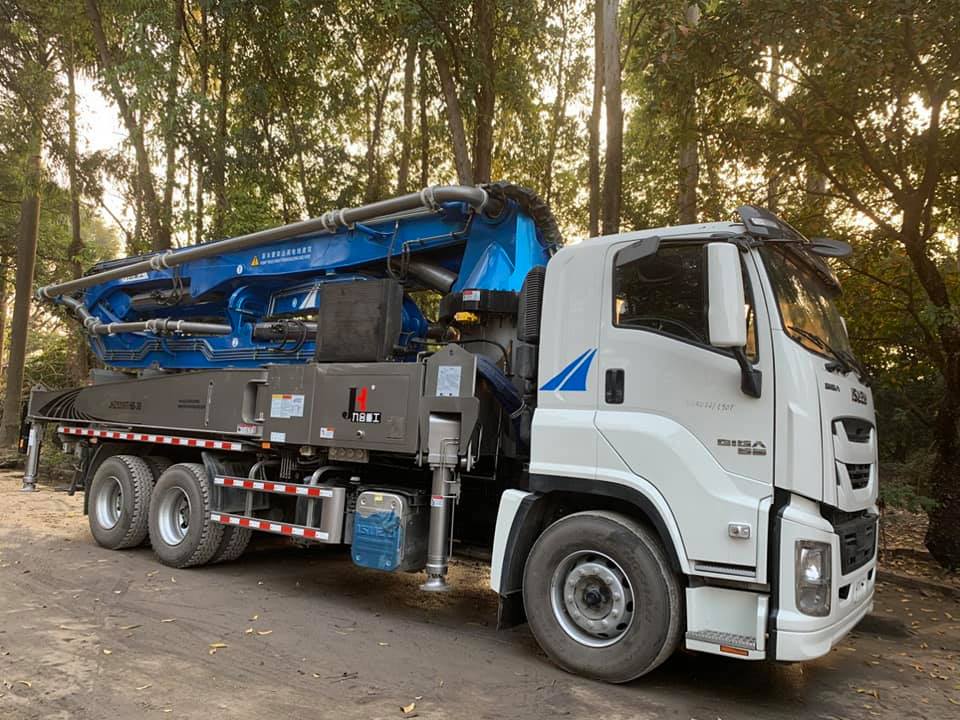

 38M 42M Isuzu GIGA Concrete Pump Truck with 6UZ1-TCG50 380HP for sale

ISUZU GIGA 38m Truck-Mounted Mobile Concrete Mixer Pump Truck

38M 42M Isuzu GIGA Concrete Pump Truck with 6UZ1-TCG50 380HP for sale

ISUZU GIGA 38m Truck-Mounted Mobile Concrete Mixer Pump Truck

38M 42M Isuzu GIGA Concrete Pump Truck with 6UZ1-TCG50 380HP for sale

ISUZU GIGA 38m Truck-Mounted Mobile Concrete Mixer Pump Truck

38M 42M Isuzu GIGA Concrete Pump Truck with 6UZ1-TCG50 380HP for sale

ISUZU GIGA 38m Truck-Mounted Mobile Concrete Mixer Pump Truck

38M 42M Isuzu GIGA Concrete Pump Truck with 6UZ1-TCG50 380HP for sale

ISUZU GIGA 38m Truck-Mounted Mobile Concrete Mixer Pump Truck

38M 42M Isuzu GIGA Concrete Pump Truck with 6UZ1-TCG50 380HP for sale

ISUZU GIGA 38m Truck-Mounted Mobile Concrete Mixer Pump Truck

 ISUZU GIGA 38m Truck-Mounted Mobile Concrete Mixer Pump Truck

ISUZU GIGA 38m Truck-Mounted Mobile Concrete Mixer Pump Truck

ISUZU GIGA 38m Truck-Mounted Mobile Concrete Mixer Pump Truck
