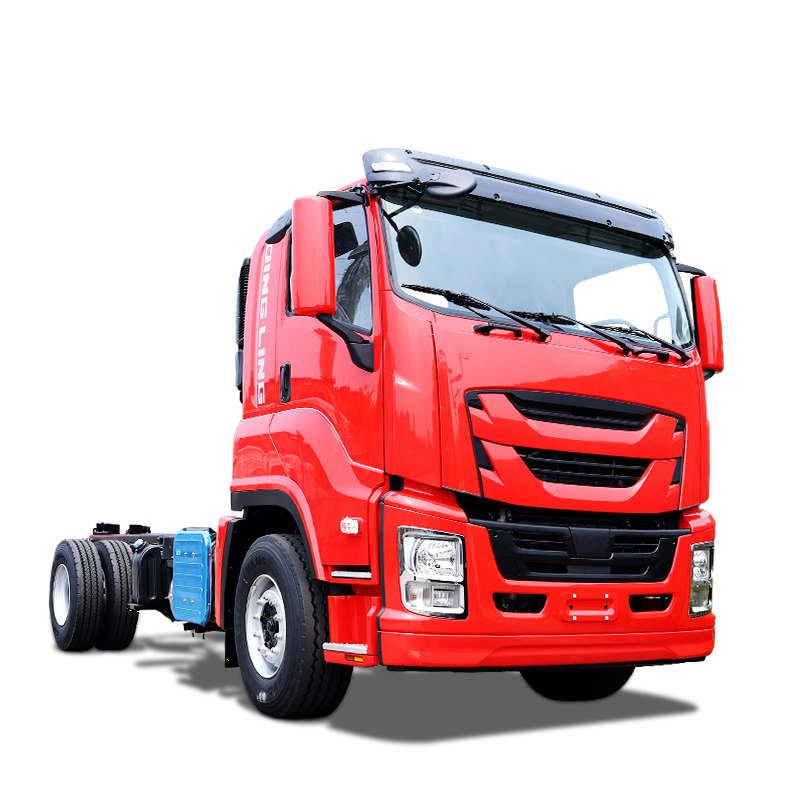

ISUZU GIGA VC61 66 FUEL WATER CARGO TRUCK CHASSIS FOR SALE
Order(MOQ):
1
| Vehicle Model | QL4180U2JDR | |
| Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 5790×2540×3720mm |
| Wheelbase: | 3450mm | |
| Front/ Rear Wheel Distance: | 2065/1875mm | |
| Front/Rear Suspension | 1370/970mm | |
| Weights and Capacities | Curb Weight: | 6870kg |
| GVW: | 18000kg | |
| Axle Loads: | 7000/11000kg | |
| Engine | Engine Model: | 6UZ1-TCG50 |
| Max output: | 279Kw | |
| Displacement: | 9839ml | |
| Horsepower: | 380Ps | |
| Exhaust Gas Treatment Technology： | SCR | |
| Cabin | Number of Seats: | 2 |
| Cabin type | Standard Roof One Bed | |
| Chassis | Drive Type: | 4x2 |
| Tires: | 7(Including Spare Tire） | |
| Fuel tank | Capacity | 600L |
| Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | ABS | |
| 4 | Tubeless Tire | |
| 5 | Retro-Reflective Marking | |
| 6 | Free Maintenance Battery | |
| 7 | Central Lock | |
| 8 | Power Window | |
| 9 | Driving Data Recorder | |
| 10 | Widened Bumper | |
POWERSTAR's Isuzu GIGA 8x4 chassis uses an Isuzu VC66 6x-level cab, air conditioning, power steering, central locking, electric doors and windows, multi-function steering wheel, multi-function LCD instrument, ABS, and air brake. It has a 4-axle design, a wheelbase of 1850+4575+1370mm, and is equipped with a 6WG1-TCG62 520HP inline six-cylinder diesel engine with a displacement of up to 15.681 liters, a maximum output power of 382 kilowatts (520 horsepower), and a maximum torque of 2250 Nm in the speed range of 900 to 1300 rpm. It is matched with a FAST 12-speed gearbox to improve the transmission accuracy and carrying capacity.
Learn More
Isuzu Giga 8x4 12 wheels Cargo Tank Fire Truck chassis cab, Isuzu Giga 8x4 12 wheels truck chassis cab 6UZ1 6WG1 diesel engine Isuzu Giga 8x4 12 wheels truck chassis cab 6UZ1 6WG1 diesel engine Isuzu Giga 8x4 12 wheels truck chassis cab 6UZ1 6WG1 diesel engine Isuzu Giga 8x4 12 wheels truck chassis cab 6UZ1 6WG1 diesel engine Isuzu Giga 8x4 12 wheels truck chassis cab 6UZ1 6WG1 diesel engine Condition New Steering Left Emission Standard Euro 5/6 Brand Name ISUZU GIGA Place of Origin China SUIZHOU Segement Heavy truck Market Segement Logistics transportation Engine Brand ISUZU Fuel Type Diesel Engine Capacity > 15.6L Cylinders 6 Horsepower 350hp, 420hp, 460hp, 520hp Gear Box Brand FAST 12-shift Transmission Type Manual Forward Shift Number 10 Reverse Shift Number 2 Maximum Torque(Nm) 1500-2000Nm Size 11182*2496*3215 Cargo Tank Dimension 8600*2400*500mm Cargo Tank length ≥8m Cargo Tank Type Chassis Gross Vehicle Weight 15001-20000 kg Capacity (Load) 31 - 40T Fuel Tank Capacity 300-400L Drive Wheel 8X4 Passengers 3 Driver's Seat Normal Seat Rows Half a row Rear Camera None Cruise Control Normal ABS(Antilock Braking System) Yes ESC(Electronic Stability Control System) Yes Touch Screen None Multimedia System Yes Window Manual Air Conditioner Manual Tire Number 12 After-sales Service Provided Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service Product name Heavy Duty Cargo Truck Chassis Brand ISUZU GIGA Engine 6WG1-TCG52 Color Customer's Request
Learn More
Isuzu famous GIGA chassis for Philippines police fire fighting,it is equipped 6WG1-TCG60 engine with 420HP ,5550mm wheelbase,4x2 drive type and 6 wheels.It has simple design, lightweight, and fuel-efficient as quality,powerful and stable performance.
Learn More
Isuzu GIGA 6X4 VC66 chassis, half-row cab, 11000x2540x3080mm size, 5820+1370mm wheelbase, 35000 switch total mass, 9900kg curb weight, front axle load 9 tons, rear double axle load 26 tons, front wheel 385/65R22.5, rear wheel 315/80R22.5, equipped with Isuzu 6WG1-TCG61, 460HP, Euro VI 15.681L emission, maximum speed 100km/h, equipped with 600L large-capacity fuel tank, can be used to modify heavy-duty special vehicles.
Learn More
The Isuzu GIGA 6X4 VC66 chassis uses an Isuzu Class II truck chassis with a 4600+1370mm wheelbase, a total mass of 35 tons, a curb weight of 9.2 tons, and front and rear axle load-bearing capacity of 9000/13000/13000kg. It is equipped with an Isuzu 6WG1-TCG60 420HP Euro VI engine with 2250N.m of torque and a displacement of 15681ml. It is equipped with a Fast 12-speed gearbox, a fuel tank of 200L, a maximum speed of 100km/h, a 4.555 speed ratio, 385/65R22.5 front tires and 315/80R22.5 rear tires with tubeless tires, electric windows, power steering system, air conditioning, and ABS anti-lock braking system.
Learn More
Isuzu GIGA 8x4 chassis, extended cab, 2100+4325+1370mm wheelbase, 9000/9000/26000kg front/rear axles, ZF 12TX2420TD automatic transmission, Isuzu 6WG1-TCG62 engine, 12R22.5 tires, 400L fuel tank, maximum speed 85km/h.
