Isuzu heavy rescue fire truck

Isuzu heavy rescue fire truck on sale
Isuzu heavy rescue fire truck on sale
Isuzu heavy rescue fire truck on sale
Isuzu heavy rescue fire truck on sale
Isuzu heavy rescue fire truck on sale
Isuzu heavy rescue fire truck on sale
Isuzu heavy rescue fire truck on sale
Isuzu heavy rescue fire truck on sale
Isuzu heavy rescue fire truck on sale
Isuzu heavy rescue fire truck on sale
Isuzu heavy rescue fire truck on sale
Isuzu heavy rescue fire truck on sale
Isuzu heavy rescue fire truck on sale

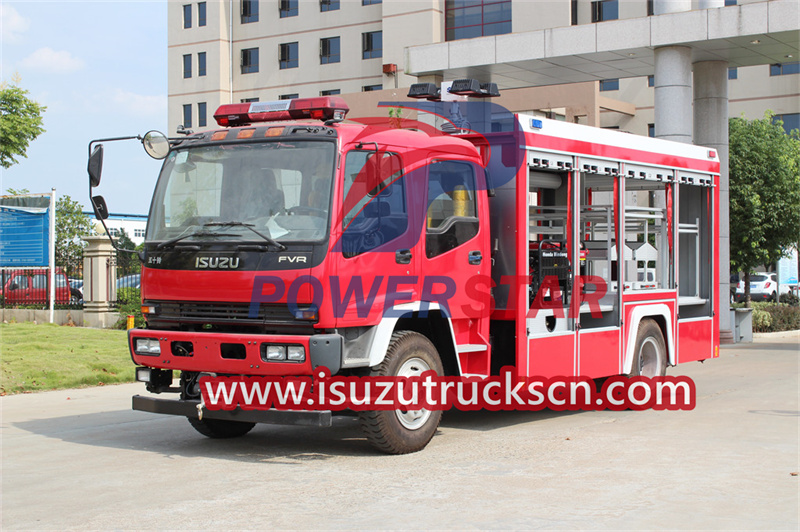

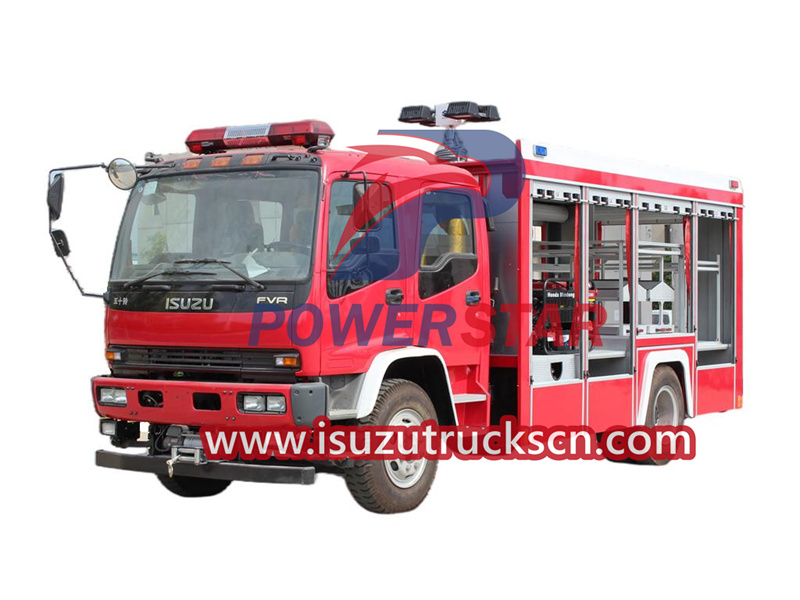

Isuzu heavy rescue fire truck

This Isuzu heavy rescue fire truck is a high-performance professional truck, which is very suitable for night construction, emergency rescue and other occasions that require large-area lighting. It adopts Isuzu's proven FTR 4X2 drive platform and is equipped with a 205-horsepower 4HK1 engine. It is powerful and complies with Euro 5 emission standards. The large-capacity 200L fuel tank can meet the needs of long-term operations.





  • Work capacity:

    8M working height
  • Truck model:

    PT5183GXF
  • Engine power:

    205hp
  • Engine type:

    Isuzu 4HK1
  • Axle drive:

    4x2
  • Gear box:

    MLD 6-speed, Manual
  • Remarks:

    Vehicles can be used for fire lighting and to provide fire fighting equipment

Isuzu heavy rescue fire truck

 Applications:

ISUZU FTR rescue fire vehicle (also called ISUZU Fire rescue truck with crane, Emergency Fire Rescue Truck ISUZU, 4*2 firefighting truck with lighting system and crane, 6-wheel Fire Vehicles with Crane, good quality fire vehicle with lighting system and crane) is apply for fire brigade of large and medium city, petrochemical enterprises, airports and harbors and so on, to put our large area fire of oil and other substance.



CEEC TRUCKS can supply water fire truck, foam fire truck, Foam and powder fire vehicle, Emergency fire truck, Fire pumper, Industrial fire vehicle, CAFS fire trucks and so on.



All of our fire trucks are equipped with complete fire protection equipment and you can extinguish the fire immediately.



 Key Features:

---- ISUZU chassis, perfect performance

---- ISUZU engine & gearbox, super powerful, no overhaul within 100,000 km.

---- Water tank and Foam tank capacity can be optional.

---- Easy operation and easy maintenance.

---- Various types of fire equipment are available.

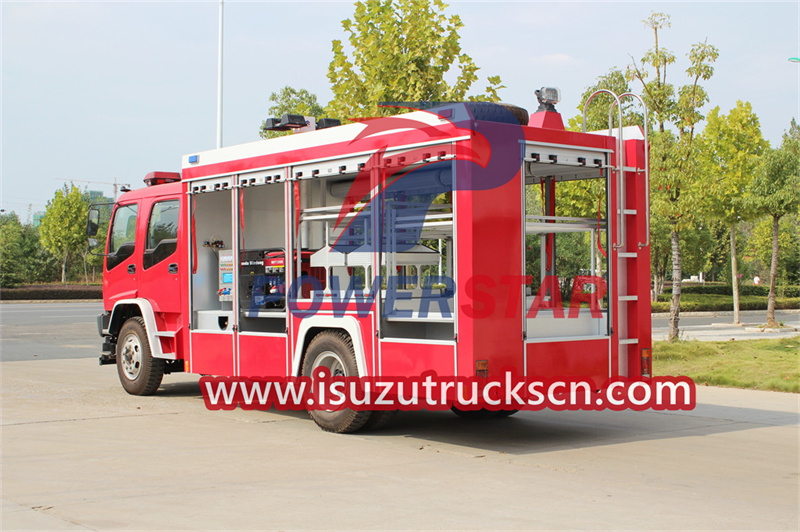

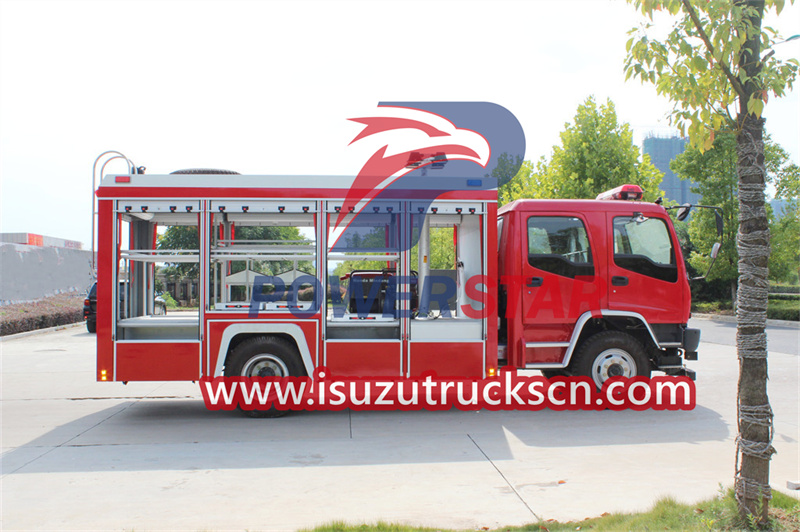

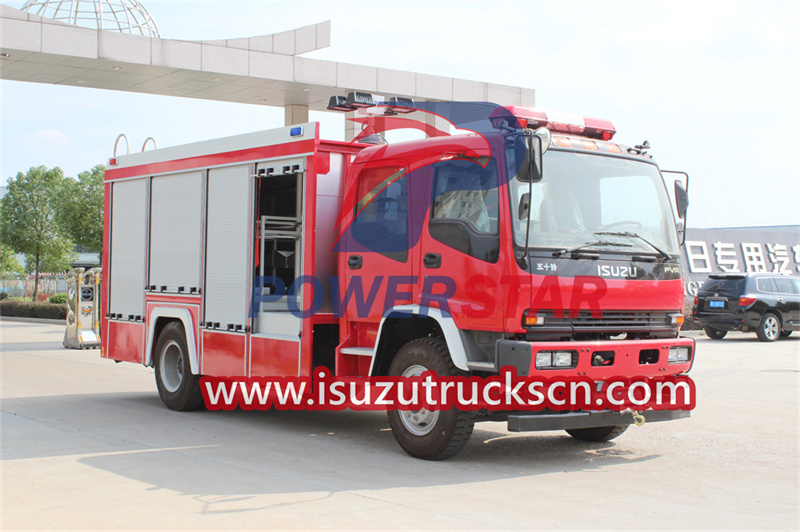

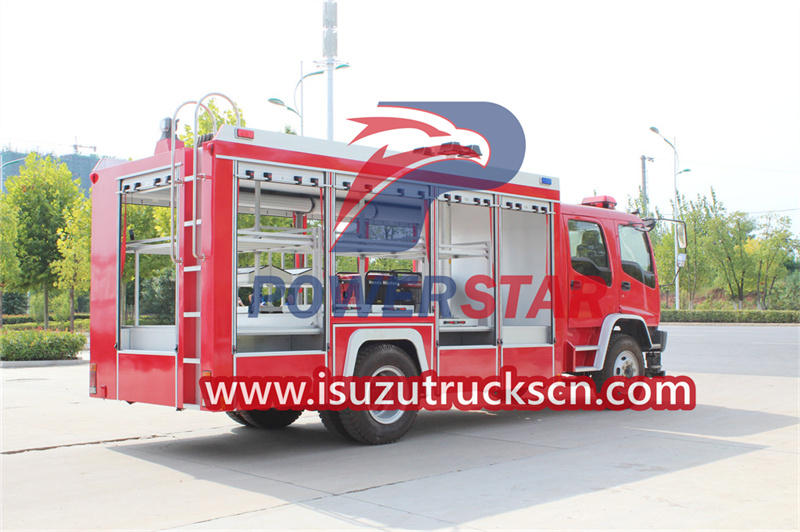

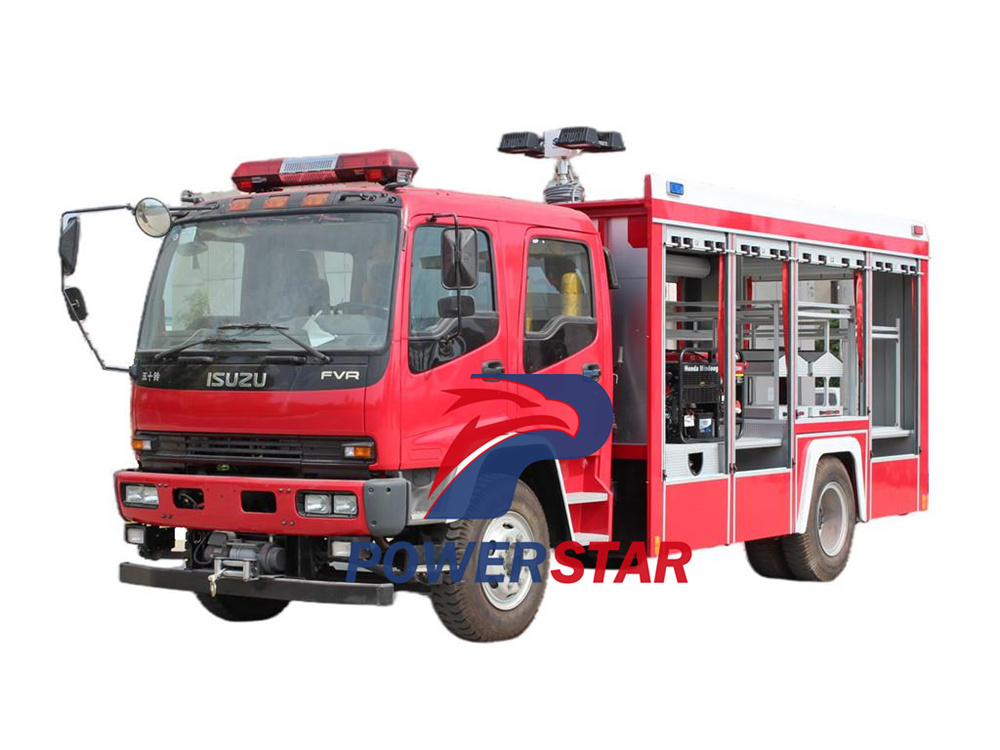

  Isuzu FTR rescue lighting truck

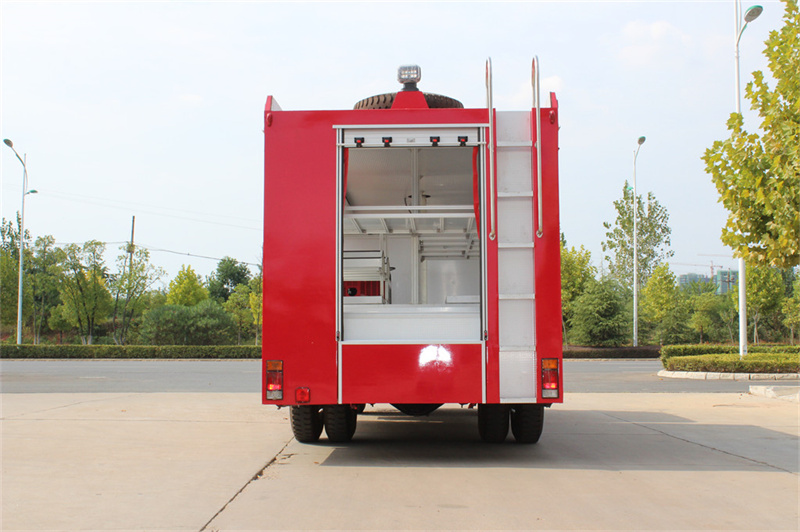

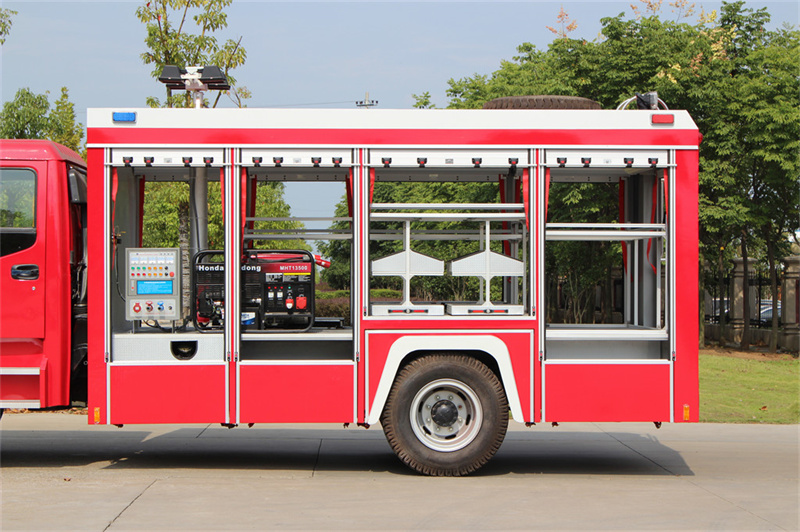

The Isuzu FTR rescue lighting truck is a special vehicle designed for fire rescue scenes. It adopts the chassis platform of the Isuzu FTR series, which has strong power and excellent passability. The body is painted in bright red for fire trucks and is equipped with multiple storage compartments that can store various rescue equipment.

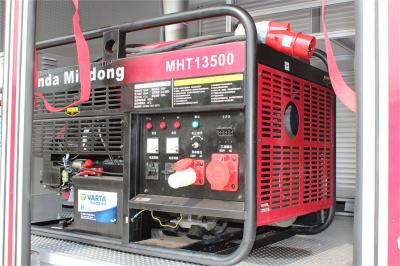

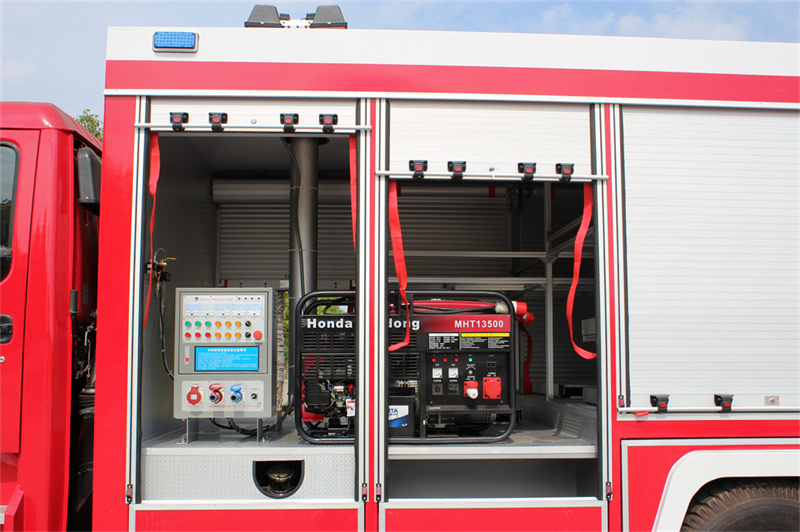

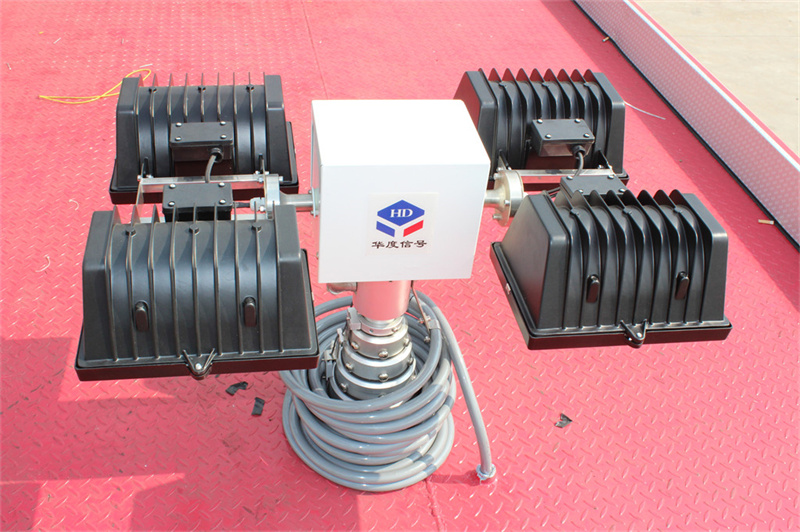

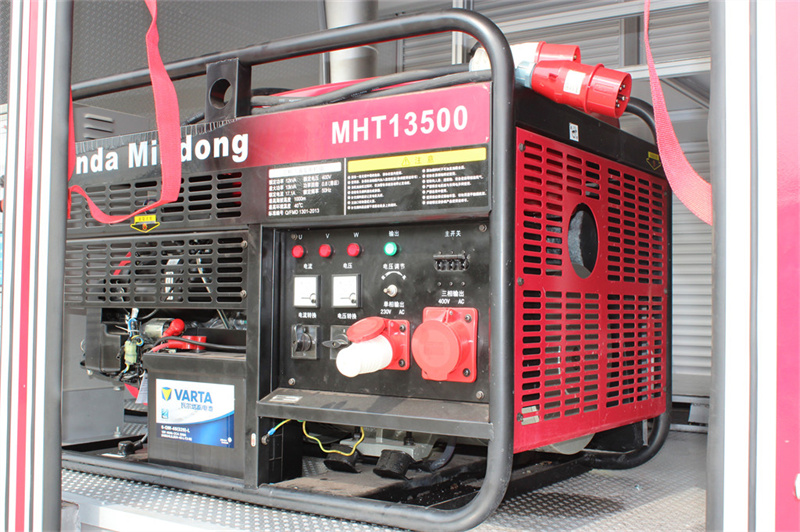

The roof is equipped with a powerful lighting system that can rotate 360 degrees, and can be raised and lowered to adjust the height and angle. The lighting range is wide and the brightness is high, which can fully meet the needs of different operations. The rear of the vehicle is also equipped with a generator that can provide independent power supply for lighting systems and other electrical equipment. The internal operation room is reasonably designed and equipped with advanced communication and command equipment to facilitate rescue personnel to perform tasks.

The Isuzu FTR fire rescue lighting vehicle integrates multiple functions. It is a flexible and practical fire-fighting special vehicle that can provide strong equipment support for fire rescue work. It has strong power, reliable performance, professional and efficient lighting system, and is ideal for night construction.Ideal for other fields.



 Specifications:



Isuzu FTR rescue lighting truck



Drive Model

4X2

Vehicle Main Dimensions

Dimensions(L x W x H)mm

8250*2480*3310

Wheel base (mm)

4500

Overhang (front/rear) (mm)

1430/2070

Wheel track (front/rear) (mm)

1880/1860

Approach/Departure angle(°)

20/13

Weight in KGS

GVW.

15550

Curb Weight

8100

Max. driving speed(km/h)

90

Allowable passengers in cab

2+3

Engine

Model

Isuzu 4HK1

Type

4-stroke direct injection , 6cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

205

Emission standard

Euro 5

Gearbox

6 forwards & 1 reverse

Fuel tank (L)

200L

Tire

295/80R22.5  6pieces+1 spare tire

Operation control system

Electrically hydraulic control



 Specifications:

As a high-performance emergency lighting truck, Isuzu FTR has a wide range of application scenarios.

Isuzu FTR rescue lighting truck

1. Night road construction: During night maintenance and construction of highways, bridges and other infrastructure, Isuzu FTR can provide bright and extensive lighting to create a safe and efficient working environment for construction workers and ensure project progress.

2. Emergency rescue: When serious traffic accidents, geological disasters and other emergencies occur, Isuzu FTR can quickly rush to the scene and use its powerful lighting system to assist in search and rescue, first aid and other work, improving rescue efficiency and reducing casualties.

3. Large-scale outdoor activities: When holding large-scale parties, music festivals and other outdoor activities, Isuzu FTR can be used as a mobile lighting vehicle and can be flexibly deployed to meet the lighting needs of different areas such as stages and audience areas, creating good visual effects and atmosphere.

4. Electric power emergency repair: When a power grid failure occurs and emergency repair is required at night, Isuzu FTR can provide sufficient lighting for maintenance personnel to facilitate troubleshooting and equipment maintenance, restore power supply as soon as possible, and reduce economic losses.

5. Firefighting support: In major fire accidents, Isuzu FTR can provide lighting support for firefighting vehicles and firefighters, assisting fire extinguishing, evacuation and other tasks. At the same time, its power generation system can also be used to power firefighting equipment to enhance fire rescue capabilities.

It is precisely by virtue of its excellent performance and comprehensive functions that the Isuzu FTR lighting truck shows its talents in night operations, emergency rescue and other fields, providing strong equipment support for related industries and becoming an indispensable and important force.
