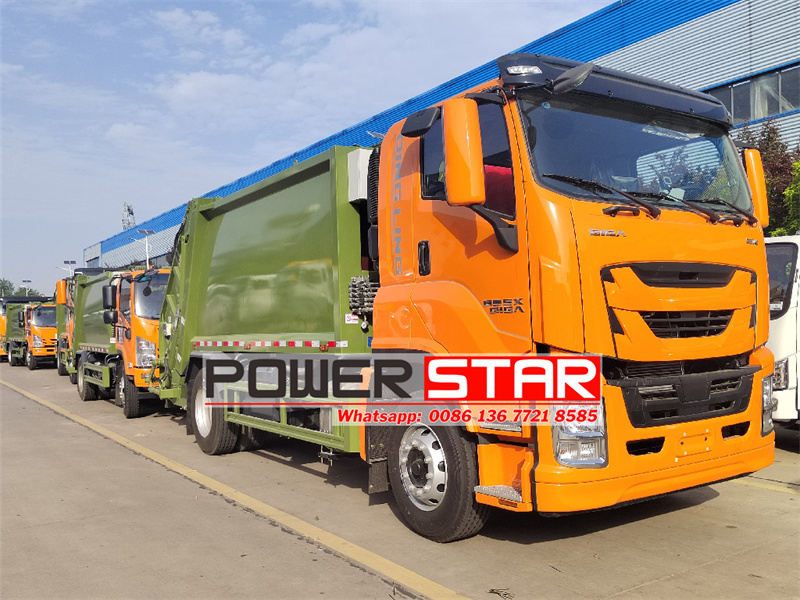

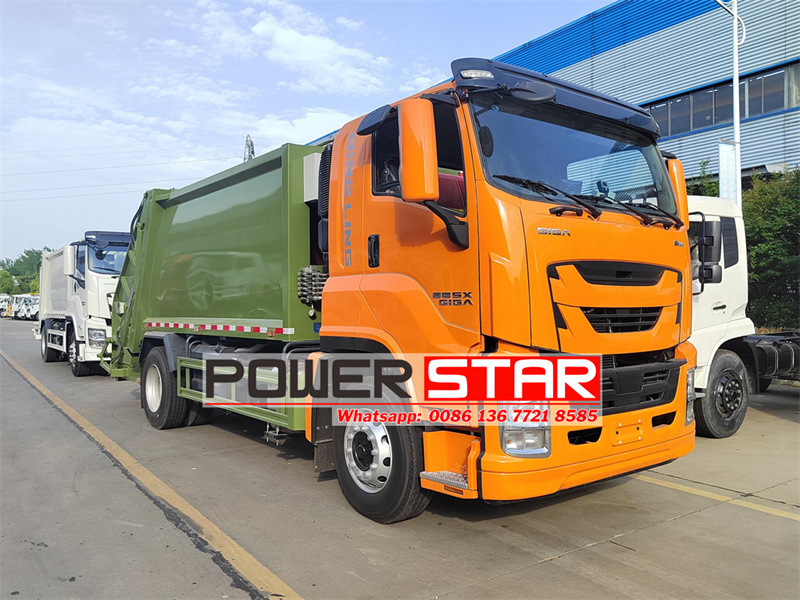

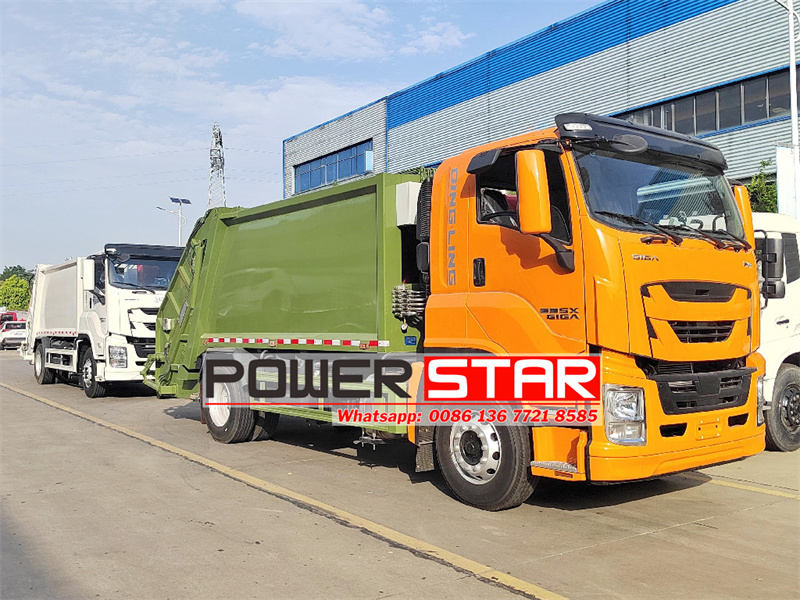

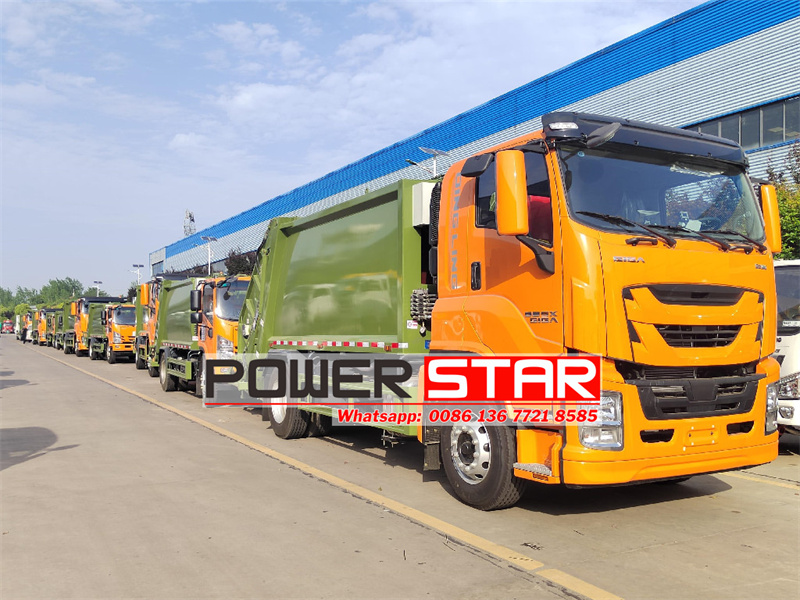

Isuzu EURO 6 GIGA 5X heavy duty garbage compactor truck for hot sale, Isuzu FVR 4*2 drive 6 wheeler truck chassis, 6HK1 engine with 240HP for sale, Fast 8-shift gear box, arc-shape compactor body with top Chinese brand hydraulic cylinders, CAN-BUS electric control system for easy operation, rear tilting device can be lifting 240L, 360L, 660L, 770L, 1100L international garbage bins, high strength T420 steel body with customized 14CBM capacity, all logos as request
Work capacity:
14CBMEngine power:
240HPEngine type:
Isuzu 6HK1-TCG61Axle drive:
4X2, LHDGear box:
FAST 8-shift with 8F & 1RRemarks:

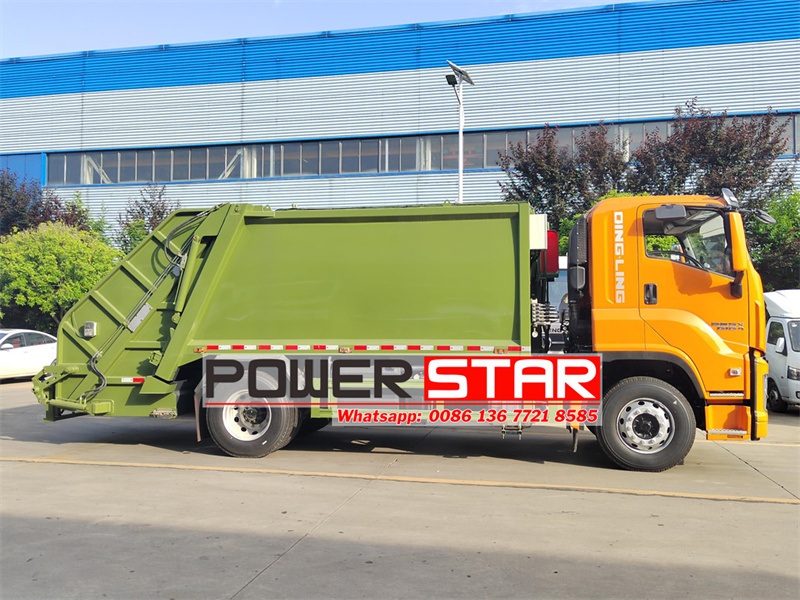

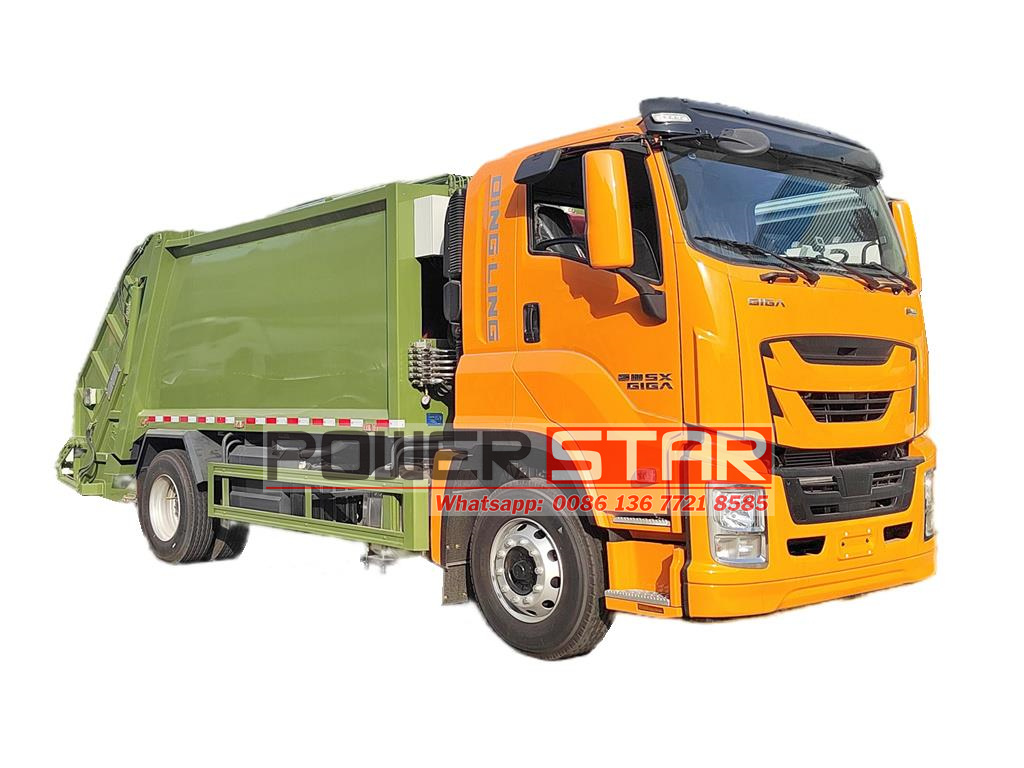

QL1180EQFRY chassis modelThe Isuzu heavy-duty 14cbm rear loader compactor truck is an urban sanitation vehicle with excellent performance. Isuzu GIGA 5X garbage compactor truck adopts the Isuzu EURO 6 model new GIGA 5X FVR classic cab with 3 seats and 1 sleeper, and is equipped with a USB interface radio and air conditioning to provide the driver with a comfortable driving environment. The Isuzu rear loader trash truck can reach a maximum speed of 95km/h. In terms of power, the Isuzu multi compartment rear loader is equipped with an Isuzu 6HK1-TCG61 engine with a displacement of 7790ml and a horsepower of up to 240 horsepower. The Isuzu FVR GIGA 5X refuse compactor truck body has a volume of 14 cubic meters, a side panel thickness of 5mm, and a bottom panel thickness of 5mm. It is made of carbon steel and high-strength steel T420 or Q550. The Garbage box is made of 5mm high-strength steel T420 and has been treated with anti-rust treatment inside and outside. The rear garbage bin has a capacity of 1.8-2.2 cubic meters and is equipped with a 200+200 liter sewage tank. Garbage box has a standard arc design.
The Isuzu FVR 14CBM refuse compactor truck adopts CAN-BUS electronic control system and hydraulic valve control system, and the control panel can be selected in English or customized language. The unloading method is horizontal push-out type. It comes standard with two 240-liter flip devices, and can be customized with different capacities such as 360L, 660L, 770L, and 1100L. Isuzu FVZ refuse compactor truck uses a spraying process of two coats of primer and one coat of topcoat. The color and logo can be customized according to customer needs. Factory standard configuration includes U-shaped subframe, hydraulic system, safety protection devices, rotating warning lights, work lights, armrests, fenders and rubber drop edges.
● China the best Isuzu refuse compactor factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery, 100% customer made.
|
Isuzu 4x2 heavy-duty 240hp 14cbm compressor garbage truck |
|||
|
Chassis |
|||
|
Cabin |

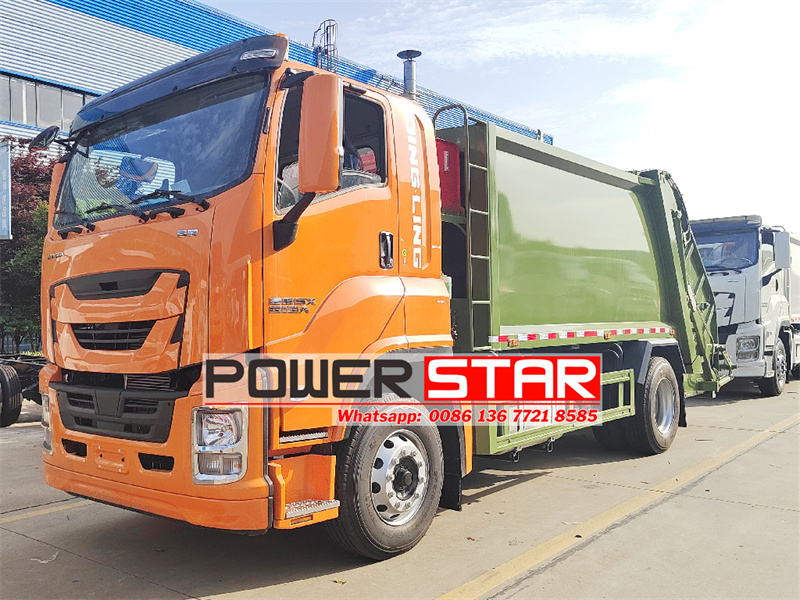

Brand: Isuzu new FVR GIGA 5X classical cab |
||
|
4x2 left hand drive |
|||
|
3 seats with 1 sleepers , USB connector radio, with A/C |
|||
|
|

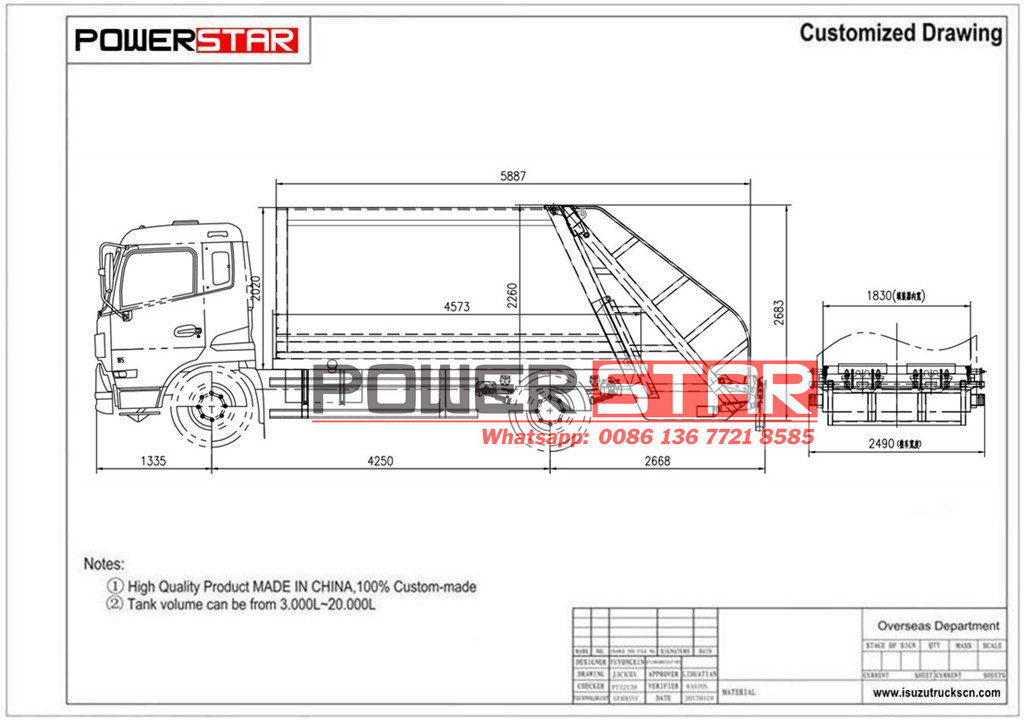

Overall dimensions (L x W x H) mm: 9200*2500*3300mm |
||
|
Wheel base: 4500 (mm) |
|||
|
Overhang (front/rear): 1500/3109 (mm) |
|||
|
Approach angle: 16° |
|||
|
Departure angle: 10° |
|||
|
Weight |
Gross weight |
18,000 kg |
|
|
Kerb weight |
9,200 kg |
||
|
Max. driving speed(km/h) |
95 |
||
|
|
Brand |
Isuzu |
|
|
Model |
6HK1-TCG61 |
||
|
Emission |
7790 ml |
||
|
Horse Power(HP) |
240 HP |
||
|
Gearbox |
Fast 8 Forwards gear & 1 reverse gear |
||
|
Tire |
295/80R22.5, 6 pcs+1 spare tire |
||
|
Axle |
2 axles, Front axles 6.3t, rear axle 13t |
||
|
Garbage box parameters |
|||
|
Volume |
14 CBM |
||
|
Thickness |
Side board 5mm, bottom 5mm |
||
|
Material |
Carbon steel and high tensile steel |
||
|
Tank Material |
4mm high strength steel T420, with inside and outside antirust treatment |
||
|

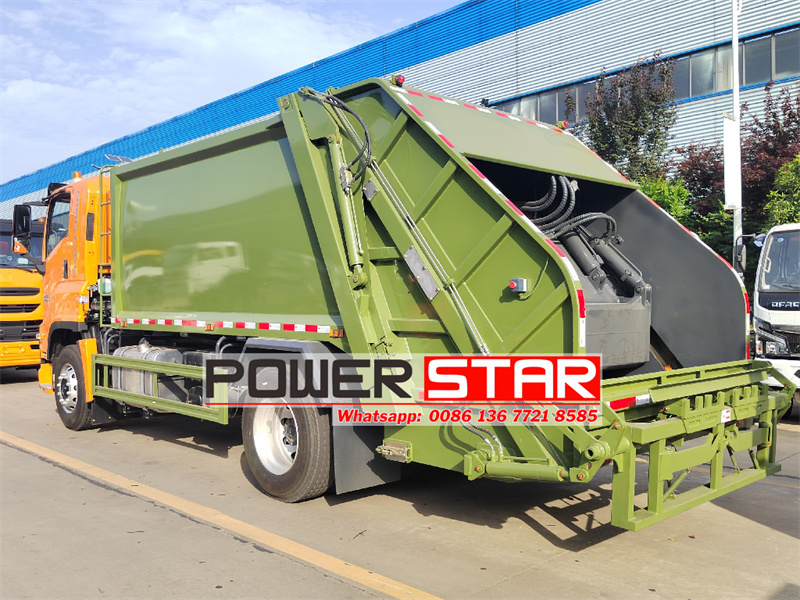

Rear Hopper |
1.8-2.2 CBM |
||
|
Waste Water Tanker |
200 + 200 Liters |
||
|
Body Shape |
Arc Shape as standard |
||
|
Control System |
CAN-BUS electric control |
||
|

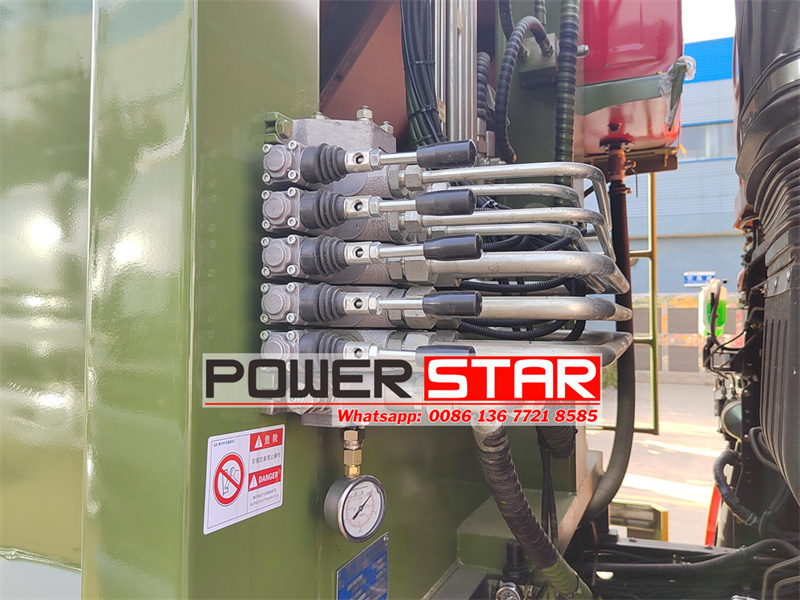

Hydraulic Valve control |
|||
|
Control Panel |
English or Your language |
||
|
Discharge Model |
Horizontal Ejection |
||
|

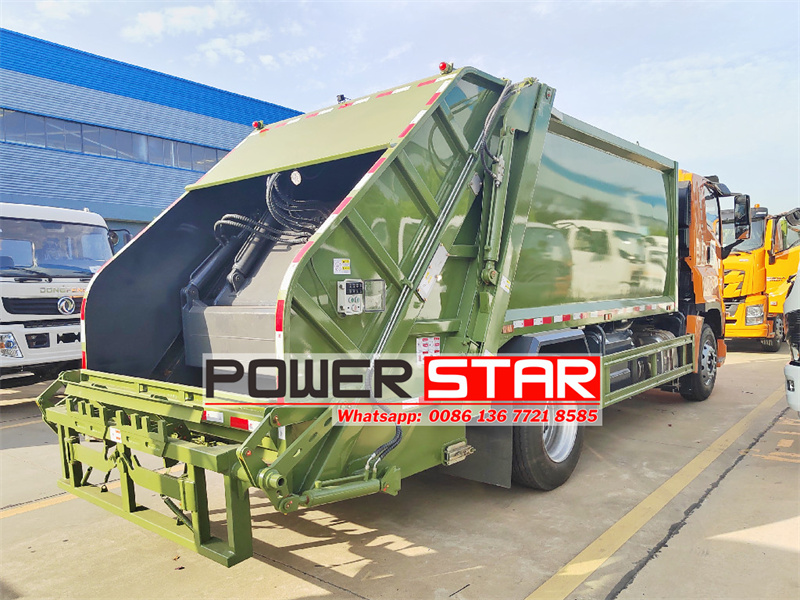

Tilting Device |
Standard 240L * 2 |
||
|
Customized 360L, 660L, 770L, 1100L bins |
|||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
"U" shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... |
||
Built atop the robust Japanese Isuzu new EURO 6 model GIGA 5X 4x2 truck chassis, the Isuzu 14CBM rear loader garbage compactor truck stands as a professional solution for comprehensive waste management in diverse environments. Ideal for daily waste collection and transportation in cities, large stations, ports, communities, airports, and densely populated industrial or military zones, this truck boasts high-quality imported components that ensure superior compaction pressure, excellent sealing capabilities, user-friendly controls, and unparalleled safety features. Its optimized design and labor efficiency make it a trusted partner in waste management operations, ensuring seamless and efficient waste disposal across various settings.
