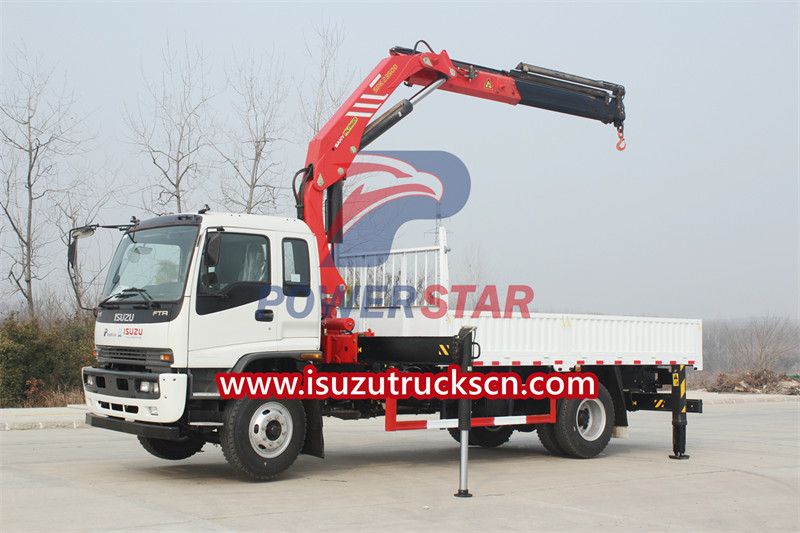

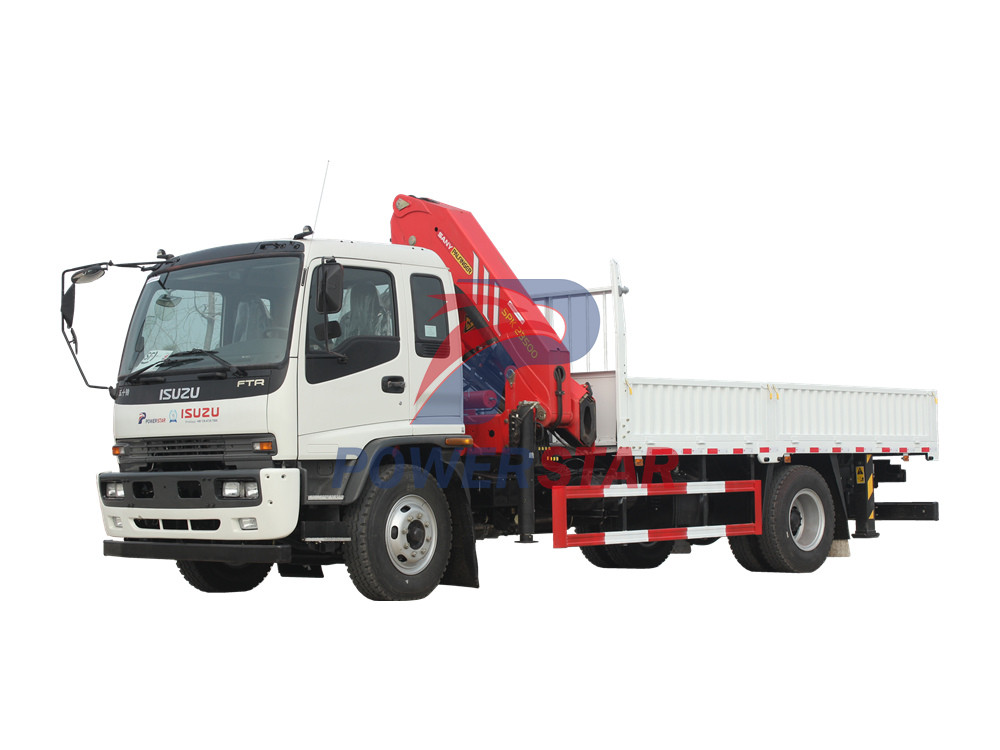

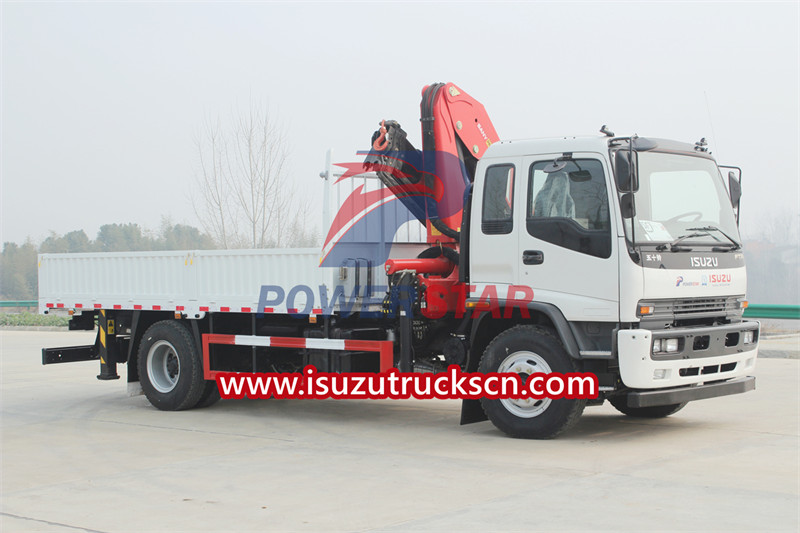

ISUZU Knuckle Crane Truck With Palfinger SPK23500

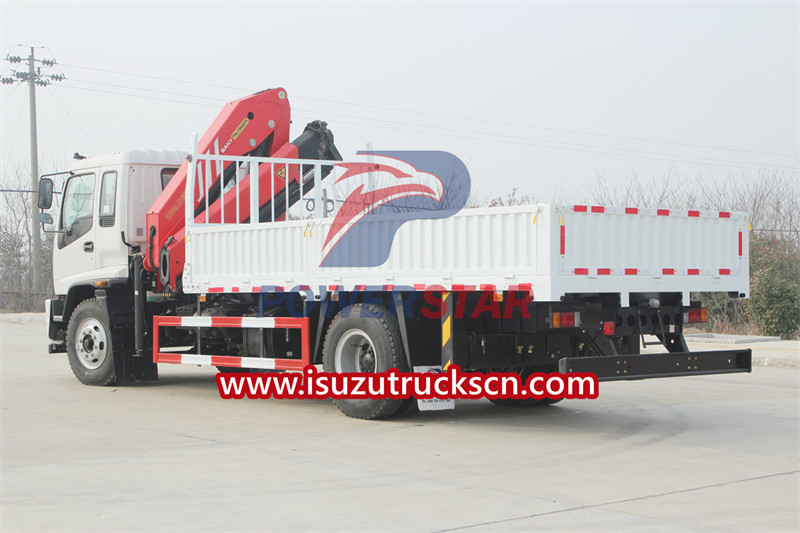

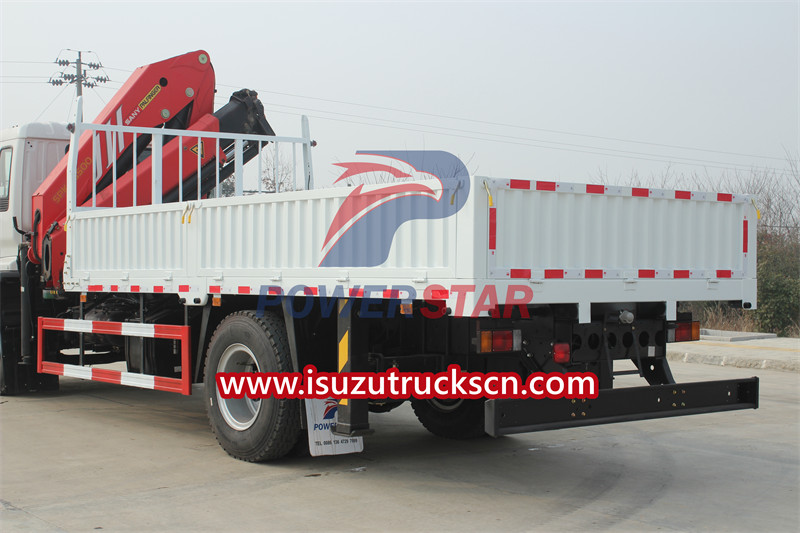

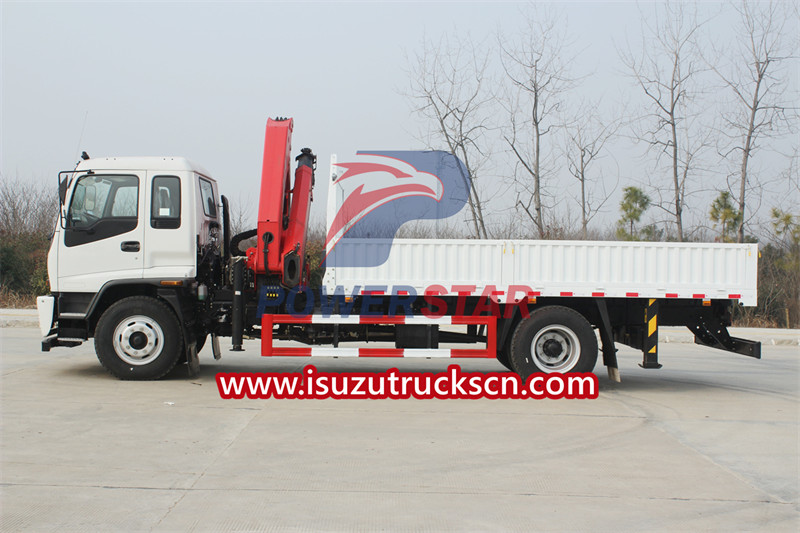

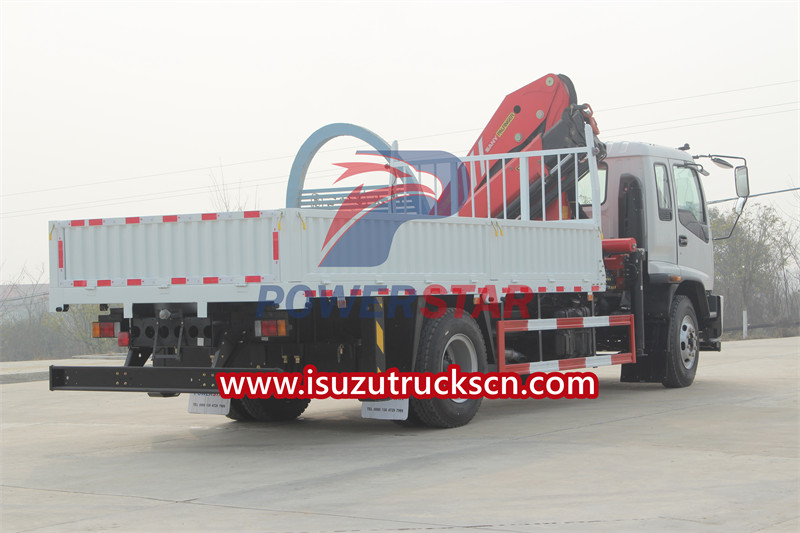

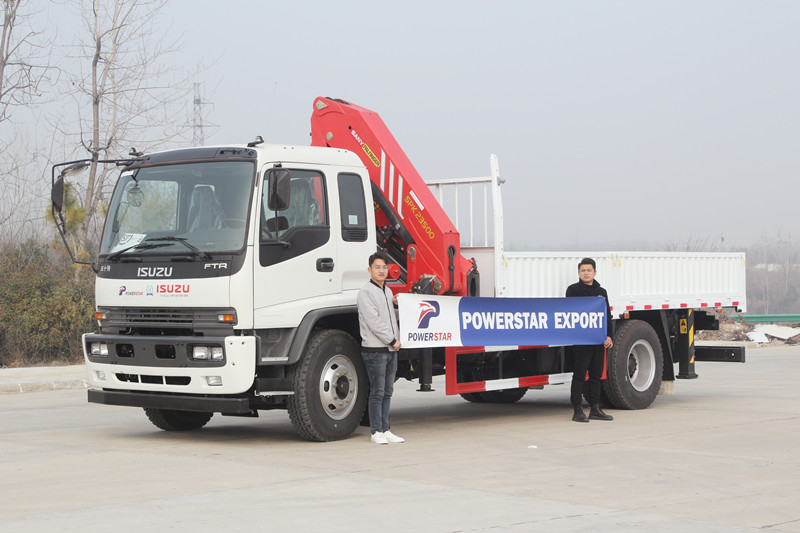

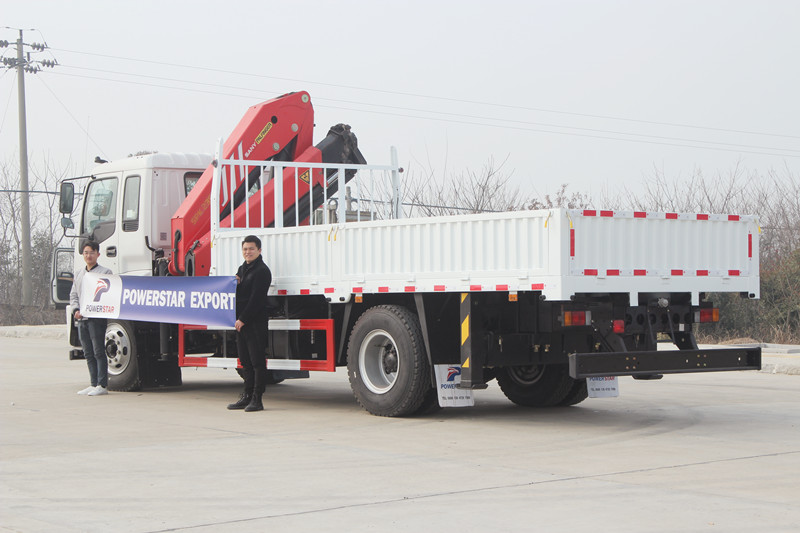

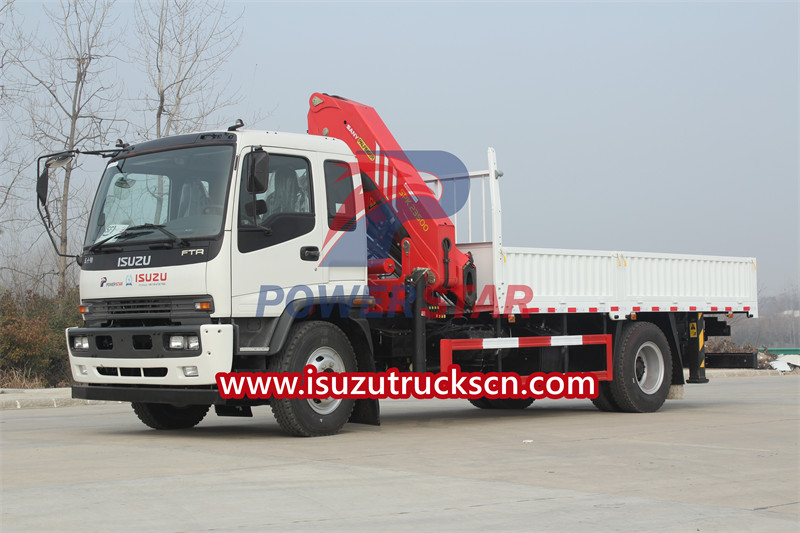

The ISUZU FTR knuckle crane truck is an engineering vehicle produced by POWERSTAR. This vehicle is modified based on the ISUZU FTR chassis, uses ISUZU diesel engine as the power source, and is equipped with the internationally renowned brand Plafinger SPK23500 knuckle boom crane, which has strong lifting capacity and high flexibility.
Work capacity:
10 tonTruck model:
PT5010JSQEngine power:
205 HPEngine type:
4HK1-TC50Axle drive:
4×2Gear box:
MLD 6-speed manualRemarks:

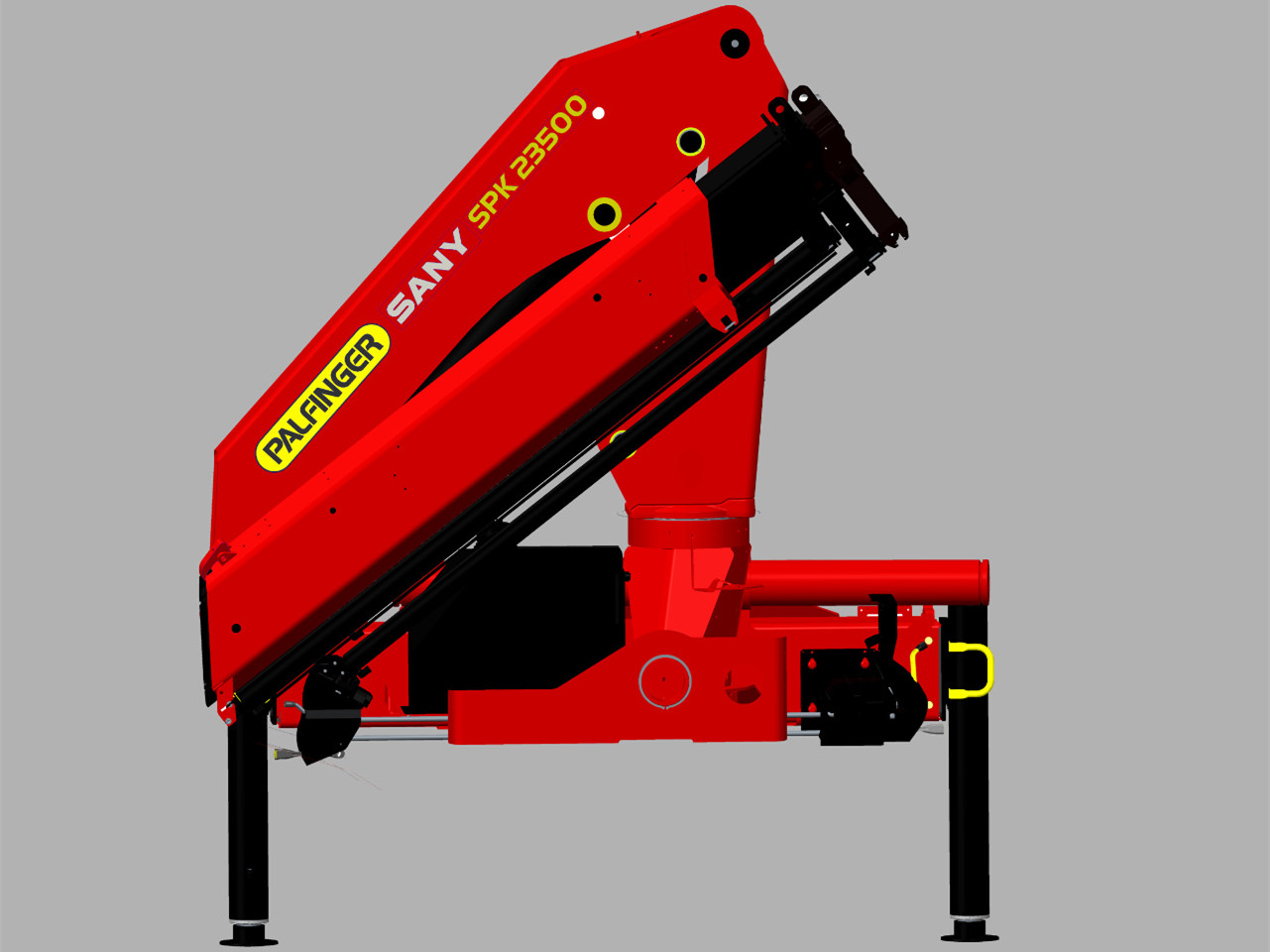

Palfinger SPK23500 knuckle boom crane

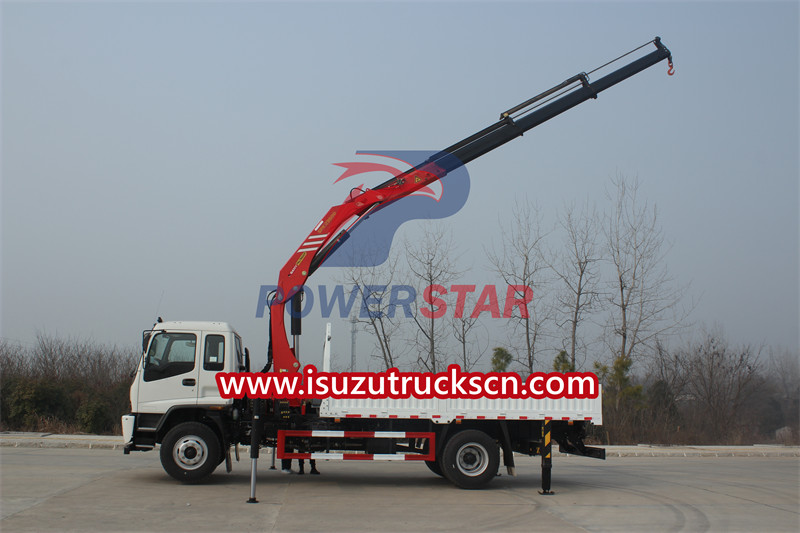

ISUZU truck-mounted crane, also known as ISUZU knuckle boom crane truck, ISUZU truck with crane, ISUZU telescopic boom crane, is a common industrial equipment and is widely used in logistics and transportation, construction engineering, power facilities and other fields. The knuckle boom crane truck is an important part of it, and one of its core features is the knuckle boom design. This design allows the boom to be folded when not in use, greatly reducing the space occupied and making transportation and storage easier. Knuckle booms are usually composed of multiple sections, and each section can be folded and unfolded independently, thereby realizing the telescopic function of the boom.

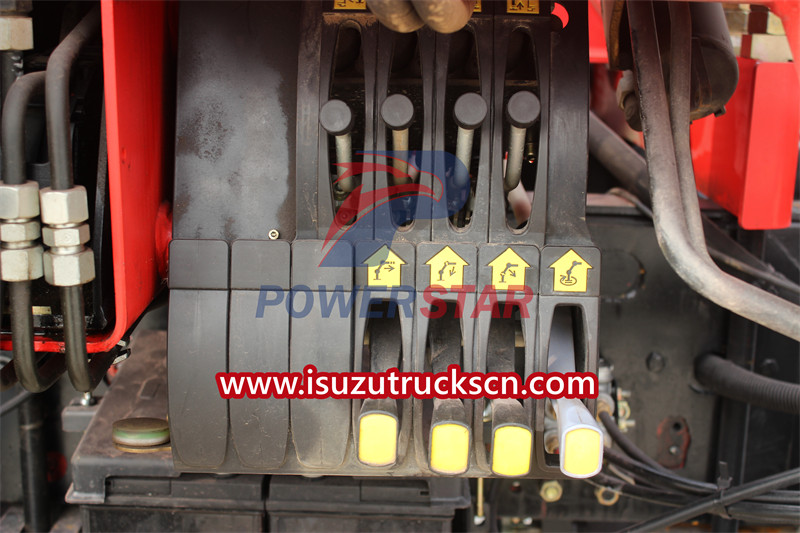

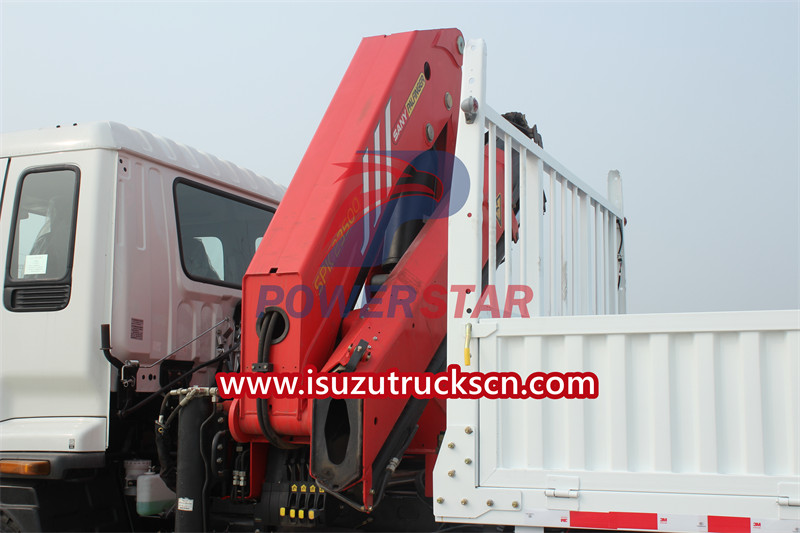

The boom of the ISUZU knuckle crane truck with Palfinger SPK23500 is mainly composed of legs, booms, hinges, hydraulic cylinders, etc. Its working principle is to control the expansion and contraction of the hydraulic cylinder through the hydraulic system, so that the length and angle of the entire boom can be adjusted, thereby realizing the lifting and rotation of hoisted items.
The ISUZU FTR knuckle boom crane truck is designed to meet the multi-functional needs. During transportation, the crane truck needs to be as small as possible so that it can pass through narrow roads and tight spaces. At the job site, the ISUZU FTR truck-mounted crane needs to have a large operating range and load-bearing capacity so that it can complete various lifting tasks. The application of the knuckle crane is precisely to achieve this goal.
Product Specificatons
|
Vehicle |
Model |
PT5100JSQ |
|
Overall dimensions |
9000*2500*3680 mm |
|
|
Cargo box dimensions |
5000*2500*550 mm |
|
|
GVW |
18000 kg |
|
|
Curb weight |
8500 |
|
|
Loading weight |
10000 kg |
|
|
Max speed |
90 km/h |
|
|
Chassis |
Chassis model |
QL1180VA |
|
Cabin |
ISUZU FTR single cabin, 2 seats with sleeper, A/C, ABS |
|
|
Driving type |
4×2, LHD |
|
|
Engine model |
4HK1-TC50 |
|
|
Engine brand |
ISUZU |
|
|
Displacement |
5193 ml |
|
|
Power |
205hp/151kw |
|
|
Max. torque |
650 N.m |
|
|
Emission standard |
Euro 5 |
|
|
Fuel |
Diesel |
|
|
Transmission |
MLD, 6-speed, manual |
|
|
Wheel no. |
6 wheeler |
|
|
Wheelbase |
5000 mm |
|
|
Tyre No. |
6+1 pcs |
|
|
Tyre model |
11.00R20 |
|
|
Suspension |
Leaf spring |
|
|
Brake |
Air brake |
|
|
Front axle |
6300 kg |
|
|
Rear axle |
13000 kg |
|
|
Crane |
Crane brand |
Palfinger |
|
Crane model |
SPK23500 |
|
|
Crane type |
Knuckle boom crane |
|
|
Max Lifting Capacity |
10000 |
|
|
Max Lifting Moment |
23 MT |
|
|
Lifting Height |
13.5 m |
|
|
Working Radius |
10.1 m |
|
|
Oil Tank Capacity |
150 L |
|
|
Boom Sections |
4 |
|
|
Rotation Angle |
Full 360 degree Rotation |
|
|
Crane Weight |
2376 kg |
|
|
Outrigger |
4 units |
|
|
Safety equipment |
Torque limiter, brake, anemometer, fire extinguisher |
Features of ISUZU knuckle boom crane truck
● Equipped with load holding valves for safe crane operations
● High speed boom extension and retraction with Return Oil Utilization
● Optimized lifting performance with the use of high tensile steel and hexagonal boom design
● Lightweight yet robust construction according to European standards (EN 12999)
● Optional Overload Protection and Emergency Stop Button
● Professional installation solutions
● Suitable for installation on 3-axle trucks
Advantages of ISUZU knuckle crane truck
1. Flexibility
ISUZU knuckle crane truck has high flexibility. Its knuckle boom can adapt to different job sites and lifting heights, while it can also adjust the lifting direction. This flexibility allows the ISUZU truck-mounted crane to adapt to different operating needs and improve its operating efficiency.
2. Stability
The boom of the ISUZU truck-mounted crane is reasonably designed, and the hinges between the outriggers and the boom are tightly connected to ensure the stability of the entire structure. Moreover, the ISUZU chassis uses larger wheels and a powerful braking system, which can effectively improve its stability and safety.
3. Save space
The knuckle crane allows the boom section to be completely folded and retracted, thereby greatly reducing the space it takes up. This design allows the vehicle to operate in a small space and also facilitates its transportation on the road.
4. Strong carrying capacity
The knuckle boom crane uses high-strength materials and reasonable structural design, which can carry a large weight. This increase in carrying capacity allows the ISUZU boom crane to complete more complex and important lifting tasks.
 |
 |
 |
 |
