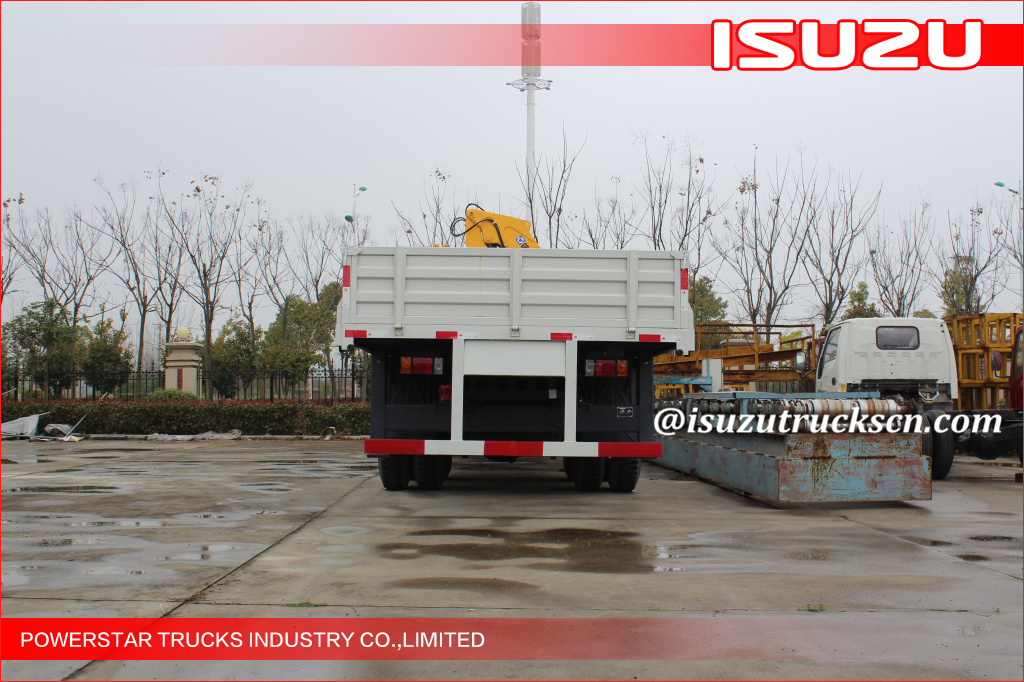

Isuzu Knuckle Truck Mounted Crane 6300kg Safety For Mining Industry
Order(MOQ):
1Isuzu Knuckle Truck Mounted Crane 6300kg Safety For Mining Industry
Durable XCMG Knuckle Truck Mounted Crane 6300kg Safety For Mining Industry
Description:
Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.
Knuckle boom crane SQ6.3ZK3Q is used for lifting 6.3tons, moment is 13.23T.M.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Specifications:
Model |
SQ6.3ZK3Q |
Unit |
Max Lifting Moment |
13.23 |
t.m |
Max Lifting Capacity |
6300 |
kg |
Recommend Power Needed At Recommend Oil Flow |
18 |
kw |
Max Oil Flow of Hydraulic System |
25 |
L/min |
Rated Pressure Of Hydraulic System |
28 |
MPa |
Oil Tank Capacity |
90 |
L |
Rotation Angle |
(360°) All Rotation |
° |
Crane Weight |
2226 |
kg |
Installation Space |
1050 |
mm |
Choice of Chassis |
ISUZU |
SQ6.3ZK3Q Lifting capability diagram |
|||||
Working radius (m) |
2.1 |
4.54 |
6.3 |
8.11 |
9.92 |
Lifting capacity (kg) |
6300 |
2700 |
1700 |
1200 |
850 |
Optional parts:
1, Moment limited device
2, Remote control equipment
3, Anti-overwind magnet valve
4, High seat on column
5, Work light
6, Assistant stabilizer leg
Stabilizer leg |
Spread |
Fixed |
2179mm |
Single extension |
2256-3556mm |
Double extension |
2212-4752mm |
