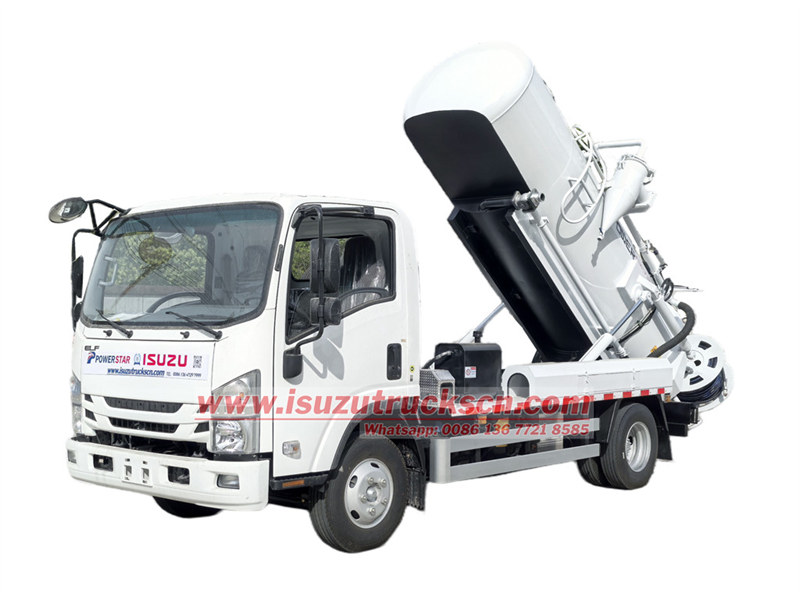

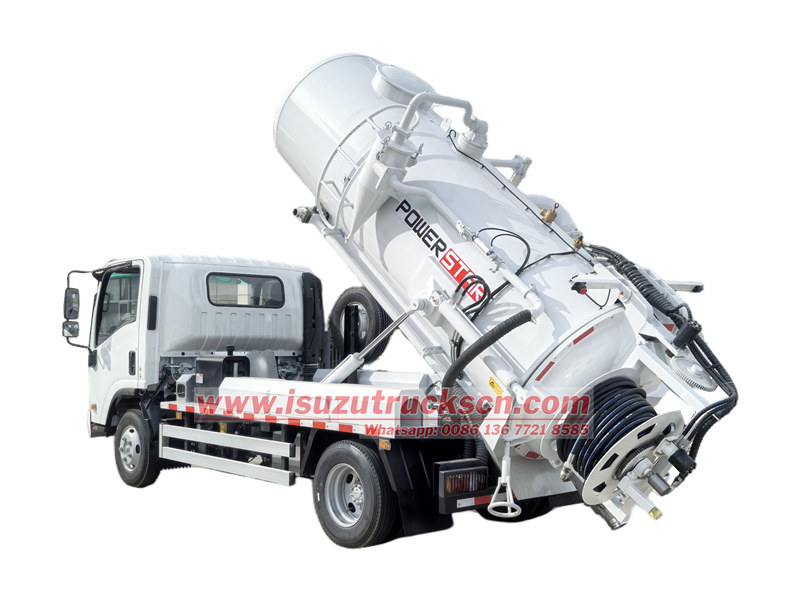

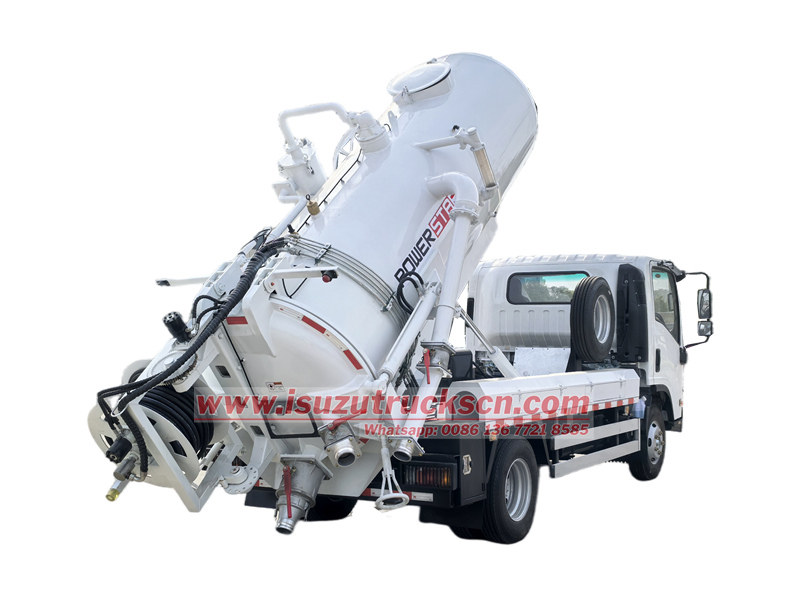

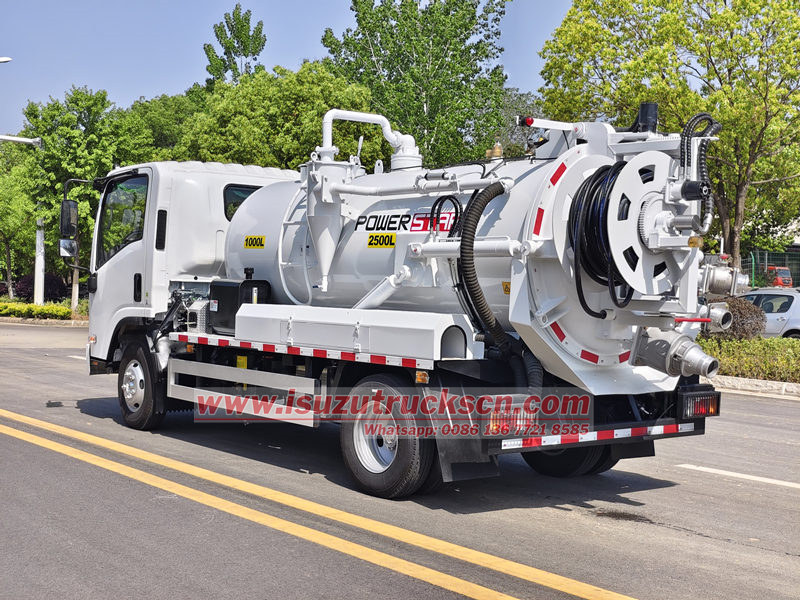

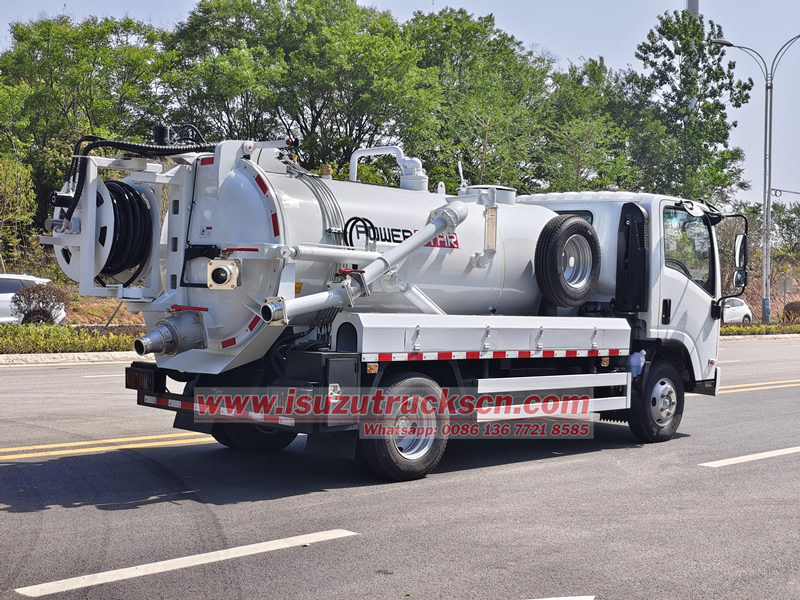

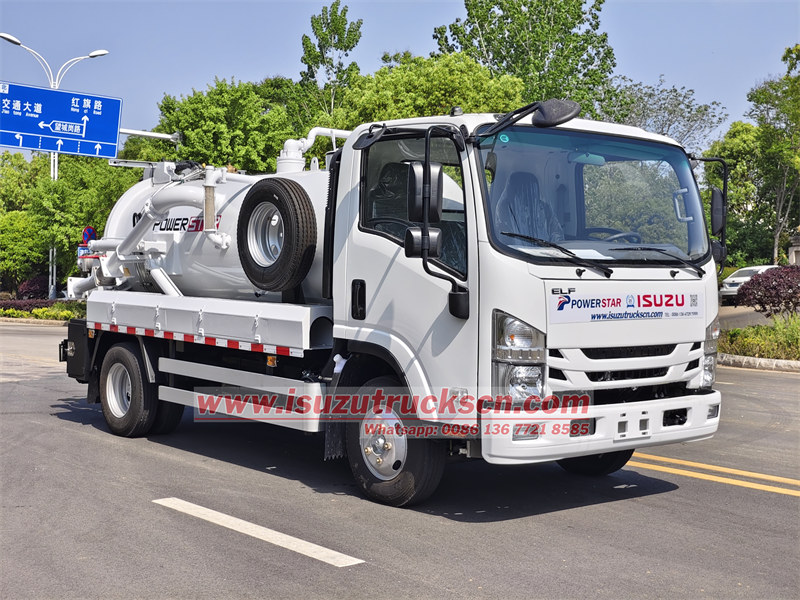

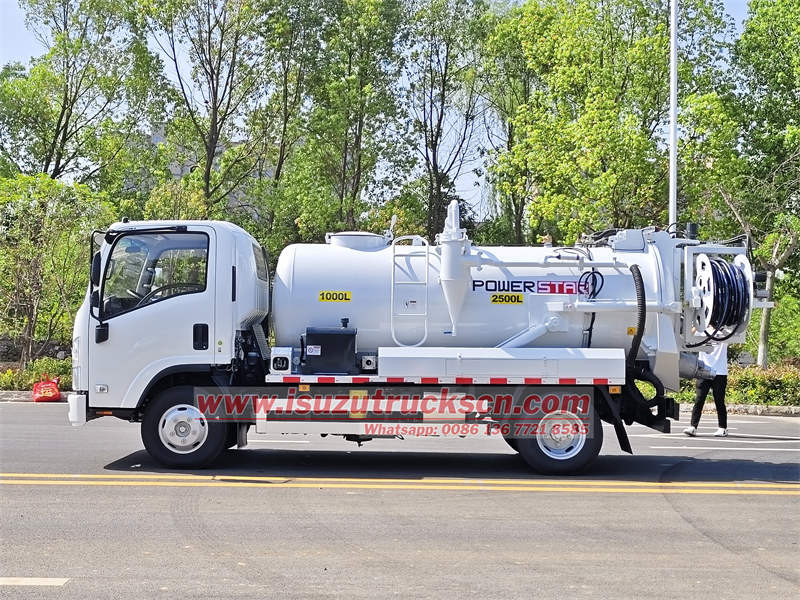

The ISUZU KV100 Sewer Jet Vacuum Truck is a versatile and practical vehicle designed for urban sanitation operations. Built on an ISUZU light-duty chassis, it features a 120HP diesel engine, a 2,000L sewage tank, and a 1,500L clean water tank. Equipped with a German PINFL high-pressure cleaning system (16MPa) and a 45L/s vacuum suction system, it efficiently handles routine tasks such as pipeline dredging and septic tank cleaning. The 3,360mm wheelbase ensures excellent maneuverability and stability, making it ideal for urban roads and residential areas.
Manufacturer:
POWERSTARWork capacity:
3500 litersDimension:
5900×2200×2550mmCabin type:
ISUZU ELF wide cabinWheelbase:
3360 mmEngine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4×2, left hand driveGear box:
MSB 5-speed, manualRemarks:
Italy MORO pump is optionalThe ISUZU Small Combined Vacuum Jetting Truck is a professional sanitation vehicle integrating high-pressure cleaning and vacuum suction functions. Based on the ISUZU KV100 OEM chassis, it is specifically designed for urban sewer maintenance and municipal pipeline cleaning. With compact dimensions of 5,900×2,200×2,550mm and a 3,360mm wheelbase paired with a 4×2 drivetrain, it balances road accessibility and operational stability. Powered by a Euro 6-compliant 4KH1CN6LB turbocharged diesel engine, it delivers 120HP and 290N·m of torque, ensuring reliable performance in stop-and-go operations. The axle load distribution (2,580kg front/4,720kg rear) guarantees safe operation under full load.
The superstructure of the ISUZU mini combination vacuum truck adopts a modular design, comprising three core systems:

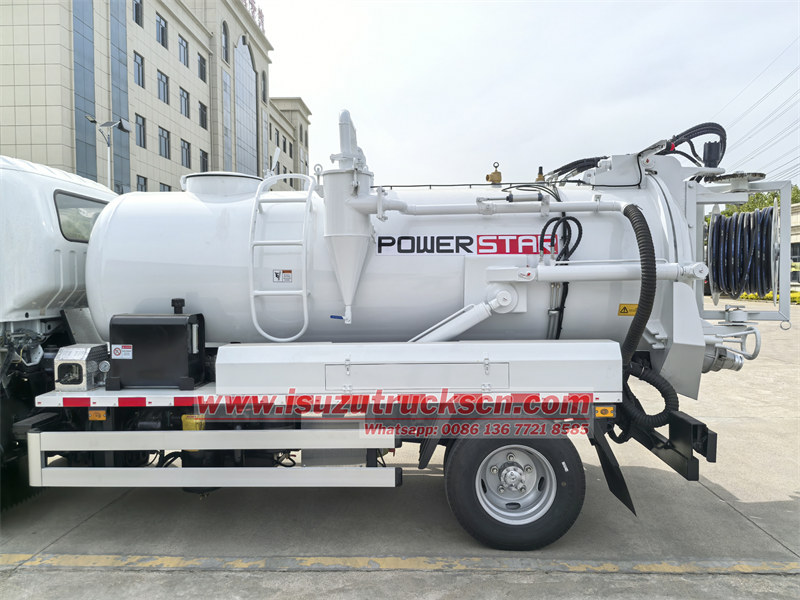

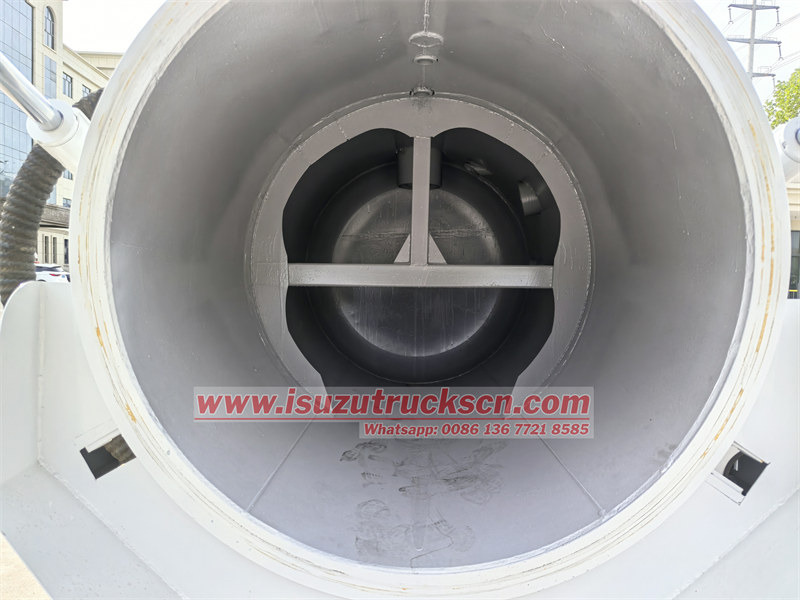

• A 2,000L sewage tank and 1,500L clean water tank, both constructed from 6mm-thick Q235 carbon steel for durability.

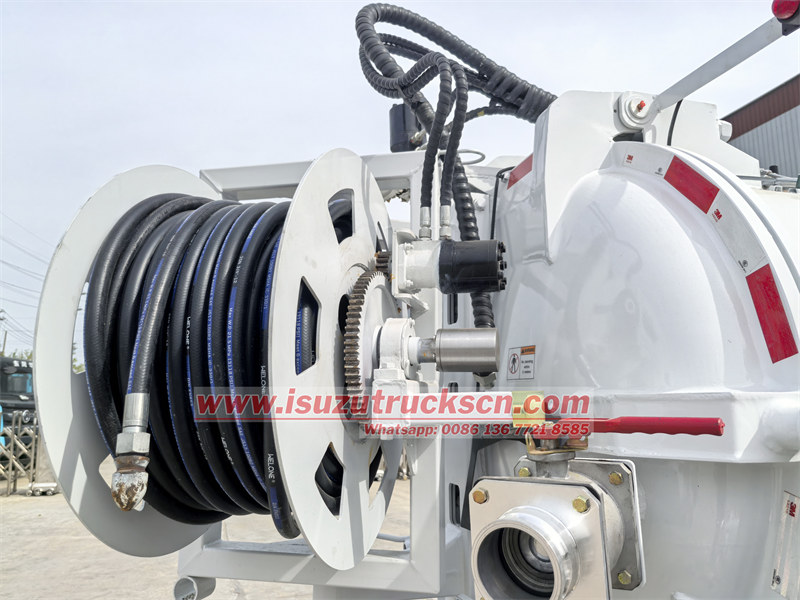

• A German PINFL PF36 high-pressure pump providing 16MPa working pressure and 122L/min flow rate, paired with a rear-mounted 60m × φ19mm high-pressure hose reel and 10 carbon steel nozzles for effective pipe deposit removal.

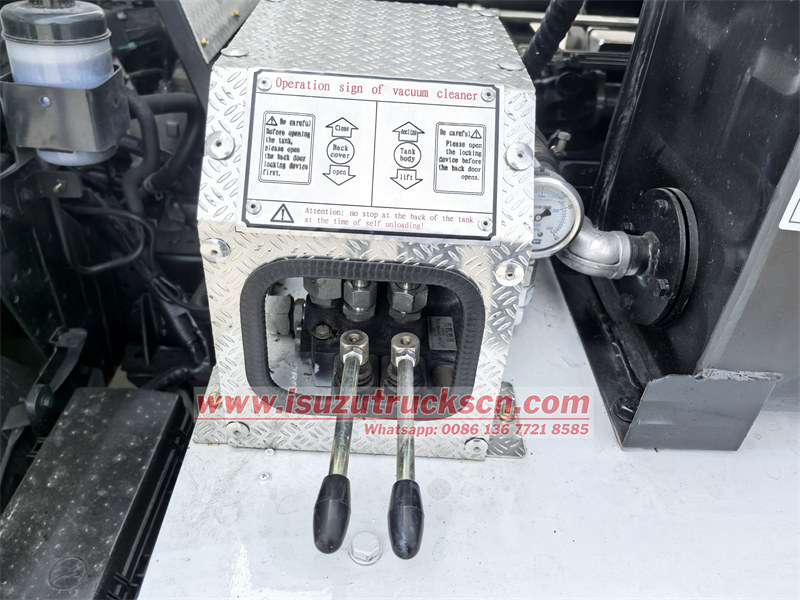

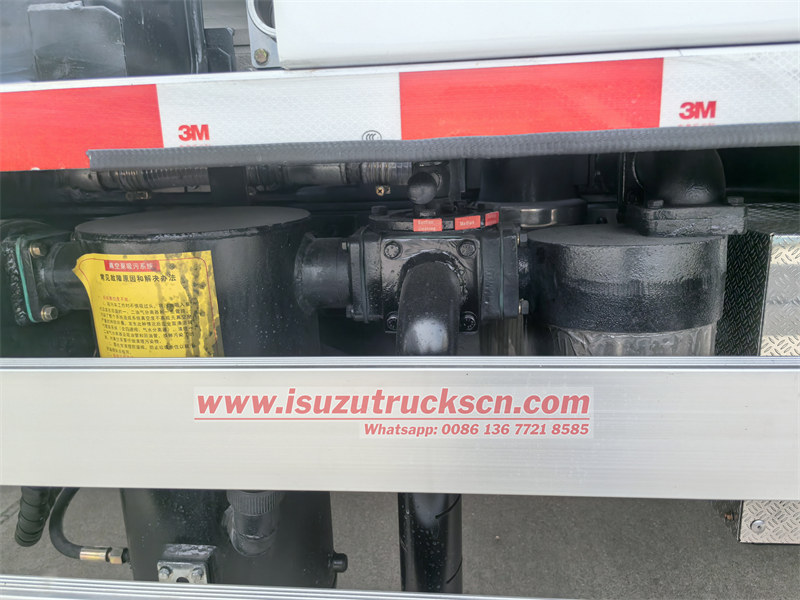

• A vacuum system with a 45/7000 pump offering 45L/s suction flow and 93% vacuum efficiency, supported by a 7m wire-reinforced suction hose for rapid waste extraction. The hydraulic control system uses domestically renowned gear pumps and multi-valves to ensure stable operation.
● 30 years experience on ISUZU vacuum truck designing
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● Be designed according to your requirements
Product Specifications
|
Chassis Specifications |
|
|
Model |
ISUZU KV100 |
|
Driving type |
4×2, left hand drive |
|
Wheelbase |
3360 mm |
|
Overall dimensions |
5900×2200×2550mm |
|
Front/Rear Tread (mm) |
1504/1425mm |
|
Front/Rear suspension (mm) |
1160/1375mm |
|
Front/Rear axle load |
2580/4720 kg |
|
Number of leaf springs |
8/6+5 |
|
Tires |
7.00R16LT 8PR |
|
Tire number |
6+1 (one spare tyre) |
|
Cabin |
ISUZU 3X wide cabin, single row, 3 seats, with air condition |
|
Transmissions |
ISUZU MSB, 5 speed forward 1 reverse. |
|
Max speed (km/h) |
90 |
|
Engine Specifications |
|
|
Manufacturer |
ISUZU |
|
Model |
4KH1CN6LB |
|
Rated Power |
120HP/88KW |
|
Engine type |
4 cylinders, in-line, turbocharged, inter-cooling |
|
Fuel type |
Diesel |
|
Emission standard |
Euro 6 |
|
Displacement |
2999 ml |
|
Rated speed |
2900 rpm |
|
Max. torqued |
290 N.m |
|
Tanker Specifications |
|
|
Sewage tank volume |
2,000 liters |
|
Sewage tank material |
Carbon steel Q235 |
|
Sewage tank thickness |
6 mm |
|
Water tank volume |
1,500 liters |
|
Water tank material |
Carbon steel Q235 |
|
Water tank thickness |
6 mm |
|
Water Jetting System Specifications |
|
|
Water pump brand |
PINFL (German brand) |
|
Model |
PF36 |
|
Flow rate |
122 L/min |
|
Rated pressure |
16 Mpa |
|
Speed |
800 r/min |
|
Power |
50kw |
|
Hose reel |

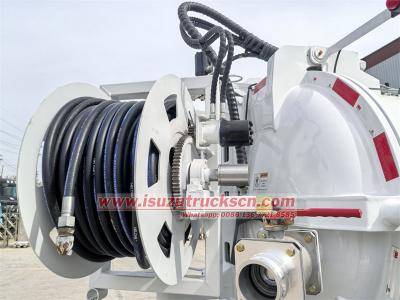

Rear-mounted hose reel with 60m φ19 high pressure hose |
|
Jetting spraying nozzles |
10 pcs carbon steel spraying nozzles |
|
Vacuum pump Specifications |
|
|
Model |
45/7000 |
|
RPM |
800 r/min |
|
Flow |
45 L/s |
|
Working pressure |
7000Pa |
|
Vacuum degree |
93% |
|
Power |
5kw |
|
Other configurations |
|
|
Tank lifting type |

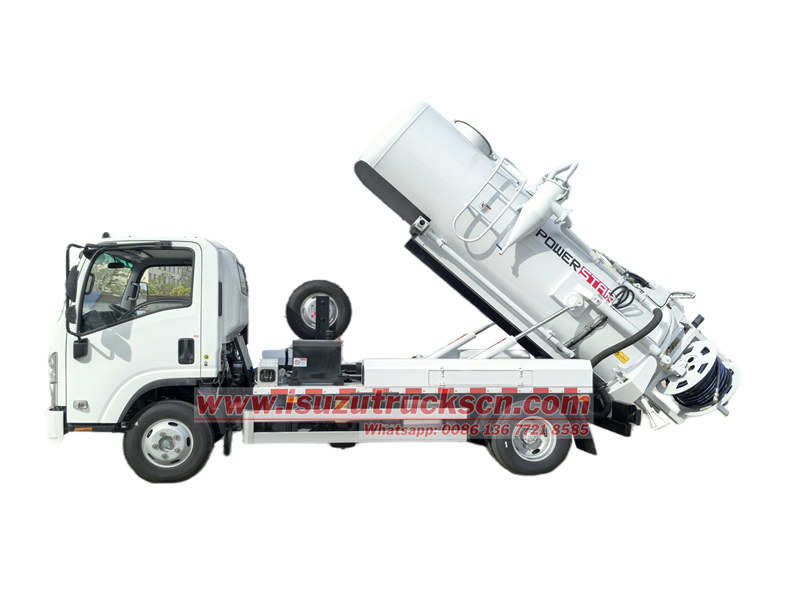

Lifting by hydraulic cylinders |
|
Tank lifting angle |
≥45° |
|
Sewage suction hose |
7m wire reinforced hose |
|
Control way |
Manual control |
|
Gear pump |
Chinese famous brand |
|
Multi valve |
Chinese famous brand |
|
Hydraulic cylinder |
Chinese famous brand |
Product Features
In terms of performance, this ISUZU combined sewer jetting truck features the following characteristics:
• The high-pressure cleaning system adopts a pressure-stabilizing design, ensuring stable working pressure.

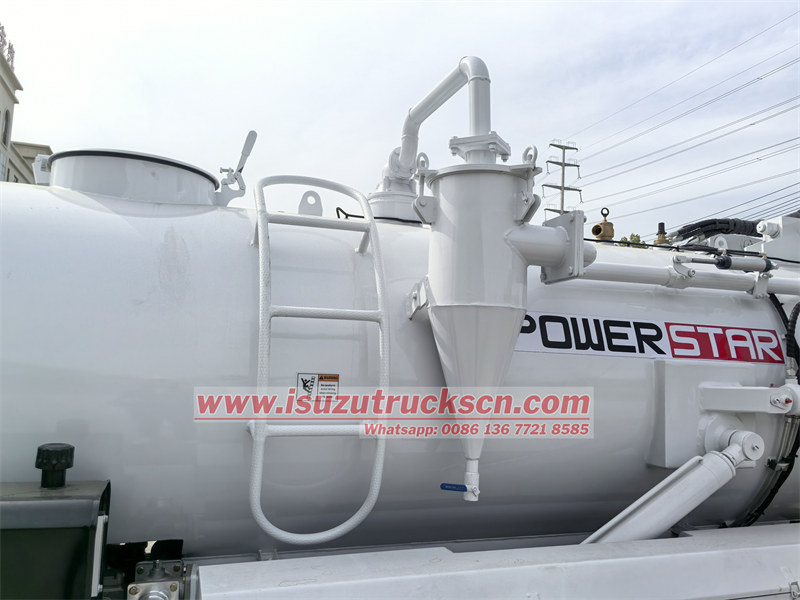

• The vacuum pump is equipped with a gas-liquid separation device to protect core components.
• The vehicle's center of gravity has been optimized for excellent stability during full-load operations.
• The wide-body cab provides seating for three, and the air conditioning system ensures operational comfort.
Product Applications
The ISUZU mini sewer jetter truck is primarily suitable for the following routine operation scenarios:
1. Daily cleaning and maintenance of municipal road rainwater pipelines and inspection wells.
2. Regular desludging operations of residential septic tanks.
3. Unclogging and cleaning of industrial park drainage networks.
4. Suction and cleaning of sewage wells in commercial complexes.
