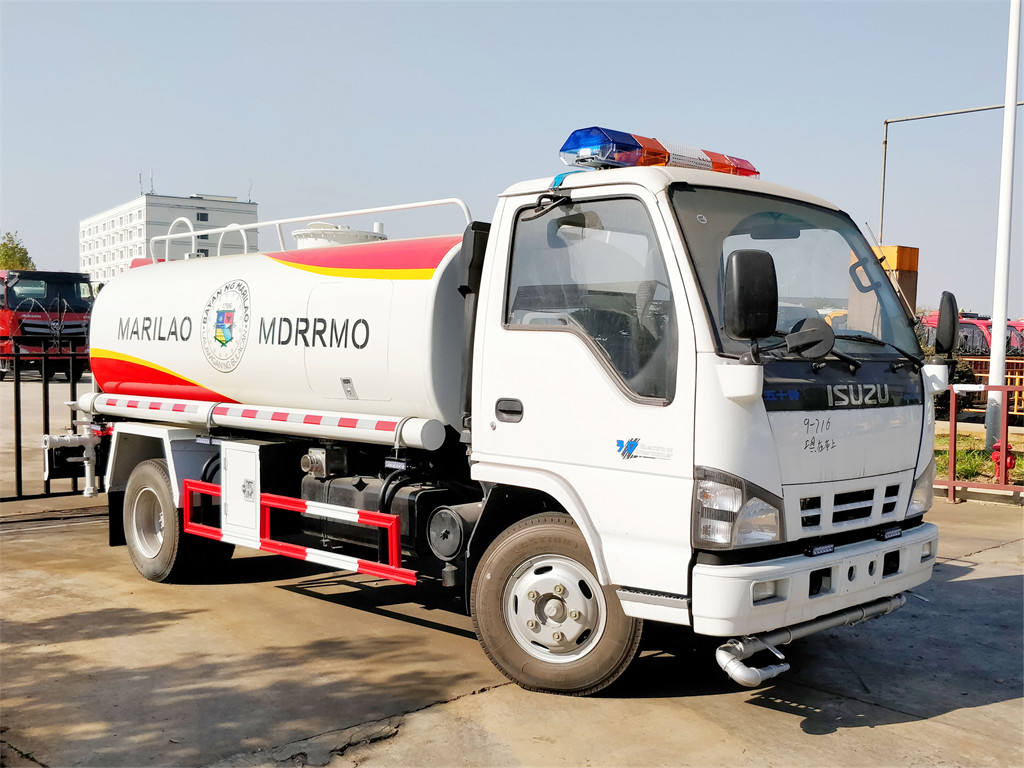

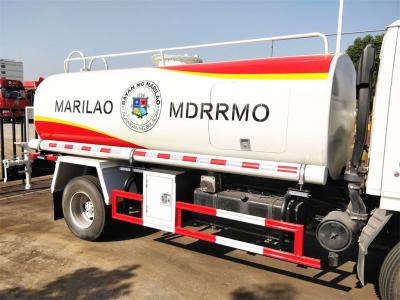

The Isuzu mobile water tanker truck is an special equipment designed for urban greening and cleaning work. The vehicle is well designed and combines modern technology with traditional craftsmanship, making it highly functional while maintaining excellent durability. The Isuzu water tank truck is equipped with an advanced sprinkler system that can spray water evenly and quickly. In addition to the basic watering function, the vehicle can also be modified according to customer needs, adding various functions such as spraying and flushing, making it suitable for more types of urban cleaning and greening work.
Work capacity:
5000 LTruck model:
PT5070GSS5Engine power:
130 HPEngine type:
4KH1CN5HSAxle drive:
4×2Gear box:
MSB 5-speedRemarks:
Large water tank with anti-corrosion treatment inside
Isuzu mobile water tanker truck, also known as Isuzu water lorry, Isuzu water truck, Isuzu water cannon truck, Isuzu water spray truck, etc. The main functions of Isuzu water trucks include road washing, trees, green belts, lawn greening, construction of roads, factories and mines, high-altitude building washing, etc. At the same time, Isuzu water tank trucks also have functions such as water sprinkling, dust suppression, high and low position spraying, pesticide spraying, guardrail washing, as well as water transportation, drainage, emergency firefighting and other functions. As the tank of this truck is made of stainless steel, it is also often used to transport drinking water.
The Isuzu water tank truck also has significant effects in cooling, maintaining roads, reducing air pollution and removing dust. Since many modern roads use asphalt roads (asphalt roads), in hot summers, the asphalt will soften after high temperatures. In addition, the traffic flow in urban areas is too dense. Failure to sprinkle water will cause the road surface to deform. After sprinkling water on the road surface to cool it down, it can maintain its hardness and effectively avoid deformation and cracking.
Product Specifications
Vehicle Parameter |
|
Vehicle name |
ISUZU water tank truck |
Overall dimensions (mm) |
5995x 1980 x 2350 |
Water tank volume (L) |
3000- 5000 |
Gross Vehicle Weight (kg) |
7300 |
Net weight (kg) |
3200 |
Loading (kg) |
4000 |
Wheel base (mm) |
3360 |
Max speed (Km/h) |
90 |
ISUZU Truck Chassis Parameter |
|
Cabin |
Single row cabin, power steering, air conditioner, 2 passengers, left hand drive. |
Drive form |
4×2 |
Engine |
Brand: ISUZU Model: 4KH1CN5HS Engine power: 130 hp Fuel type: diesel Displacement: 2999ml Emission standard: Euro 5 |
Transmission |
5 forward,1 reverse, manual operated |
Tire model |
7.00R16 |
No.of tires |
6+1 pcs |
Water Tanker Body Parameter |
|
Standard configuration |

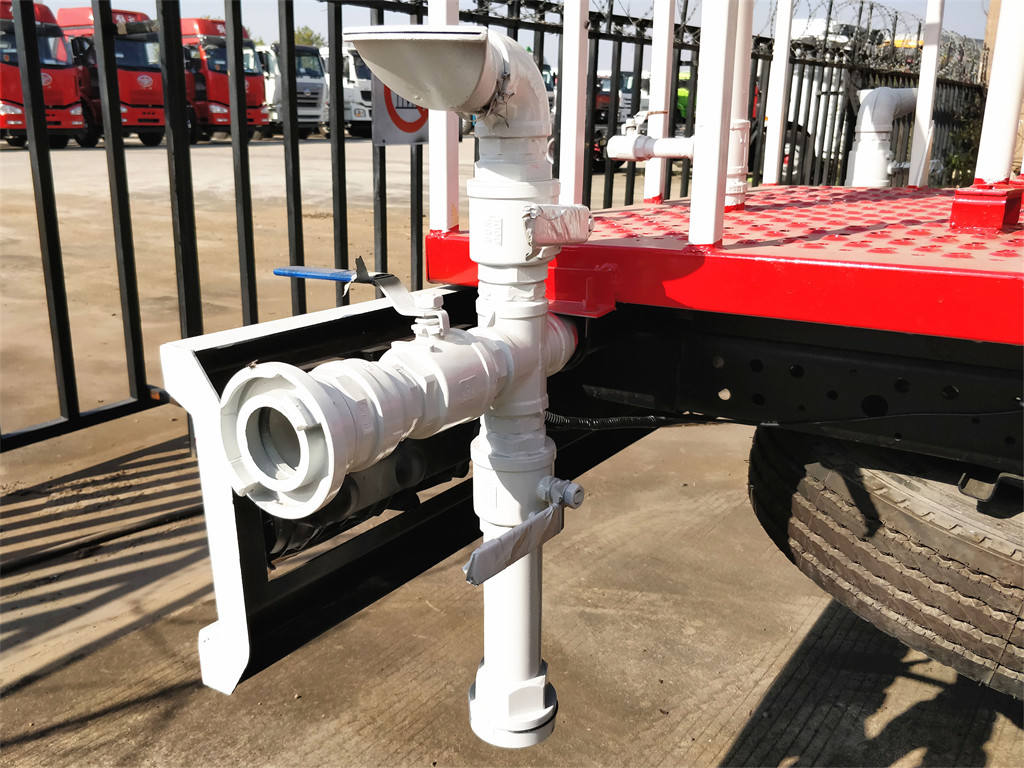

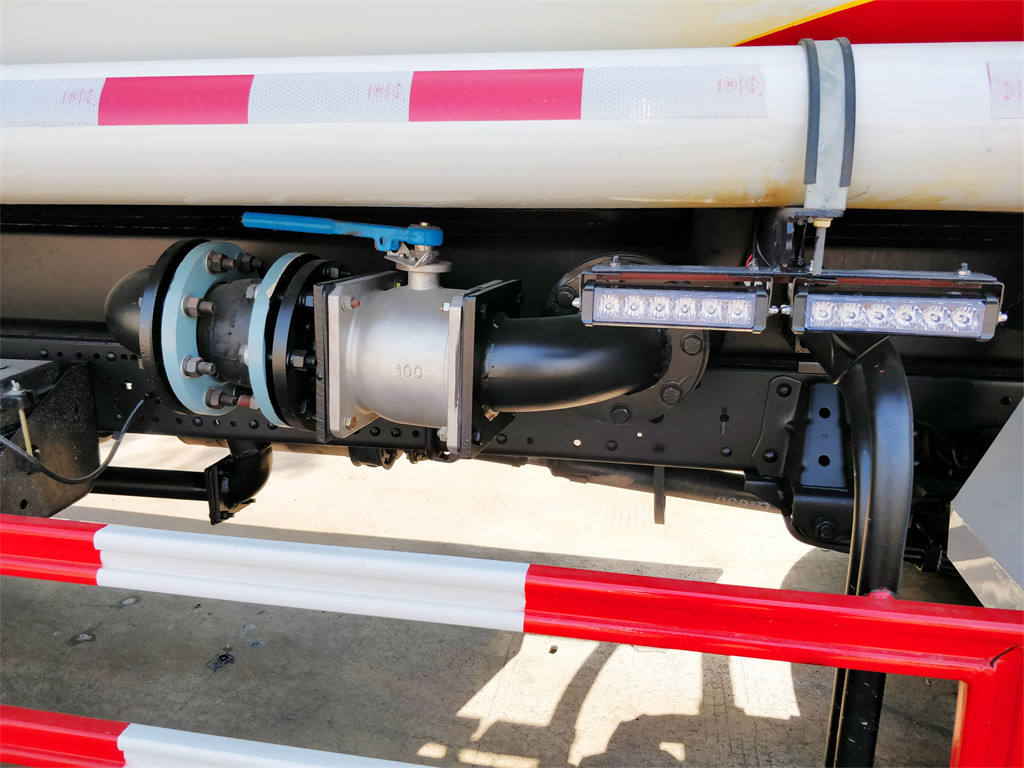

1) Carbon steel material water tank, thickness 5mm. 2) China famous brand water pump. 3) Rear working platform. 4) With suction pipe. 5) With fire connector. 6) With gravity valve. |
Special performance |
1) Front and rear spraying water. 2) Left and right side spraying water. 3) On platform has a water gun. 4) Water column can be adjusted into mist 5) Width of spraying water: ≥14m. 6) Distance of spraying water: ≥28m. 7) Vertical suction 6-8 m. 8) Drainage time <5 min, flow rate 60m3/h. |
Product Functions
This Isuzu sprinkler truck can flexibly meet the challenges of different scenarios through its multifunctional design and efficient configuration. Details as follows:
1. Road washing and cleaning:

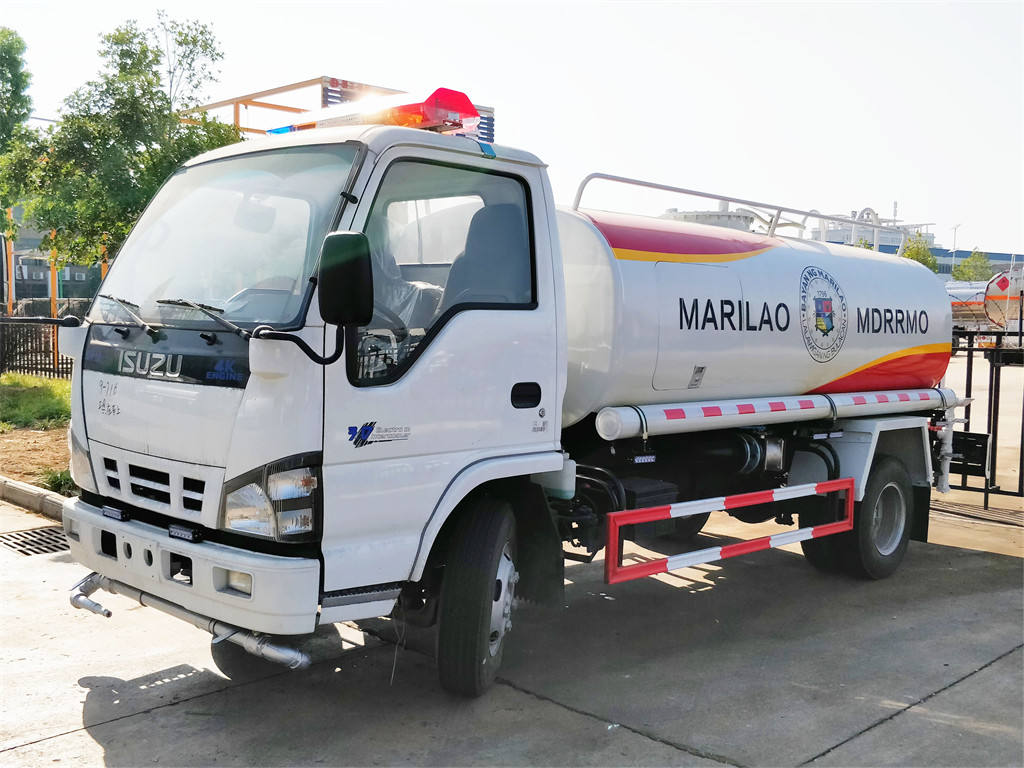

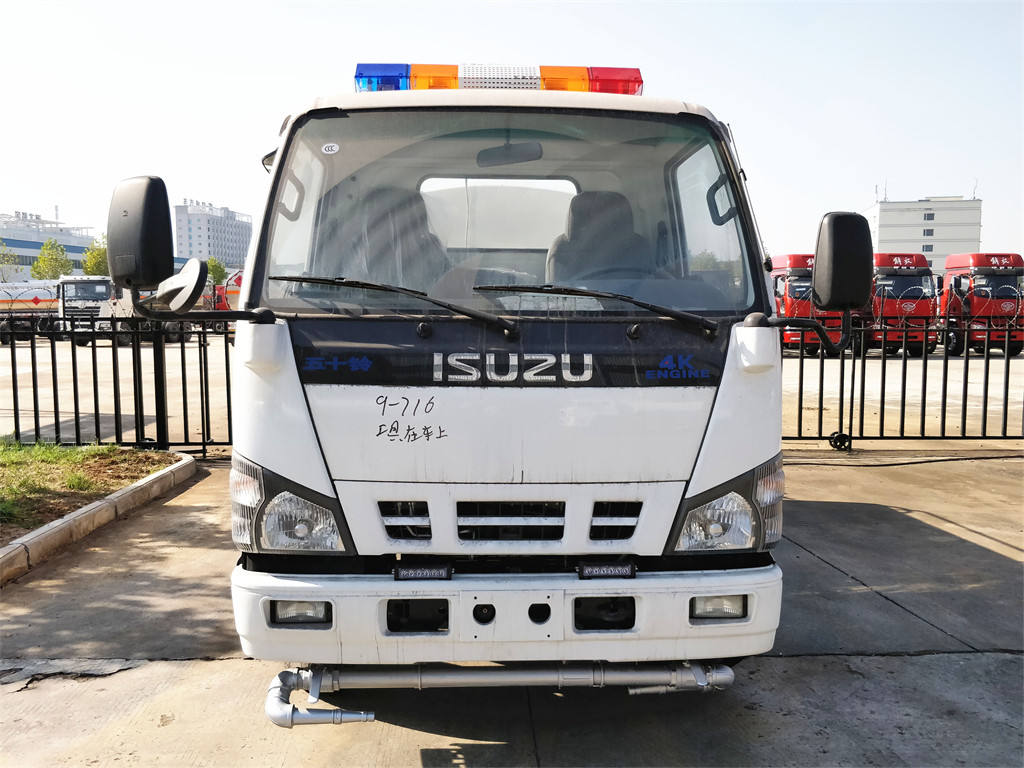

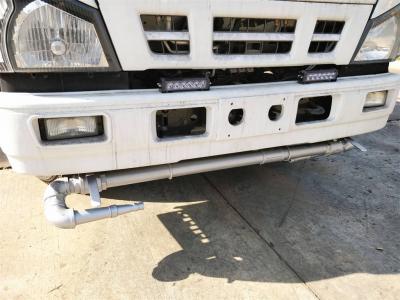

o For city street cleaning, the front spray device (duckbill) of the Isuzu water tanker can effectively wash away dust and dirt from the road. The side spray device is suitable for cleaning sidewalks and curbs to ensure the overall cleanliness of the road.

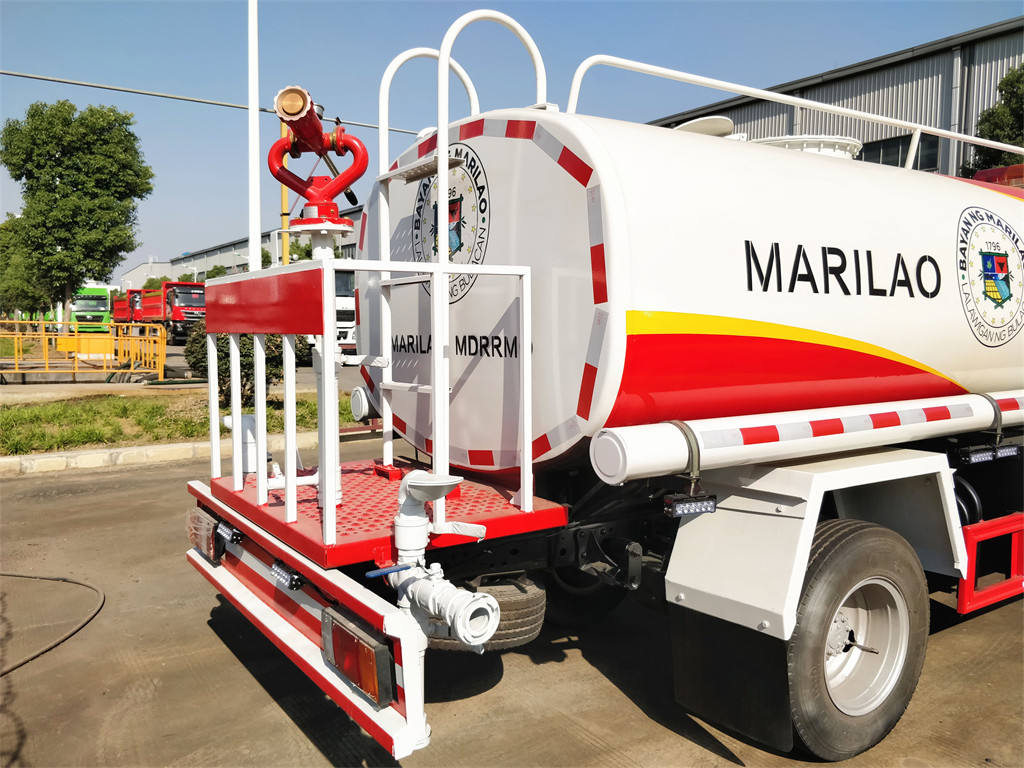

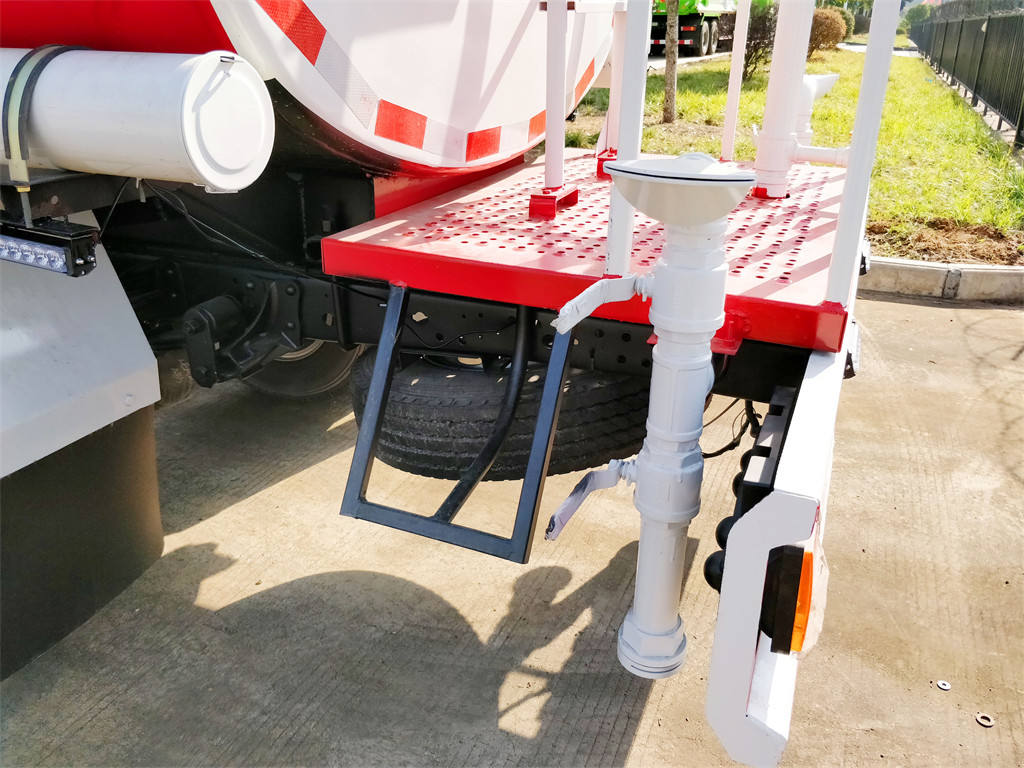

o The rear spray device can further clean the road surface, especially when combined with the rear working platform, the staff can operate the water cannon to focus on cleaning specific areas.
2. Landscaping and irrigation:
o For irrigation of green belts, lawns and trees, the Isuzu mobile water truck provides side sprays and green water cannons on the rear working platform. These devices can be adjusted to column or mist shapes as needed to meet the water needs of different plants.

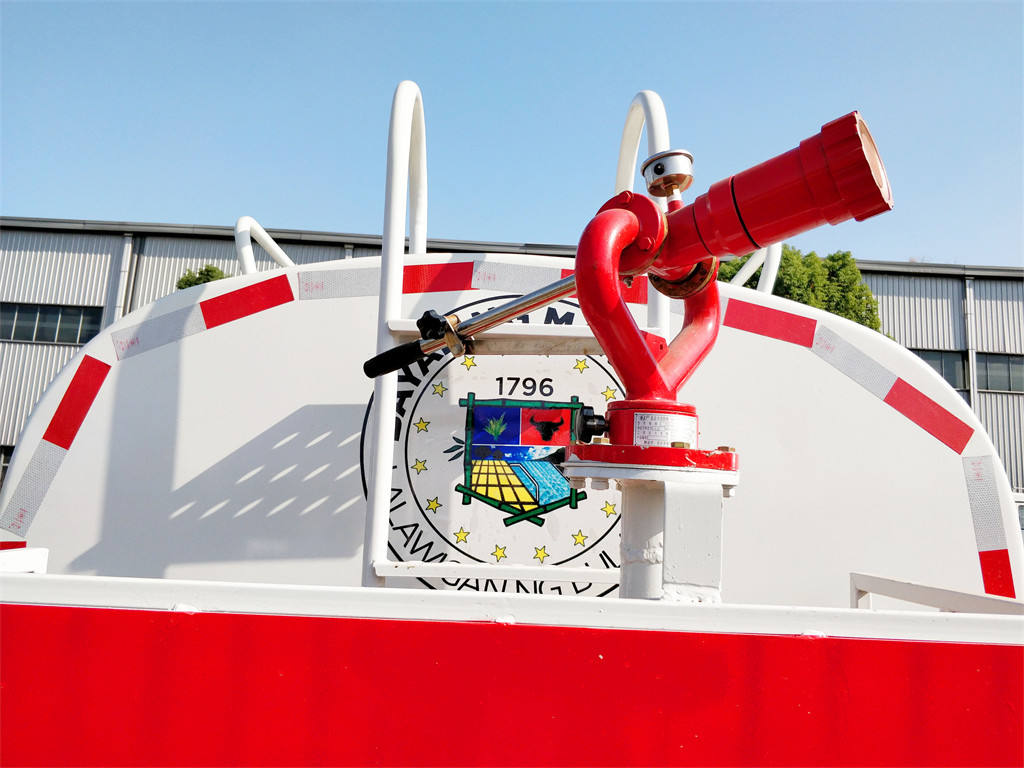

o The 360° rotation function of the green water cannon allows the sprinkler truck to easily cover a wide range of green areas, ensuring that plants receive even water supply.
3. Water transport function:
o In addition to being used as a sprinkler truck, this vehicle can also be used as a water transport truck. Its large water tank and efficient water spray allow it to quickly transport and distribute large amounts of water when needed.
4. Configuration and flexibility:
o Isuzu water trucks are equipped with a variety of water spray devices and functions, such as adjustable water cannons, rear sprays, side sprays, etc. These devices can be selected and combined according to specific needs, allowing the sprinklers to adapt to various scenarios.
o High-quality components and materials ensure that Isuzu water trucks can operate stably in various harsh conditions, whether it is high or low temperature, dry or rainy environment.
