iSUZU NKR77 High-Altitude Working Truck 14m

ISUZU 4*2 Aerial Platform Truck 4*2 Electric Platform Truck

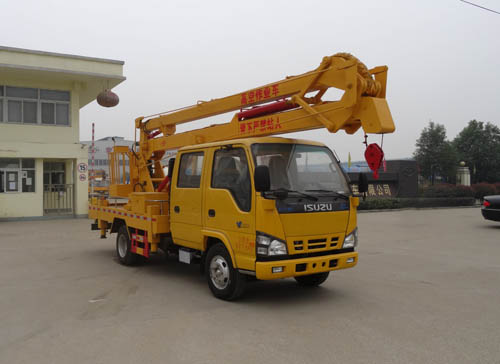

iSUZU NKR77 High-Altitude Working Truck 14m

ISUZU 4*2 Aerial Platform Truck 4*2 Electric Platform Truck,iSUZU NKR77 High-Altitude Working Truck 14m, 12M ISUZU  Truck Mounted Aerial Working Platform
  • Order(MOQ):

    1
12M ISUZU  Truck Mounted Aerial Working Platform
12M ISUZU Truck Mounted Aerial Working Platform

Isuzu High-altitude working Truck, Isuzu aerial operation vehicle , overhead working truck ,high-altitude operation truck also named aerial operation vehicle,overhead working truck,aerial platform truck,highplatform truck,

platform operation truck,hydraulic aerial cage,aerial working platform truck ,high platform operation truck ,working platform truck ,

aerial working vehicle.

Products Technical Specification
Type  ISUZU high-altitude operation truck 14m
Vehicle Description
Overall dimensions(mm) 7300×2000×3100
G.V.W (kg) 6300
Max speed (Km/h) 98
Engine Description
Engine model 4KH1-TCG40
Engine Type  4 cylinders, straight in-line, exhaust turbo charging system to improve engine power
Maximum power(hp) 120
Displacement (lit) 2.771
Emission Standard Euro4
Engine Manufacturer ISUZU
Chassis Description
Wheel base 3360
F/R overhang(mm) 1105/1530
Approach/Departure angle(°) 24/15
Spring plate 7/4+5
Front / rear axle (T) 2.5/4
Gear box  5 forwarder gear,1 reverse gear, manual
Driving Type  4×2,left hand drive
Tyre&Quantity 7.50-16 radial tire, ,6+1
Up-parts Description
Max Working Height(m)  14
Max working radius(m)   6
Working bucket rated loading(kg)  200
Max rotation angle(°)  360
Rotation Speed(°/min) 180
Expensive Speed(m/s) 0.15~0.20

1.ISUZU High-altitude working Truck is the municipal administration, power supply maintenance, traffic management and other departments to installation, cleaning, the pruning, chemical, electric power, photography, replace lamps, shipbuilding and other engineering etc aloft working ideal tool.

2.ISUZU High-altitude working Truck unique whole rotary three folding boom hydraulic operating system is personnel in when headroom works operation more stable optional 12 metres, 14 meters, 16 meters on homework arm, hanging bar, aloft working dou maximum load-bearing 200 kg, with 1.5 tons hook.
3. ISUZU  High-altitude working Truck control mode is simple but alone fluctuation operation, maximum homework 5.5 meters and working arm amplitude can be left, right 360 ° continuous rotation rotary speed: 0 ~ 2r/min.

The picture and parameter mentioned are only for reference. The Specific product will be
produced according to your order.
This parameter list is the standard type of truck for this chassis, if you have any other special
 requires such as you need.
