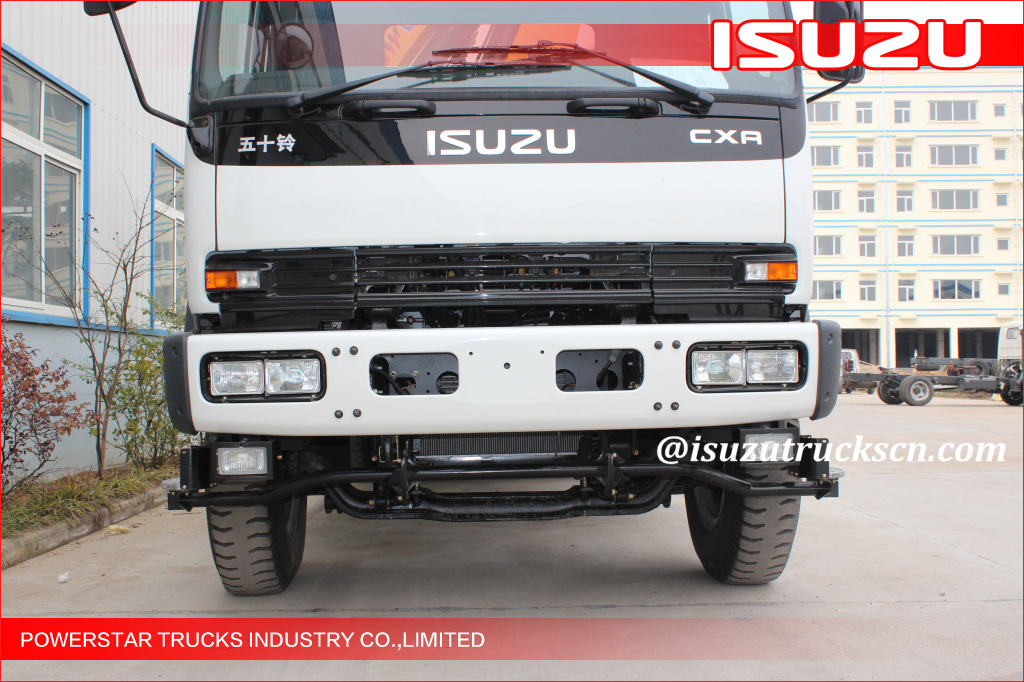

ISUZU Truck Construction Telescopic Boom Truck Mounted Crane For Municipal Services

Isuzu Truck crane straight boom factory make 10m 12m 4X2 6 wheels diesel type Isuzu truck mounted telescopic crane

ISUZU Truck Construction Telescopic Boom Truck Mounted Crane For Municipal Services

ISUZU Truck Construction Telescopic Boom Truck Mounted Crane For Municipal Services, Isuzu Truck crane straight boom factory make 10m 12m 4X2 6 wheels diesel type Isuzu truck mounted telescopic crane
  • Order(MOQ):

    1

ISUZU Truck Construction Telescopic Boom Truck Mounted Crane For Municipal Services

ISUZU Truck Construction Telescopic Boom Truck Mounted Crane For Municipal Services



ISUZU Construction Telescopic Boom Truck Mounted Crane For Municipal Services



  1. Name: Telescoping boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
  2. Max Lifting Capacity: 6300 kg
  3. Max Lifting Moment: 15.7 T.M
  4. Max Oil Flow of Hydraulic System: 40 L/min
  5. Max.Lifting height: 10.5meters
  6. Brand: XCMG
  7. Crane Weight: 2160 kg
  8. Oil Tank Capacity: 90 L
  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.


Telescopic boom crane SQ6.3SK2Q is lifting capacity is 6.3tons, moment is 15.7 T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.





Specifications:



Model

SQ6.3SK2Q

Unit

Max Lifting Capacity

6300

kg

Max Lifting Moment

15.7

T.M

Recommend Power

20

kw

Max Oil Flow of Hydraulic System

40

L/min

Max Pressure of Hydraulic System

20

MPa

Oil Tank Capacity

90

L

Rotation Angle

360° All Rotation

Crane Weight

2160

kg

Installation Space

900

mm

Choice of Chassis

ISUZU, UD, HINO, IVECO



SQ6.3SK2Q Lifting capability diagram

Working radius (m)

2.5

3.82

6.17

8.5

Lifting capacity (kg)

6300

2900

1600

1200

Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
