Isuzu Truck mounted aerial work platform

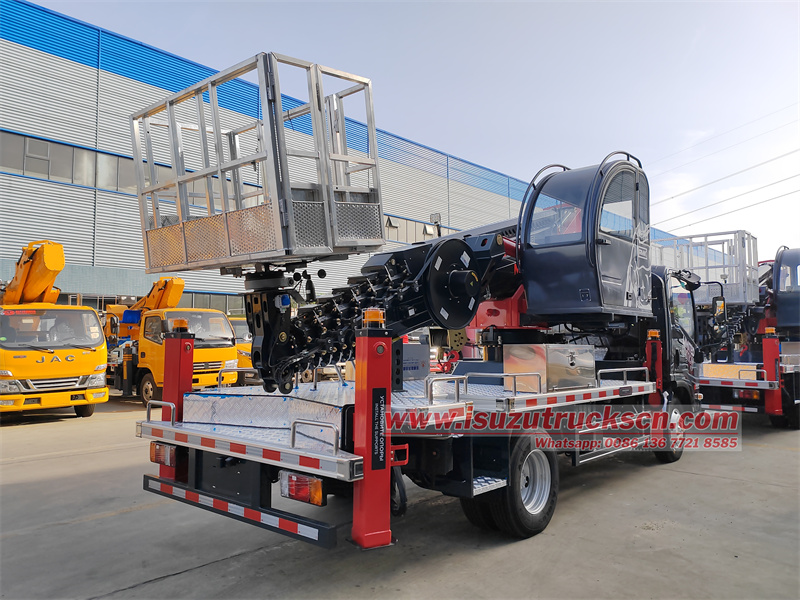

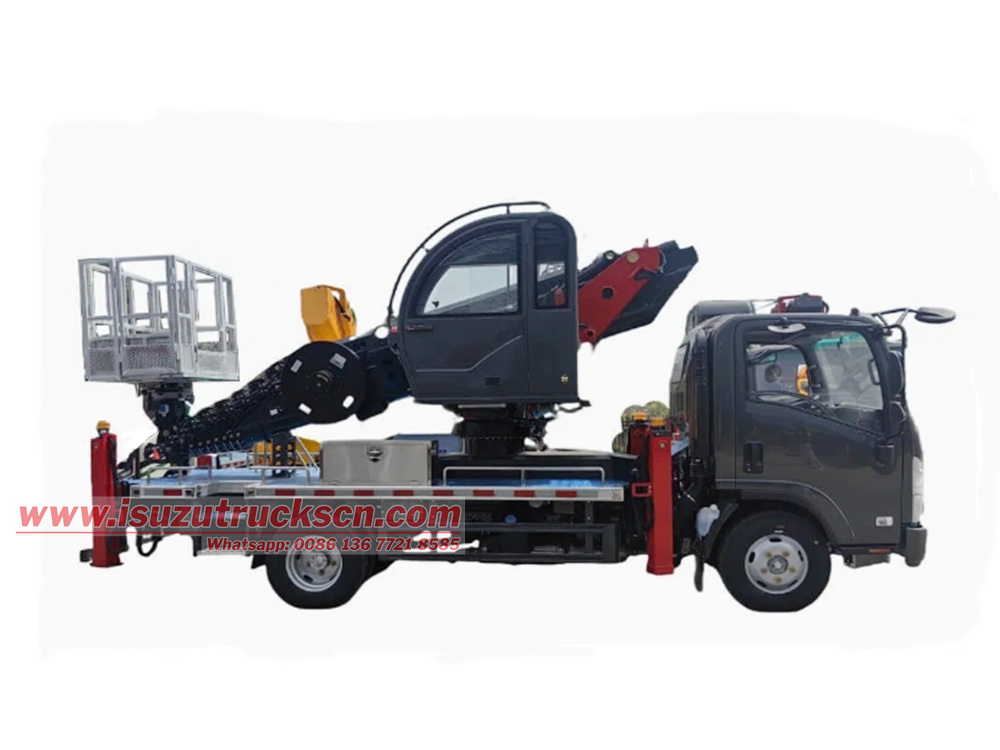

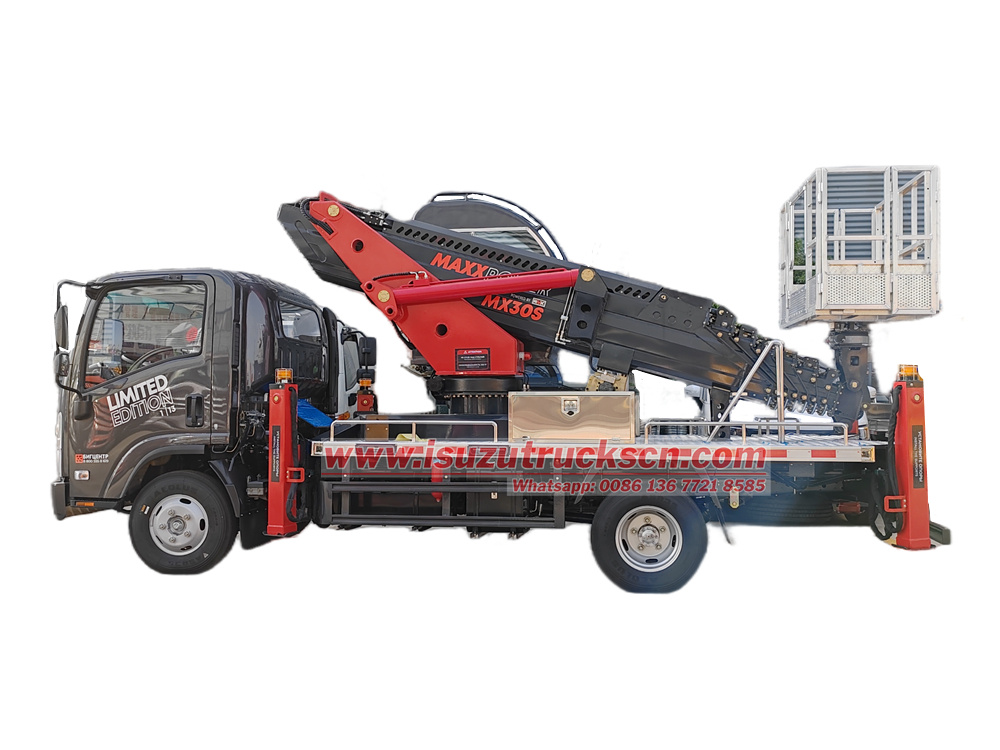

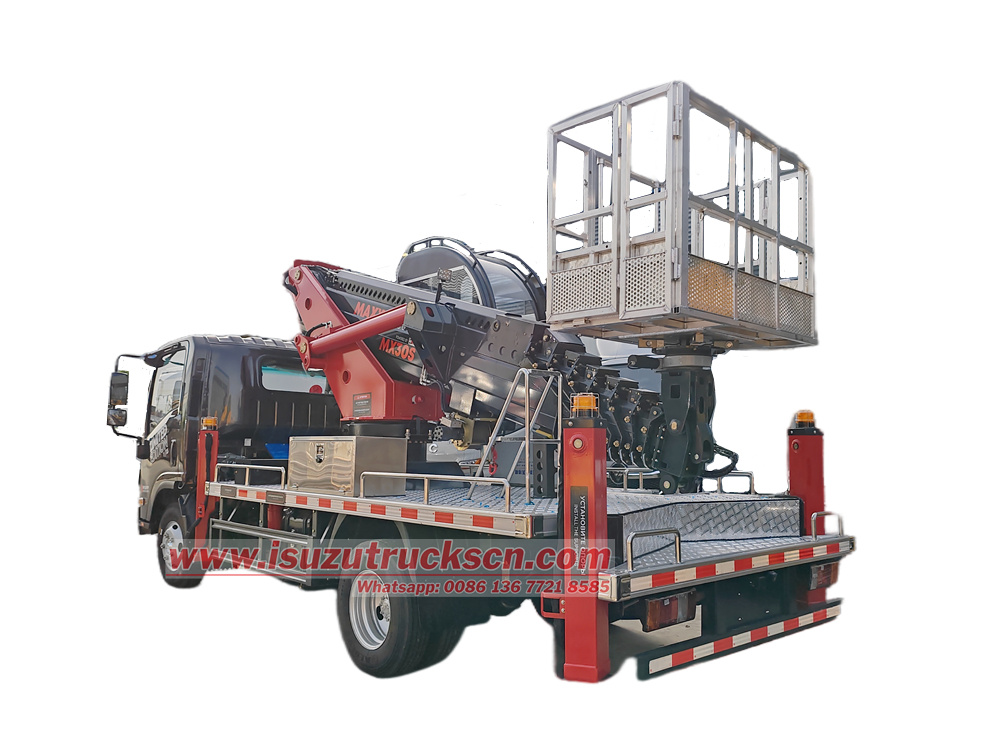

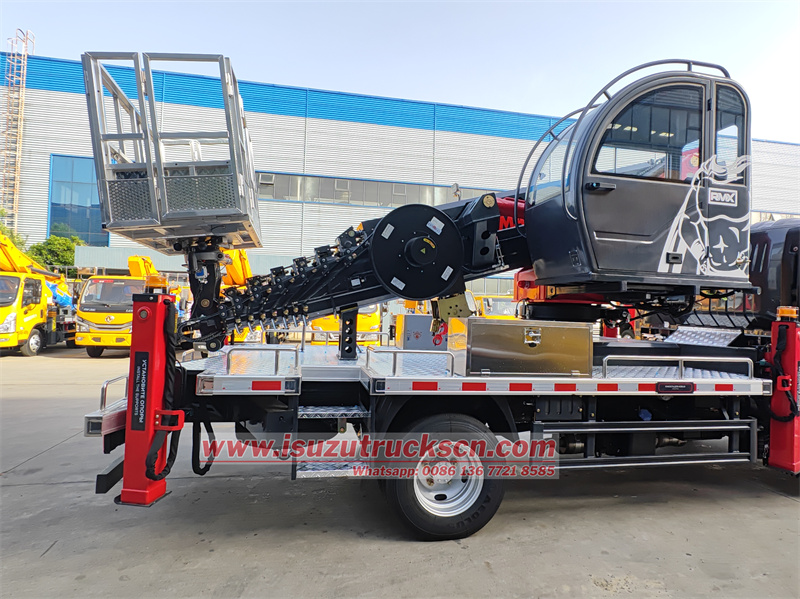

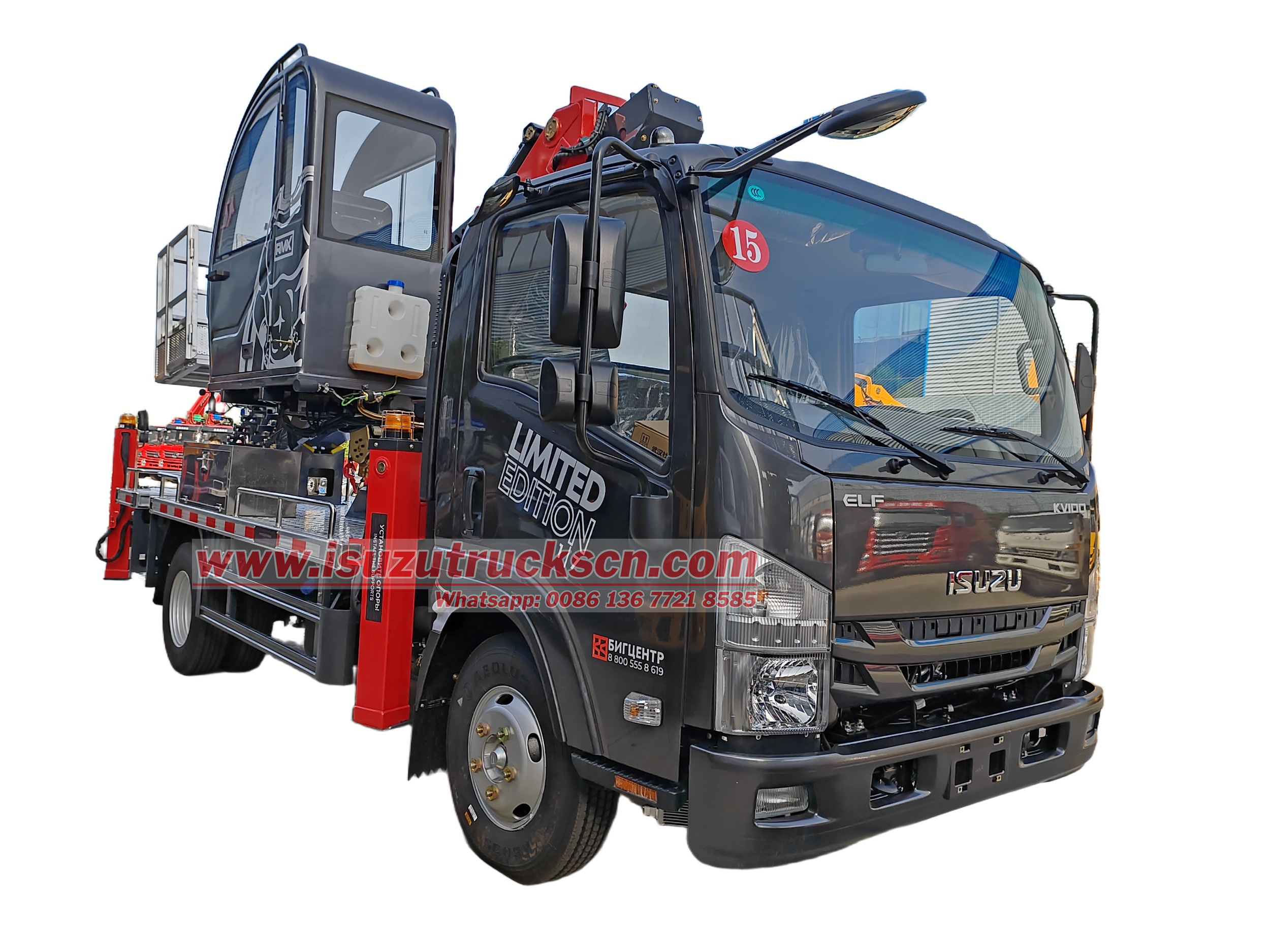

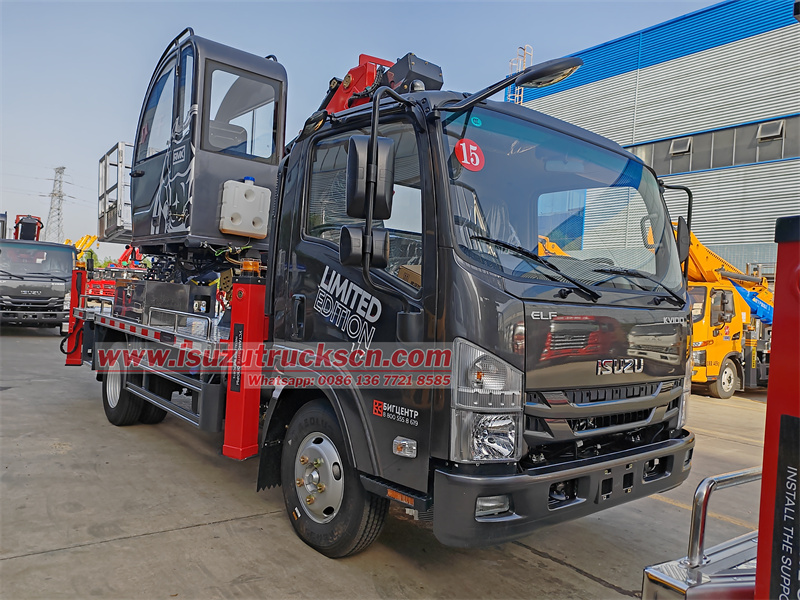

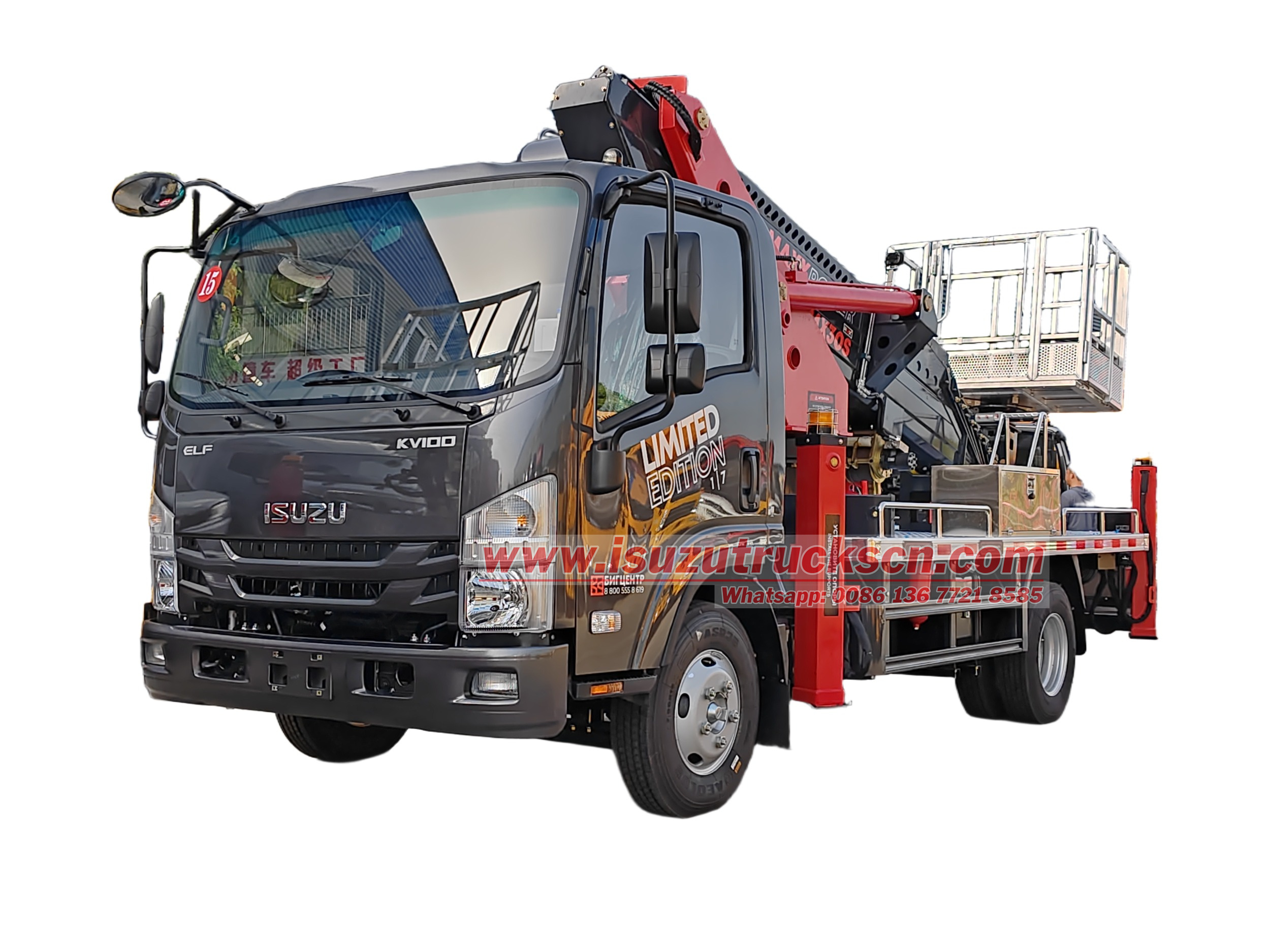

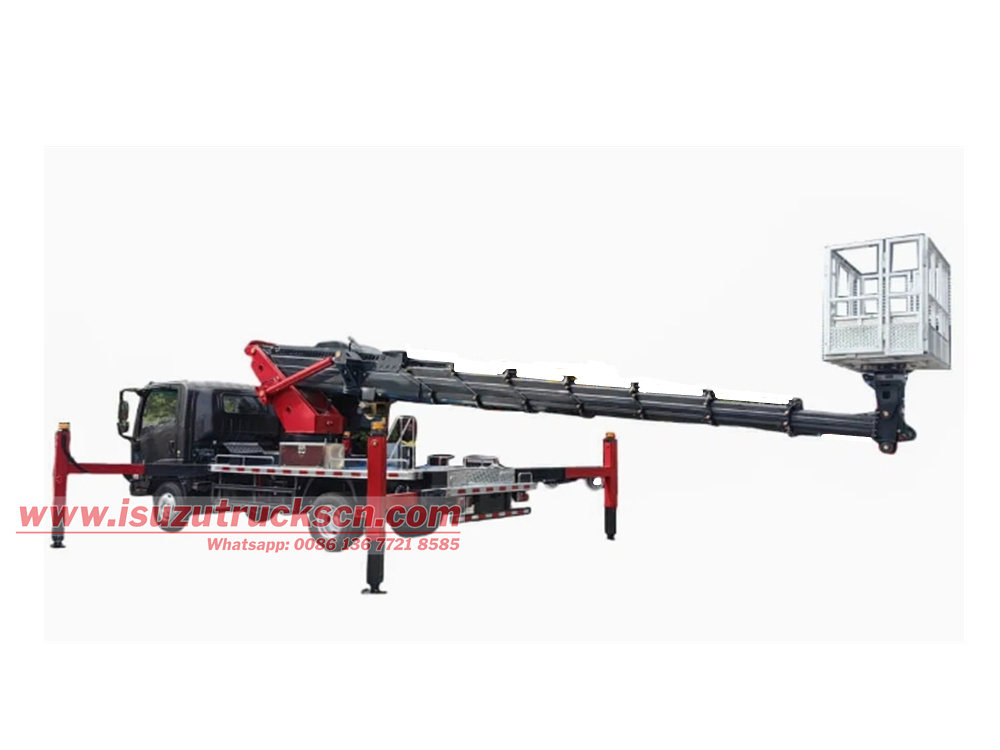

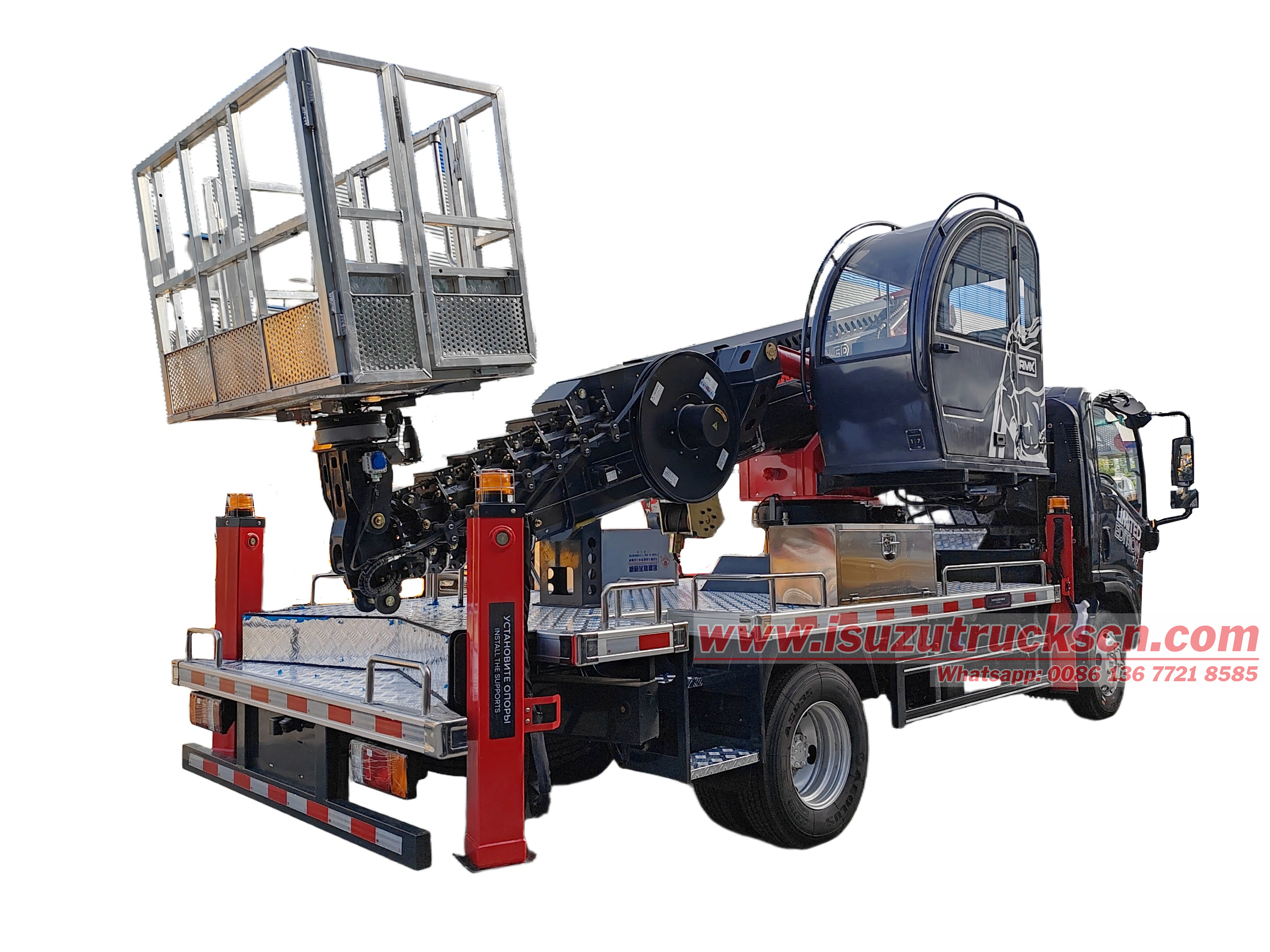

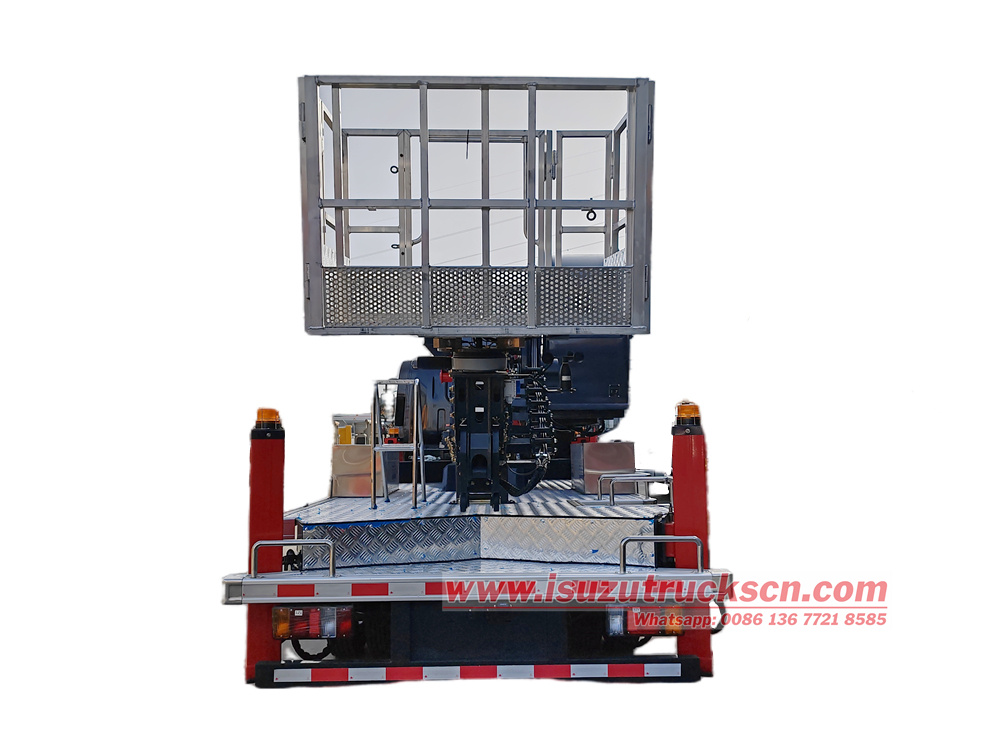

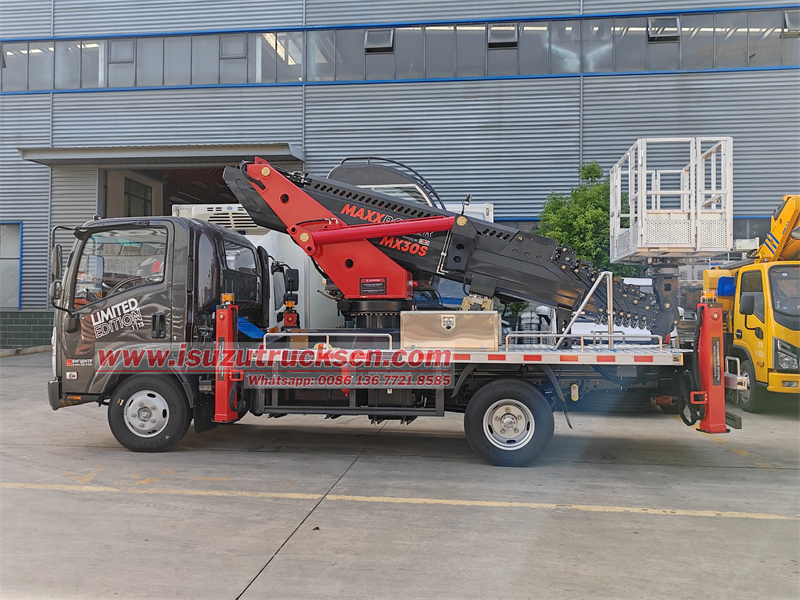

The Isuzu KV100 30m aerial work vehicle is modified on the basis of Isuzu KV100 chassis, 3815mm wheelbase, 8280kg total mass, equipped with Isuzu 4KH1CN6HB 132HP Euro VI engine, Isuzu MLD 6-speed gearbox, the upper part is an 8-section 18-sided synchronous telescopic arm, the maximum lifting height is 30 meters, the maximum working radius is 12 meters, the whole vehicle is equipped with four hydraulic telescopic legs, front X-type, rear H-type, individually adjustable, emergency pump, 360-degree rotation of the working platform, wireless remote control, aluminum alloy fence, patterned anti-skid walkway, bucket rated load 200KG, can be operated by the turntable cab, ground control box, remote control.
Manufacturer:
Powerstar TrucksWork capacity:
30mDimension:
7250x2320x3120mmCabin type:
suzu KV100 single rowWheelbase:
3815 mmEngine power:
132 HP (97kW)Engine type:
Isuzu 4KH1CN6HBAxle drive:
4×2 left hand driveGear box:
Isuzu MLD 6 speed forward, 1 reverseRemarks:

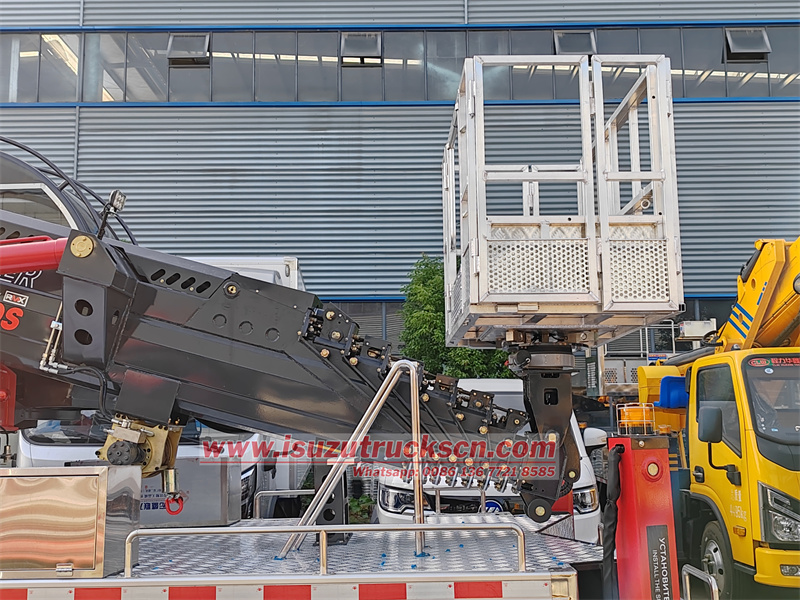

Eight-section working armIsuzu Truck mounted aerial work platform is a "multi-talented expert" in the field of aerial work. It is based on the Isuzu KV100 chassis and is suitable for multiple and complex scenarios. It is powered by a powerful 132HP engine with Euro VI emission and a 6-speed gearbox. The power output is stable and efficient, taking into account both environmental protection and performance. The 8-section 18-sided synchronous telescopic arm is its "smart tentacle". With a lifting height of 30 meters and an operating radius of 12 meters, it can easily overcome height and distance obstacles and accurately reach the work point. The front X rear H-shaped hydraulic outriggers and eight independent oil cylinders can quickly adapt to uneven ground and steadily support the safety line of the operation. It also provides three control modes: turntable cab, ground and wireless remote control, which are flexible and convenient to operate. There are also thoughtful designs such as emergency pumps, 360° rotating platforms (rated load 200KG), and anti-slip walkways to ensure efficient and safe aerial work in all aspects.
● China best Isuzu aerial lift truck factory
● Be designed according to your requirements
● Fast delivery time, quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
|
Isuzu KV100 30M aerial platform truck |
|||
|
Main specification |
Chassis brand |
Isuzu |
|
|
Chassis model |
Isuzu ELF KV100 |
||
|
Overall dimension(L*W*H) |
7250x2320x3120mm |
||
|
GVW/Curb weight |
8280/5850kg |
||
|
Chassis |
Drive modle |
4×2 left hand drive |
|
|
Wheel Base |
3815 mm |
||
|
Cab |
Isuzu KV100 single row, 3 seats,with A/C,USB,direction assistance. |
||
|
Front / Rear overhang |
1120/2315mm |
||
|
Front / Rear track |
1690/1655mm |
||
|
Tyre size & number |
7.50R16LT 14PR, with one spare tyre |
||
|
Fuel/Engine type: |
Diesel,4-cylinder in-line,water-cooled,four stroke, electronically controlled high pressure common rail |
||
|
Engine model |
Isuzu 4KH1CN6HB |
||
|
Engine horse power |
132 HP (97kW) |
||
|
Displacement |
2999ml |
||
|
Emission |
Euro 6 |
||
|
Max speed |
115km/h |
||
|
Transmission |
Isuzu MLD 6 speed forward, 1 reverse |
||
|
Working condition |
Maximum operating height |
30m |
|
|
Maximum operating radius |
12m |
||
|
Rotation |
360° |
||
|
Boom Type |
Eight-section eighteen-sided working arm capable of synchronous extension and retraction |
||
|
Outrigger type |
Outrigger type |
Front V Rear H type. Controlled independently |
|
|
Outrigger span |
Vertical |
4600mm |
|
|
horizontal |
4400mm |
||
|
Basket |
Rated loading weight |
200kgs |
|
|
L*W*H |
1200x700x1000( mm) |
||
|
Operation system |
Operation |
Operation mode: Turntable cab operation, ground control box, remote control operation,and emergency lever. |
|
|
Control system |
Electro hydraulic proportional control system and optional load proportional system can realize double action synchronization and stepless speed regulation |
||
|
Leveling system |
Hydraulic automatic leveling |
||
|
Security configuration |
Automatic interlocking device for up and down |
For locking up and down the truck to prevent the risk of misoperation. |
|
|
Basket |
360 degree rotation |
||
|
Horizontal function |
Real time display |
||
|
Real time communication |
There is wireless intercom between the platform and the vehicle |
||
|
Emergency electric emergency pump |
When the engine and main pump failure, the operator can be sent back to the ground. |
||
★. Chassis system
The Isuzu KV100 30-meter aerial work vehicle is modified from the mature Isuzu KV100 Class II chassis and is equipped with a 4KH1CN6HB inline four-cylinder diesel engine that meets the Euro VI emission standards, with a displacement of 3.0L and a maximum power of 132 horsepower/97Kw. It is matched with the original MLD 6-speed manual transmission, adopts a 3815mm long wheelbase design, and the total weight of the vehicle reaches 8280kg. The chassis is equipped with safety configurations such as ABS anti-lock braking system and exhaust brake, taking into account the passability of urban roads and heavy load requirements.
★. Upper structure
●. Telescopic arm system

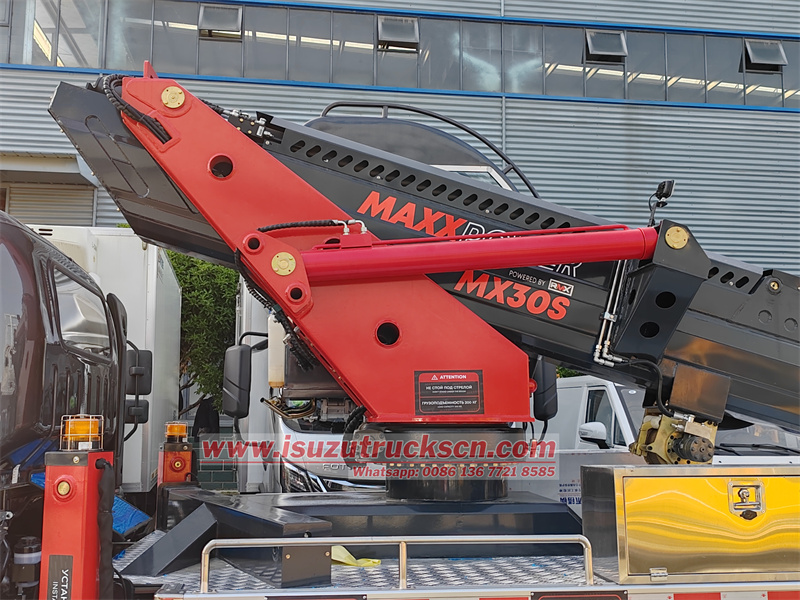

It adopts an 8-section 18-sided high-strength steel synchronous telescopic arm structure, and the cross-section adopts a unique polygonal design, which increases the torsional rigidity by 15% compared with the traditional hexagonal structure. The precision-machined slider guide system and double-chain telescopic mechanism achieve smooth extension, with a maximum lifting height of 30 meters and a horizontal working radius of 12 meters. An electronic level is configured at the end of the boom to monitor the working angle in real time.
●. Outrigger system

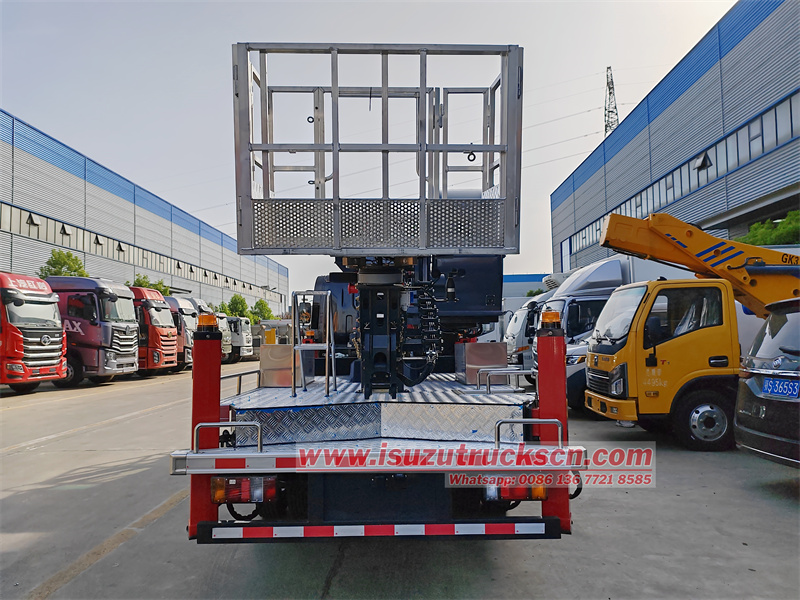

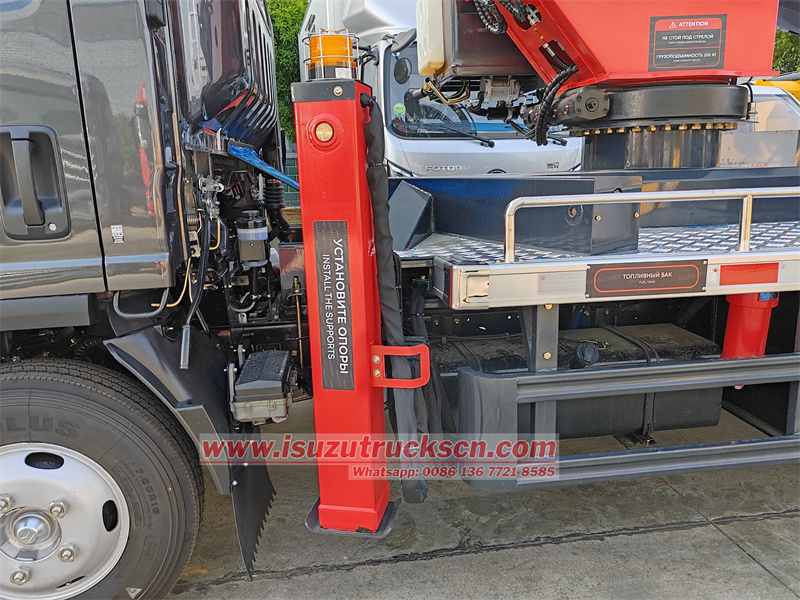

Equipped with four sets of hydraulic two-way telescopic outriggers (up and down + horizontal), driven by eight oil cylinders in total. The front outriggers are arranged in an X shape, and the rear outriggers are H-shaped. The maximum unfolding width of a single outrigger is 4.6 meters. Combined with the independent adjustable functions of up and down telescopic and horizontal telescopic, and the coordinated operation of eight oil cylinders, a separate control hydraulic valve group is adopted. Each outrigger can be adjusted independently, equipped with a digital pressure sensor and an automatic leveling system, and the outrigger ground pressure is ≤0.3MPa. Even if the working ground is uneven or slightly tilted, the outriggers can be precisely adjusted to keep the vehicle absolutely level, greatly reducing the risk of shaking and rollover during operation, and providing reliable protection for the personal safety of operators and the quality of operation.

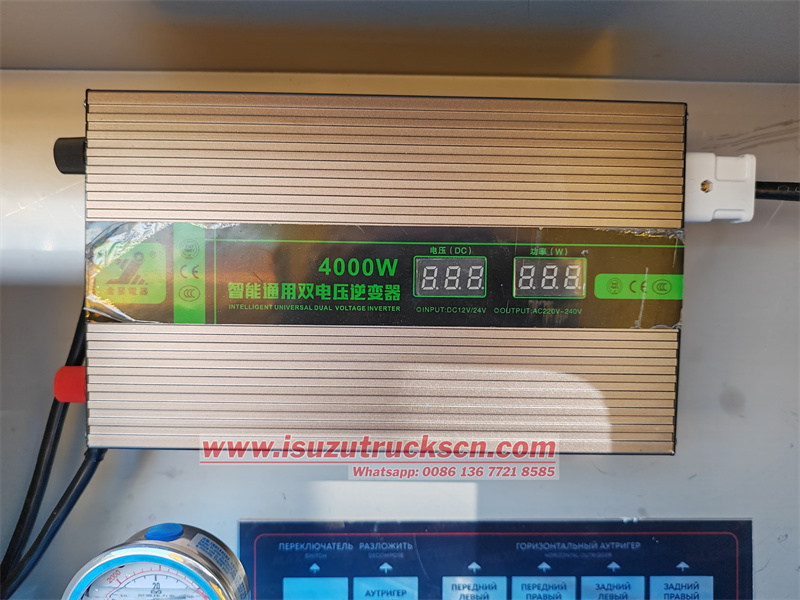

★. Operating System

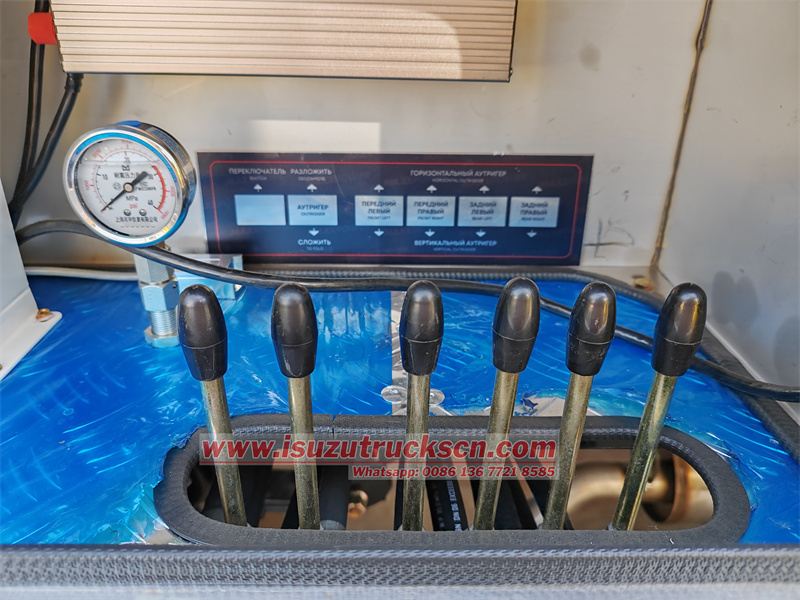

●. Multi-mode Control

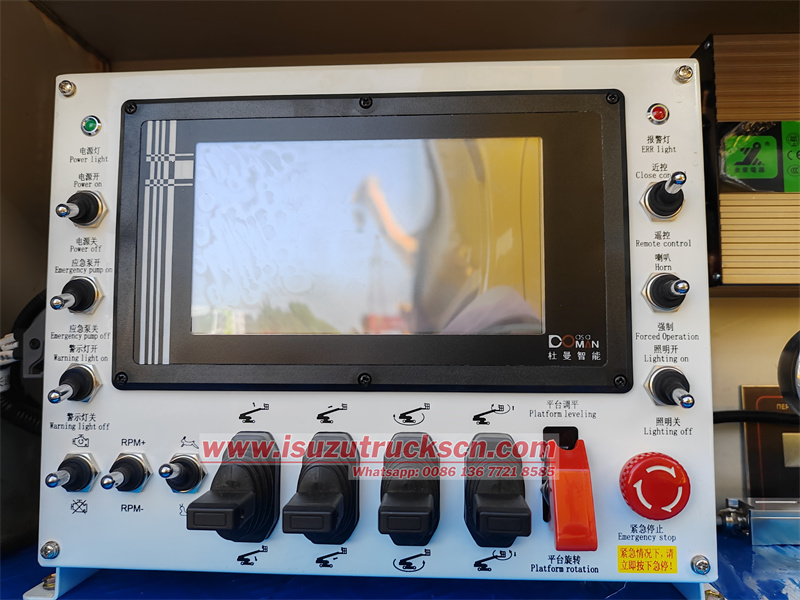

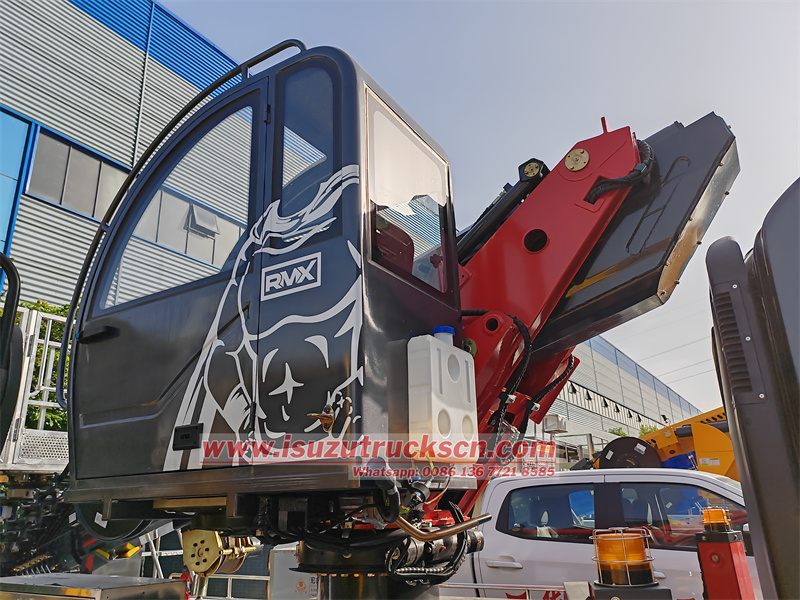

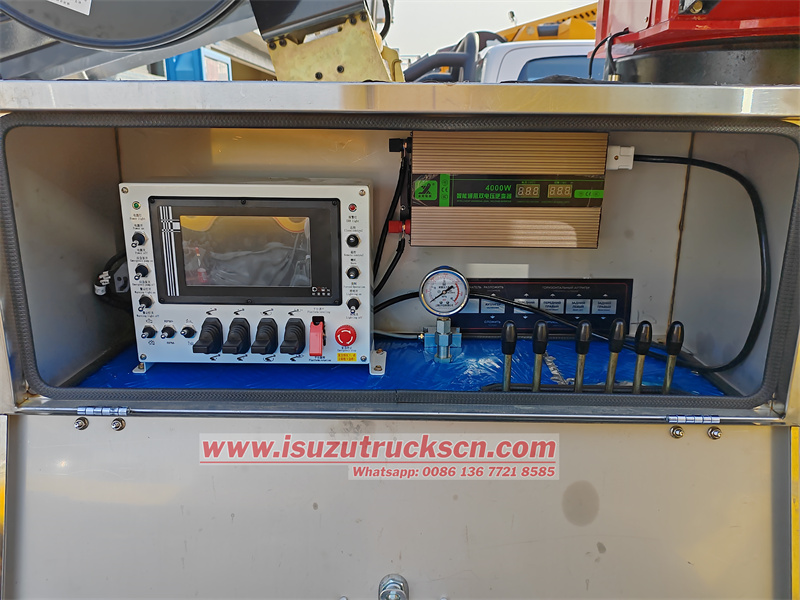

• Turntable cab: allows operators to feel as if they are in the "command center", to intuitively feel the vehicle status and accurately control the operation, especially suitable for tasks that require real-time observation of the operation site
• Ground control box: provides convenience for personnel who command and assist operations on the ground, so that they can adjust the operation parameters in time according to the needs of the site;
• 2.4GHz wireless remote control: effective control distance of 50 meters, with automatic protection function of signal loss, operators can flexibly control the work platform at a safe distance, greatly reducing the risk of high-altitude operations and improving the safety and efficiency of operations.

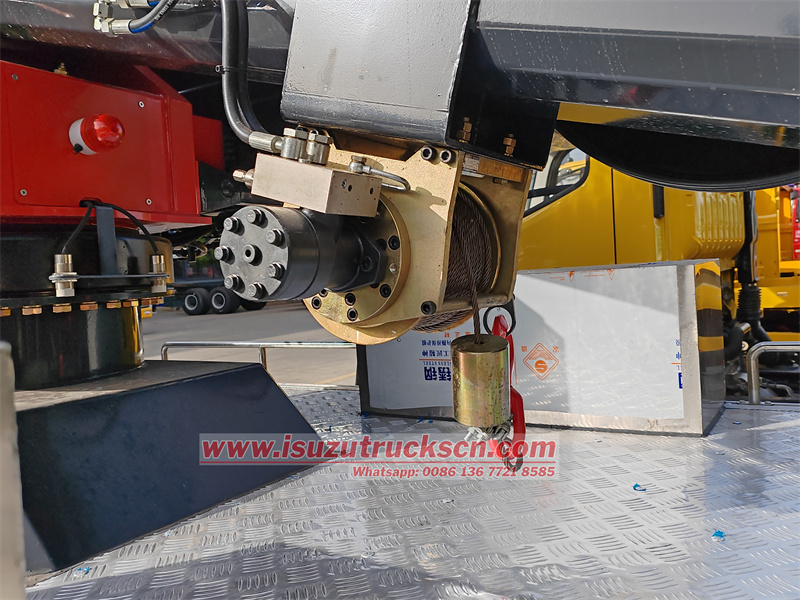

●. Hydraulic system
Use load-sensitive variable pump + gear pump dual hydraulic system, working pressure 28MPa. Equipped with emergency manual pump, the arm can be manually retracted when the engine fails. The hydraulic oil tank is equipped with a temperature sensor and a liquid level alarm device. Equipped with a two-way hydraulic lock, a two-way lock balance valve, and a liquid flow valve, the switching is smooth and the operation is flexible and convenient; the outrigger and the working arm are interlocked, safe and reliable, to prevent misoperation.
★. Working platform
• Aluminum alloy rotating platform: adopts mechanical self-balancing design, diameter 1.2 meters, rated load 200kg, can rotate 360° continuously
• Anti-fall system: equipped with dual brake motors and mechanical locking devices
• Safety configuration: insulated floor, emergency descent device, anti-collision sensor
