POWERSTAR Isuzu Potable Water Trucks are built with a focus on high quality craftsmanship and outstanding performance. Whether you are looking for a hydraulically driven system or a driveline system, stainless steel or black iron, we have a truck for you! Customize the truck to fit your exact needs. We have tanks with capacities ranging from 1,000 to 5,000 gallons and everything from street flushers and fan sprays to hose reels and water cannons. We also fabricate systems for potable water. Call us today to discuss your next truck.
Work capacity:
5000 LitersTruck model:
PT5100GJY05PEngine power:
190 HPEngine type:
4HK1-TCAxle drive:
4×2Gear box:
MLD 6-speed, manualRemarks:

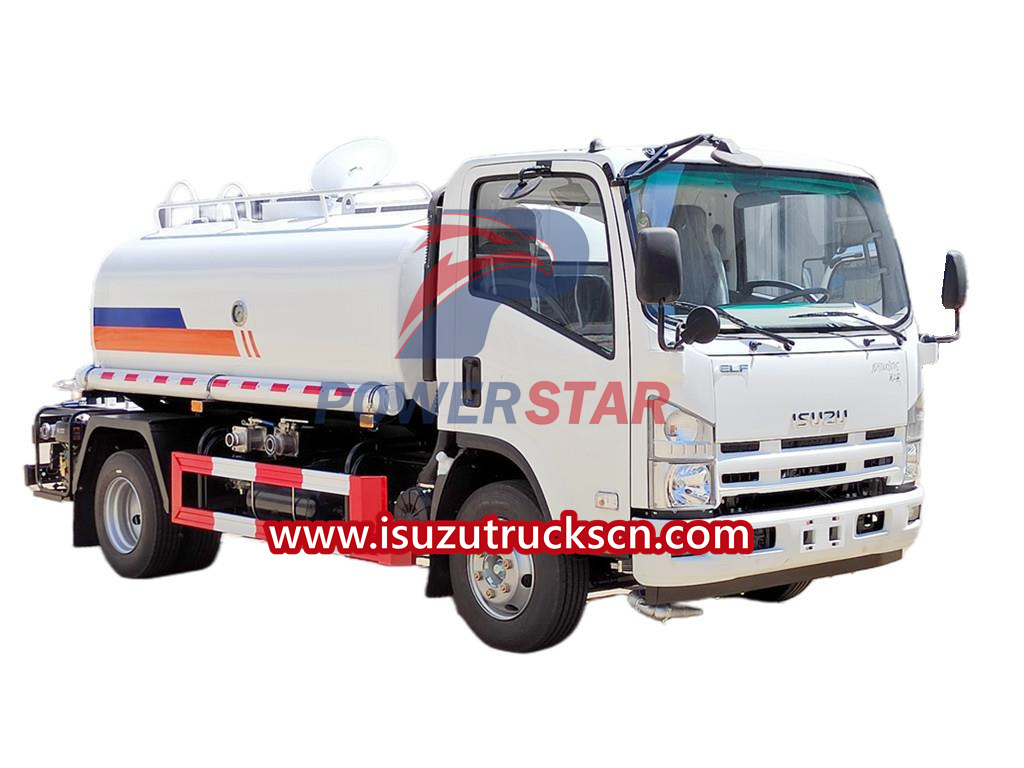

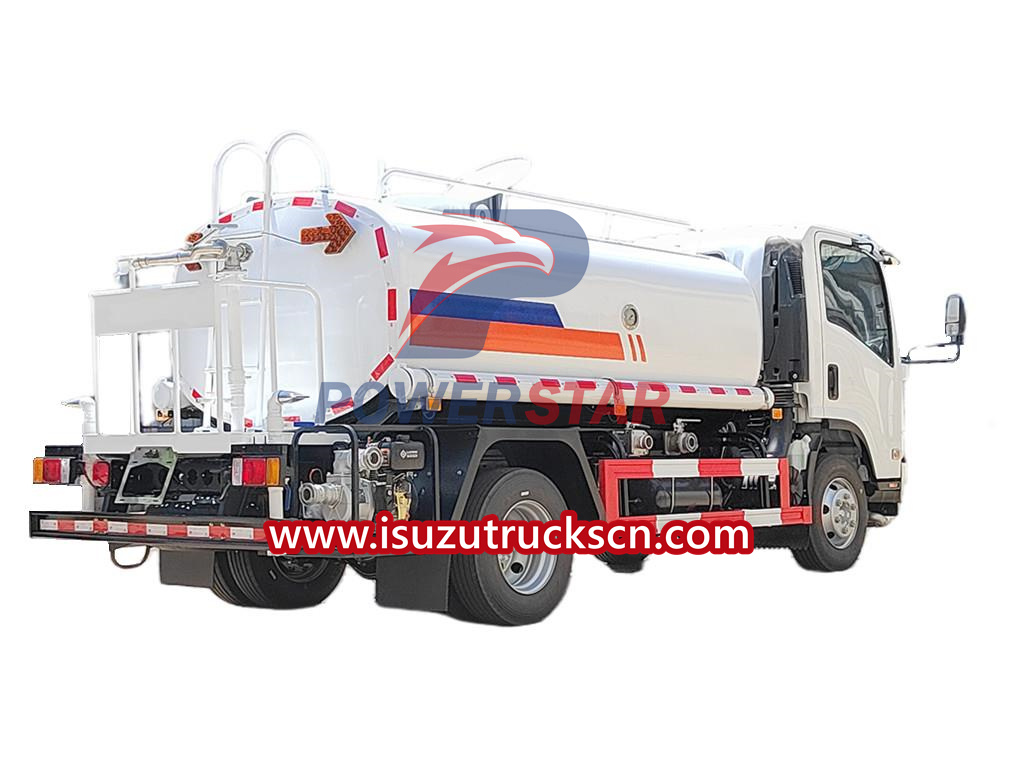

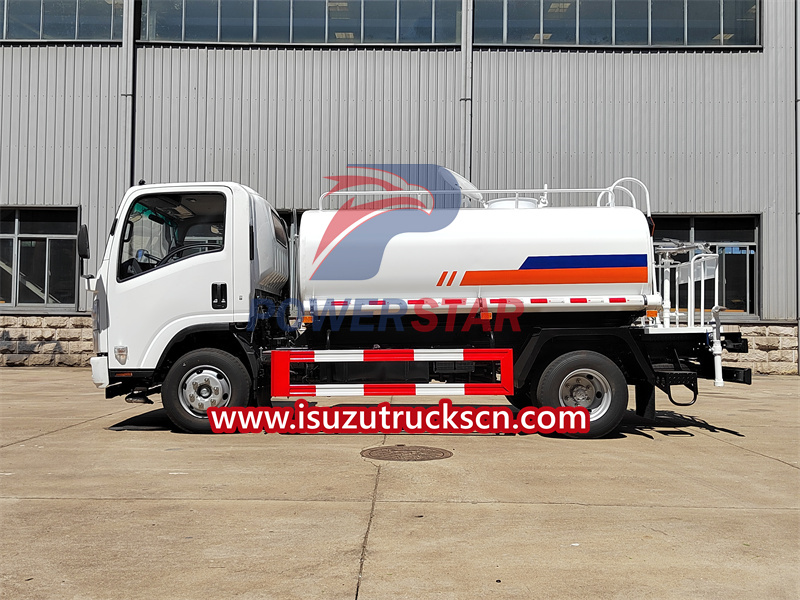

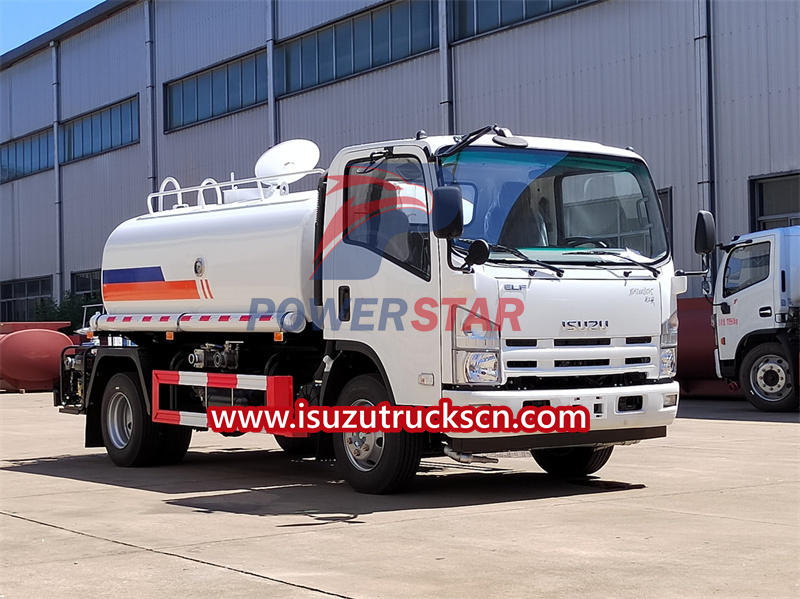

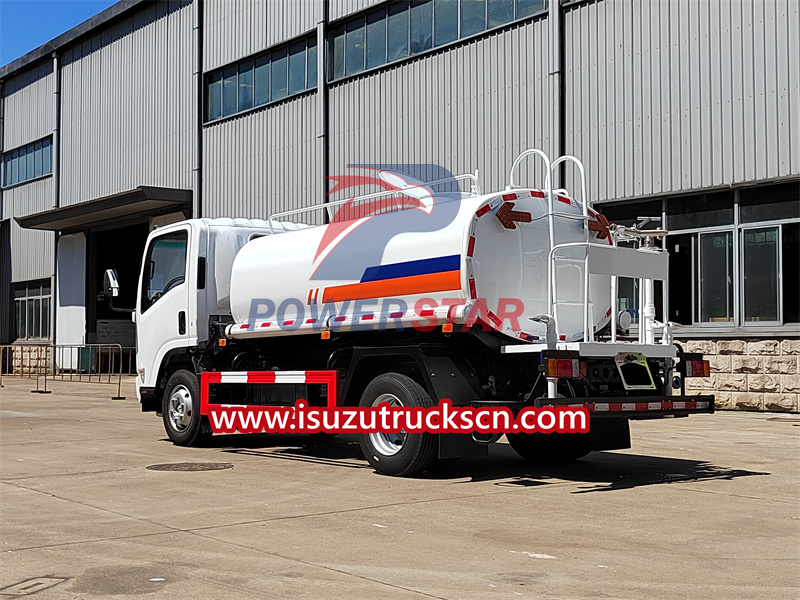

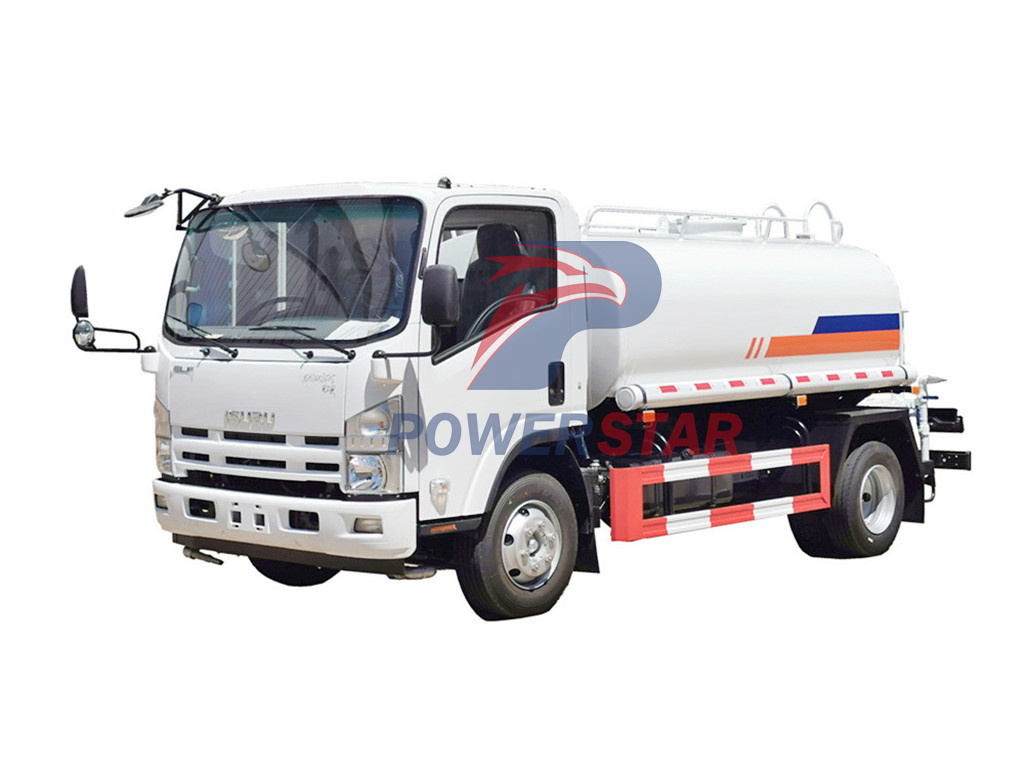

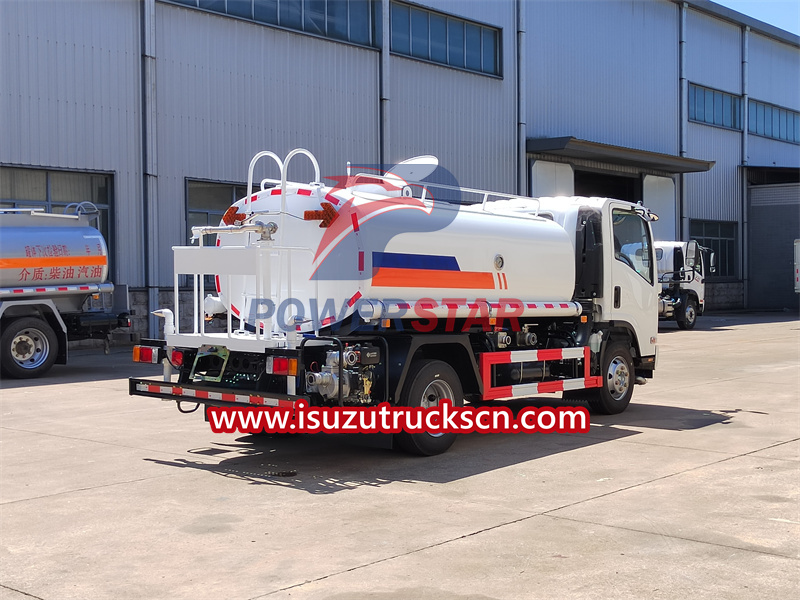

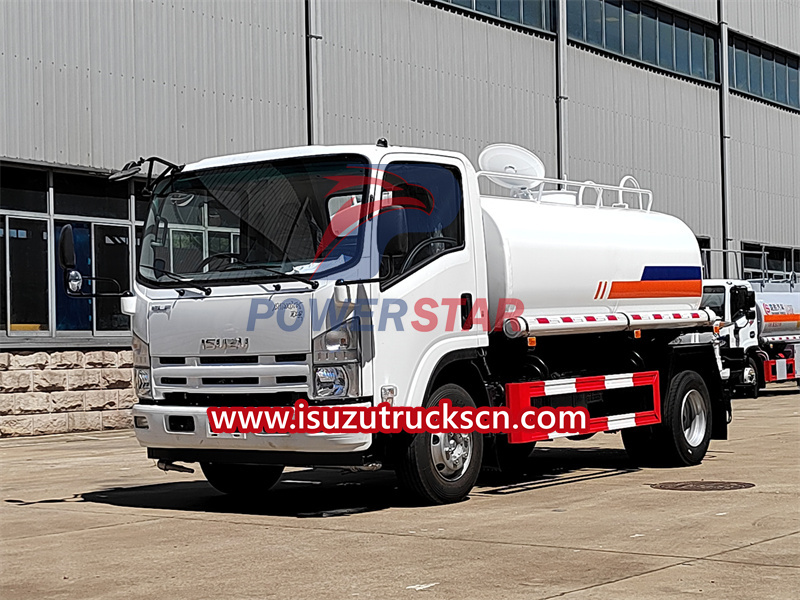

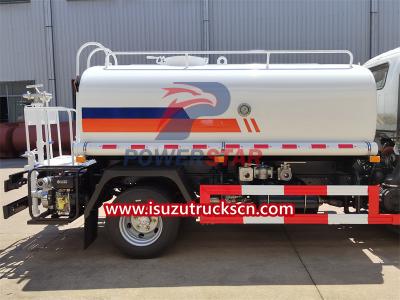

Japan ISUZU NPR truck mounted SS304-2B water tankerPotable Water Truck based on type II ISUZU 4x2 classical ELF chassis, Isuzu water cannon truck capacity could up to 5,000liters, mainly used for water storage and delivery work, the working aerial can be city street, factory, community and other areas of need. The Isuzu NPR drinking water truck designed to fully rely on the advantages of the original ISUZU 4x2 NPR LHD chassis, fully consider the product's convenience and reliability. The water truck equipped with stainless steel water pump for regular use. The water tanker material is food grade stainless steel, which can be durable and service for a long time. As for tank capacity, this can be up to 5 CBM, with one manhole on top, at rear of the truck equipped with 6 fast delivery nozzles for easy operation, and can cover all customers’ water delivery requirement.
Product Parameters for Isuzu potable water truck:
| Mian Technology Parameter | |
| Model Name | Isuzu potable water truck 5000L |
| Driving Type | 4×2,left hand drive |
| Color | White, Orange, box can choose |
| Weights | |
| Rated payload weight(kg) | 10000 |
| Curb weight(kg) | 4200 |
| Dimensions | |
| Wheelbase(mm) | 3815 |
| Overall Dimension(mm) | 6250×2200×2650 |
| Box dimension | 5000L(1350 gallon) |
| Max speed(km/h) | 110 |
| Engine | |
| Engine model | 4HK1-TC(190HP) |
| Engine type | 4 stroke water-cooled,inter-cooling |
| No. of cylinders | straight- 4 cylinders |
| Displacement(L) | 5.193L |
| Max. output (kw) | 140kw |
| Drive Line | |
| Transmission | MLD 6 speeds, 6 forwards,1 reverse gear,manual operation |
| Steering | Power steering |
| Brake | Oil brake OR air brake |
| Cab | |
| Cabin | Isuzu 700p NPR NQR |
| Standard configuration | with A/C,oil brake with vacuum booster pump,power steering |
| Axle | |
| Front axle | 4 tons |
| Rear axle | 7 tons |
| Tire specification | |
| Tire specification | 235/75R17.5 standard tire,6 tires+1 spare tire |
| Water truck | |
| Water tanker material | Of high quality food grade stainless steel (304-2B). |
| Introduction | 1. Suction≥7m Sprinkler width≥14m Range≥28m |
| 2. with front spout, back spill and side spout function | |

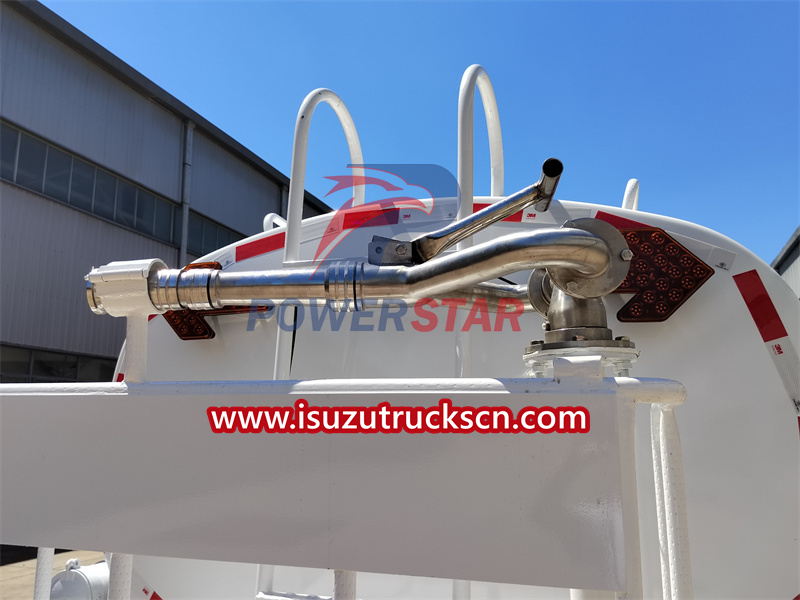

| 3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) | |
| 4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. | |
| Manhole | Man way access hole on top of tank;1 units DN500mm manhole |
| Horse reels | Two hose reels at each side of the truck |

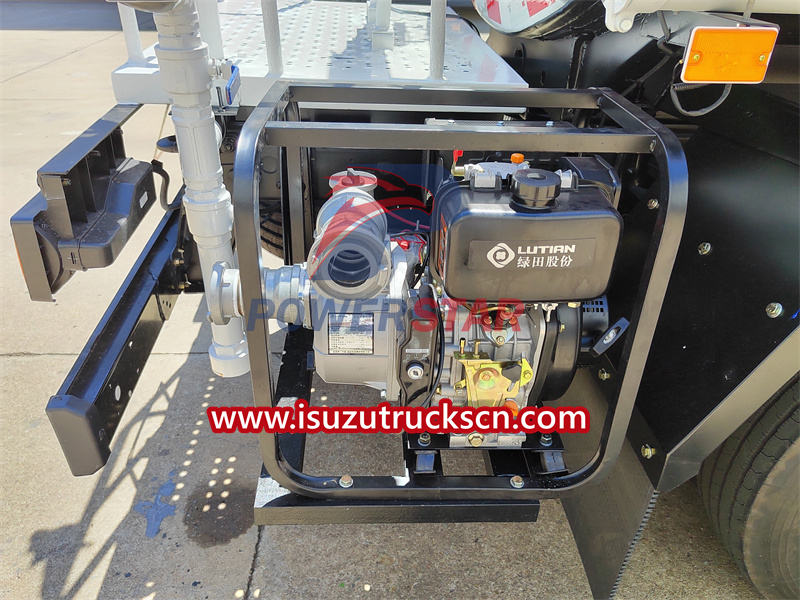

| Water pump | Water pump model: 45QZF-40/50N (N/S) |
| Water pump flow rate(L/m): 40m3/h | |
| Head of delivery(m): 90m | |
| Self-priming function(min/4m):1.5 | |
| Efficiency(%):95% | |
| Related rotate speed(r/min)1180 | |
| matched power(kw):22 | |
How to choose most suitable Isuzu potable water truck from POWERSTAR:
The water tank truck is refitted based on the ISUZU LHD 4x2 NPR truck chassis. The refit part includes water carrying assembly, actuator device, pipeline system and operation system.

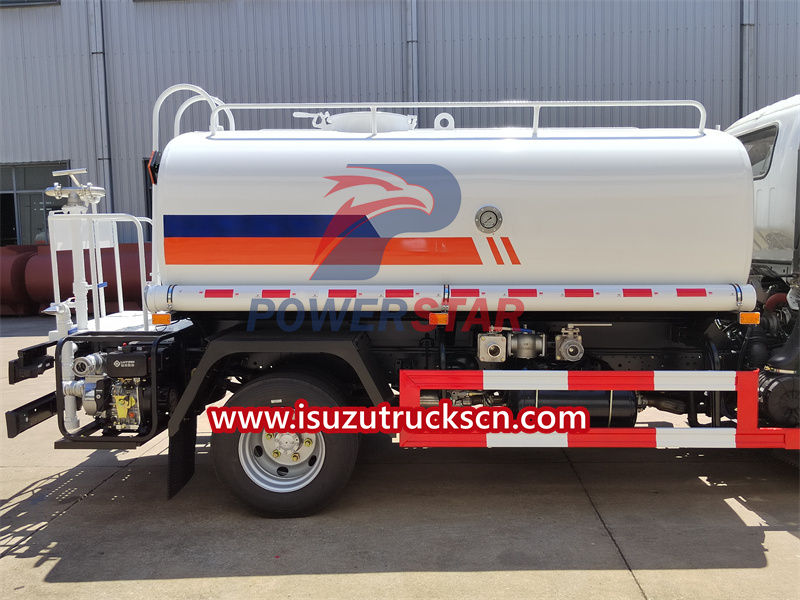

Ø Water carrying assembly: A food grade stainless steel 304-2B container shaped ellipse, which is used to store potable water.
Ø Actuator device: includes power take off, drive line, etc., which can pass the power from the chassis to the stainless steel water pump.

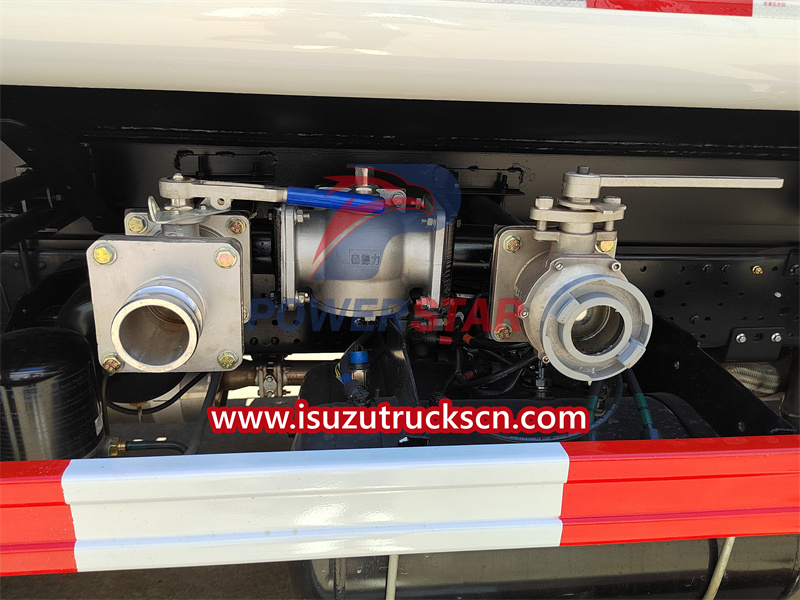

Ø Pipeline system helps come to all special functions, including water pump system front and rear water discharging nozzles.

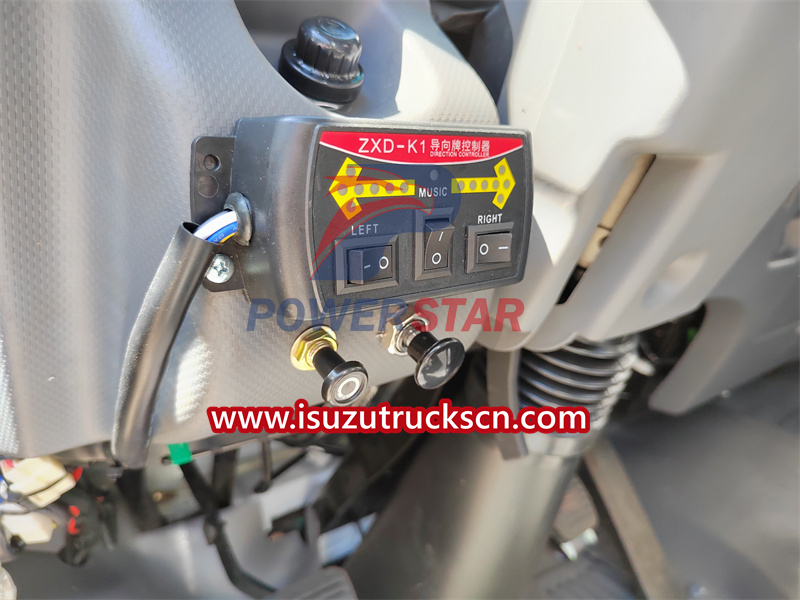

Ø Operation system: helps come to all special functions’ convert.
Regular Maintenance for Isuzu potable water trucks:
Ø The maintenance of the Water Pump refer to the “Potable Water Truck Owner’s Manual”
Ø When the temperature is below 0℃, the storage water inside of the Pump, Pipeline and Tank should exhaust out to protect the parts from damage. If unused for a long time, please also exhaust out the water. When use truck again after long time, you should carefully check every parts
Ø It should be checked all coupling and lubrication at fixed period to exclude the tight parts, and make sure all parts in good lubrication condition.
Ø The Water Pump, Sandwich PTO, PTO, Transmission Gearbox should be carefully washed, checked and maintenance every year.
Ø The strainer inside filter should be washed every time after use it.
