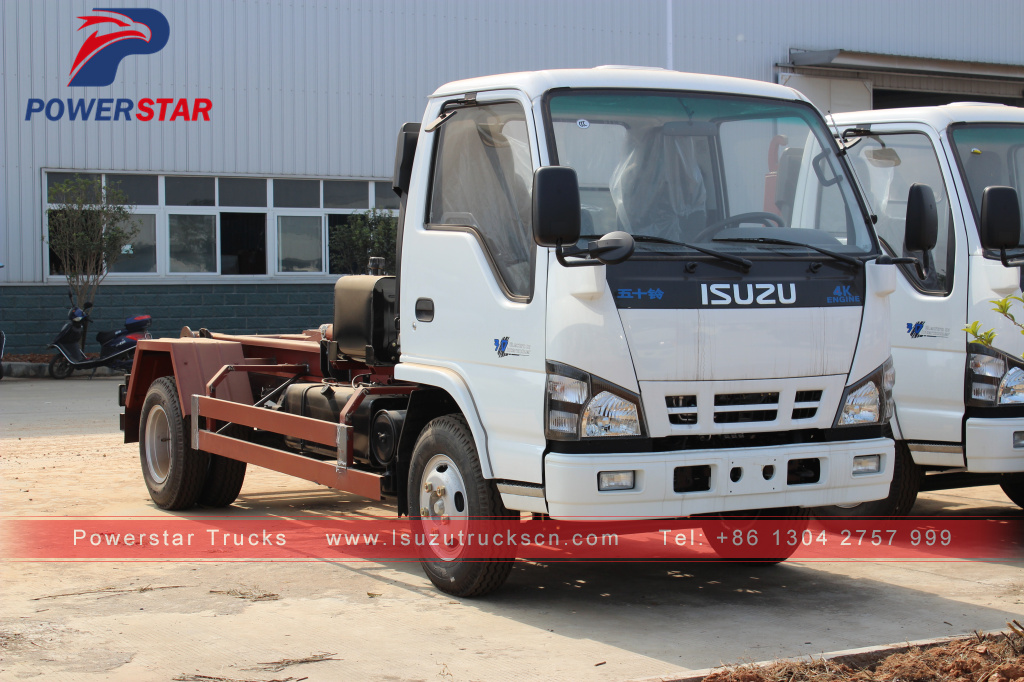

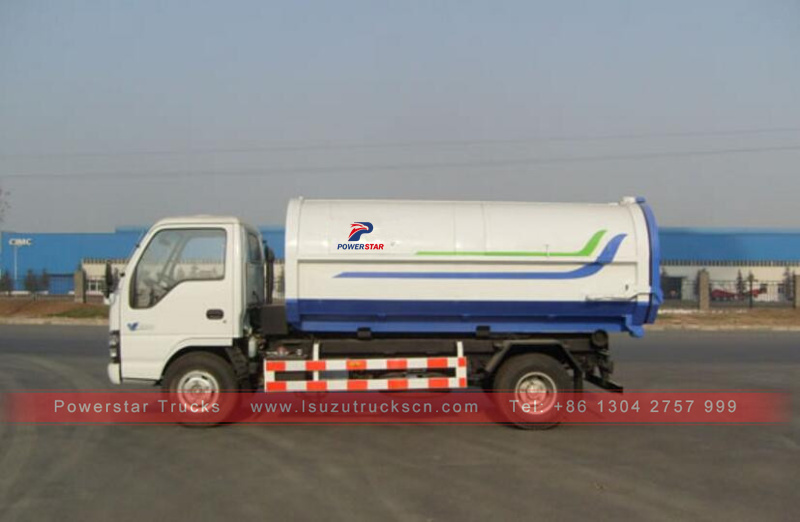

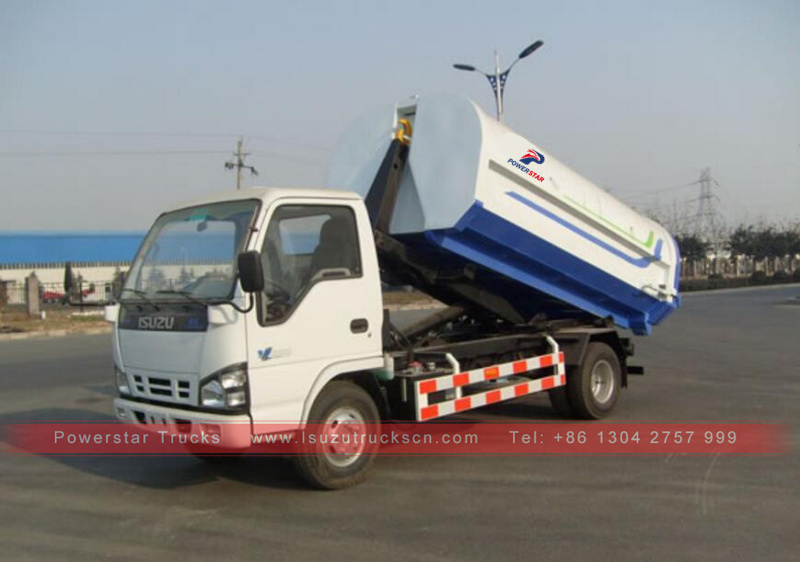

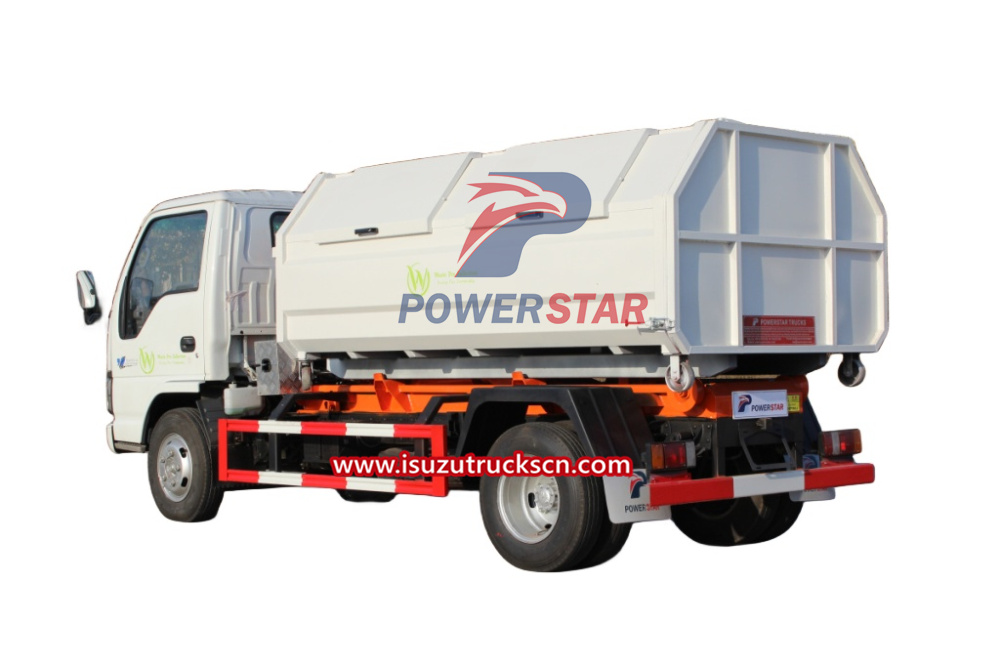

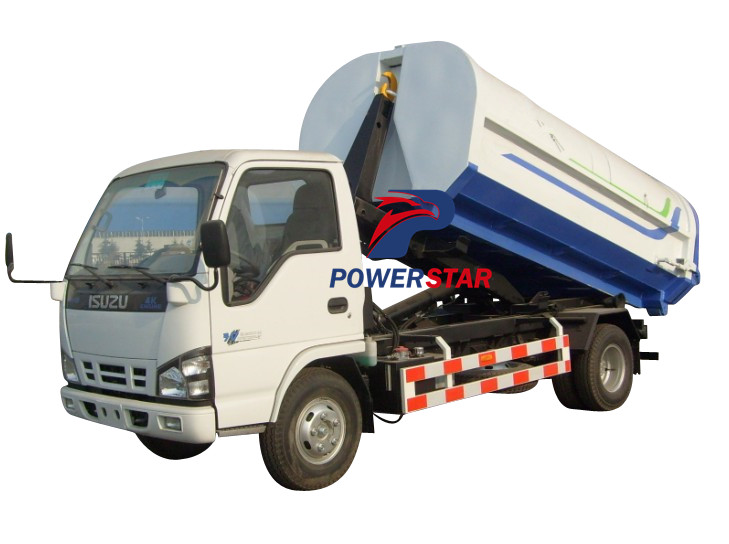

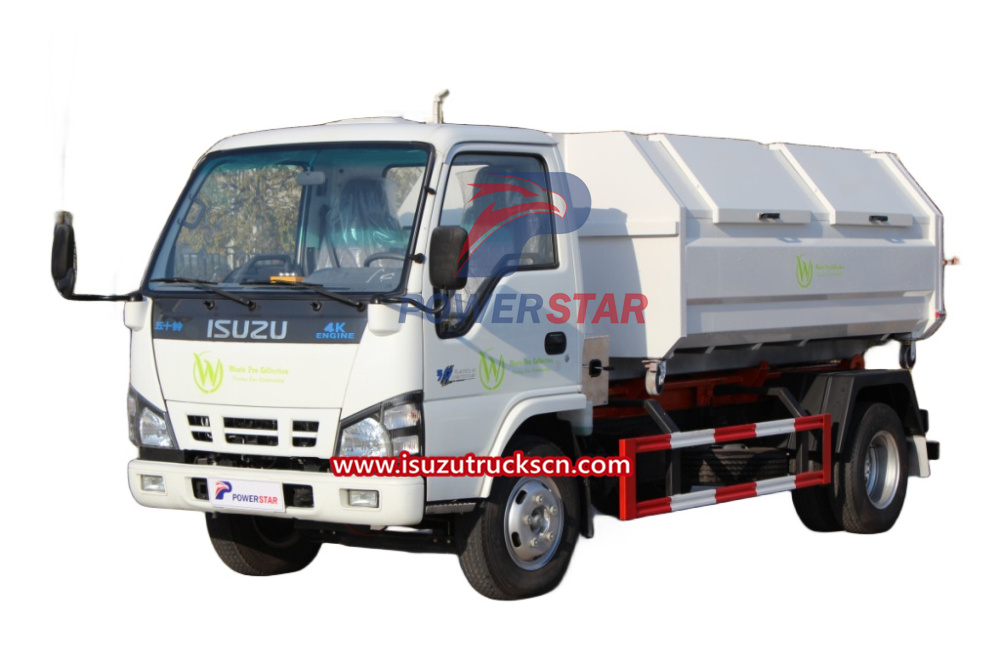

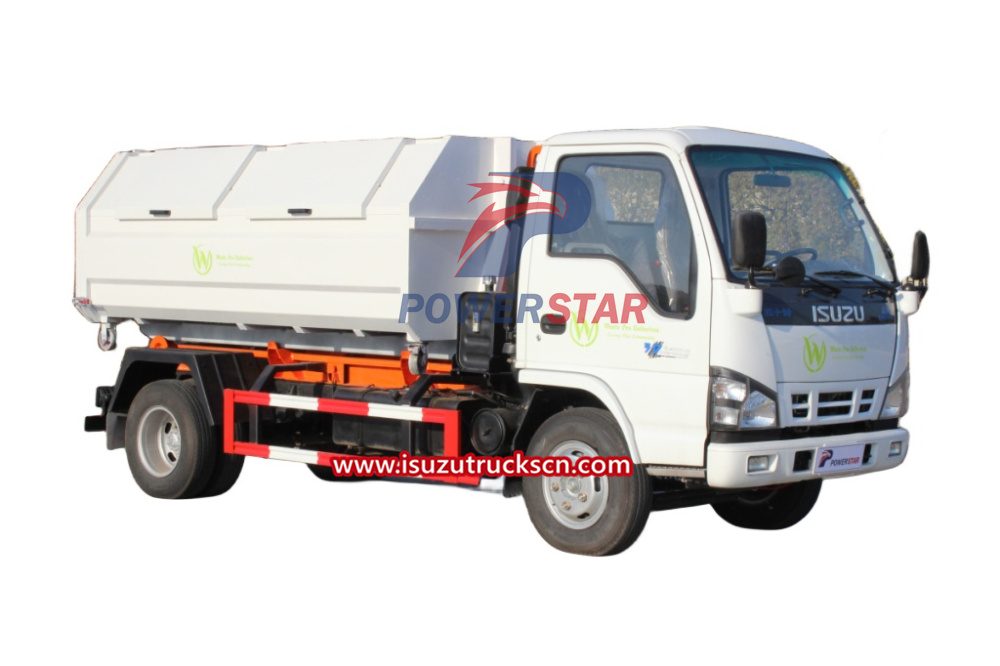

The 3tons Isuzu NKR Hook Lift Garbage Truck, also known as the 3ton 5tons Roll-off Garbage Truck Isuzu,Isuzu brand detachable container garbage truck, or Hook arm garbage Truck Isuzu, is a highly efficient waste management vehicle. This specialized truck is designed to collect and transport garbage from residential and commercial areas
Order(MOQ):
1Work capacity:
3~5 TonsTruck model:
PT5080TGBEngine power:
130HPEngine type:
Isuzu 4KH1Axle drive:
4x2Gear box:
Isuzu MSB5SRemarks:

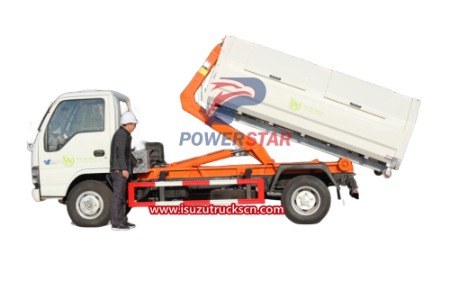

4 door closed bin and open bin availableThe brief introduction of Japan Isuzu Hook Lift Garbage Truck 3tons
1) The Isuzu 3tons Hook Lift Garbage Truck, also known as the Roll-off Garbage Truck,detachable container garbage truck, or Hook arm Truck, is a highly efficient waste management vehicle. This specialized truck is designed to collect and transport garbage from residential and commercial areas

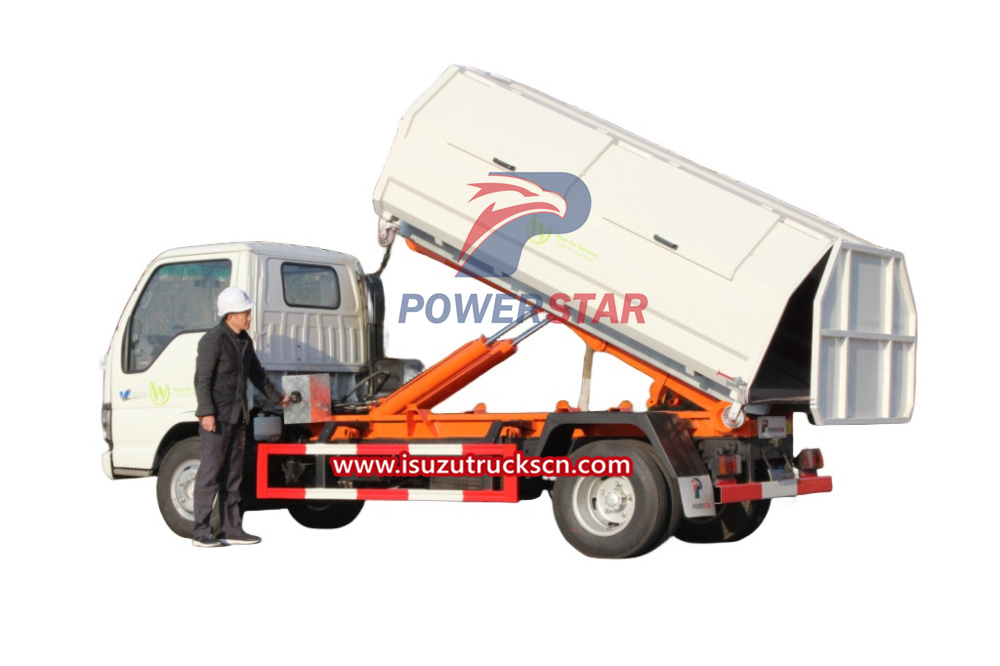

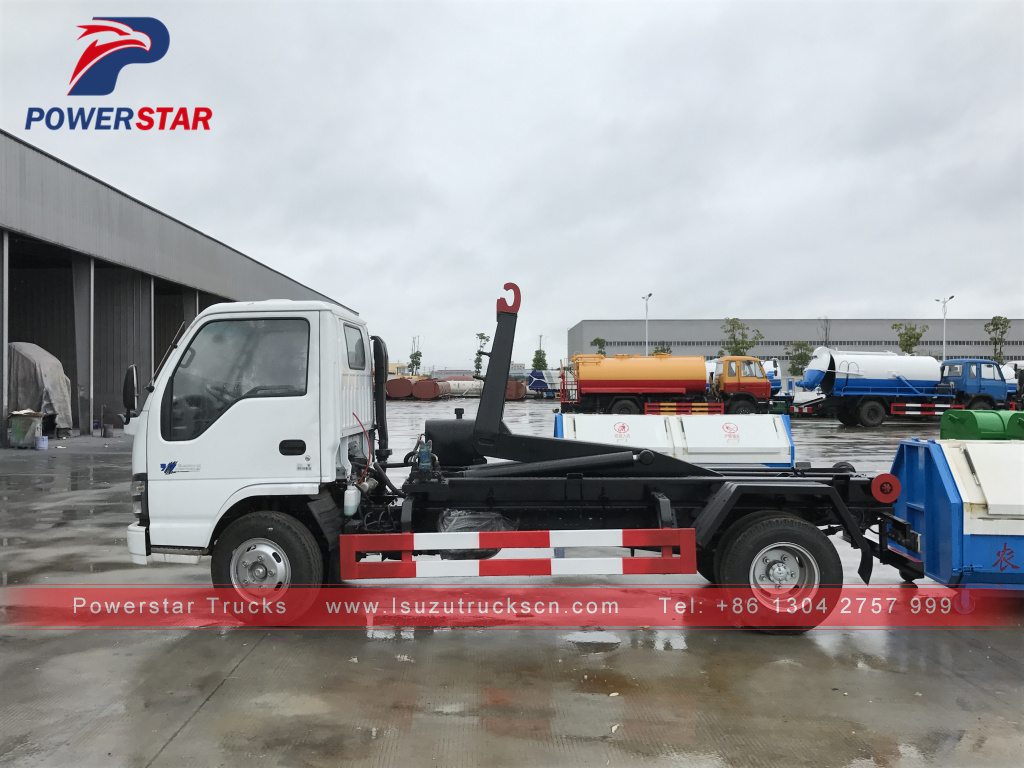

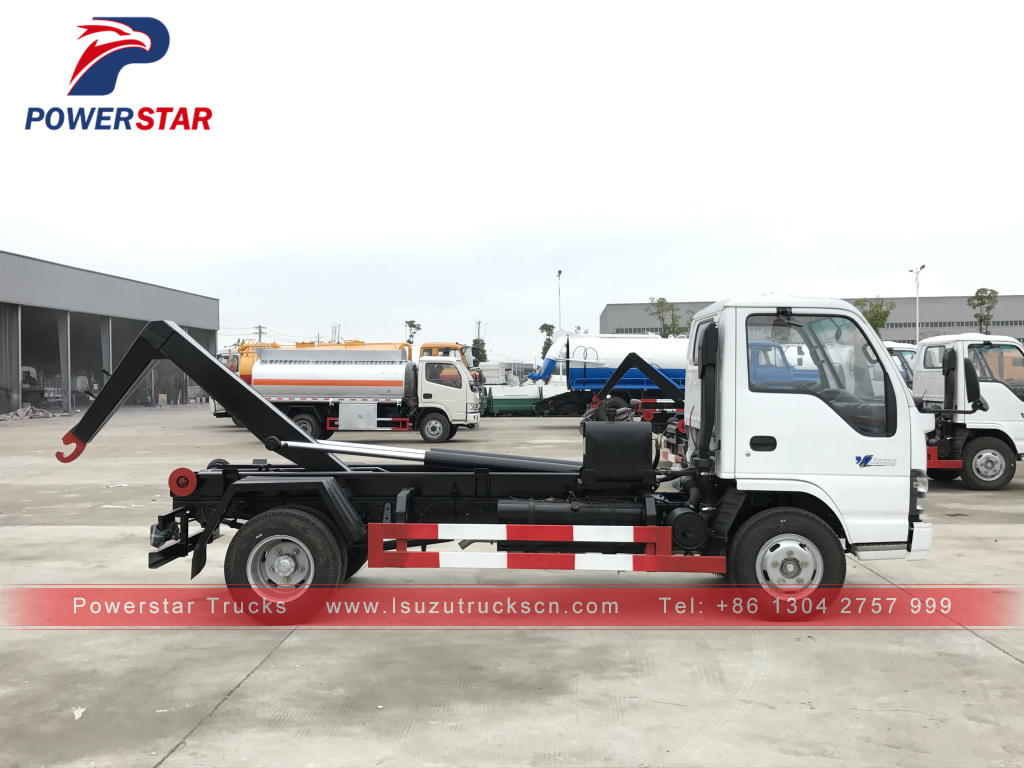

2) Equipped with a hydraulic hook lift system, the Isuzu Hook Lift Garbage Truck offers a convenient and time-saving solution for waste disposal. The system allows for easy loading and unloading of waste containers, minimizing manual labor and increasing productivity. With its robust construction and powerful engine, the Hook Lift Garbage Truck is capable of handling heavy loads of waste. It is designed to withstand the rigors of daily use and ensure reliable performance in various weather conditions. The Hook Lift Garbage Truck plays a crucial role in maintaining cleanliness and hygiene in our communities
4. Advantagous of hook lift/roll-off/detachable container garbage truck Isuzu
Its efficient waste collection capabilities contribute to the overall well-being of the environment and the health of the population.In conclusion,the Hook Lift Garbage Truck Isuzu, also referred to as the Rear Loader Garbage Truck, Rearload Garbage Collection Truck, or Rear Loader Dumper Truck, is an essential tool in waste management. Its advanced features and reliable performance make it an indispensable asset for waste disposal operations
5. Hook lift garbage truck Chassis option:DFAC,FAW,SINOTRUCK HOWO,BEIBEN,SHACMAN,JAC,JMC,ISU ZU,etc
6. Hook lift loading capacity:1.5Ton, 5Ton, 8Ton, 10Ton, 12Ton,16Ton, 20Ton, 25Ton for you choice
Our company is PALFINGER appointed garbage truck refiting manufacture in China
Applications:
Hook lift garbage truck (also called arm Hook loader garbage truck, 3tons mini hook lifter garbage recycling truck, Arm roll garbage truck, Hooklift truck with detachable container, Roll off hook lift garbage truck, Hydraulic hook lift system garbage truck) has a domestic well-know brand hook arm which is installed the special truck chassis. It is also equipped with a superpower diesel engine. This type truck lifting capacity from 1.5 tons up to 20tons, according to optional.

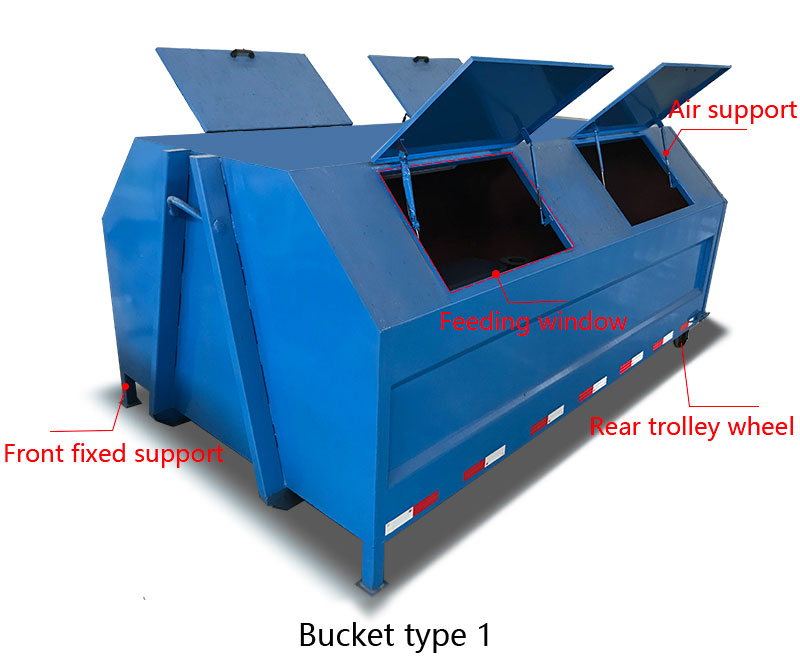

Hook lift garbage truck mady by Powerstar Trucks is necessary for city sanitation department, waste processing company, big factory.... This type arm roll garbage truck has two holes on one side of its cabinet. After the rubbish loading is finished, the holes will be automatically closed by the covers equipped. In addition, cabinet of this sanitary vehicle is removable.
Key Features:

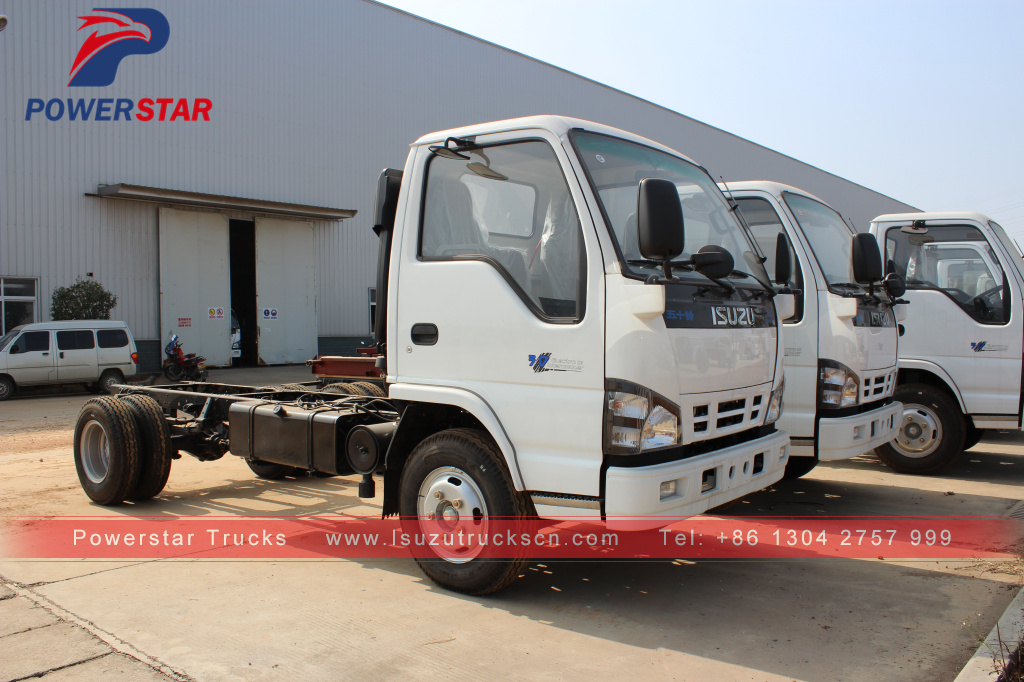

---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Main hydraulic coomponents of our hooklift truck are imported from well-known company.
---- Strong, durable, perfect performance
Specifications:
|
Hook Lift garbage truck Isuzu (3 tons) |
||
|
General |
Vehicle Brand |
POWERSTAR |
|
Chassis Brand |
ISUZU NKR |
|
|
Overall Dimension |
5380 * 1980 * 2230 mm |
|
|
GVW / Kerb Weight |
7,300kg / 2,820kg |
|
|
Cab |
Cab Capacity |
2 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
ISUZU |
|
|
Power |
120 HP (88 KW) |
|
|
Displacement |
2999 ml |
|
|
Emission Standard |
Euro 4 or 5 |
|
|
Chassis |
Drive Type |
4X2, (left hand drive) |
|
Transmission |
5 speed levers with 1 reverse |
|
|
Wheelbase/No. of axle |
3360 mm / 2 |
|
|
Tire Specification |
7.00-16 |
|
|
Tire Number |
6 tires and 1 spare tire |
|
|
Max Speed |
90 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Lift Capacity |
3 Tons |
|
Max dump angle |
51° |
|
|
Garbage bin volume |
3 cubic meters |
|
|
Hydraulic system pressure |
16 MPa |
|
|
Garbage bin material |
Carbon steel |
|
|
Control |
Hydraulic Manual |
|
|
Discharge method |
Rear dumping |
|
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… |
||
|
Optional |
** Backup alarm can be equipped.
** Other vacuum pump can be equipped. ** Operation language can be English or Appointed language.
|
|
The special parameter of Hook lift roll-off garbage truck
| Garbage container effective volume(CBM) | About 5^ cubic meter |
| The Hooking Capacity(T) | 3~5 tons |
| The Hook arm material | Q40,Q50 high strength steel |
| System pressure(Mpa) | 26 |
| Control voltage(V) | 24 |
| Hook arm self weigh(kg) | 2300 |
| Extension of hook arm(mm) | 800-900,or other specification based on different model |
| Hydraulic Oil pump displacement(Min/L) | 60,made in China or import pump |
| Hydraulic oil tank capacity(L) | 110L or more |
| Loading/unloading cycle time(S) | 45S or less |
| The hook center height(mm) | 1570 or other specification based on different model |
| Distance from hook center to rear roller(mm) | 4630 or other specification based on different model |
| Width of guild rail(mm) | 1060 or other specification based on different model |
| Hydraulic oil pump | Hefei pump in China,or import pump |

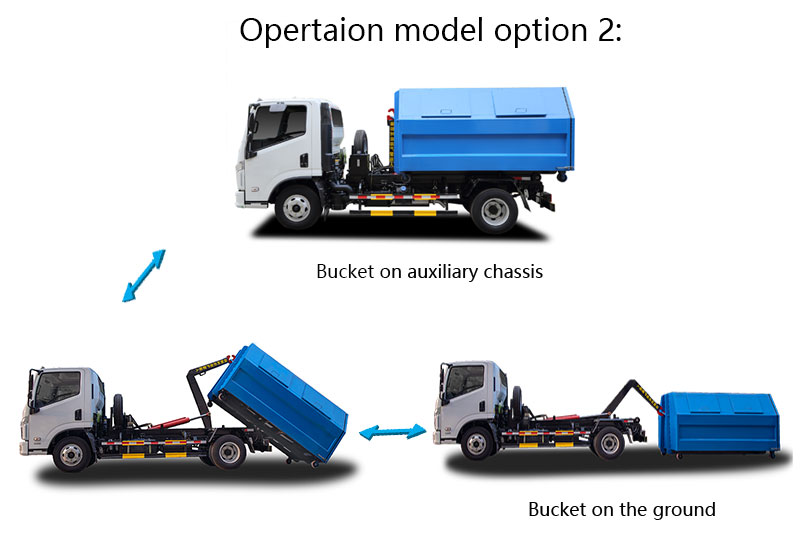

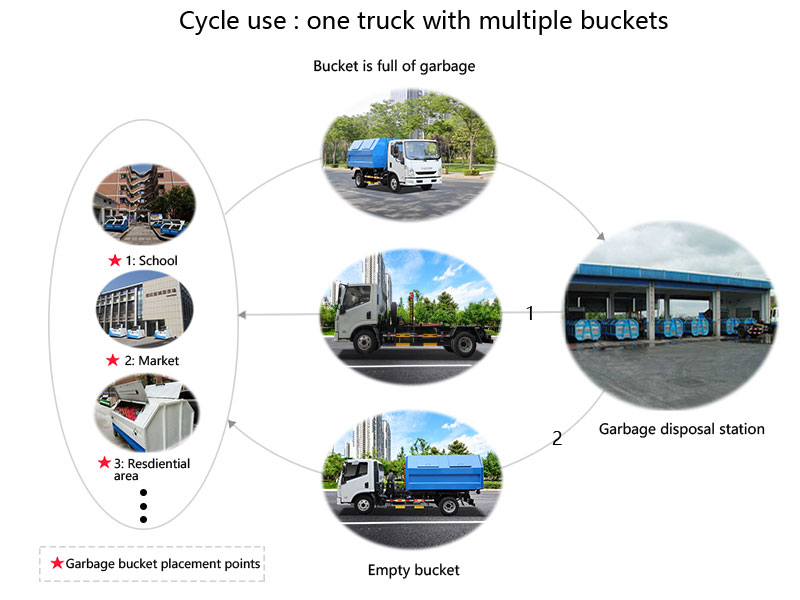

Hook Lift trucks How to works:
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual | Chassis parts | Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
