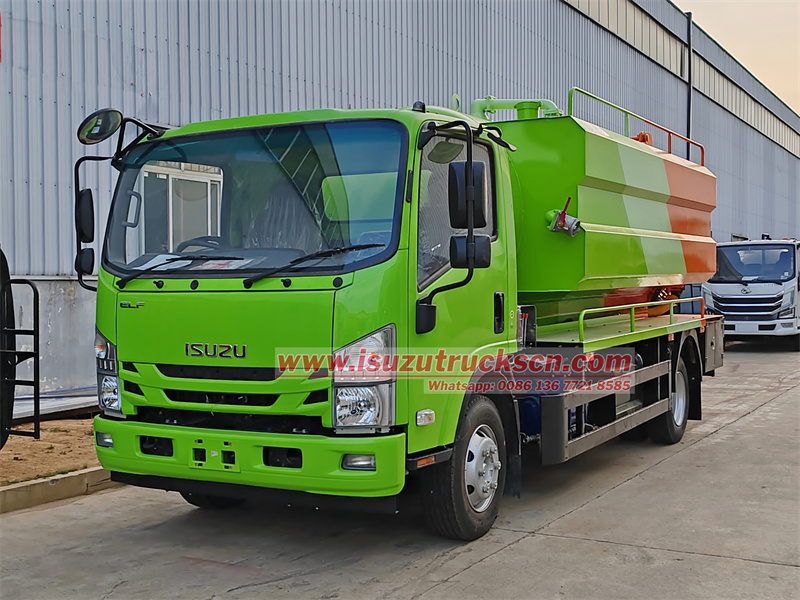

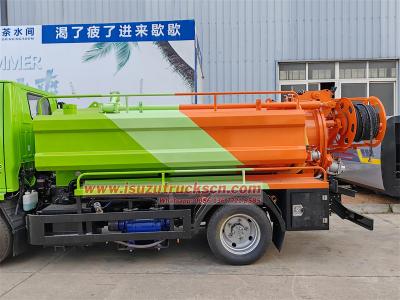

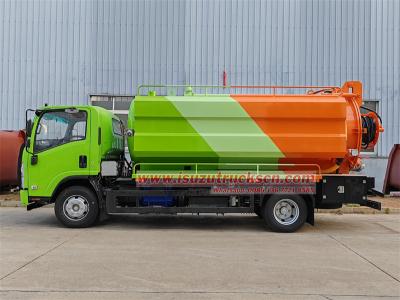

The Isuzu 700P RHD 5CBM joint dredging vehicle is modified on the basis of Isuzu 700P right-hand drive cab, 3815mm wheelbase, 3 seats, equipped with Isuzu 4HK1-TCG61 190HP engine, Euro VI 5193ml emission, Isuzu MLD 6-speed gearbox, the upper body is a 4-cubic-meter suction tank, 1-cubic-meter clean water tank, carbon steel material, respectively controlled by the cab double power take-off, the vehicle is equipped with SK-12 YIFENG Water circulation vacuum pump, SYLT/SY90-56 High-pressure jetting pump, tailgate with high-pressure cleaning hose reel, the vehicle is controlled by the manual hydraulic operation valve on the driver's side and the hydraulic operation valve at the lower left of the tailgate, equipped with a tool box for storing tools.
Manufacturer:
Powerstar TrucksWork capacity:
4000 liters sewage tank,1000 liters cleaning water tankDimension:
7170 x 2340 x 2950 mmCabin type:
Isuzu 700P single row,3 persons seats,with A/C,USBWheelbase:
3815 mmEngine power:
190HP(139KW)Engine type:
Isuzu 4HK1-TCG61Axle drive:
4x2, right hand driveGear box:
Isuzu MLD 6-speed,manualRemarks:

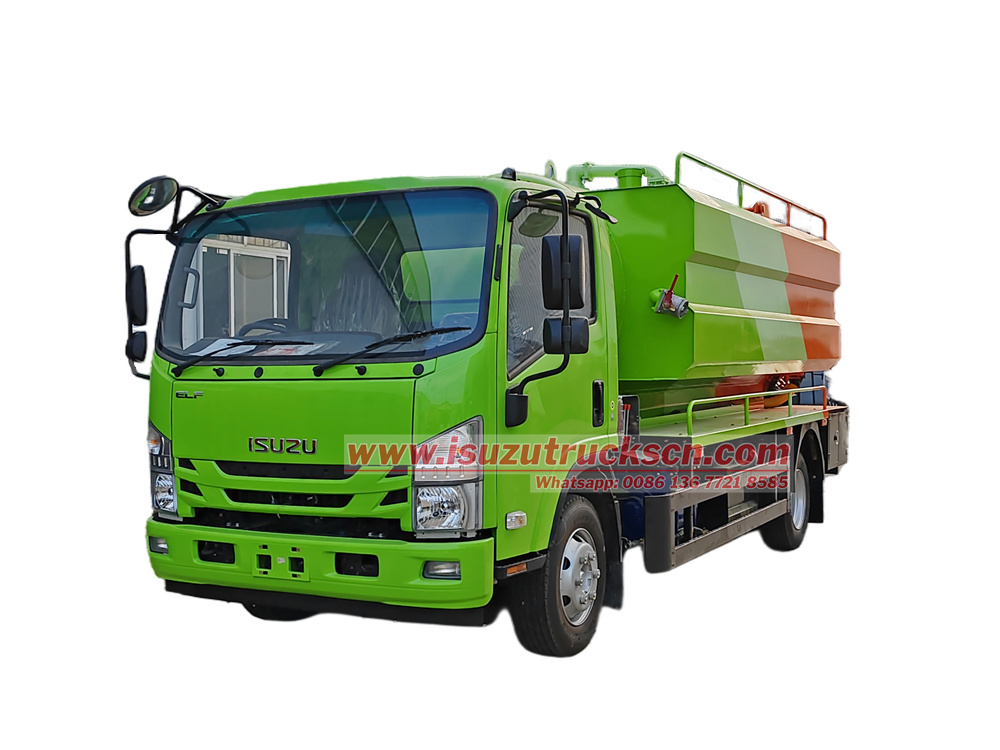

Equipped with SK-12 YIFENG Water circulation vacuum pumpThe kenya Isuzu 5,000 liters vacuum jetter truck is a professional sanitation vehicle modified from the Isuzu 700P right-hand drive cab chassis. It is mainly used for suction, high-pressure cleaning and sewage transfer operations in urban sewers and septic tanks. The vehicle uses the mature Isuzu 4HK1-TCG61 engine, which meets the Euro VI emission standards. It is powerful, environmentally friendly and efficient. It is equipped with an MLD 6-speed gearbox for smooth and reliable operation. The upper body is integrated with a 4-cubic-meter suction tank and a 1-cubic-meter clean water tank, and is equipped with a dual pump system (vacuum suction + high-pressure flushing) to achieve multi-functional integrated operations.
● China best Isuzu combined jetting truck factory
● 30 years experience on combination jetter truck designing
● Be designed according to your requirements
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
|
Isuzu NPR RHD 5000L Hydro Jetting Drain Cleaning truck |
||||
|
General |
Vehicle Brand |
POWERSTAR |
||
|
Vehicle Model |
PT5110GXH |
|||
|
Chassis Brand |
ISUZU |
|||
|
Overall Dimension |
7170 * 2340 * 2950 mm |
|||
|
GVW / Kerb Weight |
10550 kg / 4850 kg |
|||
|
Axle loads |
4000/7000Kg |
|||
|
Cab |
Cab Capacity |
Isuzu 700P single row,3 persons seats,with A/C,USB |
||
|
Air Conditioner |
Air conditioner is optional |
|||
|
Engine |
Fuel Type |
Diesel, 4 cylinders in-line, 4-stroke, supercharged, intercooled, water-cooled |
||
|
Brand |
Isuzu |
|||
|
Model |
4HK1-TCG61 |
|||
|
Power |
190HP(139KW) |
|||
|
Rated speed |
2600rpm |
|||
|
Max torque |
507N.m |
|||
|
Max torque speed |
1600-2600rpm |
|||
|
Displacement |
5193ml |
|||
|
Emission Standard |
Euro VI |
|||
|
Chassis |
Drive Type |
4x2, right hand drive |
||
|
Transmission |

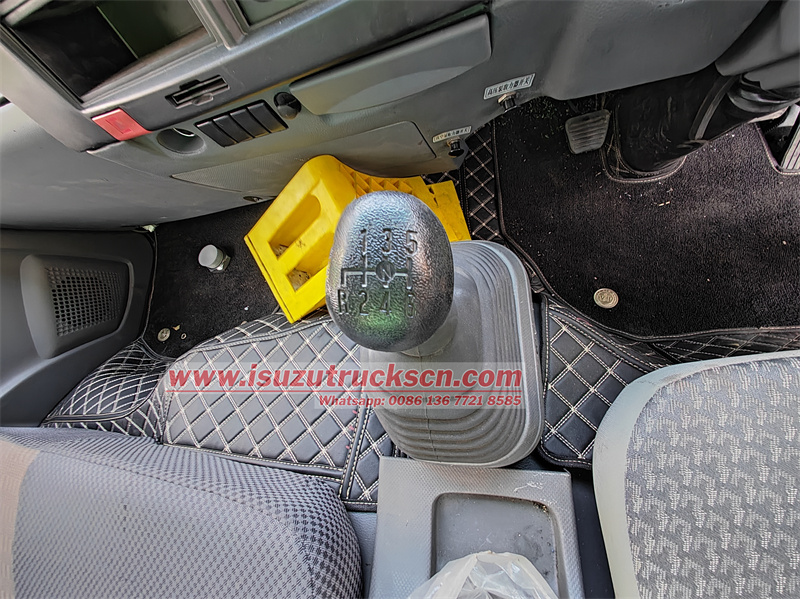

Isuzu MLD 6-speed,manual |
|||
|
Wheelbase |
3815 mm |
|||
|
Front/rear track |
1680/1650mm |
|||
|
Front/rear overhang |
1110/2245mm |
|||
|
Number of axle |
2 |
|||
|
Tyre Specification |
235/75R17.5 |
|||
|
Tyre Number |
6 tyres and 1 spare tyre |
|||
|
Max Speed |
110 km/h |
|||
|
Paint |
Metallic paint |
|||
|
Superstructure |
Tank |
Tank Capacity |
4000 liters sewage tank,1000 liters cleaning water tank |
|
|
Tank Material |
Carbon steel |
|||
|
Vacuum Pump |
High Pressure Vacuum Pump |
SK-12 YIFENG Water circulation vacuum pump |
||
|
Max pressure |
8000Pa |
|||
|
Pumping rate |
12m³/min |
|||
|
vacuum level(-450mmHg) pumping rate |
11 m³/min |
|||
|
Tank lifting angle |
45 degree |
|||
|
Ultimate vacuum |
-710mmHg/-0.093MPa |
|||
|
Rated speed |
970r/min |
|||
|
Power |
Vacuum pump |
18.5Kw |
||
|
Compressor |
30Kw |
|||
|
Suction Head |
7m |
|||
|
Nozzles |
A cluster of nozzles included |
|||
|
Vacuum Pump |
Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m. |
|||
|
High-pressure jetting pump |
Model |
SYLT/SY90-56 |
||
|
Type |
Heavy-duty positive displacement single-acting triplex reciprocating pump to be driven by a split shaft from total power take-off unit. |
|||
|
Pump Rated Power Output |
132kw |
|||
|
Scavenging Capacity |
350L/min |
|||
|

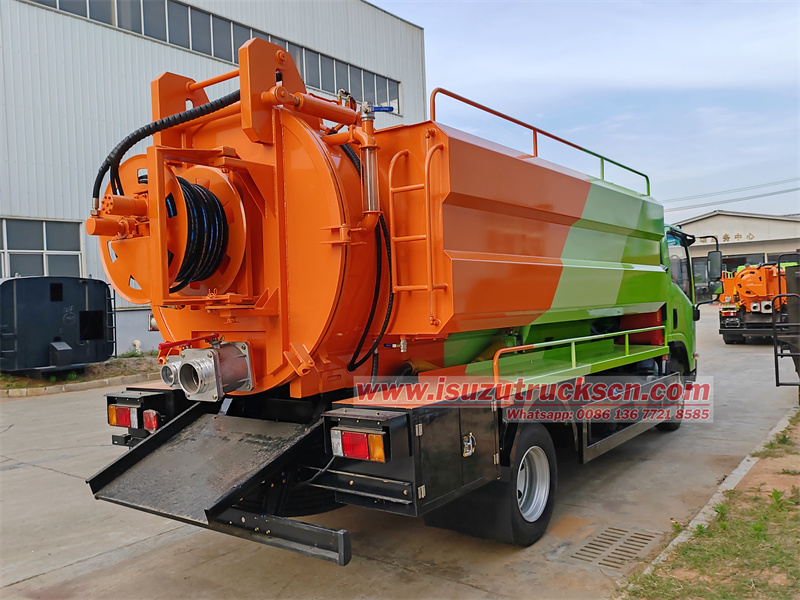

Rear door can be hydraulic opened for complete discharge of solid stuff. |
||||
|
All standard accessories: manhole, tool kit, English manual..... |
||||
|
Optional |
** Tank material could be stainless steel. |
|||
In the maintenance of urban infrastructure, combined dredging vehicles play an indispensable role. The Isuzu 700P right-hand drive 5-cubic-meter joint dredging vehicle has become a trusted equipment for many urban sanitation and municipal departments with its excellent performance and professional design.

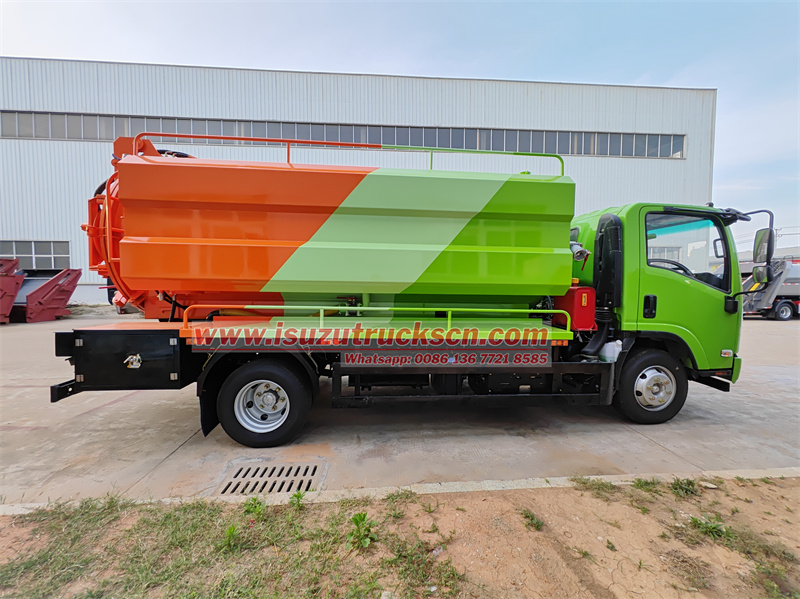

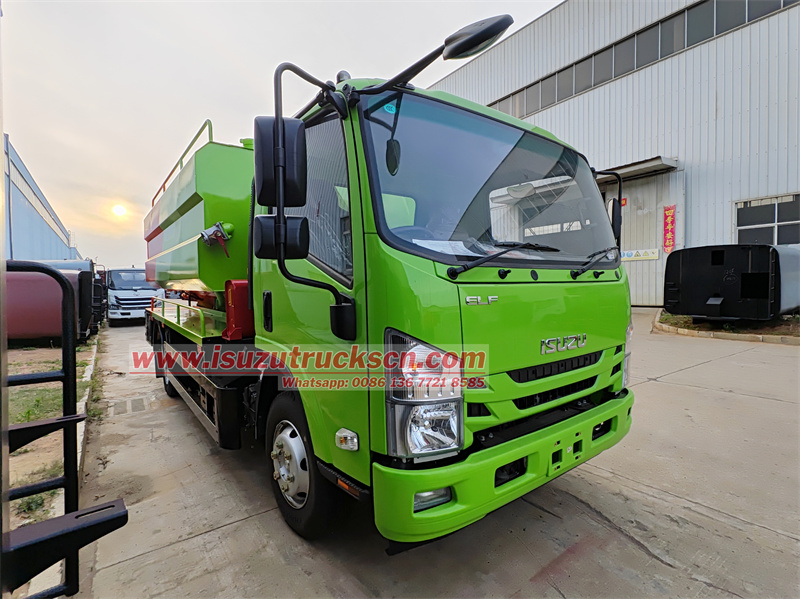

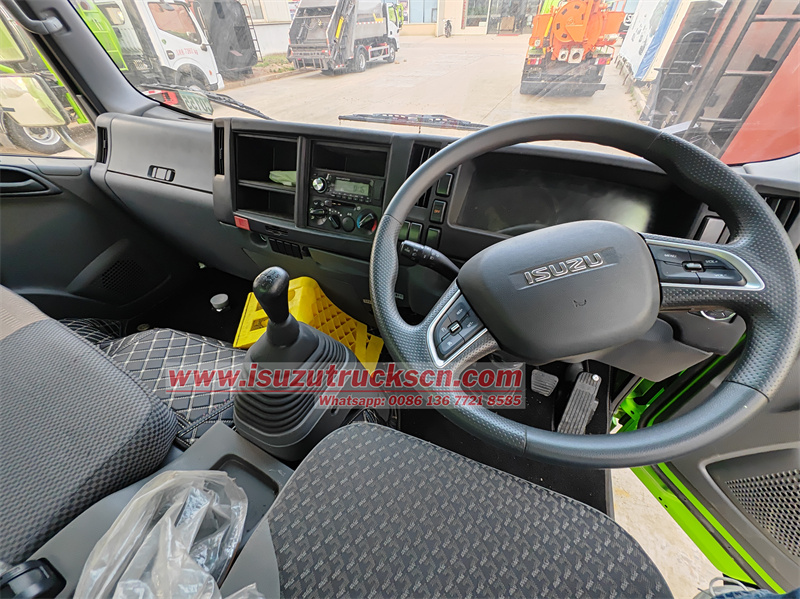

This Isuzu 5cbm combined dredging vehicle is modified based on the Isuzu 700P right-hand drive cab. The right-hand drive design conforms to the driving habits in Kenya and provides convenience for operators. The 3815mm wheelbase gives the vehicle good driving stability and maneuverability, and it can flexibly shuttle in narrow city streets or complex working environments. The cab adopts a 3-seat layout, with air conditioning, ABS, and hydraulic power steering as standard to improve driving comfort.
The power system is the core of the vehicle, which is equipped with the Isuzu 4HK1 - TCG61 190HP engine. This engine is powerful, and the output of 190 horsepower can meet the vehicle's operating needs under various working conditions. At the same time, it meets the National VI emission standards with an emission of 5193ml. While providing powerful power, it also pays attention to environmental protection performance and reduces pollution to the environment. It is matched with Isuzu MLD 6-speed gearbox, which has smooth gear shifting and easy operation. It can reasonably distribute power according to different road conditions and operation requirements to improve fuel economy.

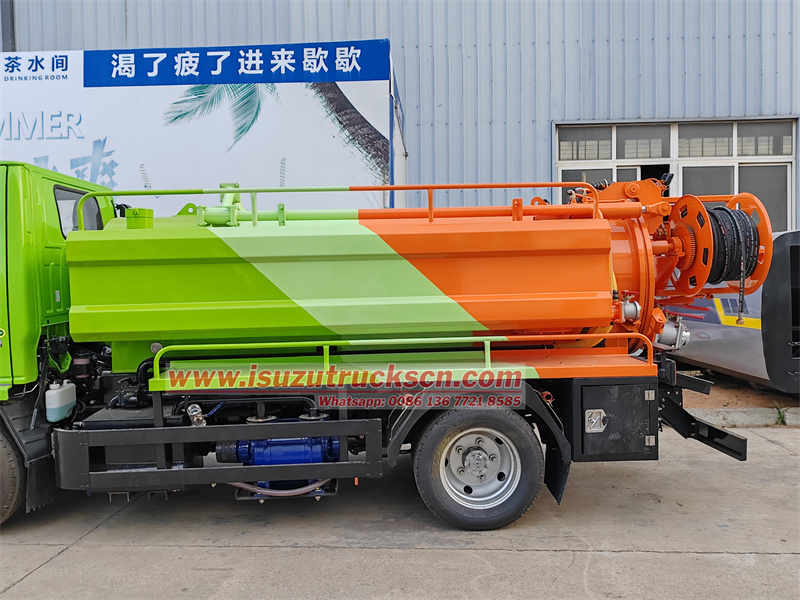

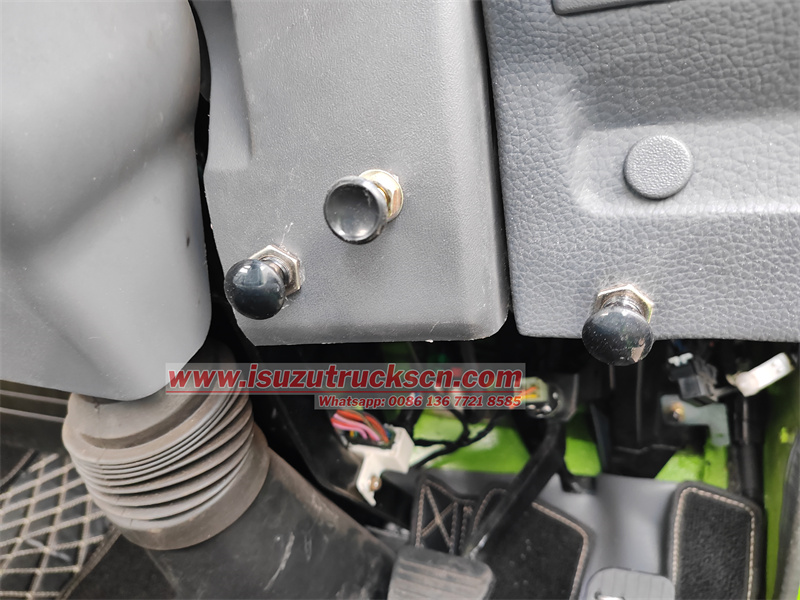

The upper part of the vehicle is scientifically and practically designed. It has a 4cbm suction tank and a 1cbm clean water tank, which is made of carbon steel, durable and can withstand greater pressure and corrosion. The suction tank and the clean water tank are respectively controlled by the double power take-off in the cab. This design allows the operator to flexibly control the suction and cleaning functions according to the actual operation conditions, thereby improving the operation efficiency. The tank design conforms to fluid mechanics, with high sewage discharge efficiency and low residual rate. The vehicle is equipped with safety protection such as overflow prevention device and tank explosion-proof valve.

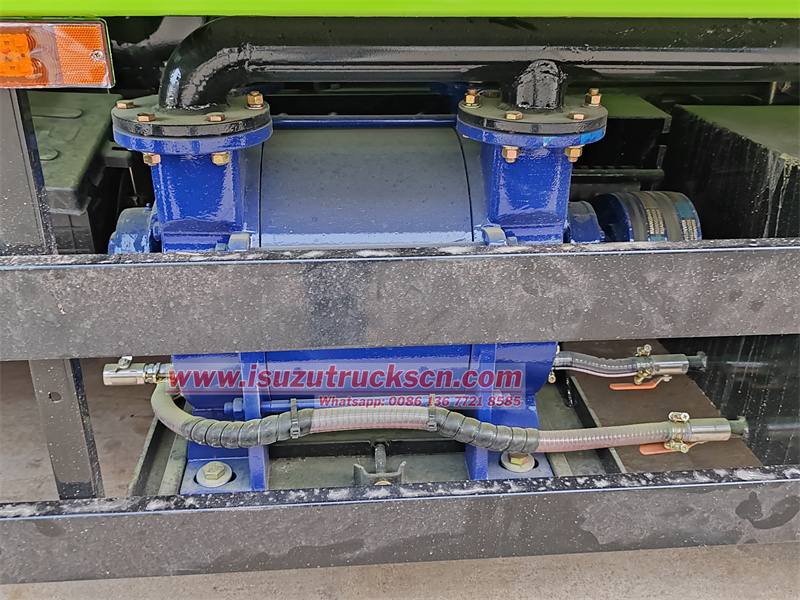

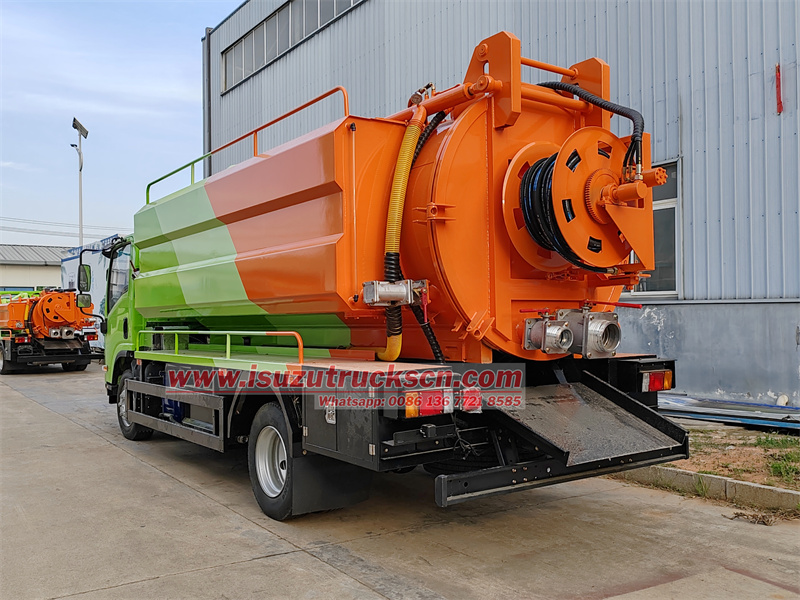

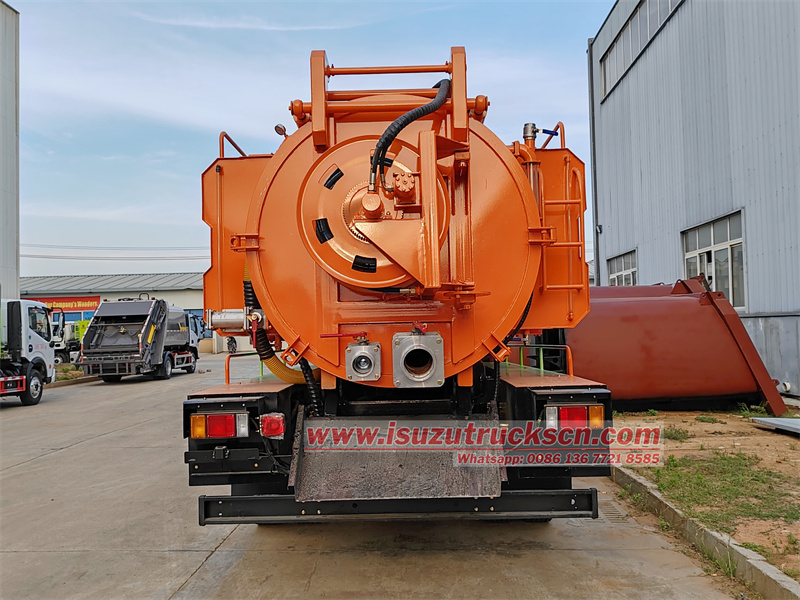

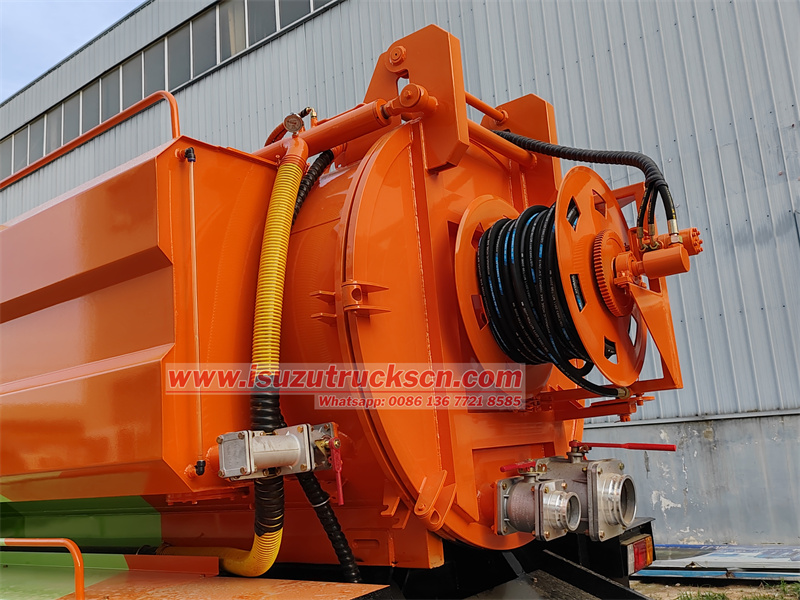

In terms of key equipment, the vehicle is equipped with SK-12 YIFENG Water circulation vacuum pump and SYLT/SY90-56 High-pressure jetting pump. The water circulation vacuum pump can quickly and efficiently extract sewage and debris, ensure the smooth progress of the suction operation, low noise and easy maintenance. The high-pressure jet pump can generate a strong high-pressure water flow for cleaning pipes and unblocking blockages. The 30-meter high-pressure cleaning hose reel equipped on the tailgate can clean the inner wall of the pipe in an all-round and deep manner, effectively removing stubborn dirt and blockages in the pipe and restoring the smooth flow of the pipe.

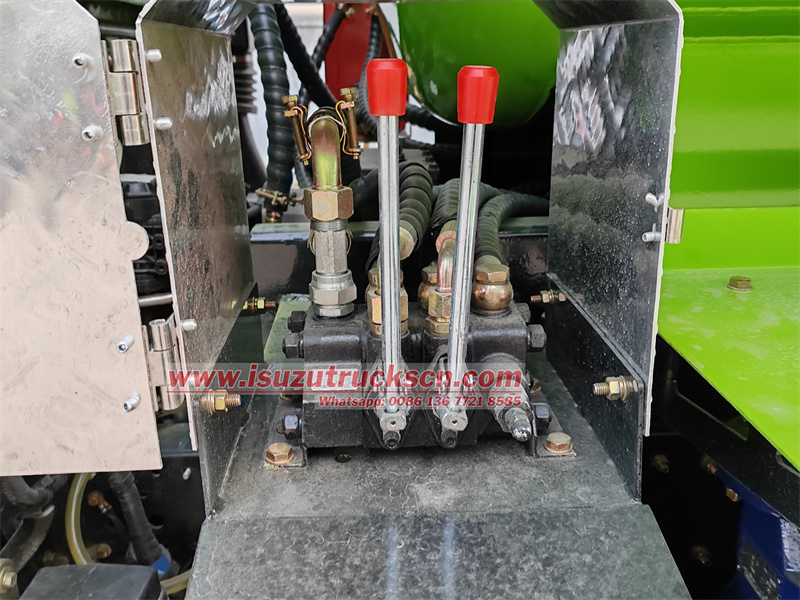

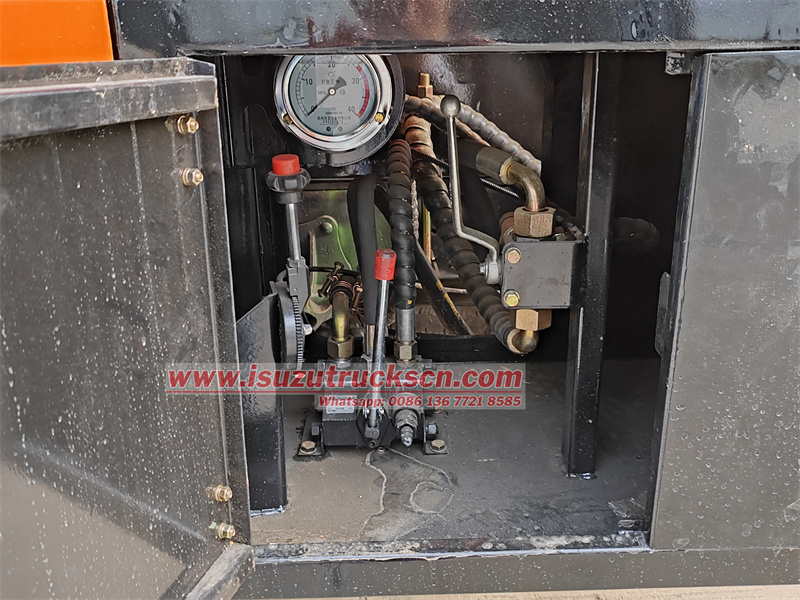

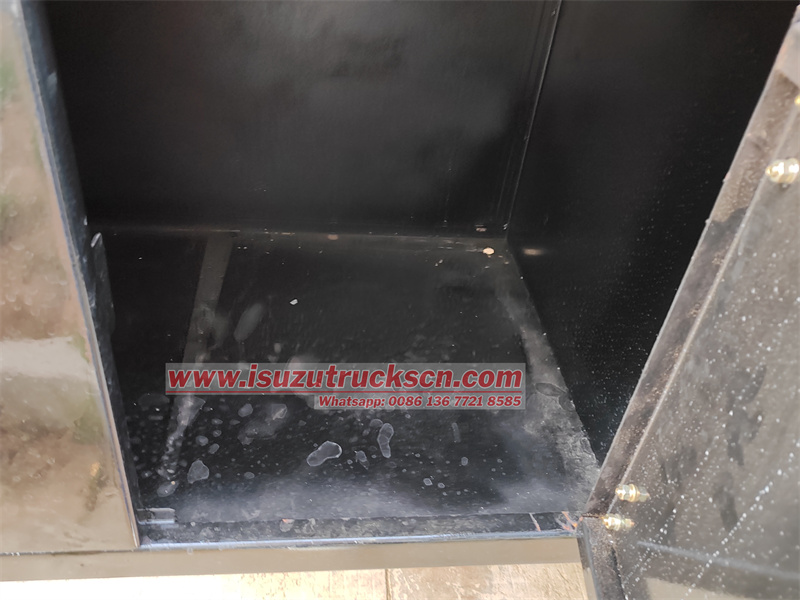

The vehicle's control system is also very user-friendly. It is controlled by the manual hydraulic operating valve on the driver's side and the hydraulic operating valve on the lower left of the tailgate. The operator can choose the appropriate operation method according to the working position and his own habits, which improves the convenience and safety of the operation. In addition, the vehicle is also equipped with a toolbox for convenient storage of various working tools, so that the operator can quickly access the required tools during the operation, improving work efficiency.
Why did Kenyan customers choose this Isuzu 700P RHD 5cbm sewage cleaning truck?
I. Right-hand drive design, fully in line with local traffic regulations, short wheelbase (3815mm), strong passability, Isuzu 4HK1 engine excellent performance, stable and reliable
II. Practical upper configuration meets the needs. The 4-cubic-meter suction tank and 1-cubic-meter clean water tank are made of solid carbon steel, which can meet the needs of pipeline dredging of different scales. The matching vacuum pump and high-pressure jet pump have excellent performance, which can quickly remove pipe dirt and blockages and restore the smooth flow of pipes.
III. Efficient operation capacity to meet local needs
● Powerful suction and flushing function
◇ 4m³ suction tank + 1m³ clean water tank can handle a large amount of sewage sludge at one time, reduce the number of round-trip dumping, and improve efficiency.
◇ SK-12 water circulation vacuum pump has strong suction power and is suitable for cleaning high-viscosity dirt such as septic tanks and sewers.
◇ SYLT/SY90-56 high-pressure cleaning pump can powerfully dredge blocked pipes to deal with common drainage system problems in Kenya.
● Double pumps work together to save time
"High-pressure flushing + vacuum suction" can be performed at the same time, which is suitable for Kenyan municipal departments to quickly dredge silted pipes.
● Manual + hydraulic dual operation mode
The cab and the rear of the car are equipped with hydraulic control valves to adapt to different operation scenarios, with more flexible and convenient operation, and the driver can quickly get started.
IV. Compared with European and American brands, Isuzu chassis is more reasonably priced and fuel-efficient, and can be used for both sewage extraction and high-pressure cleaning
