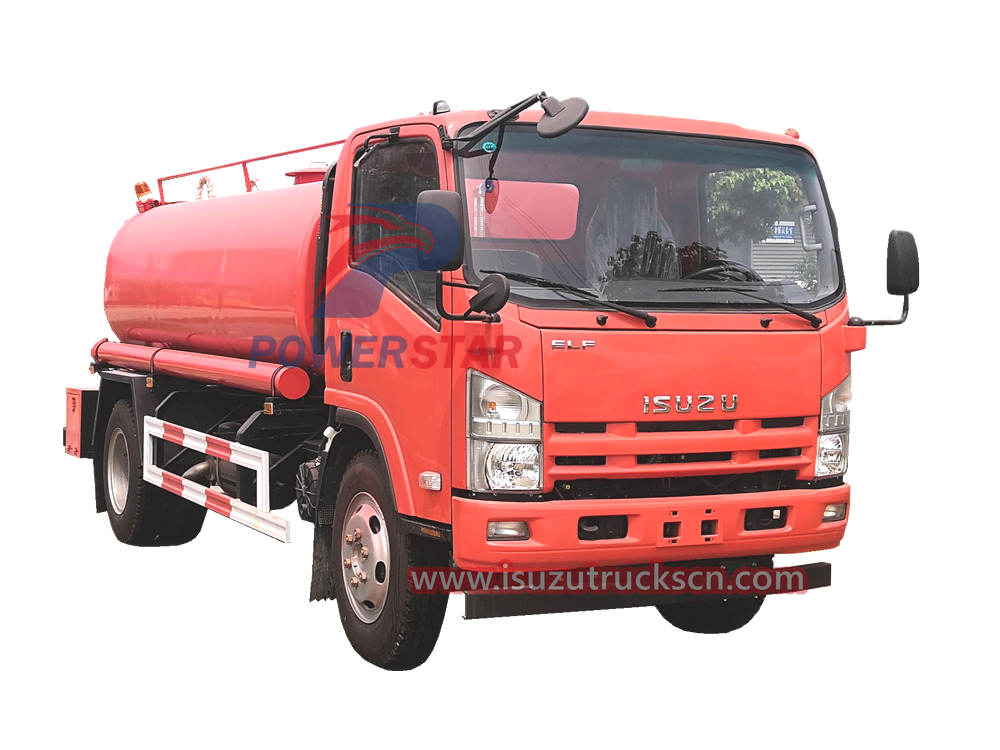

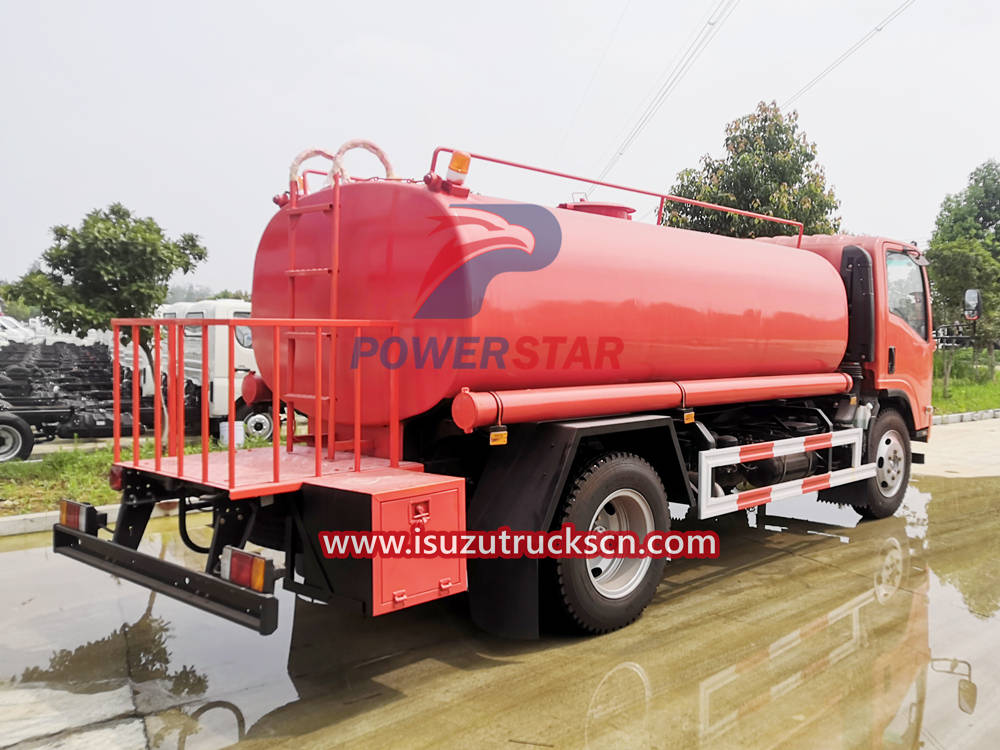

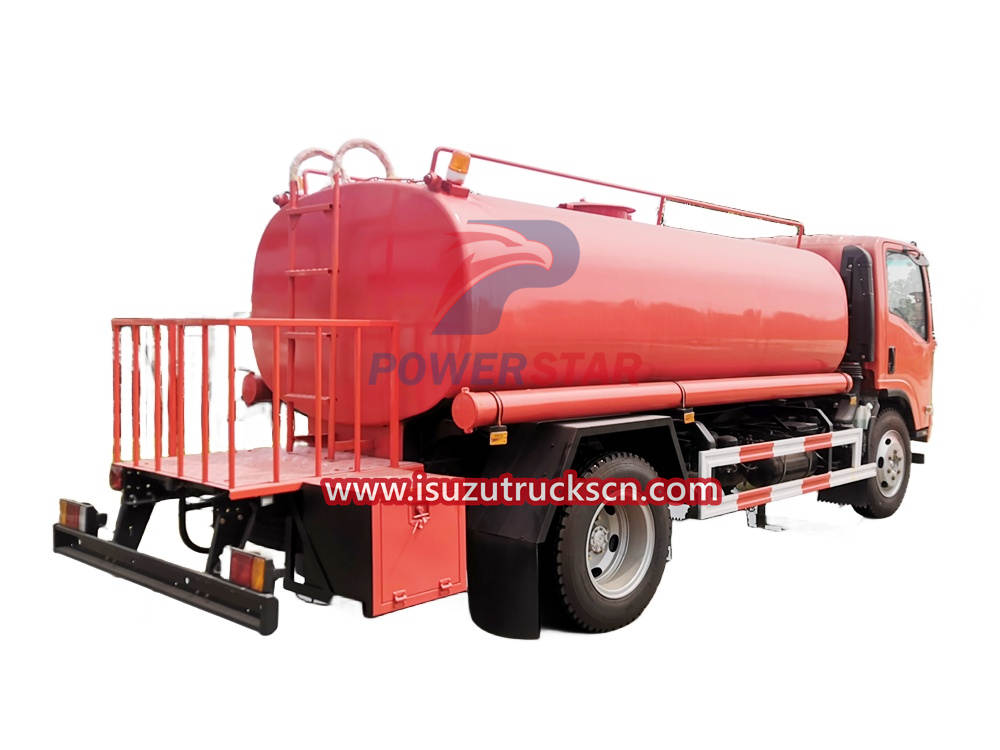

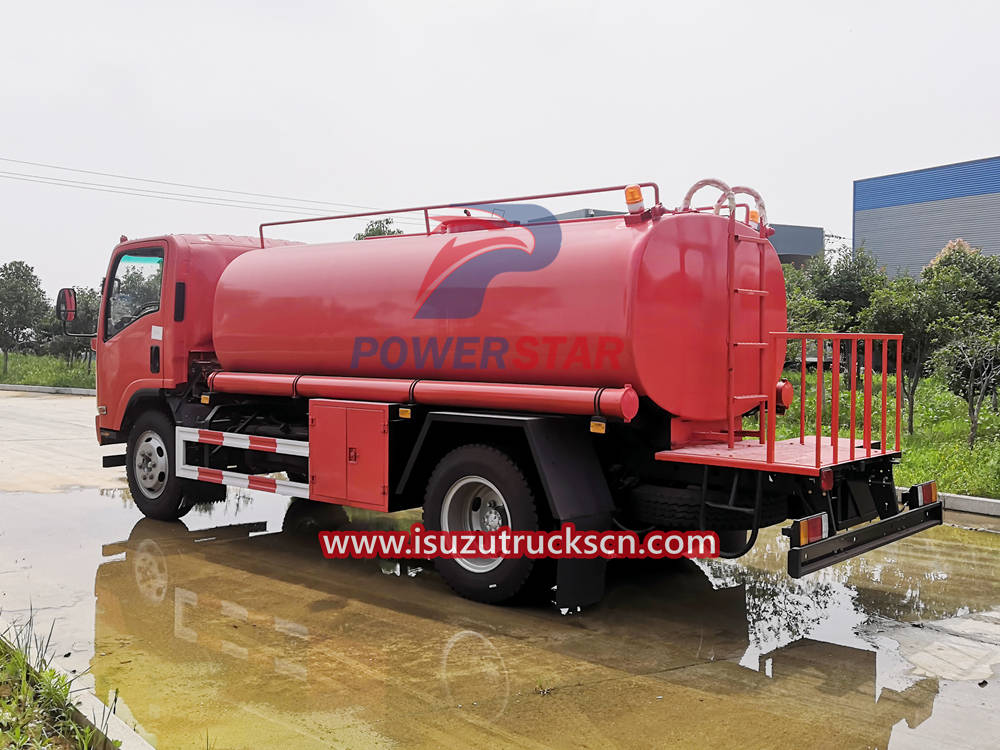

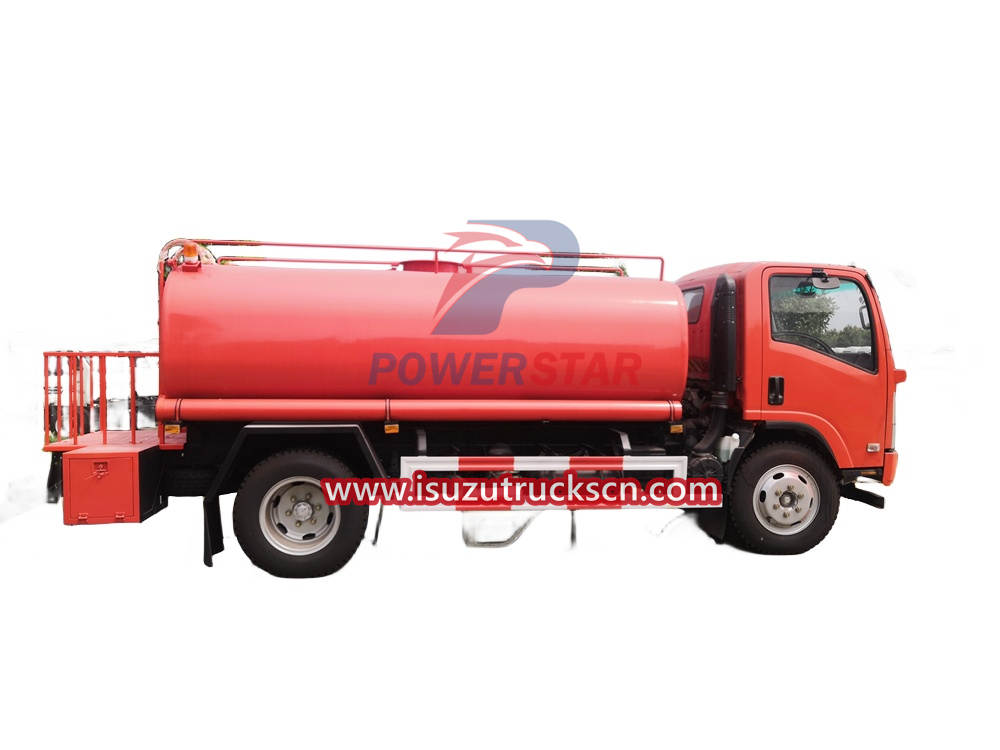

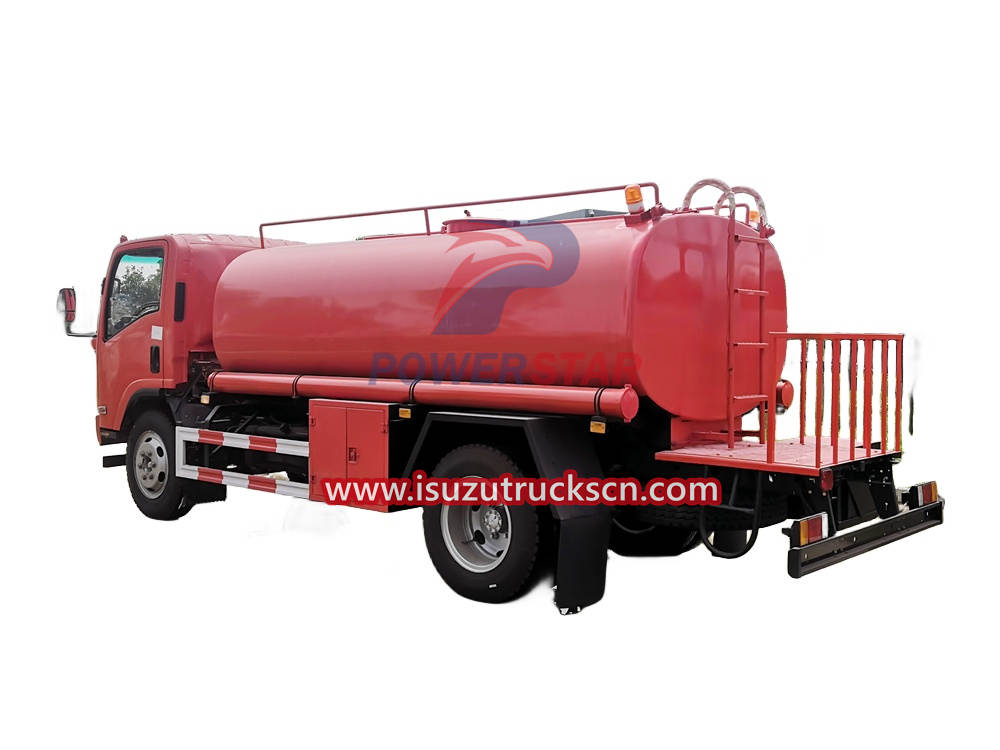

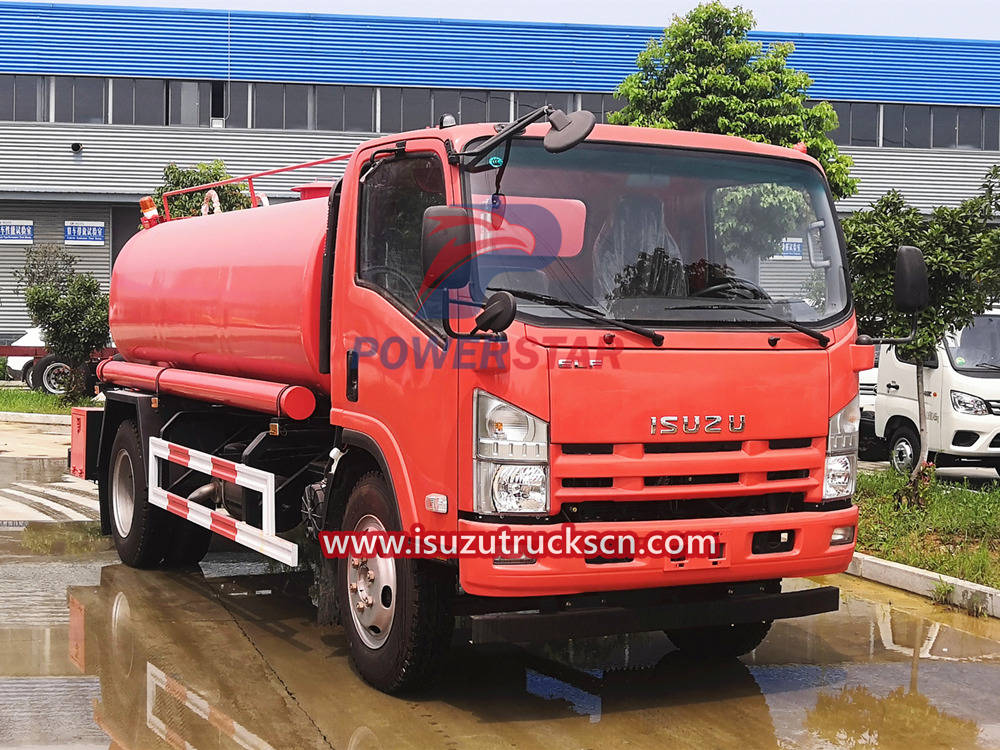

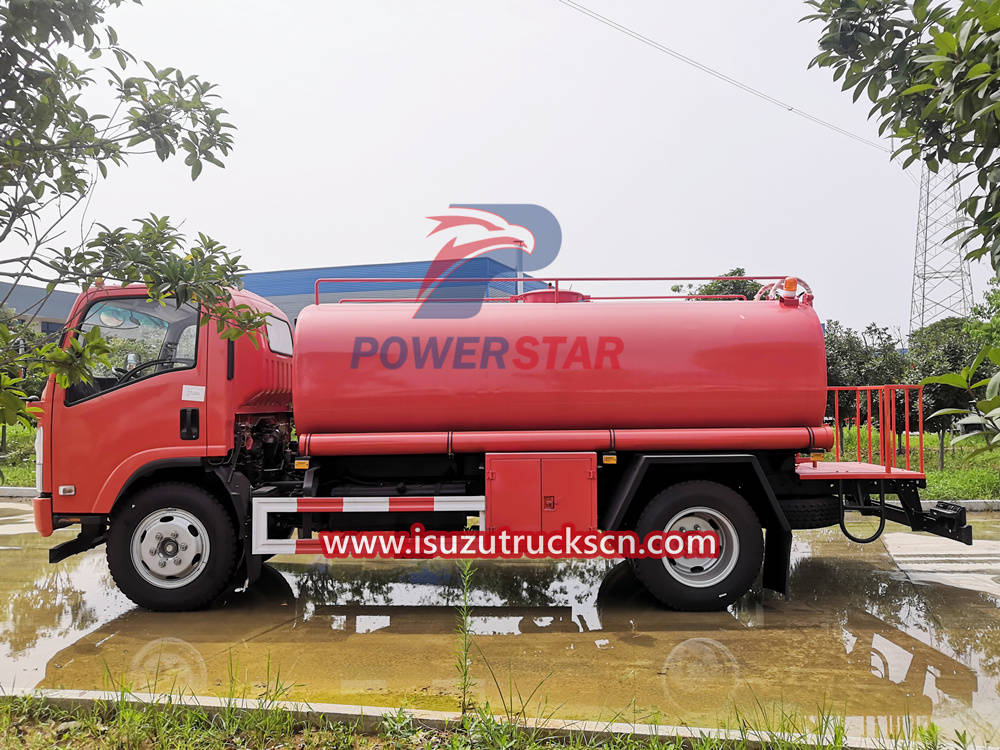

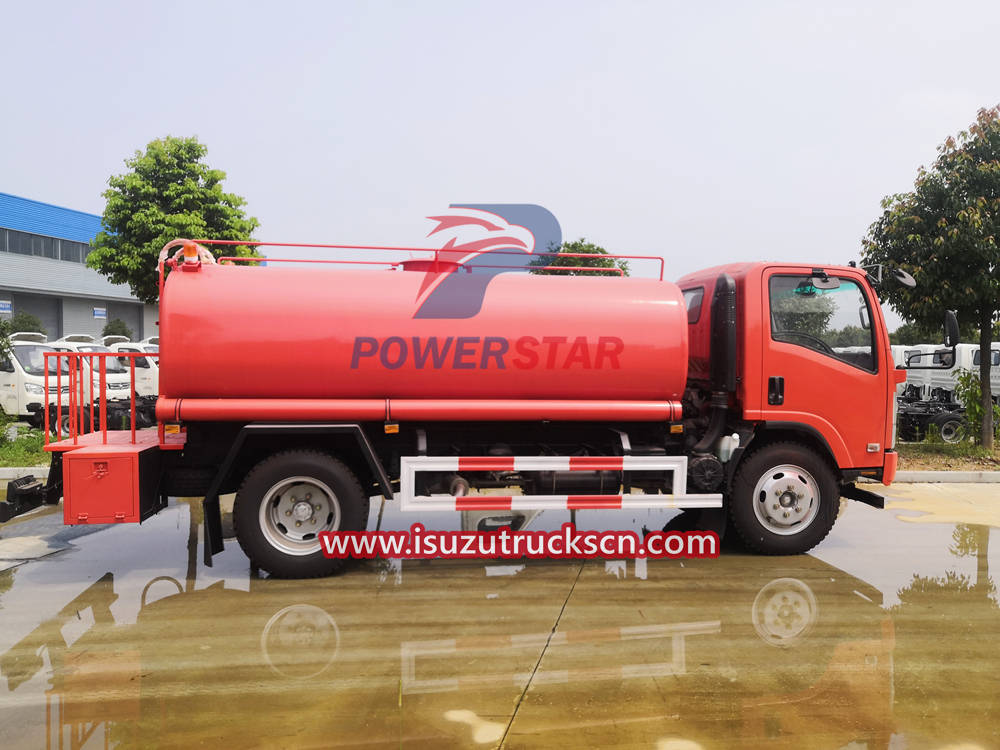

7,000L Isuzu NPR Fresh water tanks truck refers to a potable water trucks Isuzu that is equipped with a tank for transporting and dispensing potable water. While there are no specific search results for "fresh water tanks truck Isuzu" . These Isuzu water trucks have different capacities, ranging from 2,000 to 25,000 Liters, and are suitable for a wide range of applications in industries such as construction, mining, and agriculture. It is important to ensure that the Isuzu drinking water truck meets the required safety and quality standards for transporting drinking water if it is intended for potable water transportation.
Work capacity:
7000LTruck model:
PT5093GYYEngine power:
190 HPEngine type:
Isuzu 4HK1-TCAxle drive:
4x2Gear box:
Isuzu MSBRemarks:
Food grade pump system and tank materialIn a bid to combat the water scarcity challenges faced by communities in Syria, the latest Isuzu Fresh Water Tanks Truck has been unveiled as a reliable solution to provide clean and fresh water where it is needed most. This innovative water transportation vehicle is set to make a significant impact by supporting water distribution efforts and meeting the crucial demands for potable water in the region.
Equipped with advanced features and technology, the Isuzu Fresh Water Tanks Truck is designed to optimize water delivery processes and ensure efficient and safe transportation of fresh water to various locations across Syria. The collaboration between Isuzu, a global leader in automotive manufacturing, and local experts has resulted in a specialized truck that prioritizes functionality, reliability, and sustainability.
Key Features of the Latest Isuzu Fresh Water Tanks Truck:
1. Fresh Water Storage: The truck is equipped with high-capacity fresh water tanks, enabling the safe storage and transportation of clean water.
2. Advanced Delivery System: Featuring a precision water delivery system, the truck ensures controlled and efficient distribution of water to different destinations.
3. Durable Construction: Built on a robust Isuzu chassis, the truck is designed to endure challenging terrains and harsh conditions, guaranteeing longevity and performance.
4. Environmentally Friendly Practices: The truck promotes sustainable water distribution practices, minimizing water wastage and supporting eco-friendly initiatives.
Advantages of the Latest Isuzu Fresh Water Tanks Truck:
- Reliable Water Supply: The truck offers a dependable solution for delivering fresh water to communities, refugee camps, construction sites, and other locations in need.
- Versatile Applications: With its high-capacity tanks and efficient delivery system, the truck is suitable for various applications, including emergency relief, construction projects, and public events.
- Isuzu Quality Assurance: Known for their quality and durability, Isuzu vehicles uphold a reputation for excellence and reliability, ensuring the truck's performance meets industry standards.
- Impactful Contribution: The truck's deployment in Syria seeks to address critical water supply challenges and contribute to improving the quality of life for those affected by water scarcity.
Applications of the Latest Isuzu Fresh Water Tanks Truck:
- Emergency Relief Efforts: Providing essential water supply during crises and emergencies.
- Community Support: Delivering fresh water to villages, towns, and remote areas lacking access to clean water.
- Construction Projects: Assisting in construction sites for dust suppression, concrete curing, and other water-related tasks.
- Humanitarian Aid: Supporting humanitarian organizations in their water distribution initiatives for refugees and displaced populations.
| Detailed specifications For ISUZU 7000liters Potable water Transport Truck | ||
| Chassis parameters | ||
| Vehicle Model No. | PT5120GSS | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 7310×2500×3200 |
| Drive Type | 4×2 | |
| Wheel Base(mm) | 4600 | |
| Wheel Track(Front/Rear)mm | 2010/1865 | |
| Weight data | Tare Weight(kg) | 5804 |
| Capacity(kg) | 7000L | |
| Persons in cab | 3 | |
| Total weight(kg) | 11000 | |
| Whole vehicle main performance | Max.driving speed(km/h) | 89 |
| Max.climbing degree(%) | 38 | |
| Engine | Model | ISUZU 4HK1-TC |
| Displacement(L) | 5.2 | |
| Rated Power(kw/rpm) | 139KW/190HP | |
| Max torque(N.m/rpm) | 1100(1200-1600) | |
| Gearbox | Model No. | ISUZU MLD |
| Clutch | Type | Reinforced diaphragm clutch, diameter 430mm |
| Rear Axle | Type/Mainreducetion ratio | 6T/4.8 |
| Suspension | Front suspension/Leaf spring number | 9 |
| Rear suspension/Leaf spring number | 9+6 | |
| Steering Gear | AM75L | |
| Brake system | Service brake | dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Auxiliary brake | engine exhaust valve brake | |
| Wheels and tyre size | 6+1/8.00R20 | |
| Fuel Tank(L) | 100 | |
| Cabin | Manual, cab lift, airbag seat, manual rearview mirror glass lifter, air conditioner | |
| Upload parameters | ||
| A.TANK BARREL | ||
| 1. Tank Profile | Round shape | |
| 2. Test pressure | Hydrostatic test to5 psi (35 Kpa) on each compartment. | |
| 3. Working pressure | Atmospheric. | |
| 4. Capacity | 7000L plus 3~5% ullage. | |
| 5. Compartments | Single compartment. | |
| 6. Interior weld finish | Not polished or grinded (W-0). | |
| 7. Exterior weld finish | Not polished or grinded (W-0). | |
| 8. Shell material | Stainless steel 304 2B. | |
| a) Top | 3.7mm nominal. | |
| b) Sides | 3.7mm nominal. | |
| c) Bottom | 3.7mm nominal. | |
| 9. End Plate | Stainless steel 304 2B, 3.7mm nominal. | |
| All single heads dished and flanged. | ||
| 10. Bulkhead | Nil. | |
| 11. Baffle / Surge Heads | Stainless steel 304 2B, 3.7mm nominal. | |
| Dished with flap. | ||
| 2 pcs | ||
| 12. Spill molding and rollover protection | Stainless steel around the dome with drain hose. | |
| 13. Spill molding lids | Nil. | |
| 14. Outer rings | 304-2B stainless steel, 60mm height, 3mm nominal, continuously welded. | |
| 15. Frame | Carbon steel independent. | |
| 16. Loaders and brackets | Carbon steel. | |
| 15. Isolation | Nil. | |
| 16. Exterior lining | Nil. | |
| B. TANK FITTINGS AND PIPING | ||
| 1. Manholes | 20" diameter with 6 stainless steel wing nuts, located at the top center | |
| 2. Pressure Vacuum Vent | Two per compartment. 6~12 kPa pressure, 2~4 kPa vacuum. | |
| Chinese Brand | ||
| 3.Foot valve | Nil. | |
| 4 Discharge system | 3” diameter discharge with 3" diameter butterfly valve, 3" stainless steel male camlock coupling and quick cap, located at the back of the tank. | |
| 5. Piping | Nil. | |
| 6. Thermometer | Nil. | |
| 7. Steam trace | Nil. | |
| 8. Overfill Prevention | Nil. | |
| 9. Tow Hook | Nil. | |
| 10. Product Indicators | Nil. | |
| C. ACCESSORIES | ||
| 1. Ladder | Stainless steel, 400mm wide, with non skid rungs and lateral handles, mounted at right middle of tanker. | |
| 2. Walkway | Extruded aluminium around dome. | |
| 3. Hose Carries | 1 no, hose carrier (round tubes) to fit Ø159 x 6meter (236") hose close type complete with brackets to be installed at the right side. | |
| 4. Hose | Firemen type flexible discharge hoses, 30m 2.5" for discharge. and flexible plastics suction hoses, 5.9m 3"for suction, 3" female camlock coupling at both ends. | |
| 5. Motor Pump | BRIGGS & STRATTON Gasoline motor , 4 stroke motor, fuel tank capacity 4.0 liters of gasoline, WB30 pump with a 3" input and outlet diameter, 7m suction head, discharge capacity 900L/min (238Gal/min) pump head pressure 33 m, weight 30kg. | |
| 6. Toolbox | Nil. | |
| 7. Rear Bumper | Aluminium member to accommodate light assembly and number plate to cover full width of the tank. | |
| Steel bumper with ground clearance 500mm approx. | ||
| 8. Hazchem Plate | Nil. | |
| 9. Mudguard | Aluminum over suspension and the upper coupler. | |
| Mud flaps rigid plastic at the rear. | ||
| 10. Lights & Wiring | 24V. ISO 1185 7 pin socket. | |
| Harness: oil and vapour proof cable. | ||
| Front: nil. | ||
| Side: | ||
| Mark lamp 3Pcs/side, LED. | ||
| Reflector 3Pcs/side | ||
| Turning lamp 1Pcs/side, LED. | ||
| Rear Bump: | ||
| Reverse lamp R-L 2Pcs, LED. | ||
| Turning lamp R-L 2Pcs, LED. | ||
| Brake lamp R-L 2Pcs, LED. | ||
| Register plate light | ||
| Rear top: nil. | ||
| Brand of Wiring: | ||
| 11. Reverse alarm | Nil. | |
| 12. Connector Box | At the center in the front dishend | |
| 13. Sticker | 50mm wide red-white reflective sticker, mounted at both sides and rear bump. | |
| 14. Hand rail | Nil. | |
| 15. Fire Extinguisher | 8kg , 2Pcs. | |
| Carbon steel extinguisher holder located on the landing gear on the curb side. | ||
| 16. Drains hose | water drains hose 2", installed at the back of spill molding | |
| 17. Wheel chocks | Nil. | |
| 18. Traffic cone | Nil. | |
| 19. Spare wheel bracket | 1set | |
| Carbon steel, basket type, located behind the landing gear. | ||
| 20. Painting | Polyurethane medium Aluminium gray, applied over epoxy primer on carbon steel elements | |
After-Sales Service for the Latest Isuzu Fresh Water Tanks Truck:
1. Routine Maintenance: Scheduled maintenance services to ensure optimal performance and longevity.
2. Technical Support: Expert assistance and guidance for troubleshooting and operational queries.
3. Genuine Spare Parts: Availability of authentic Isuzu spare parts for replacement and repairs.
4. Operator Training: Training programs for drivers and operators to promote safe and efficient handling of the water truck.
The Latest Isuzu Fresh Water Tanks Truck signifies a significant step towards addressing water challenges in Syria and providing sustainable solutions for water distribution. For more information on this innovative water transportation vehicle and how it can support water supply initiatives in Syria, contact Isuzu today.
