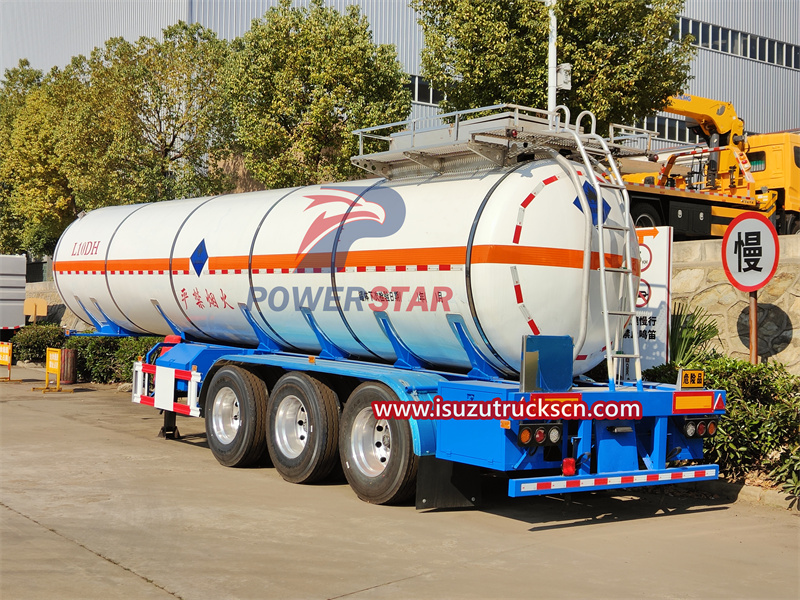

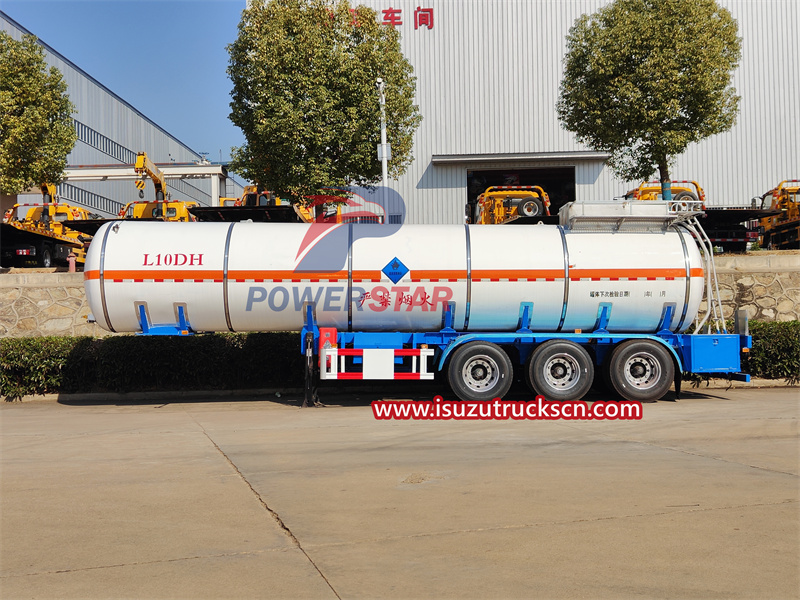

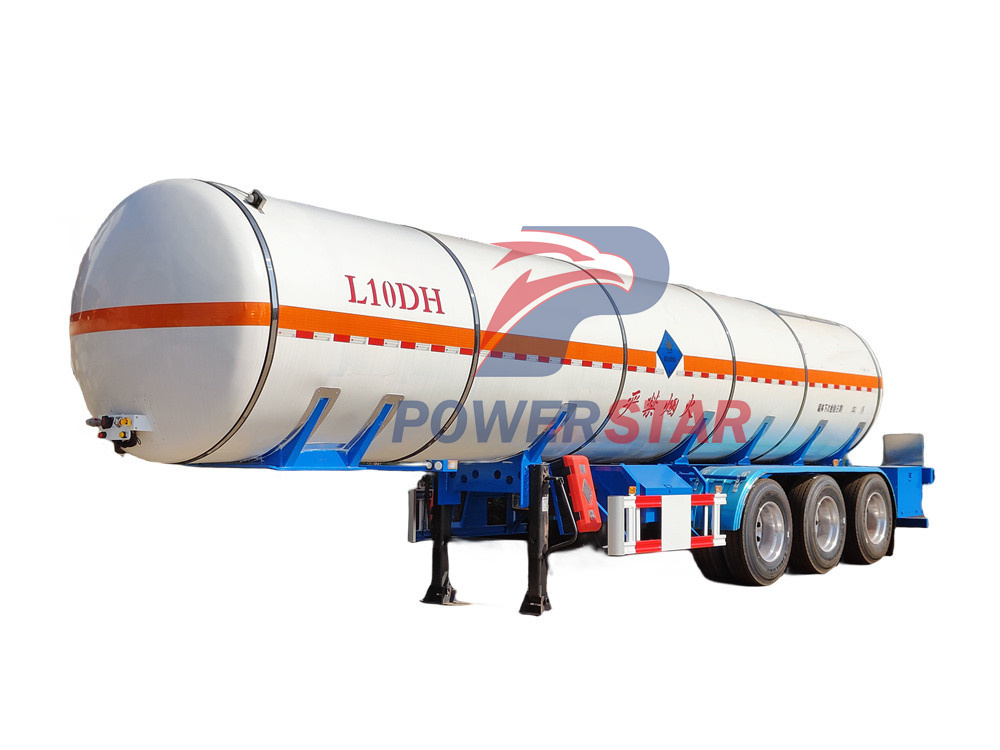

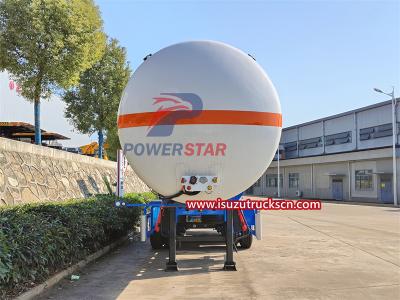

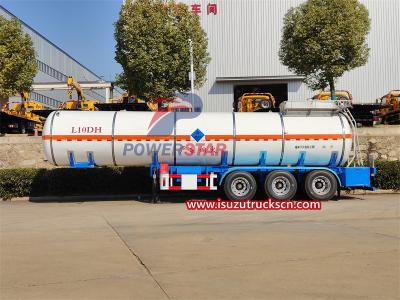

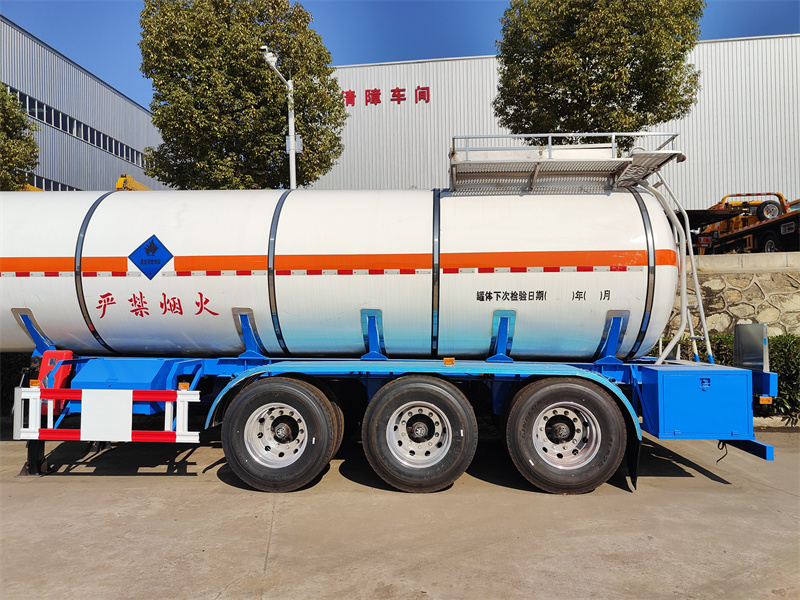

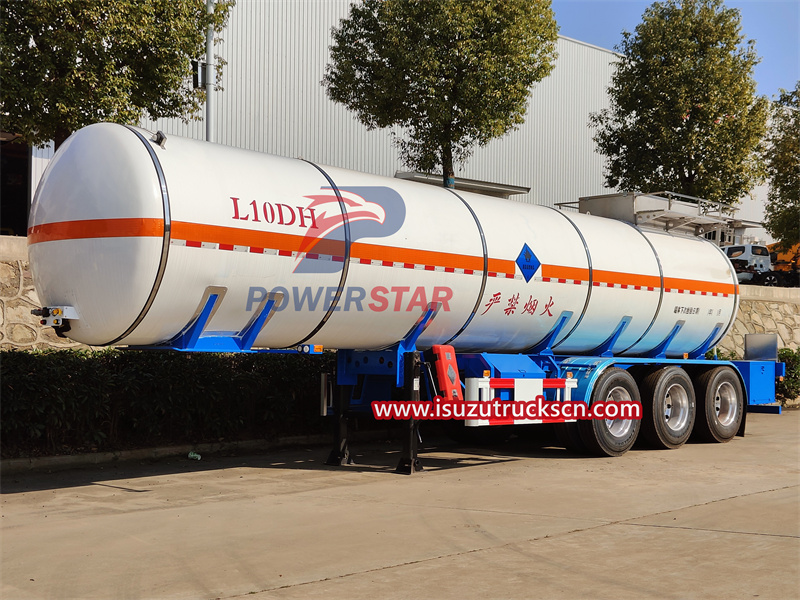

The latest LPG Gas Transport Trailer with a capacity of 38000-50000L, the overall size is 11324*2500*3730 mm, the tank size is 11044*2200*1200 mm, the dead weight is 13415 kg, the load is 17010 kg, and the total weight is 30425 kg. The liquid is flammable, with a design temperature of 50 degrees Celsius and a design pressure of 1.61 MPa, and the main materials are Q345 and 12 mm steel plate. It is equipped with a DN450 manhole, two DN80 safety valves, manual switching level gauge, equipped with two 13-ton BPW shafts, 12R22.5 tubeless tires, JOST legs, and the control system includes emergency shut-off valve, ball valve, liquid level gauge, pressure display thermometer and pressure gauge, etc.
Work capacity:
38000LTruck model:
PST1080LPGAxle drive:
3 axleRemarks:
Large CapacityThe 38000-50000L Latest LPG Gas Transport Trailer is designed for long-haul transportation and efficient loading and unloading with excellent performance and reliable quality. First of all, the Latest LPG Gas Transport Trailer is made of high-strength Q345 and 12 mm steel plate materials, which can effectively protect the tank from the external environment and ensure the safety of transported materials. It has good sealing to avoid gas leakage, improve transportation efficiency and ensure safety during transportation. In addition, the production of the Latest LPG Gas Transport Trailer adopts advanced process technology to ensure the stability and durability of the Latest LPG Gas Transport Trailer, reduce maintenance costs and extend the service life.
|
Specification Data |
|
|
Volume of Tank (cbm) |
38-50cbm |
|
Overall Dimensions(L*W*H)(mm) |
11324*2500*3730 |
|
Tank Dimensions(L*W*H)(mm) |
11044*2200*1200 |
|
Estimated Tare Weight (kg) |
13415 |
|
Payload(kg) |
17010 |
|
Total Weight(kg) |
30425 |
|
Wheelbase(mm) |
6720+1320 |
|
Shell of Tanker |
|
|
Products |
Liquefied Petroleum Gas (propane) |
|
Fluid Property |
Flammable |
|
Design Temperature(ºC) |
50ºC |
|
Design Pressure(MPa) |
1.61 |
|
Corrosion Allowance(mm) |
1 |
|
Weld Joint Factor |
1 |
|
Major Materials of Bearing Pressure |
Tanker body:Q345,12mm, |
|
End plate:Q345R,12mm |
|
|
Main beam:16Mn |
|
|
Detection |
|
|
Heat Treatment |
Overall treatment in a furnace,600ºC to 640 ºC |
|
Flaw Detection |
100% Flaw detection |
|
Test Pressure(MPa) |
1.61 |
|
Hydraulic Test(MPa) |
2.1 |
|
Magnaflux Inspection |
Aim at welding place that flaw detection can not cover |
|
Manhole (As Customer's Requirement) |
|
|
Quantity |
1 piece ;on top |
|
Size |
DN450 |
|
Safety Valve(As Customer's Requirement) |
|
|
Quantity |
2 |
|
Location |
On the top of tanker |
|
Size |
DN80 |
|
Level Gauge |
|
|
Type |
Manuel Switch type |
|
Location |
At the rear of the end dish |
|
Running System |
|
|
Axles |
2*13T BPW |
|
Tire |
12R22.5 Tubeless tire ,8 with one spare tire |
|

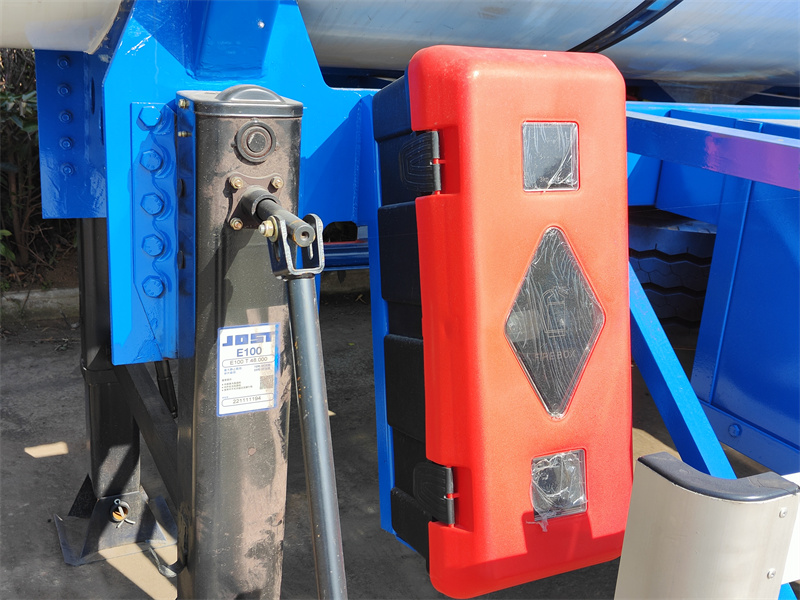

Landing leg |
JOST |
|
King Pin |
#50 or #90 |
|
Control System |
|
|
Emergency Cut-off Valves |
2 or 3 |
|
Ball Valve |
4 or 6 |
|
Liquid Gauge |
1 |
|
Pressure Indicating Thermometer |
1 |
|
Pressure Gage |
1 |
What are the advantages of the large volume LPG Gas Transport Trailer?
1. Large volume: 50000L large volume LPG Gas Transport Trailer can transport a large amount of LPG at one time, reducing the number of frequent transportation and improving transportation efficiency.
2. High efficiency and energy saving: Due to the large amount of one-time loading, compared with the small volume tank, the 50000L large volume LPG Gas Transport Trailer can save transportation costs and time, and improve the transportation efficiency.
3. Strong adaptability: The large-volume LPG Gas Transport Trailer can be applied to different transportation needs, and can meet the needs of large customers in a short period of time, with good flexibility.
4. Good safety performance: The large-capacity LPG Gas Transport Trailer will be designed with more stringent safety standards in mind, such as anti-leakage, anti-blasting and other measures, so as to ensure the safety of the transportation process.
