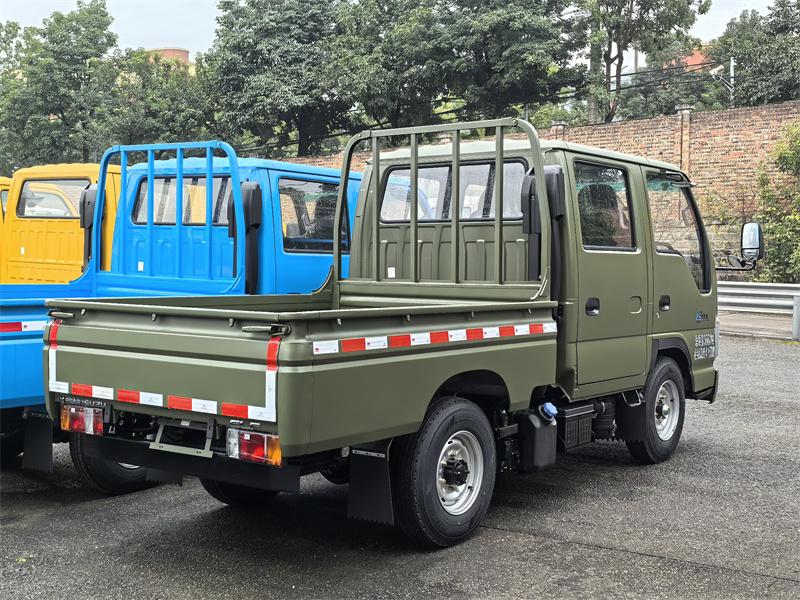

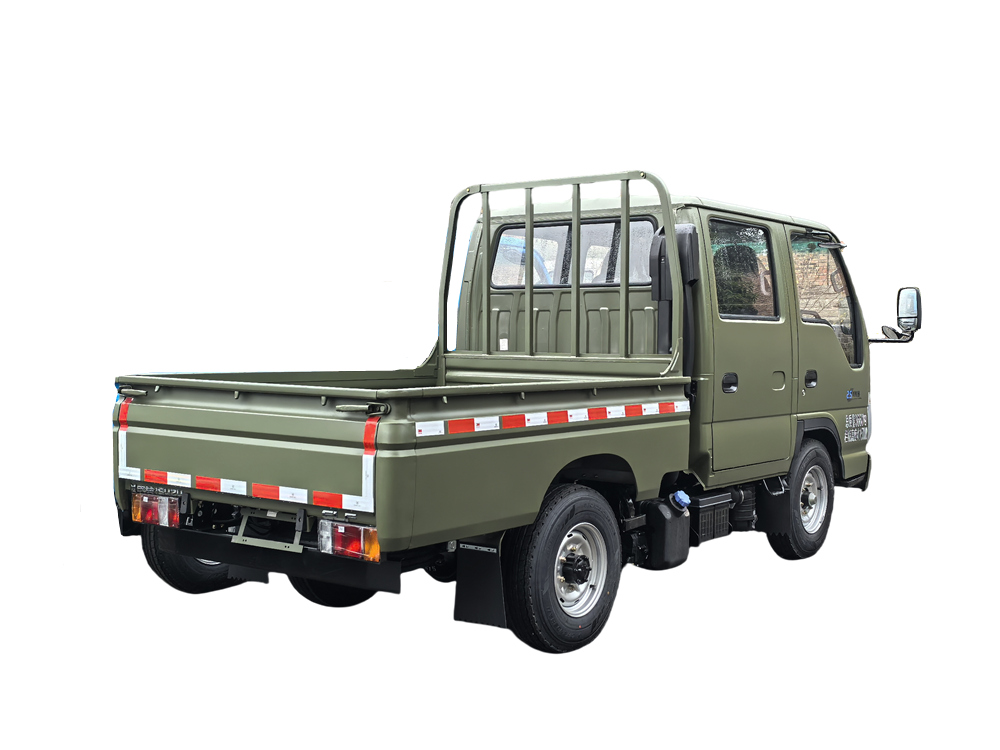

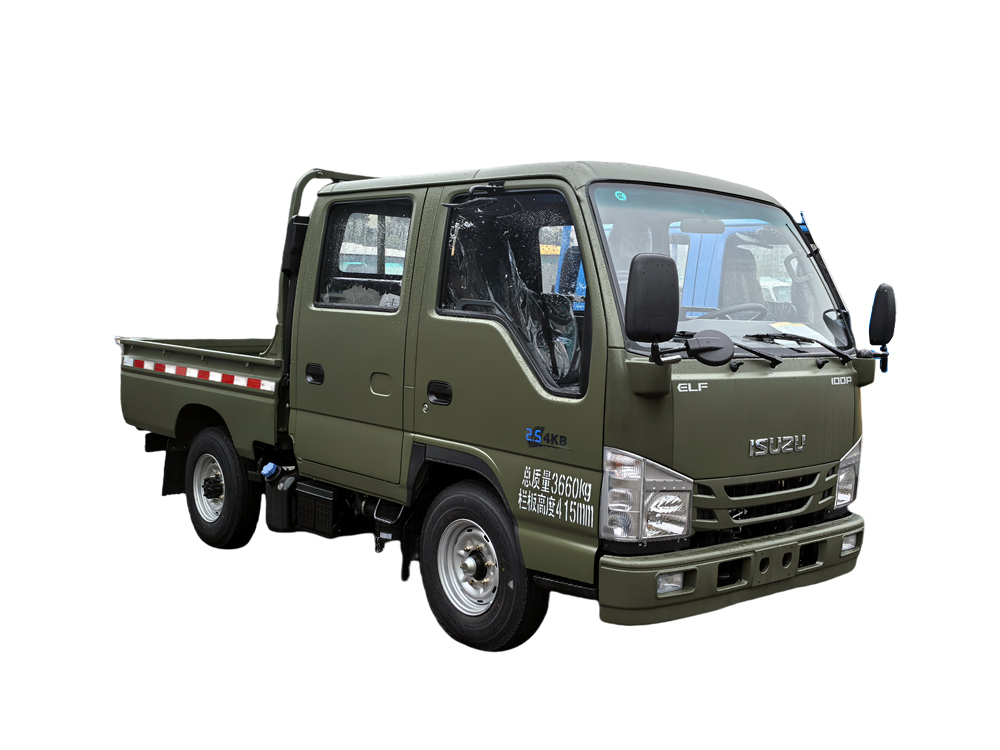

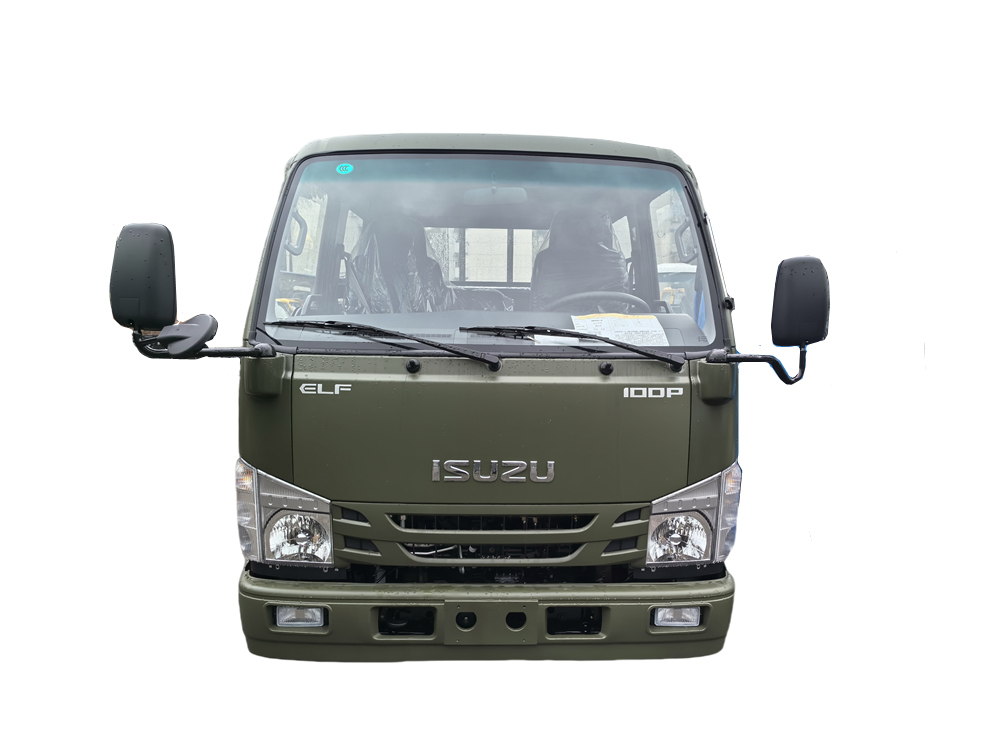

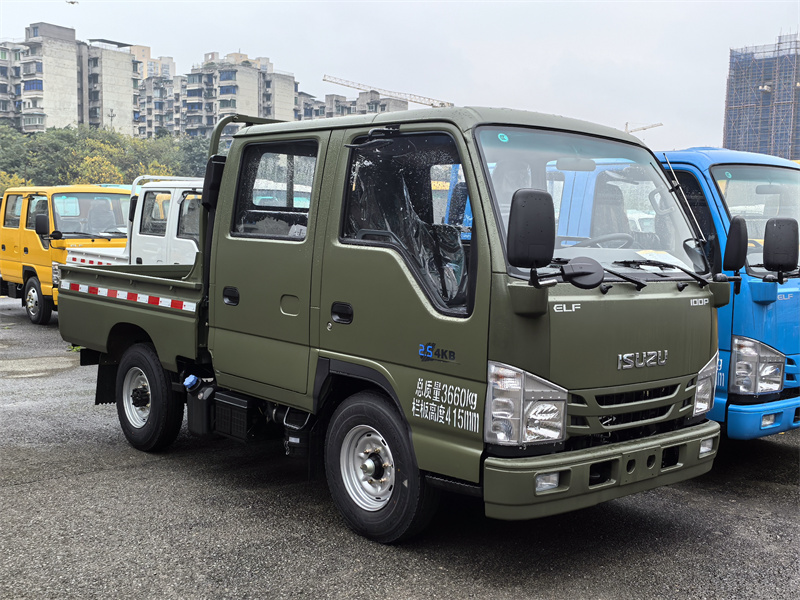

Isuzu 100P crew cabin light cargo truck, 2490mm wheelbase, gross vehicle weight 3.66 tons, payload 1245kg, 7.00R15LT single tires, maximum speed 95km/h, Isuzu 4KB1-TCG60 engine, MSB 5-speed transmission, rear axle ratio 4.875, cargo box dimensions 2065×1600×415mm, carbon steel construction, 3mm thick sides and 4mm thick bottom.
Manufacturer:
Powerstar TrucksWork capacity:
1.245 tonsDimension:
4775 x 1695 x 2160 mmCabin type:
Isuzu 100P double row cab,with A/CWheelbase:
2490 mmEngine power:
96Kw / 130HPEngine type:
Isuzu 4KB1-TCG60Axle drive:
4x2Gear box:
Isuzu MSB 5-speed,manualRemarks:
Single axles,4+1The Mini Isuzu 4x4 truck with double cabin is a light-duty truck designed for urban logistics and short-haul transportation. The vehicle has a gross vehicle weight of 3.66 tons and a payload capacity of 1.245 tons. At its heart is a reliable Isuzu 4KB1 diesel engine and a 5-speed transmission, paired with a 4.875 rear axle ratio, ensuring easy starts under heavy loads and strong climbing ability. The double-cab design allows for multiple passengers, and the 2-meter-long carbon steel cargo box (3mm side, 4mm bottom) is robust and durable. Its excellent reliability, economy, and versatility for both passengers and cargo make it a practical choice for short-haul delivery in commercial and other sectors.
▶ Features:
★ Isuzu 100P 4x2 light type,double row,perfect performance
★ Isuzu 4KB1 130HP engine, super powerful; reliable performance, no overhaul within 100,000 km.
★ Payload capacity 1.245 tons,single axles
★ Short and powerful, suitable for short-distance transportation
▶ Product Parameters:
|
ISUZU 100P NKR DOUBLE Cabin CHASSIS(LHD) |
||
|
GENERAL |
Wheelbase |
2490mm |
|
Overall Dimension |
4775x1695x2160mm |
|
|
Front /rear track |
1401/1395mm |
|
|
Front/Rear Suspension |
1.015/1.27mm |
|
|
GVW /Curb weight |
3660/2090kg |
|
|
Payload Weight |
1245kg |
|
|
Max speed |
95km/h |
|
|
|
Model |
Isuzu 4KB1-TCG60 |
|
Power |
130HP/96Kw |
|
|
Type |
Inline 4-cylinder, 4-stroke, turbocharged, intercooled, water-cooled |
|
|
Displacement |
2.5L |
|
|
Emission Standard |
Euro 6（Cancel all post-treatment (no AdBlue, no SCR, no DPF) |
|
|
CABIN |
Cabin |
Isuzu NKR 100P Double Cabin |
|
Passengers |
2+3 |
|
|
CHASSIS |
Drive Type |
4X2 |
|
Brake |
oil brake |
|
|
Transmission |
Isuzu MSB 5-speed,manual |
|
|
Tire |
7.00R15LT,single axles,4+1 |
|
|
Speed ratio |
4.875 |
|
|
CONFIGURATION |
Power steering |
|
|
Radio |
YES |
|
|
Central lock |
YES |
|
|
Electric windows |
YES |
|
|
A/C |
YES |
|
|
ABS |
YES |
|
|
Cargo box |
Dimensions |
2065×1600×415mm |
|
Material |
Carbon steel |
|
|
Thickness |
Side 3mm bottom 4mm |
|
▶ Basic Information:
• Vehicle Type: Light Truck (Double Cab, Cargo Truck)
• Applicable Scenarios: Urban logistics distribution, short-distance transportation, wholesale trade, individual business operations, etc.
• Gross Vehicle Weight: 3.66 tons
• Rated Payload: 1.245 tons
• Vehicle Features: Suitable for hybrid scenarios that combine passenger transport and small-batch cargo transportation.
• Maximum Speed: 95 km/h (Meets intercity rapid transport needs)
▶ Powertrain System:
1. Engine:
o Model: Isuzu 4KB1-TCG60
o Type: Inline four-cylinder, turbocharged, water-cooled diesel engine
o Performance: 130HP/96Kw, 2.499L emissions
2. Transmission:
o Model: Manual MSB 5-speed transmission
o Features: Mature technology, smooth shifting, high engine compatibility.
 |
 |
Isuzu 4KH1CN6LB engine
Isuzu MSB 5-speed transmission

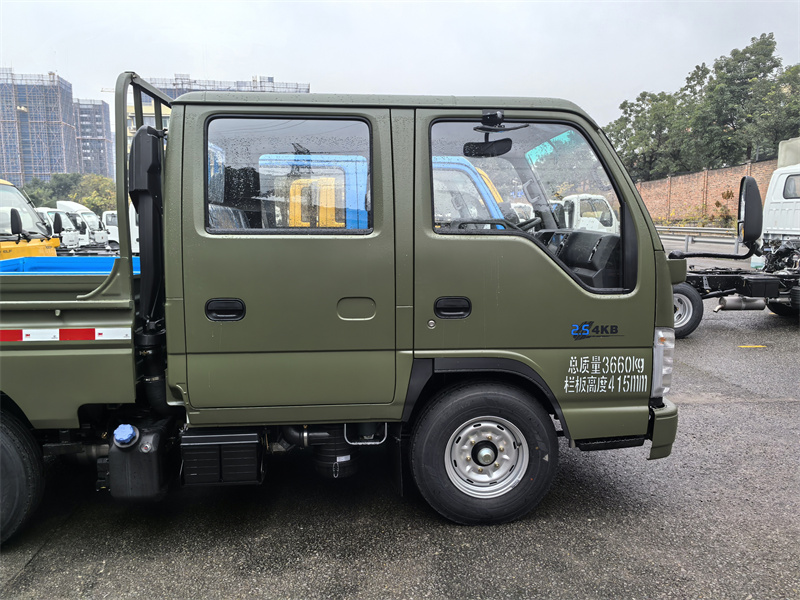

▶ Cab and Chassis:

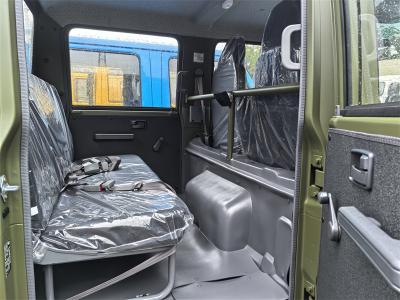

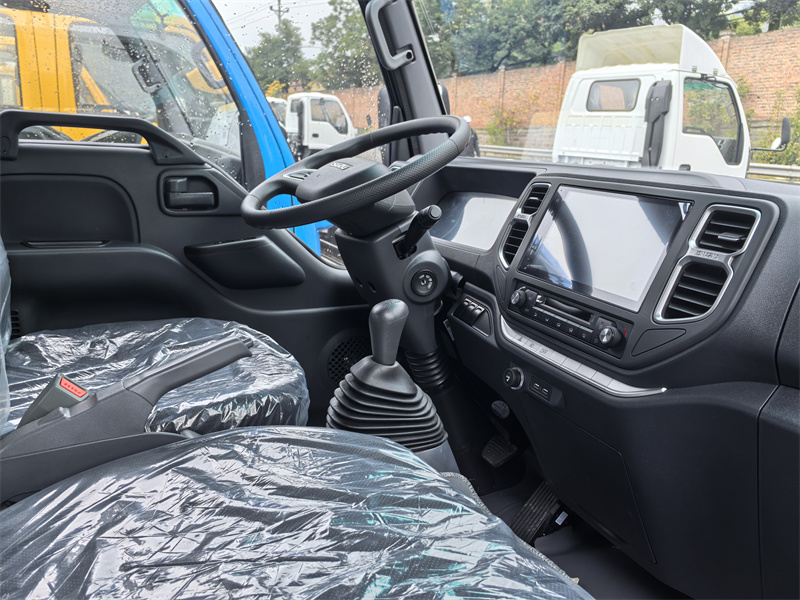

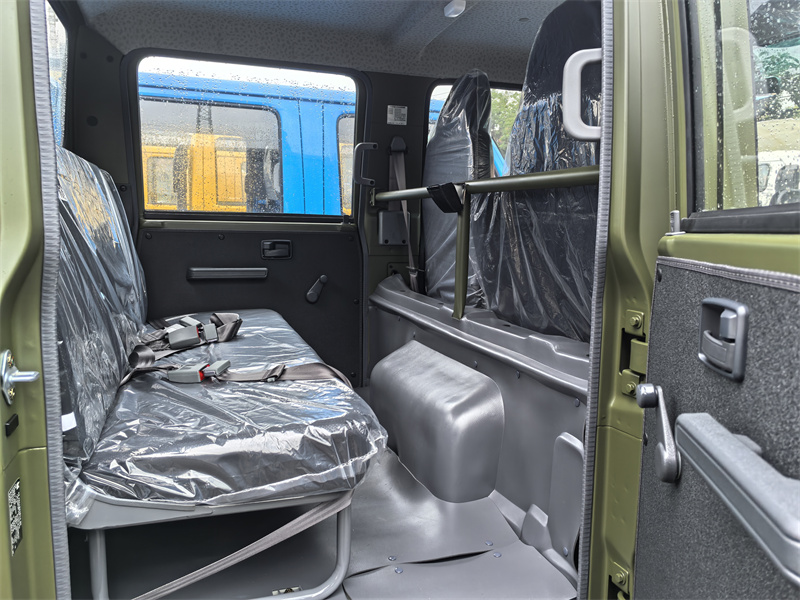

• Cab Type: Double-row cab with air conditioning, power windows, central locking, radio, power steering, fabric seats, and multiple storage compartments.
• Wheelbase: 2490mm
• Tire Specifications: 7.00R15LT (Light truck radial tires, single tire design)

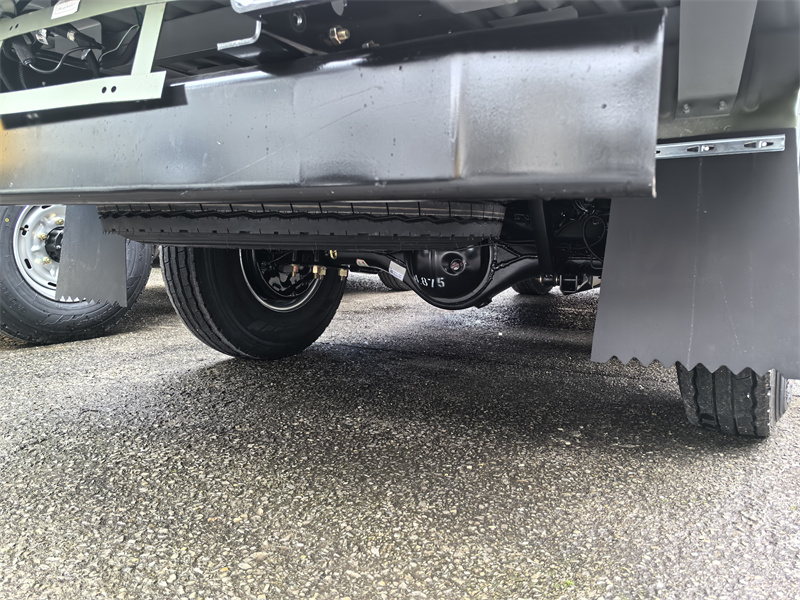

• Rear Axle:
o Gear Ratio: 4.875
o Features: The higher gear ratio provides strong starting and climbing ability.
• Suspension System
o Front Suspension: MacPherson independent suspension (balancing comfort and handling stability).
o Rear Suspension: Leaf spring non-independent suspension (enhanced load-bearing capacity, suitable for heavy-duty conditions).

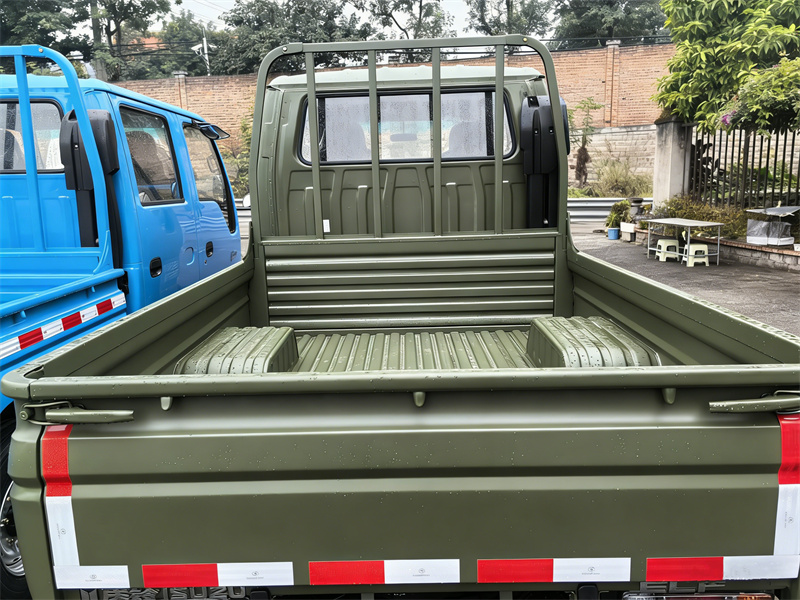

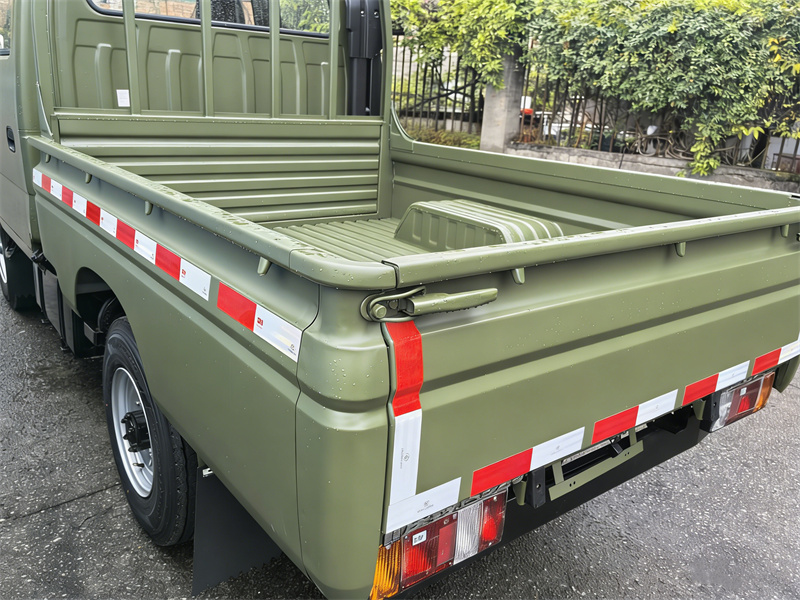

▶ Cargo box:
2065×1600×415mm (flatbed cargo box, made of carbon steel, with side plate thickness of 3mm and bottom plate thickness of 4mm, balancing strength and lightweight).
▶ Applicable Scenarios:
• Urban Delivery: Short-distance transportation of light goods such as express delivery, fresh produce, and daily necessities.
• Wholesale and Trade: Delivery of small and medium-sized goods such as hardware, building materials, home appliances, and furniture.
• Individual Businesses: Transportation of agricultural products and small-scale construction materials.
