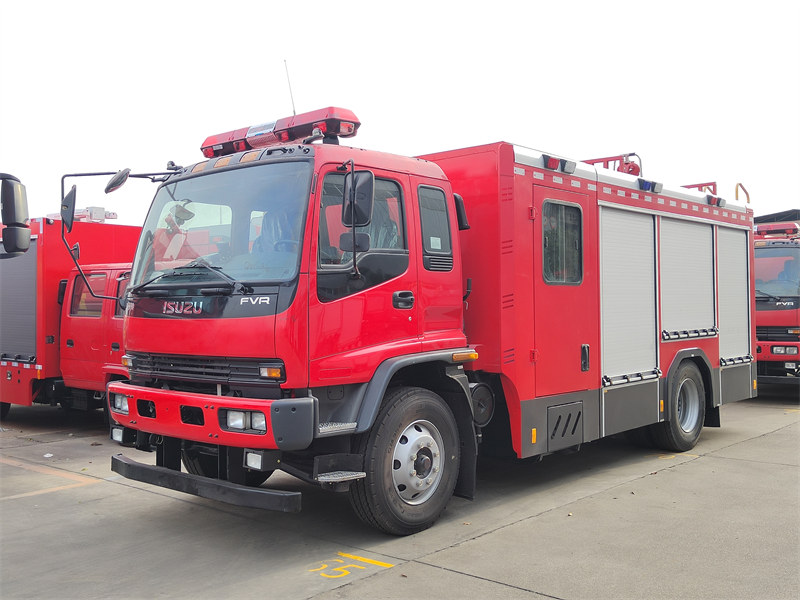

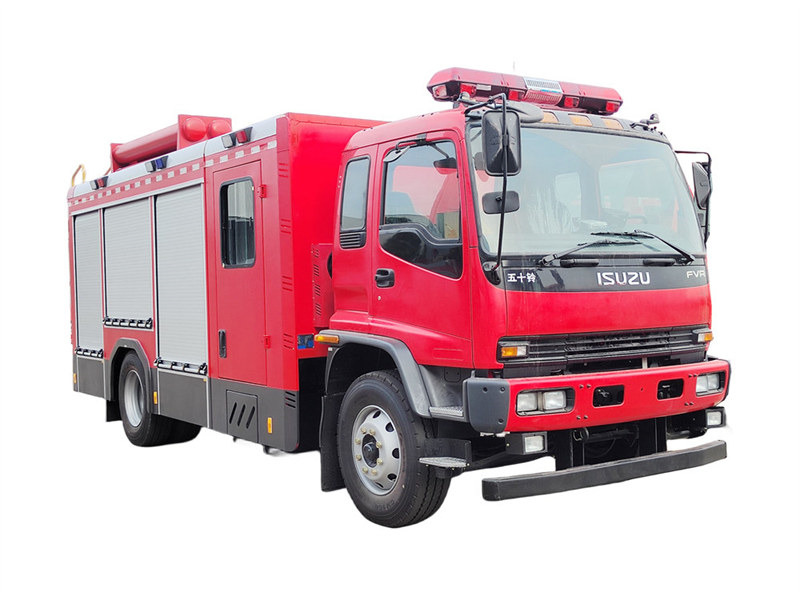

The ISUZU FVR foam fire truck is a professional rescue vehicle built on the ISUZU FVR chassis, equipped with a 240-horsepower Euro VI engine and a top speed of 95 km/h. It features a 6,000L water tank and a 2,000L stainless steel foam tank, along with a CB10/40 fire pump (40L/S flow rate) and a PL8/32 fire monitor (range ≥65 meters), enabling rapid response to various fire emergencies. The cab accommodates 2 personnel, while the rear independent crew compartment seats an additional 4, with comfort features such as air conditioning and power windows. The vehicle adopts a modular design with advanced functions including a 360° rotating fire monitor and an intelligent control system, making it suitable for urban firefighting, industrial zones, and chemical fire rescue operations. It is an efficient and reliable multi-functional firefighting apparatus.
Work capacity:
8000 litersDimension:
8360 x 2485 x 3420mmCabin type:
Isuzu FVR one and half cabinWheelbase:
4500mmEngine power:
240 HPEngine type:
6HK1-TCG61Axle drive:
4×2Gear box:
FAST 8-speed,manualRemarks:
Equipped with CB10/40 fire pump and PL8/32 fire monitorIn fire rescue operations, rapid response and efficient fire suppression capabilities are crucial. The ISUZU FVR foam fire truck is a professional firefighting vehicle that integrates water tank and foam fire suppression functions, designed for urban firefighting, industrial fires, and hazardous chemical accident rescues. Built on the ISUZU FVR chassis and powered by a 6HK1-TCG61 high-pressure common rail diesel engine compliant with Euro VI emission standards, it delivers robust performance while maintaining environmental efficiency. With overall dimensions of 8360×2485×3420mm, the truck balances maneuverability with large-capacity fluid storage. The combination of a 6,000L water tank and 2,000L foam tank ensures prolonged operational capability, making it an ideal choice for modern firefighting teams.
Ergonomic Design and Superstructure

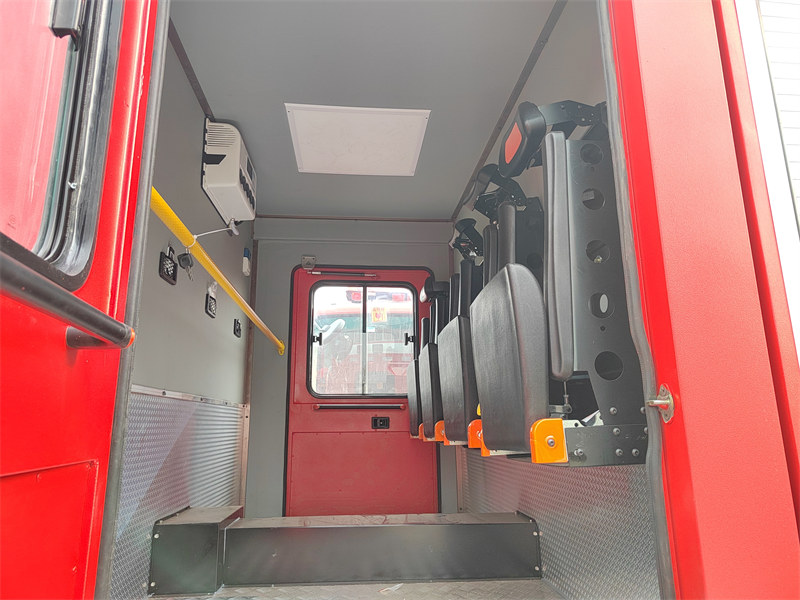

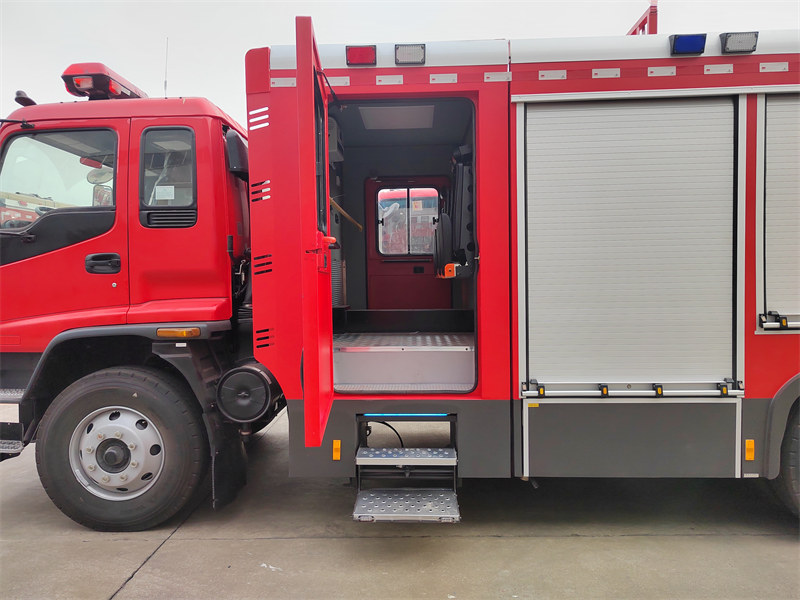

The ISUZU FVR foam tender fire truck features an FVR single-row cab seating 4 personnel, equipped with comfort-enhancing amenities such as air conditioning, power windows, and a USB audio system to improve endurance during extended operations. Behind the cab is an independent crew compartment accommodating 4 additional firefighters, providing ample space for rapid task force deployment. The superstructure employs a modular design for clear functional zoning:
• Fire Pump System: The ISUZU FVR tender fire truck is equipped with a CB10/40 fire pump delivering a rated flow of 40L/S at 1.0MPa working pressure. With a suction depth ≥7 meters and priming time ≤50 seconds, it guarantees swift water supply.

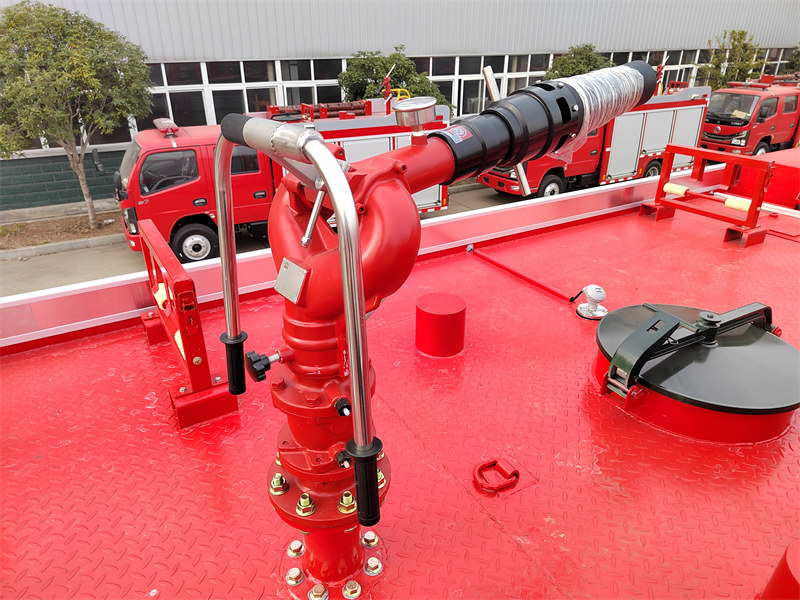

• Fire Monitor: The PL8/32 fire monitor achieves a range of ≥65 meters (water)/55 meters (foam) with 360° horizontal rotation, offering extensive coverage for high-rise buildings and long-range firefighting.

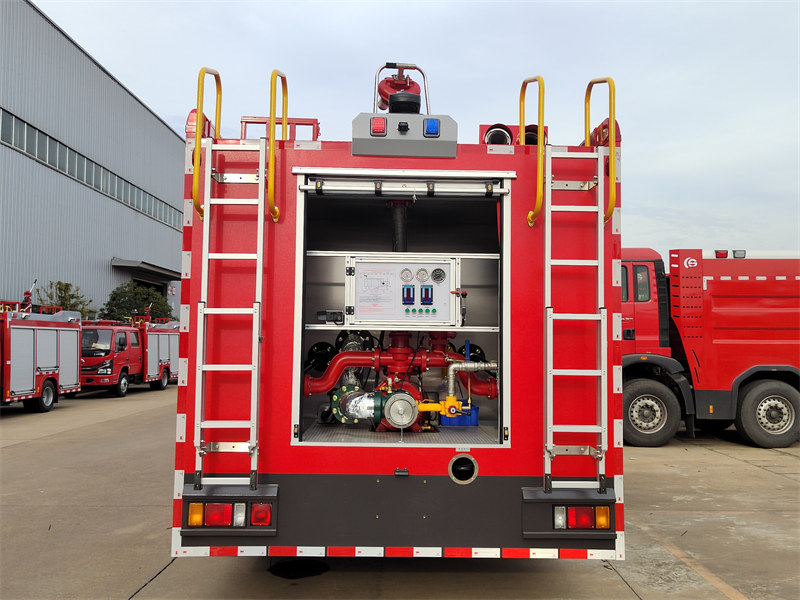

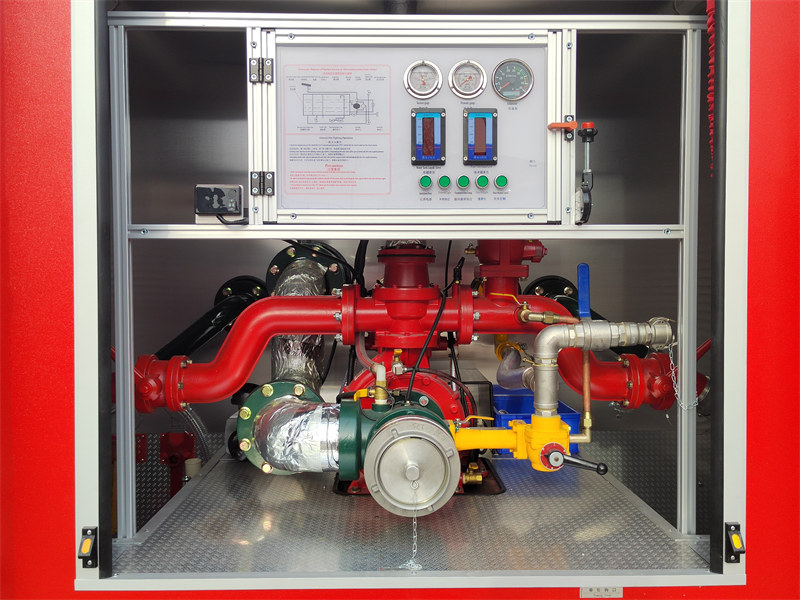

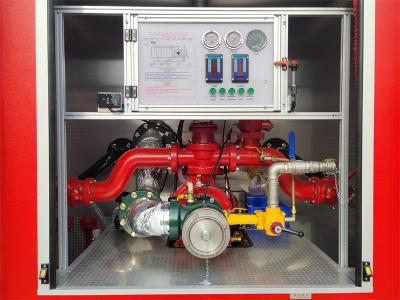

• Pump Room & Equipment Compartment: Logically organized with systematically stored tools to enhance emergency response efficiency. The water tank uses high-quality rust-proof carbon steel, while the foam tank is constructed from stainless steel for long-term durability.
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Prompt delivery, any order is welcome.
● 24 month quality guarantee term
● More than 500 workers, large and advanced production
Product Specifications
|
Vehicle basic information |
|||||
|
Vehicle Model |
PT5180GXFPM |
Vehicle Brand |
POWERSTAR |
||
|
Overall dimensions |
8360X2485X3420mm |
Curb weight |
9700kg |
||
|
Water tank volume |
6000L |
Foam tank volume |
2000L |
||
|
Chassis parameters |
|||||
|
Chassis model |
QL1180XMFRY |
Chassis brand |
ISUZU |
||
|
Groos vehicle wight |
18000 kg |
Wheel base |
4500mm |
||
|
Front/rear wheel track |
1960/1855mm |
Front/rear overhang |
1335/2225mm |
||
|
Approach/departure angle |
15/17° |
Maximum speed |
95km/h |
||
|
Chassis Manufacturer |
ISUZU |
||||
|
Cab |
Configuration |
FVR, single rows cab, allowable 2 passengers, with air conditioner, central locking, electric windows, USB audio, cab can be flipped. |
|||
|
Color |
Red, other color is optional |
||||
|
Engine |
Model |
6HK1-TCG61 |
|||
|
Emission |
Euro 6 |
||||
|
Type |
6 cylinders, in-line, 4-stroke, Exhaust gas turbo, air-to-air inter-cooling, diesel engine |
||||
|
Rated power |
240hp |
||||
|
Displacement |
7790ml |
||||
|
Manufacturer |
ISUZU |
||||
|
Tire |
Size |
295/80R22.5 tubeless tire |
|||
|
Number |
6+1 pcs |
||||
|
Front axle |
6.3 tons |
||||
|
Rear axle |
13.0 tons |
||||
|
Drive form |
4X2 |
||||
|
Suspension |
Multi leaf springs |
||||
|
Rated voltage |
24V, DC |
||||
|
Transmissions |
FAST 8 speed transmission,8 speed forward 1 reverse. |
||||
|
Steering device |
Power assisted steering |
||||
|
Steering wheel |
Left hand drive |
||||
|
Upper-Body specification |
|||||
|
Water tank |
Volume |
6000L |
|||
|
Material |
High quality carbon steel plate, anti-rust treatment inside. |
||||
|
Foam tank |
Volume |
2000L |
|||
|
Material |
Stainless steel |
||||
|
Fire pump |
Model |
CB10/40 |
|||
|
Rated working pressure |
1.0 Mpa |
||||
|
Flow rate |
40L/S |
||||
|
Suction depth |
≥ 7m |
||||
|
Suction time |
≤50 s |
||||
|
Fire monitor |
Model |
PL8/32 |
|||
|
Rated flow |
32 L/s |
||||
|
Range |
Water: ≥ 65m; Foam≥ 55m |
||||
|
Rated working pressure |
0.8 Mpa |
||||
|
Horizontal rotation angle |
360 º |
||||
|
Color |
Red, other color is optional |
||||

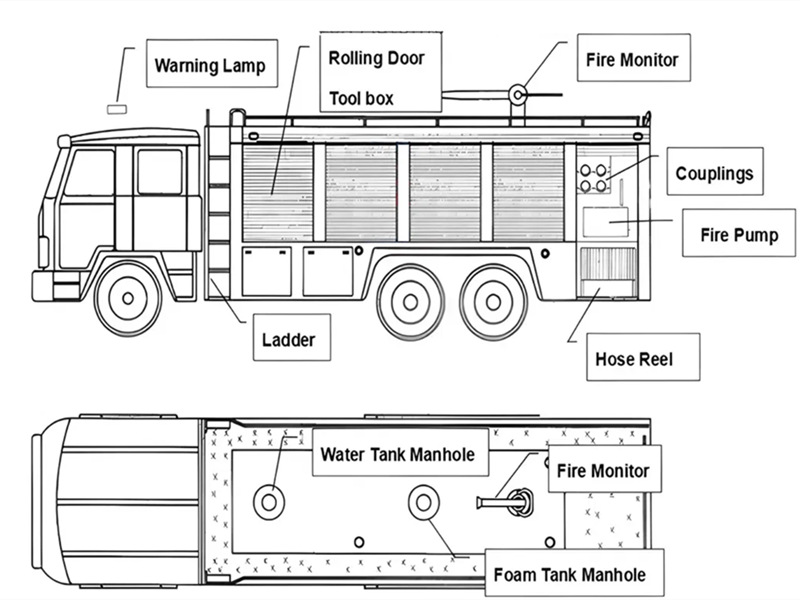

Technical Drawing

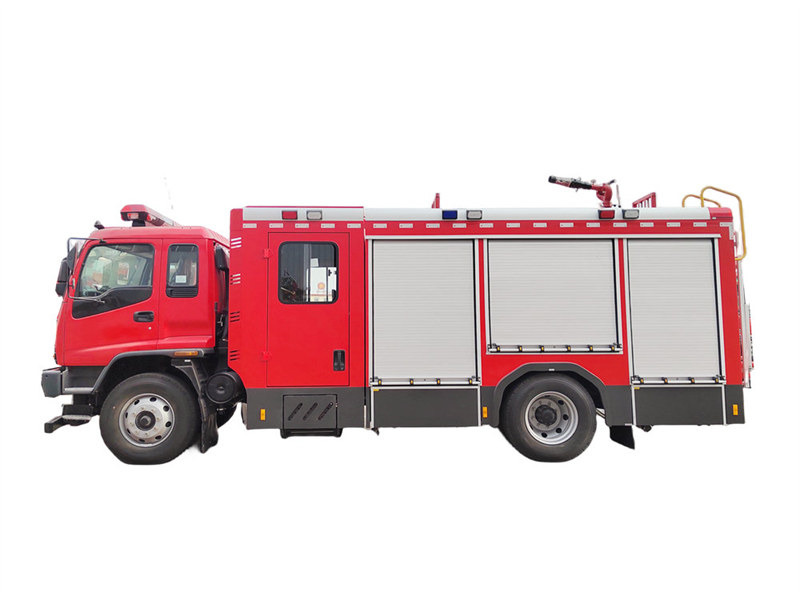

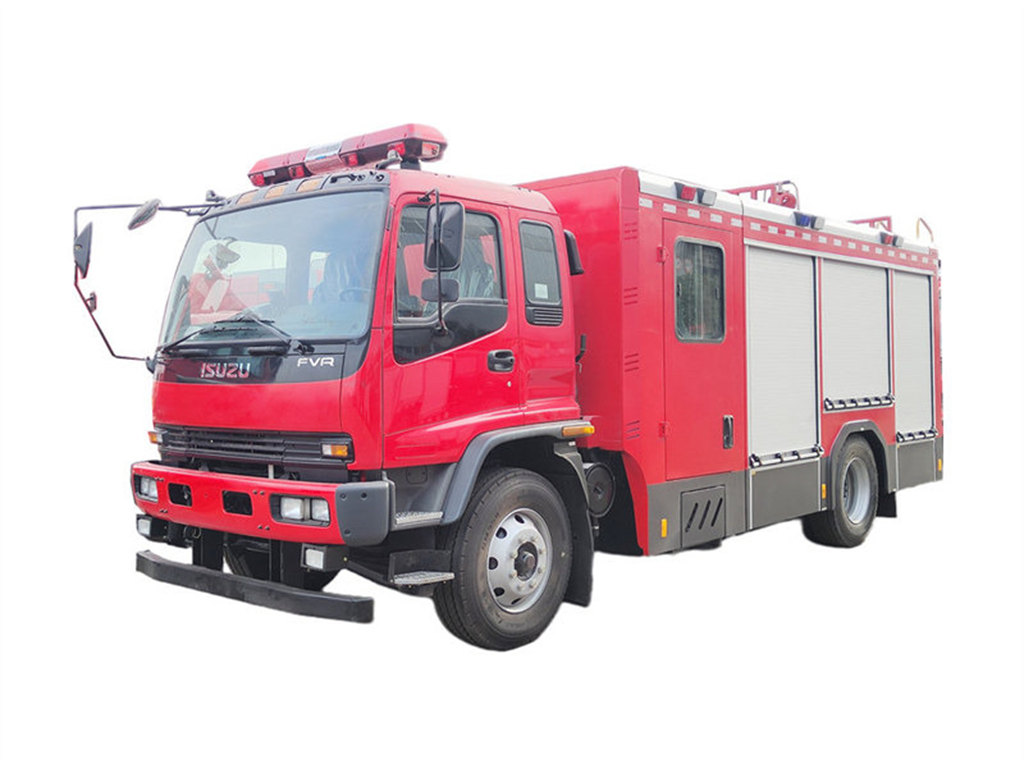

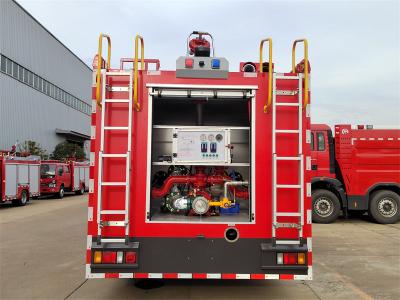

Product Pictures
