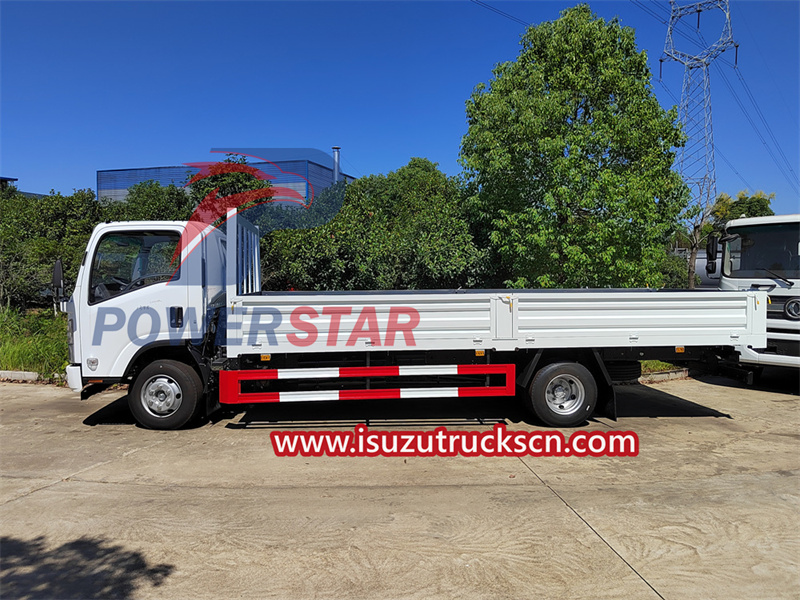

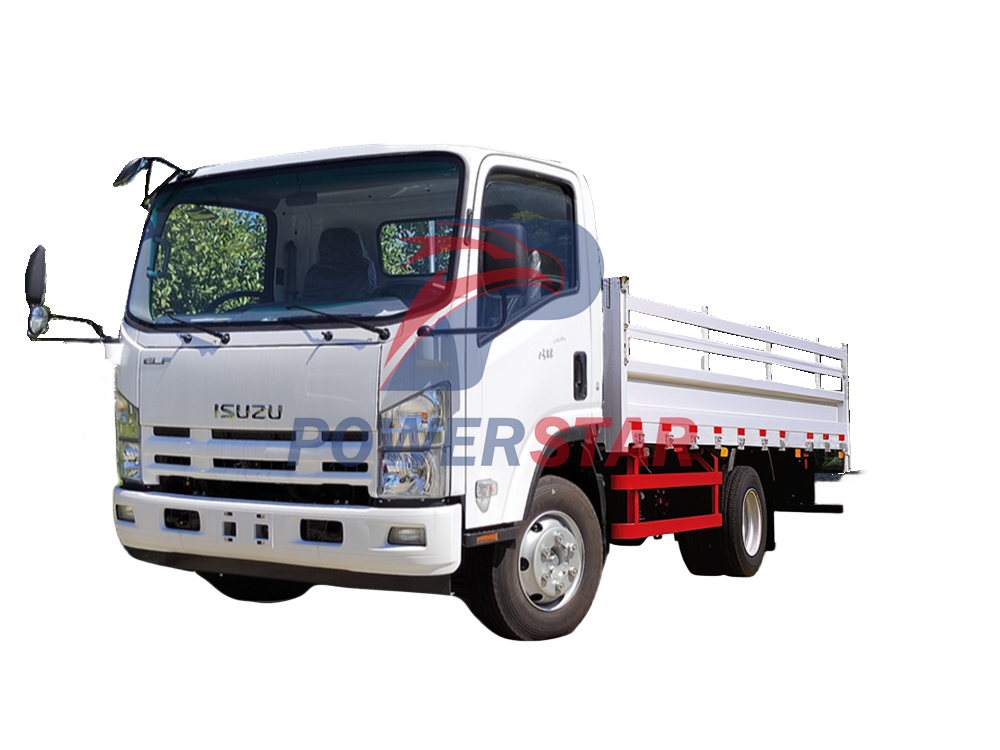

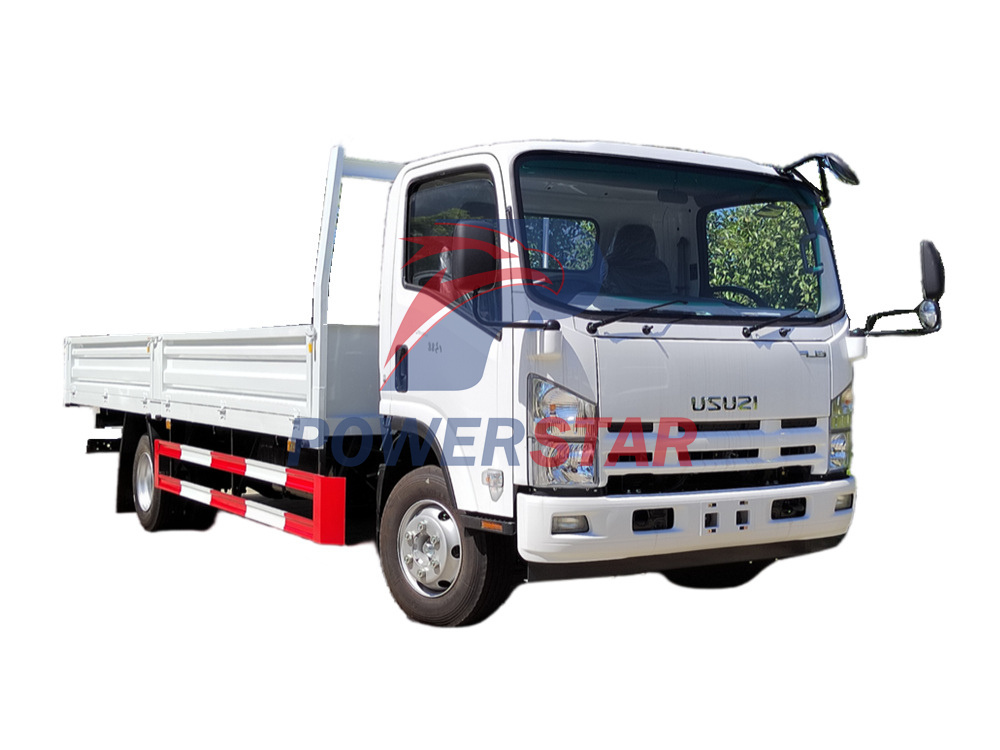

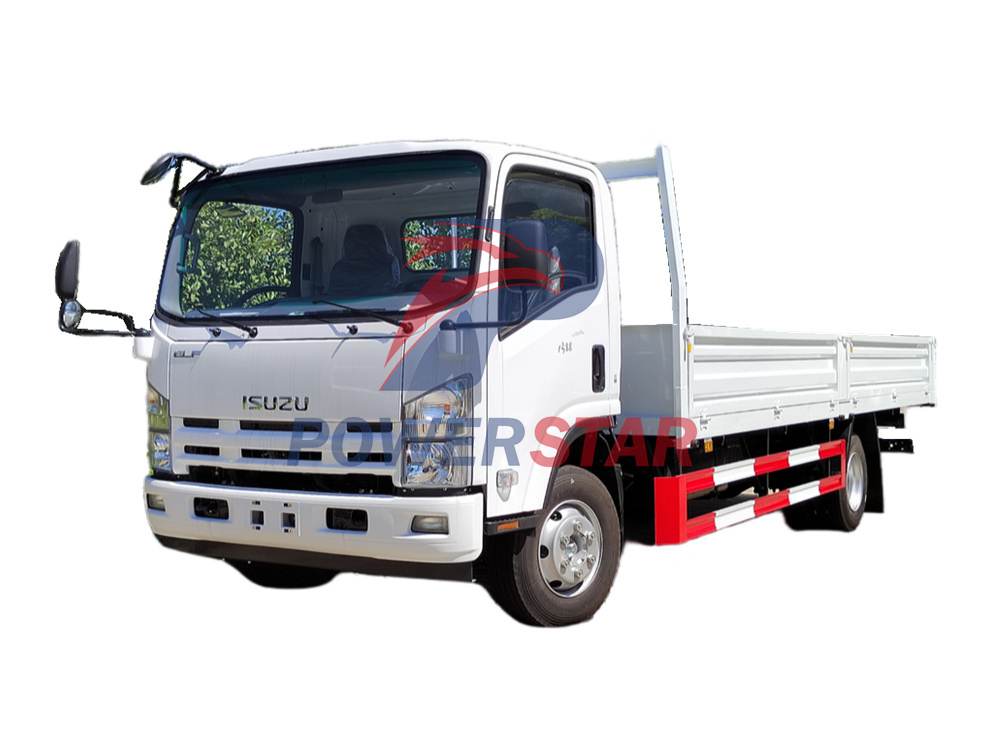

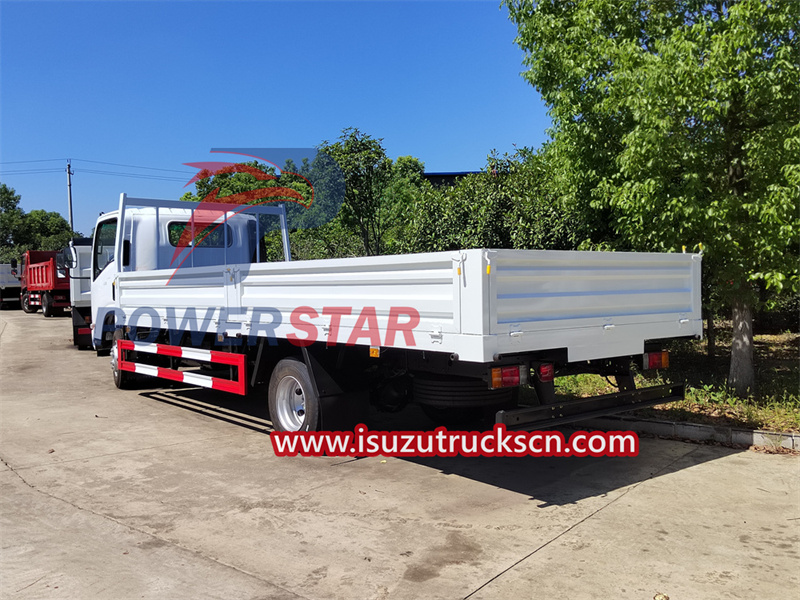

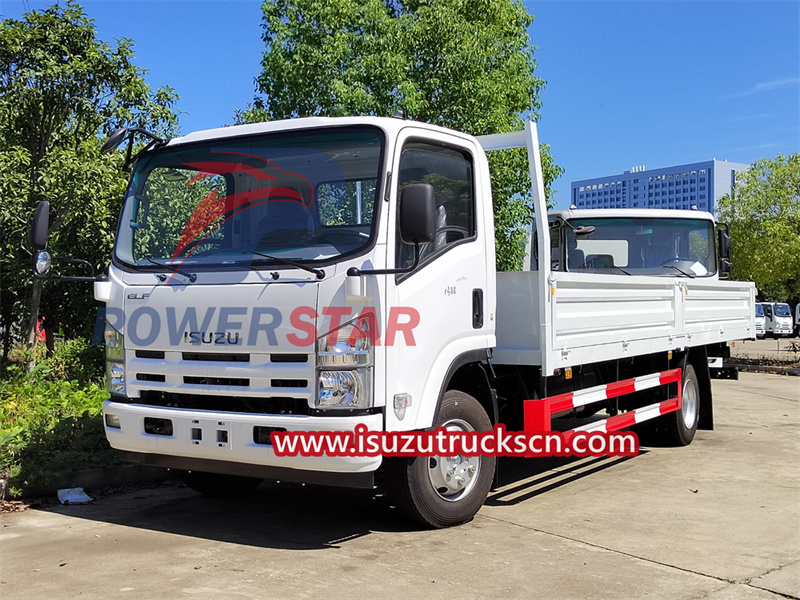

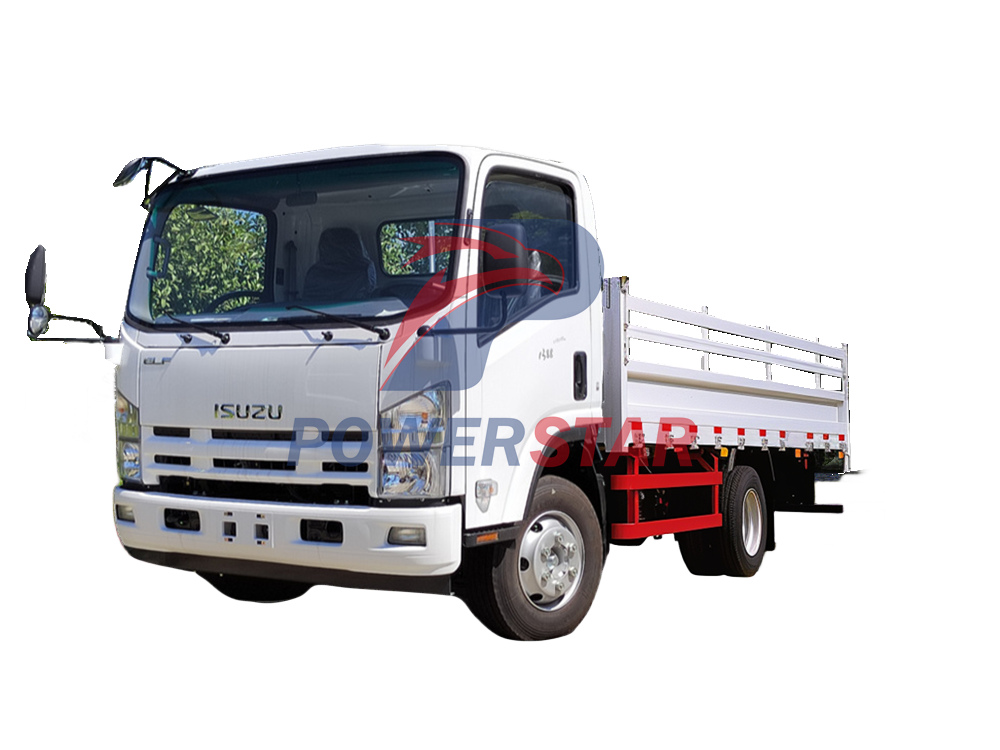

This Isuzu ELF Platform cargo truck is equipped with an ELF classic cab, a single bed, all-steel front controls, and can tilt forward. The truck is equipped with a 4HK1-TCG61 engine with a maximum power of 190 horsepower. Its braking system adopts dual-circuit compressed air braking, and the parking brake adopts spring energy compression type. In terms of control, Isuzu MLD 6-speed hydraulic power steering is used. The tires use 235/75R17.5 radial tires and are equipped with 1 spare tire. The body material is carbon steel and the nuclear load is 5 tons.
Work capacity:
5tonsTruck model:
PST6030CSYEngine power:
190hpEngine type:
4HK1-TCG61Axle drive:
4x2Gear box:
Isuzu MLD 6 shiftRemarks:
Long Cargo BoxThe Isuzu ELF Platform cargo truck is a stylish, high-performance, multi-purpose truck. In terms of appearance, it has a dynamic angular design and smooth body lines, showing a stylish beauty and dynamic atmosphere. In terms of performance characteristics, the Isuzu ELF Platform cargo truck is equipped with a high-performance engine, has excellent power and load-bearing capacity, and can easily cope with various road conditions and heavy-load work. In addition, the Isuzu ELF Platform cargo truck adopts advanced suspension systems and start-stop technology to improve stability and fuel economy. In terms of usage, Isuzu ELF Platform cargo truck can be widely used in urban logistics, freight transportation, construction sites and other fields to meet the transportation needs of different industries. Whether it is long-distance freight or urban distribution, this truck can perform well and provide users with efficient and reliable transportation solutions.
|
Isuzu NPR 4x2 CARGO TRUCK SPECIFICATIONS |
||
|
Truck Model |
PST6030CSY |
|
|
Truck Brand |
Isuzu |
|
|
Dimension (LxWxH) (unloaded)mm |
6850×2350×2560 |
|
|
Cargo body size(mm) |
4300X2300X500 |
|
|
Steel thickness of Carriage(mm) |
Floor:4mm/Side:3mm |
|
|
Approaching angle/ Departure angel (°) |
16/15 |
|
|
Wheel base (mm) |
3815 |
|
|
Max. Driving speed (km/h) |
95 |
|
|
Front axle loading capacity (kg) |
3500 |
|
|
Rear axle loading capacity(kg) |
7050 |
|
|
Curb weight (kg) |
3400 |
|
|
Gross vehicle weight |
10550 |
|
|
Cab Model |
Isuzu ELF cab,single bunk,all steel forward control, hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving. |
|
|
Engine Model |
Model |
4HK1-TCG61 |
|
Power |
190hp |
|
|
Euro VI emission standard |
||
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
|
Parking Brake (emergency brake) |
Spring energy, compressed |
|
|
Steering system |
Model |
Isuzu MLD 6 speed Steering Gear Box ,hydraulic steering with power assistance. (Left/Right hand driving) |
|
Tire |
235/75R17.5 radial tyre with 1 Spare tire. |
|
|
Oil Tank |
Square type-200L Aluminum alloy fuel tank |
|
|
Packing |
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
|
|
Cargo Box |
carbon steel material |
|
|
Capacity |
5tons |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|

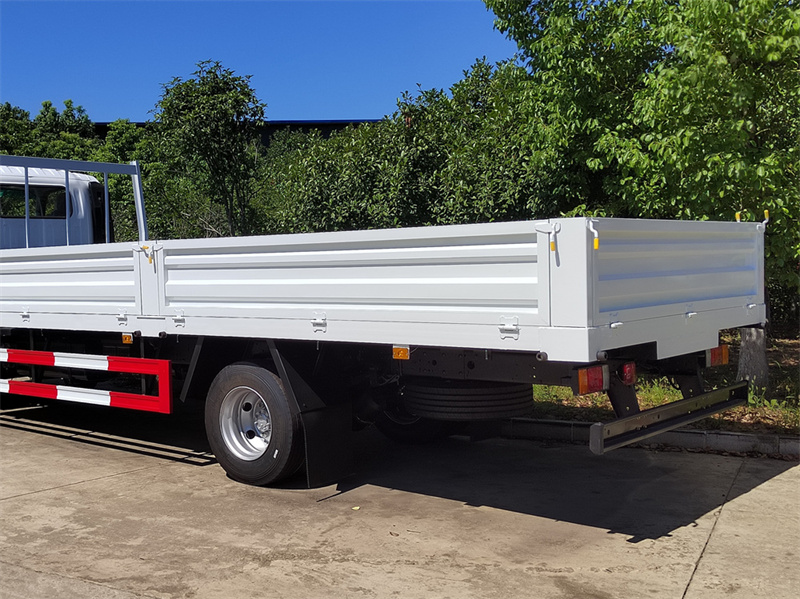

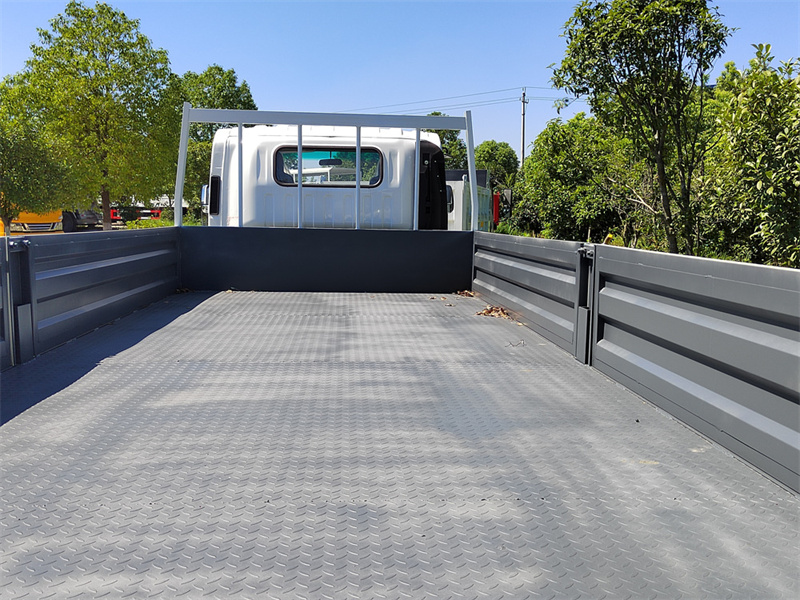

Isuzu ELF Platform cargo truck’s cargo box features:
1. Spacious and durable cargo box space: The cargo box of the Isuzu ELF Platform cargo truck is designed to be spacious and can accommodate a large amount of cargo. At the same time, it is constructed of high-strength and durable materials to ensure that the cargo box has good stability and durability under load.
2. Multifunctional side panel design: The cargo box side panel adopts an adjustable design and can be opened or closed according to specific needs. This design facilitates cargo loading and unloading, and can also cope with the transportation needs of cargo of different sizes.
3. Convenient cargo fixing system: Isuzu ELF Platform cargo truck is equipped with a professional cargo fixing system, including various lashing points, ropes or hooks, etc. This allows the cargo to be securely secured within the box, preventing movement or damage during transport.
4. Safe loading and unloading system: The cargo box loading and unloading system is flexible and safe, and can achieve efficient cargo loading and unloading through rear buckle doors, unloading conveyor belts and other equipment. This design not only improves work efficiency, but also reduces labor intensity and ensures the safety of operators.
