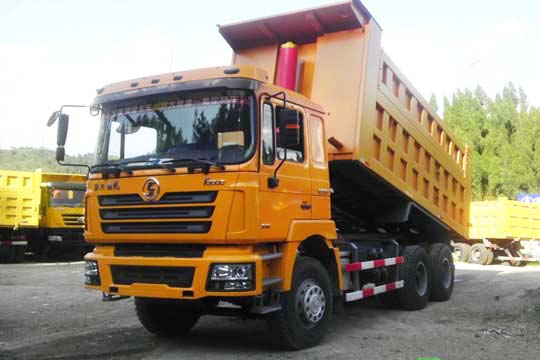

Shacman Delong F3000 10Wheels 6x4 35tons Dump Truck
Model |
SX3257DR384 |
|||
Overall Dimension(L*W*H) (mm) |
8600×2495×3450 |
|||
Wheel base (mm) |
3800+1450 |
|||
Curb weight (kg) |
12,500 |
|||
Dump Body |
5600x2500x1500mm |
|||
Payload (kg) |
12,000 |
|||
Max Speed:(km/h) |
≥80 |
|||
Engine
|
Model |
Diesel,WEICHAI Engine,CUMMINS Engine. |
||
Type |
water-cooled,4 strokes,6 cylinders in line,turbocharged |
|||
Horse Power |
340hp,380hp,420hp,460hp,460hp Max |
|||
Injection type |
Mechanical/Electrical |
|||
Fuel tanker capacity (L) |
400L square aluminum alloy fuel tank
|
|||
Clutch |
Model |
430, Single dry frictional disc,Hydraulic boosting |
||
Gearbox |
Model |
FULLER Technology, Manual Transmission, |
||
Brake system |
Service brake |
double circulation air brake system |
||
Assistant brake |
Engine exhaust brake |
|||
Park brake |
Potential springs pressing on middle and rear wheels |
|||
Steering system |
Model |
ZF technology |
||
Suspension System |
Rear Suspension |
Non-free standing stabilization Leaf spring |
||
Frame |
STEYR Technology variable width, variable sections |
|||
Front axle (Steyr Tech) |
Double-shoe pneumatic brake, non-driving steering axle |
|||
Middle and Rear axle
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor
|
|||
Tire |
315/80R22.5,12.00R22.5, 12.00R20,12.00-20 |
|||
Electrical system |
Battery |
2X12V/135Ah |
||
Generator |
28V-35A |
|||
Starter |
5.4Kw/24V |
|||
Cab
|
Long cab with sleeper (High roof with two sleeper),Can be tipped forwardly; |
|||
