Vacuum Street Sweeper Isuzu

Isuzu Street and Road Sweeping Truck for Indonesia
Isuzu Street and Road Sweeping Truck for Indonesia
Isuzu Street and Road Sweeping Truck for Indonesia
Isuzu Street and Road Sweeping Truck for Indonesia
Isuzu Street and Road Sweeping Truck for Indonesia
Isuzu Street and Road Sweeping Truck for Indonesia
Isuzu Street and Road Sweeping Truck for Indonesia
Isuzu Street and Road Sweeping Truck for Indonesia

Vacuum Street Sweeper Isuzu

Isuzu Street Vacuum Sweeper trucks for Indonesia, adopt Isuzu npr truck chassis for garbage truck applicaiton, keep roads and street in good condition. Indonesia Municipalities and other agencies want to keep the roads free of debris for residents and visitors. Also Isuzu vacuum cleaner sweeper Cleaning streets and roadways enhance public health and safety. Road debris can cause several issues, including clogged drains, car accidents, pollution and road damage.

  • Work capacity:

    6500L
  • Truck model:

    PT5080GSL
  • Engine power:

    130HP
  • Engine type:

    Isuzu 4KH1
  • Axle drive:

    4x2
  • Gear box:

    Isuzu MSB5S
  • Remarks:

    4000L dustbin, 2500L water

The Vacuum Street Sweeper Isuzu for Indonesia is an advanced and efficient cleaning solution designed specifically for the streets and roads of Indonesia. Combining cutting-edge technology, reliable performance, and innovative features, this street sweeper delivers exceptional cleaning results while keeping the environment clean and minimizing dust and debris accumulation.



2. Features: The Vacuum Street Sweeper Isuzu for Indonesia offers a range of impressive features:

   - Powerful Vacuum System: Equipped with a high-capacity vacuum system, this street sweeper efficiently removes dust, dirt, leaves, and other debris from the streets, ensuring a tidy and presentable environment.

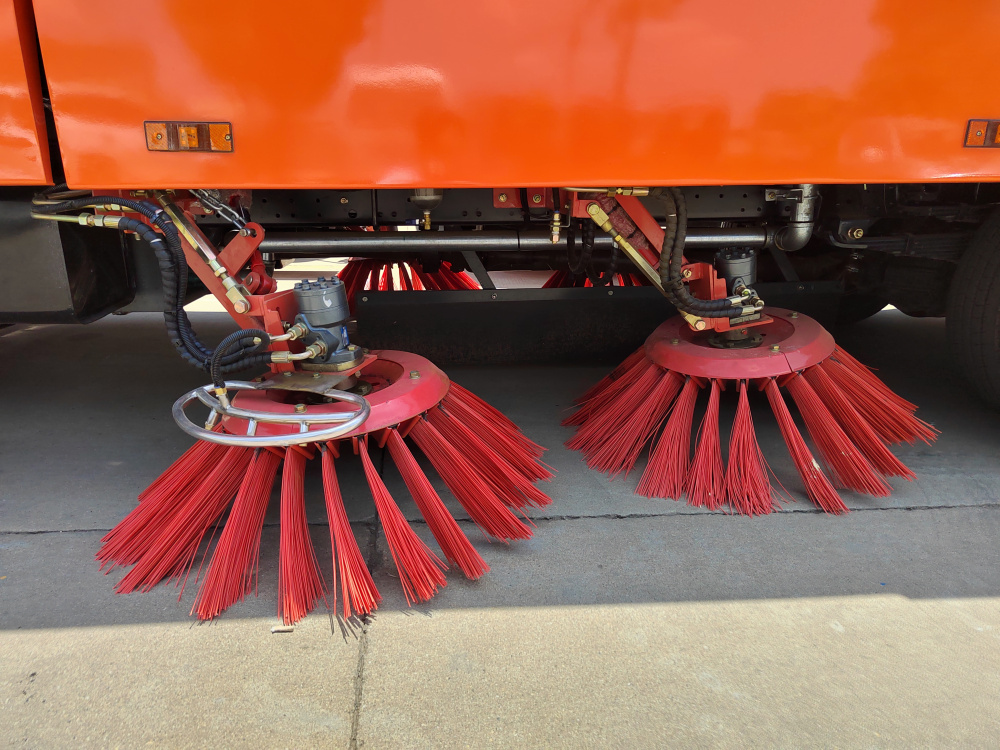

   - Dual Sweeping Mechanism: This sweeper combines two sweeping mechanisms - a front broom and a suction system - to effectively clean different types of surfaces, including asphalt, concrete, and cobblestone.

   - Water Spray System: The sweeper is fitted with a water spray system that helps control dust during the cleaning process, ensuring cleaner air and improved overall environmental quality.

   - Spacious and Ergonomic Design: The sweeper's cabin offers a comfortable and ergonomic working environment for the driver, allowing for extended operation without fatigue.

1. Four sweeper brush and sucker for sweeping combination with excellent sweeping ability
2. each side of the broom or brush can work at the same time, or work independently on each side
3. cleaning device mechanism is simple and reliable, which is hard to damage;
4. all stainless steel dust bins, water tanks,
5. hydraulic system core components are all imported;
6. cleaning system powered by auxiliary engine, which do not interfere with vehicle power.



Manufacturer: ISUZU Powerstar Trucks

Vacuum Street Sweeper Isuzu

3. Advantages: The Vacuum Street Sweeper Isuzu for Indonesia offers several advantages:

   - Efficient and Thorough Cleaning: With its powerful sweeping and vacuum capabilities, this sweeper ensures streets and roads are cleaned thoroughly, eliminating dust and debris from the surface.

   - Improved Air Quality: By minimizing dust emissions and controlling dust particles during the cleaning process, this sweeper helps improve air quality in Indonesian cities, promoting better public health.

   - Reduced Maintenance: Built with durable components and supported by Isuzu's renowned engineering expertise, this sweeper requires minimal maintenance, ensuring cost-effectiveness and long-lasting performance.

   - Environmentally Friendly: The sweeper's water spray system and efficient dust containment contribute to a cleaner and more sustainable environment, aligning with Indonesia's environmental goals.



4. Application: The Vacuum Street Sweeper Isuzu is suitable for various applications in Indonesia:

   - Municipalities: Local governments can utilize this sweeper for regular maintenance and cleaning of public streets, ensuring a clean and safe environment for residents.

   - Parking Lots: Commercial complexes, shopping malls, and public parking lots can benefit from this sweeper to maintain cleanliness and presentable surroundings.

   - Industrial Areas: The sweeper is effective in cleaning roads within industrial areas, removing debris and maintaining a clean environment for optimal operations.

ISUZU NPR 6500 Liters Vacuum Street Sweeper Isuzu
Vehicle parameters
Vehicle Model PT5070TSLQ Vehicle Brand Isuzu Powerstar
Overall dimensions 6465X1980X2435mm Curb weight 5600kg
Dust tank volume 4000L Water tank volume 2500L
Chassis parameters
Chassis model Isuzu NPR Chassis brand ISUZU
Overall dimensions 6645x1880x2160mm Wheel base 4500mm
Front/rear wheel track 1504/1425mm Front/rear suspension 1015/1815mm
Approach/departure angle 24/14° Maximum speed 105km/h
Cab Configuration single row cab,allowable 2 passengers,car interior, air conditioner, USB radio interface, with oil brake vacuum booster pump
Color White,other color is optional
Engine Model Isuzu
Emission Euro 3/4/5
Type 4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine
Rated power 190hp
Displacement 5120ml
Manufacturer /
Tire Size 825R20
Number 6+1 nos
Front axle 4tons
Rear axle 7tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions  MSB five speed transmission,5 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
If there is a slight change in the chassis parameters above,please take the actual product as the standard
Road sweeper structure parameters
Dust tank volume 4000L Water tank volume 2500L
Sweep width 3000m Cleaning speed 3-20km/h
Cleaning ability 9000-60000 m2/h Cleaning efficiency 0.98
Maximum suction particle 120mm Min. clearance of suction nozzle 200mm
Unloading angle 45° Unloading height 970mm
Standard configuration Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system.
Selective configuration surveillance system,rolling brush.



Isuzu Street and Road Sweeping Truck for Indonesia

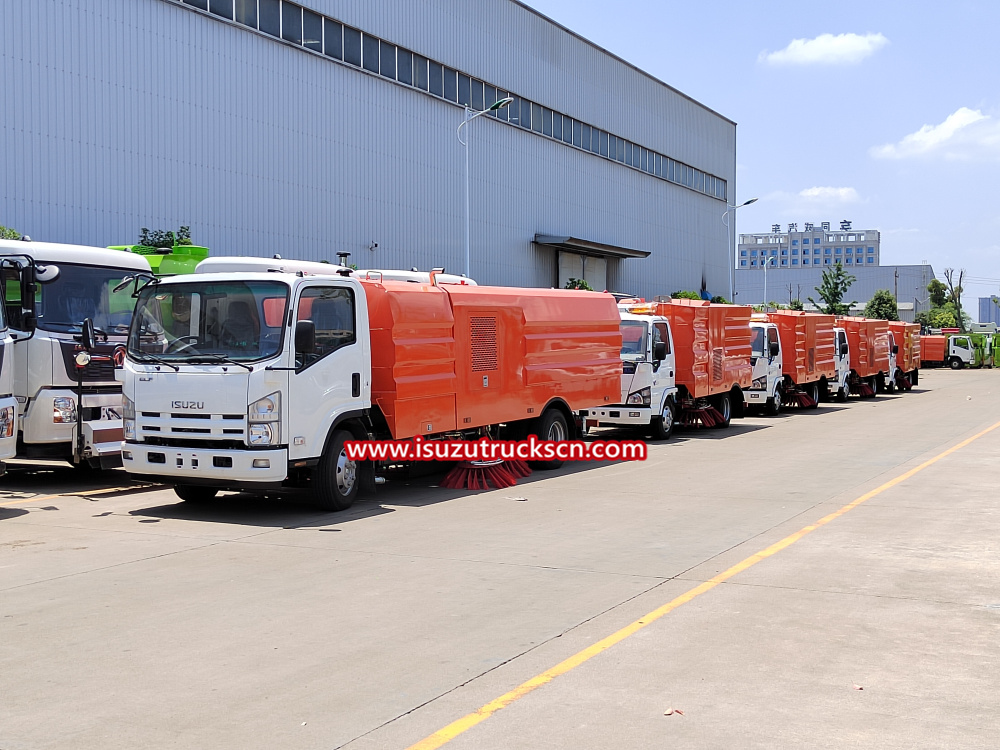

Isuzu Street and Road Sweeping Truck for Indonesia ready for shipment

Isuzu Street and Road Sweeping Truck for Indonesia

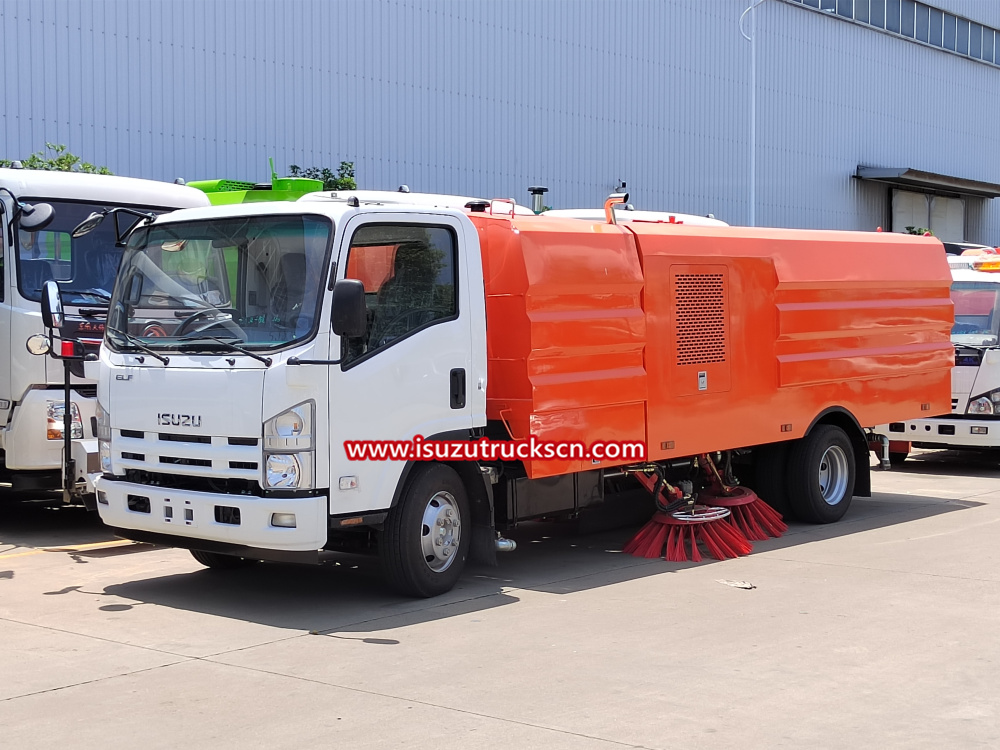

Isuzu Street and Road Sweeping Truck for Indonesia fron view

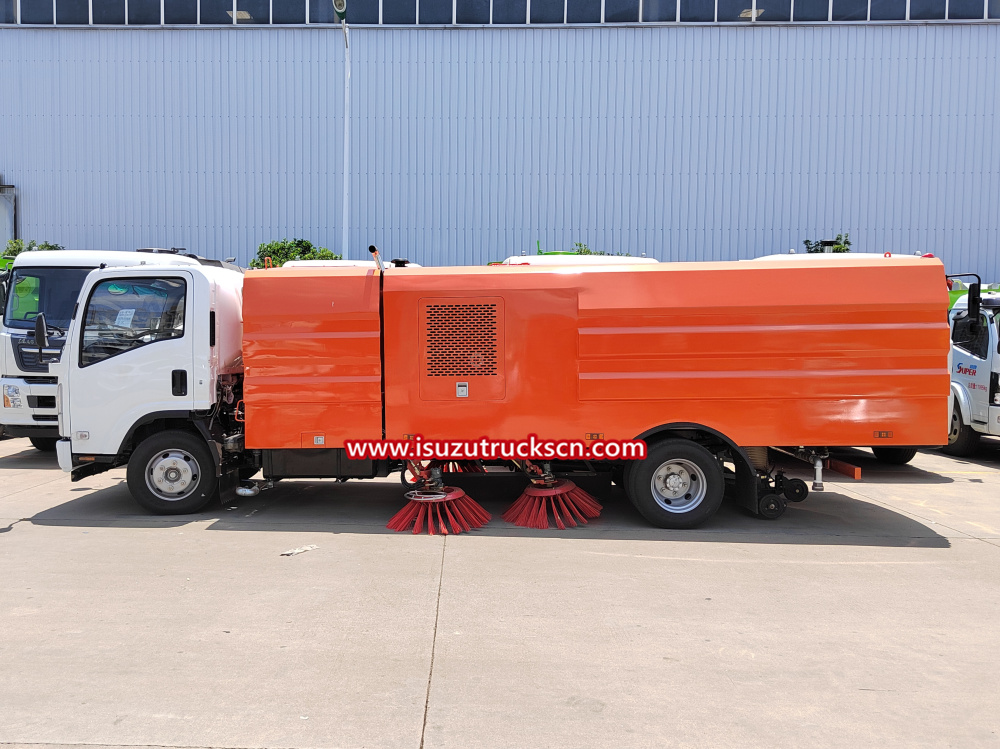

Isuzu Street and Road Sweeping Truck for Indonesia

Isuzu Street and Road Sweeping Truck for Indonesia side view

Isuzu Street and Road Sweeping Truck for Indonesia

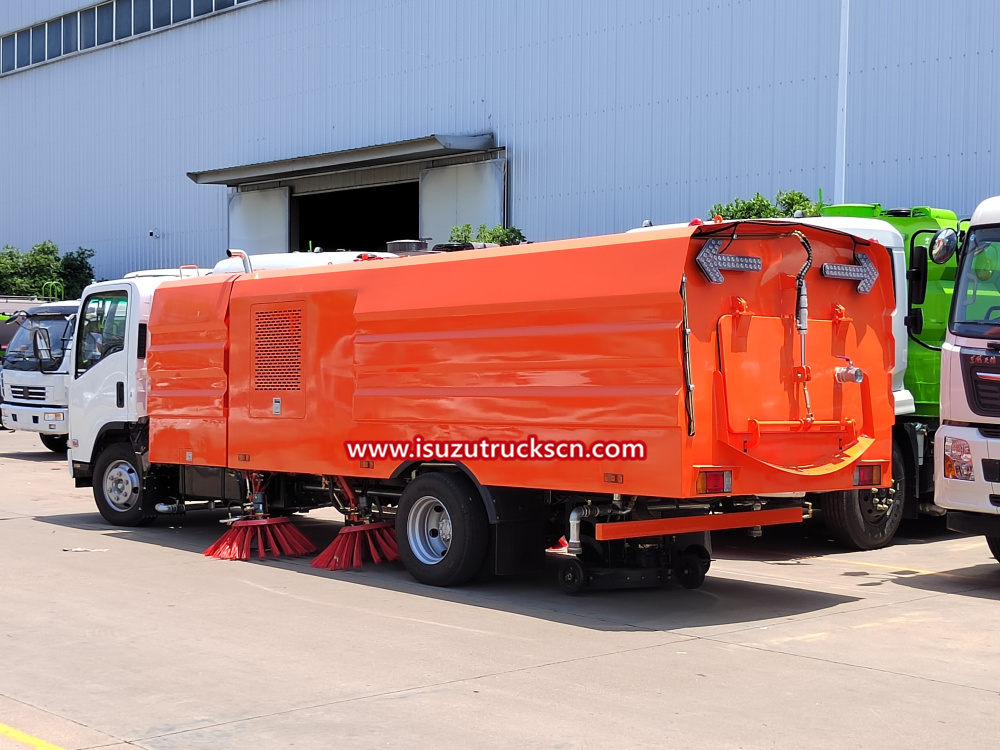

Rear view of Isuzu Street and Road Sweeping Truck for Indonesia



5. After-sales Service: We are committed to providing exceptional after-sales service:

   - Maintenance and Repairs: Our team of skilled technicians offers comprehensive maintenance and repair services to ensure the sweeper's optimal performance and minimize operational downtime.

   - Genuine Spare Parts: We provide genuine Isuzu spare parts tailored specifically for the Vacuum Street Sweeper, ensuring quality and compatibility.

   - Technical Support: Our dedicated customer support team is available to address any technical inquiries, provide guidance, and assist customers with any concerns they may have.



6. FAQ: We have compiled a comprehensive list of frequently asked questions, addressing topics such as vehicle specifications, maintenance guidelines, operational considerations, warranty coverage, and recommended cleaning practices.



7. Upper Body Customized: The Vacuum Street Sweeper Isuzu can be customized according to specific requirements, allowing for the addition of specialized equipment or customized upper body designs to meet the unique needs of different customers.

Isuzu Street and Road Sweeping Truck for Indonesia



Isuzu Street and Road Sweeping Truck for Indonesia

Isuzu Street and Road Sweeping Truck for Indonesia

8. Truck Chassis Choice: We offer a range of Isuzu truck chassis options, allowing customers to choose the appropriate chassis configuration based on their specific needs, load capacity, and operational requirements.
