Waste collection Tipper Isuzu

Isuzu 4tons Waste collection Tipper truck
Isuzu 4tons Waste collection Tipper truck
Isuzu 4tons Waste collection Tipper truck
Isuzu 4tons Waste collection Tipper truck
Isuzu 4tons Waste collection Tipper truck
Isuzu 4tons Waste collection Tipper truck
Isuzu 4tons Waste collection Tipper truck
Isuzu 4tons Waste collection Tipper truck
Isuzu 4tons Waste collection Tipper truck
Isuzu 4tons Waste collection Tipper truck
Isuzu 4tons Waste collection Tipper truck

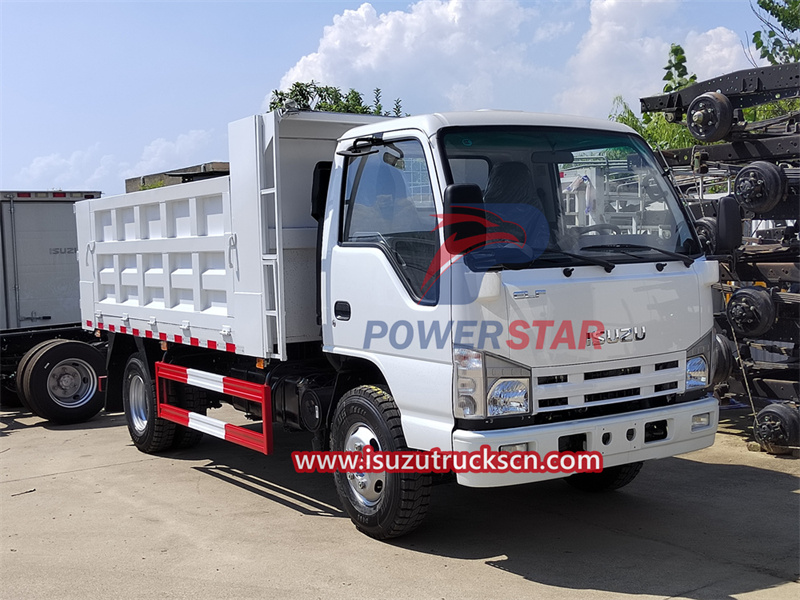

Waste collection Tipper Isuzu

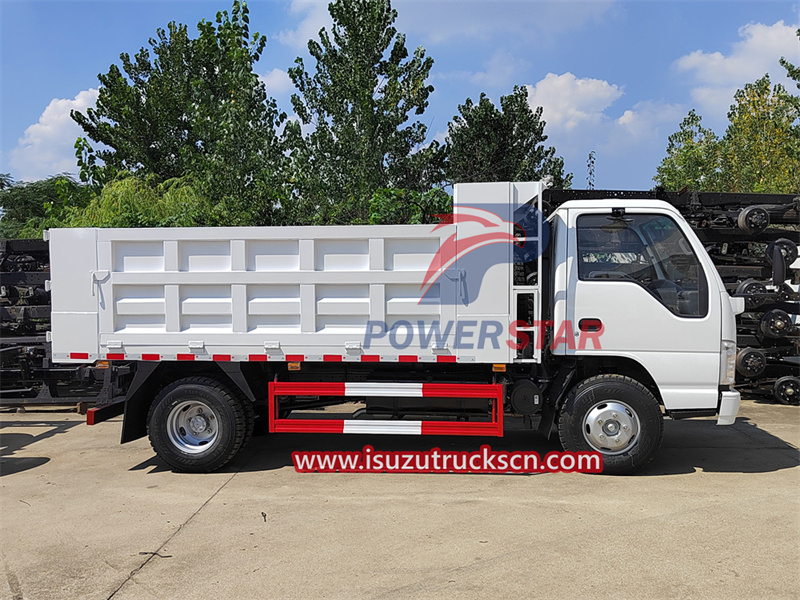

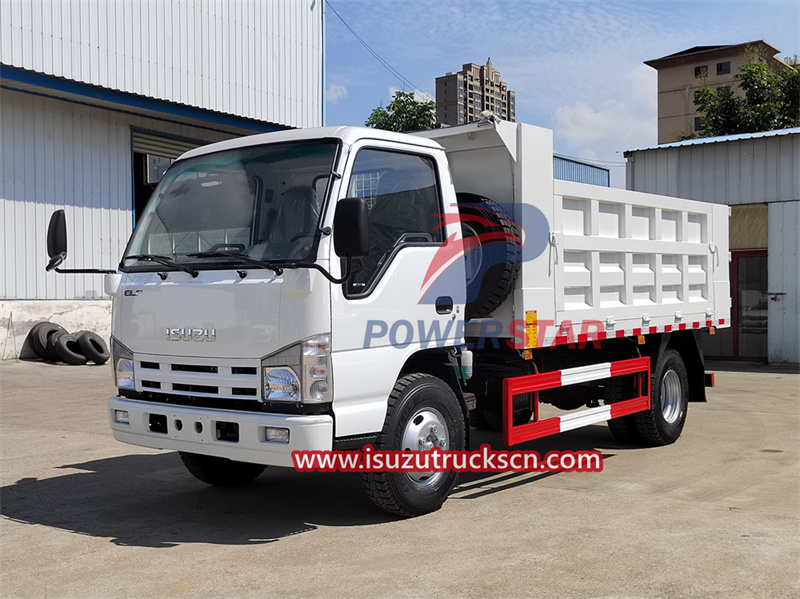

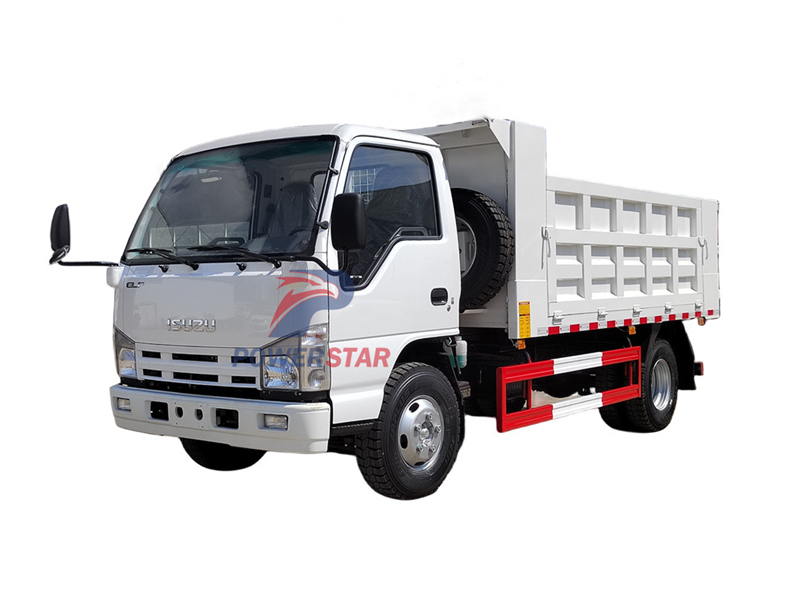

ISUZU Mini Cab Dump Truck with Heightened Body is designed to achieve efficient transportation and unloading and can provide a loading capacity of 3-4 tons. It features a compact Isuzu single cab design with seating for up to three people, providing ample space for loading and transporting cargo. The truck is equipped with a 4KH1CN5LS engine, which complies with European Stage 5 emission standards to ensure that environmental impact is minimized. The vehicle has strong performance, with a maximum speed of 90 kilometers per hour and a maximum gradeability of 25%. The power steering system ensures good handling, and the stable braking system ensures efficient braking capabilities.

  • Work capacity:

    3-4tons
  • Truck model:

    PST5080ZXQ
  • Engine power:

    98hp
  • Engine type:

    4KH1CN5LS
  • Axle drive:

    4x2
  • Gear box:

    ISUZU MSB 5-shift Manual
  • Remarks:

    Heightened Dump Body

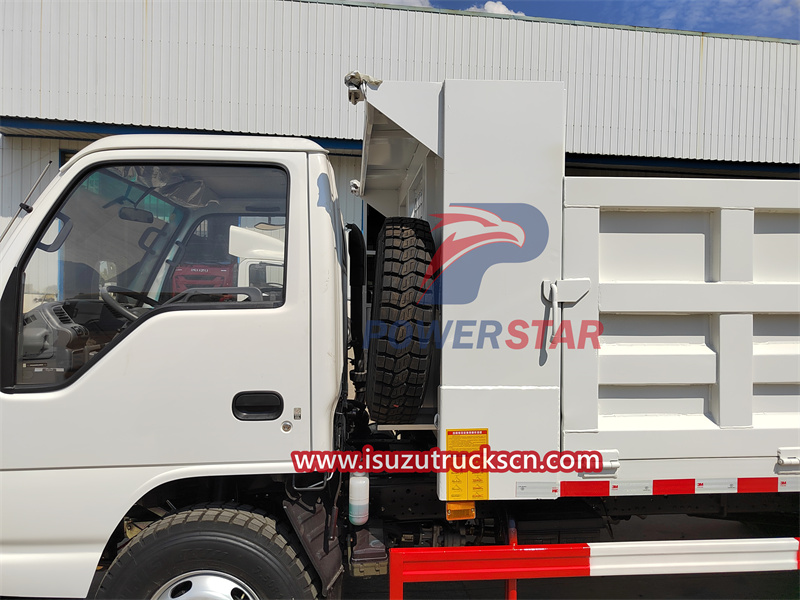

Isuzu 100P dump truck with an elevated dump body is a vehicle specially used for transportation and unloading. Its characteristic is that it has been improved on the basis of the original Isuzu dump truck, mainly in the height of the dump body. Compared with ordinary Isuzu dump trucks,Isuzu dump trucks with elevated dump body can load more goods while maintaining the flexibility and convenience of Isuzu light duty dump trucks.Isuzu dump trucks with heightened cabinets have obvious advantages in increasing cargo capacity, improving unloading efficiency and enhancing driving safety. In the field of logistics and transportation, the wide application of such vehicles will bring higher benefits and better user experience.

Waste collection Tipper Isuzu







Technical Parameters:

Waste collection Tipper Isuzu



Description

ISUZU Mini Cabin Dump Truck

Item

Powerstar dump truck

Model

PST5080ZXQ

Cabin

Isuzu single cabin

whole vehicle main
dimension



Overall dimensions (L*W*H)mm

5800*2350*2380 mm

Dimensions of dump body  (L*W*H)mm

3100*2250*1800 mm

Driving type

Left/Right hand drive 4×2

Wheel base

3360

Weight data

Curb weight (kg)

2800

Rated payload(kg)

4000

Person in cab (persons)

3

whole vehicle main
performance

Max.speed(km/h)

90

Max.slope of climb(%)

25

Min.turning radius (m)

7.5

Engine

Engine model

4KH1CN5LS

Engine type

Vertical, water-cooled, four-stroke,
turbocharged and inter cooled

Emission standard

Euro5

Displacement (L)

2.99L

Rated power (KW)

64

Max torque (N.m/rpm)

220N.M/ 1900-2100 r/min

Steering gear type

Power steering

Brake system

Service brake and boosting type

Air brake

Parking brake

Central drum brake

Auxiliary brake

Air brake

Tyre size

700R16

Electric system

Rated voltage

24V

Battery

100Ah

Dump Performance

Loading Capacity

3-4 tons

Body Material

High performance carbon

Plate Thickness

Front/Side are 3mm

Control System

Rear/Side are 4mm

Hydraulic Lifting

Hydraulic

Discharging System

Middle lifting device

Lifting Time

Tipping 45 degree

Lowering Time

20 s

Tailgate

15 s

Drop side

Auto release

Painting

Detachable

Color & Logo

Two primers,and one final paint coating

Loading Capacity

According to wish

Factory Standard

Heightened dump body Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps...

Documents

English operation manual, Spare parts list, and all necessary export docs.

Optional equipment

1, Dust bin lifting system (with any option)

2, Rear vision camera

3, Italy imported multi-way valve

4, Optional stainless steel waste water tank



What are the advantages of Isuzu dump truck with Heightened Body?







First of all, the design of Isuzu dump trucks with elevated boxes focuses on increasing cargo capacity. By increasing the height of the box, the vehicle's loading space can be increased, allowing the truck to transport more cargo. This is particularly important for the logistics industry because it can reduce the number of transportation times and costs and improve transportation efficiency. In addition, the increased cargo capacity also means that more needs can be met and more convenient services can be provided to users.



Secondly, Isuzu dump truck with an elevated box has greater flexibility and convenience when unloading. Traditional dump trucks need to tilt the box when unloading so that the goods can be dumped smoothly from the compartment. However, in some cases, due to the special cargo, a larger tilt angle may be required to achieve unloading. Dump trucks with elevated boxes perform well in this aspect, because the increased height provides a larger tilt space, making unloading more convenient and faster, and improving work efficiency.



In addition to the above two points, Isuzu dump trucks with elevated boxes also have other advantages. For example, the increased compartment space can cope with the transportation needs of special cargo, such as over-height or over-sized cargo. In addition, due to the increased height of the truck, the driver's field of vision is also improved, and the blind spots are reduced, which enhances driving safety.



To sum up, Isuzu dump trucks with elevated boxes have obvious advantages in increasing cargo capacity, improving unloading efficiency and enhancing driving safety. In the field of logistics and transportation, the wide application of such vehicles will bring higher benefits and better user experience.
