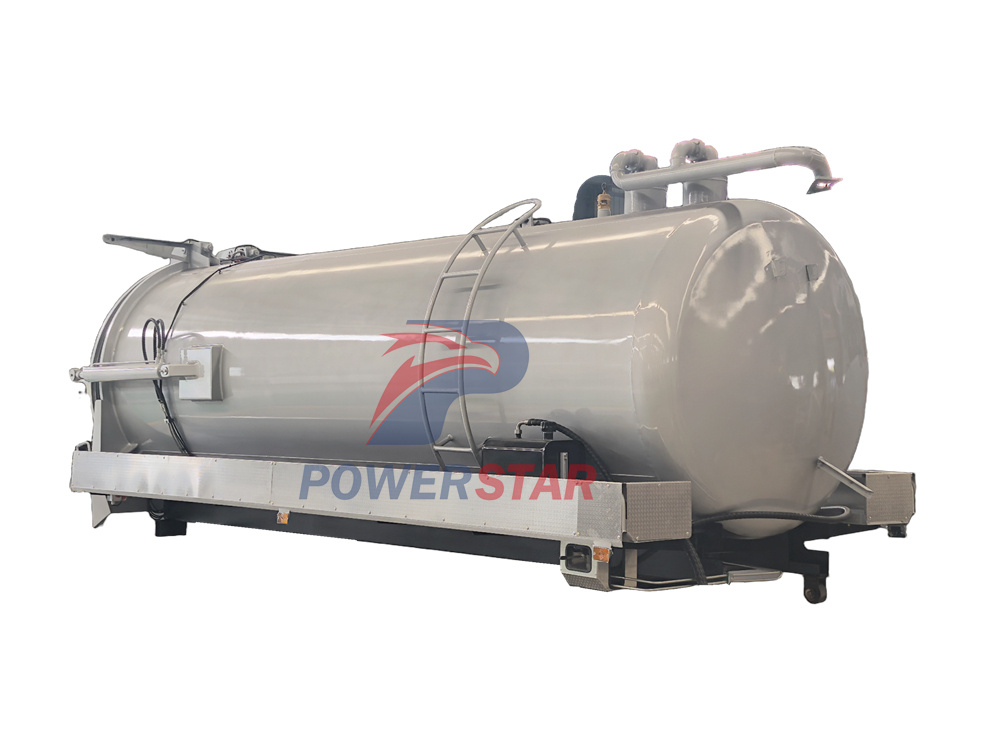

12000 liters vacuum suction truck upper body kits

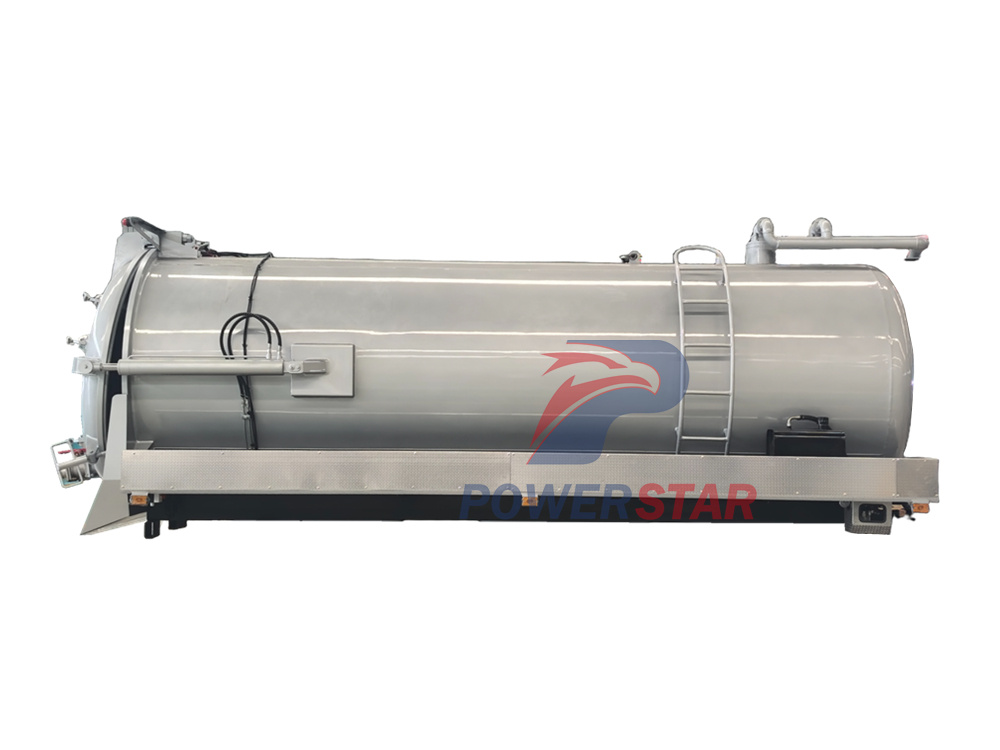

This 12cbm vacuum truck upper body features a 5mm thick, round carbon steel tank with corrosion and rust treatment. It is equipped with a power take-off, gear pump, multi-way valve, hydraulic cylinder, hydraulic oil tank, MORO PM80A vacuum pump, observation window, oil-water separator, water-gas separator, secondary filter, fully automatic relief valve, gravity valve, suction valve, and discharge valve. The rear door opens and closes hydraulically. The tank is hydraulically lifted.
MarketPrice:
$16300Manufacturer:
Powerstar TrucksWork capacity:
12,000 litersRemarks:
Tank capacity can be customizedThis 12000 liters vacuum suction truck upper body kits is designed for the efficient handling of liquid or semi-liquid pollutants such as feces, sewage, and slurry. Integrating suction, transportation, and discharge functions, it boasts high suction efficiency, ease of operation, and safety and reliability. The 12-cubic-meter high-capacity tank body is equipped with a MORO PM80A rotary vane vacuum pump, offering a high pumping rate. The operating system integrates hydraulic control, enabling flexible opening and closing of the rear cover and smooth lifting of the tank body. Furthermore, the upper body incorporates a multi-layer safety purification system consisting of a fully automatic overflow valve, a water-gas separator, and a secondary filter, providing comprehensive protection for stable operation.
● China best vacuum suction truck upper body factory
● 30 years experience on septic pump truck body parts designing
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Key Features and Advantages
1. Large-Capacity, Sturdy Tank: Utilizing a 12-cubic-meter circular carbon steel tank with a 5mm wall thickness and anti-corrosion and rust-resistant treatment, it is sturdy and durable.
2. Efficient Operation: Equipped with a MORO PM80A vacuum pump, the system boasts a full tank suction time of ≤5 minutes and a vertical suction range of ≥7 meters, ensuring high operational efficiency.
3. Intelligent Hydraulic Control: Hydraulically controls the opening and closing of the rear cover and the hydraulic lifting of the tank, ensuring effortless and convenient operation.
4. Safety Features: Integrated with a fully automatic relief valve, oil-water separator, and secondary filter, the system offers multiple protection features.
» Ⅱ. Product Parameter for 12000 liters sewage suction truck upper body:
|
12,000 liters vacuum pump tanker body kits |
||
|
Tanker Description |
||
|
Tanker |
Capacity |
12cbm |
|
Material |
5mm thickness, high quality carbon steel |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|
Vacuum Pump |
Type |
MORO PM80A vacuum pump |
|
Free air capacity |
12000 Lt/min(424cfm) |
|
|
Air capacity at 15" Hg/50% vacuum |
312cfm |
|
|
Max. Vacuum |
28Hg (in.) |
|
|
Max. Pressure |
29psig |
|
|
Power required at 15" of vacuum |
15.5hp |
|
|
Power required at max. pressure |
41hp |
|
|
Rotation speed |
1100rpm |
|
|
Oil consumption |
0.046gal (US)/Hr |
|
|
Sound pressure at 7 meters (23 ft) 60% vacuum |
79dB |
|
|
Hose |
3in |
|
|
Continuous vacuum |
18Hg (in.) |
|
|
Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
|
|
Pipe |
Suction and discharge pipe,15m DN100 |
|
|
Special function |
(1) Vertical suction ≥ 7m. (2) Full tank pumping time ≤ 5min. (3) Sewage tank emptying time ≤ 4min. (4) Max. inclined angle≥ 45° (5) Tank lifting time≤ 45s (6) Rear cover open angle≥ 75° (7) Rear cover open time≤ 25s |
|
|
Standard configuration |
Equipped with PTO, gear pump, multi-way valve, hydraulic cylinder, hydraulic oil tank, vacuum pump, observation window, oil-water separator, water-gas separator, secondary filter,fully automatic overflow valve, gravity valve, suction valve, and discharge valve. |
|
|
Optional configuration |
Tanker material: stainless steel. |
|
» Ⅲ. Product Details:

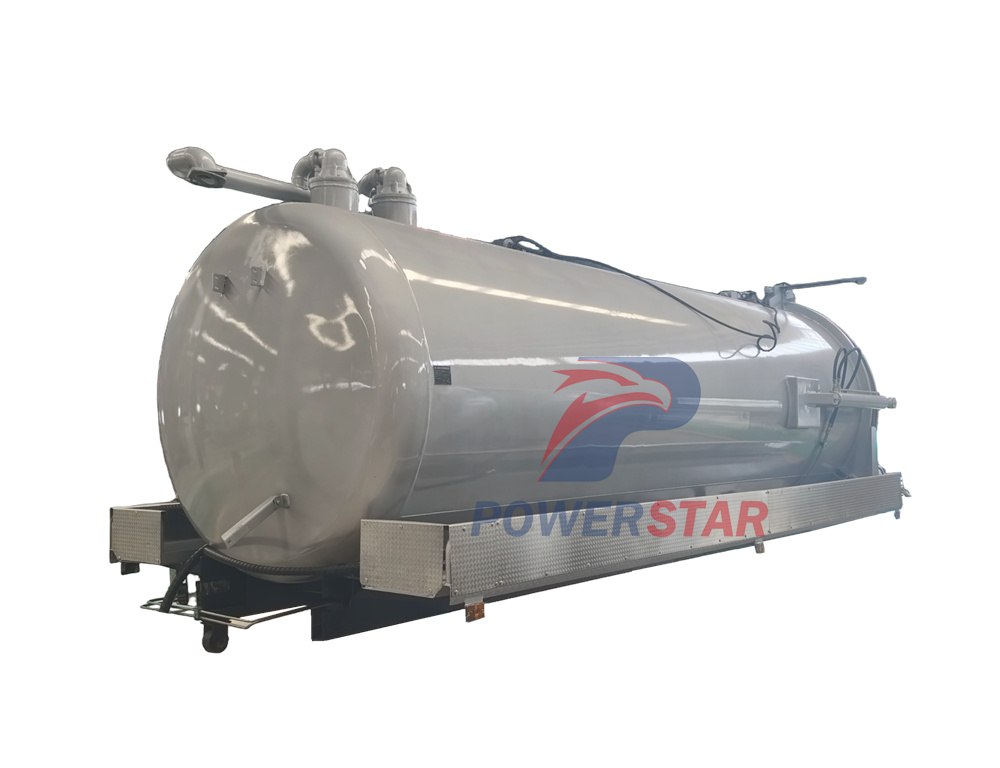

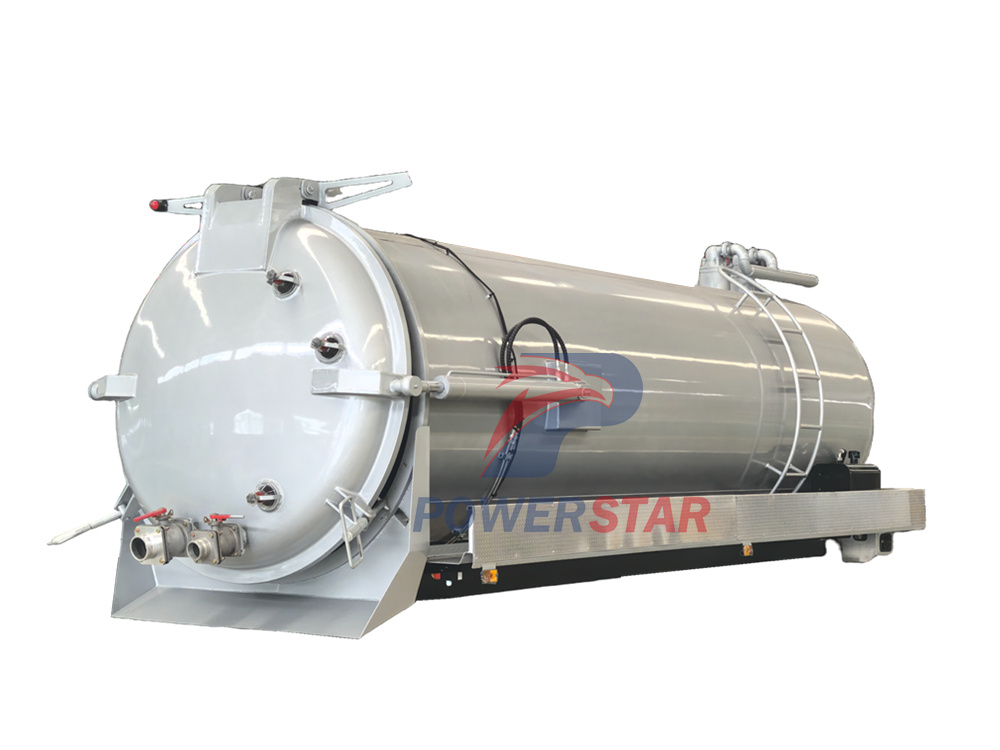

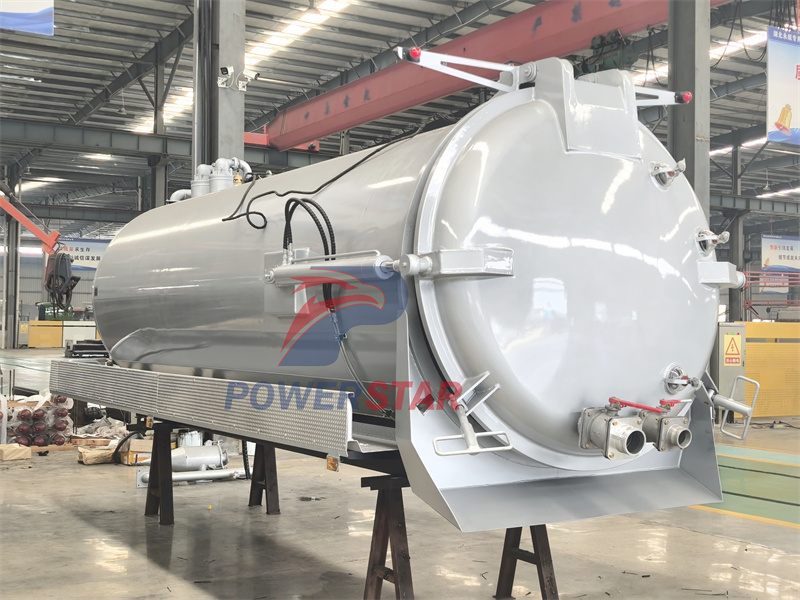

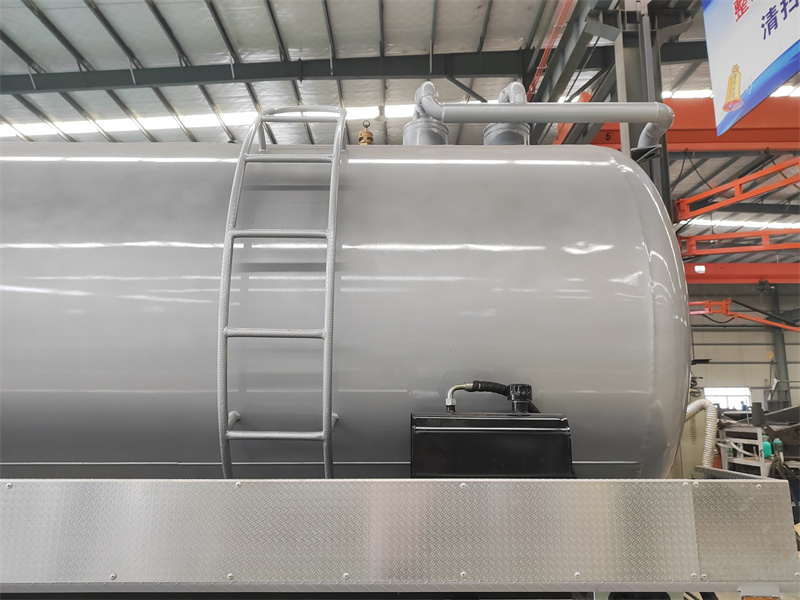

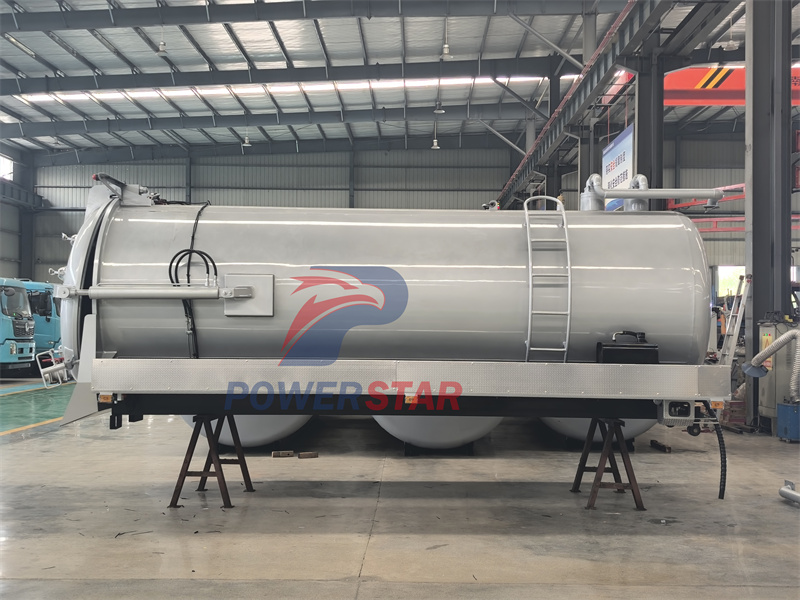

Tank Structure
• Volume: 12 cubic meters
• Shape: Round tank constructed of 5mm thick carbon steel (Q235B) plate, ensuring both strength and impact resistance, suitable for complex operating conditions.
• Anti-corrosion Treatment: Both the interior and exterior surfaces of the tank undergo rigorous anti-corrosion and rust treatment.
Hydraulic System Configuration
1. Power Transmission Components
o Power Take-off: A full-power power take-off directly connected to the engine flywheel housing, with a transmission efficiency of ≥95%, supporting continuous high-load operation.

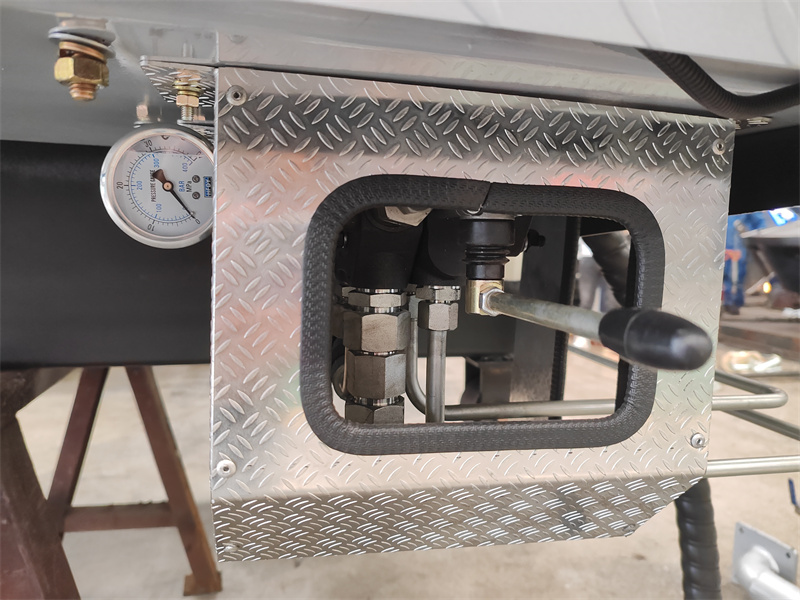

o Hydraulic System: Includes a gear pump, multi-way directional control valve, hydraulic oil tank, and hydraulic cylinder. The multi-way valve is centrally controlled for simple and reliable operation.

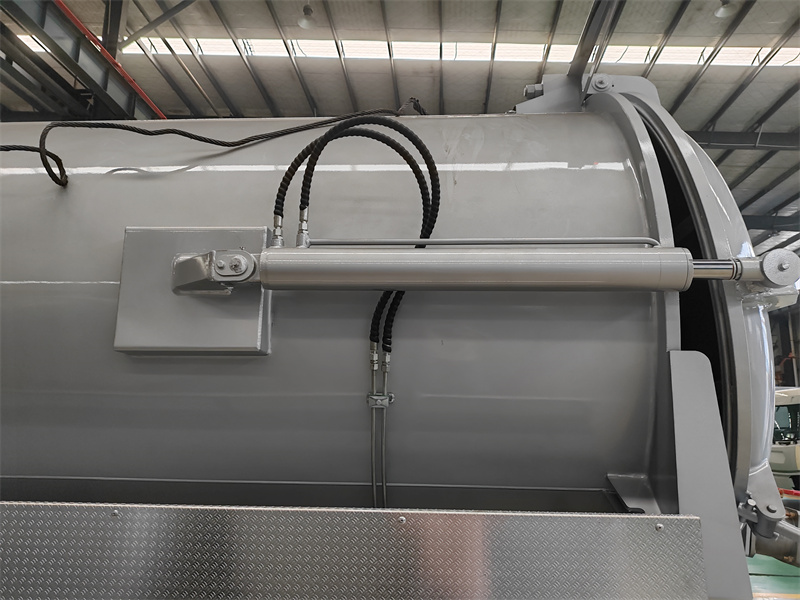

o Hydraulic cylinders are used to open/close the rear lid and lift the tank.
Performance Parameters
o Tank Lift: Lift time ≤ 45 seconds (unladen), maximum tilt angle ≥ 45°, meeting dumping requirements.

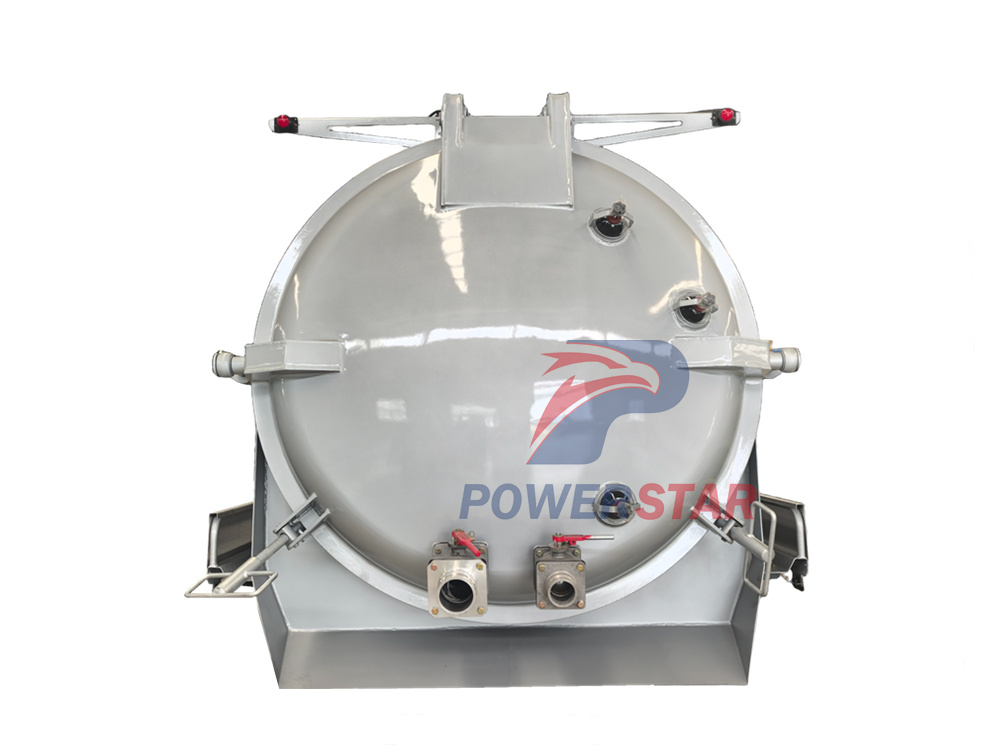

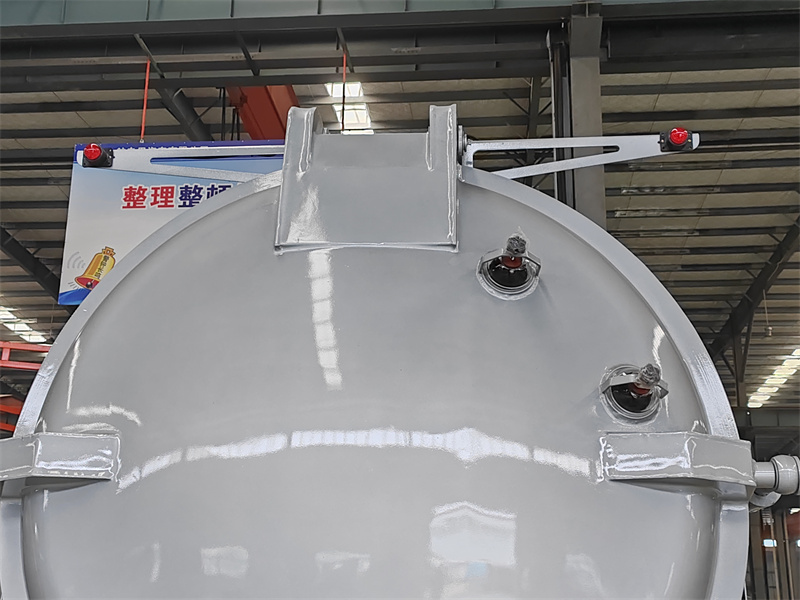

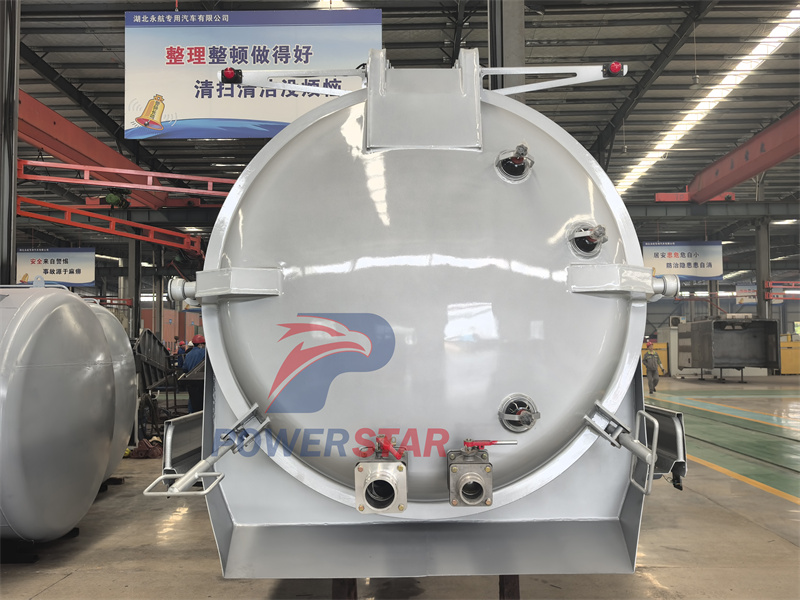

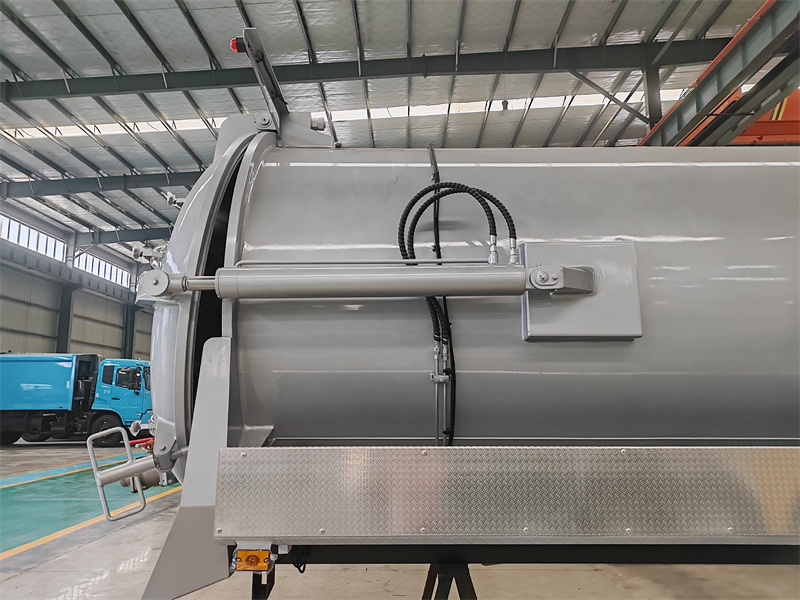

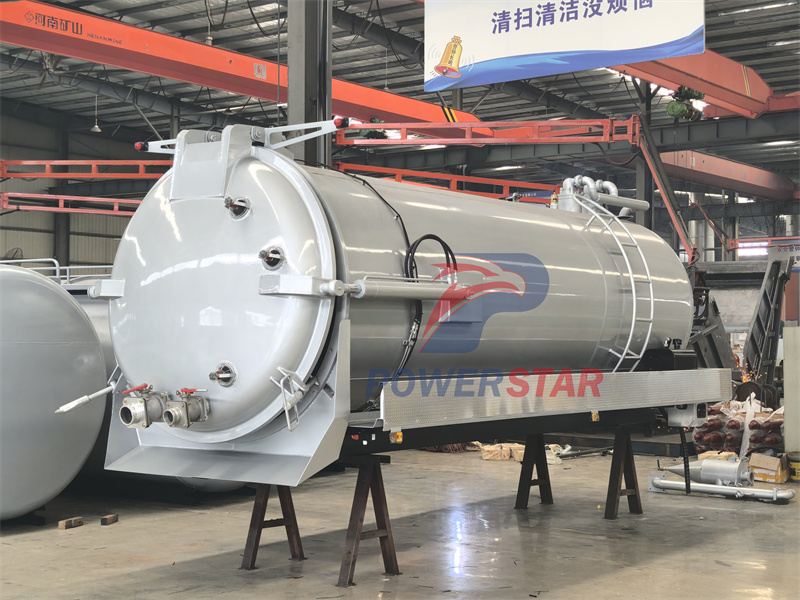

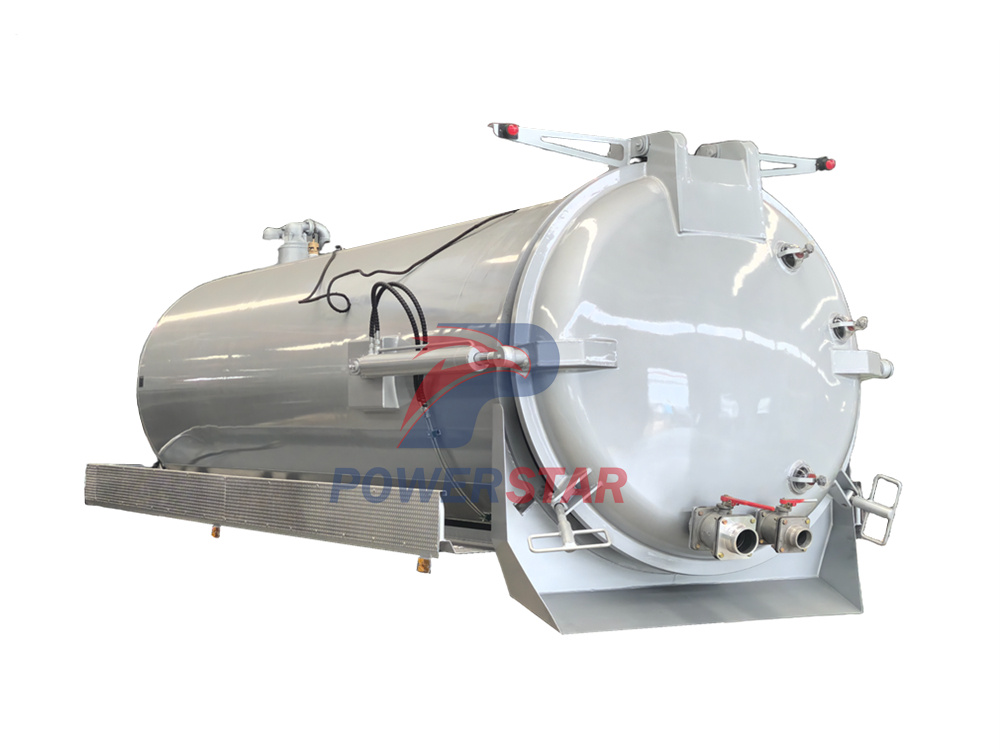

o Rear Door Opening and Closing: Hydraulically actuated, opening angle ≥ 75°, opening time ≤ 25 seconds, equipped with a mechanical lock to prevent accidental opening.
Vacuum Suction System
1. Vacuum Pump
o Model: MORO PM80A vacuum pump, pumping rate 12,000 liters/minute, maximum vacuum 28 inches (Hg), suitable for rapid suction of 12-cubic-meter tanks.

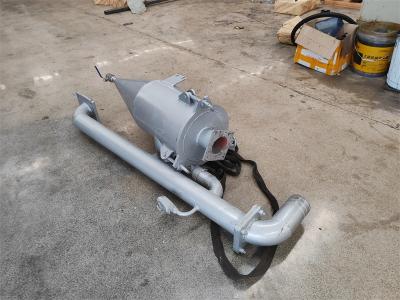

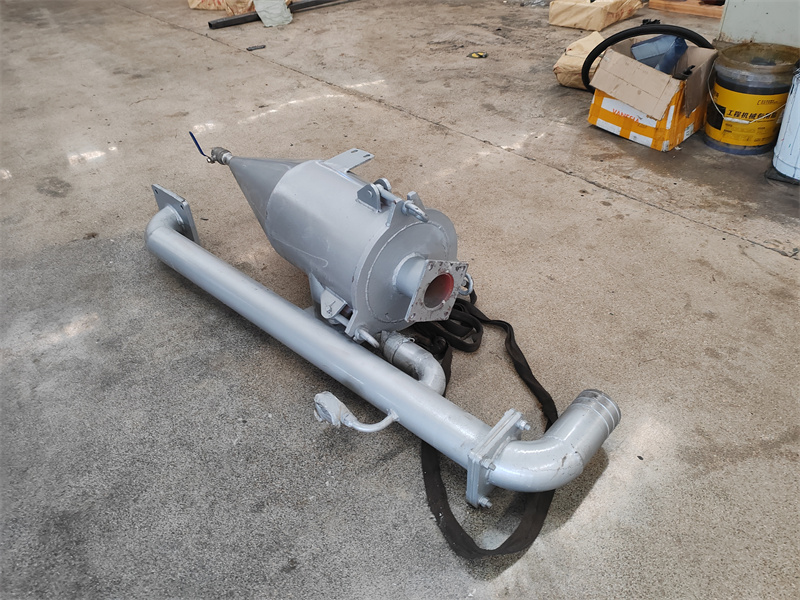

2. Filtration and Separation Devices
o Oil-gas separator: Protects the vacuum pump and prevents lubricating oil contamination and carryover.
o Oil-gas separator: Separates moisture from compressed air, protecting downstream components.
o Secondary filter: Oil-gas separator: Protects the vacuum pump and prevents lubricating oil contamination and carryover.
o Fully automatic overflow valve: Automatically opens when the tank reaches a predetermined vacuum level, preventing overload suction and protecting the tank and vacuum pump. This is a crucial safety feature.

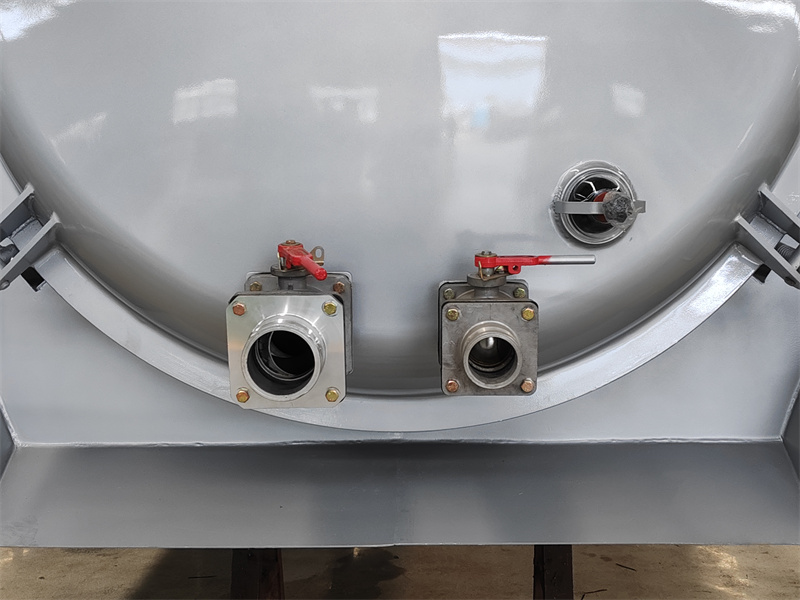

3. Suction and Discharge Performance
o Vertical suction port height: ≥7 meters, facilitating suction from lower locations.
o Full tank suction time: ≤5 minutes, increasing efficiency by 20%. o Sewage tank emptying time: ≤4 minutes, the full tank liquid is drained by gravity and pressure under normal pressure to reduce residue.

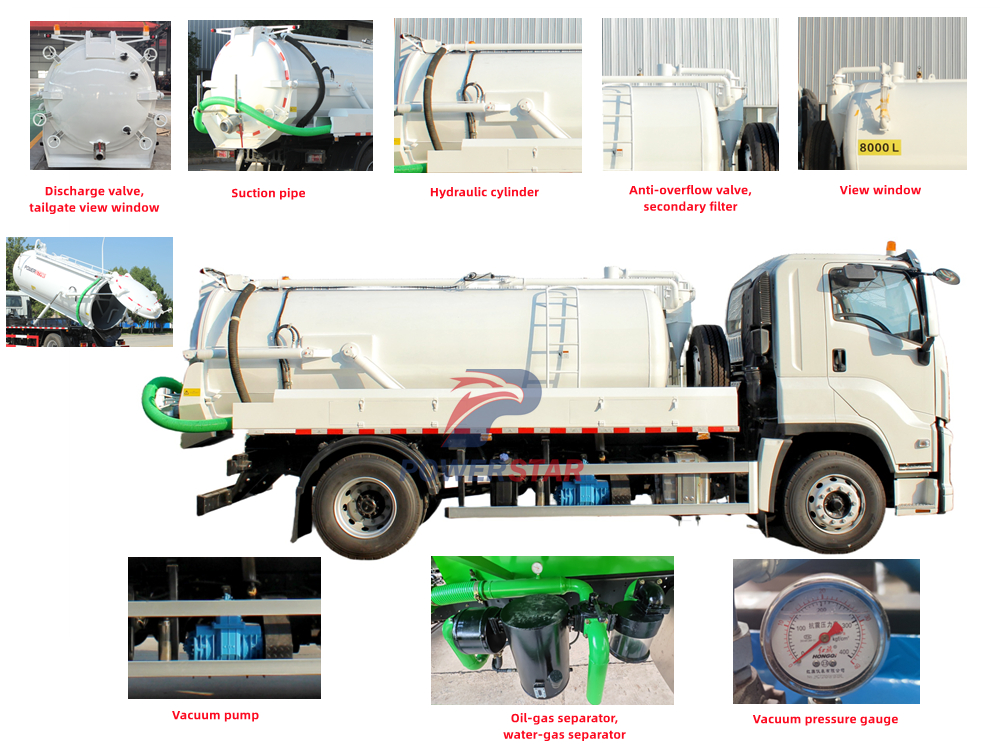

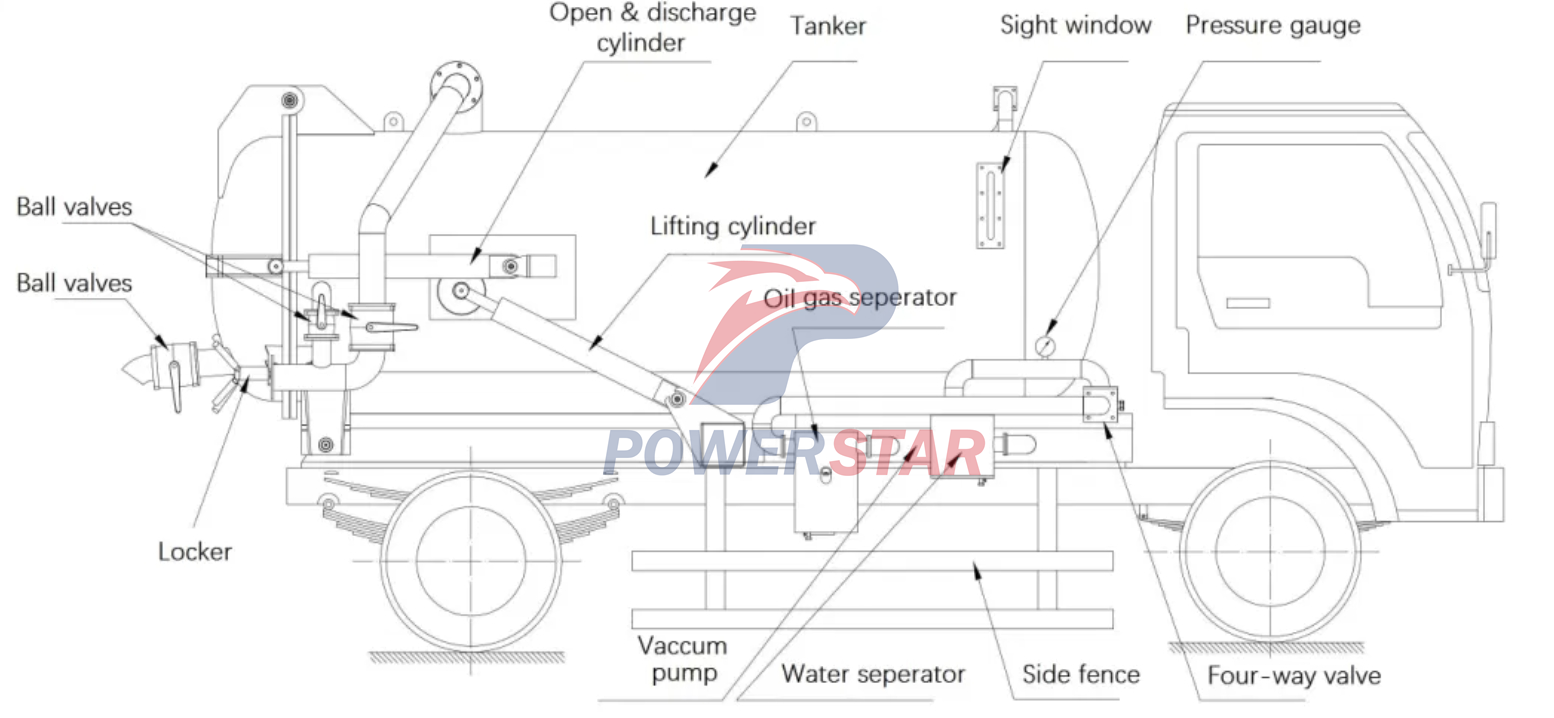

» Ⅳ. Product Structure Drawing:
