6,000L Sewage vacuum pump tanker truck super structure body kit

sewage tanker truck body kit Isuzu vacuum truck upper structure

Details

6,000L Vacuum pump tanker truck body kit / super structure



6,000L Vacuum pump tanker truck body kit / super structure

6,000L Vacuum pump tanker truck body kit / super structure

6,000L Vacuum pump tanker truck body kit / super structure

6,000L Vacuum pump tanker truck body kit / super structure

6,000L Vacuum pump tanker truck body kit / super structure

6,000L Vacuum pump tanker truck body kit / super structure

Vacuum Sewage suction tanker truck super structure (also called Vacuum pump truck body kit, Gully bowser upper structure, Sewage tanker kit, Vacuum cleaning truck upper body kits etc.This vacuum suction truck is mainly used to suck, transport, unload, and load sewage and sludge existing in the sewer lines and rainwater wells, and it can also be used to suck and transport wastewater, industrial waste oil, and sewage in large factories. Furthermore, sometimes it can even be used to dredge and clean small watercourses.


It is mainly composed of chassis, tank, hydraulic system, high-pressure system,and electrical system.



This Sewage suction tank truck body kits Suitable for ISUZU NKR/NPR series chassis(Option other brand chassis), it's the idea product for suction,transportation and dumping soil and mud from various sewer man-hole,water wells and sediment.It is necessary tool for city sanitation department,waste processing company,big factory……,it can help to clean the sewer pipe undergroud,clean the sludge in the river around city, it also can help big factory to clean the greasy dirt and waste water.More specification about the vacuum tank please kindly refer to following information .


NO.
Main  components
Detail Description
1
Chassis

ISUZU brand 4X2 NPR truck chassis,Engine is Euro 3 or 4 emission standard, There 2 pcs PTO to drive vacuum pump and all kinds of hydraulic equipment. Chassis Model will as per cusotmer's final confirm.

2
Vacuum tank

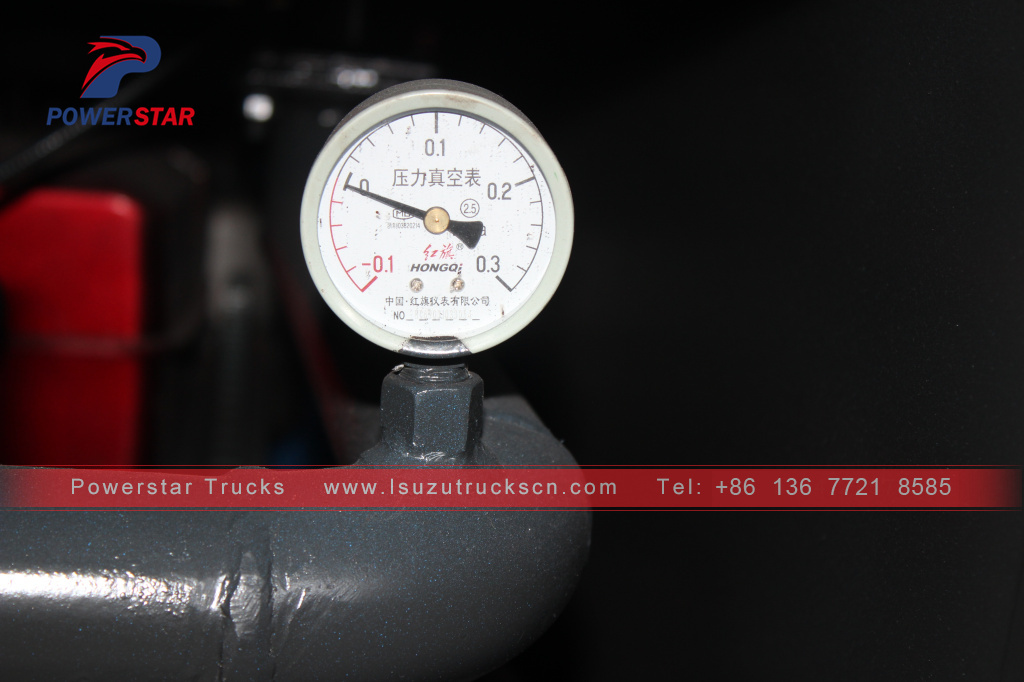

Tank Shape:Cylinder type ,Vacuum tank volume is 6000 liters,made by SS304L,6mm thickness shell. Design Pressure:-0.9 Bar.There some U shape strengthen rims outside the sludge tank body to offer stonger support to the tanker body. Hydraulic lift sylinder to lift up the tank body to outlet the sludge in 45 degree with safety support. Water level instrument locate in the rear of the tanker body.6" or 4" outlet valve in the rear to release the sludge.

3
Clean Water tank
without clean water tank
4
Rear Door

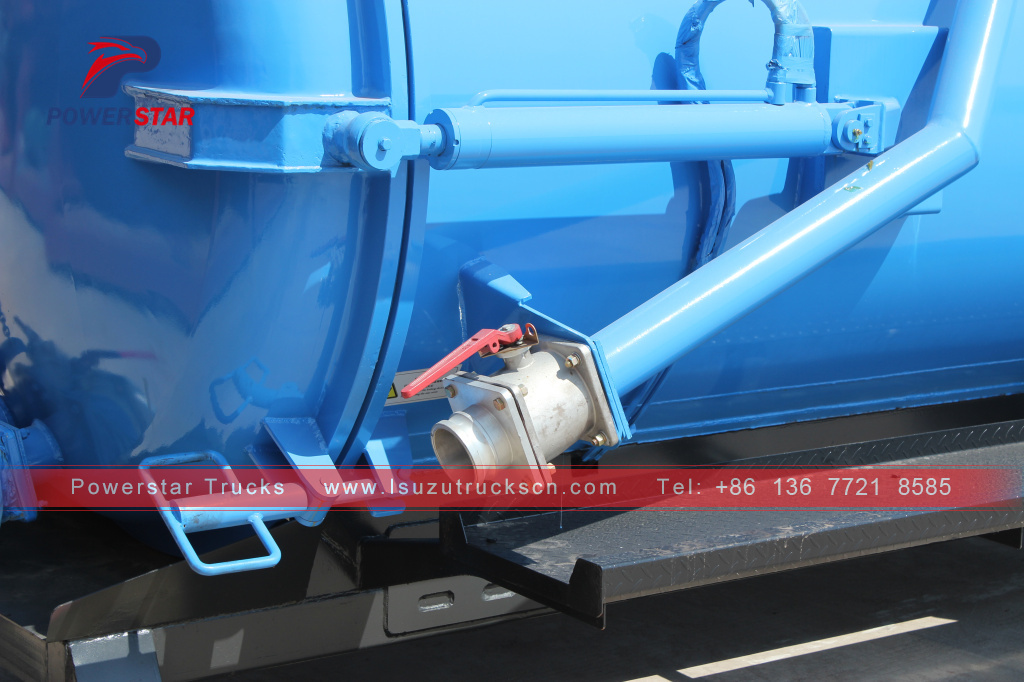

Controlled by Hydraulic,2 cylinders open the door,and 4 cylinders closed the door,6" suction pipe and 6" discharge valves.
5
Cooling water tank
1000L,located behind the Cab of the truck,use for cooling the vacuum pump.
6
Vacuum pump
ITALY JUROP,PN45D, Max pressure: 1.5 bar, Max speed: 1300 RPM,vacuum rate 98%,vacuum pump can be choose according to customer's requirement.
7
High Pressure pump
without high pressure pump
8
Others
Telescopic suction boom can be optional : Swivel in both the vertical and horizontal plane.300°horizontal rotation, 6m working radius and vertical lift up to 3m above ground.Dia 6" stailess and rubber suction hose.   Painting All stainless steel parts will painted by primer and finish paint,sand blasting before painting,coloer as per customer's choose. Operation instructions This instruction will guide customer how to operation this truck. Training Before delivery:we can offer one or two days operation of the truck training in our factory.
9
Remarks
Above information just for reference,we can adjust the specification according to customer's requirement.

Quality certificate
Vacuum Tanker Kit

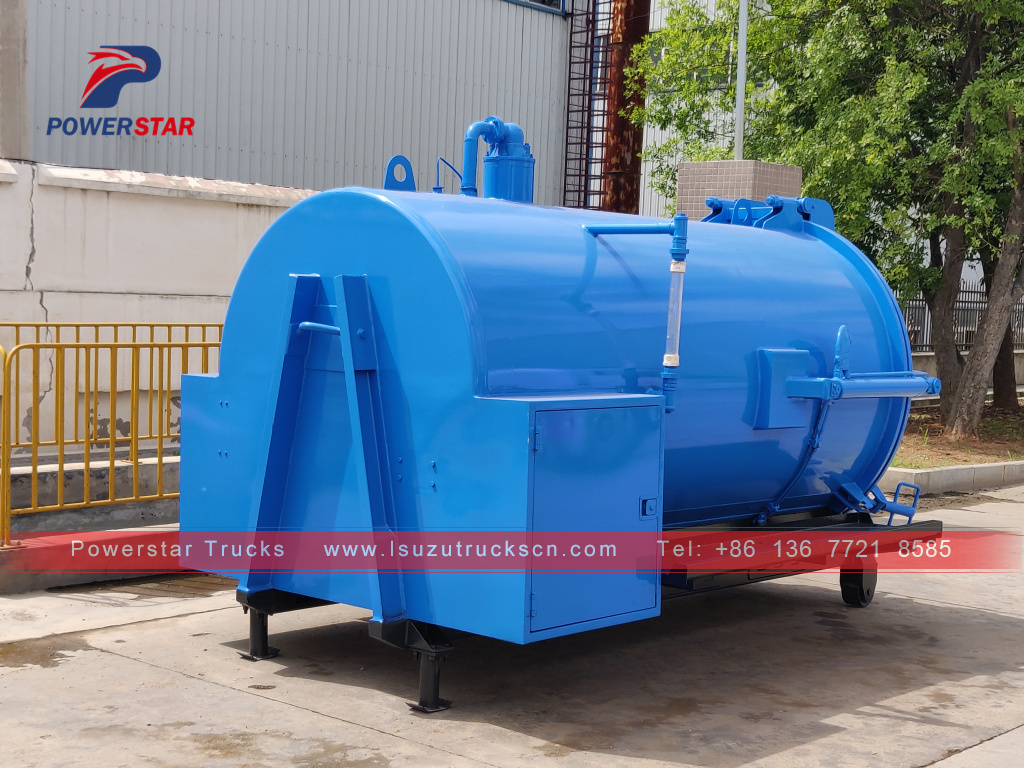

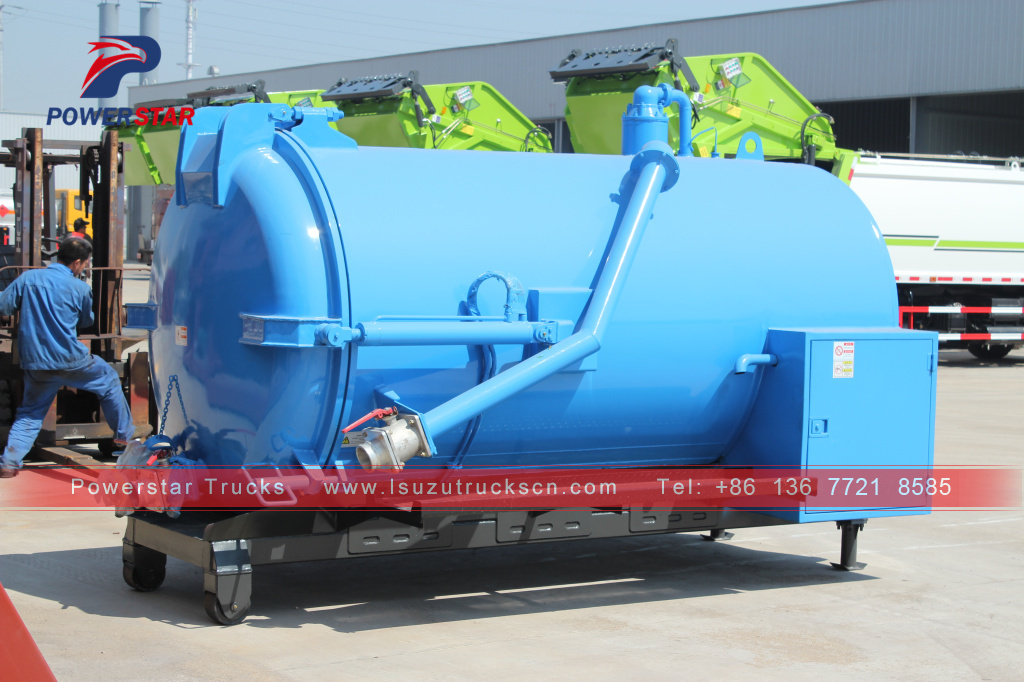

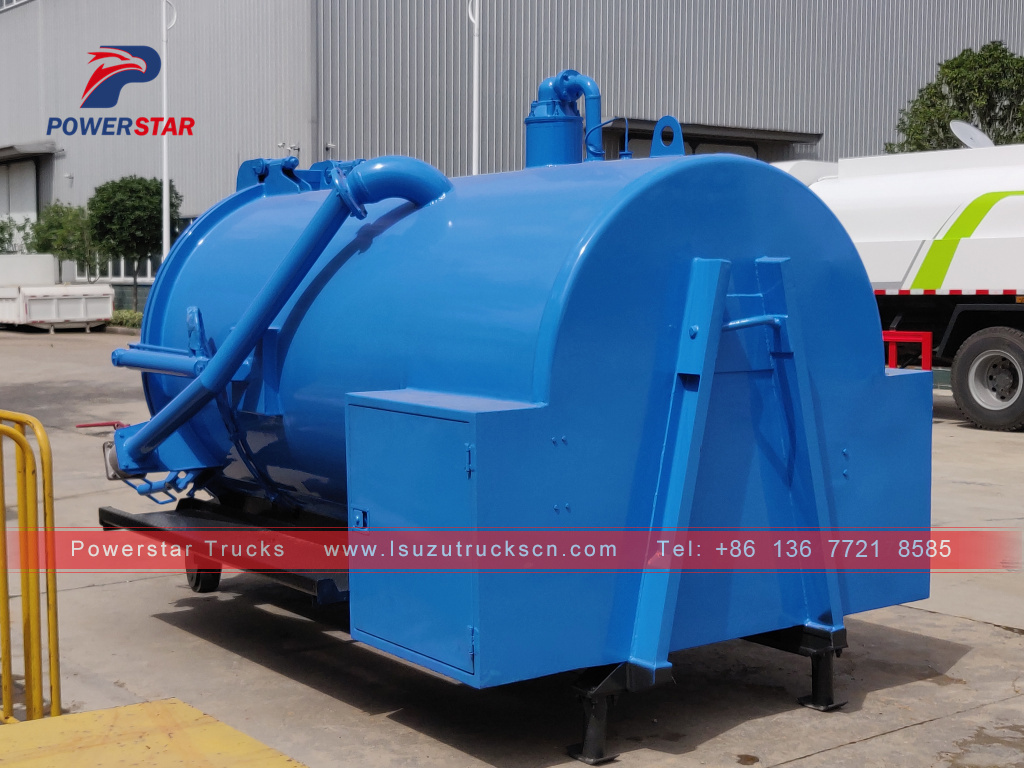

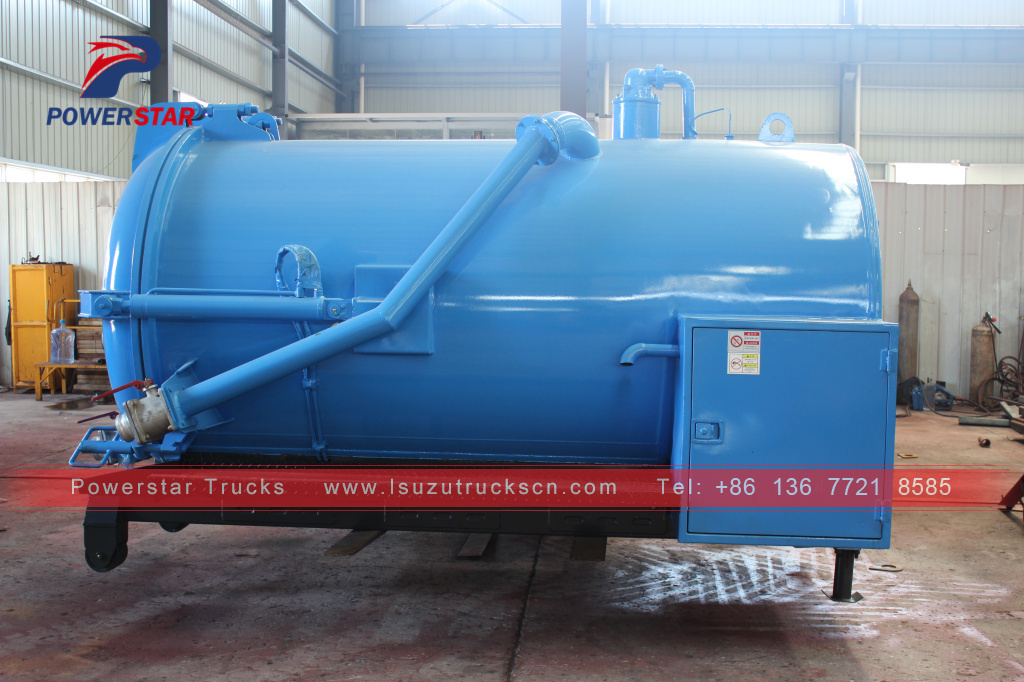

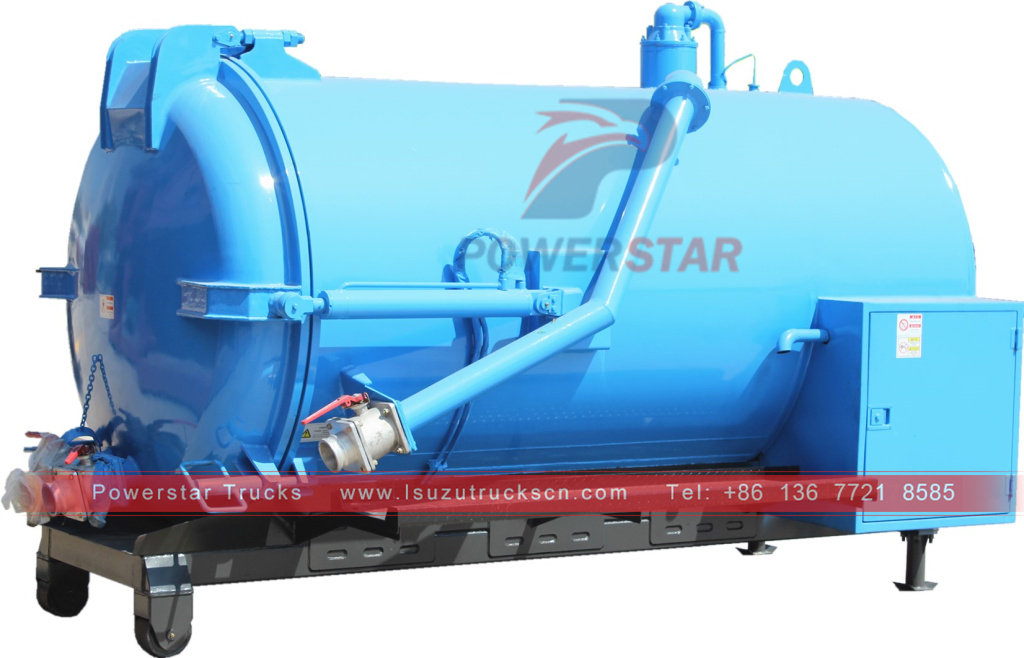

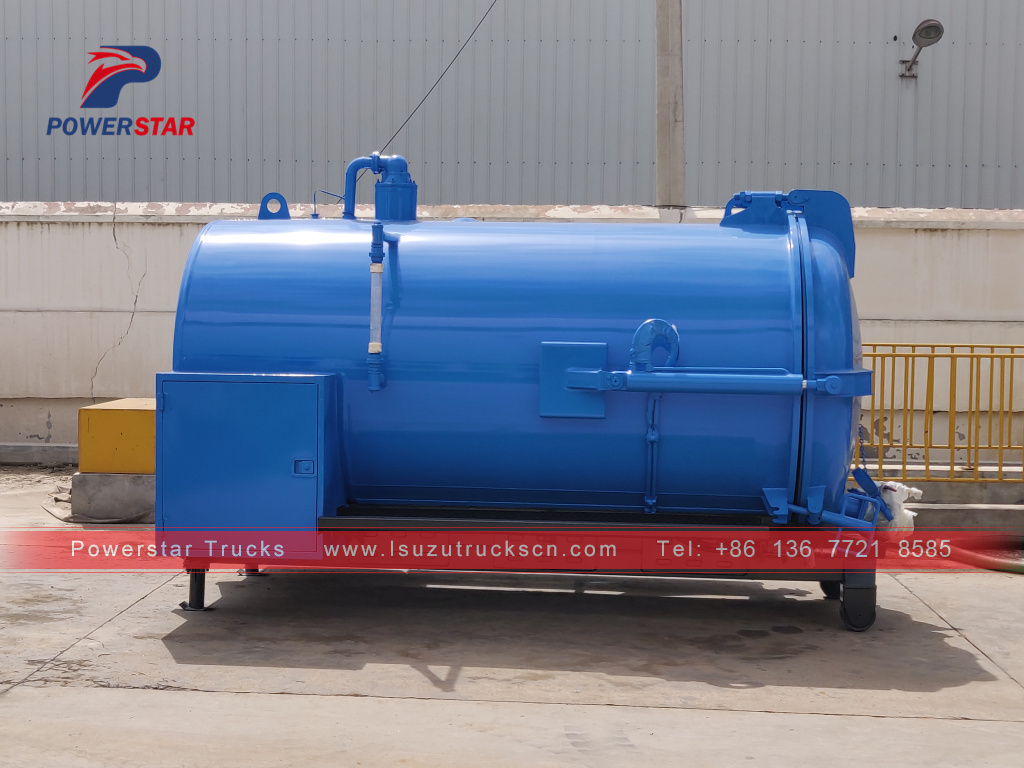

Vacuum Tanker Kits overview
 6,000L Sewage vacuum pump tanker truck super structure body kit    6,000L Sewage vacuum pump tanker truck super structure body kit
 6,000L Sewage vacuum pump tanker truck super structure body kit    6,000L Sewage vacuum pump tanker truck super structure body kit
 6,000L Sewage vacuum pump tanker truck super structure body kit    6,000L Sewage vacuum pump tanker truck super structure body kit



6,000L Sewage vacuum pump tanker truck super structure body kit

sewage tanker truck body kit Isuzu vacuum truck upper structure for sale

6,000L Sewage vacuum pump tanker truck super structure body kit
sewage tanker truck body kit Isuzu vacuum truck upper structure for sale
6,000L Sewage vacuum pump tanker truck super structure body kit
sewage tanker truck body kit Isuzu vacuum truck upper structure for sale
6,000L Sewage vacuum pump tanker truck super structure body kit
sewage tanker truck body kit Isuzu vacuum truck upper structure for sale
6,000L Sewage vacuum pump tanker truck super structure body kit
sewage tanker truck body kit Isuzu vacuum truck upper structure for sale

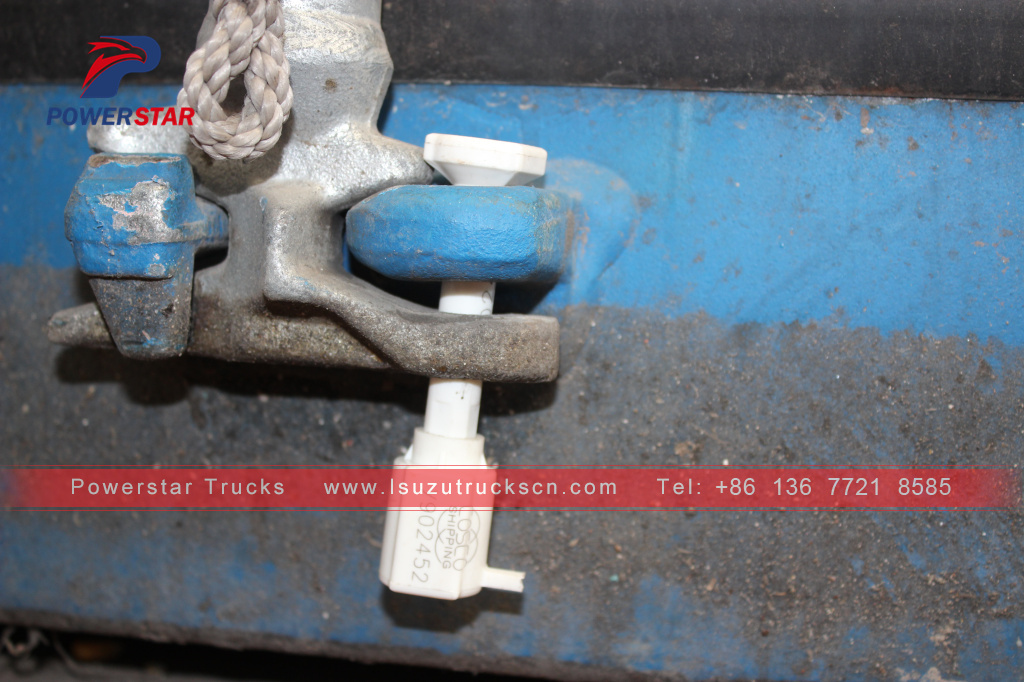

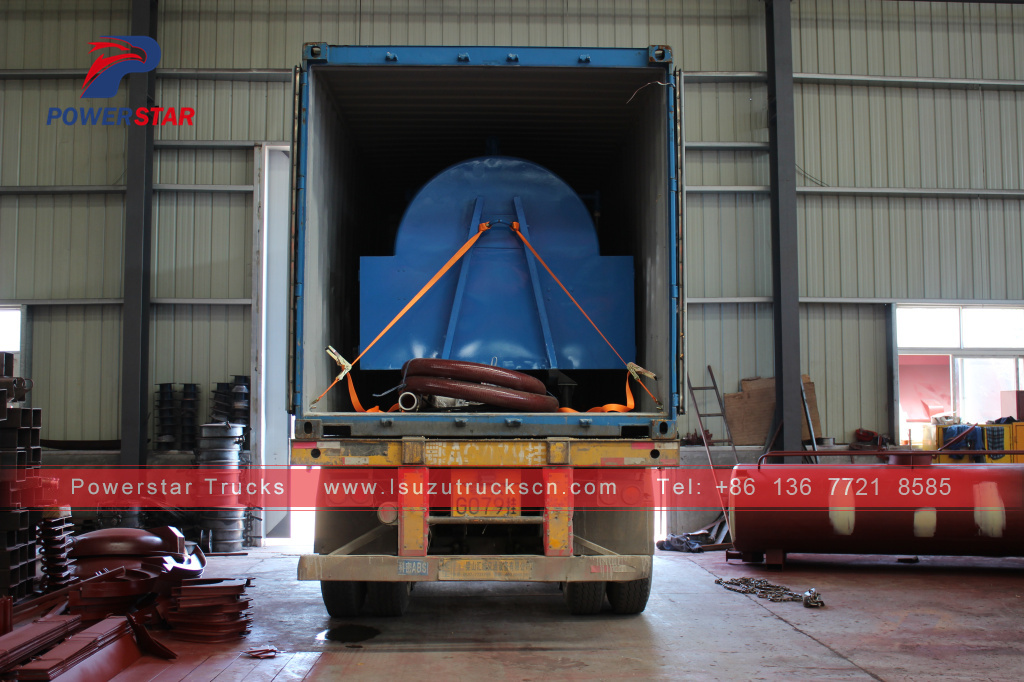

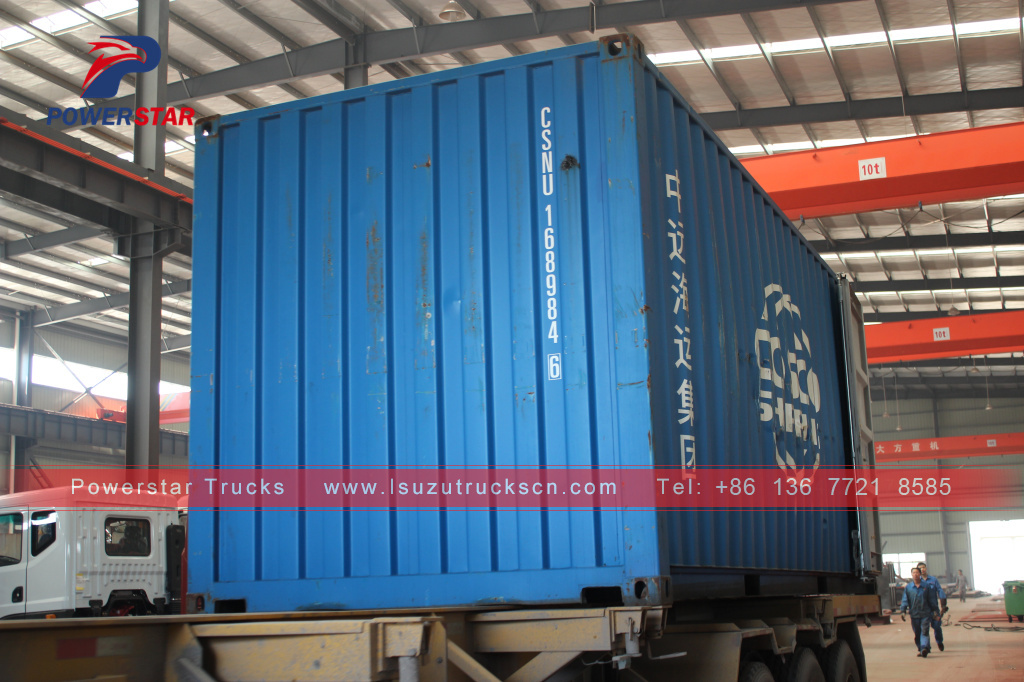

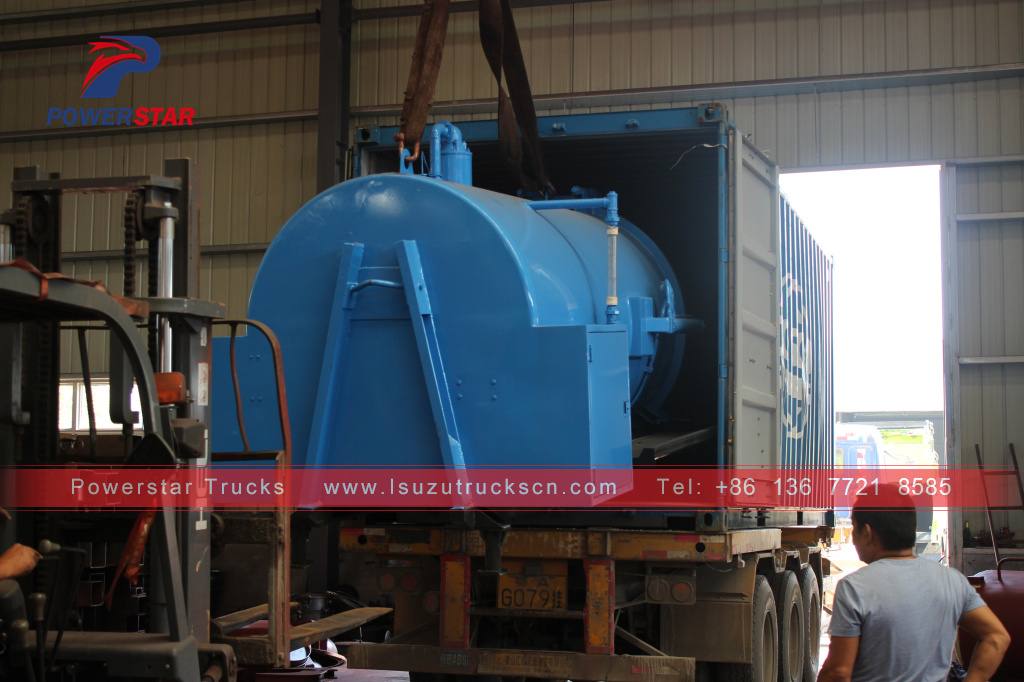

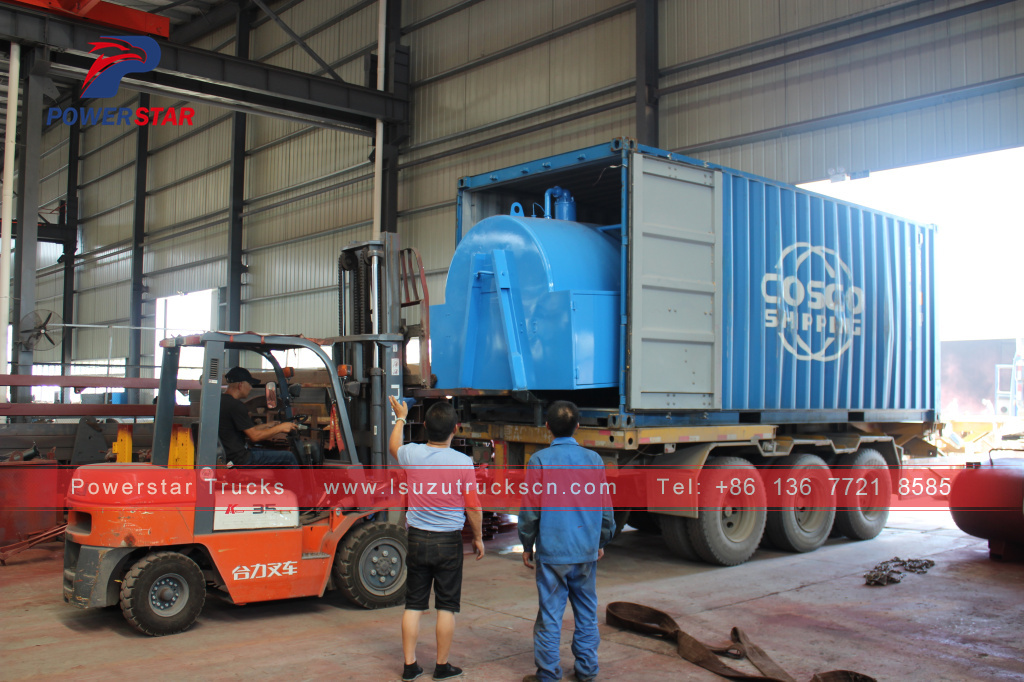

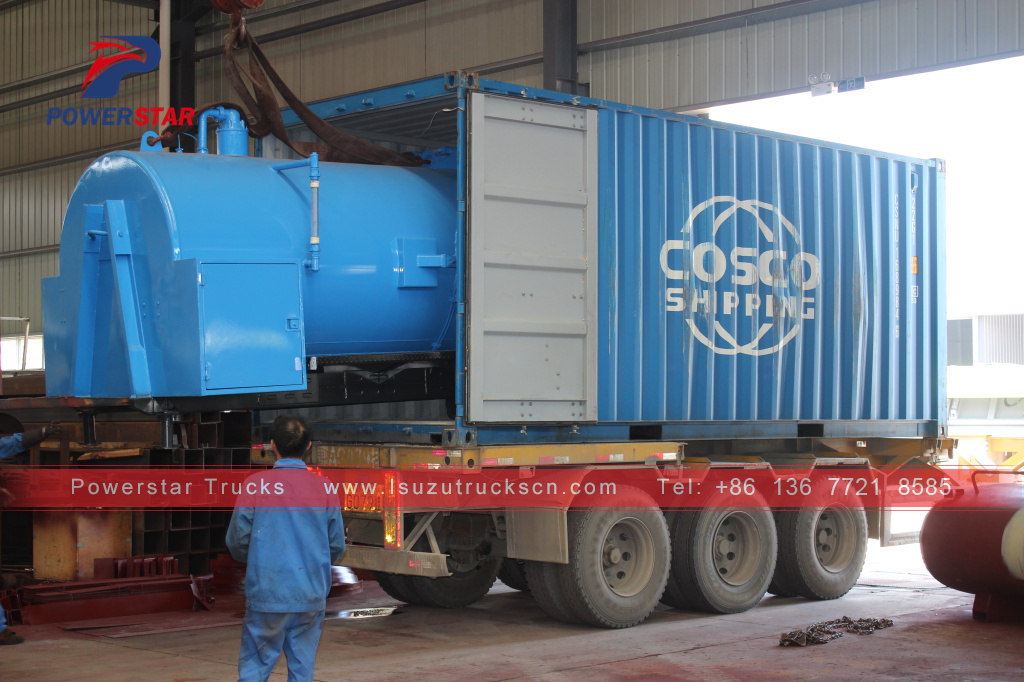

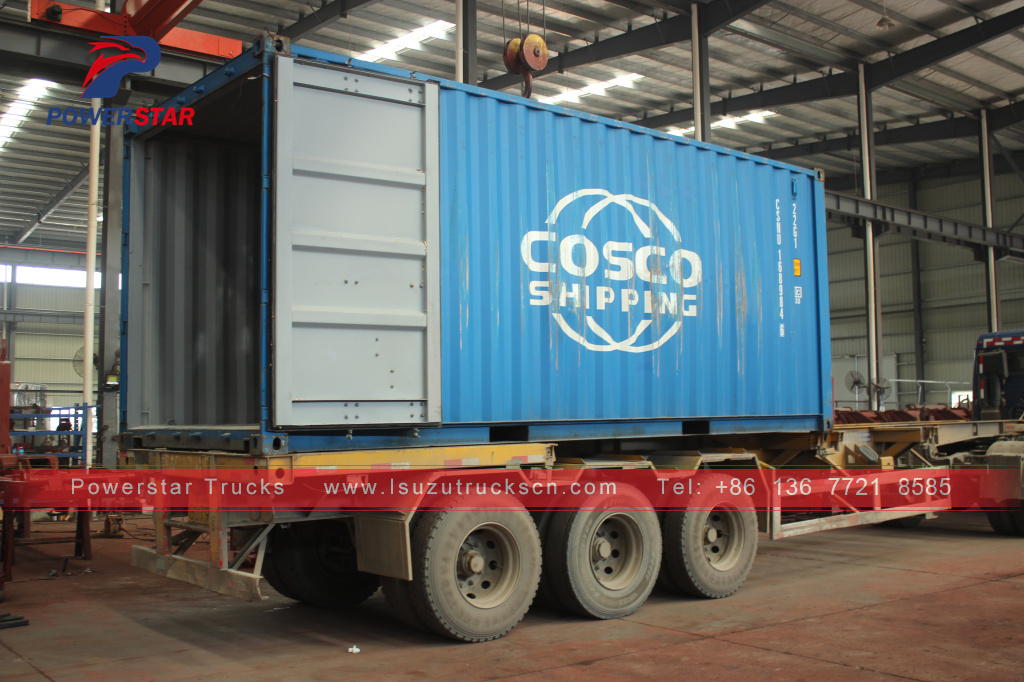

Vacuum Tank kit shipment by container, Ship to your worldwide:

6,000L Sewage vacuum pump tanker truck super structure body kit


sewage tanker truck body kit Isuzu vacuum truck upper structure for sale

6,000L Sewage vacuum pump tanker truck super structure body kit

sewage tanker truck body kit Isuzu vacuum truck upper structure for sale

6,000L Sewage vacuum pump tanker truck super structure body kit

sewage tanker truck body kit Isuzu vacuum truck upper structure for sale
6,000L Sewage vacuum pump tanker truck super structure body kit
sewage tanker truck body kit Isuzu vacuum truck upper structure for sale6,000L Sewage vacuum pump tanker truck super structure body kit
