Product Detail

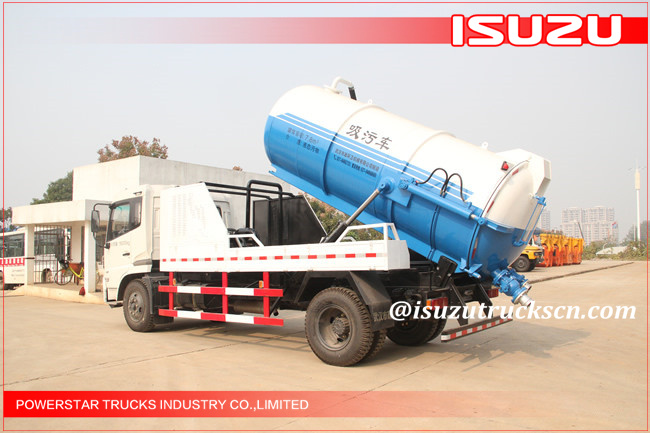

14,000Liter Uganda FVR FVZ Isuzu Truck Mounted Vacuum Suction Truck
Details
14,000Liter Uganda Isuzu Truck Mounted Vacuum Suction Truck
Isuzu vacuum suction truck is mainly used to suck, transport, unload, and load sewage and sludge existing in the sewer lines and rainwater wells, and it can also be used to suck and transport wastewater, industrial waste oil, and sewage in large factories. Furthermore, sometimes it can even be used to dredge and clean small watercourses.
Key Features:
◆ Isuzu chassis, Durable and comfortable
◆ Tanker size: 3000 L up to 20,000 Liters
◆ English control panel is simple and easy to use
◆ Carbon Steel, Stainless Steel, and Aluminum Tanks Available
◆ Customer Preference Vacuum Pumps Available
Main specifications:
|
PT5100JGK |
||
|
Driving Type |
4x2 (Left hand drive) |
|
|
Wheelbase |
5000 mm |
|
|
Engine |
177 kw (240hp) |
|
|
Vacuum Tank |
Tank shape |
Cylinder |
|
Material |
Carbon Steel |
|
|
Dirty water tank |
12,000~14,000 Liters |
|
|
Thickness |
5 mm |
|
|
Dish thickness |
5 mm |
|
|
Designed pressure |
-0.9 bar |
|
|
Strengthen ring |
Cool bended U shape, add the strengthen ring on the tank our circle |
|
|
Over Pressure device |
Fixed on the top of the tank |
|
|
Vacuum valve |
For keeping the tank's inside vacuum |
|
|
|
|
|
|
Safety support |
fix with safety valve during working |
|
|
Rear Cover |
Operation |
Opened by hydraulic |
|
Lock device |
Manual locking device |
|
|
Seal |
Rigidity and manual synthetic rubber seal rings |
|
|
Water discharge valve |
one way 100mm ball valve |
|
|
Vacuum Pump |
Model |
As option |
|
Working pressure |
700 Pa |
|
|
Flow rate |
68 L/s |
|
|
Color |
As option |
|
Customers build examples:
