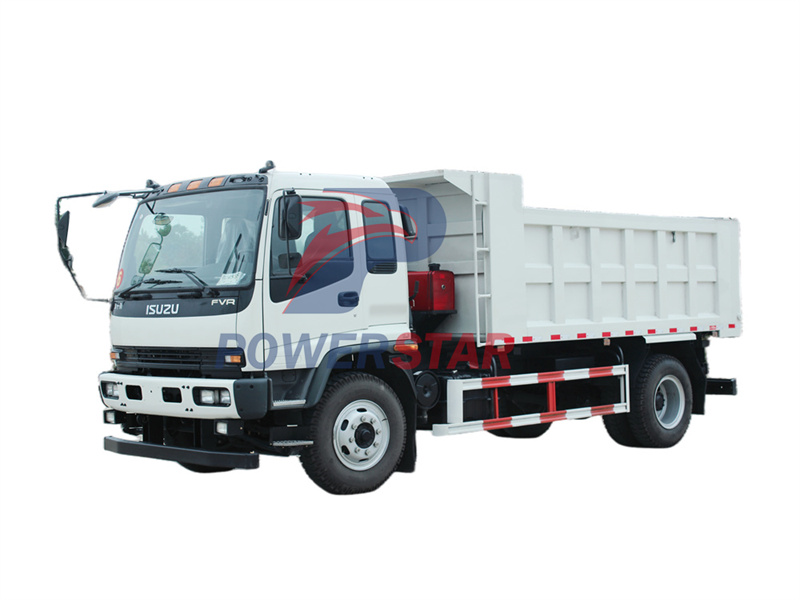

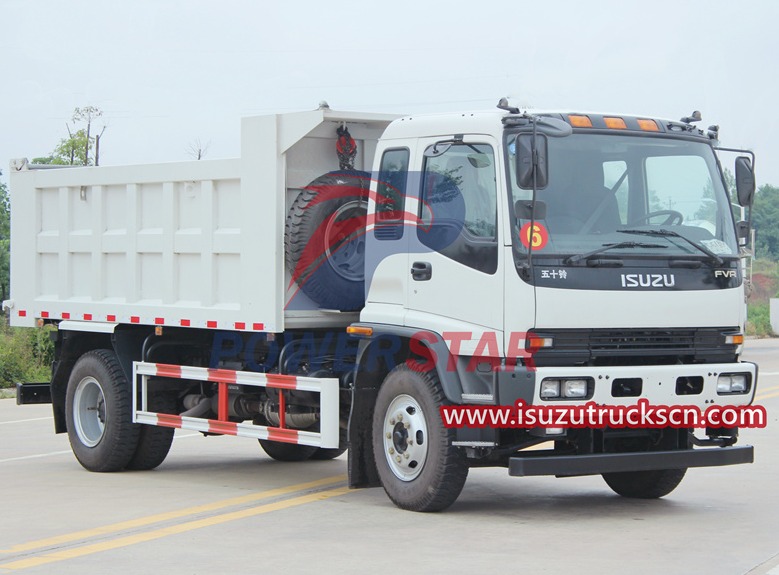

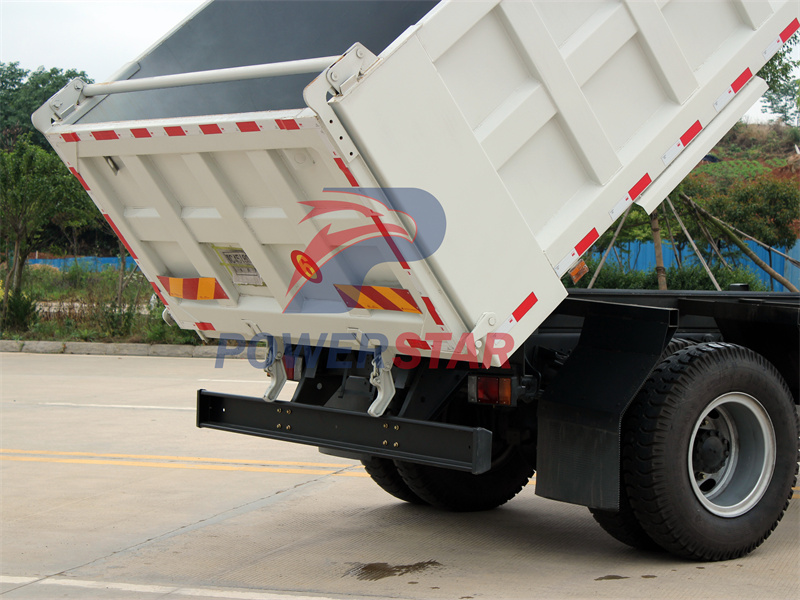

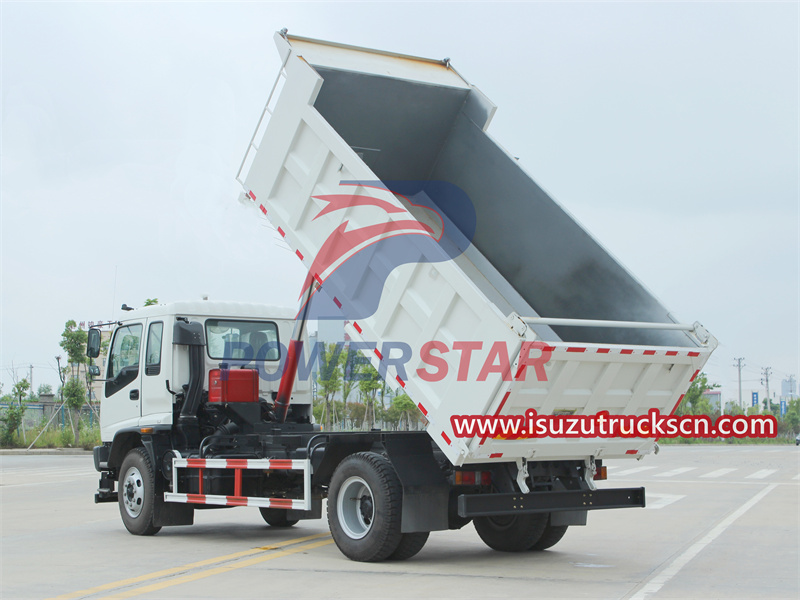

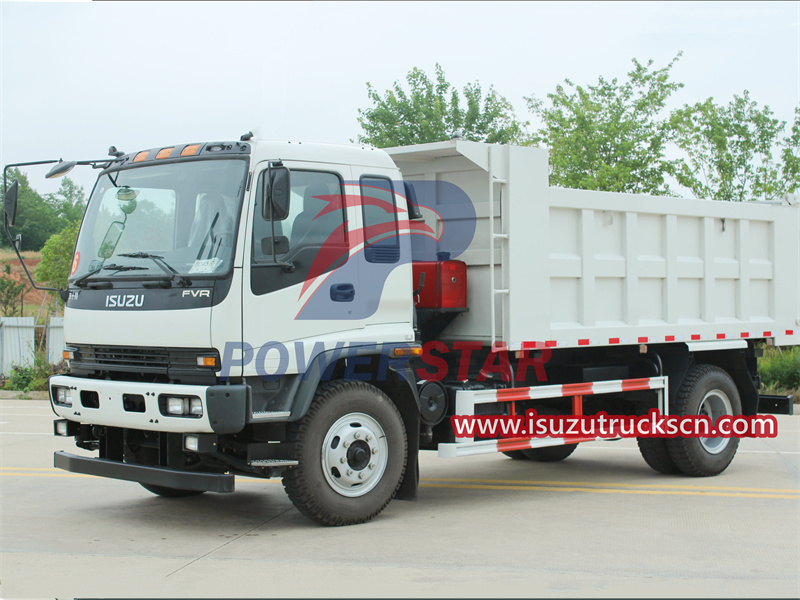

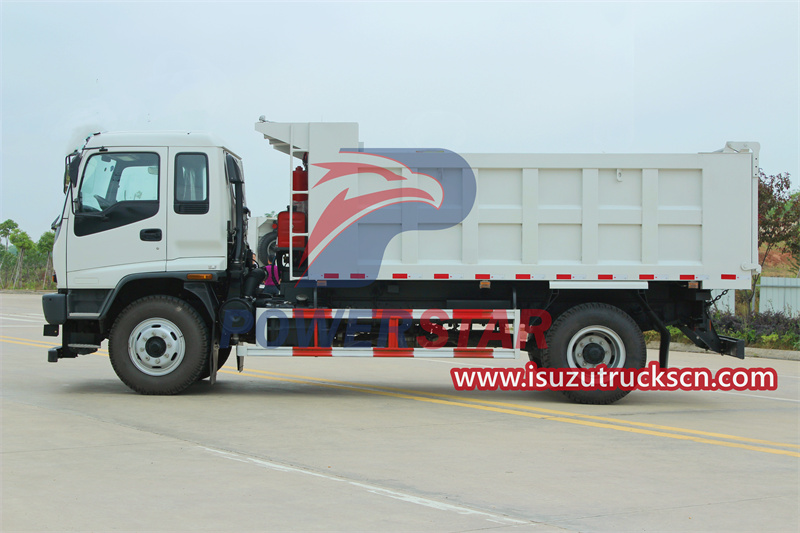

The Isuzu FVR dump truck is a high-performance and reliable truck designed for waste handling and removal. The vehicle is equipped with a spacious cab that includes two seats and a bed to provide driver comfort during long-distance operations. The maximum speed is 105 km/h and the maximum gradeability is 30%, ensuring efficient and flexible performance. Powered by the 6HK1-TCG61 engine, a vertical, water-cooled, six-stroke, turbocharged and intercooled engine rated up to 240 horsepower. With a loading capacity of 15 tons, it is suitable for heavy-duty waste disposal tasks. The vehicle's body is made of high-performance carbon material and is 6 mm thick at the front/sides and 8 mm thick at the rear/sides. The dump system adopts hydraulic control, front lifting device, and automatic release side plates to facilitate garbage cleaning.
Work capacity:
15tonsTruck model:
PST4068YWQEngine power:
240Engine type:
6HK1-TCG61Axle drive:
4x2Gear box:
Isuzu MLD 6 speedRemarks:
Garbage dump bodyThe Isuzu FVR dump truck is a high-quality commercial vehicle designed for heavy-duty cargo duties such as cargo transportation and construction sites. This car is equipped with a powerful and reliable diesel engine, which not only has excellent power and torque output, but also uses advanced fuel injection system and turbocharging technology to improve fuel efficiency and power performance. In addition, its load capacity is excellent and can easily cope with various cargo transportation needs, up to 8-16tons depending on configuration and needs. The vehicle is also equipped with a convenient and fast dump function, with built-in high-quality hydraulic system and reliable dump mechanism, making unloading more efficient and safer. The cab is spacious and comfortable, providing a good driving environment. At the same time, the vehicle is also equipped with advanced safety systems, such as ABS, TCS and ESC, to provide higher safety performance. Maintenance and maintenance are also very convenient, using durable materials to manufacture various parts and components, while providing comprehensive after-sales service and repair support.
Specific data：
|
Description |
Isuzu FVR Garbage Dump Truck |
|
|
Item |
Powerstar garbage dump truck |
|
|
Model |
Isuzu FVR |
|
|
Cabin |
Two seats and one bed |
|
|
whole vehicle main
|
Overall dimensions (L*W*H)mm |
8600*2560*3250 mm |
|
Dimensions of dump body (L*W*H)mm |
5000*2500*1500 mm |
|
|
Driving type |
Left hand drive 4×2 |
|
|
Wheel base |
4500 |
|
|
Weight data |
Gross weight (kg) |
18,000 |
|
Kerb weight(kg) |
9,000 |
|
|
Person in cab (persons) |
2 |
|
|
whole vehicle main |
Max.speed(km/h) |
105 |
|
Max.slope of climb(%) |
25 |
|
|
Min.turning radius (m) |
7.5 |
|
|
Engine |
Engine model |
6HK1-TCG61 |
|
Engine type |
Vertical, water-cooled, six-stroke, |
|
|
Emission standard |
Euro 5,6 |
|
|
Displacement (L) |
7.79L |
|
|
Rated power (KW) |
240 hp |
|
|
Steering gear type |
Power steering |
|
|
Brake system |
Service brake and boosting type |
Air brake |
|
Parking brake |
Central drum brake |
|
|
Auxiliary brake |
Air brake |
|
|
Tyre size |
295/80R22.5 16PR |
|
|
Electric system |
Rated voltage |
24V |
|
Battery |
100Ah |
|
|

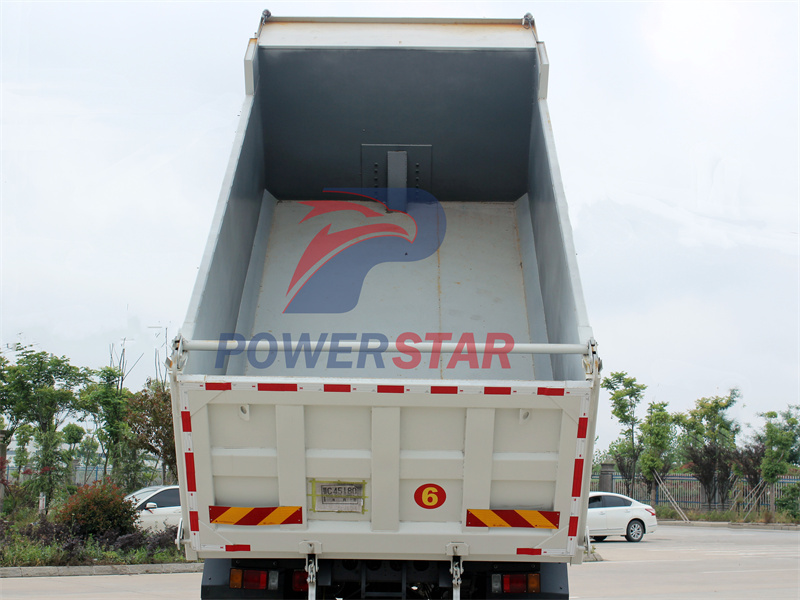

Dump Performance |
Loading Capacity |
15 tons |
|
Body Material |
High performance carbon |
|
|
Plate Thickness |
Front/Side are 6mm |
|
|
Rear/Side are 8mm |
||
|

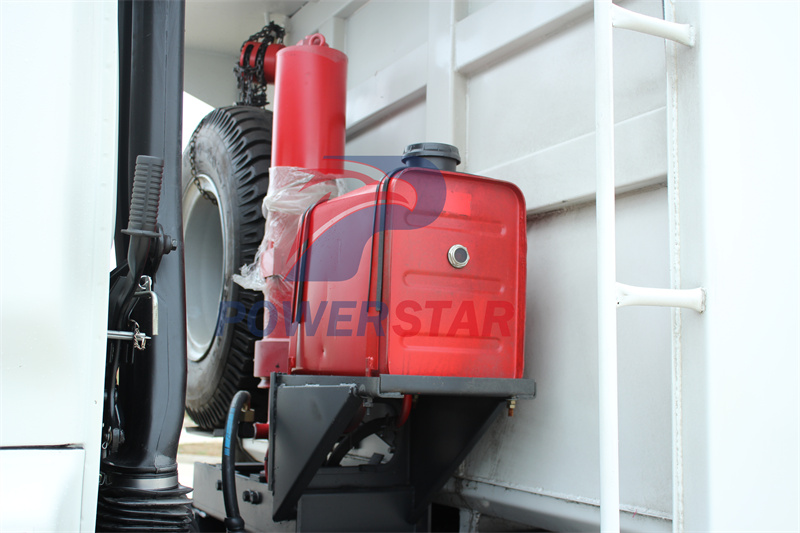

Control System |
Hydraulic |
|
|

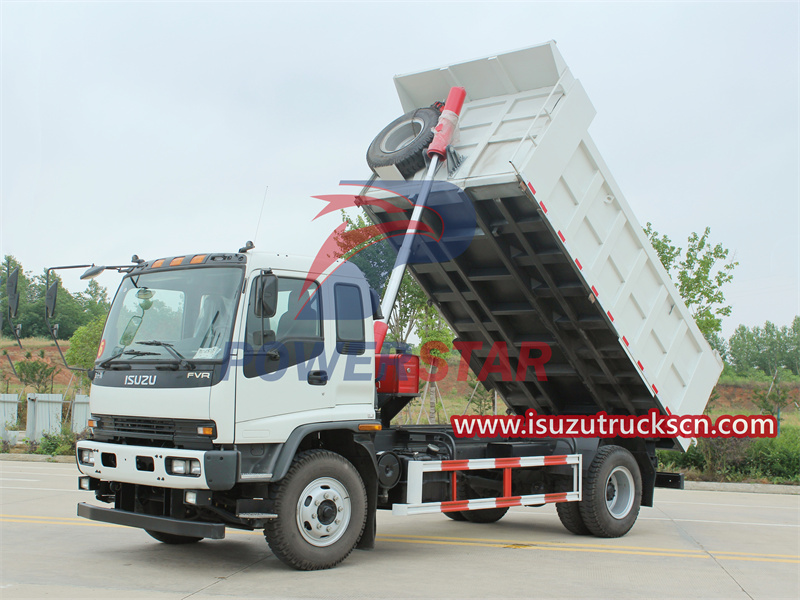

Discharging System |

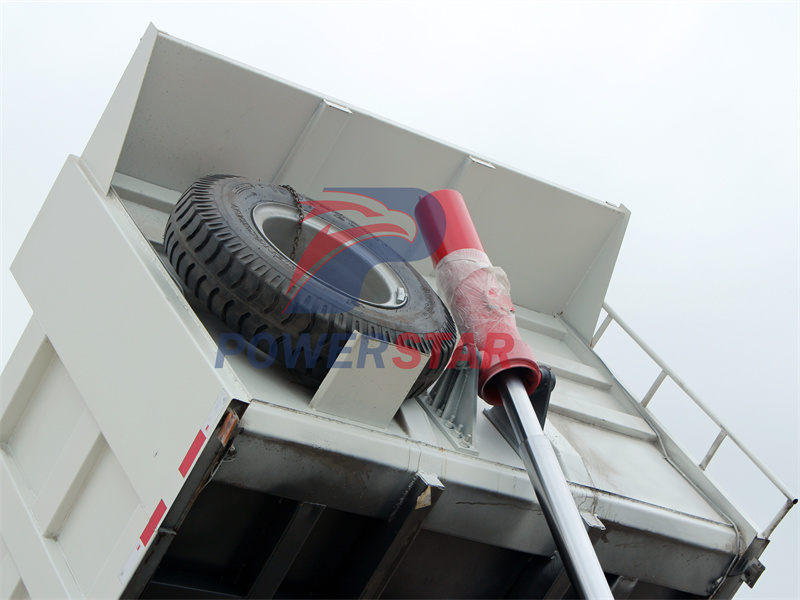

Front lifting device |
|
|
Lifting Time |
Tipping 45 degree |
|
|
Lowering Time |
35 s |
|
|
Tailgate |
25 s |
|
|
Drop side |
Auto release |
|
|
Painting |
Detachable |
|
|
Color & Logo |
Two primers,and one final paint coating |
|
|
Loading Capacity |
According to wish |
|
|
Factory Standard |
Heightened dump body Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
|
Advantages of Isuzu FVR as a dump truck chassis:
1. Strong load-bearing capacity: The Isuzu FVR chassis adopts a solid body structure and high-quality materials, has a high load-bearing capacity, can withstand heavier cargo loads, and can meet the needs of large dump trucks.
2. Stable driving performance: Isuzu FVR chassis has stable driving performance and is equipped with advanced suspension system and braking system, which can provide good handling and braking performance and ensure the stability and safety of the vehicle during transportation. .
3. Efficient loading and unloading capacity: The Isuzu FVR chassis dump truck loading and unloading system adopts an advanced hydraulic system, which can achieve fast and efficient loading and unloading operations, improve work efficiency, reduce loading and unloading time, and improve transportation efficiency.
4. Reliable quality and durability: Isuzu products have reliable quality and long service life. The Isuzu FVR chassis is sturdy and durable and can adapt to various harsh working environments, ensuring that the vehicle can still work normally during long-term transportation.
5. Low fuel consumption and maintenance costs: Isuzu FVR chassis adopts advanced power system and energy-saving technology, which has low fuel consumption. At the same time, Isuzu has extensive after-sales service outlets and complete repair services, which can provide timely repair and maintenance support and reduce maintenance costs.
