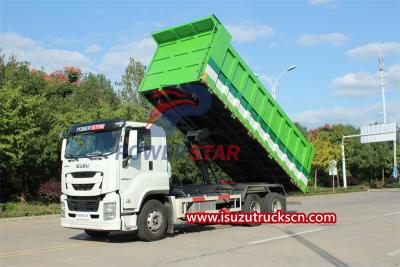

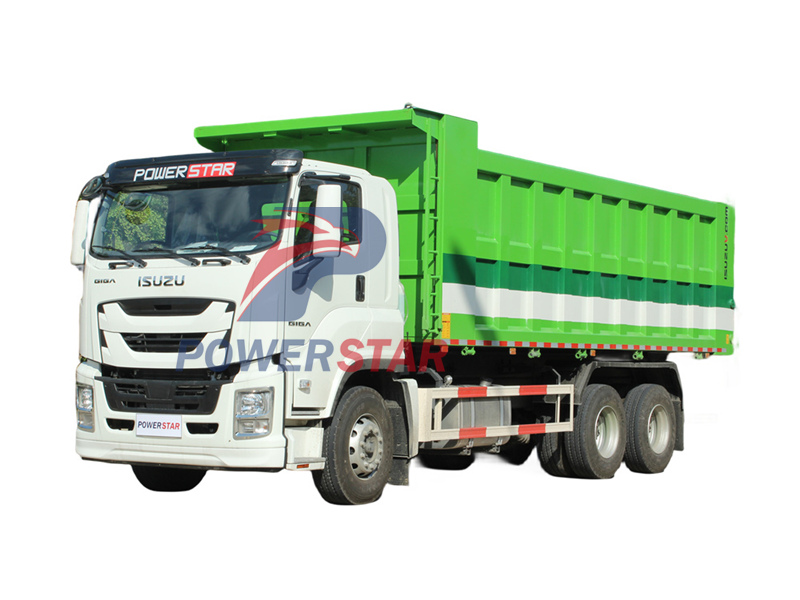

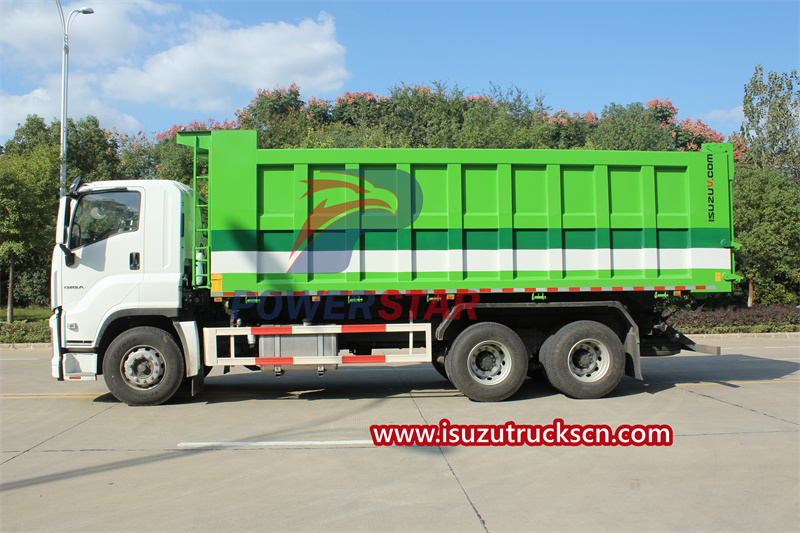

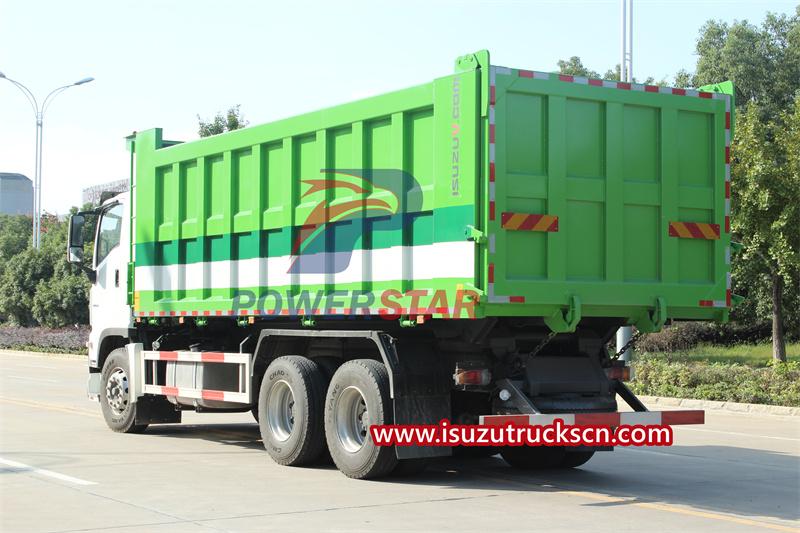

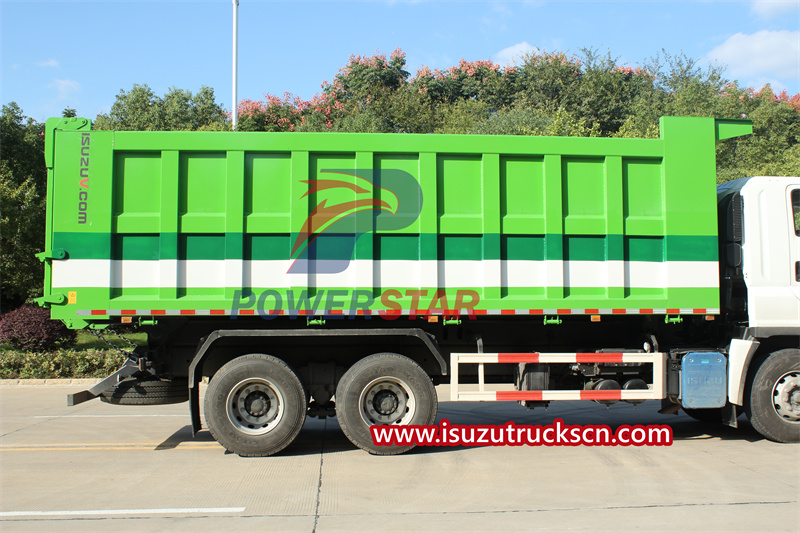

Isuzu GIGA dump truck has a high horsepower output of 420hp. It is made of high-strength materials and has good impact resistance and durability. It can not only adapt to complex road environments, but also withstand the pressure of heavy loads and long hours of work. At the same time, it is also equipped with advanced suspension and braking systems to provide good travel and driving stability and ensure safe and reliable operation.Isuzu GIGA large-scale sanitation dump truck is an indispensable and important tool in urban sanitation work. Its powerful cargo carrying capacity and self-unloading function make the cleaning work more efficient and faster, and improve the overall hygiene level of the urban environment.
Work capacity:
25tonsTruck model:
PST5340ZXEngine power:
420HPEngine type:
6WG1-TCG52Axle drive:
6x4Gear box:
ZF 8 speed levers with 1 reverseRemarks:

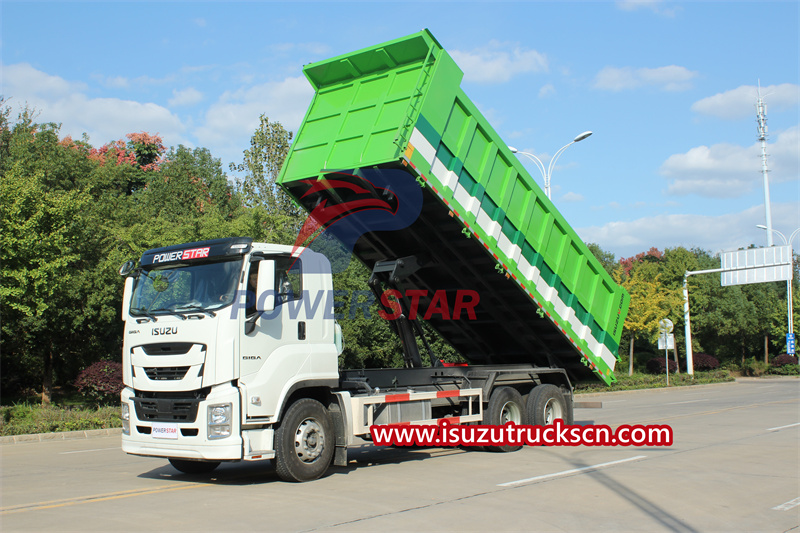

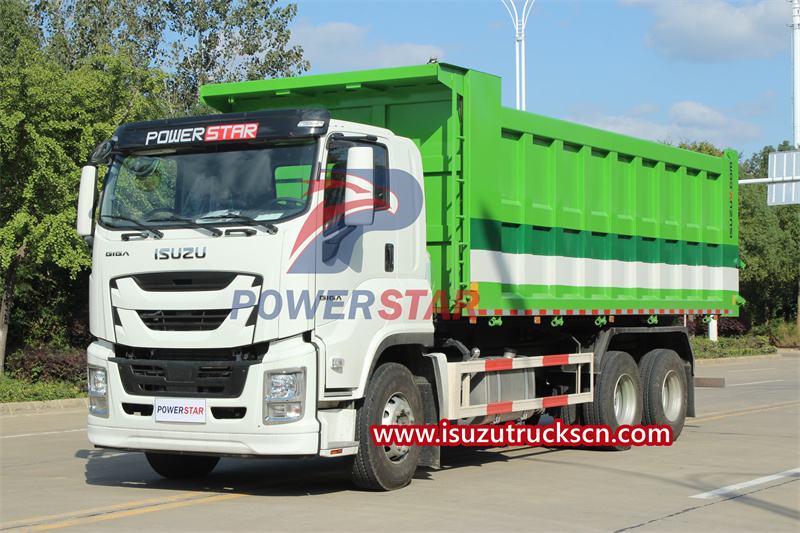

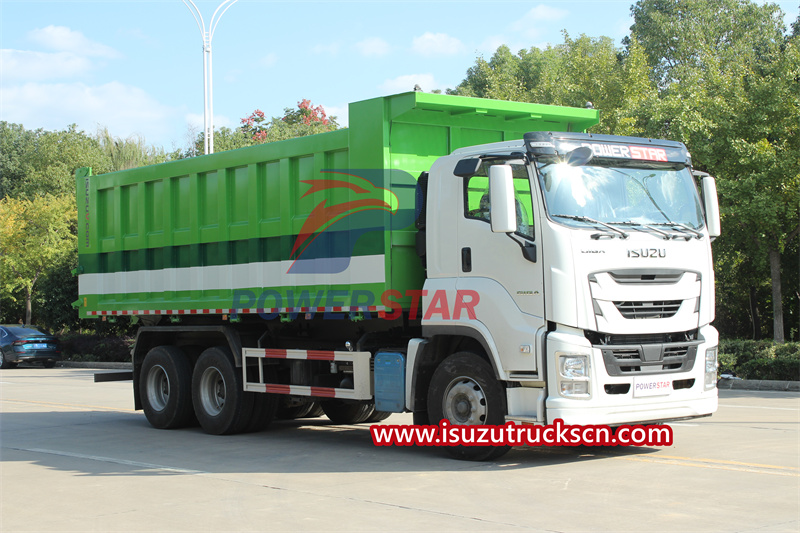

garbage dumperIsuzu GIGA garbage dump truck is a heavy-duty vehicle specially used for urban sanitation work. The vehicle has a large body, powerful cargo capacity and self-unloading function. It usually consists of a sturdy frame, a spacious cargo box and a powerful engine to cope with various complex environments and working conditions. Isuzu GIGA garbage dump trucks are mainly used to remove and transport various types of urban waste, including garbage, construction waste, road cleaning waste, etc. The cargo box has a large capacity and can load a large amount of garbage at one time, effectively improving work efficiency.
Specific parameters：
|
Description |
Isuzu Giga Garbage Dump Truck |
|
|
Item |
Powerstar dump truck |
|
|
Model |
Isuzu GIGA |
|
|
Cabin |
Two seats and one bed |
|
|
whole vehicle main
|
Overall dimensions (L*W*H)mm |
9400*2680*3650 mm |
|

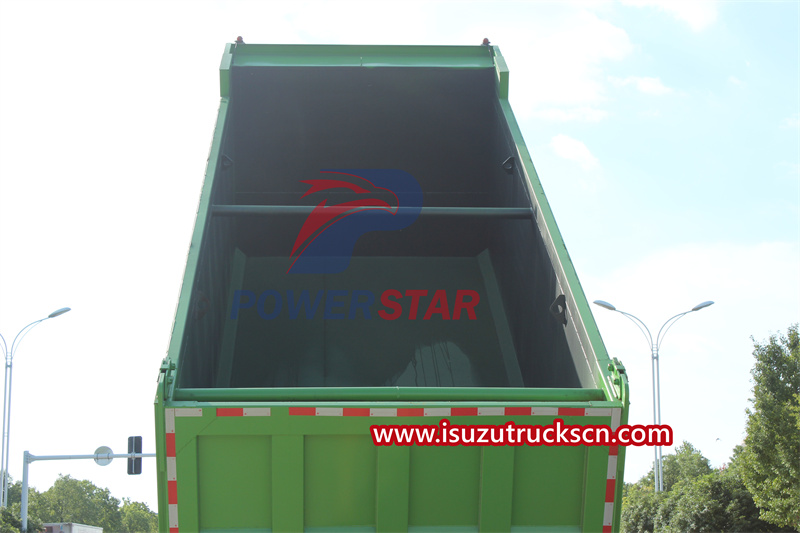

Dimensions of dump body (L*W*H)mm |
6000*2400*1500 mm |
|
|
Driving type |
Left hand drive 6×4 |
|
|
Wheel base |
4565+1370 |
|
|
Weight data |
Gross weight (kg) |
34,000 |
|
Kerb weight(kg) |
15,440 |
|
|
Person in cab (persons) |
3 |
|
|
whole vehicle main |
Max.speed(km/h) |
95 |
|
Max.slope of climb(%) |
25 |
|
|
Min.turning radius (m) |
7.5 |
|
|
Engine |
Engine model |
6WG1-TCG52 |
|
Engine type |
Vertical, water-cooled, six-stroke, |
|
|
Emission standard |
Euro 5,6 |
|
|
Displacement (L) |
15.681L |
|
|
Rated power (KW) |
420 hp |
|
|
Max torque (N.m/rpm) |
2060N.M |
|
|
Steering gear type |
Power steering |
|
|
Brake system |
Service brake and boosting type |
Air brake |
|
Parking brake |
Central drum brake |
|
|
Auxiliary brake |
Air brake |
|
|
Tyre size |
315/80R22.5 |
|
|
Electric system |
Rated voltage |
24V |
|
Battery |
100Ah |
|
|
Dump Performance |
Loading Capacity |
25 tons |
|
Body Material |
High performance carbon |
|
|
Plate Thickness |
Front/Side are 6mm |
|
|
Rear/Side are 8mm |
||
|
Control System |
Hydraulic |
|
|
Discharging System |

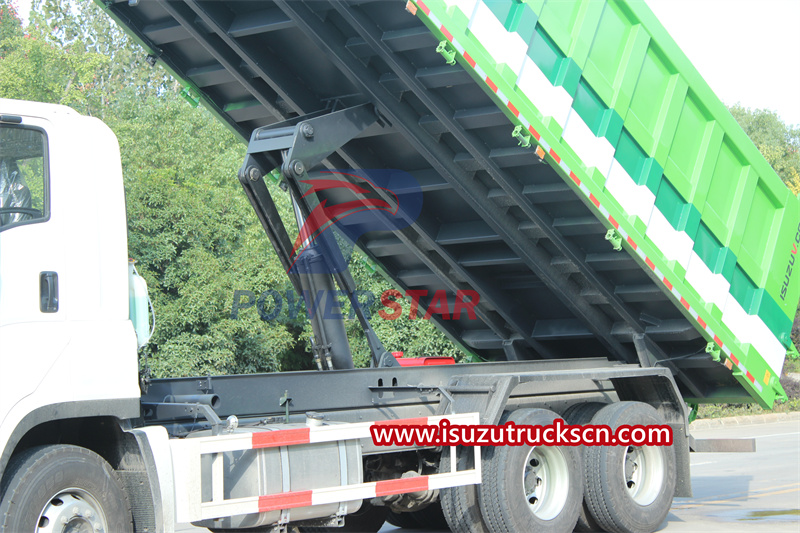

Middle lifting device |
|
|
Lifting Time |
Tipping 45 degree |
|
|
Lowering Time |
35 s |
|
|

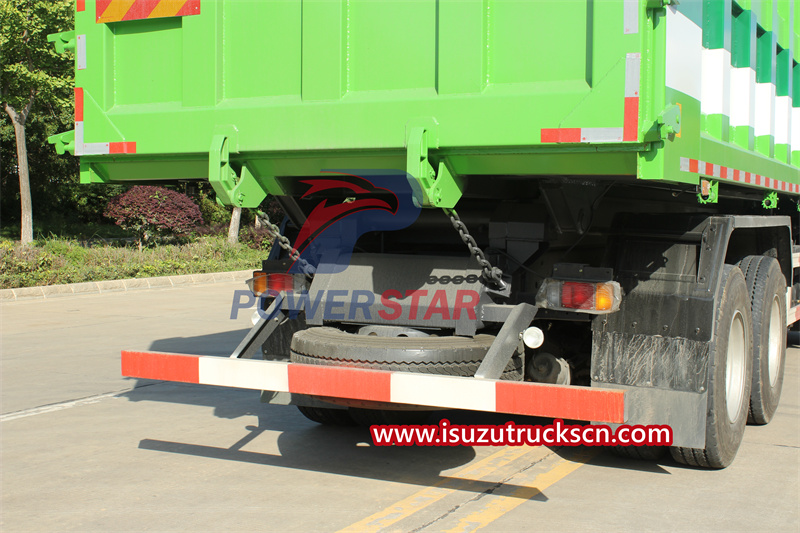

Tailgate |
25 s |
|
|

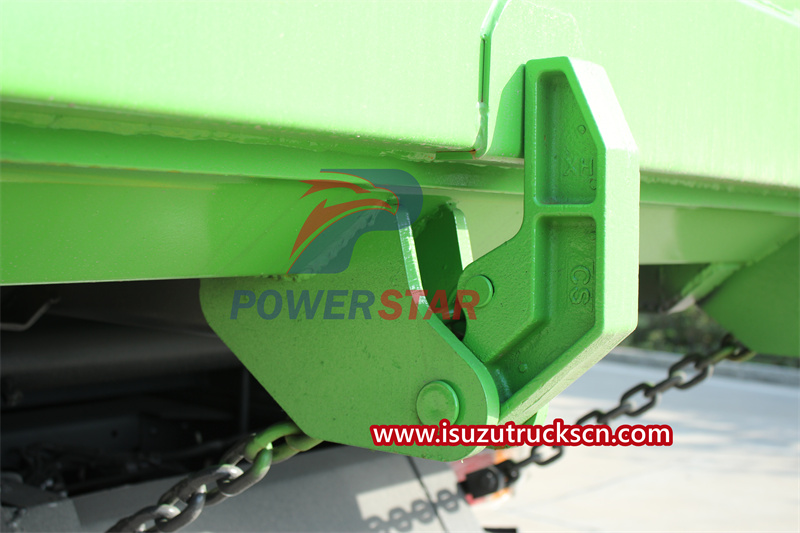

Drop side |
Auto release |
|
|
Painting |
Detachable |
|
|
Color & Logo |
Two primers,and one final paint coating |
|
|
Loading Capacity |
According to wish |
|
|
Factory Standard |
Heightened dump body Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
|
The advantages of garbage dump trucks over compactor garbage trucks are mainly reflected in the following aspects:
1. Strong dumping ability: The garbage dump truck has an automatic unloading function, which can quickly dump garbage to a designated location. It has large capacity and fast unloading speed, which improves work efficiency.
2. Strong adaptability: Garbage dump trucks are more flexible and diverse in design and can be adjusted according to different work site needs, making them more adaptable. Compressed garbage trucks are usually only used to transport and compress garbage, and their functions are relatively single.
3. High load capacity: Garbage dump trucks can carry heavier garbage and can handle large-scale garbage removal tasks, improving work efficiency and reducing working time and labor costs.
4. Easy to operate: The operation of the Garbage dump truck is relatively convenient, and it can be operated without special training. Compactor garbage trucks require dedicated operations and certain operating skills.
5. Relatively low cost: The cost of garbage dump trucks is relatively low and has a wide range of applications. It can meet the sanitation work in cities and villages of different sizes and needs. The cost of compactor garbage trucks is relatively high, and their scope of application is relatively narrow. They are only suitable for garbage cleanup in large cities.
