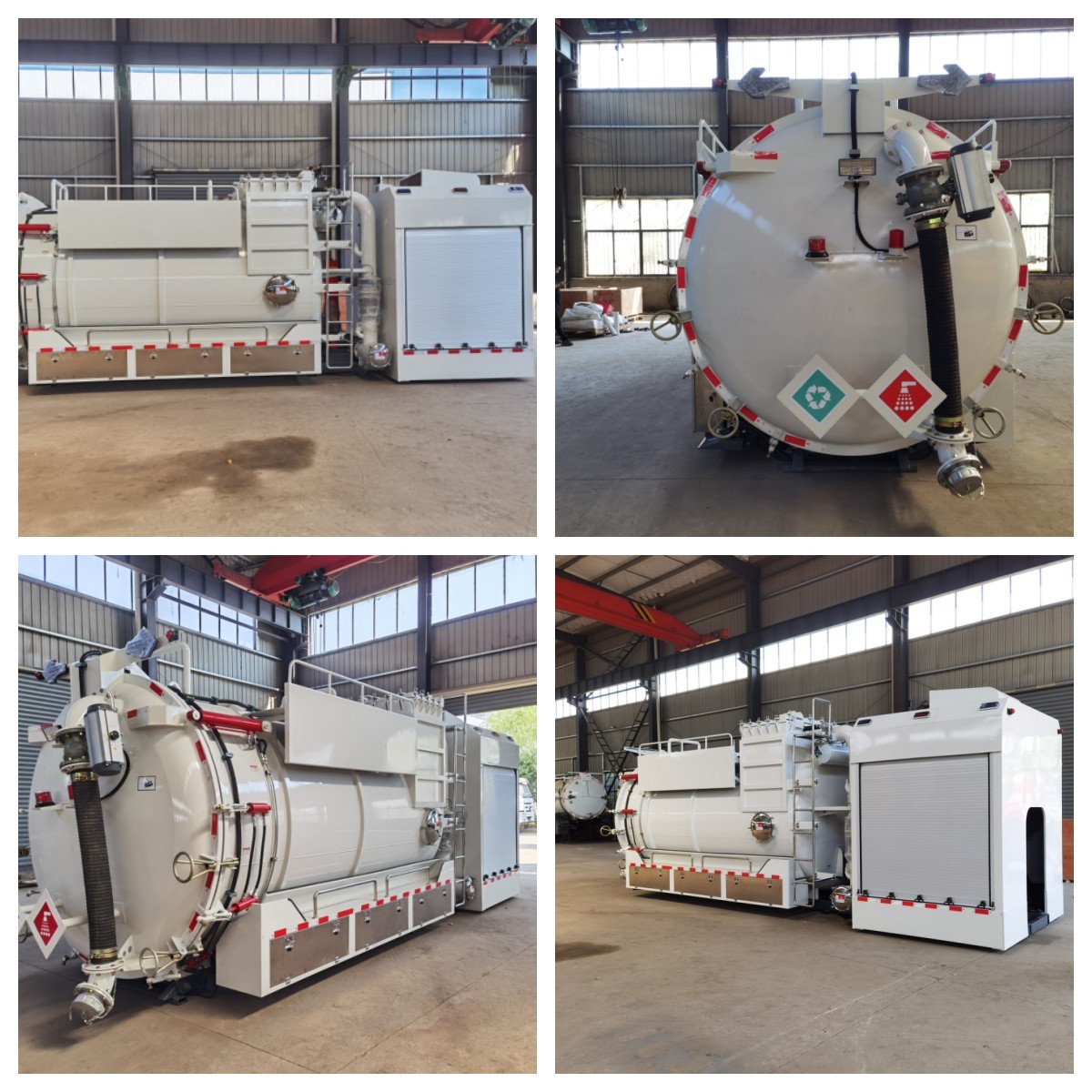

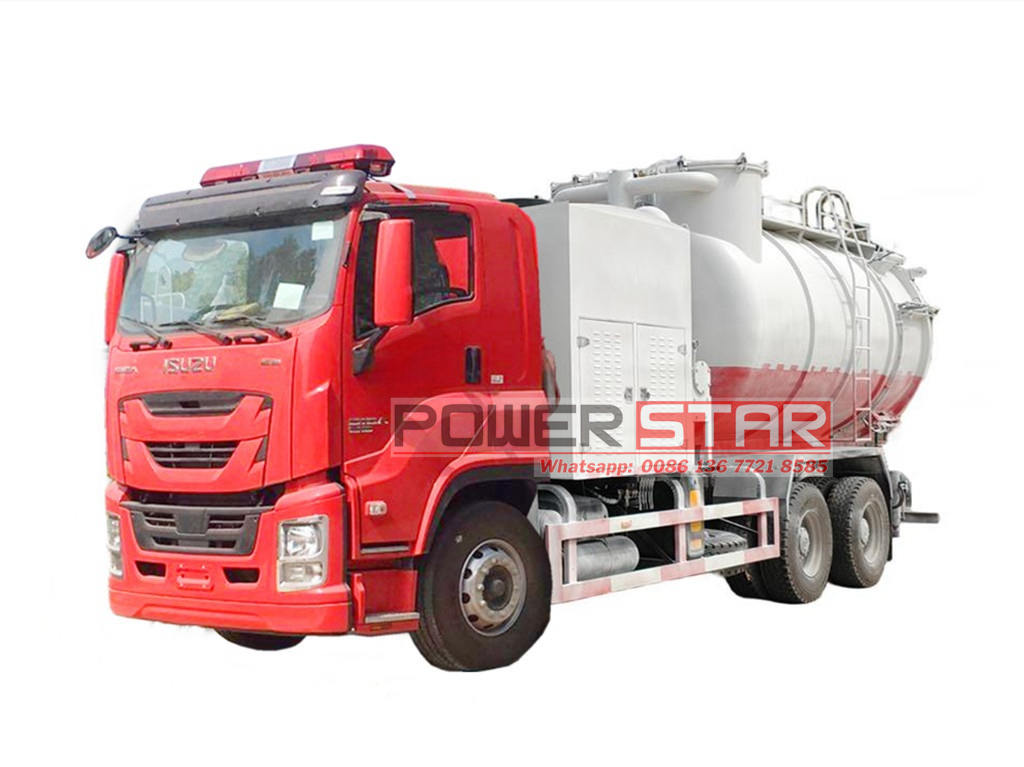

New or used 15m3 Sand stones vacuum truck Isuzu mainly carries loose powder such as dry dust dust, and adopts pneumatic closed tank car for loading, transportation and unloading. The whole process is safe and prevents dust pollution to meet environmental protection standards. Isuzu sand stones vacuum trucks are built tough, and stay tough. We design and manufacture our vacuum loaders in China to operate reliably and consistently for Arabic conditions.Isuzu industrial vacuum loaders drive more efficient and productive operations for a range of industries, including waste reduction and disposal services, to mining, hydro-excavating, pipeline construction, underground service locating, hospitality and processing.
Manufacturer:
Powerstar TrucksWork capacity:
15cbmDimension:
9000 x 2500 x 3200mmCabin type:
Isuzu GIGA VC61 cabin,one and half rowWheelbase:
4350+1300 mmEngine power:
420HPEngine type:
ISUZU 6WG1Axle drive:
6x4Gear box:
FAST 12-shiftRemarks:

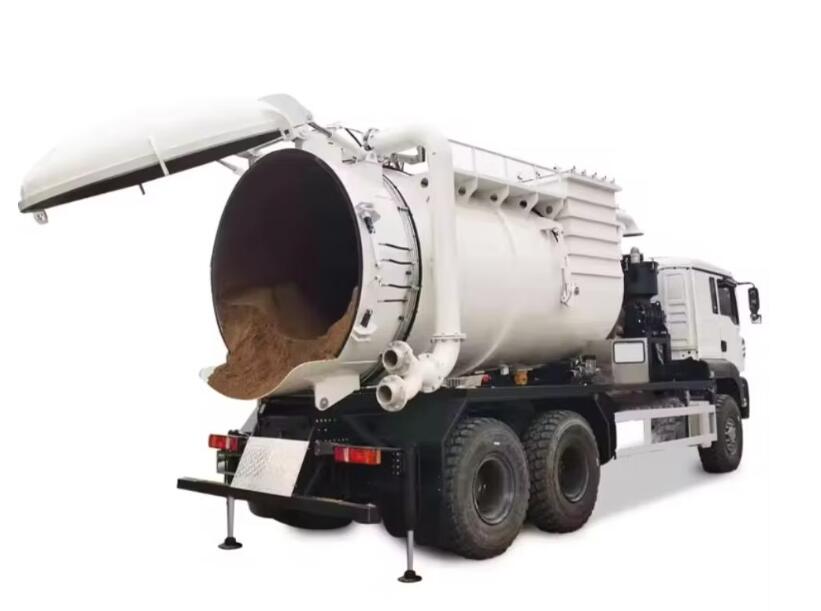

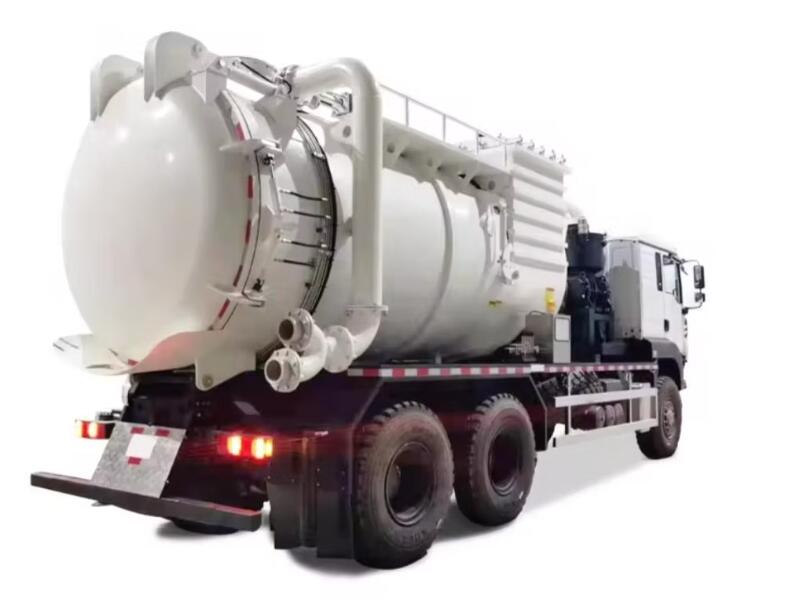

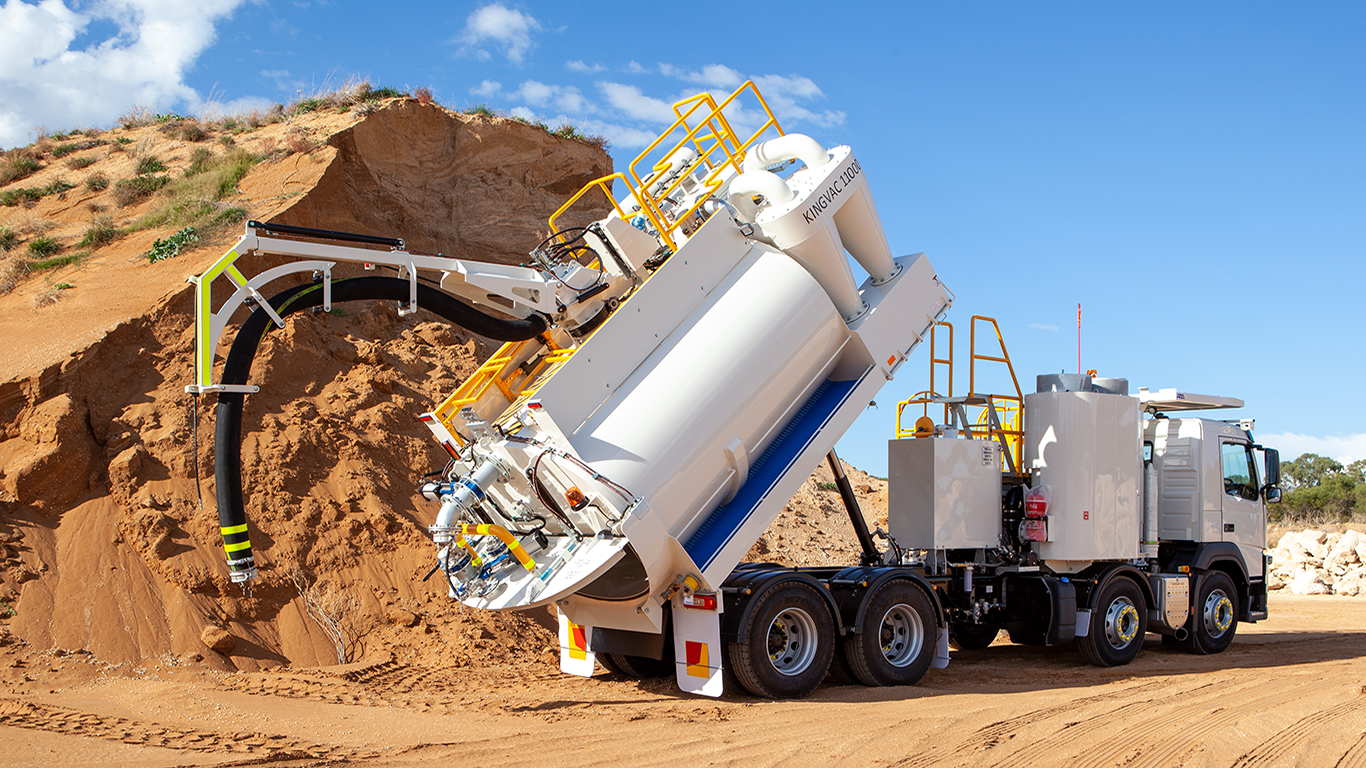

Differenet capacity availableSand stones vacuum truck Isuzu, also named Isuzu Sand Sucker Vacuum Truck or Industry dry vacuum truck, is a heavy-duty engineering machinery specially used for extracting and transporting silt or mixed slurry. It is widely used in river dredging, mining, land reclamation, construction foundation treatment and other scenarios.
● China No 1 Sand Stones Industry vacuum truck factory
● More than 30 years professional manufacturer experience.
● OEM Brand, customize for every customer
● 24 months long guarantee time
● Promptly delivery, 100% customer made.
2. Core working principle of Isuzu sand industry vacuum truck
Powerful suction system
Through a high-power vacuum pump or centrifugal pump, negative pressure suction is generated to mix silt and water into slurry and suck it into the storage tank.
Separation and storage
The silt slurry is initially precipitated in the tank, and the separated water can be recycled or discharged.
Transportation and unloading
After full load, it is transported to the designated location and the silt is discharged through the hydraulic system or self-unloading device.
II. Technical data of 15000L ISUZU GIGA sand vacuum Truck use in desert
1. Isuzu Sand Suction Truck include power take off, transmission, vacuum suction fecal pump, water separator, oil and gas separator, multi-way valve, suspender, fecal tank, discharge valve, water tank, fecal level indicator, vacuum pressure meter, pipe system and so on.
2. Vacuum Sewage Suction Truck , Self-discharge and self suction.
3. The Truck Mounted Vacuum Cleaner Sewage Body can Self Dumper;
4. Fill tank all time ≤10min, long service life, and high working speed, convenient transportation.
5. Suitable for collecting and transport manure, biogas slurry, mud, oil and other liquid goods.
| outside dimension (L×W×H)mm | 9000*2500*3200 | |
| Kerb mass | 12380 Kg | |
| Chassis Model /Manufacturer | ISUZU GIGA | |
| driving type | 6*4 | |
| Cabin | With one bed | |
| Wheelbase | 4350+1300 mm | |
| Min Grand Clearance | 300mm | |
| Engine | ||
| model | ISUZU 6WG1 | |
| Type | Diesel, 6-cylinder in line with water cooling, turbo-charging &electrical control inner | |
| Max. power/rotated speed | 308kw/1100-1600r/min | |
| Displacement(ML) | 16l | |
| Company of engine | ISUZU engine | |
| Emission level | Euro 6 | |
| Type of fuel | diesel | |
| Steering: ISUZU | ||
| Gear box : FAST 10 forwards and 2 reverser | ||
| Brake type: service braking; dual circuit compressed air brake; parking brake (hand drive), spring energy air cut brake and ABS | ||
| clutch | Φ430MM C-type diaphragm spring clutch | |
| Front axle | steel front steering drive axle | |
| Rear axle | rear drive axle. Retio: 5.73 | |
| Tyre | 12.00-20 4pcs +1spare tire | |
| Max Speed | 90 Km/h | |
| air condition | With | |
| Construction | All steel welded construction with tilt cab. | |
| Electrical system: VDO Electric system, 24V, Negarive grounded | ||
| Volume of tank | 12m3 | |
| Tank size | 4900*1600mm | |
| Thickness of tank | 6mm | |
| Model of vacuum pump | Model: VTB840 | |
| Suction Speed:6492m³/h | ||
| Pressure: -0.08mpa | ||
| Suction speed: 30~60ton / hour | ||
| Pipe Diagram: Diameter 150 mm, length of 7 m with symmetric connections | ||
| Vacuum pump is droved by PTO, to self-suck and self-discharge by four-way valve. this truck can suck the mud, sewage, dejection and the dirty water with small stone under by vacuum pump | ||

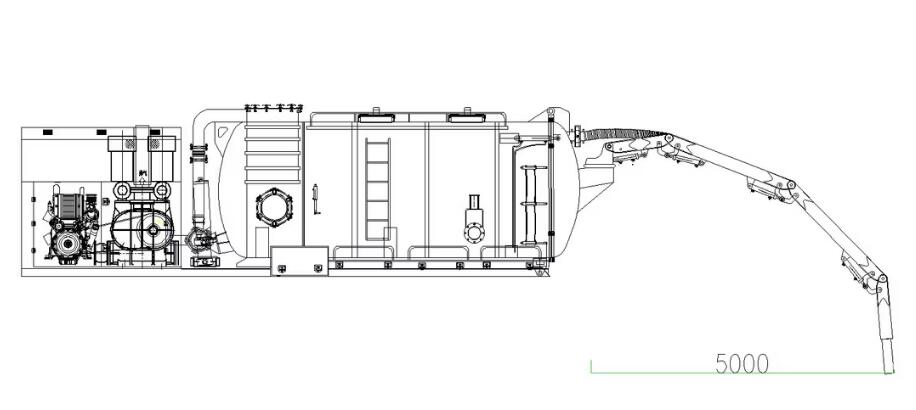

3. Main structural components of Sand stones vacuum truck Isuzu
Sand suction pump: core power component, providing suction capacity.
Storage tank: a closed container for storing silt slurry (usually 10-30 cubic meters in capacity).
Pipeline system: corrosion-resistant pipelines connect the suction port and the storage tank.
Power unit: diesel engine or electric motor drives the pump body and hydraulic system.
Control system: operating table, sensor, automatic adjustment device.
4, Sand stones vacuum truck Isuzu typical application scenarios
River/port dredging: clearing sediment and sand to ensure navigation safety.
Mineral mining: extracting river sand, mineral sand and other resources.
Infrastructure engineering: foundation treatment, land reclamation, tunnel construction drainage.
Environmental protection: polluted sludge cleaning, tailings recovery.
|
Chassis Model: |
QL1250U4SDZY |
|
|
Chassis Dimensions and Parameters |
Overall Dimension(L x W x H) |
9745×2540×3055mm |
|
Wheelbase: |
4600+1370mm |
|
|
Front Wheel Distance: |
2060mm |
|
|
Rear Wheel Distance: |
1855/1855mm |
|
|
Front/Rear Suspension |
1370/2405mm |
|
|
Approach/Departure angle: |
17/20° |
|
|
Leaf Spring: |
7/10 |
|
|
Weights and Capacities |
Curb Weight: |
9200kg |
|
Payload: |
15670kg |
|
|
GVW: |
25000kg |
|
|
Axle Loads: |
9000/13000/13000kg |
|
|
Engine |
Engine Model: |
6UZ1-TCG61 |
|
Max output: |
279Kw |
|
|
Displacement: |
9839ml |
|
|
Horsepower: |
380Ps |
|
|
Transmission |
Transmission: |
ZF8S2030TO |
|
Forward Gear: |
8 Speed Gear |
|
|
Backward Gear: |
1 Speed Gear |
|
|
Brake |
Air Brake |
|
|
Front Drum Back Drum |
||
|
With Exhaust Brake |
||
|
Generator |
24V-120A |
|
|
Cab |
Number of Seats: |
2 |
|
Cabin Type: |
Standard Roof One Bed |
|
|
Chassis |
Drive Type: |
6x4 |
|
Tires: |
11(Including Spare Tire) |
|
|
Tire Model: |
385/65R22.5 |
|
|
Fuel Tank |
Number: |
1 |
|
Capacity: |
400L |
|
|
Configurations: |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
Central Lock |
|
|
4 |
Power Window |
|
|
5 |
Driving Data Recorder |
|
|
6 |
Tubeless Tire |
|
|
7 |
ABS |
|
|
8 |
Free Maintenance Battery |
|
|
Top Parameters |
Pressure-Vacuum Tank Volume |
10000L |
|
Clean Water Tank Volume |
3000L |
|
5, advantages and characteristics
✅ High efficiency and energy saving: a single operation can handle a large amount of silt (efficiency of 50-200m³/h).
✅ Strong adaptability: can operate underwater and in complex terrain.
✅ Environmental protection and low pollution: reduce dust and reduce the impact on the surrounding environment.
✅ Versatility: compatible with sand extraction, dredging, and transportation integration.
6. Precautions
Operational safety: Professional training is required to avoid pipe blockage or mechanical failure.
Regular maintenance: Check for problems such as pump wear and seal aging.
Environmental assessment: Sand extraction must comply with local environmental regulations to avoid ecological damage.
Seven. Common supporting equipment
Dewatering screening machines, conveyor belts, sedimentation tanks, etc. are used for subsequent treatment of silt.
Sand stones vacuum truck Isuzu has become an indispensable equipment in modern engineering due to its high efficiency and versatility. Do you need to know more about a specific model or technical parameters?
