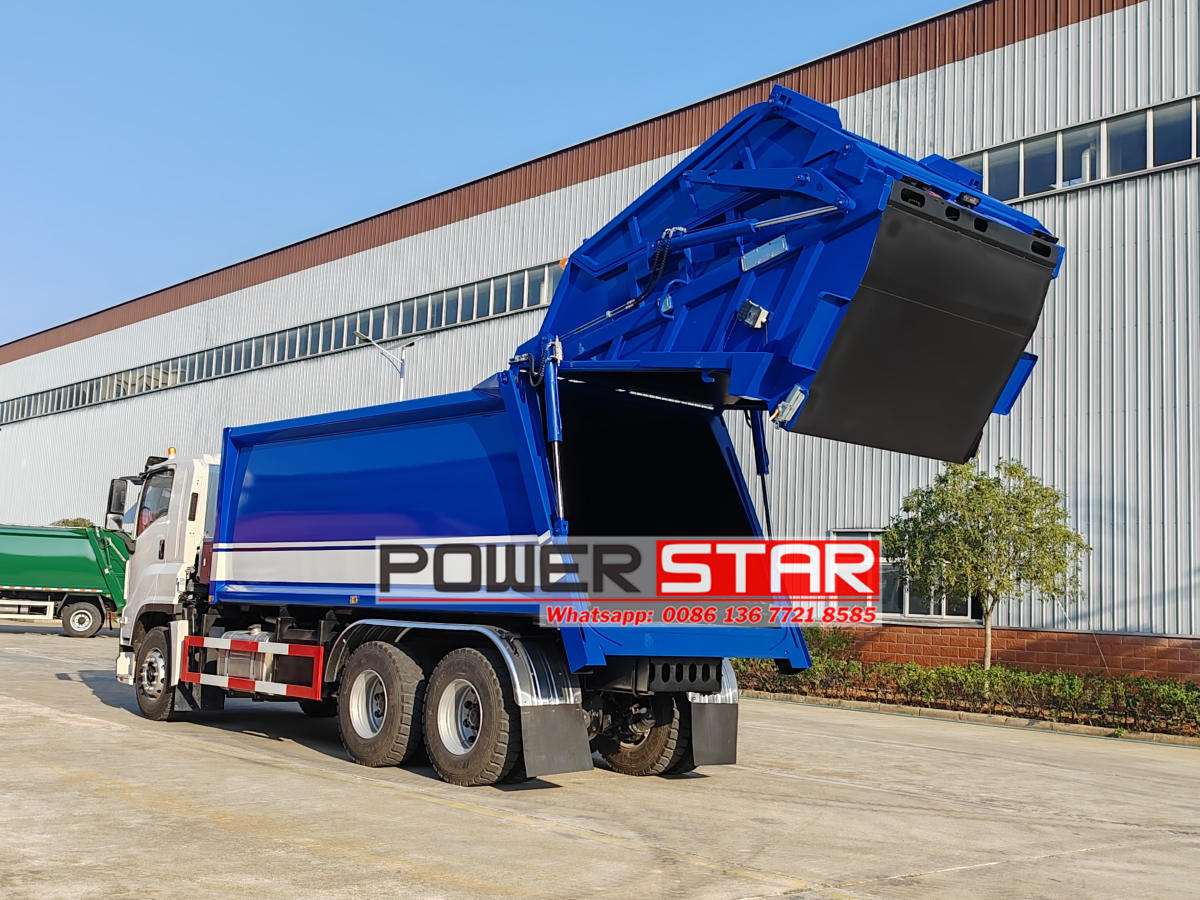

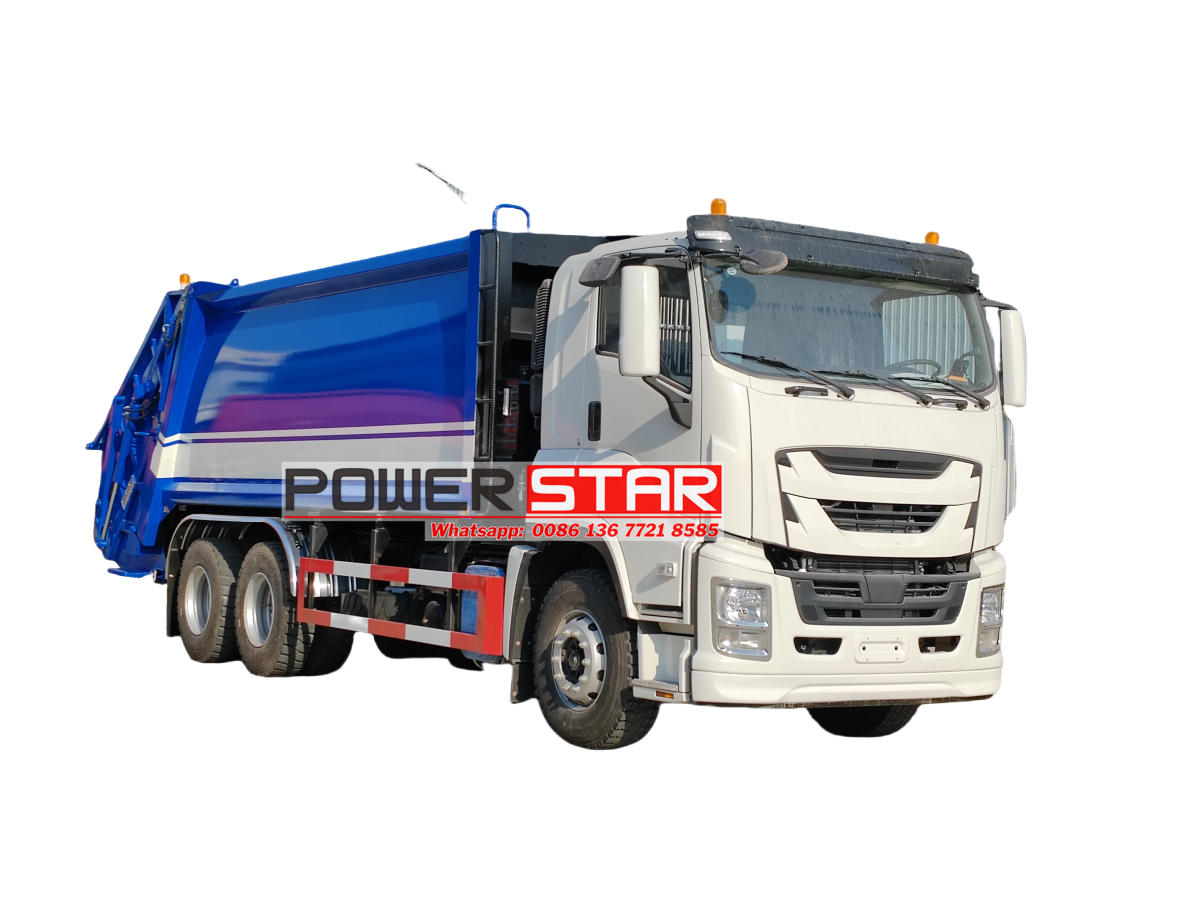

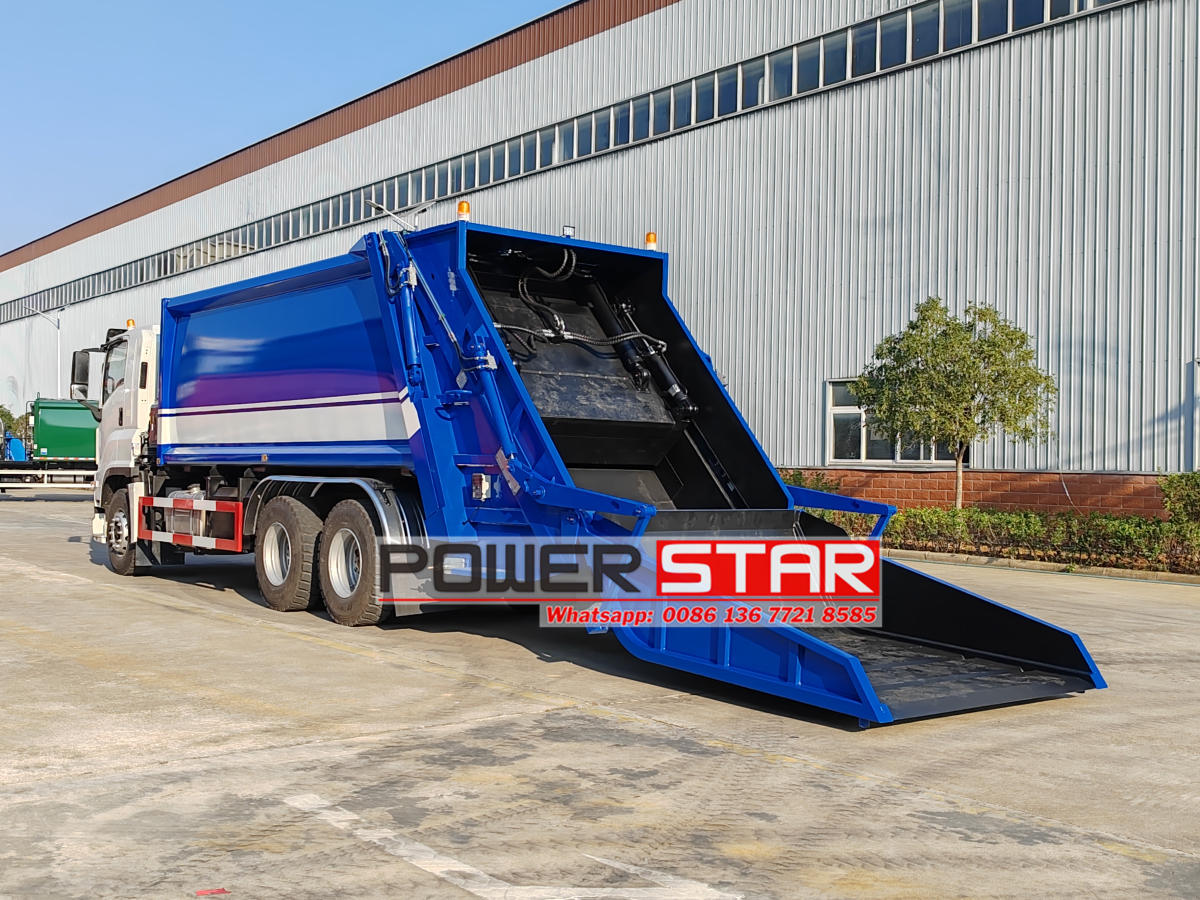

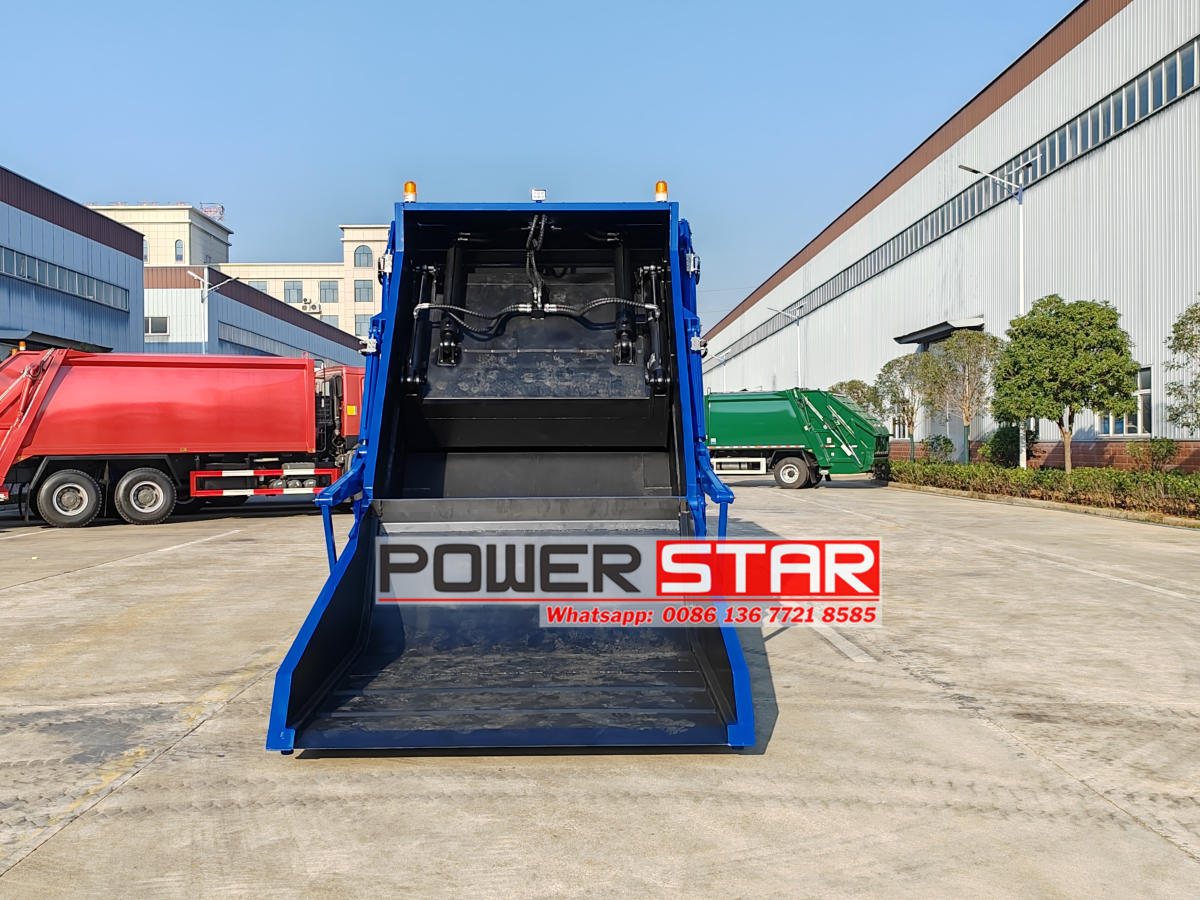

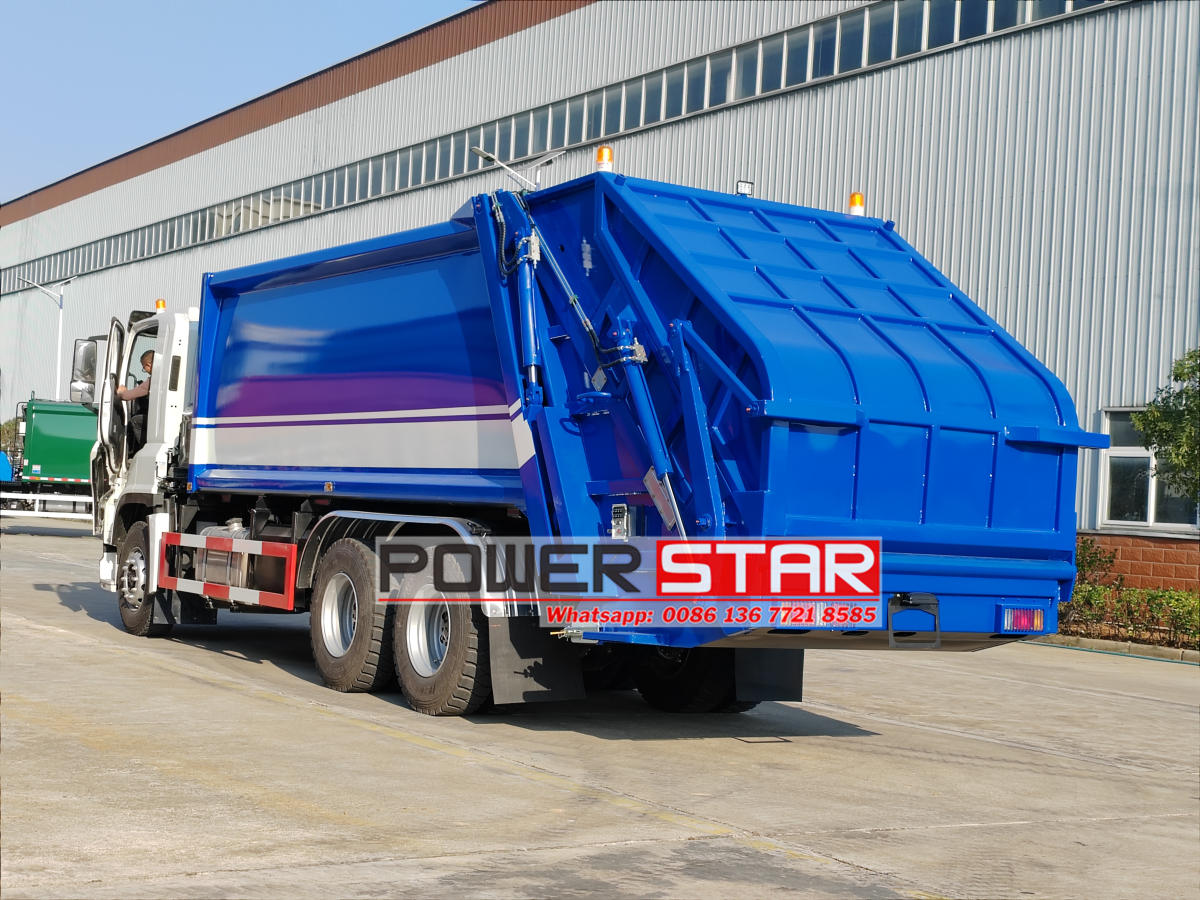

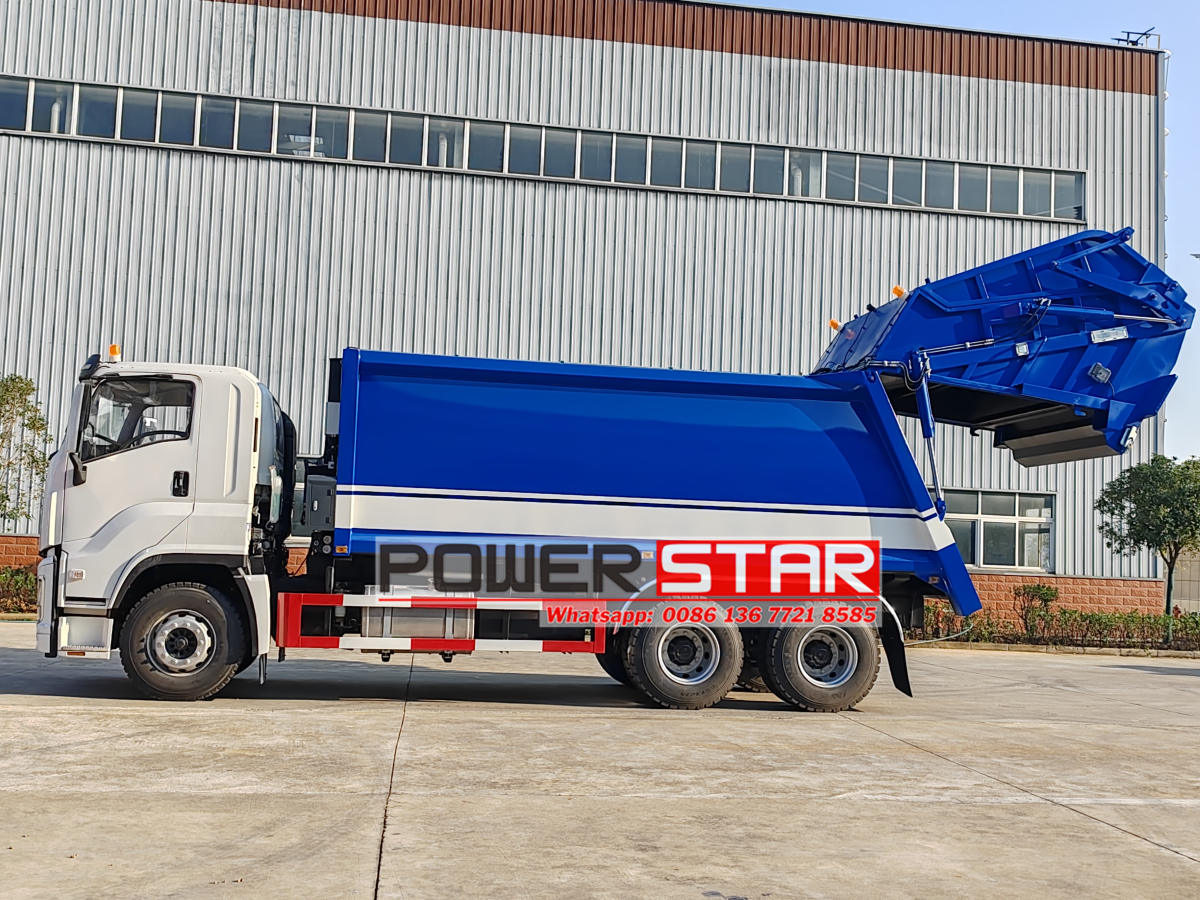

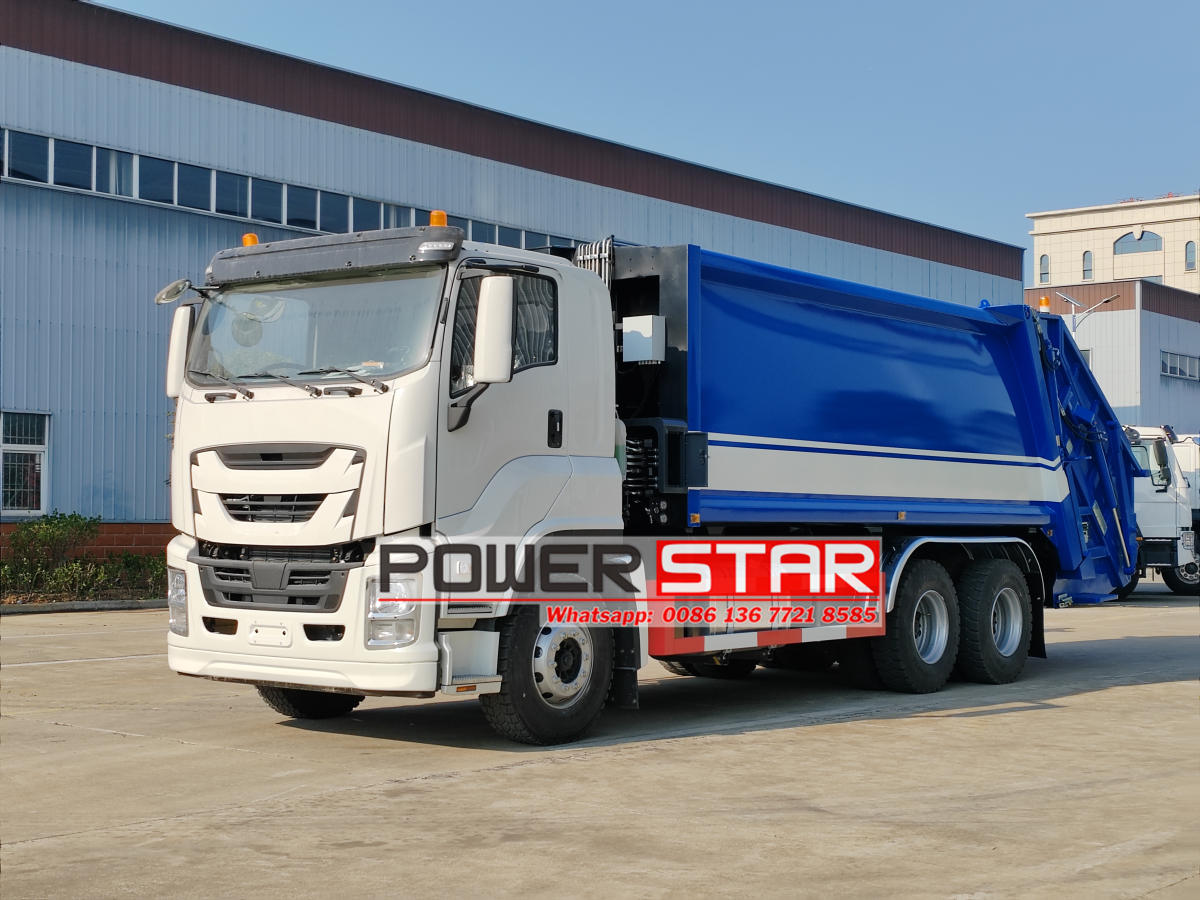

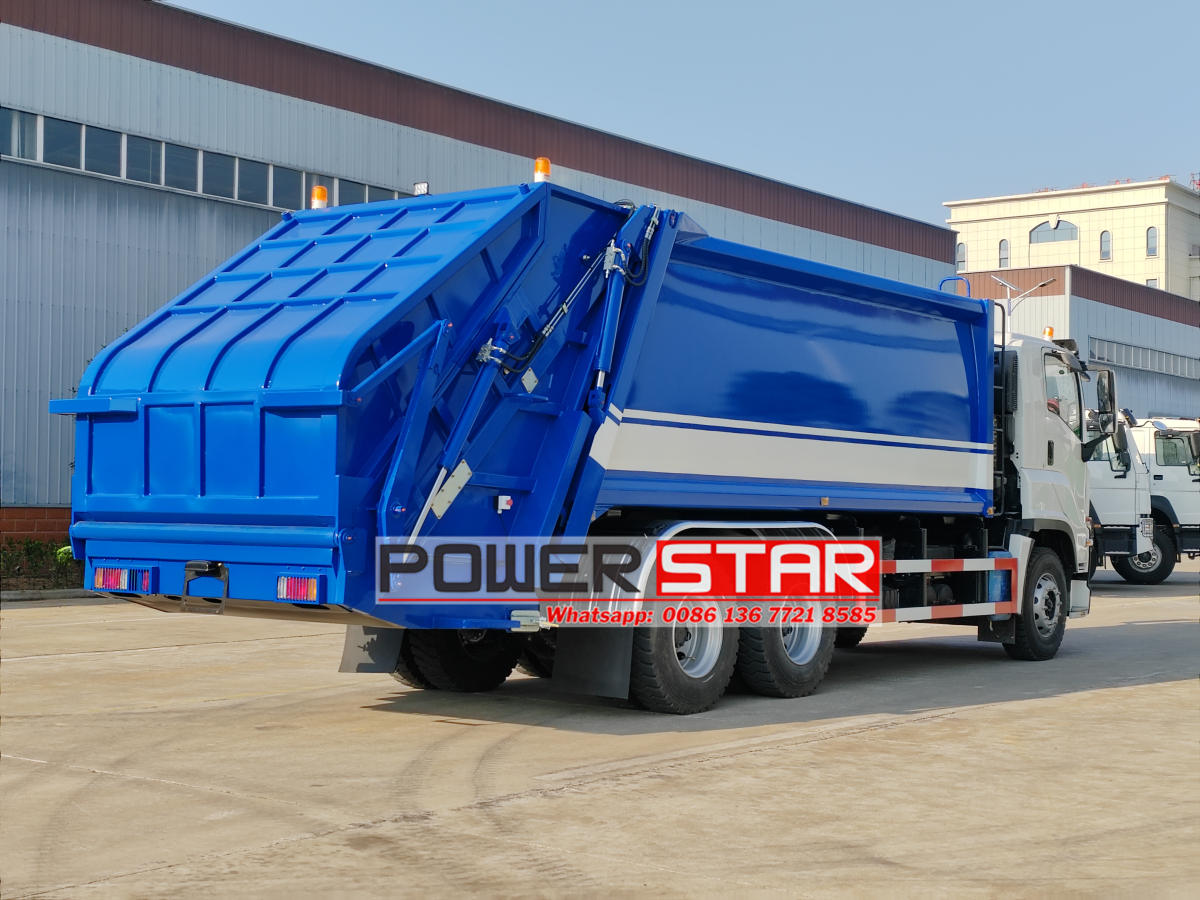

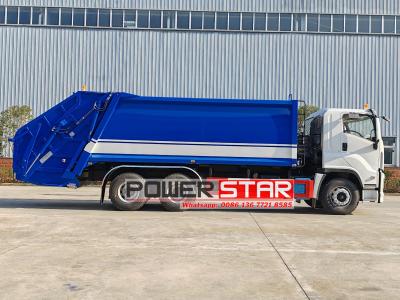

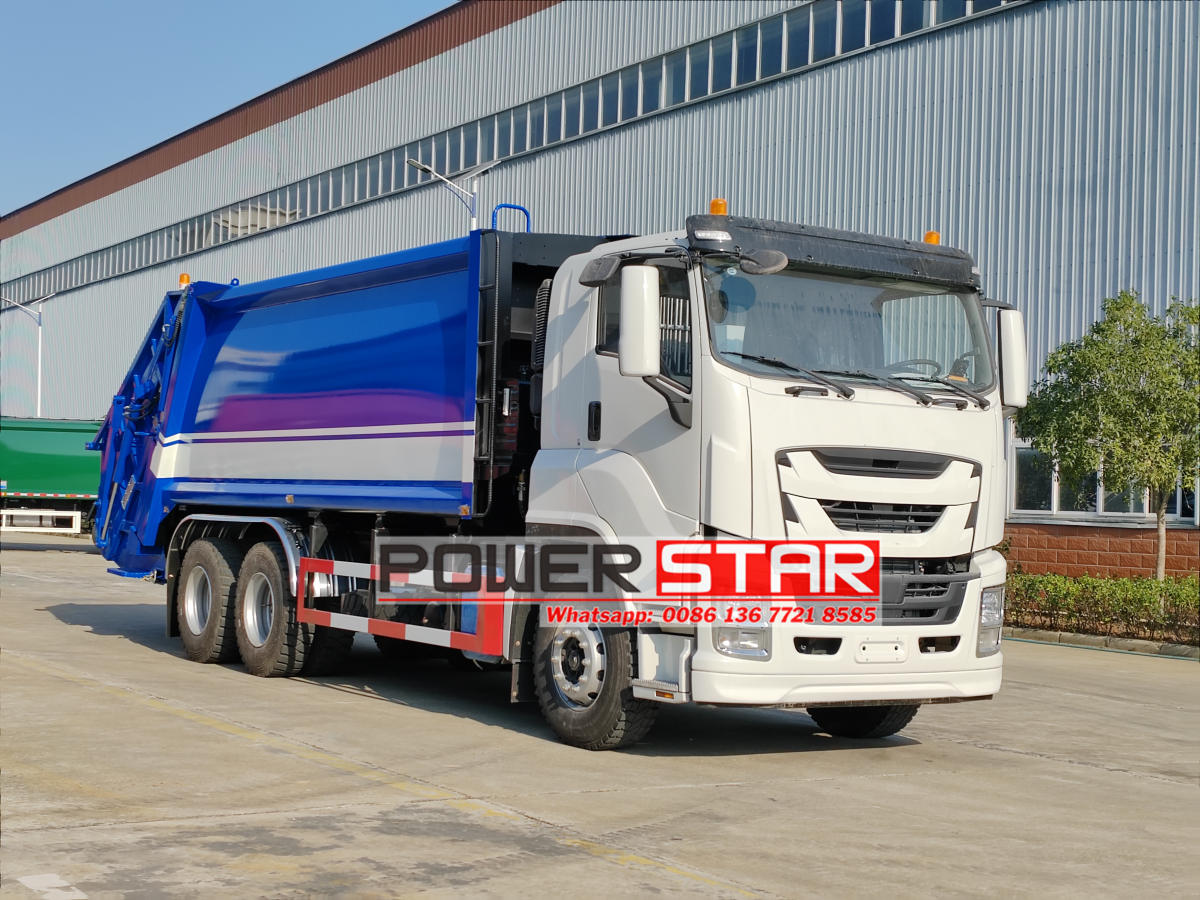

2025 New 25cbm Bin Lift Garbage Compactors Isuzu Giga
New or Used 25cbm Bin Lift Garbage Compactors Isuzu Giga (also named Isuzu giga Compressed Garbage Truck, Giga Isuzu Compactor Garbage Truck, Isuzu giga Compressed Garbage Truck, Giga Rear Loader Garbage Compactor Truck), is composed of Isuzu giga chassis QL1250U4SDZY, garbage box, filler and turnover mechanism, the vehicle load part is made of Q345 high strength manganese steel, volume of about 22-25 cubic meters, can load 15-17 tons of bulk domestic garbage, the car with two-way compression function, the middle and rear sewage tank, the latest brokenable wood function, China's especially famous brand hydraulic system, There are electronic control automatic operation functions inside the cab and outside the vehicle, and different garbage loading devices can be optional at the rear of the vehicle.
Work capacity:
25 cbmEngine power:
380HPEngine type:
ISUZU 6UZ1Axle drive:
6x4Gear box:
FAST 12-shiftRemarks:
Different capacity available2025 New 25cbm Bin Lift Garbage Compactors Isuzu Giga, also called QL1250 Isuzu giga garbage truck compactor or Isuzu Giga compression garbage compactors are also suitable for places such as urban-rural fringe, suburbs and rural areas where garbage needs to be collected and processed regularly. These areas are usually inconvenient for transportation, and garbage collection and processing are difficult. The 2025 New 25cbm Bin Lift Garbage Compactors Isuzu Giga, with its large capacity and high efficiency, can reduce the frequency and cost of transportation and improve the efficiency and quality of garbage disposal.
● China the best Isuzu GIGA Waste compactor truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery, 100% customer made.
The Specification of the Isuzu Giga garbage compactor truck are as following:1. The capacity of box is around 20~25cbm.2. The material of compartment box is high strength Q345 carbon steel, the side plate is 4mm, and the floor plate is 5mm.3. The capacity of the hopper is 2.5cbm.
4. The compression radio is :1:2.55. The operation system: CAN or PLC;6. The control system: Electronic control and manual control;7.: Warning : included, When the box is full, the alarm is warning.8. Urgent Emergency system: included
2025 New 25cbm Isuzu Giga Bin Lift Garbage Compactors is an efficient and environmentally friendly garbage collection and transfer equipment. Here are some key information about this model:
1. Basic parameters
Model: Isuzu powerstar PST5350GYZ, etc.
Volume: 25 cubic meters, suitable for the collection and transfer of large amounts of garbage.
Engine: Usually a high-power diesel engine is used, such as ISUZU 6UZ1 350HP, 380HP or ISUZU 6WG1 420HP, 460HP, etc., to provide strong power support.
Gearbox: Equipped with a high-performance gearbox, such as Fast 12-speed gearbox, etc., to ensure the smooth driving of the 2025 New 25cbm Isuzu Giga Bin Lift Garbage Compactors under different road conditions.
Wheelbase: The wheelbase varies depending on the model, but it is usually longer to meet the needs of a large-volume compartment.
|
Model
|
PST5310ZYSZ
|
Product Name
|
Compactor garbage truck
|
|
Product Brand
|
Powerstar Brand
|

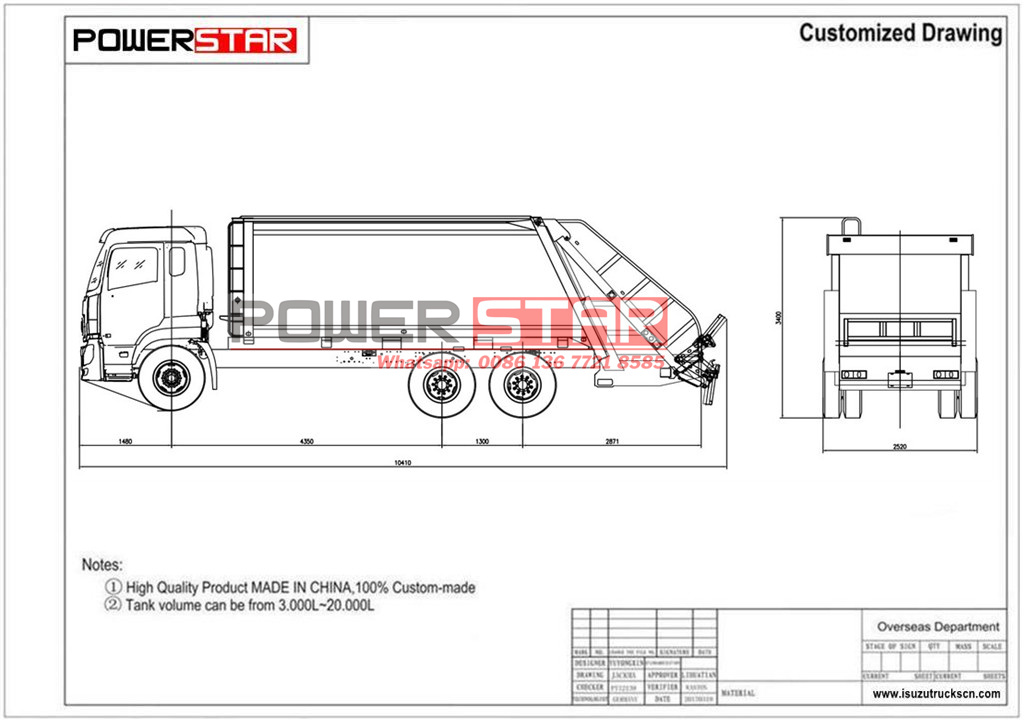

Overall Size
|
11285X2550X3500 |
|
Axes
|
3
|
Wheelbase
|
4600+1370 |
|
G.Weight
|
31000kgs
|
Curb Weight
|
13010kgs
|
|
Gearbox
|
12-speed
|
Tyre size
|
12.00R20 18PR |
|
Engine
|
380HP
|
Power steering
|
LHD
|
|
Upper structure parameters
|
|
|
Capacity
|
25 m3
|
|
Structure
|
body, compartment, sub frame,filler, compressor, hydraulic and electric system, pipeline, sewage tank,pressure gauge,etc.
|
|
Body shape
|
Arc-shaped
|
|
Material
|
Carbon steel Q345R
|
|
Sidewall
|
4mm thickness
|
|
Bottom
|
5mm thickness
|
|
Sewage tank
|
5mm carbon steel, 304 stainless steel is optional
|
|
Pressure Value
|
16Mpa
|
|
Pressing mode
|
Automatic pressing, operated by hydraulic system
|
|
Compression ratio
|
≥2.5
|
|
Loading cycling time
|
≤25 second
|
|
Unloading garbage time
|
≤15 second
|

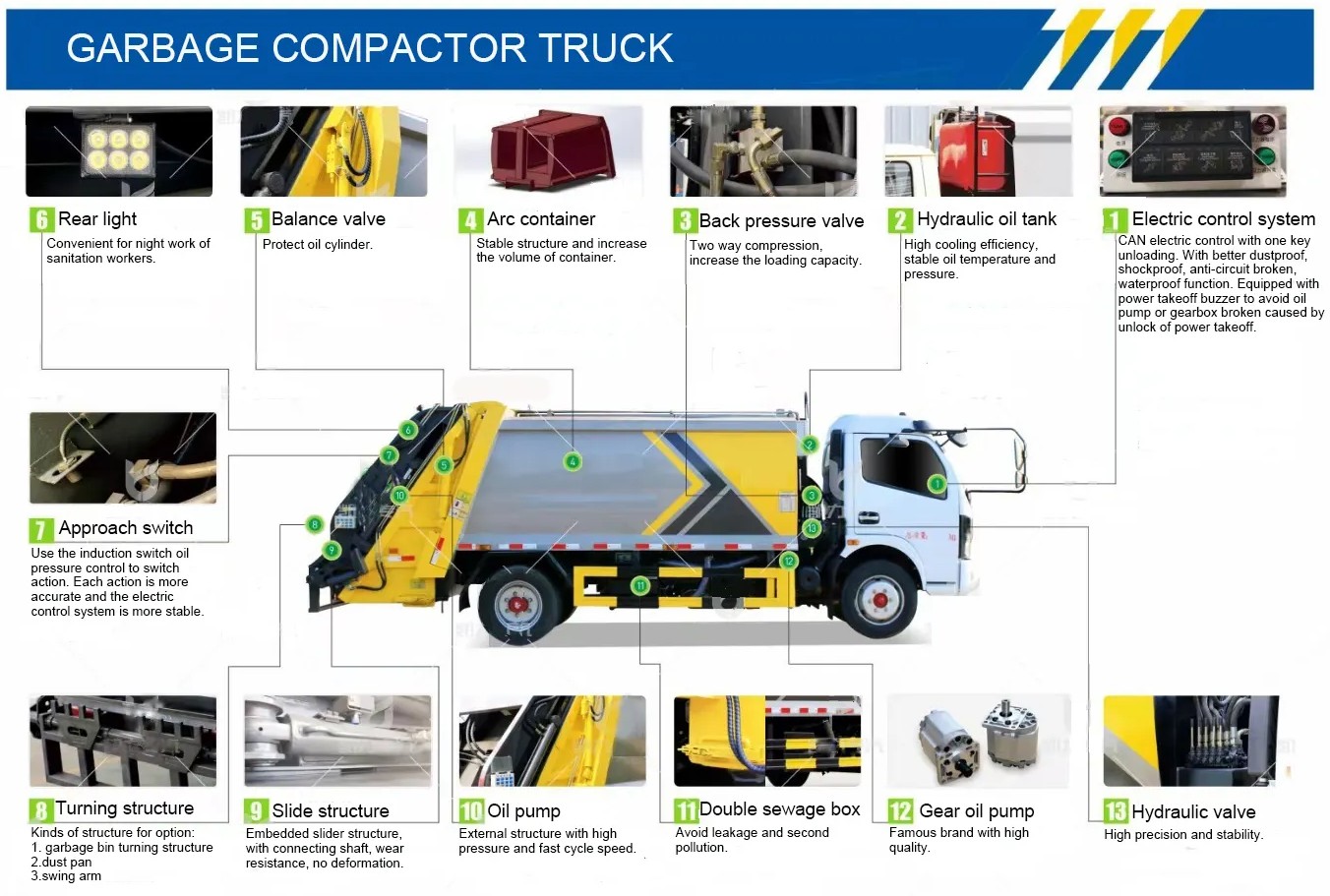

2. Structural features
Box: Made of high-strength manganese steel plate, the overall folding edge is not welded, with strong anti-deformation performance and good sealing, which effectively prevents garbage leakage.
Compression device: The hydraulic mechanism is used to achieve strong squeezing and two-way pressure loading of garbage, improving the garbage compression ratio and loading capacity.
Operating system: The intelligent control system has multiple operation modes such as manual, automatic and semi-automatic, which is convenient for the driver to choose according to actual needs. At the same time, it is equipped with a remote control to facilitate operation in different working environments.
3. Performance advantages
Efficient collection: The compression device can greatly reduce the volume of garbage, increase the single collection volume, and reduce transportation costs.
Environmental protection and energy saving: The fully sealed compartment and sewage collection system effectively prevent secondary pollution and meet environmental protection requirements. At the same time, the electrical system equipped with the 2025 New 25cbm Isuzu Giga Bin Lift Garbage Compactors can realize fully automatic control of engine output, reduce fuel consumption and emissions.
Easy operation: The intelligent control system makes operation easier and faster, reducing the labor intensity of the driver.
Strong adaptability: Suitable for garbage collection and transportation needs in various places such as municipal sanitation, enterprise factories, construction sites, and community properties.
IV. Price and application
Price: The price of 2025 New 25cbm Isuzu Giga Bin Lift Garbage Compactors varies depending on factors such as brand, configuration, and production materials. The specific price needs to be negotiated based on market conditions and customer needs.
Application: Widely used in cleaning and maintenance of urban roads, raw material supply or product output of industrial plants and mines, cleaning work in places such as stations and docks, and cleaning and sanitation operations in community properties.

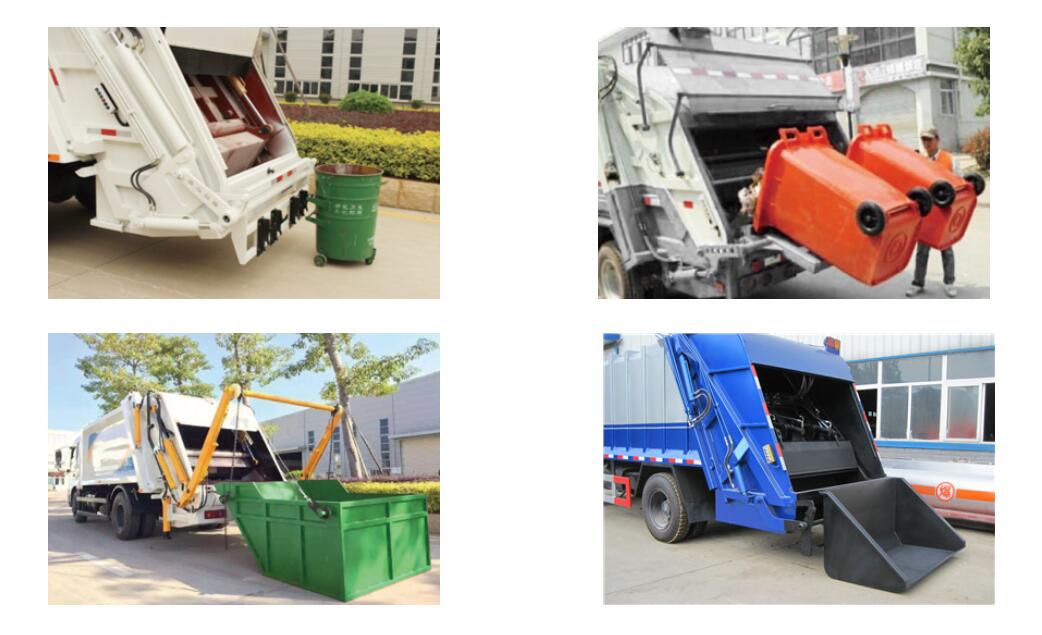

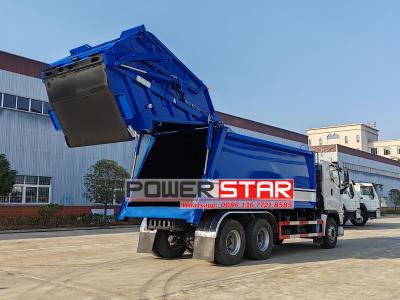

This product is highly versatile with low environmental requirements, making it suitable for a wide range of areas, including rural and urban streets, parks, residential communities, etc. It is primarily used for the collection and transportation of municipal waste. The truck has a multi-functional design: waste is loaded from the rear into the compactor through a flipping mechanism, crushed and compressed, and then transported into the cargo compartment. The truck integrates waste collection, compression, transportation, and unloading functions. Depending on the needs, the rear of the truck can be equipped with either a flipping frame or a flipping bucket. The flipping frame can accommodate standard 120L/240L/660L plastic garbage bins and 300L iron bins, making it highly adaptable for various types of municipal waste collection and transportation.
