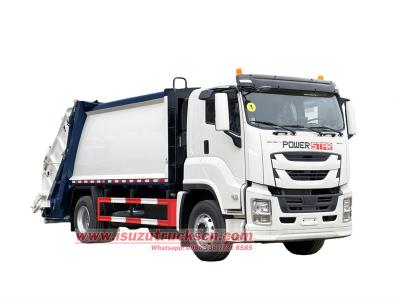

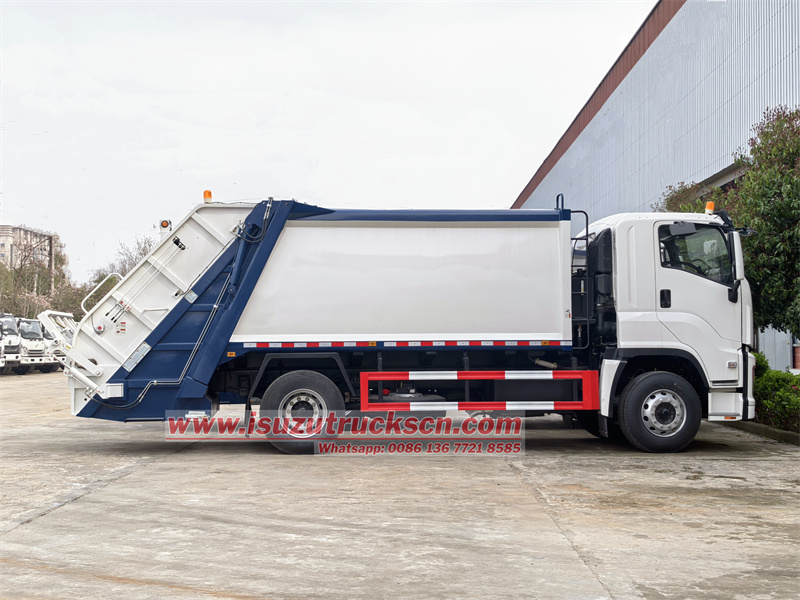

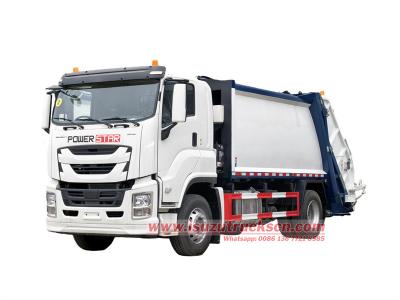

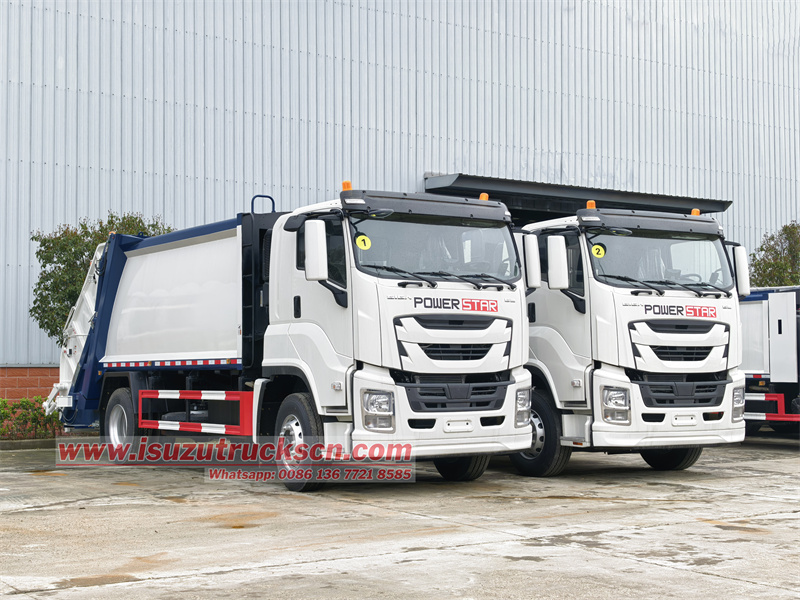

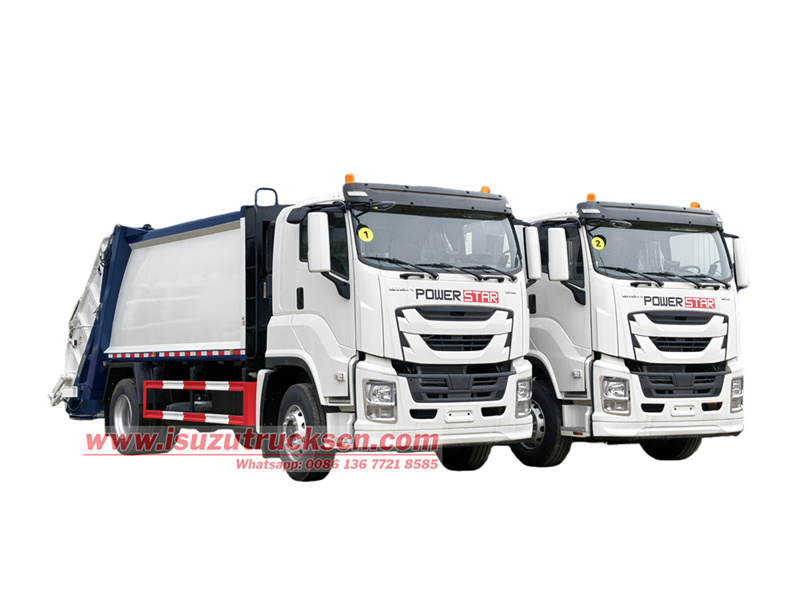

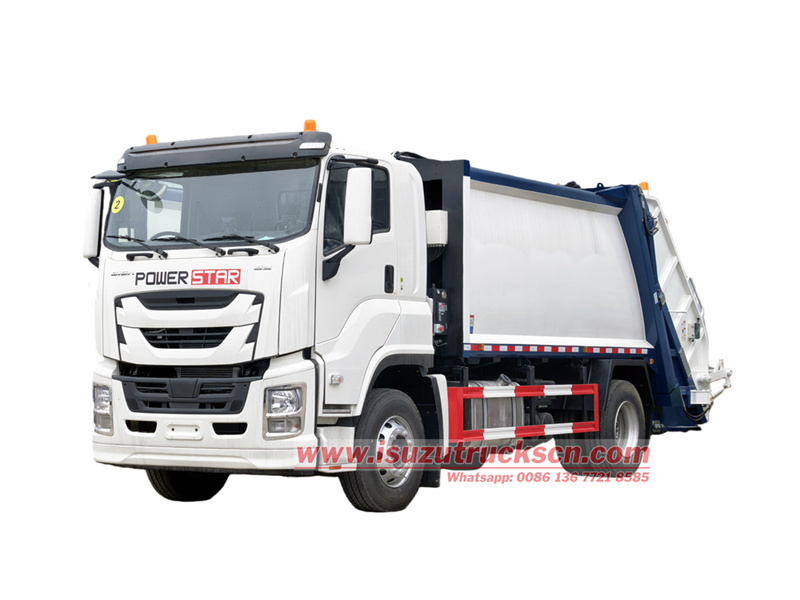

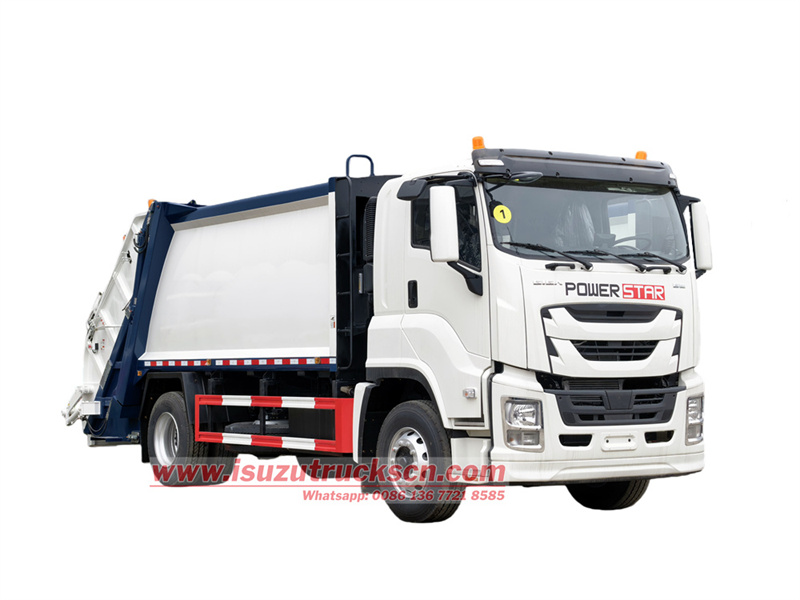

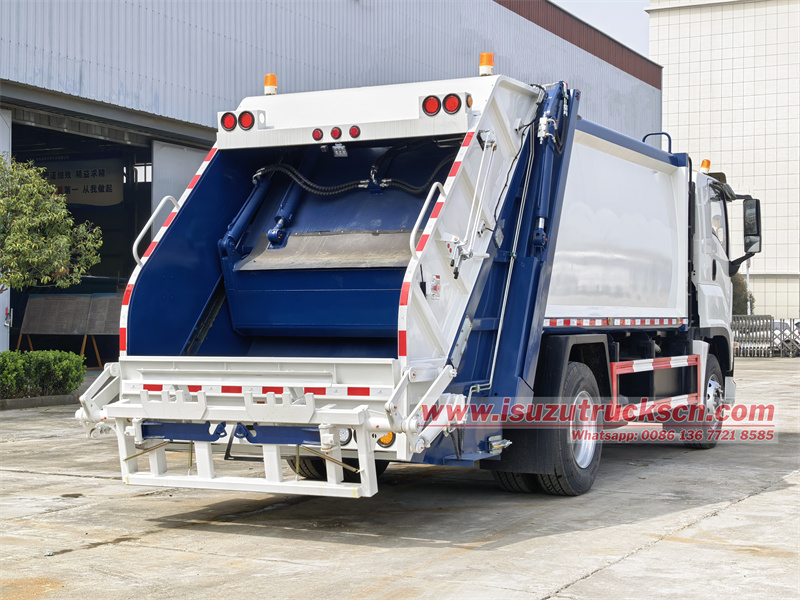

2026 year Isuzu FVR truck mounted garbage compactor
The Isuzu FVR 14 cbm garbage compactor truck has a 4500mm wheelbase and is equipped with an Isuzu 6HK1-TCG61 240HP engine and a Fast 8-speed transmission. The upper body is a 14 cubic meter arc-shaped carbon steel box with a 5mm thick side and 6mm thick bottom. It has a rear-mounted bin tipping mechanism. The entire operation of the vehicle, including loading, unloading, and compression, is controlled by a CAN-BUS integrated electronic control system, pneumatic system, and hydraulic system.
Manufacturer:
Powerstar TrucksWork capacity:
14cbmDimension:

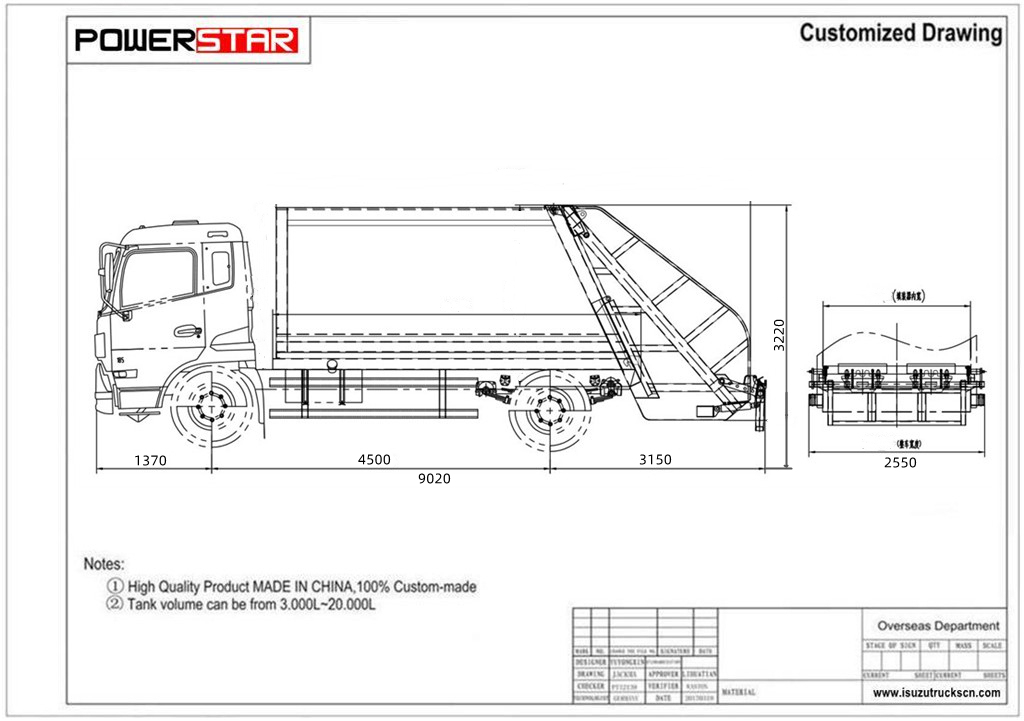

9020x 2550 x 3220 mmCabin type:
Isuzu FVR cab,one and half rowWheelbase:
4500mmEngine power:
240HP/175kWEngine type:
ISUZU 4HK1-TCG61Axle drive:
4x2,LHDGear box:
FAST 8-speed,manualRemarks:
Garbage container capacity can be customizedThe 2026 year Isuzu FVR truck mounted garbage compactor is equipped with an Isuzu 6HK1 engine and a Fast 8-speed transmission, providing strong power. Its 14 cubic meter arc-shaped carbon steel body, combined with bidirectional compression technology, achieves a compression density of 0.6-0.8 t/m³, increasing single-trip transport capacity by 30%. The sealed structure effectively prevents secondary pollution.
Operationally, it integrates multiple electronic controls and manual operating levers for convenient and easy operation. The vehicle utilizes a CAN-BUS bus system, with hydraulic drive and pneumatic assistance to achieve coordinated control of the entire loading, compression, and unloading process. It can be used for the compression and transfer of daily household waste in urban streets, residential areas, and commercial areas, and is particularly suitable for areas with high waste generation and high collection frequency.
▶ Product Parameters:
|
Isuzu FVR 14cbm waste compactor truck |
||
|
Truck model |
PT5180ZYS |
|
|
Cabin |
Isuzu NEW FVR GIGA 5X cabin,one and half row,3 passengers, air conditioner,USB |
|
|
Overall Size |
9020*2550*3220 mm |
|
|
Bin capacity |
14CBM |
|
|
Wheel base |
4500mm |
|
|
GVW |
18000kg |
|
|
Curb weight |
11380kg |
|
|
Axle loading |
6500/11500kg |
|
|
Engine |
Model |
Isuzu 6HK1-TCG61 |
|
Type |
4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Hose Power(HP) |
240HP/177 KW |
|
|
Displacement |
7.79ml |
|
|
Max torque |
850N.m |
|
|
Emission standard |
Euro 6 |
|
|
Max speed |
105km/h |
|
|
Tire |
295/80R22.5(6+1 tire) |
|
|
Transmission |
FAST 8-speed,manual |
|
|
Superstructure |
Body capacity |
14cbm |
|
Box material |
Side 5mm,bottom 6mm |
|
|
Design |
Whole unit with Leakage Proof Design |
|
|
Sewage tank |
200 liters |
|
|
Filling work cycling time |
45~60 s |
|
|
Garbage Compact Ratio |
≥1:3.4 |
|
|
Discharge model |
Horizontal Ejection |
|
|
Control system |
CAN electric automatic control, pneumatic system, and hydraulic system control |
|
|
4 operate modes |
Cab electric control box,drive side manual joystick,tailgate electric control box,tailgate manual operation lever |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,handrail, fire extinguisher, basic tool kit, English manual... |
||
▶ Chassis System:
1. Chassis: Isuzu Euro VI new FVR GIGA 5X cab, wheelbase 4500mm.
2. Powertrain: Equipped with a 6HK1-TCG61 engine, 240 horsepower, matched with a Fast 8-speed transmission.
▶ Upper Structure Configuration:

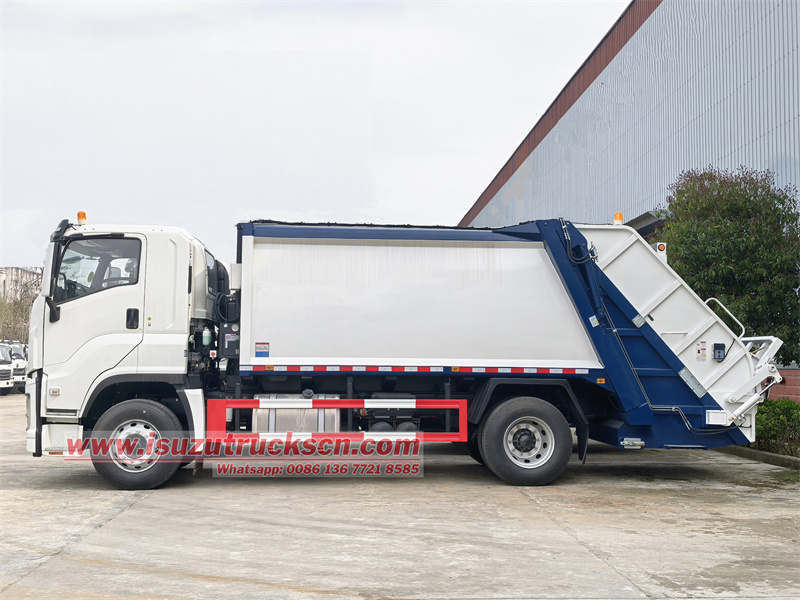

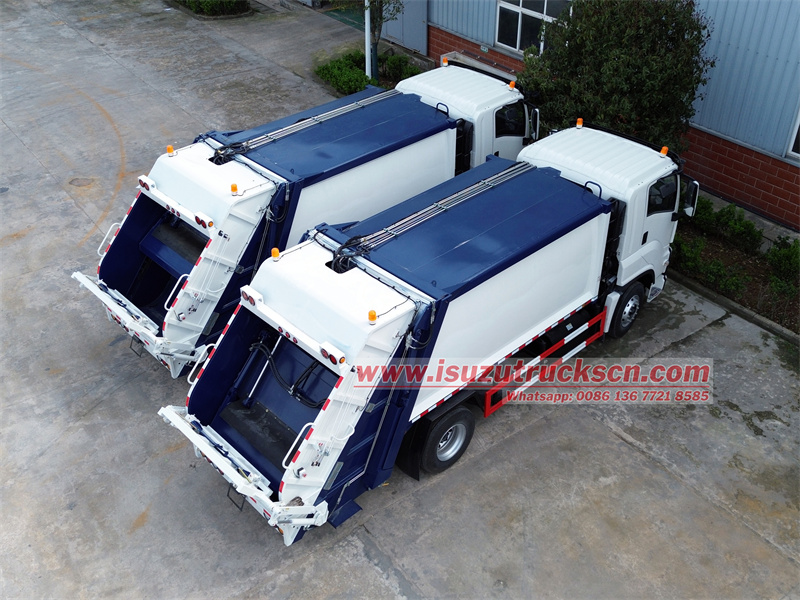

• Box Body: 14cbm arc-shaped carbon steel box (5mm side/6mm bottom), corrosion-resistant treatment, arc design.

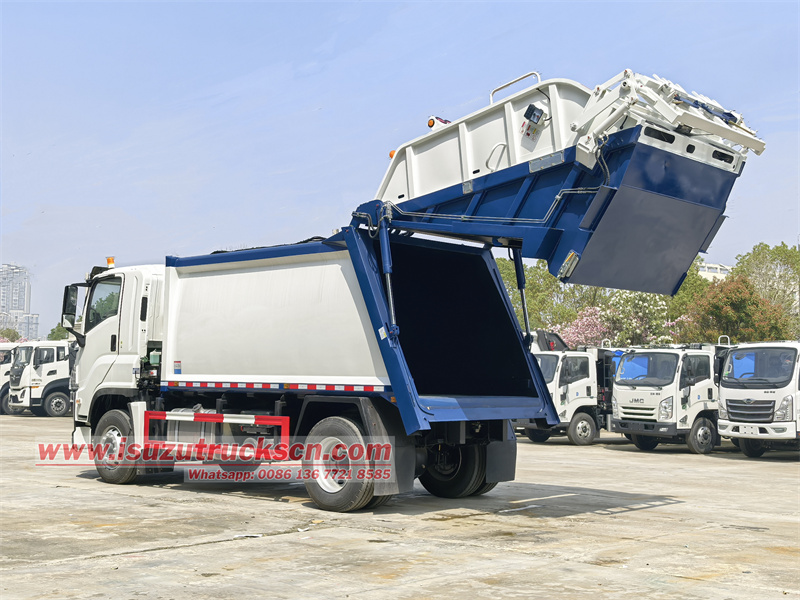

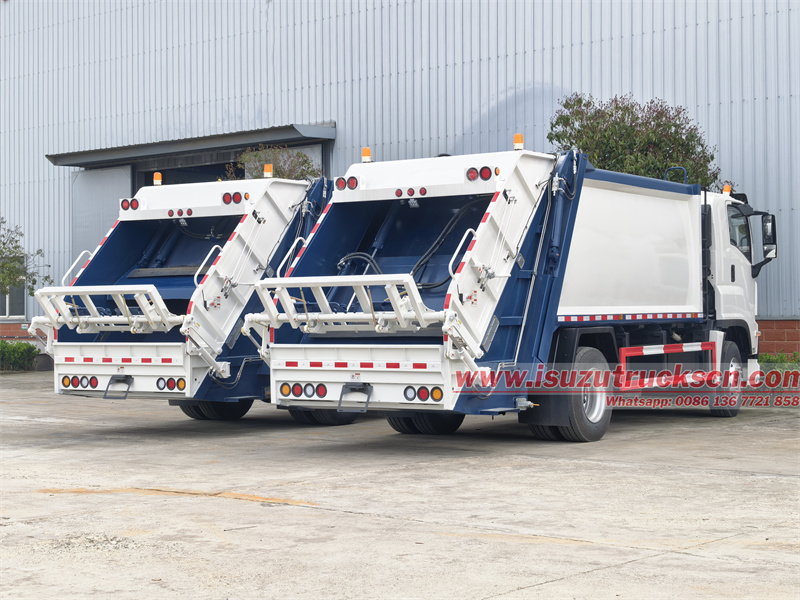

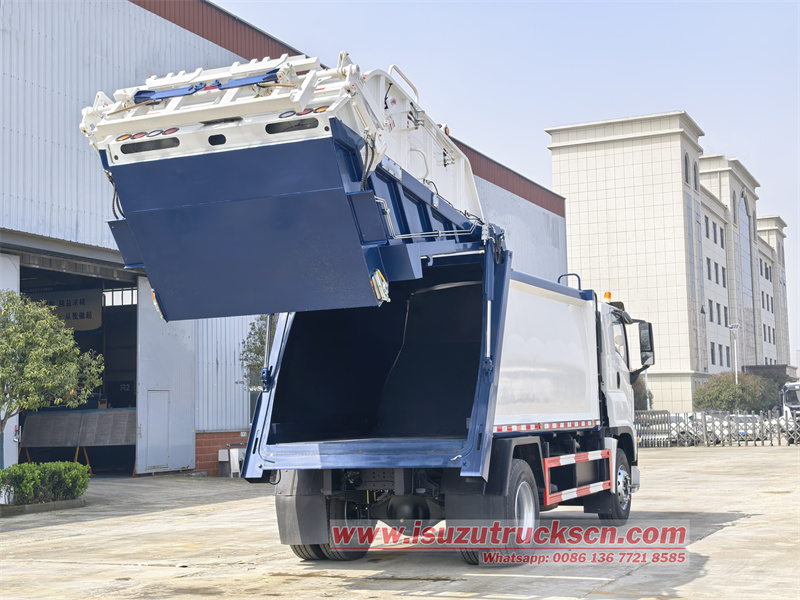

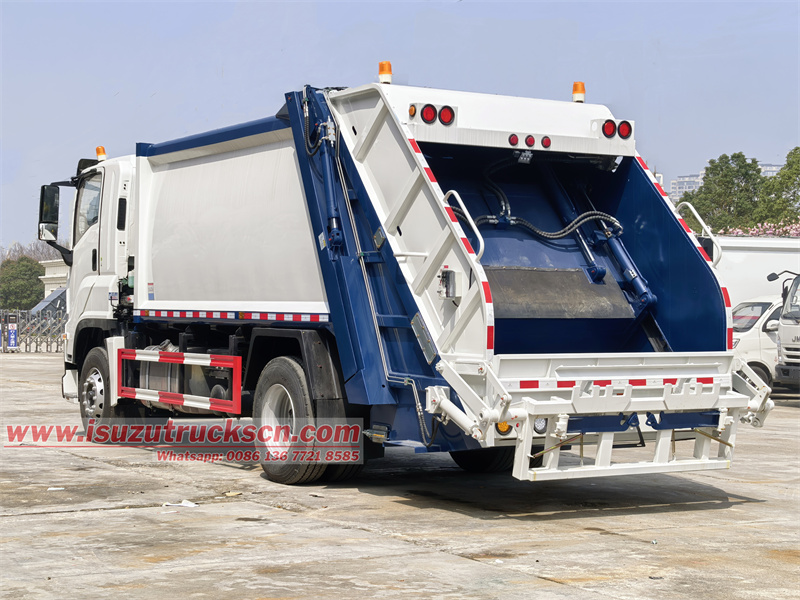

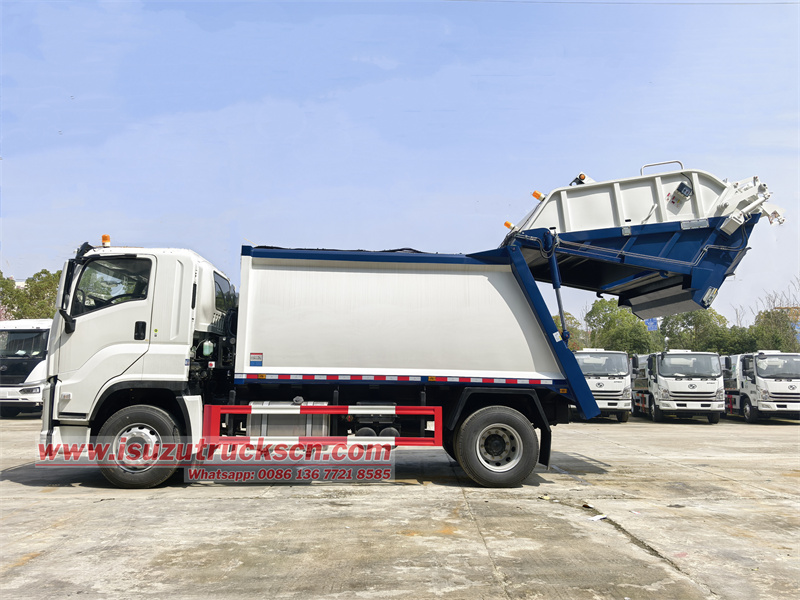

• Tilting Mechanism: Rear-mounted bin tilting mechanism, compatible with international standard 120L, 240L, and 660L garbage bins.
• Compact Ratio: Up to 1:3.4 or higher, significantly improving single-trip transport efficiency.

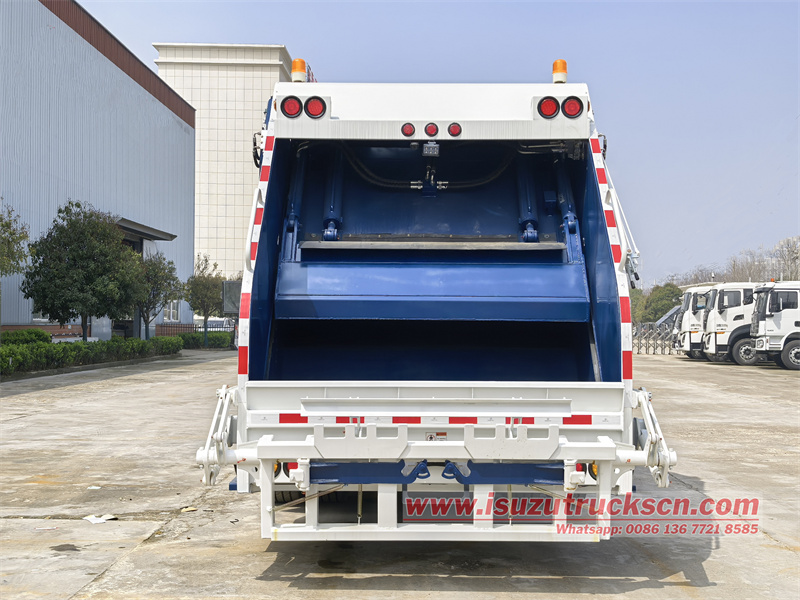

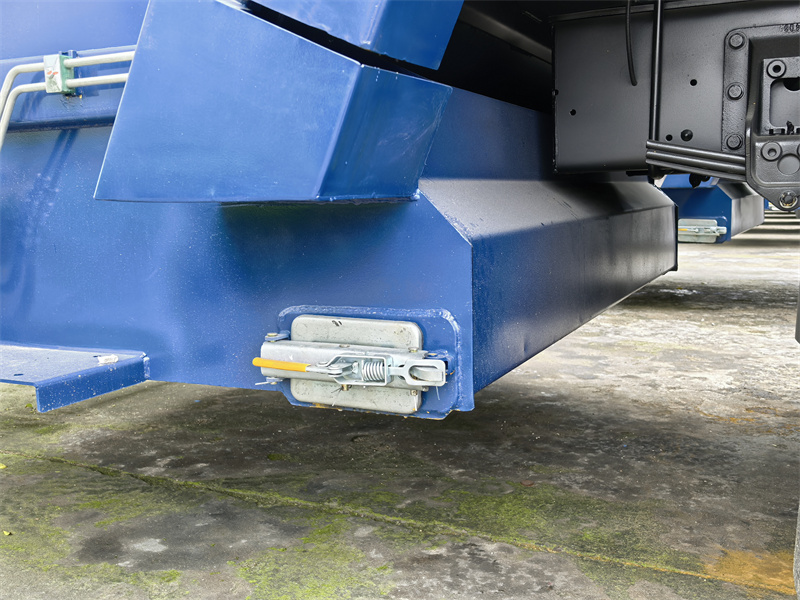

• Sealing System: The junction between the rear compactor and the box body uses a sealing ring to prevent sewage leakage.

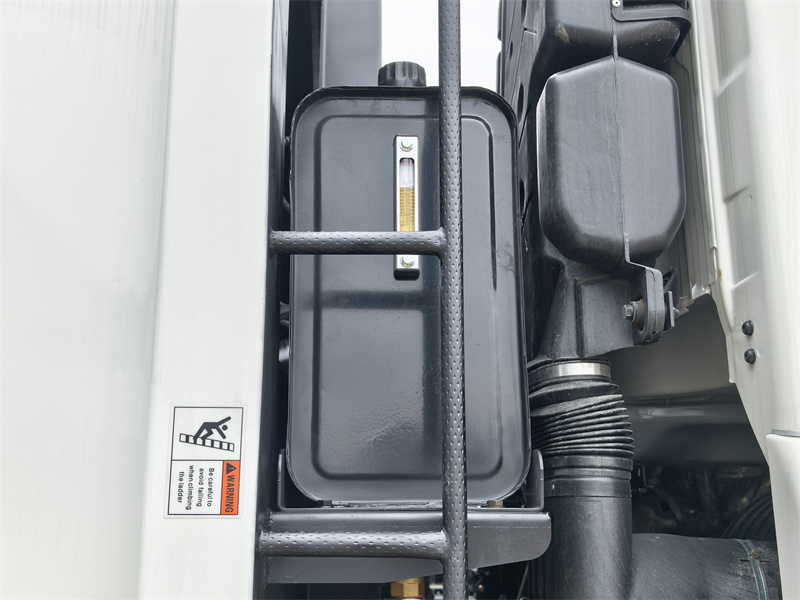

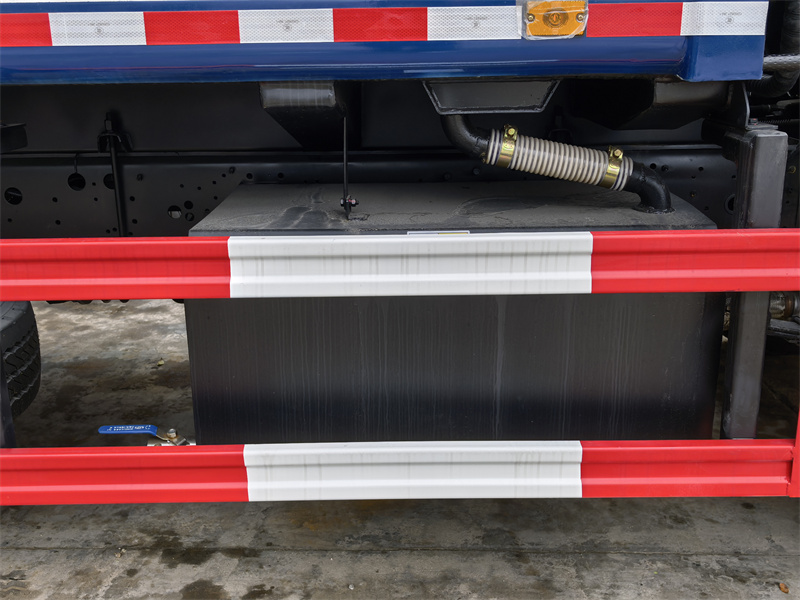

• Sewage Collection System: Sewage tank at the front of the box + sewage tank below the rear compactor.

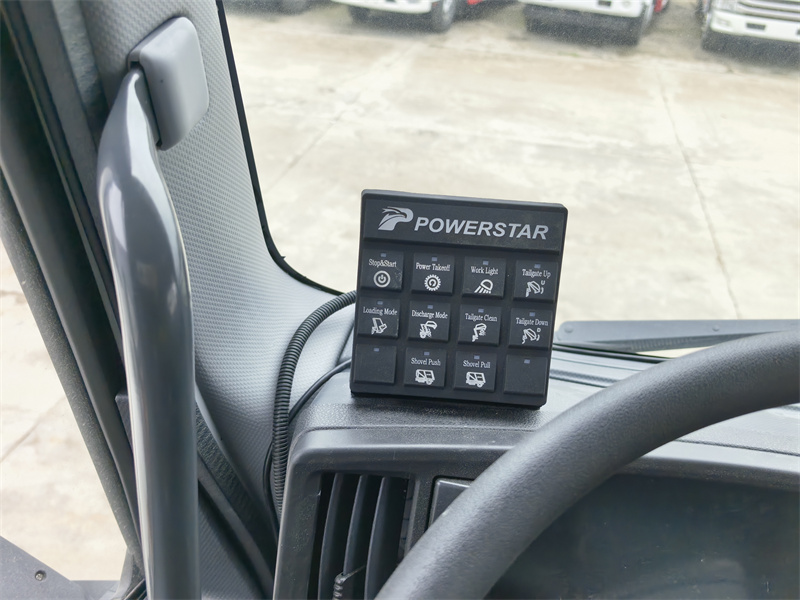

 Cab Electrical Control Box |

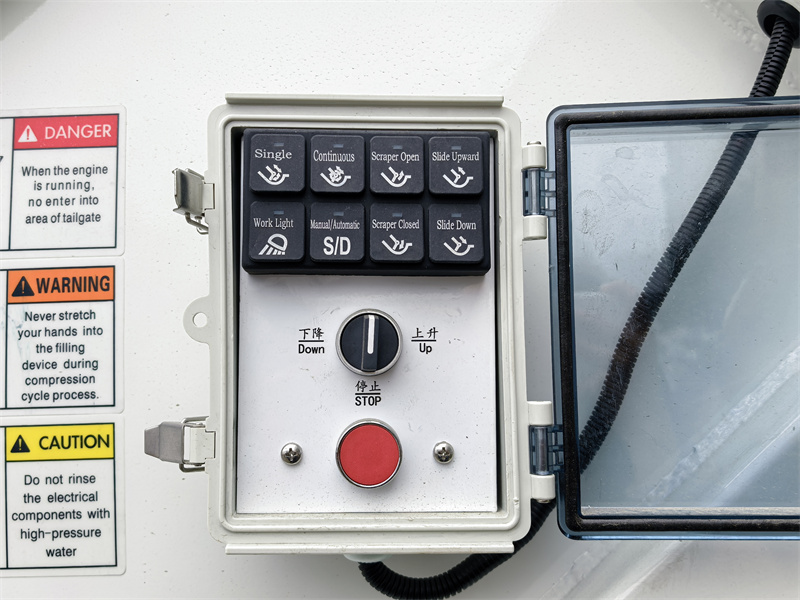

 Tailgate Left Side Electrical Control Box |

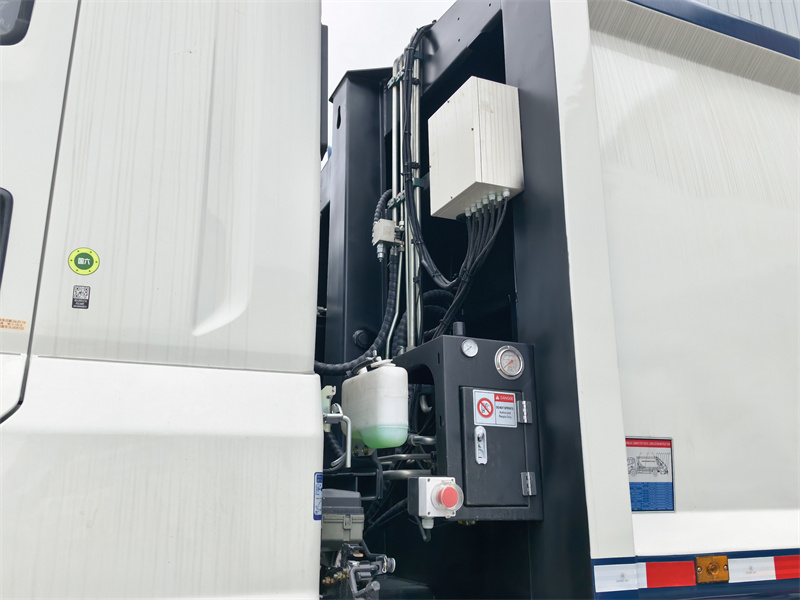

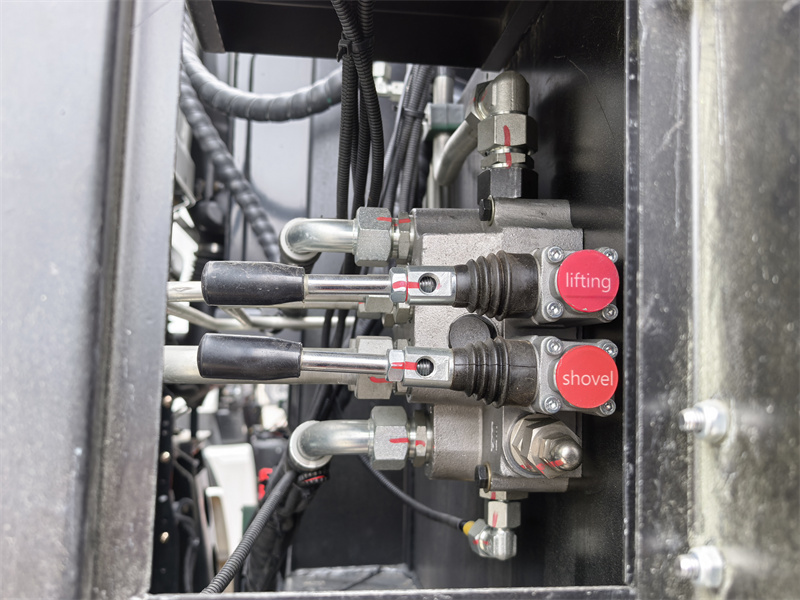

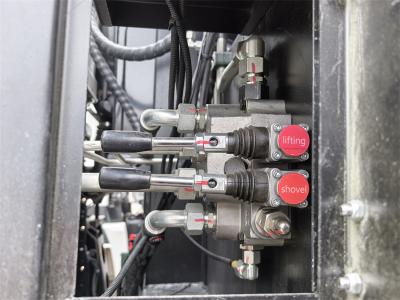

 Driver's Side Manual Operating Valve |

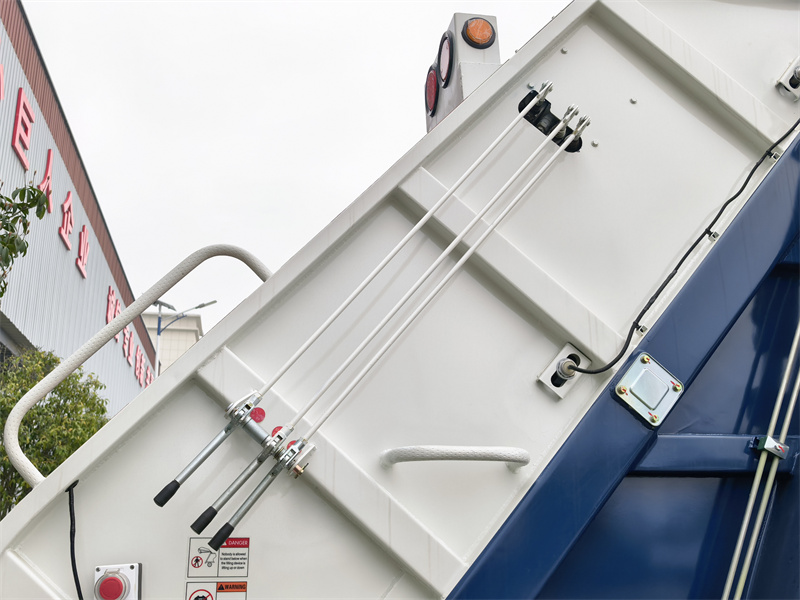

 Tailgate Right side Manual Operating Lever |
