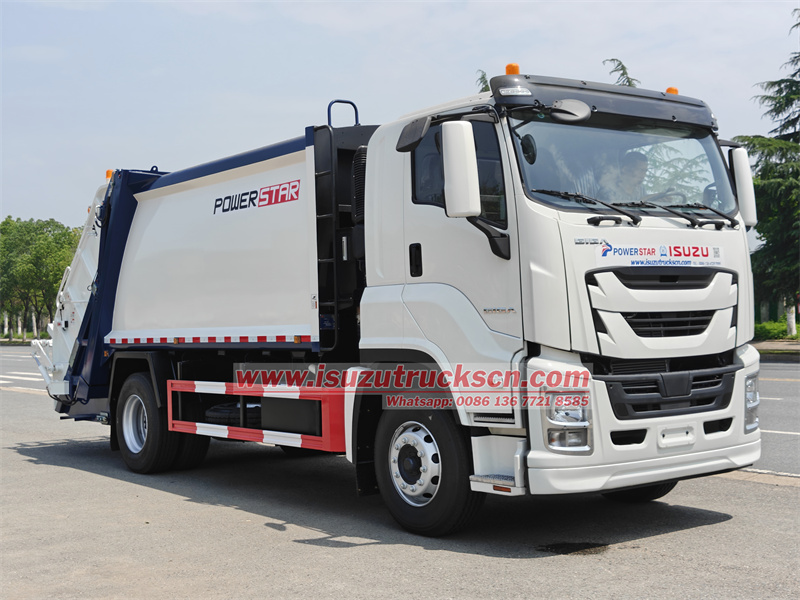

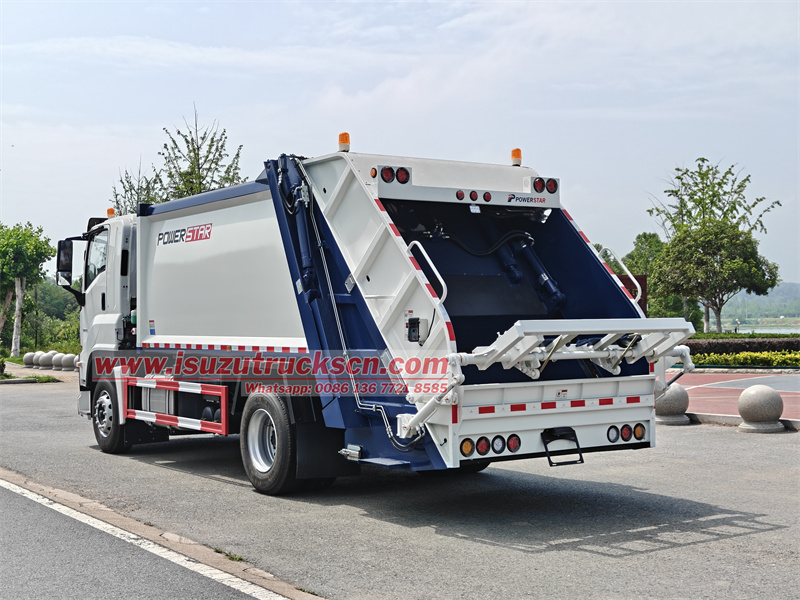

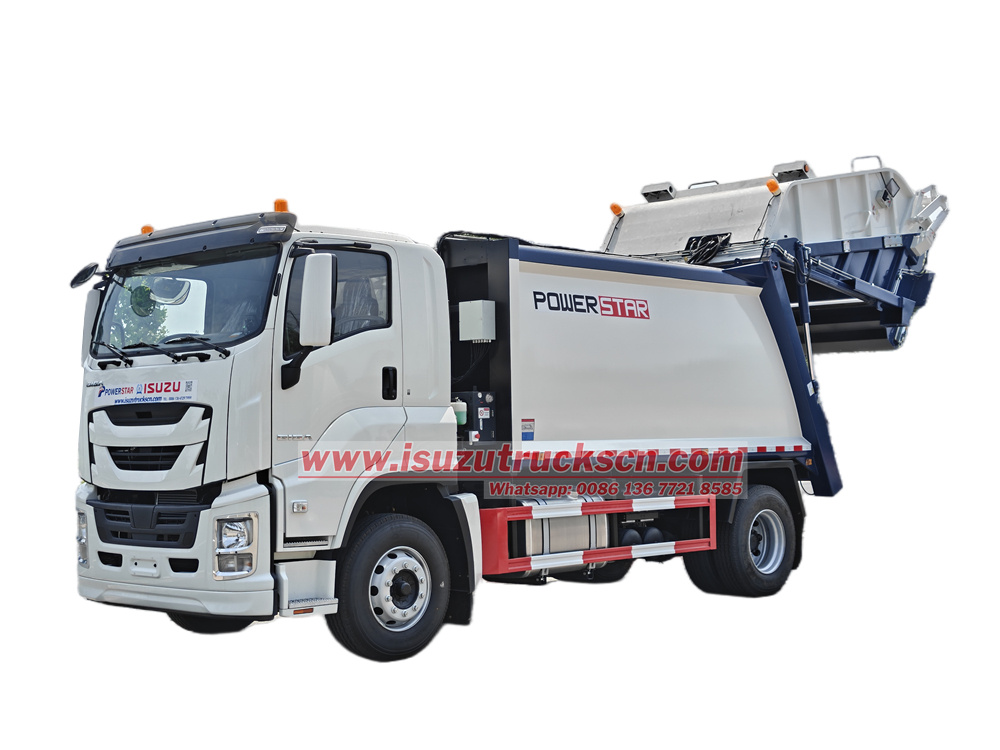

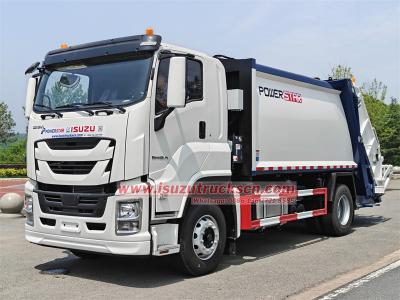

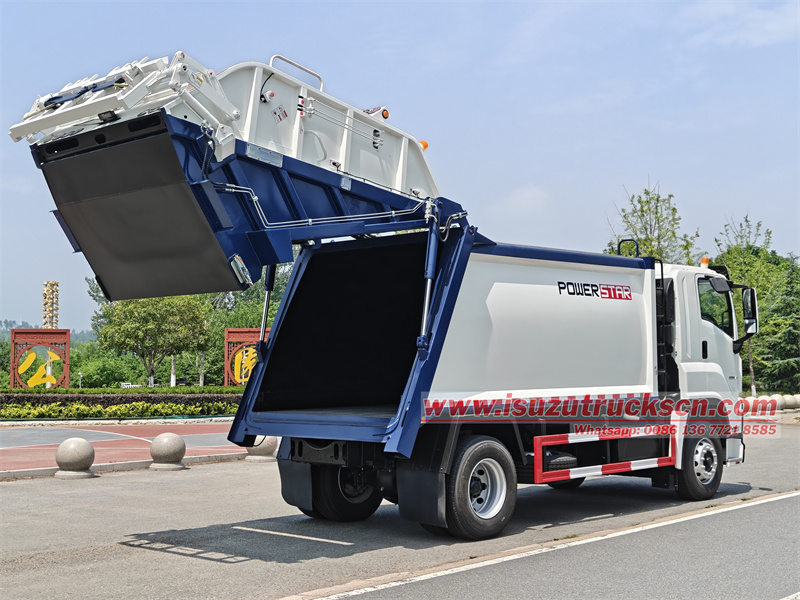

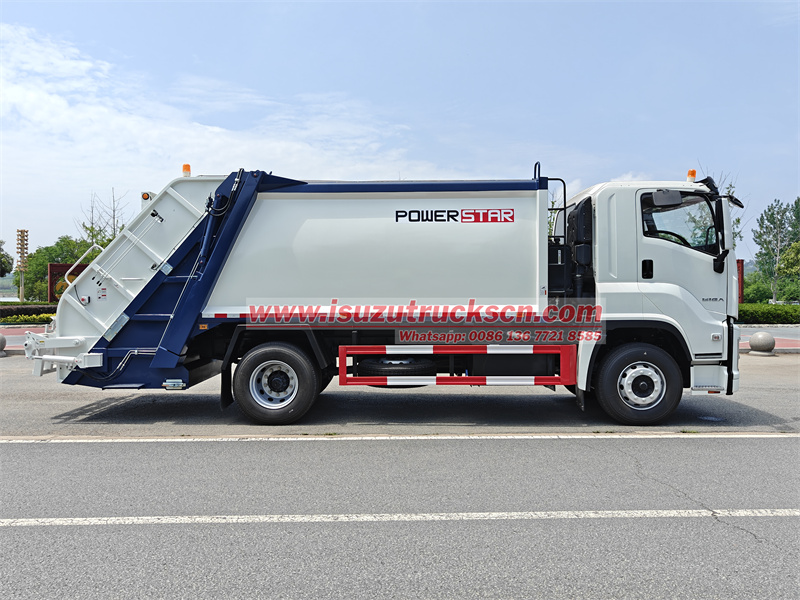

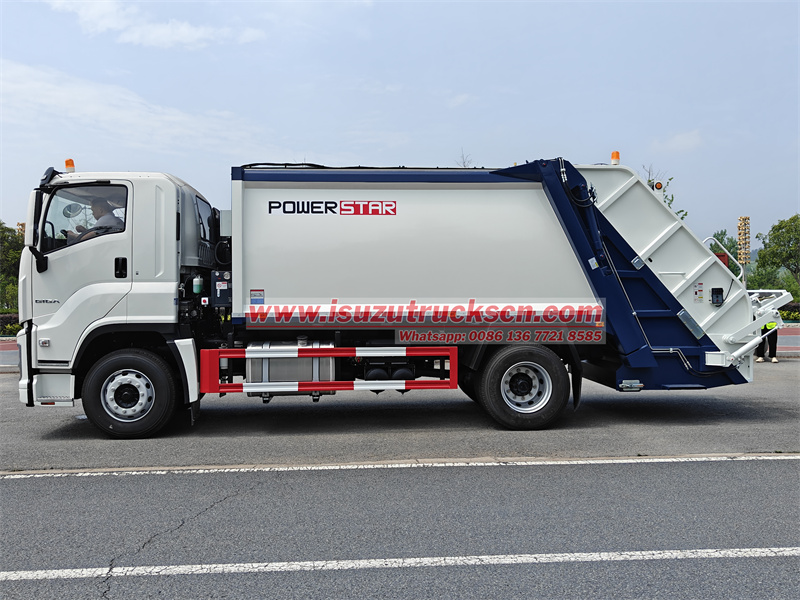

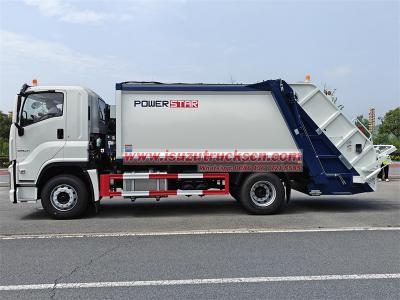

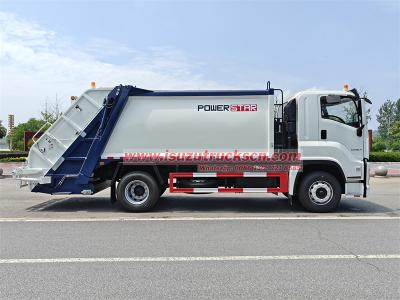

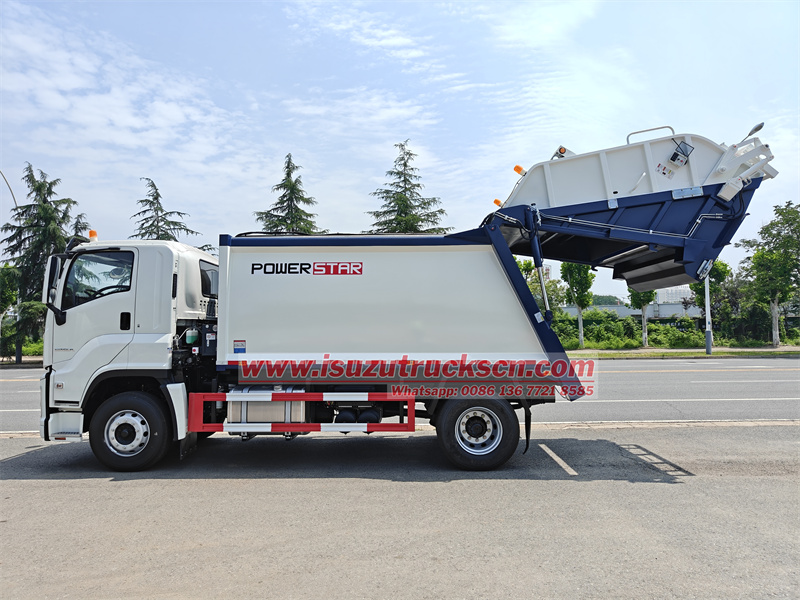

Isuzu FVR 14 cubic rear lifting garbage truck adopts Isuzu FVR GIGA 5X cab chassis, 4500mm wheelbase, equipped with Isuzu 6HK1-TCG61 240HP engine, Fast 8-speed gearbox, the upper body is a 14 cubic arc-shaped carbon steel box, 5mm side and 6mm bottom thickness, tail bucket flip mechanism, the loading and unloading of the vehicle is controlled by the cab electronic control box, the manual hydraulic operating lever on the driver's side, the electric control box on the left side of the tailgate, and the manual operating lever on the right side of the tailgate. The entire operation is controlled by the CAN-BUS integrated electronic control system, gas system and hydraulic system.
Manufacturer:
Powerstar TrucksWork capacity:
14cbmDimension:
9090 x 2510 x 3300 mmCabin type:
Isuzu NEW FVR GIGA 5X cabinWheelbase:
4500mmEngine power:
240HP/177 KWEngine type:
Isuzu 6HK1-TCG61Axle drive:
4x2,LHDGear box:
FAST 8-speed,manualRemarks:
4X4,RHD availableMorocco Giga 18tons refuse compactor is designed for urban sanitation with high efficiency, reliability and intelligence as the core. It is equipped with Isuzu 6HK1-TCG61 engine and Fast 8-speed gearbox, which is powerful and fuel-efficient; the 14 cbm arc-shaped carbon steel compaction bin is equipped with bidirectional compaction technology, with a compaction density of 0.6-0.8t/m³, and the single-trip transportation volume is increased by 30%. The sealing structure effectively prevents secondary pollution. In terms of operation, it integrates the cab electronic control box, the manual hydraulic operating lever on the driver's side, and the tailgate dual operating area (electronic control + manual operating lever), supports automatic/manual mode switching, emergency stop and multi-mechanism linkage, and takes into account efficiency and safety. The vehicle realizes the automation of the entire process of loading, compression and unloading through the CAN-BUS bus system, hydraulic drive and pneumatic system assistance, and optimizes the cooling system and sealing performance for the high temperature and dust environment in Morocco to meet the needs of the local market.
● China best Isuzu rear loader truck factory
● 30 years experience on garbage compactor truck designing
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Efficient compaction: 14 cubic meters of large capacity + high-strength box, compaction density of 0.6-0.8t/m³, single-trip transportation volume increased by 30%, reducing the frequency of round trips. Bidirectional compression technology, garbage filling is more uniform, avoiding local cavities.
2. Intelligent control: CAN-BUS system, air system, hydraulic system integrated operation, manual/automatic mode seamless switching, adapt to different operating habits and working conditions.
3. Reliable and durable: carbon steel compaction bin + Isuzu chassis, adapt to high-intensity operations.
4. Flexible adaptation: The bucket hanging mechanism is suitable for the Moroccan community trash can standard.
Rear loader compactor truck also called garbage compactor truck,rear lifting compactor truck,trash compactor truck, truck mounted garbage compactor, rear load dumpster truck,is a special vehicle designed for waste management and sanitation purposes.
» Ⅱ.Product Parameter for Isuzu FVR rear loader truck:
|
Isuzu FVR 14cbm waste compactor truck |
||
|
Truck model |
PT5180ZYS |
|
|
Cabin |

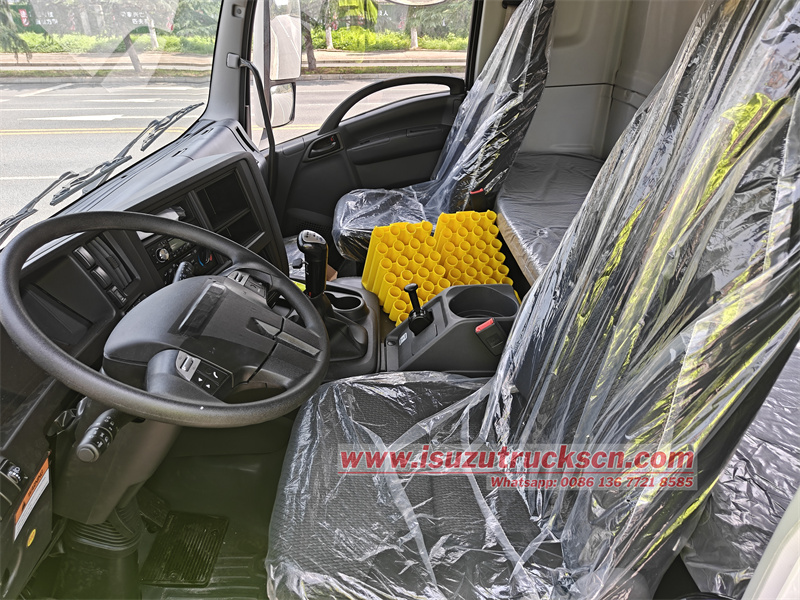

Isuzu NEW FVR GIGA 5X cabin,one and half row,3 passengers, air conditioner,USB |
|
|
Overall Size |
9090*2510*3300 mm |
|
|
Bin capacity |
14CBM |
|
|
Wheel base |
4500mm |
|
|
GVW |
18000kg |
|
|
Curb weight |
11420kg |
|
|
Axle loading |
6500/11500kg |
|
|
Engine |
Model |
Isuzu 6HK1-TCG61 |
|
Type |
4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Hose Power(HP) |
240HP/177 KW |
|
|
Displacement |
7.79ml |
|
|
Max torque |
850N.m |
|
|
Emission standard |
Euro 6 |
|
|
Max speed |
105km/h |
|
|
Tire |
295/80R22.5(6+1 tire) |
|
|
Transmission |
FAST 8-speed,manual |
|
|
Superstructure |
Body capacity |
14cbm |
|
Box material |
Side 5mm,bottom 6mm |
|
|
Design |
Whole unit with Leakage Proof Design |
|
|
Sewage tank |
200 liters |
|
|
Filling work cycling time |
45~60 s |
|
|
Garbage Compact Ratio |
≥3:1 |
|
|
Discharge model |
Horizontal Ejection |
|
|
Control system |
CAN electric automatic control, pneumatic system, and hydraulic system control |
|
|
4 operate modes |
Cab electric control box,drive side manual joystick,tailgate electric control box,tailgate manual operation lever |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,handrail, fire extinguisher, basic tool kit, English manual... |
||
|
Electrics |
Operating voltage:24V,negative grounded Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
|
» Ⅲ. Product Details & Advantages:
★. Vehicle configuration
1. Chassis: Isuzu Euro VI new FVR GIGA 5X cab, wheelbase 4500mm.

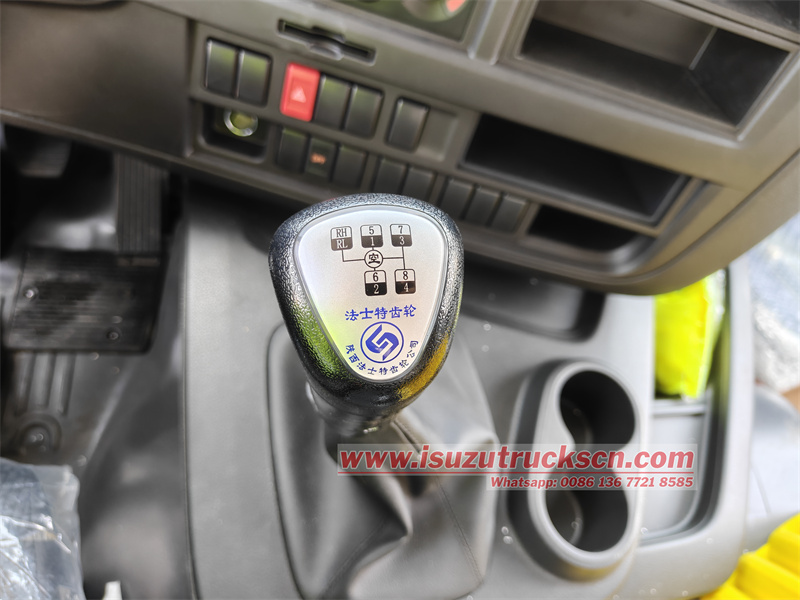

2. Power: Equipped with 6HK1-TCG61 engine, 240 horsepower, matched with Fast 8-speed gearbox.

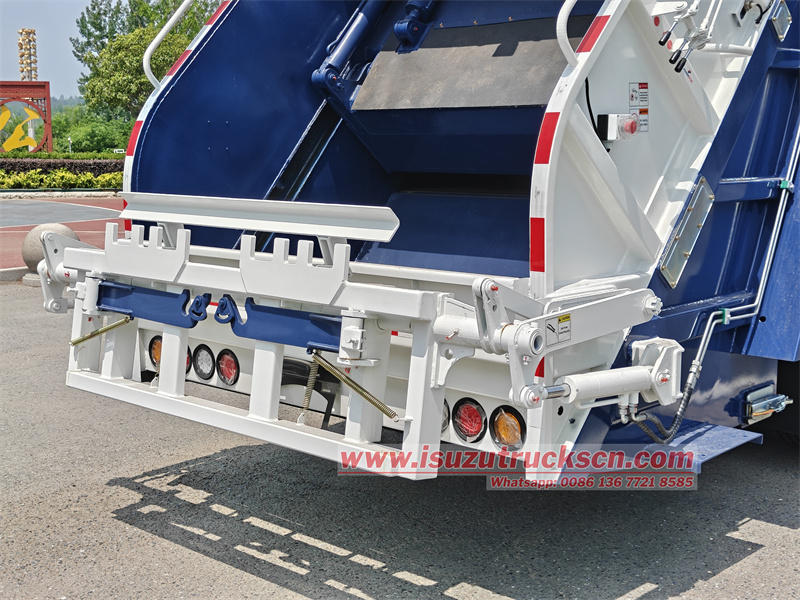

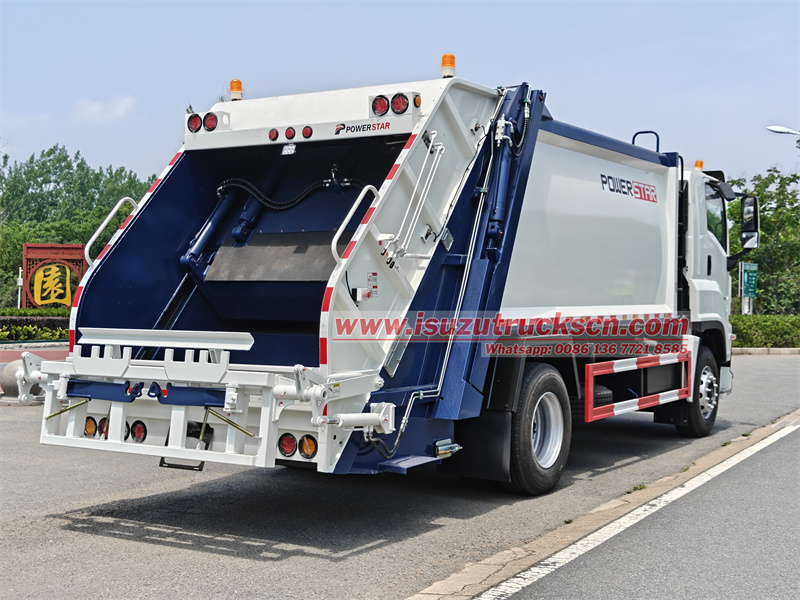

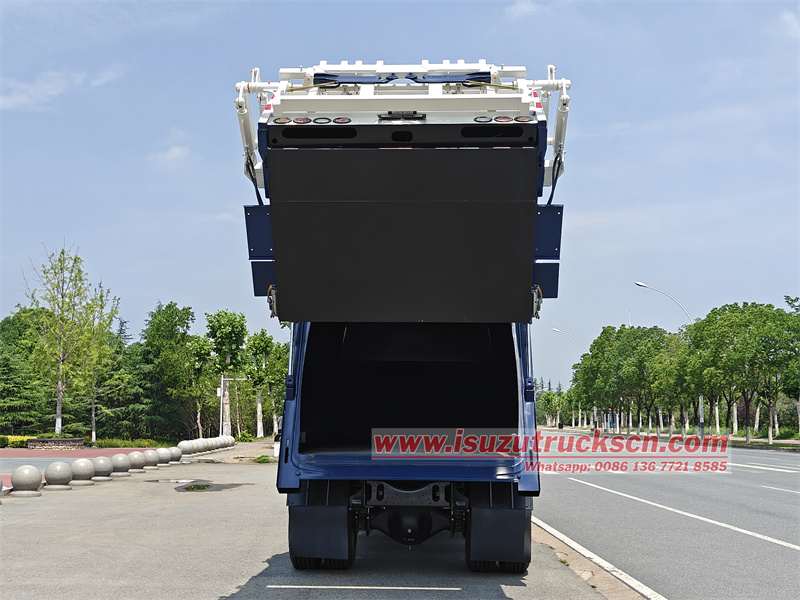

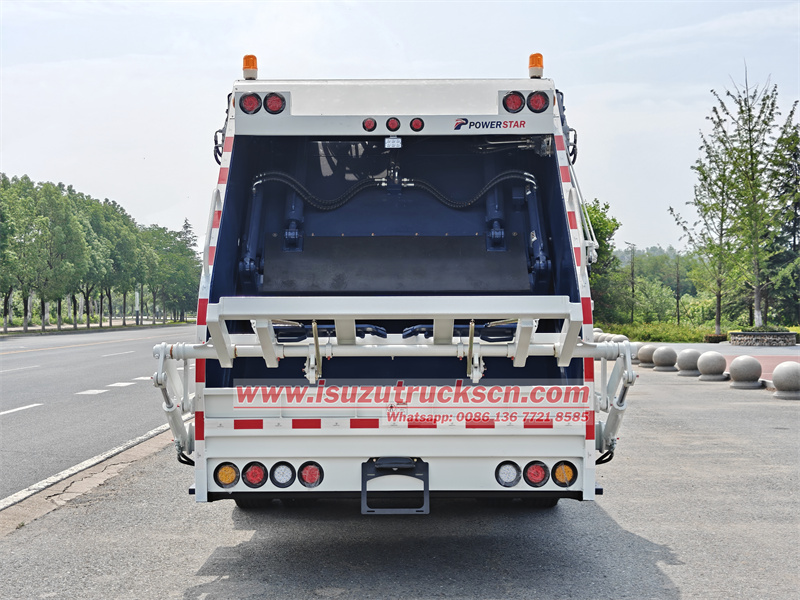

3. Upper body: 14 square arc-shaped carbon steel box (side 5mm/bottom 6mm), anti-corrosion treatment, arc-shaped design to improve compression efficiency.The tail bucket flip mechanism can hang international standard 120L, 240L, 660L and other garbage cans.
★. Operation control

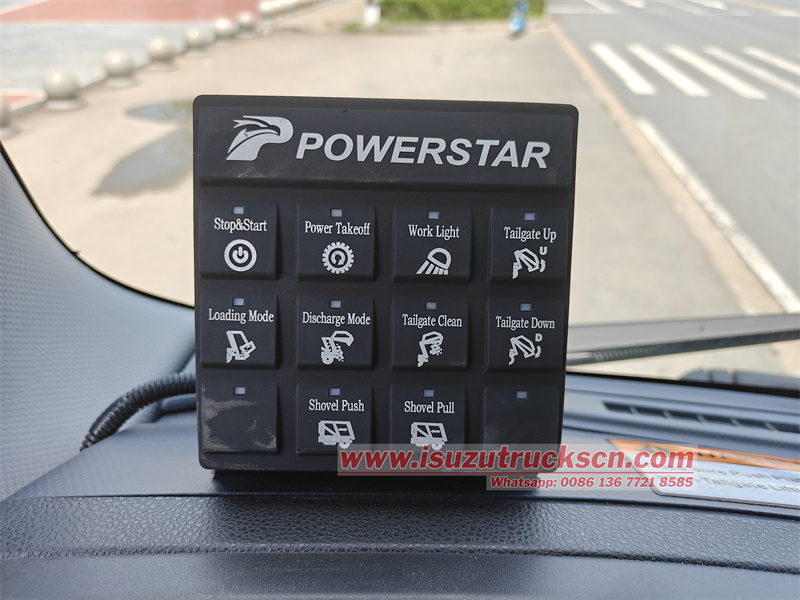

1. Cab electronic control box:
Integrated power switch, power take-off control, work light, tailgate lifting, loading/unloading mode switching, push shovel push out/retract, tailgate cleaning and other functions.

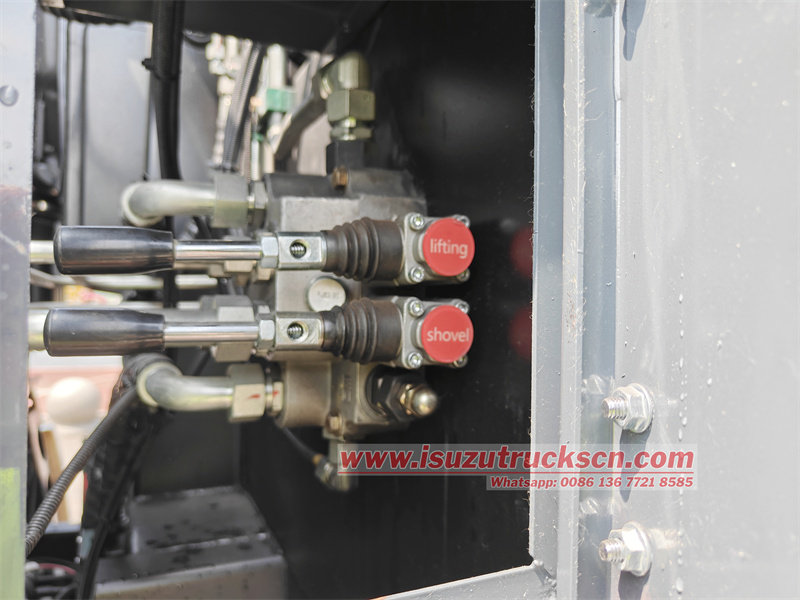

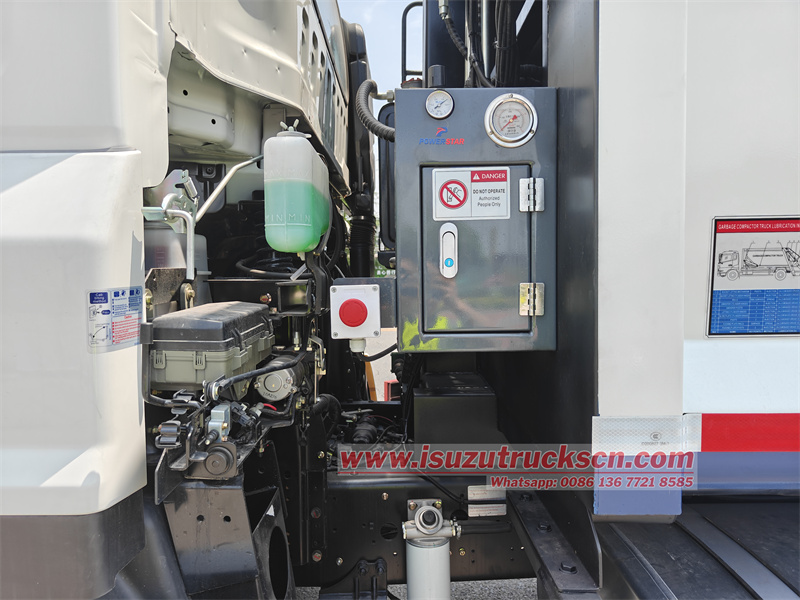

2. Driver side manual hydraulic lever:
Control push shovel push out/retract, tailgate lifting and other operations, can be operated on the ground.

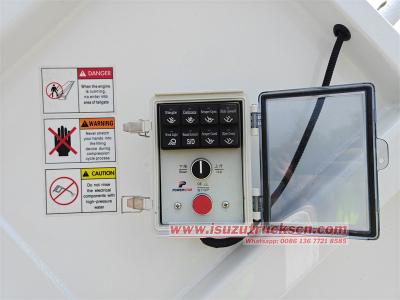

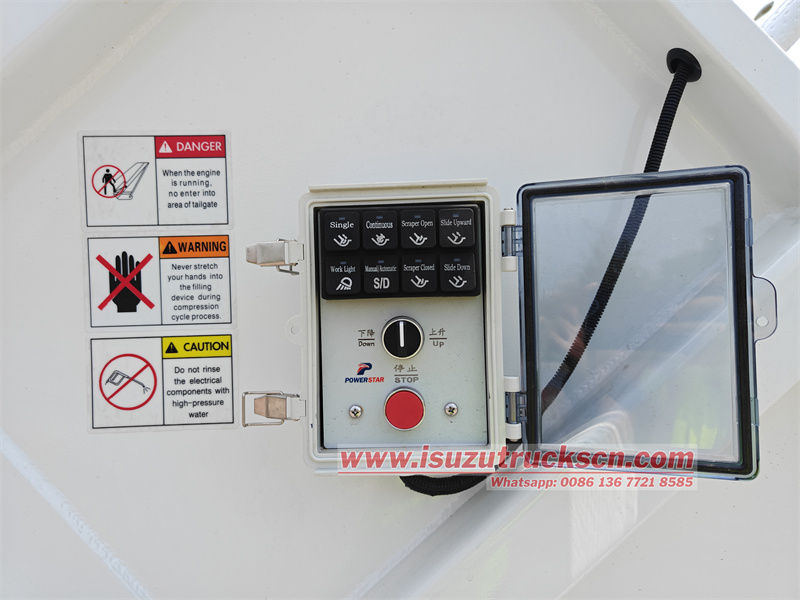

3. Electric control box on the left side of the tailgate:
▪ Switch between single and cycle operation modes.

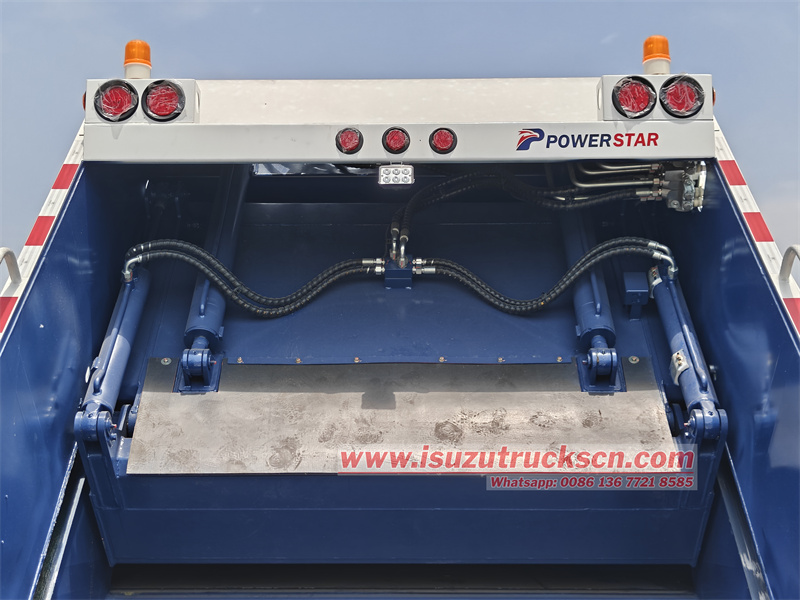

▪ Control the linkage of the scraper (press down/spin up) and the slide plate (up and down).
▪ Support manual/automatic mode, with a flip knob for the flip mechanism and an emergency stop function.

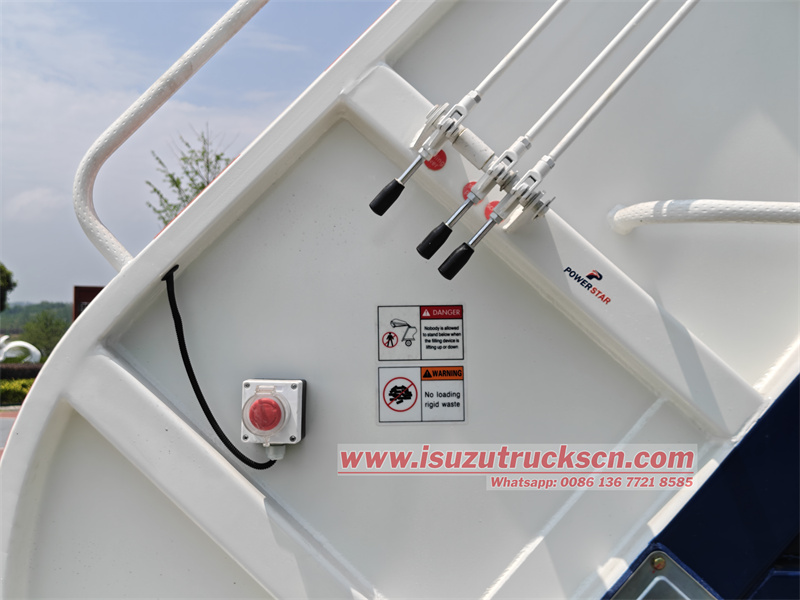

4. Manual operation lever on the right side of the tailgate:
▪ Directly control the flip mechanism (dumping), slide plate lifting, and scraper opening and closing.
Integrated control system:
CAN-BUS electronic control system, coordinated with hydraulic and air system, to achieve precise operation.
★. Application in the Moroccan market
1. Urban garbage collection and transportation: Adapt to narrow streets and efficiently handle garbage in residential and commercial areas.
2. Environmental protection: Isuzu FVR 14 cubic compression garbage truck has strong sealing, which can effectively inhibit the spread of odor and sewage leakage.
3. High temperature resistant design: The engine and hydraulic system are suitable for the North African climate.
4. Low maintenance cost: Isuzu chassis is mature and reliable, reducing operating pressure.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» Ⅳ.Professional Design and Production:
1. POWERSTAR R & D Department for design:

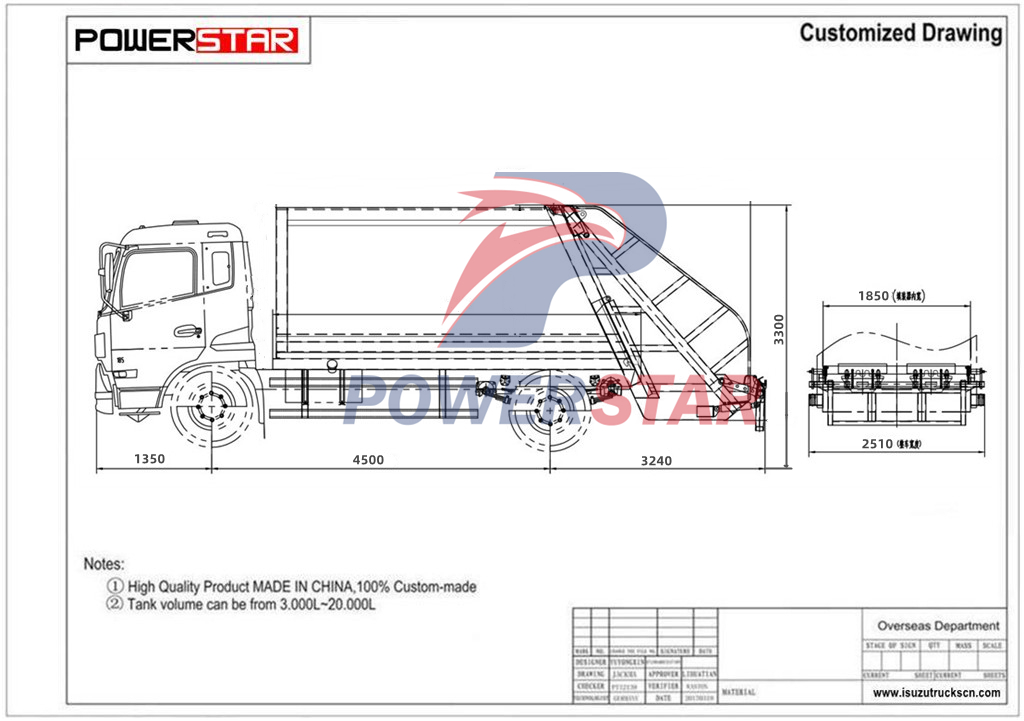

100% customized appearance, design the compactor bin capacity, operation methods and location, also the whole truck size can be customized.
2. Working principle for production:
1. Hydraulic drive system
• The engine power is transmitted to the oil pump through the power take-off and the transmission shaft to generate high-pressure oil (system pressure ≥ 26MPa).
• Hydraulic oil is distributed to each cylinder through a multi-way reversing valve to drive the scraper, slide plate, push shovel and other mechanisms to complete loading, compression and unloading actions.
2. Electronic control integrated system
• The CAN-BUS bus integrates the cab and tailgate electronic control box signals to achieve mode switching, action linkage and fault diagnosis.
• The air system assists the tailgate locking and lifting mechanism to ensure operational safety.
» Ⅴ.Factory Testing:
» Ⅵ.Batch delivery:

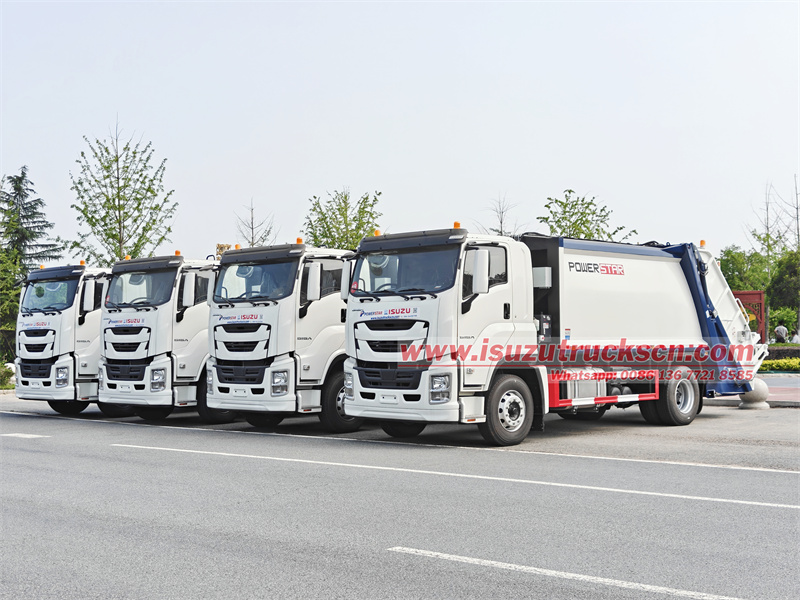

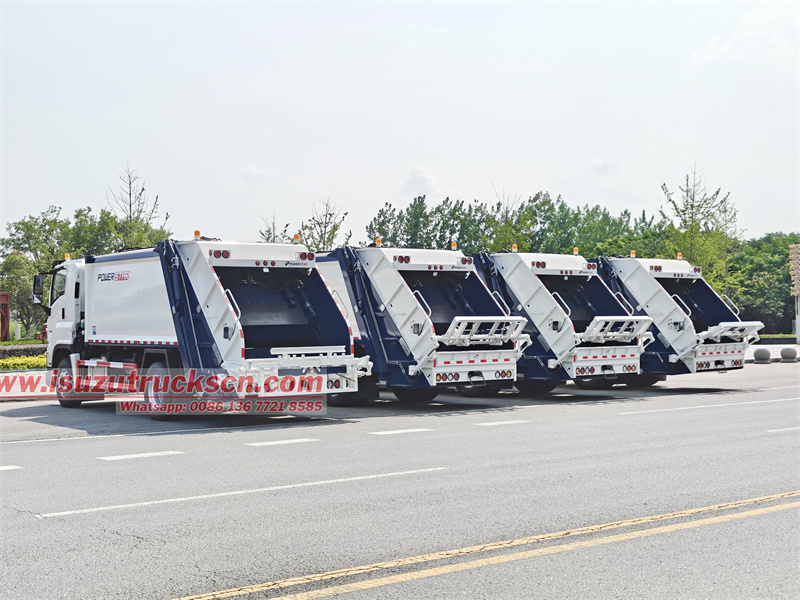

4 units Isuzu FVR 14CBM exported to Morocco
