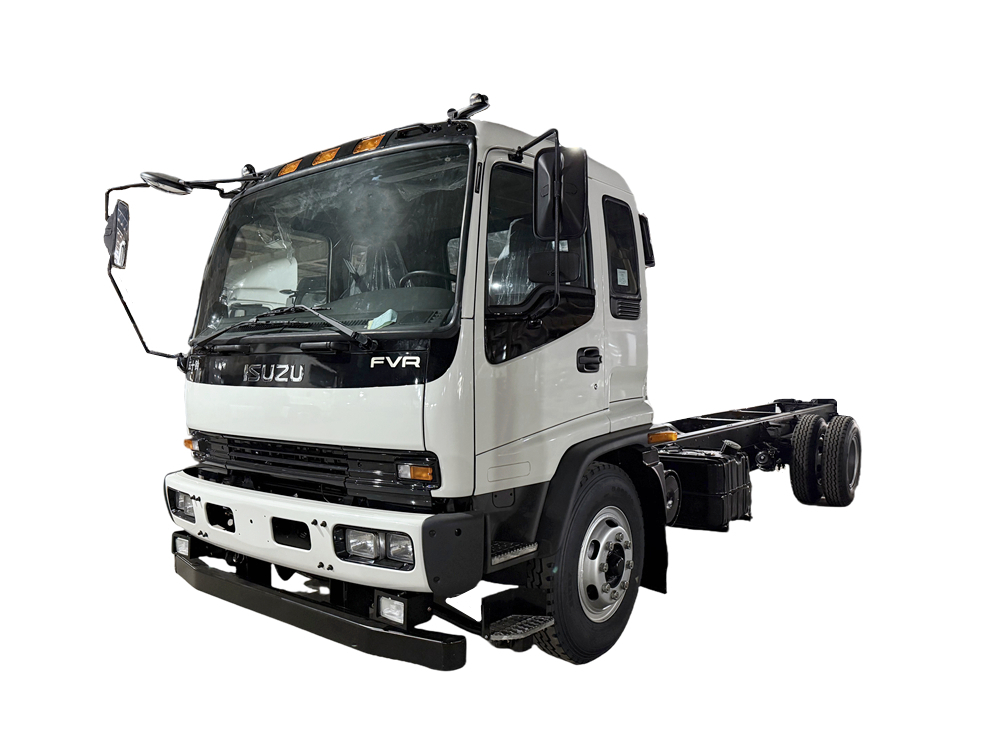

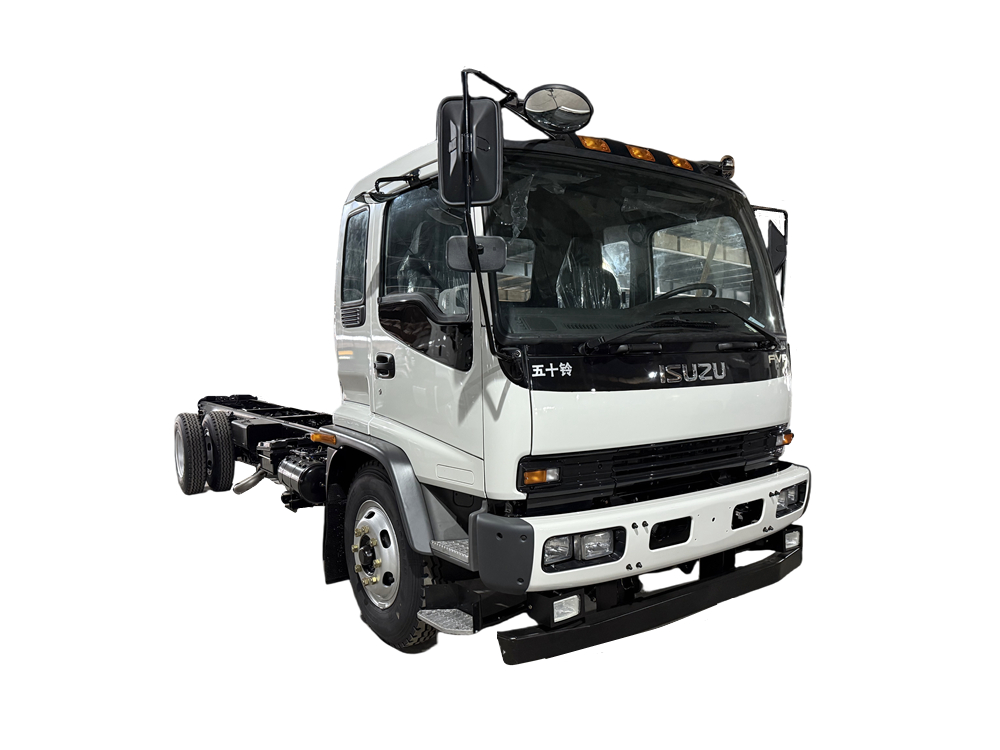

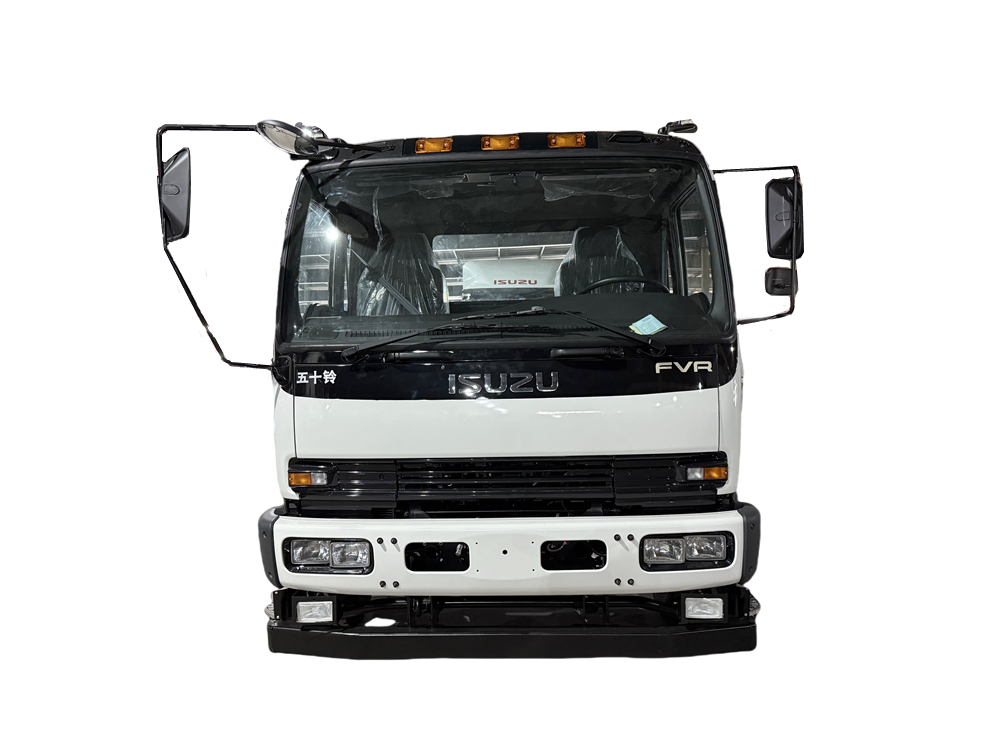

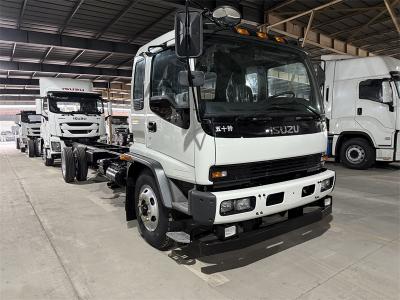

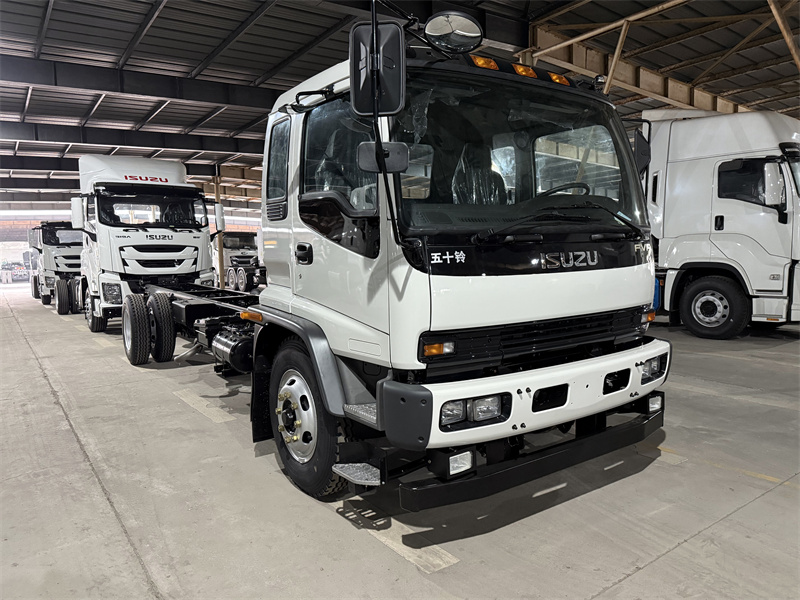

The Isuzu FVR Euro V chassis features a 4,500mm wheelbase, a gross vehicle weight of 18 tons, and a kerb weight of 5.5 tons. It is equipped with an Isuzu 6HK1-TCL engine and an MLD 6-speed manual transmission. The front and rear overhangs measure 1,335mm and 1,735mm respectively, with front/rear track widths of 1,960mm and 1,855mm, and 9.00R20 tires. This chassis is highly adaptable for modifications into various specialized vehicles.
MarketPrice:
$12000Manufacturer:
Powerstar TrucksWork capacity:
10～15 tonsDimension:
7570 × 2490 × 2810 mmCabin type:
Isuzu FVR GIGA Euro 5 cab,with A/CWheelbase:
4500 mmEngine power:
177Kw / 240HPEngine type:
Isuzu 6HK1-TCLAxle drive:
4x2Gear box:
Isuzu MLD 6-speed,manualThe 2026 new Isuzu FVR truck in stock features a 4500mm wheelbase and an 18-ton gross vehicle weight. It is equipped with a 6HK1-TCL 300hp engine and an MLD 6-speed transmission, offering strong power and excellent fuel economy. It provides excellent load-bearing capacity and adaptability for modification, and can be quickly converted into various specialized vehicles such as compactor garbage trucks, water trucks, fire trucks, tow trucks, and truck-mounted cranes.
▶ Features:

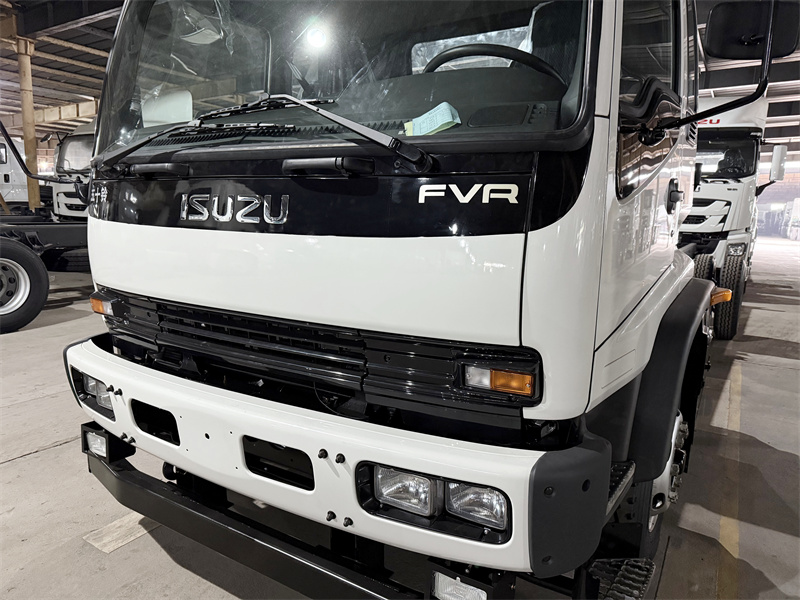

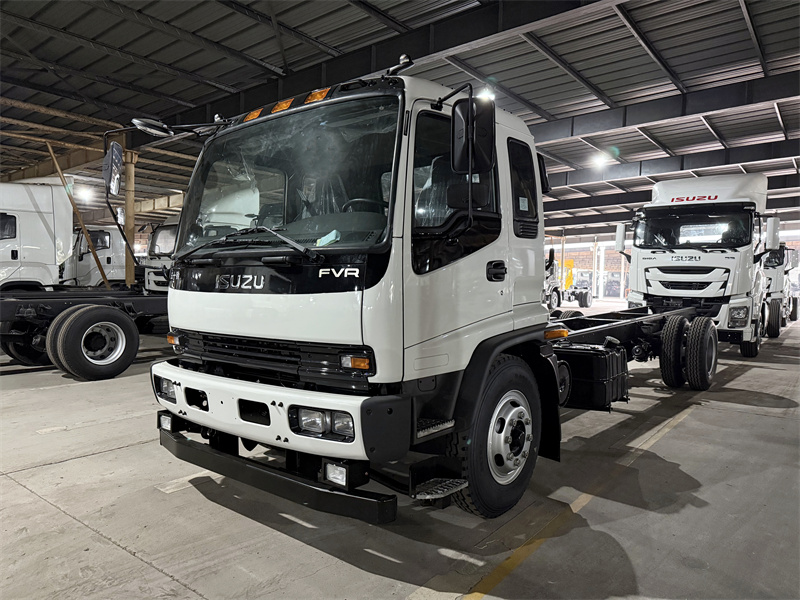

★ Isuzu FVR GIGA 4x2 type,perfect performance
★ Isuzu 6HK1-TCL 240HP engine, super powerful; reliable performance, no overhaul within 100,000 km.
★ Payload capacity 15 tons
★ Suitable for modification of various special vehicles
▶ Product Parameters:
|
Isuzu FVR GIGA 4x2 chassis |
||
|
Vehicle Model: |
PT1180FRY |
|
|

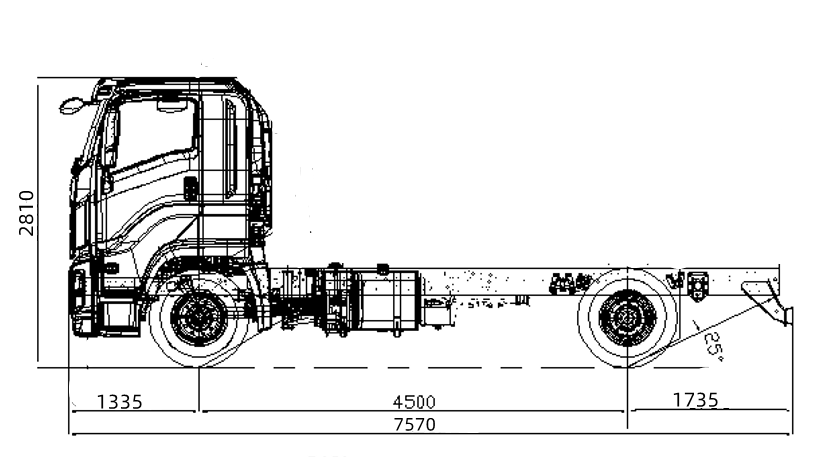

Dimensions and Parameters |
Overall Dimension(L x W x H) |
7570×2490×2810mm |
|
Wheelbase: |
4500mm |
|
|
Front/ Rear Wheel Distance: |
1960/1855mm |
|
|
Front/Rear Suspension: |
1335/1735mm |
|
|
Rear Axle Ratio: |
5.571 |
|
|
Leaf Spring: |
9/7+7 |
|
|
Weights and Capacities |
GVW: |
18000kg |
|
Curb Weight: |
5500kg |
|
|
Payload: |
12500kg |
|
|
Axle Loads: |
6500/11500kg |
|
|
Engine |
Engine Model: |
6HK1-TCL |
|
Max output: |
177Kw/240HP |
|
|
Displacement: |
7790ml |
|
|
Emission standard |
Euro 5 |
|
|
Transmission |
Transmission: |
Isuzu MLD 6-speed,manual |
|

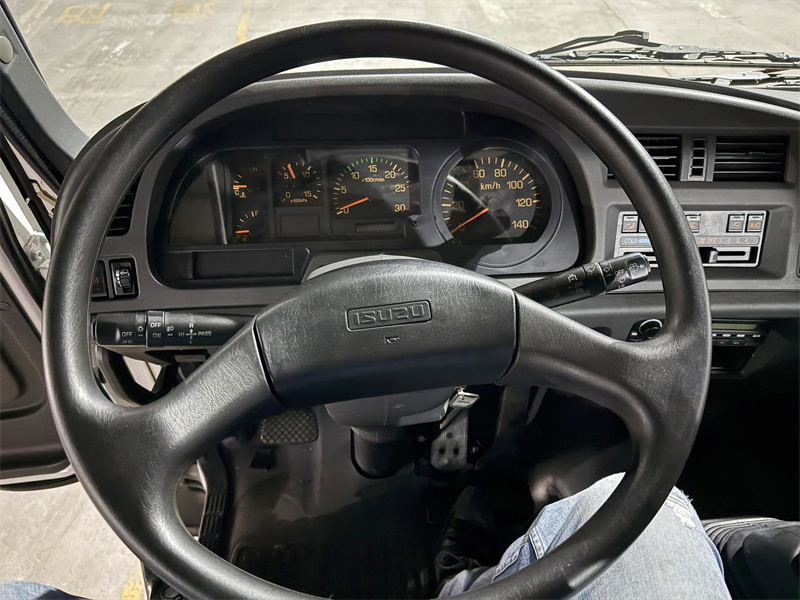

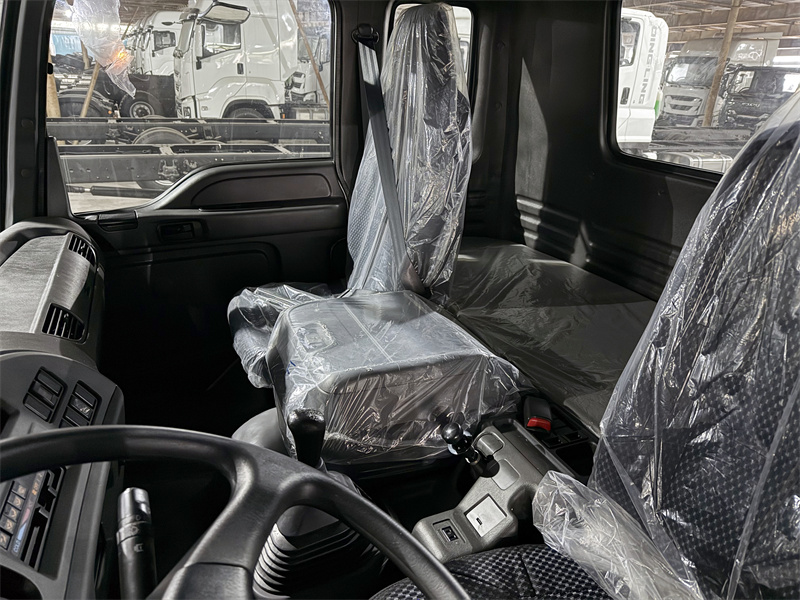

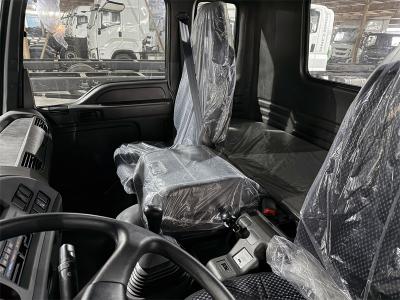

Cab |
Number of Seats: |
2 |
|
Brake |
Air brake |
|
|
Chassis |
Drive Type: |
4x2 |
|
Tires: |
7 (Including Spare Tire) |
|
|
Tire Model: |
9.00R20 |
|
|
Max speed |
105km/h |
|
|

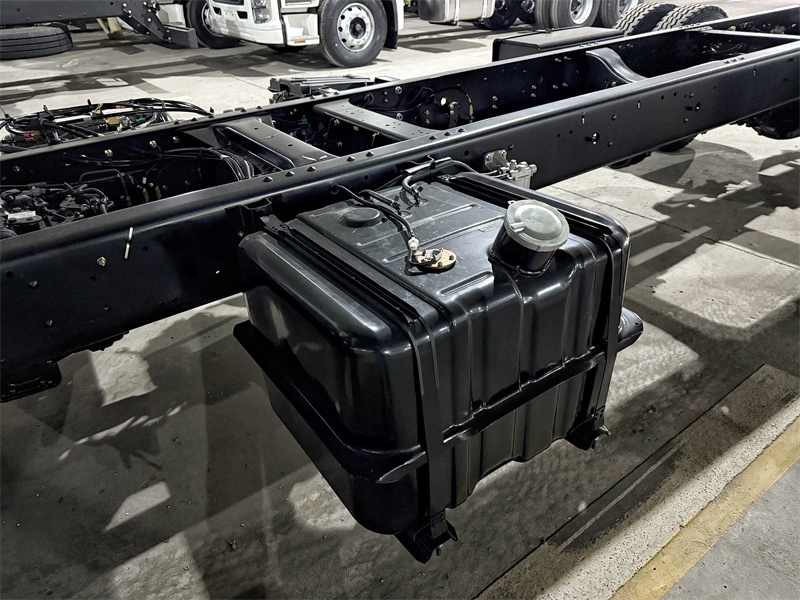

Fuel Tank |
Number: |
1 |
|
Capacity: |
200L |
|
|
Configurations: |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS |
|
|
4 |
Tubeless Tire |
|
|
5 |
Retro-Reflective Marking |
|
|
6 |
Cab Tilting Mechanism |
|
|
7 |
Free Maintenance Battery |
|
▶ Powertrain :

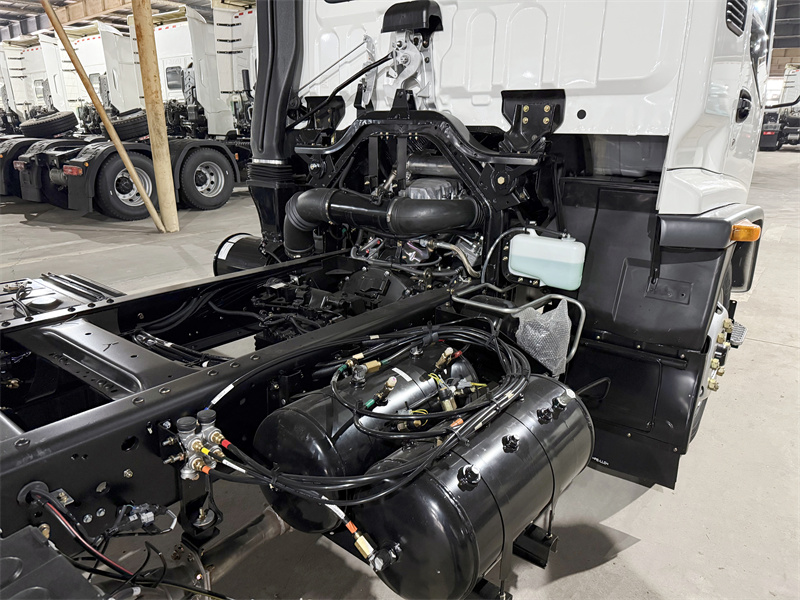

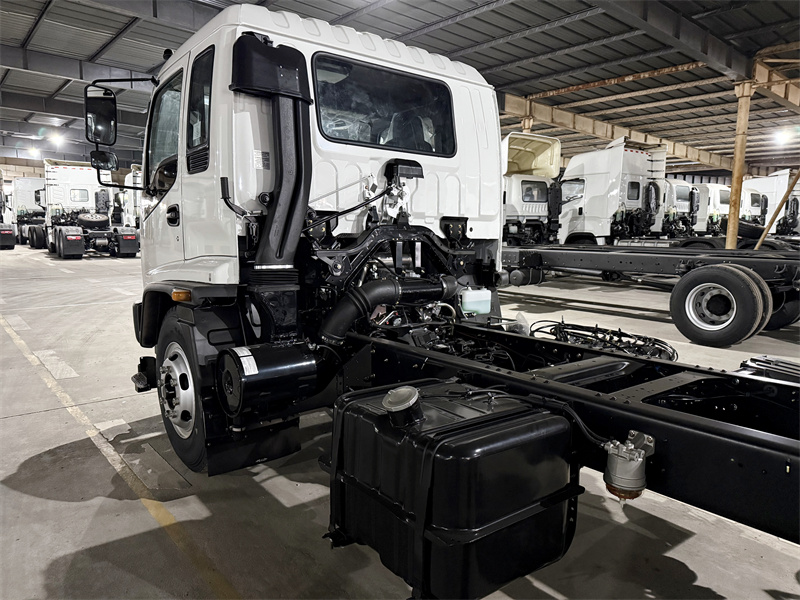

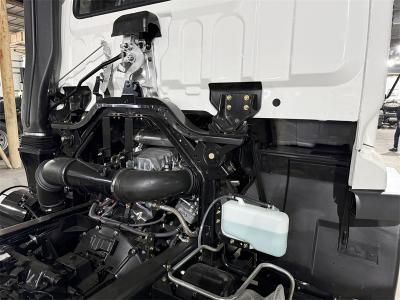

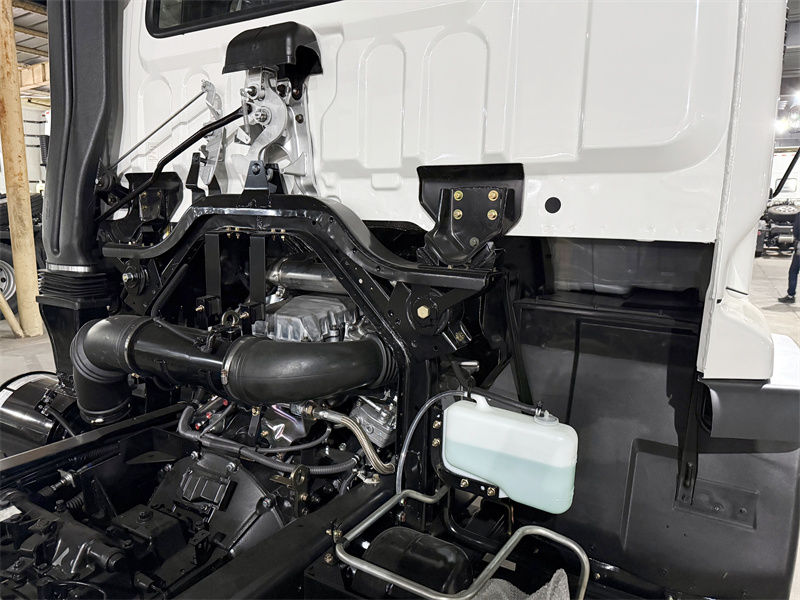

• Engine: Isuzu 6HK1-TCL inline six-cylinder turbocharged intercooled diesel engine. This engine has a displacement of 7.79L, 177kW/240HP, and is known for its low fuel consumption, high reliability, and high torque at low speeds, making it ideal for special-purpose vehicles requiring frequent start-stop operations and continuous operation.
• Transmission: MLD 6-speed manual transmission. The gears are clearly defined, the gear ratios are rationally designed, and it is a mature match for the 6HK1 engine.
▶ Chassis System:
• Wheelbase: 4500mm
• Gross Vehicle Weight: 18 tons
• Curb Weight: 5.5 tons
• Front and Rear Overhang: 1335mm / 1735mm
• Track: Front 1960mm / Rear 1855mm

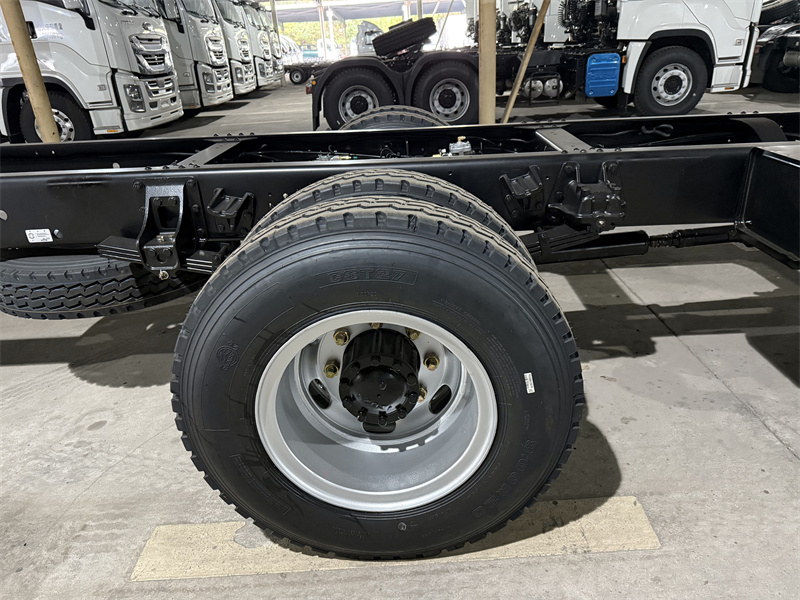

• Tires: 9.00R20 standard radial steel wire tires
• Front and Rear Axles: 6500/11500kg, front axle disc brakes, rear axle drum brakes
• Rear Axle Ratio: 5.571

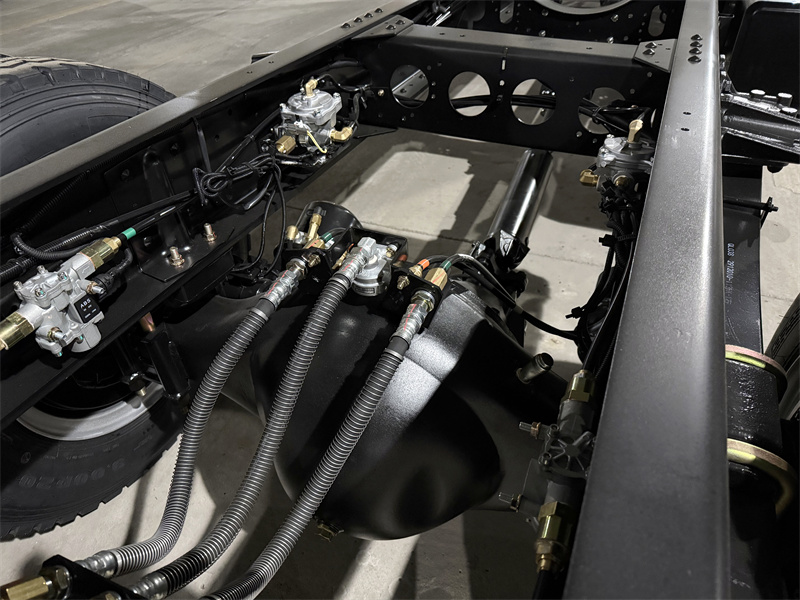

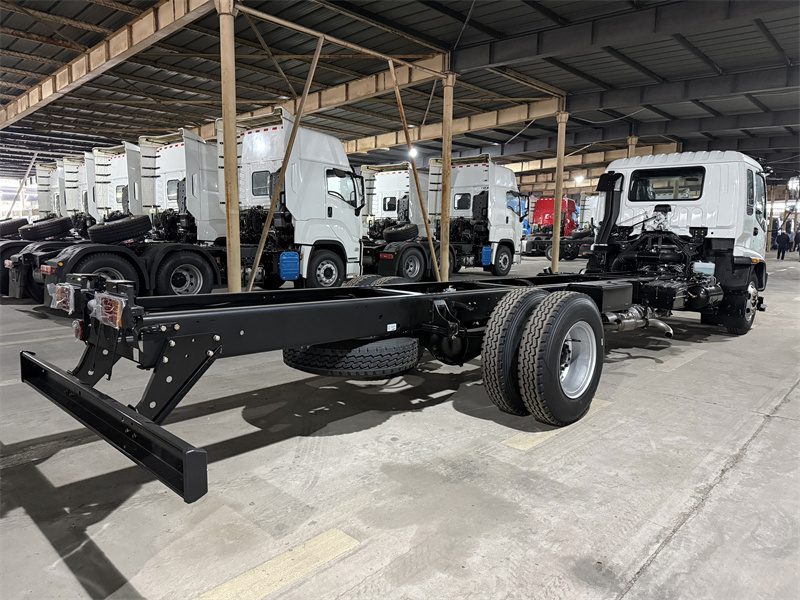

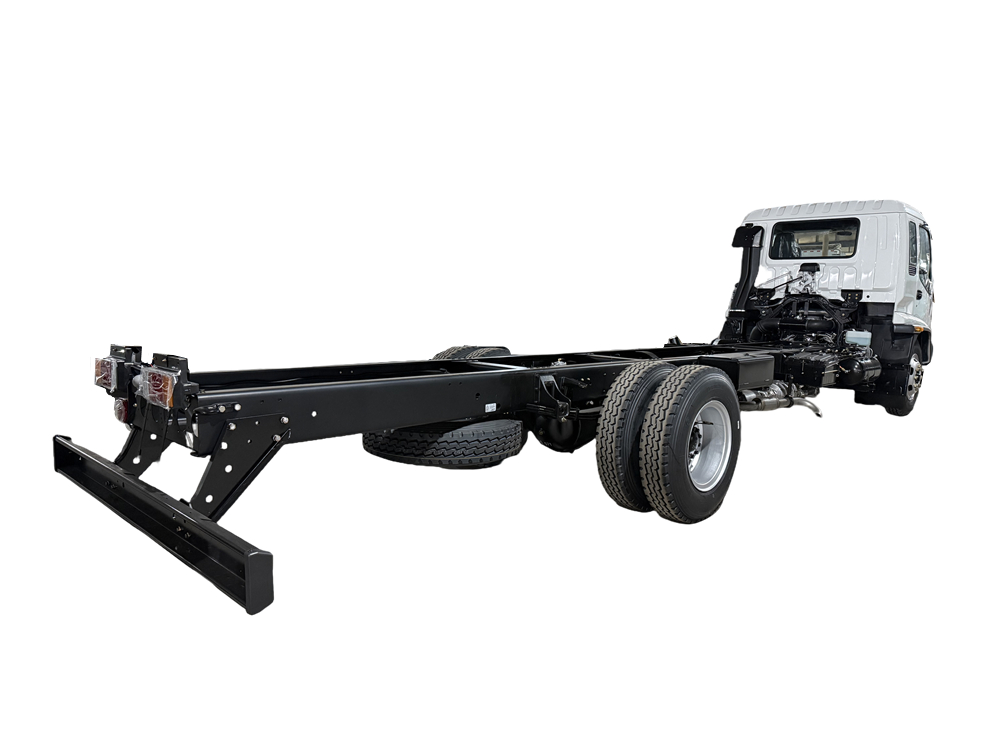

▶ Frame and Suspension System:
Equal Width, Flat Frame: Constructed with high-strength steel, the equal width design facilitates superstructure placement. The frame can be reinforced in certain areas to accommodate different modification needs.
Front and Rear Suspension Configuration: 1335mm front suspension and 1735mm rear suspension, paired with 9/7+7 leaf springs, balancing load-bearing capacity and comfort.
Frame
▶ Braking System:
ABS (Anti-lock Braking System)
Service Braking System Type: Dual-circuit air brake
Parking Braking System Type: Spring-charged air brake
Auxiliary Braking System Type: Engine exhaust brake
▶ Suitable vehicle modification types:
Based on its 18-ton gross vehicle weight, 4500mm wheelbase, and powerful engine, this chassis is ideally suited for conversion into the following types of specialized vehicles:
1. Sanitation and Municipal Vehicles

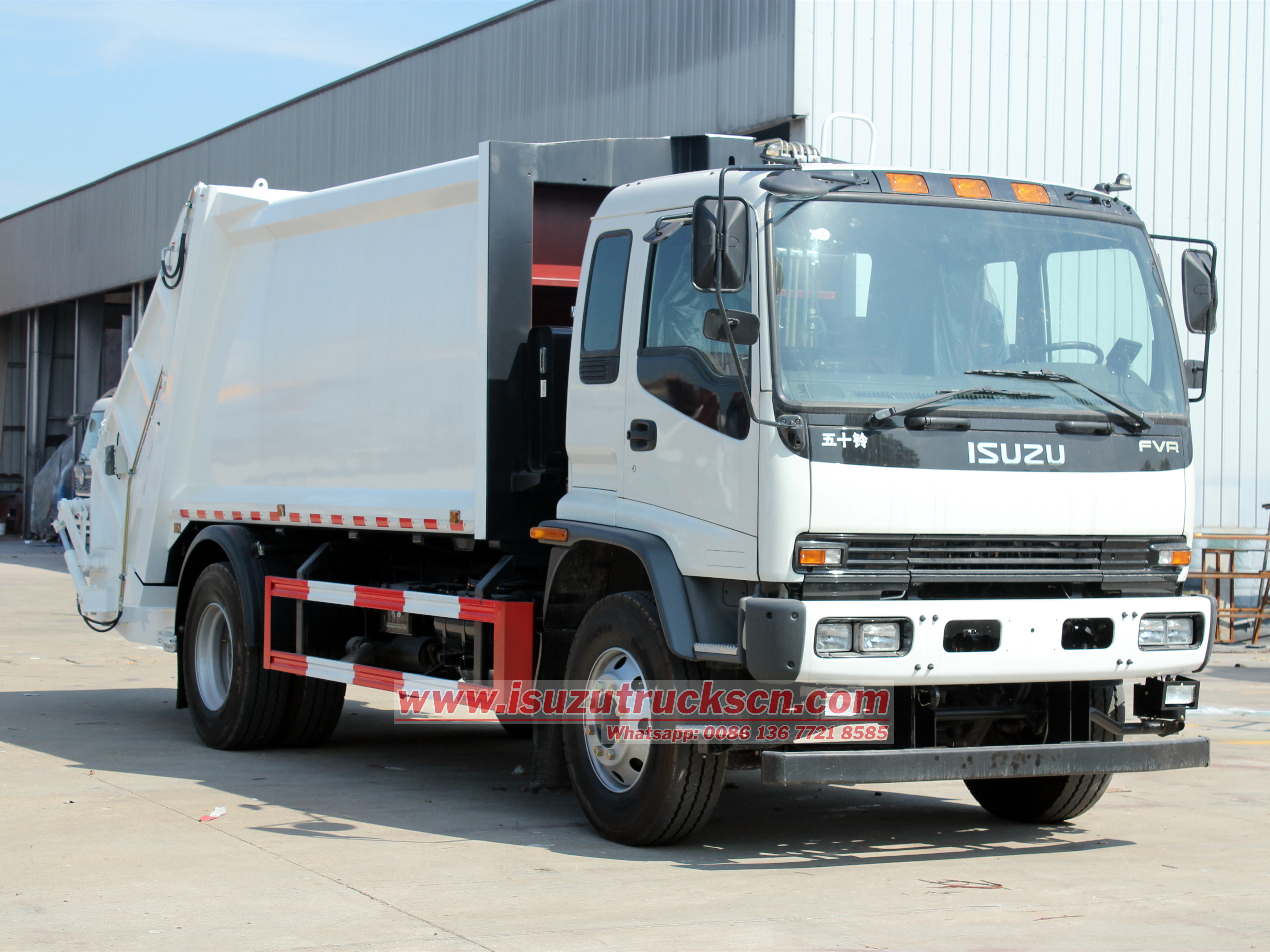

Garbage Compactor Trucks: High load-bearing capacity, adaptable to medium to large compactor garbage containers.
Water Sprinkler Trucks: Can be equipped with 8-12 ton water tanks to meet the needs of urban road watering and landscaping.

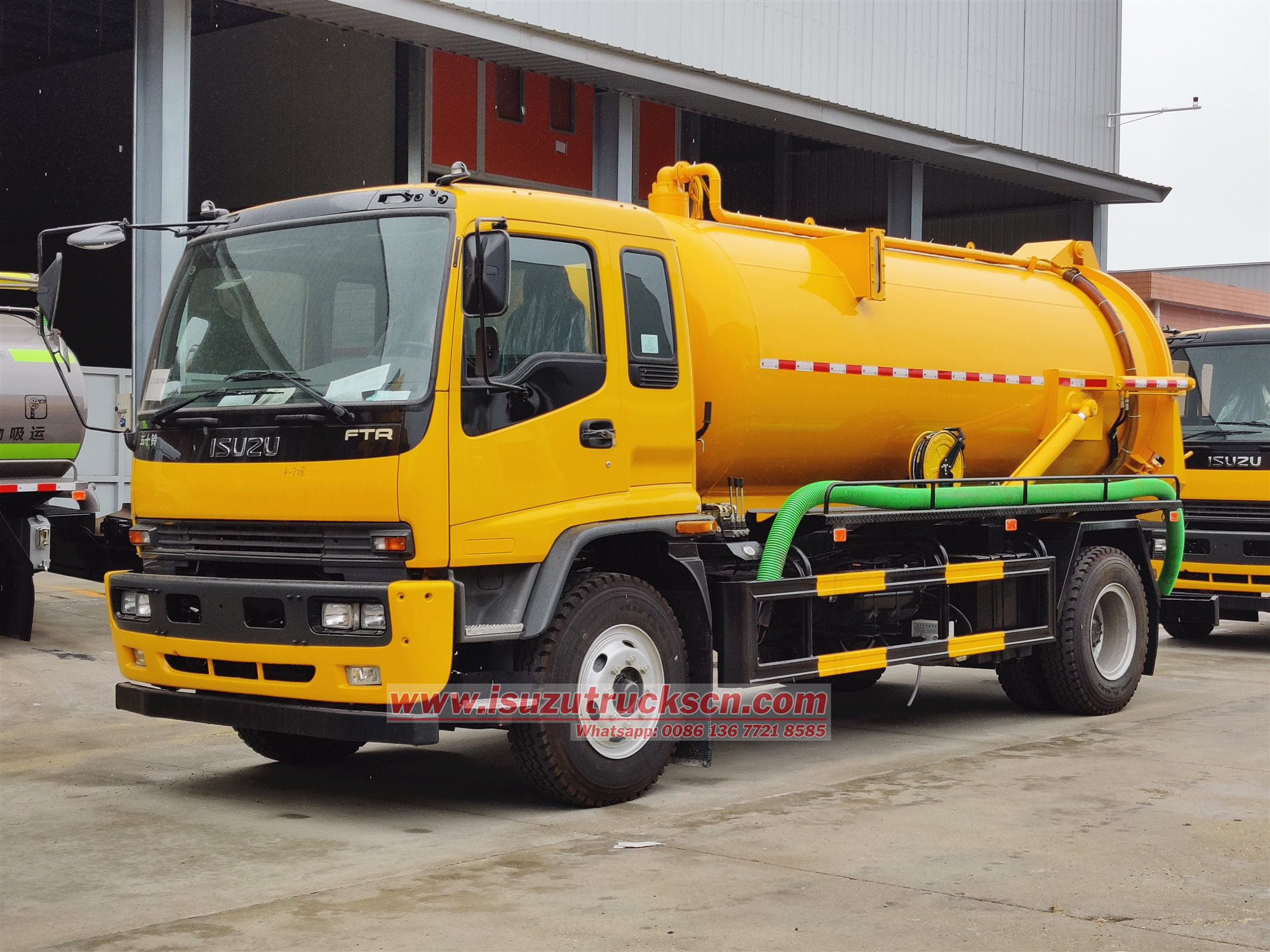

Sewage Suction Trucks/Combined Dredging Trucks:The robust chassis provides a stable foundation for high-pressure cleaning, vacuum sewage suction, and other multifunctional equipment.
Road Sweepers: As a medium-sized road sweeper chassis, it combines operational efficiency and reliability.
2. Engineering and Transportation Vehicles

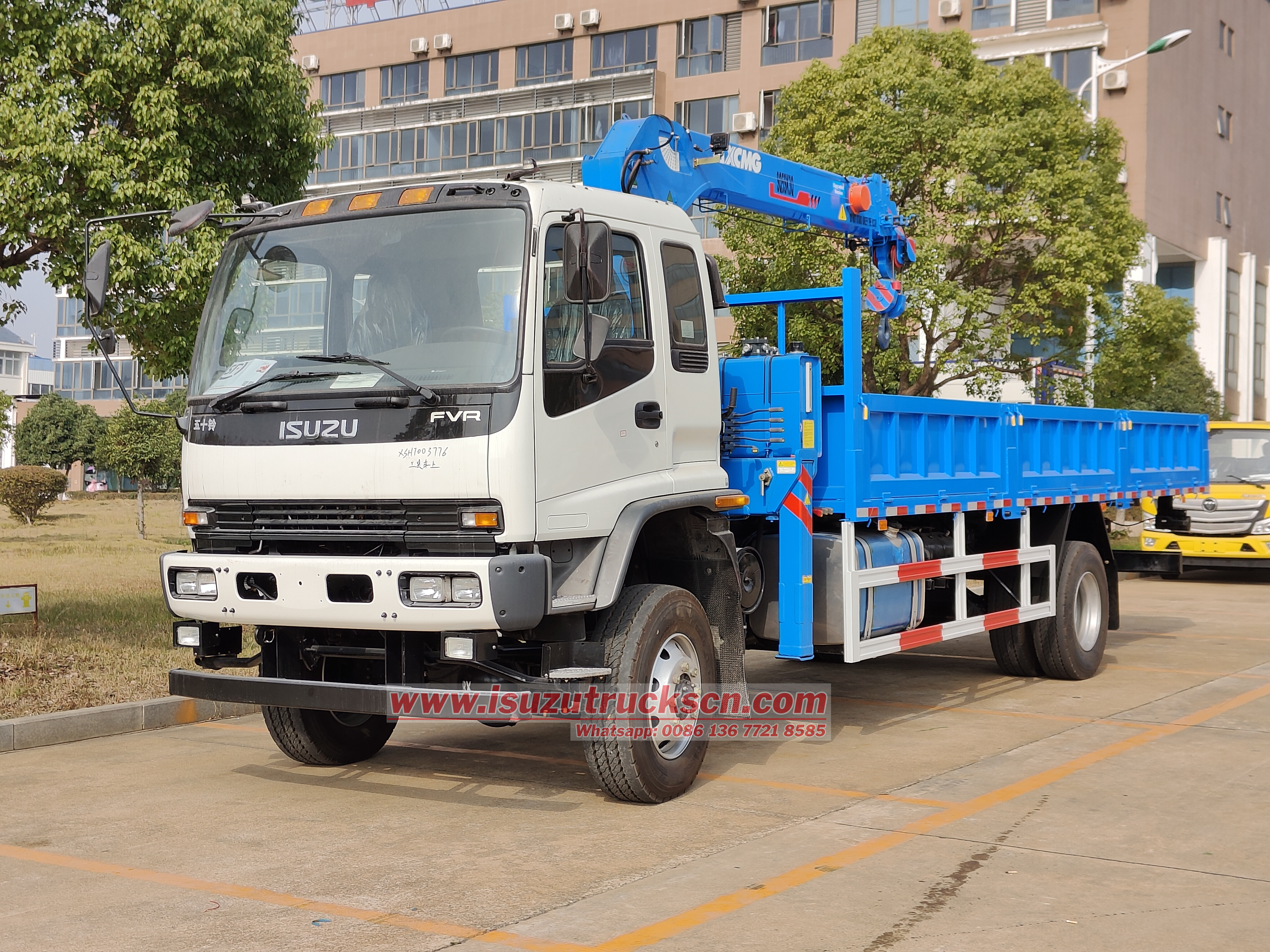

Truck-Mounted Cranes:The 4500mm wheelbase provides an ideal location for crane installation, compatible with 8-12 ton straight-arm or folding-arm truck-mounted cranes, enabling self-loading and unloading.

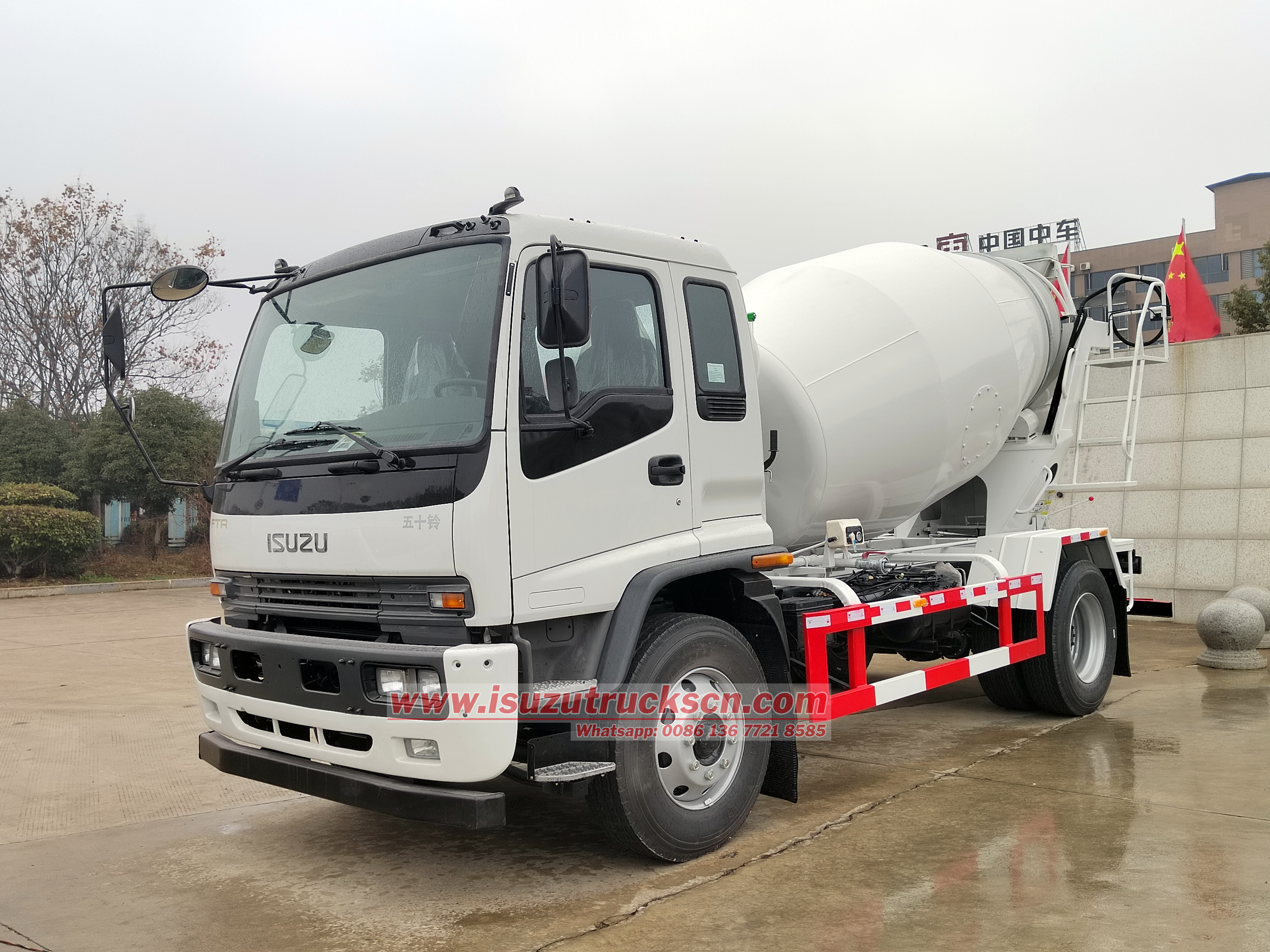

Concrete Mixer Trucks:Adaptable to 6 cubic meter mixing drums, a common chassis configuration for concrete mixer trucks in urban and rural construction.

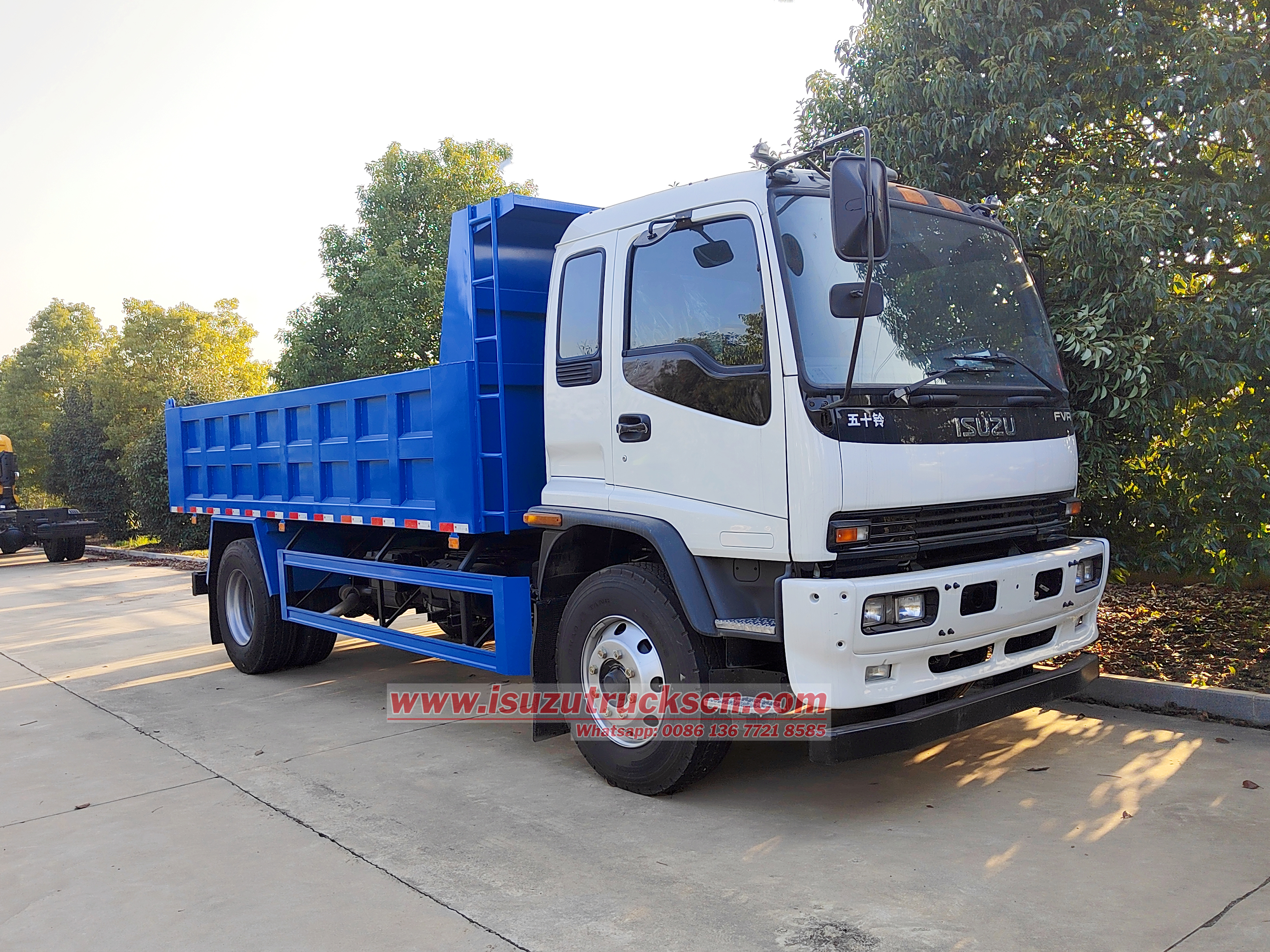

Dump trucks: Can be converted into medium-sized engineering dump trucks for transporting sand and gravel.
Flatbed trucks: Used for transporting engineering machinery, equipment, and building materials.
3. Special Operations Vehicles

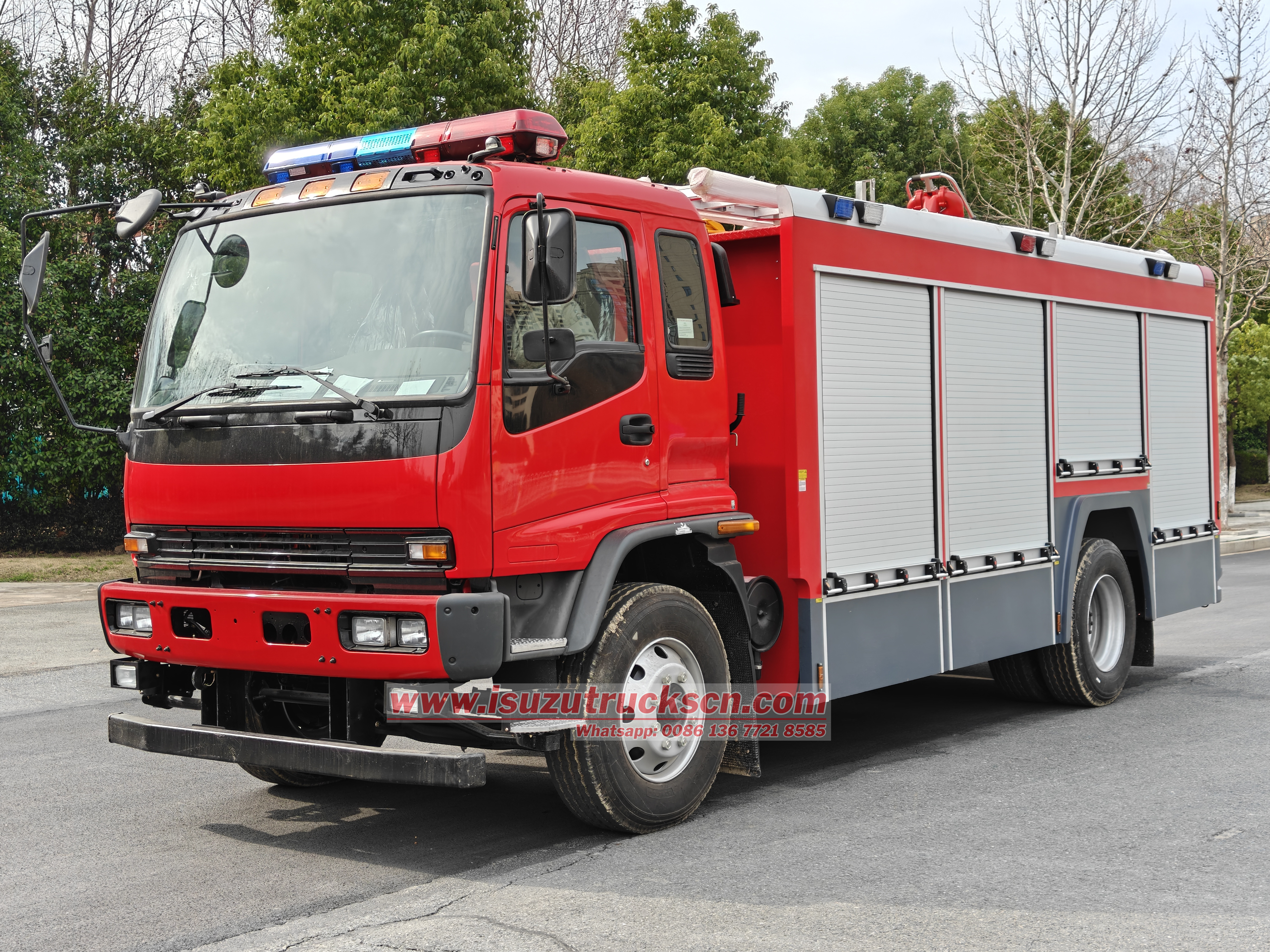

Fire trucks: Such as medium-sized water tanker fire trucks, foam fire trucks, etc.
Aerial work platforms: Can be converted into telescopic or folding boom aerial work platforms.
Van trucks: Can be converted into large refrigerated trucks or van trucks.
