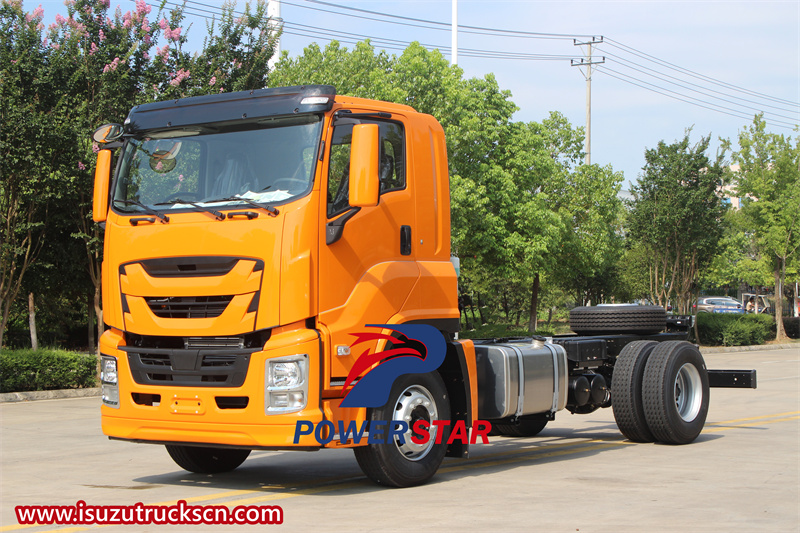

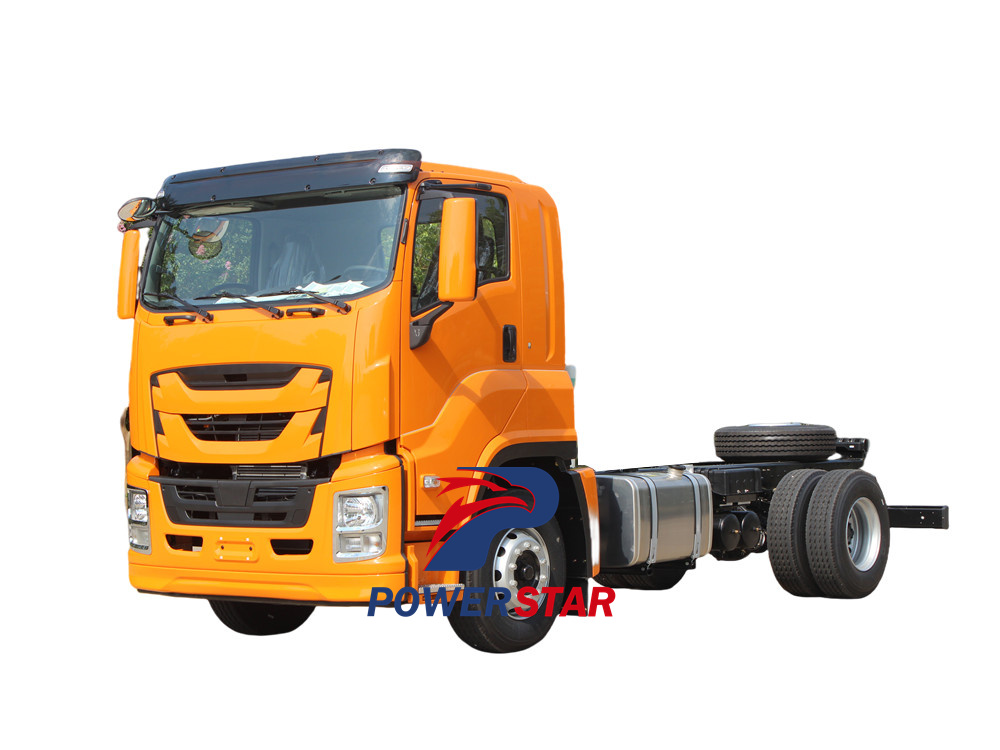

New ISUZU FVR GIGA 5X cabin chassis truck 18tons

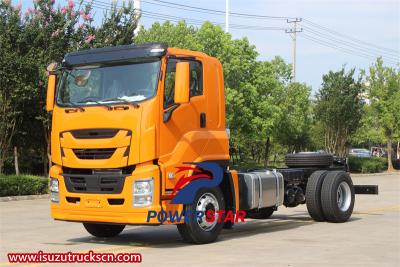

Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis
Isuzu FVR GIGA 5x 18-ton chassis

New ISUZU FVR GIGA 5X cabin chassis truck 18tons

Isuzu FVR GIGA 5x 18-ton chassis is a heavy-duty commercial vehicle chassis designed for applications that require high load-bearing capacity and stable performance. It is an 18-ton giant that combines powerful power, robust structure and excellent performance. It ensures excellent stability and reliability even under complex road conditions. It is a new benchmark in the field of special vehicles and leads the development trend of the industry.

  • Work capacity:

    10~16 tons
  • Truck model:

    PT5180GXZ
  • Engine power:

    240HP
  • Engine type:

    6HK1-TCG61
  • Axle drive:

    4X2,LHD
  • Gear box:

    FAST 8-speed,manual
  • Remarks:

    New Isuzu FVR GIGA 5X cabin chassis

New ISUZU FVR GIGA 5X cabin chassis truck 18tons also called Isuzu FVR GIGA 5X class 240HP chassis,Isuzu FVR GIGA 4x2 18tons chassis,Isuzu new FVR GIGA 5X cab chassis,Isuzu FVR medium chassis with 6HK1 engine, Isuzu FVR GIGA 5x 18-ton chassis.The ISUZU FVR GIGA 5x 18-ton chassis is a heavy-duty commercial vehicle chassis designed for applications that require high load capacity and stability. It uses advanced chassis technology and a sturdy construction to ensure excellent stability and reliability even in complex road conditions. The New ISUZU FVR GIGA 5X cabin chassis truck 18tons has a powerful power system and optimized axle load distribution, which can easily cope with heavy-duty transportation tasks. At the same time, its flexible configuration options allow manufacturers to customize cargo boxes or vans according to customer needs to meet the transportation needs of different industries. Whether it is logistics transportation, urban construction or other heavy industrial applications, the ISUZU FVR GIGA 5x 18-ton chassis can provide excellent performance and reliable protection.New ISUZU FVR GIGA 5X cabin chassis truck 18tons

In the commercial truck industry, the new ISUZU FVR GIGA 5X stands like a lion, and its 18-ton load capacity makes it a model of modern transportation technology. This behemoth combines power, efficiency and reliability, showing the highest level of automotive technology. From its stylish design, sturdy construction to advanced functions, the FVR GIGA 5X is subverting the way of transportation and bringing a revolution to the transportation industry.



The new Isuzu FVR GIGA 5X cab-chassis truck represents a triumph of engineering excellence and performance in the heavy-duty vehicle segment. With its powerful 18-tonne capacity, advanced features and superior build quality, this truck redefines the standards for reliability, efficiency and versatility in commercial trucking. Whether navigating city streets or conquering rough terrain, the Isuzu FVR GIGA 5X is a testament to Isuzu's commitment to innovation and customer satisfaction.







New ISUZU FVR GIGA 5X cabin chassis truck 18tons





Vehicle Dimensions and Parameters

Overall Dimension

8800*2500*2810 (mm)

Wheelbase

4500mm

Front/ Rear Wheel Distance

2060/1855mm

Front/Rear Suspension

1370/2830mm



Weights and Capacities

Curb Weight

6150 (kg)

GVW

18000kg

Axel Loads

6500/11500kg





Engine

Model

6HK1-TCG61

Power

240HP/175Kw

Displacement

7790ml

Exhaust Gas Treatment Technology

DPF+SCR



Transmission

FAST 8-speed,manual

Cab

Number of Seats

2 seats and a bed



Chassis

Drive Type

4x2

Drive speed

105 Km/h

Tires

7(Including Spare Tire)



Tire model

295/80R 22.5

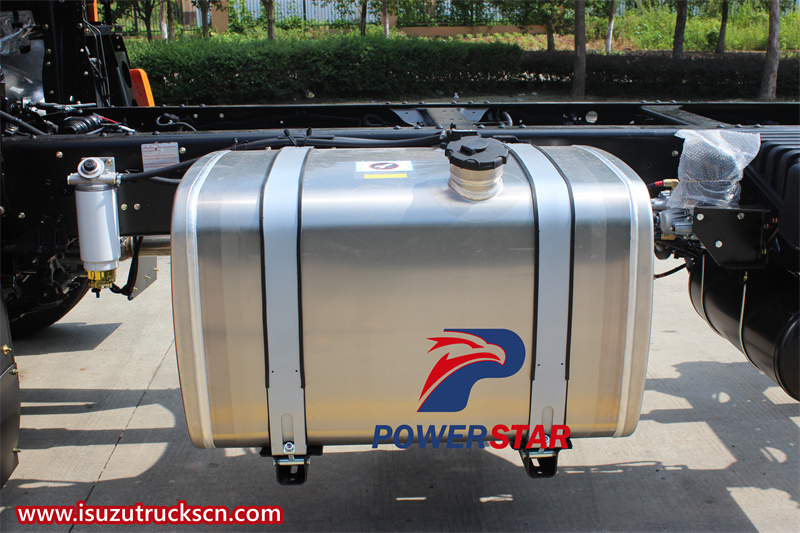

Fuel Tank

Capacity

200L

Type

Diesel





Configurations

Power Steering System

Air Conditioner

Retro-reflective Marking

ABS

Free Maintenance Battery



With a powerful 18-tonne payload capacity, the new ISUZU FVR GIGA 5X cab-chassis truck is the pinnacle of innovation and performance in the commercial trucking industry. It represents the perfect blend of power, efficiency and reliability, and embodies the essence of modern transport technology. With its cutting-edge design, rugged structure and advanced features, the FVR GIGA 5X sets a new standard for heavy-duty vehicles and promises to revolutionize the way goods are transported.

 Technical drawing of New ISUZU FVR GIGA 5X cabin chassis truck 18tons

Technical drawing of New ISUZU FVR GIGA 5X cabin chassis truck 18tons

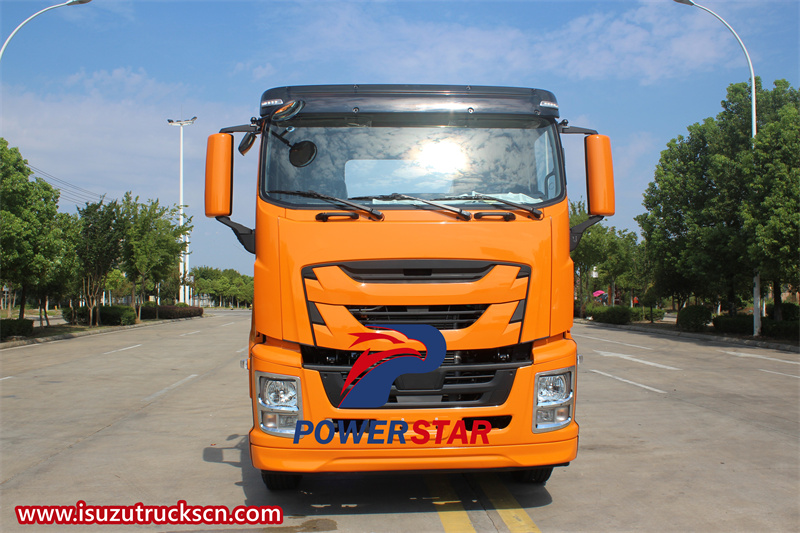

A combination of power and elegance

From the moment you see the new ISUZU FVR GIGA 5X chassis, it’s impossible not to be struck by its imposing yet sophisticated exterior. The truck’s sleek lines and aerodynamic design not only reduce drag and improve fuel efficiency, but also exude a sense of modernity and sophistication. The cab has been meticulously crafted to offer a spacious interior that combines comfort and practicality, ensuring drivers enjoy a pleasant and productive working environment.



The exterior features a glossy hue that catches beautifully in the light and is embellished with Isuzu’s iconic brand logo, reflecting the brand’s long history and reputation for excellence. Made from high-strength steel, the sturdy chassis forms the backbone of this powerful machine, laying the foundation for its outstanding load-bearing capacity and ensuring it will stand the test of time.



Design and Build Quality

The exterior of the ISUZU FVR GIGA 4x2 chassis truck stands out with its bold and dynamic aesthetic. The truck’s aerodynamic shape not only enhances its visual appeal but also contributes to improved fuel efficiency and overall performance. The chassis is precision engineered to withstand the rigors of heavy-duty applications, ensuring durability and longevity even under the most demanding operating conditions.



Rugged Cab Design

The 5X-class cab design of the FVR GIGA 5X combines comfort and safety. The ergonomic interior features ample legroom and headroom, ensuring that the driver can enjoy a fatigue-free journey even on long journeys. The cab is also equipped with advanced safety features such as airbags, ABS (Anti-lock Braking System) and EBD (Electronic Brake-force Distribution) to provide additional protection for the driver and passengers.

 New ISUZU FVR GIGA 5X cabin chassis truck 18tons

New ISUZU FVR GIGA 5X cabin chassis truck 18tons



Power and Performance

Beneath its imposing exterior lies powerful performance. The new ISUZU FVR GIGA 5X class chassis is equipped with a high-performance engine that delivers impressive horsepower and torque, allowing it to conquer challenging terrain with ease. The drivetrain is designed for precision and durability, allowing for seamless gear shifting, ensuring the truck is always operating at peak performance. The brakes are also of the highest quality, providing reliable stopping power even in emergency situations. With its advanced drivetrain and responsive handling, this truck provides a smooth and seamless driving experience, enhancing driver control and safety.



The engine is powerful yet fuel-efficient, providing ample torque and horsepower, ensuring smooth acceleration and easy handling even with heavy loads. The engine is optimized for low fuel consumption and low emissions, making it an environmentally friendly choice.

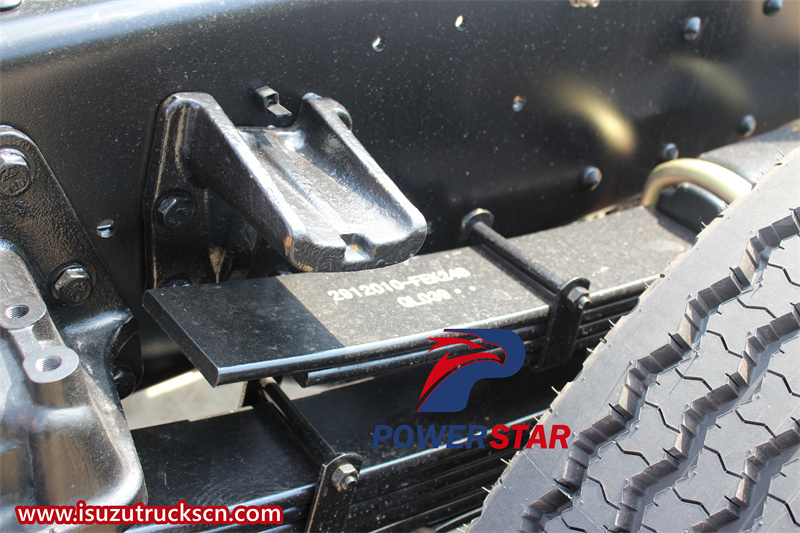

Durable Chassis and Suspension

The Isuzu GIGA 5X cab chassis truck features a rugged and durable chassis that can withstand the rigors of heavy-duty applications. The suspension system is carefully calibrated to provide a smooth ride while maintaining stability and control even on uneven or challenging terrain. This ensures that cargo is protected from damage during transportation.

 Isuzu FVR GIGA 5X class 240HP chassis

Isuzu FVR GIGA 5X class 240HP chassis



Capacity and Versatility

The ISUZU FVR GIGA 5X’s 18-ton capacity makes it a versatile workhorse for a wide range of applications. This cab-chassis truck is the perfect blank canvas for a variety of applications, from traditional cargo hauling to specialized vehicles such as fire trucks, ambulances and construction equipment, this truck excels across industries, giving businesses the flexibility they need to optimize their operations. The spacious cab-chassis design allows for customization to accommodate different cargo configurations, allowing it to adapt to changing business needs.



Whether you want to transport perishable goods with a refrigerated truck, haul heavy construction materials with a dump truck, or provide emergency services with a fully equipped ambulance, the new ISUZU FVR GIGA 5X 240HP chassis has you covered. Its rugged construction and flexible design make it ideal for businesses that demand the most in performance, reliability and versatility.



Safety and Technology

The ISUZU FVR GIGA chassis with 18 tons is equipped with comprehensive safety features that prioritize driver and cargo protection. From advanced braking systems to intelligent driver assistance technologies, the truck ensures a safe and comfortable driving environment. With state-of-the-art connectivity and telematics features, fleet managers can monitor and optimize vehicle performance in real-time, improving operational efficiency and productivity.

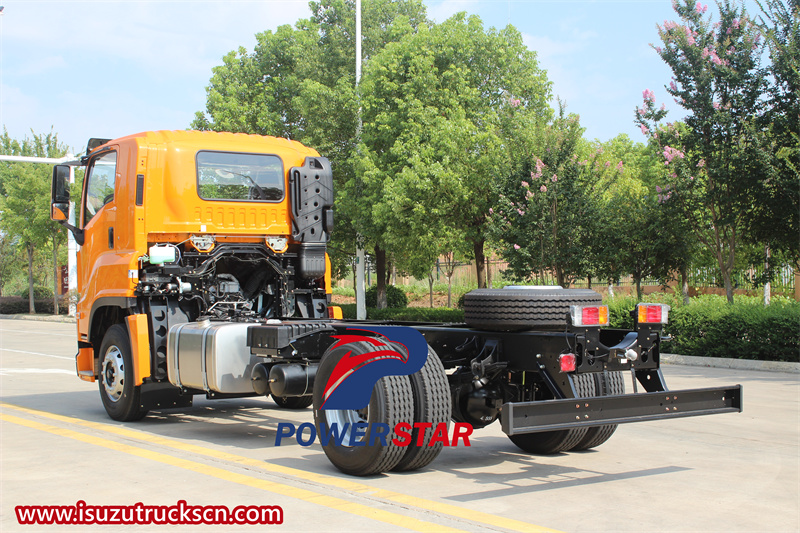

 Isuzu FVR GIGA 4x2 18tons chassis

Isuzu FVR GIGA 4x2 18tons chassis



Environmental Sustainability

In an age of growing environmental awareness, the Isuzu 18 tons FVR GIGA 5X chassis sets a new benchmark for sustainability in commercial transport. With its fuel-efficient engine technology and reduced emissions, the truck minimizes its carbon footprint while maintaining optimal performance levels. By prioritizing environmentally friendly design and operation, Isuzu underscores its commitment to sustainable transport practices.



Partner for Success

The new Isuzu FVR GIGA 5X cab-chassis truck is more than just a vehicle; it’s a partner for success. Its impressive features, coupled with Isuzu’s legendary reliability and support, make it the perfect choice for businesses looking to expand their operations and take on new challenges. Whether you’re a small business owner just starting out or a seasoned industry veteran, the new FVR GIGA 5X has the power, versatility and reliability to help you achieve your goals and reach new heights.



Isuzu new FVR GIGA 5X cab chassisIsuzu new FVR GIGA 5X cab chassis



The New Isuzu FVR GIGA 5X cabin chassis truck chassis has a wide range of applications in many fields due to its strong carrying capacity, flexible configuration options and excellent performance. Whether it is traditional cargo transportation or the modification of special vehicles, this chassis can provide reliable support and guarantee. At the same time, with the continuous advancement of technology and the continuous changes in the market, its application range will continue to expand and deepen. For this New Isuzu FVR GIGA 5X cabin chassis truck chassis, its application range is wide, and it can be used to modify a variety of special vehicles, with super high application potential. The following are some common applications:

 Isuzu new FVR 4x2 chassis

Isuzu new FVR 4x2 chassis



Fire truck: The chassis's sturdiness and power performance make it an ideal choice for manufacturing fire trucks. Its carrying capacity can support heavy firefighting equipment and a large number of water tanks, while its stable driving performance ensures that it can quickly reach the fire scene in an emergency.



Compression garbage truck: The chassis's durability and flexibility make it an excellent basis for compression garbage trucks. By adding a compression mechanism and a garbage box, the chassis can easily achieve efficient collection and compression processing of urban garbage, improving the efficiency of sanitation work.



Sewage suction truck: This chassis also performs well in application scenarios that require the treatment of liquids such as sewage and sludge. By installing a professional sewage suction pump and storage tank, it can be converted into an efficient sewage suction truck for cleaning urban sewers, septic tanks and other places.

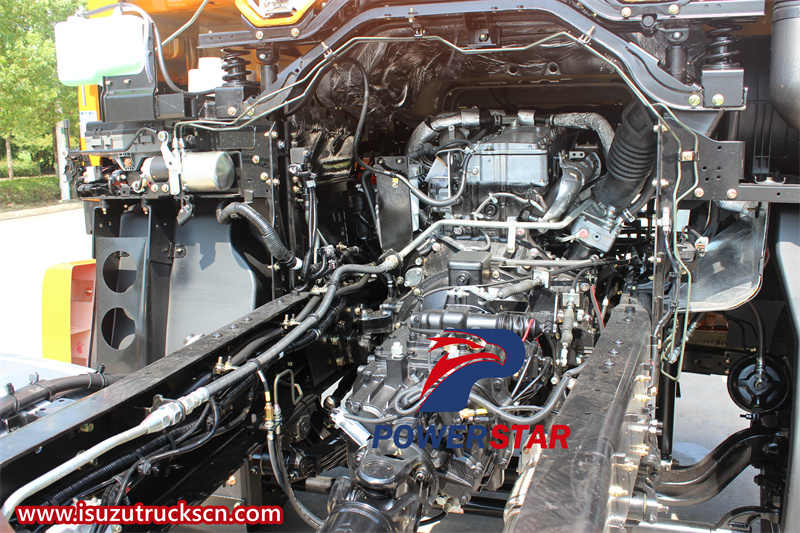

 Chassis engine

Chassis engine

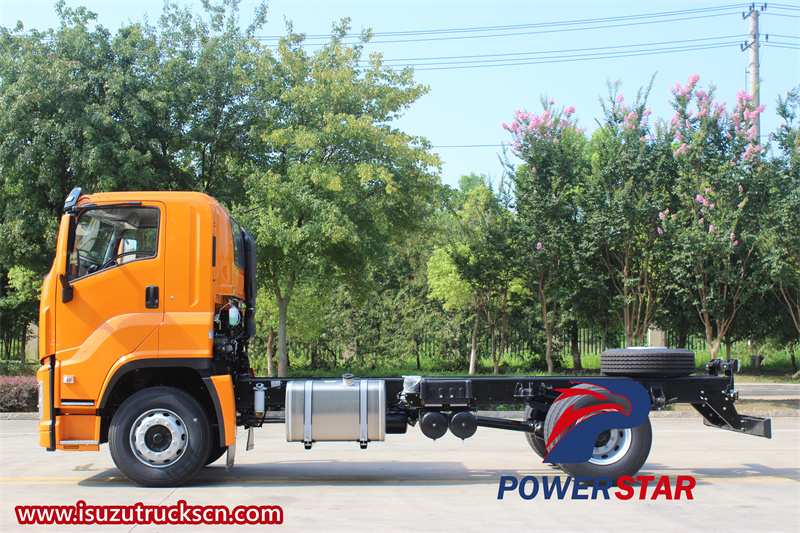

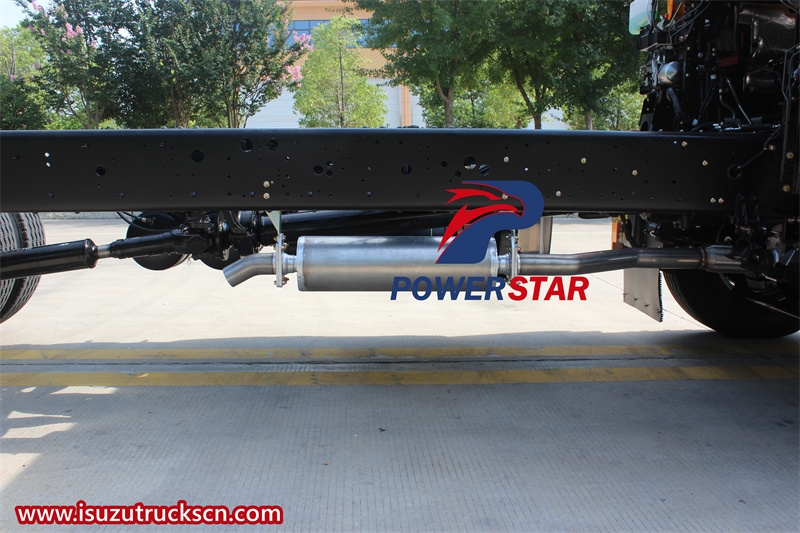

Chassis frame

Chassis frame



Flatbed truck:As the most basic modification method, this chassis can be easily equipped with a sidecar cargo compartment for transporting various bulk goods, building materials or industrial raw materials. Its carrying capacity and flexibility meet the transportation needs of different industries.



Dump truck: By adding a dump device (such as a hydraulic lifting mechanism), this chassis can be converted into a dump truck, which is suitable for mines, construction sites and other places where heavy objects need to be frequently loaded and unloaded. The self-unloading function improves loading and unloading efficiency and reduces labor costs.



Truck crane: Combined with the boom and lifting mechanism, this chassis can be transformed into a truck crane, which is widely used in hoisting operations, emergency rescue and other fields. Its powerful power system and stability provide reliable protection for hoisting operations.



Aerial work vehicle: In order to meet the needs of aerial work, the chassis can also be equipped with a telescopic arm or a scissor lift platform to transform into an aerial work vehicle. It is suitable for the installation, maintenance and overhaul of aerial equipment in the fields of electricity, communications, municipal administration, etc.

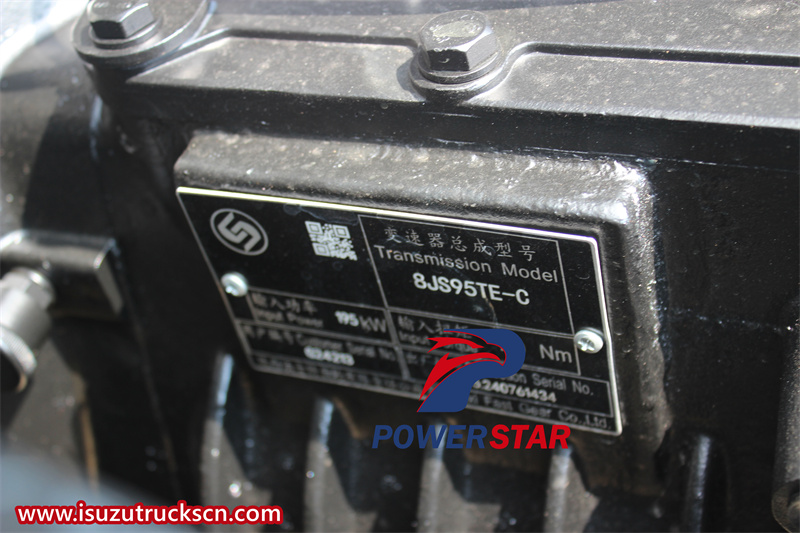

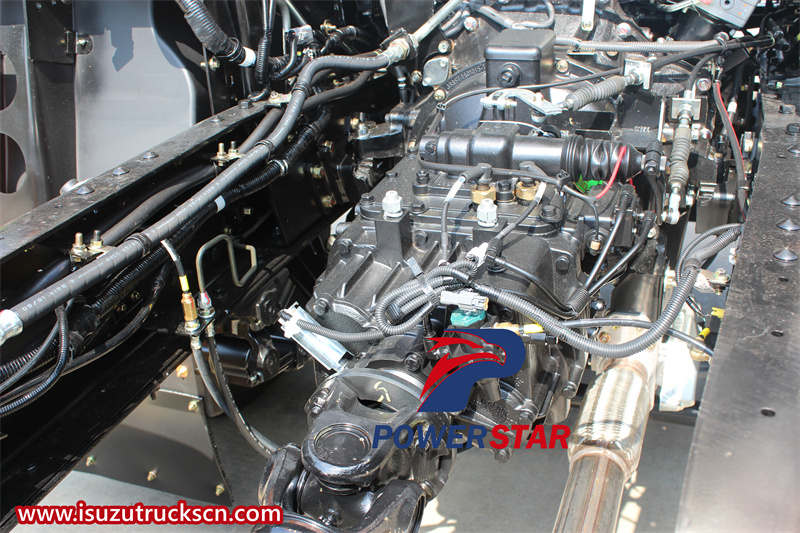

 Transmission assembly

Transmission assembly



Van truck: This chassis is very suitable for conversion into a van for transporting goods that need protection or temperature control, such as food, medicine, precision instruments, etc. The body of the van is made of insulation or refrigeration materials to ensure the quality and safety of the goods during transportation.



Fuel truck: By installing professional oil tanks and oil delivery systems, the chassis can be converted into a tank truck for the transportation of liquids such as oil, diesel, and gasoline. Its sturdy chassis and stable driving performance ensure safety during transportation.

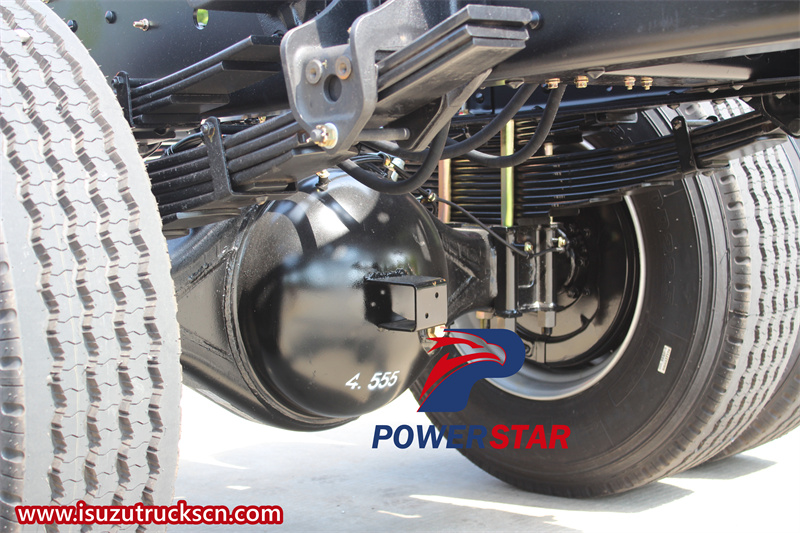

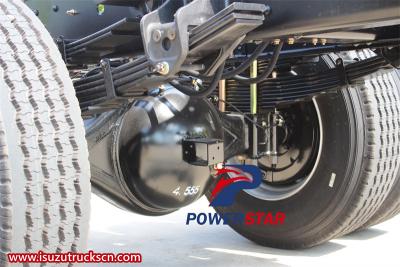

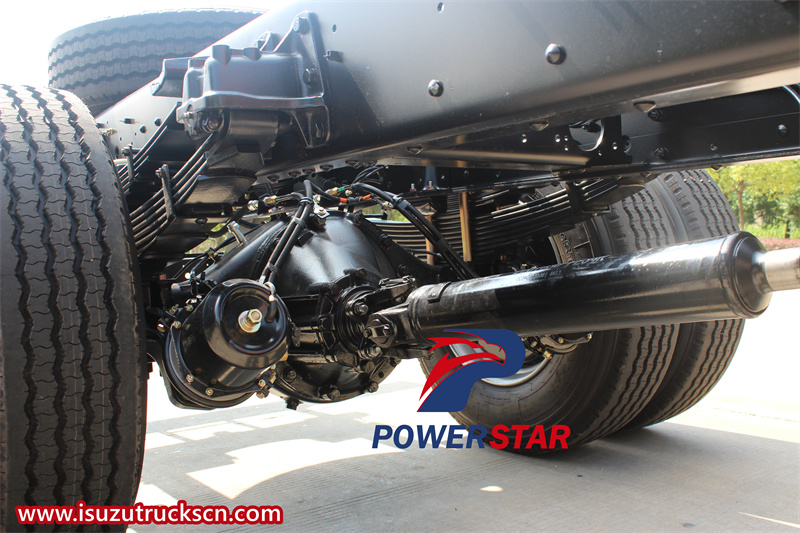

 Rear axle

Rear axle

Rear axle

Rear axle



Water truck: Similarly, after adding a large-capacity water tank and a pumping system, the chassis can be used for water tank trucks in various scenarios such as urban water supply, fire water, and agricultural irrigation. Its flexibility and efficiency meet the needs of water resource transportation in different fields.



Logistics transport vehicle: As the basis of logistics transport vehicles, this chassis can carry cargo compartments or containers of various specifications for long-distance or short-distance cargo transportation. Its strong carrying capacity and stable performance ensure the efficiency and safety of logistics transportation.

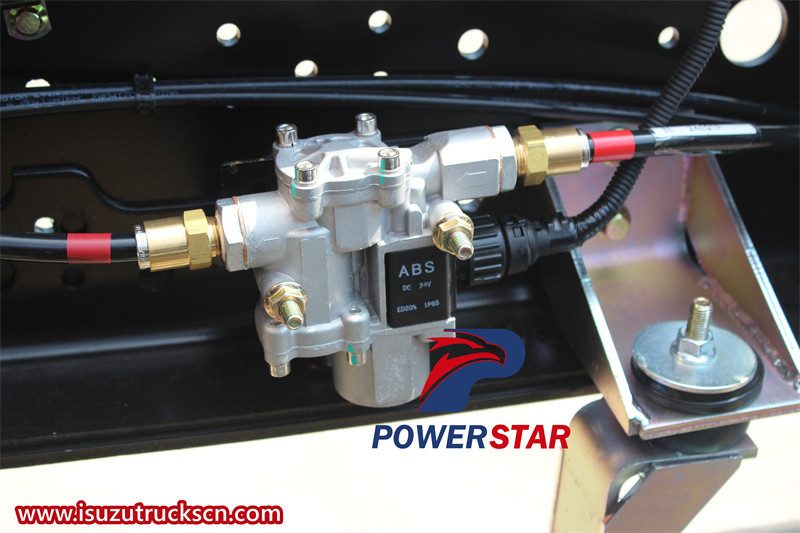

ABSABS
