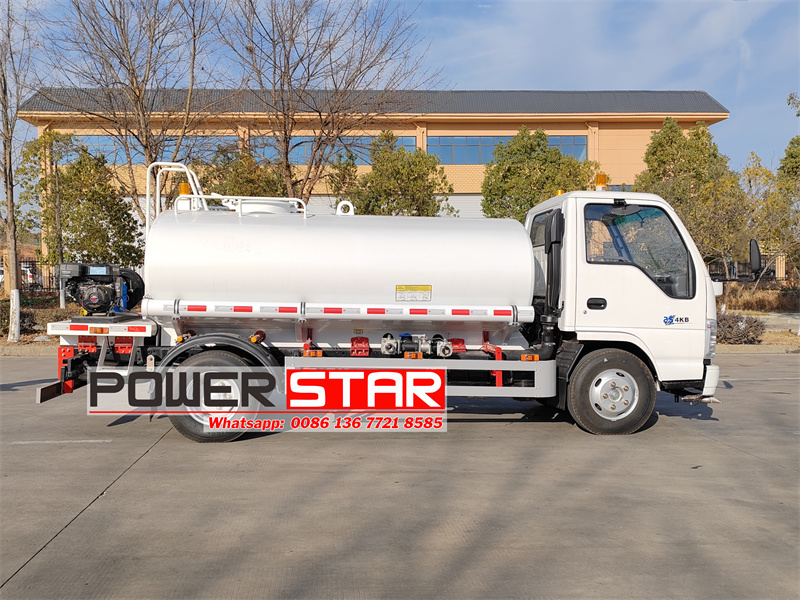

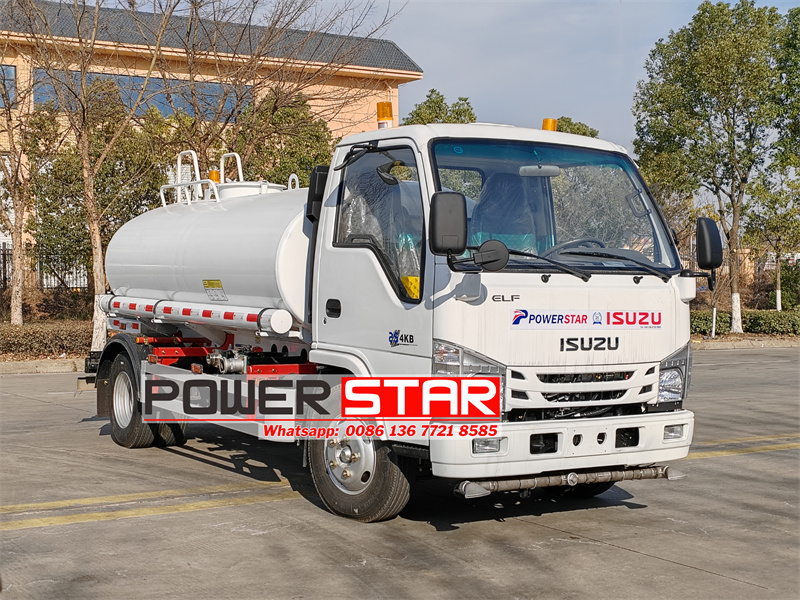

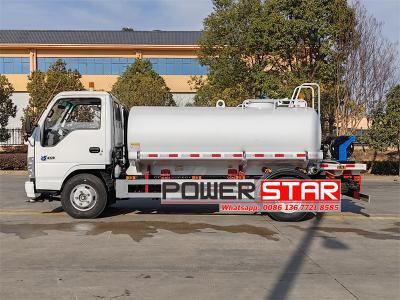

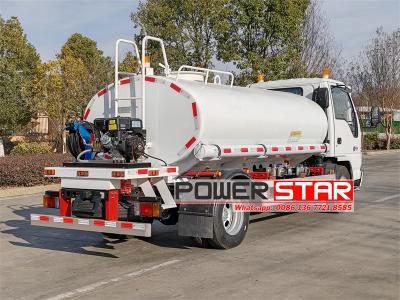

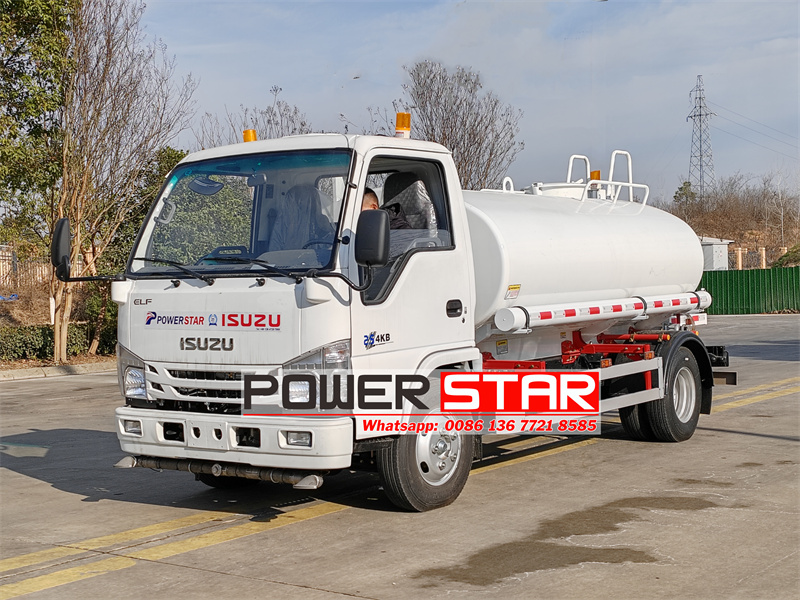

POWERSTAR 's Isuzu ELF 100P water spray truck is used for watering operations.Which is modified on the Isuzu NKR 100P light chassis,with 4KH1 120HP engine,2999ml displacement,Isuzu MSB 5-speed gearbox.The truck has a 5000L ellipse carbon water tank,with 65QZF-40/50 water pump,rear is a fuel ultra-high pressure cleaning machine,front spray, These ensure that the vehicle can efficiently carry out the watering operations.
Work capacity:
5000LEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4X2,LHDGear box:
Isuzu MSB 5-shift gearbox,manualRemarks:

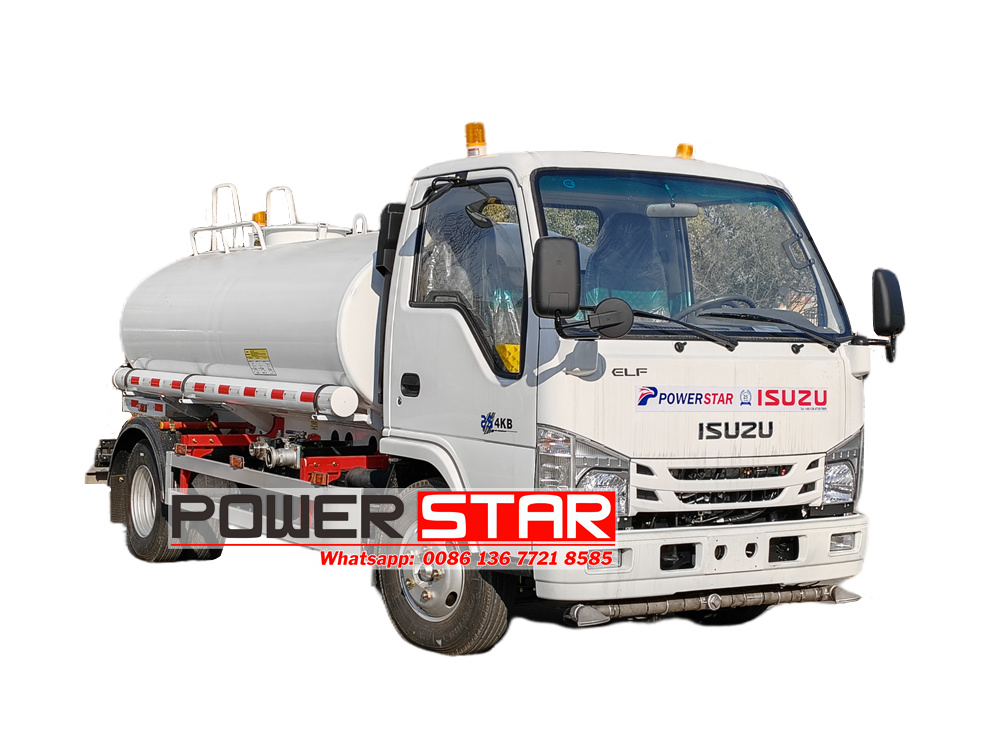

Isuzu water tank truck with fuel ultra-high pressure cleaning machine5,000L Isuzu Sprinkler Truck Factory is a multifunctional special operation vehicle developed based on Isuzu's mature light truck chassis (NKR series), and is positioned in small and medium-sized municipal sanitation, landscaping and construction site dust reduction scenarios. Its core design concept is "high efficiency, modularization and multi-function". By integrating the front spray system, rear high-pressure cleaning platform and intelligent water pressure regulation technology, it realizes multiple uses of one vehicle and reduces the user's equipment procurement cost.
● 30 years experience on water spray truck designing
● 50 units Isuzu water tank trucks in stock, 5 cbm, 8 cbm, 12 cbm
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
Key Features
---- ISUZU chassis, perfect performance
---- ISUZU 4KH1 engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
|
Isuzu ELF 100P 5000L water sprinkler truck |
||||
|
Chassis Specification |
||||
|
Driving Type |
4*2 Left hand driving |
|||
|
Max Speed (km/h) |
115 |
|||
|
Overall Dimension (mm) |
5750*2000*2420 |
|||
|
GVW (kg) |
7300 |
|||
|
Curb Weight (kg) |
2150 |
|||
|
Wheelbase (mm) |
3360mm |
|||
|
F/R overhang (mm) |
1110/2830 |
|||
|
Tire |
7.00R16 |
|||
|
Clutch |
Single-plate dry diaphragm spring clutch |
|||
|
Steering |
Hydraulic steering with power assistance |
|||
|
Gear Box |
Isuzu MSB 5-speed，manual |
|||
|
Bridge |
Front axle |
2500kg |
||
|
Rear axle |
4800kg |
|||
|
Engine |
Brand |
Isuzu |
||
|
Model |
4KH1CN6LB |
|||
|
Fuel Type |
Diesel fuel |
|||
|
Emission Standard |
Euro VI |
|||
|
Type |
4-cylinder inline,water-cooled,four-stroke,direct injection, turbocharged |
|||
|
Exhaust (ml) |
2999 |
|||
|
Max output power |
120HP/88Kw |
|||
|
Max torque |
290N.m |
|||
|
Upper Parts Specification |
||||
|
Sprinkler |
Front sprinkler, rear water inlet, rear high-pressure cleaning hose |
|||
|

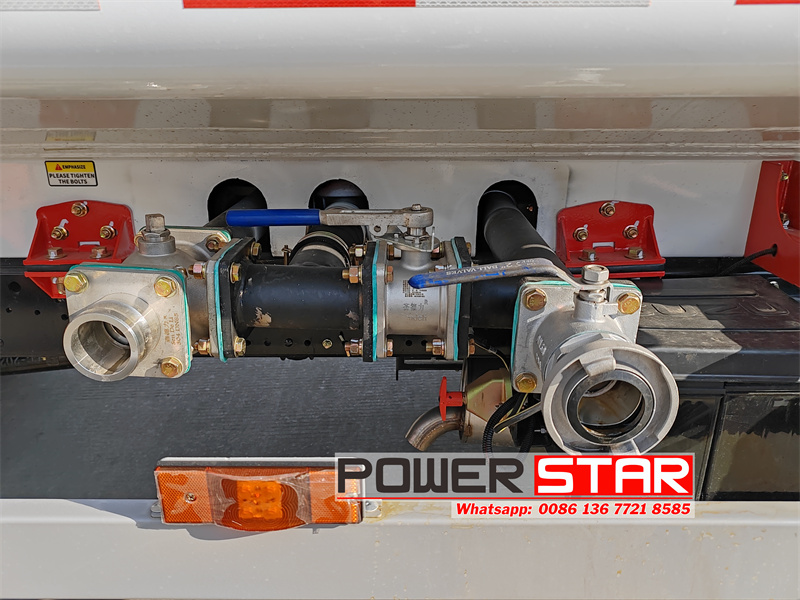

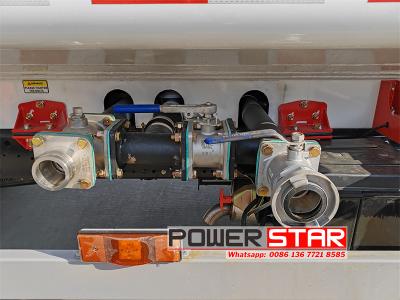

Valves |
Fire valve and water valve |
|||
|
Tank shape |
Ellipse |
|||
|
Material of tanker |
5mm carbon steel |
|||
|
Water pump |
Model |
65QZF-40/50 |
||
|
flux |
40m³/h |
|||
|
Rating speed |
1450r/min |
|||
|
self-suction height |
7.5m |
|||
|
Matched power |
9.25kw |
|||
|
Ultra-high pressure cleaning machine |
Model |
LCM190 |
||
|
Flow |
15 L/min(4 gpm) |
|||
|
Preesure |
250 bar / 3625 P. S. I / 25 Mpa |
|||
|
Speed |
2900 R. P. M |
|||
|
Power |
15HP/11Kw |
|||
|
Introduction of function |
Front spray, there is a working platform at the rear of the vehicle, equipped with a high-pressure cleaner and a high-pressure water gun, which can be adjusted according to needs, and equipped with a high-quality sprinkler pump, equipped with a fire interface and an overflow valve, with a self-priming function. |
|||
|
Fittings |

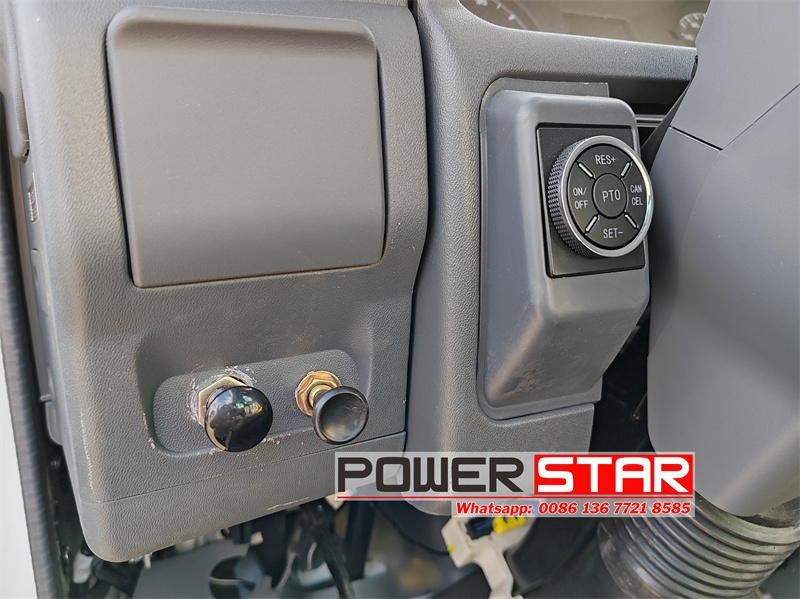

PTO water pump |
|||
|
Ultra-high pressure cleaning machine |
||||
|
One Manhole |
||||
|

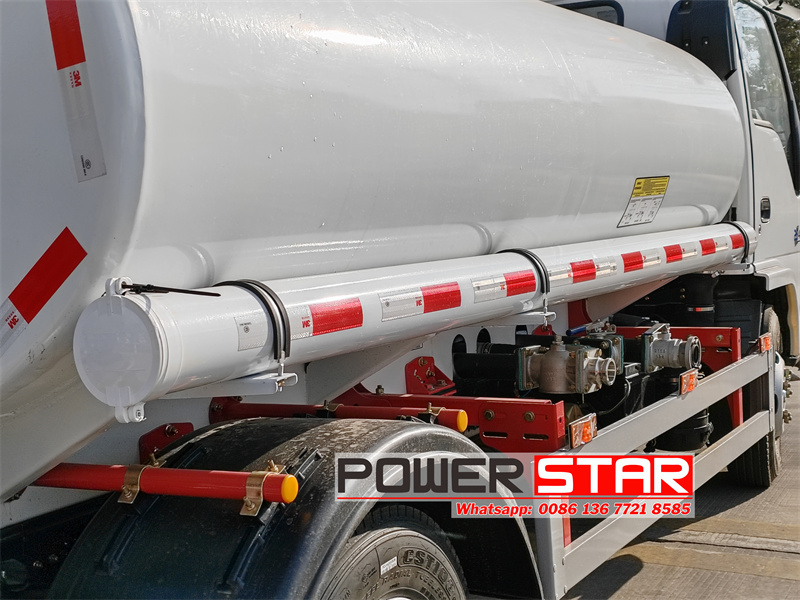

water hose box fitted on both side of tank |
||||
|
One spare tire |
||||
|
Ladder: For access to top of tank |
||||
|
Heavy-duty rear bumper |
||||

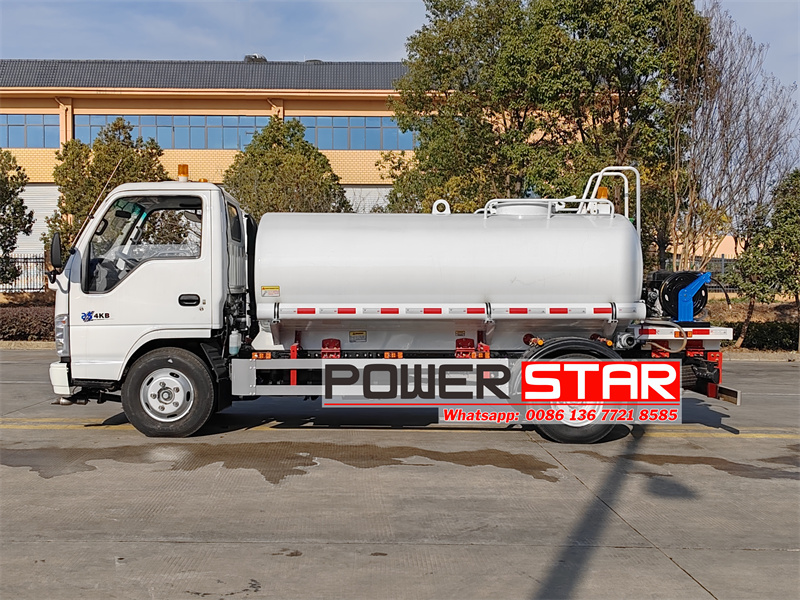

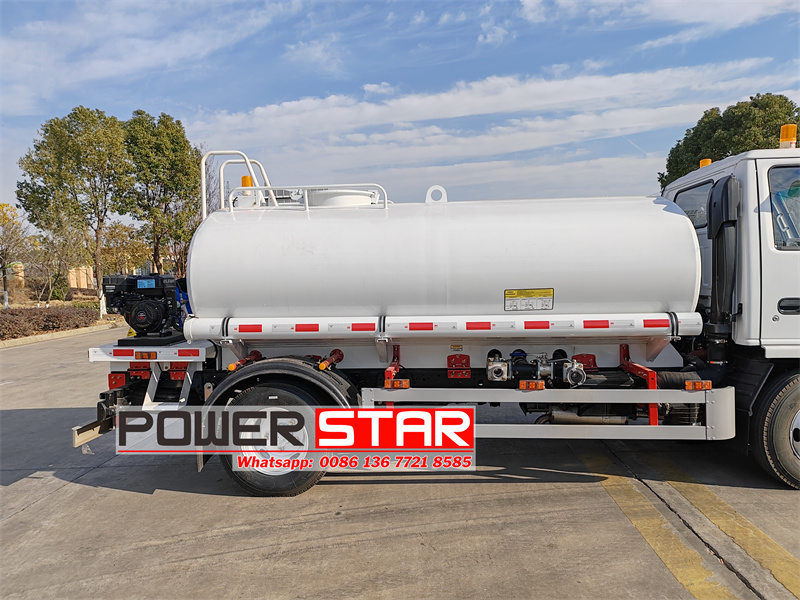

The Isuzu 100P5 5-cubic-meter water tanker truck, with its large 5-cubic-meter water tank, can continuously provide sufficient water to meet the needs of long-term and large-area watering operations. The compact and sturdy body design not only enhances driving stability but also facilitates agile maneuvering in narrow urban streets.
Power Core:
The truck is equipped with the Isuzu 4KH1CN6LB engine, which is widely praised for its low noise, low emissions, high reliability, and excellent fuel economy. It provides ample power support for the water tanker truck, ensuring smooth driving under various road conditions while meeting modern environmental protection requirements and reducing environmental impact.

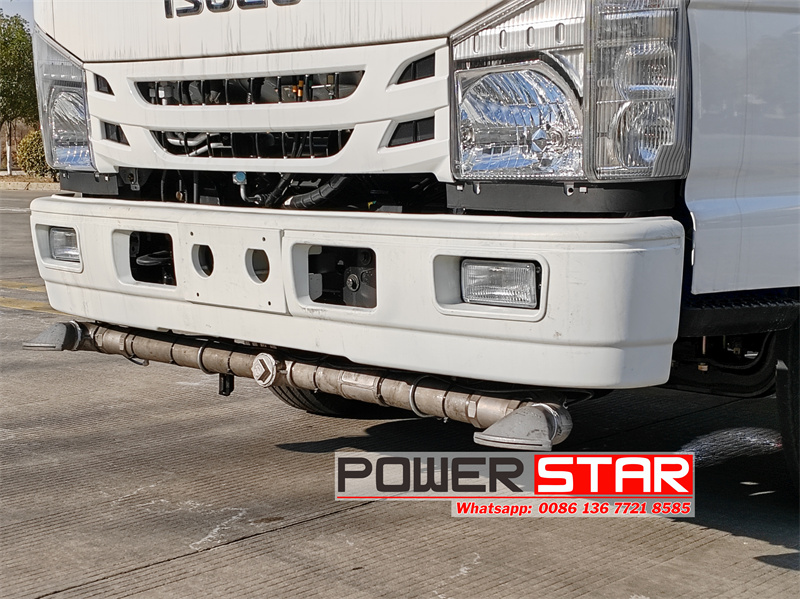

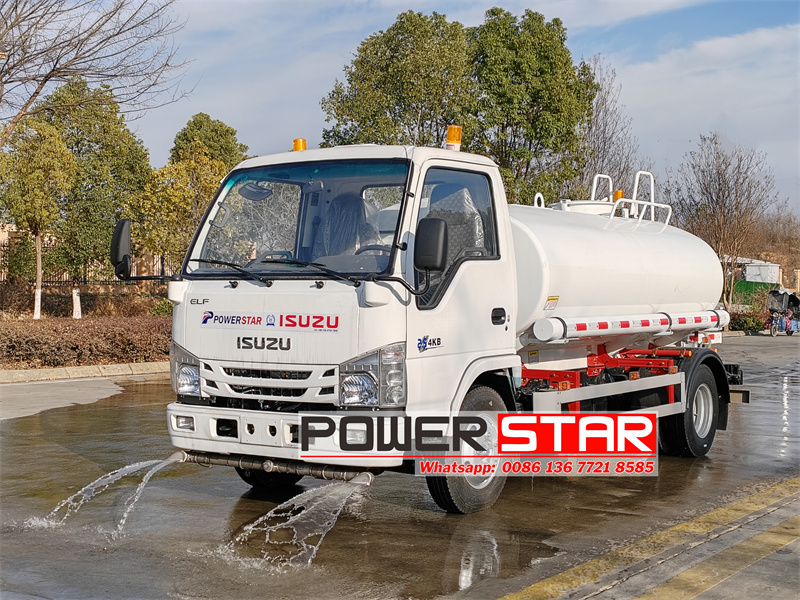

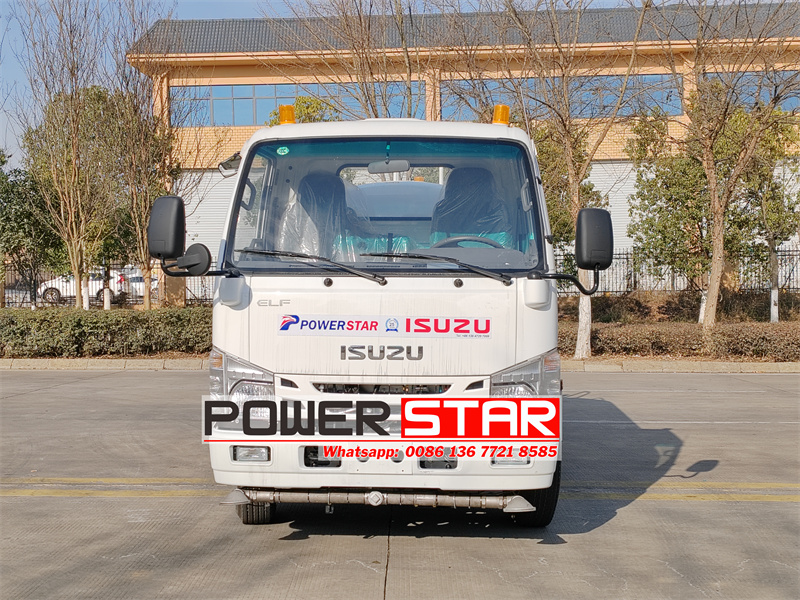

Front Spray System:
The advanced spraying system installed at the front of the vehicle can evenly and meticulously cover the road ahead, effectively reducing dust and cooling the temperature, thereby improving air quality. It is particularly suitable for road cleaning operations during dry seasons or in heavily polluted weather.

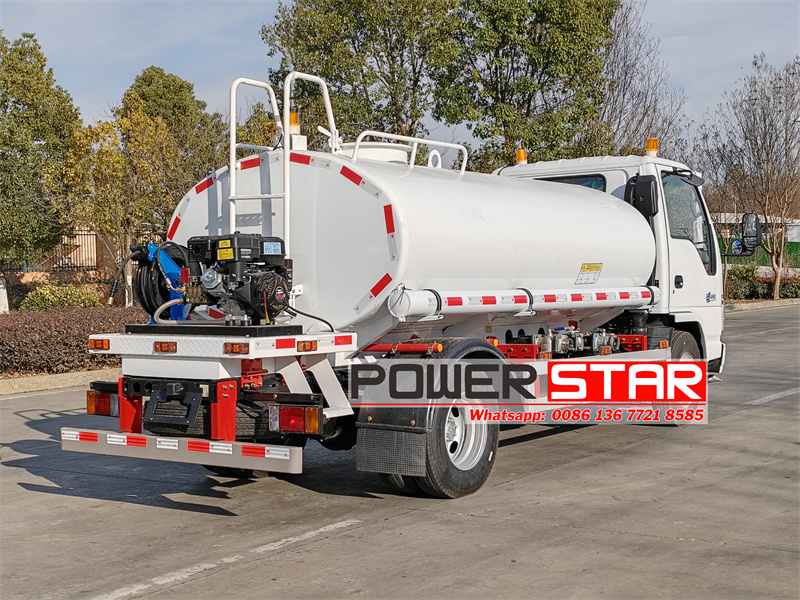

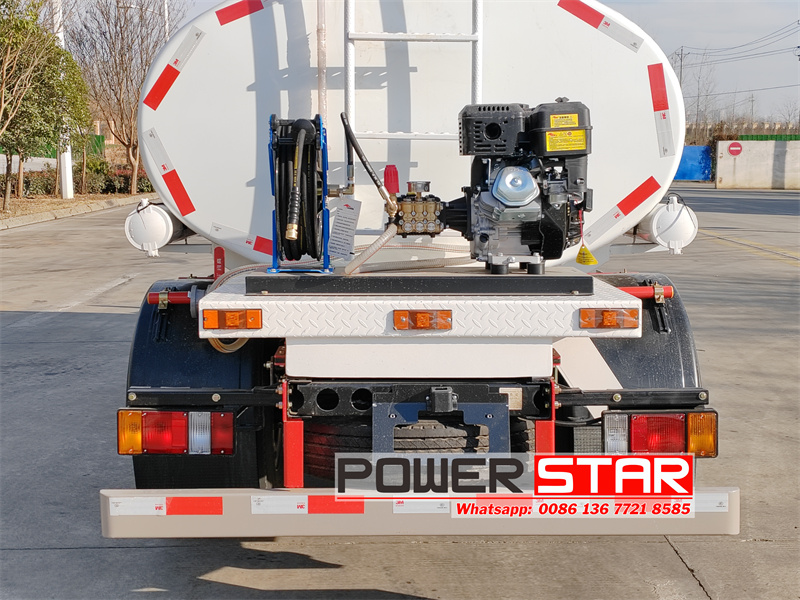

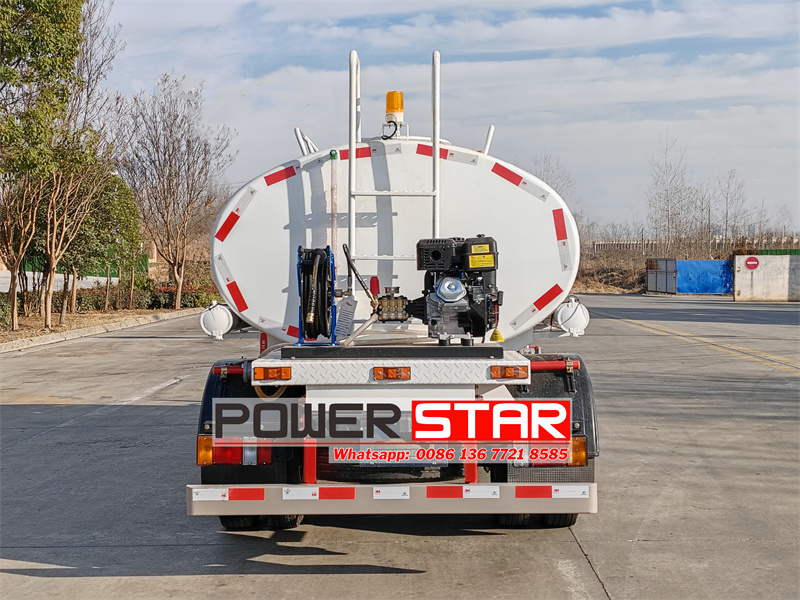

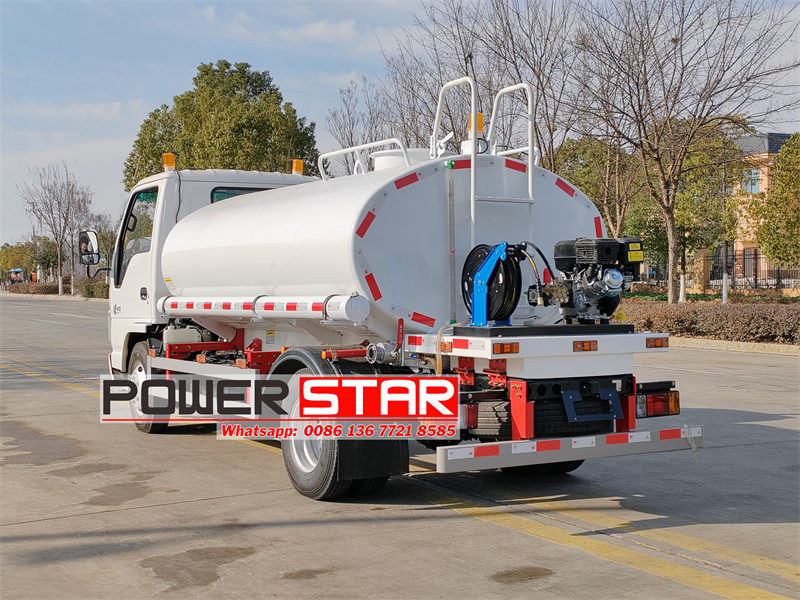

Rear Work Platform:

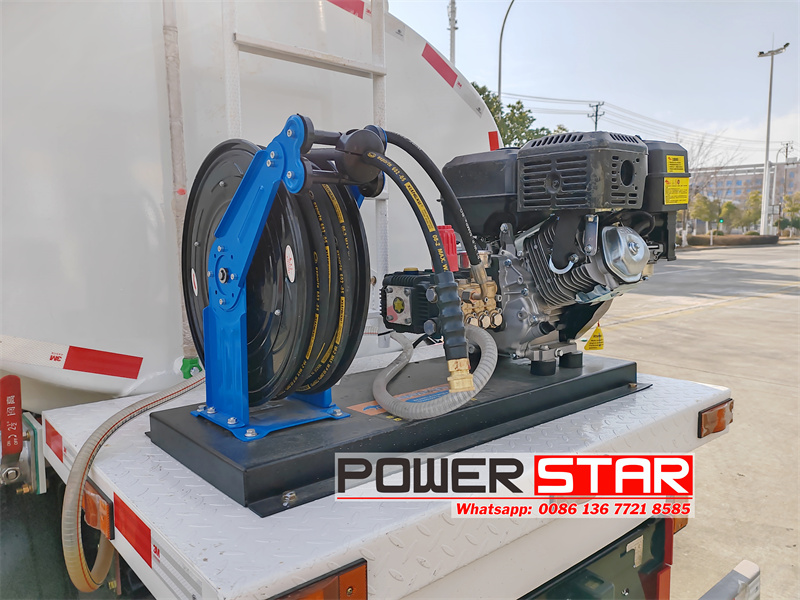

A spacious and stable work platform is specially designed at the rear of the vehicle, providing operators with good visibility and working space. This design not only facilitates the operation of the LCM190 high-pressure washer and high-pressure water gun but also makes maintenance and repair work more convenient.
LCM190 High-Pressure Washer and High-Pressure Water Gun:
As one of the core equipment, the LCM190 high-pressure washer is renowned for its powerful cleaning capability and high adjustability. Paired with the high-pressure water gun, operators can easily adjust the water pressure and spray mode according to different operational needs, making it effortless to clean stubborn stains, wash roads, or irrigate green belts.
High-Quality 65QZF-40/50 Water Pump:
The truck is equipped with a 65QZF-40/50 water pump, with a maximum flow rate of 40m³/h and a lift of 50m. This pump is characterized by its high efficiency, stable flow rate, and long service life, ensuring the continuity and efficiency of watering operations. It has excellent water suction performance and delivery capability, maintaining stable performance output even in complex and changing working environments.
Applicable Scenarios:
• Urban road cleaning: Used for washing roads and cleaning traffic facilities, reducing dust pollution, and improving the urban environment.
• Garden maintenance: Watering lawns and trees, maintaining the beauty and ecological balance of gardens.
• Factory and mine cleaning: Washing floors and cleaning equipment, improving the working environment, and reducing safety hazards.
• Emergency fire fighting: Providing temporary fire fighting support in emergencies, safeguarding people's lives and property.
