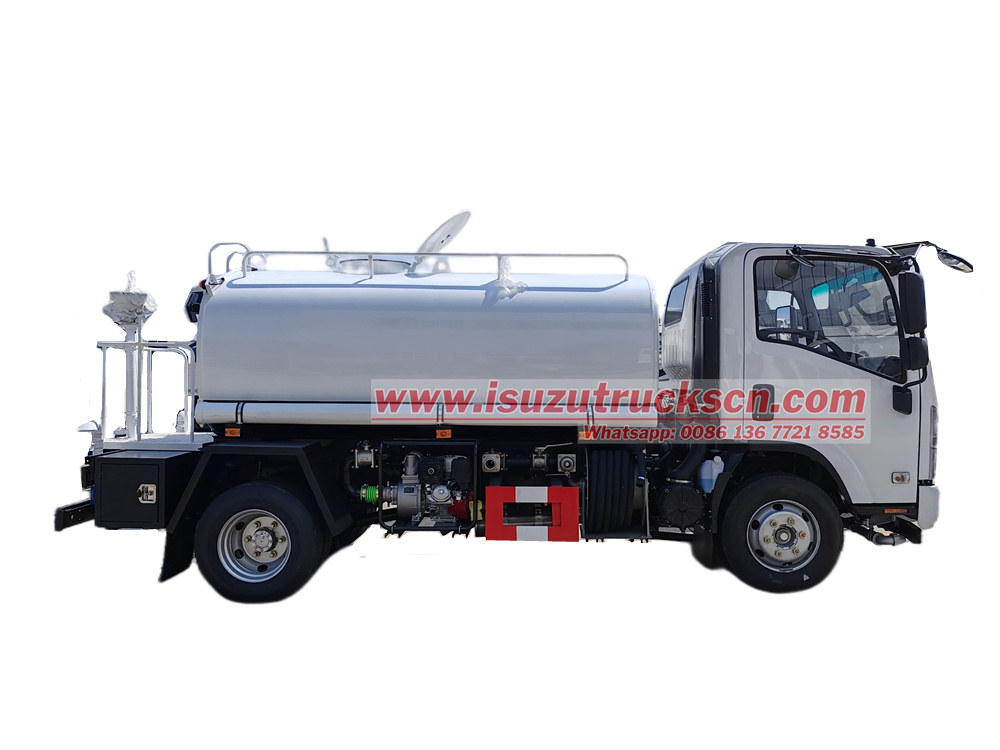

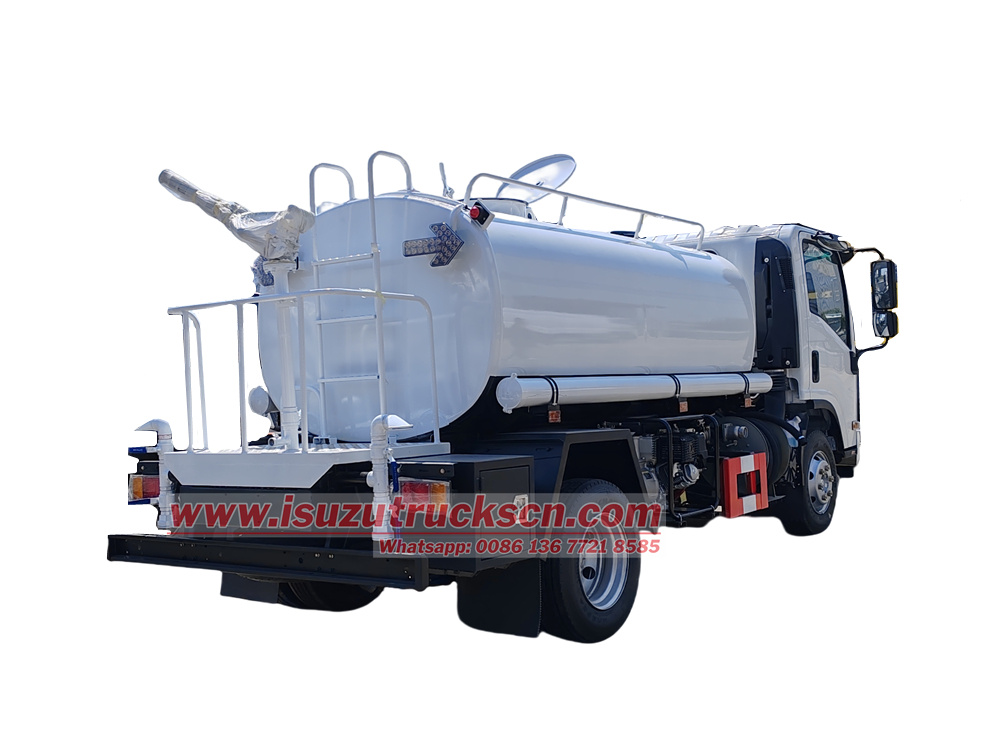

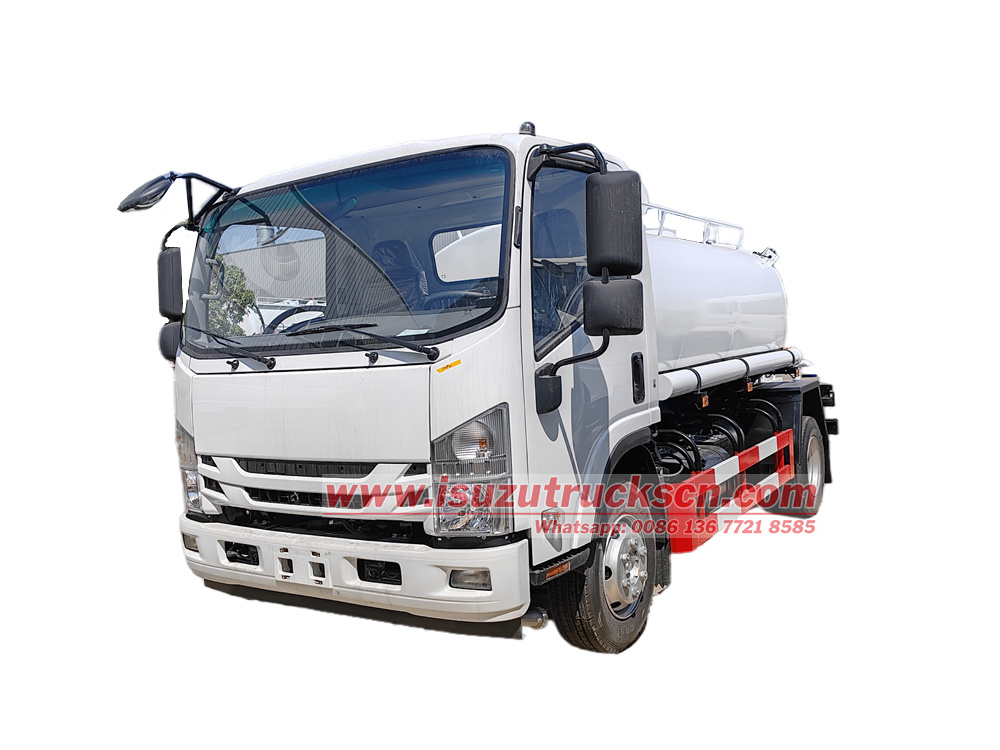

Isuzu 700P 6 cubic meter water truck, it is modified on the basis of Isuzu 700P chassis, 3 seats, 3815mm wheelbase, equipped with 4HK1-TCG61 engine, 190HP, Euro6 5193ml emission, MLD 6-speed gearbox, the upper part is a 6 cubic meter carbon steel water tank with front flushing, rear spraying and rear sprinkling functions. The vehicle is equipped with Honda /GX390 gasoline engine as the power source of the 80QSB-60/90 water pump.
Manufacturer:
Powerstar TrucksWork capacity:
6cbmDimension:
6450*2300*2450mmCabin type:
Isuzu ELF 700P cabin,3 seatsWheelbase:
3815mmEngine power:
190HPEngine type:
Isuzu 4HK1-TCG61Axle drive:
4X2Gear box:
Isuzu MLD 6-speed gearbox,manualRemarks:

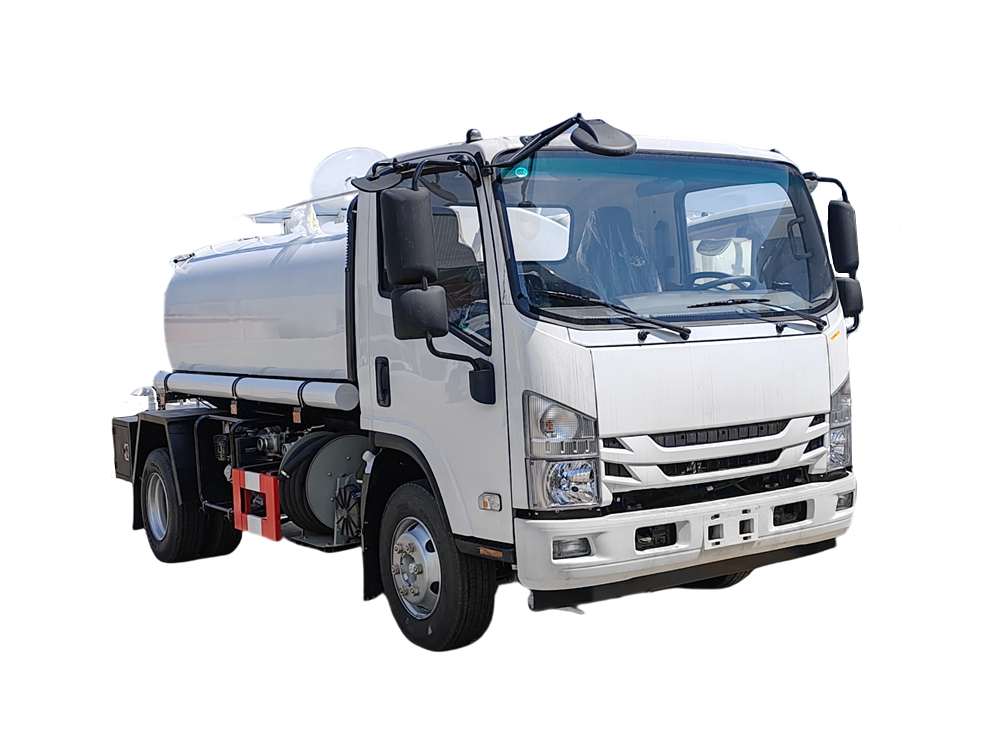

Equippped with 80QSB-60/90 water pumpIsuzu NPR road washing water truck is an efficient and practical multi-functional working vehicle, which is modified based on Isuzu 700P chassis and has stable driving performance and excellent carrying capacity. The vehicle is equipped with a 6-square carbon steel water tank and uses Honda /GX390 gasoline engine as the water pump power. It provides multiple working functions such as front flushing, rear spraying, and rear sprinkling to meet the needs of various scenarios such as urban sanitation, landscaping, and construction. Its power system is strong and reliable, the gearbox shifts smoothly, and the cab design is comfortable and safe. The vehicle also uses double-layer sealing technology and collision energy absorption design to enhance driving experience and safety.
● 30 years experience on road washing water truck designing
● 50 units Isuzu water tanker truck in stock, 5 cbm, 8 cbm, 12 cbm
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
|
Isuzu 700P 6CBM water sprinkler truck |
||
|
Chassis Parameters |
Overall Dimension(L x W x H) |
6450*2300*2450mm |
|
Curb Weight: |
4780Kg |
|
|
GVW: |
11000Kg |
|
|
Wheelbase: |
3815mm |
|
|
Drive Type: |
4x2 |
|
|
Engine |
Engine Model: |
Isuzu 4HK1-TCG61 |
|
Engine Power: |
139Kw |
|
|
Displacement: |
5193ml |
|
|
Horsepower: |
190Hp |
|
|
Transmission |
Transmission: |
MLD-6Q |
|
Forward Gear: |
6 Speed Gear |
|
|
Reverse Gear: |
1 Speed Gear |
|
|
Seats |
Front Seat: |
3 |
|
Chassis |
Front Track: |
1680mm |
|
Rear Track: |
1650mm |
|
|
Axle Loads: |
Double Axles |
|
|
Tires: |
7(including spare tire) |
|
|
Tire Model: |
235/75R17.5 |
|
|
Configuration: |
1 |
Power Steering |
|
2 |
AC |
|
|
3 |
Retro-reflective Marking |
|
|
4 |
Bias Tire |
|
|
5 |
ABS |
|
|
6 |
Free Maintenance Battery |
|
|
7 |
Air Brake |
|
|
8 |
PTO |
|
|
Tank Body: |
Water Tank Volume: |
6m³ |
|
Water Tank Material: |
Carbon steel |
|
|
Spray |
With forward flushing, rear spraying and rear sprinkling functions |
|
|
Water Tank Opening: |
1 carbon steel tank lid, manhole diameter 500mm, 1 breathing valve |
|
|
Number of Bin: |
Single, 2 swash plate |
|
|
Thickness of Water Tank: |
Tank body 4mm, head 5mm |
|
|
Other Configurations |

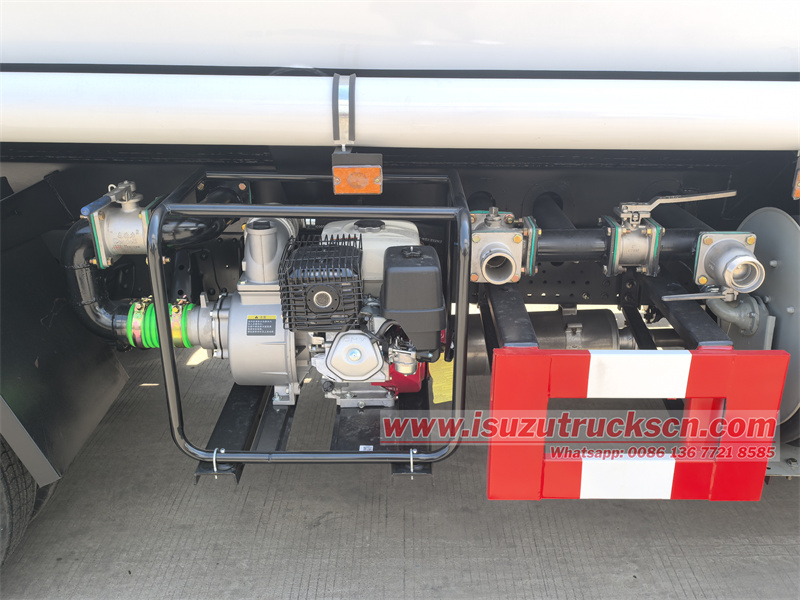

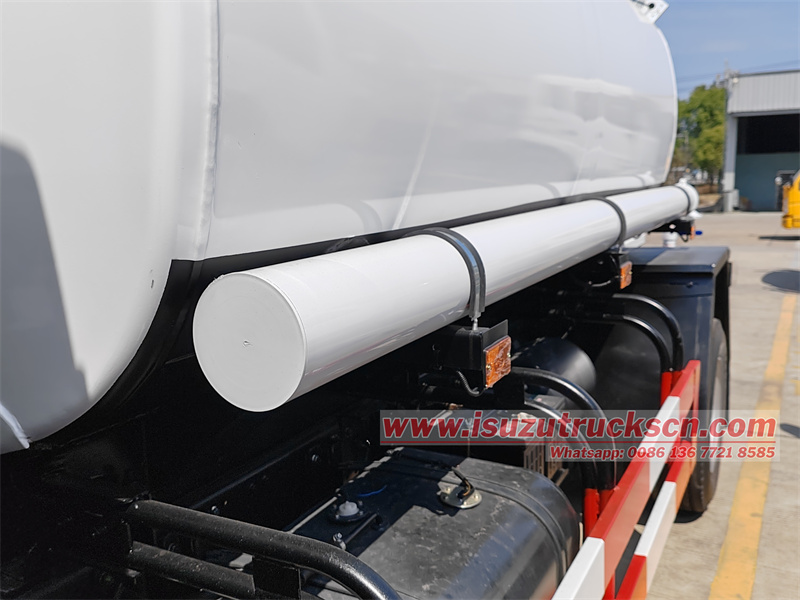

Stainless steel pipe, with stainless steel ball valve, 1pcs gravity valve, 1pcs pump valve |
|
|

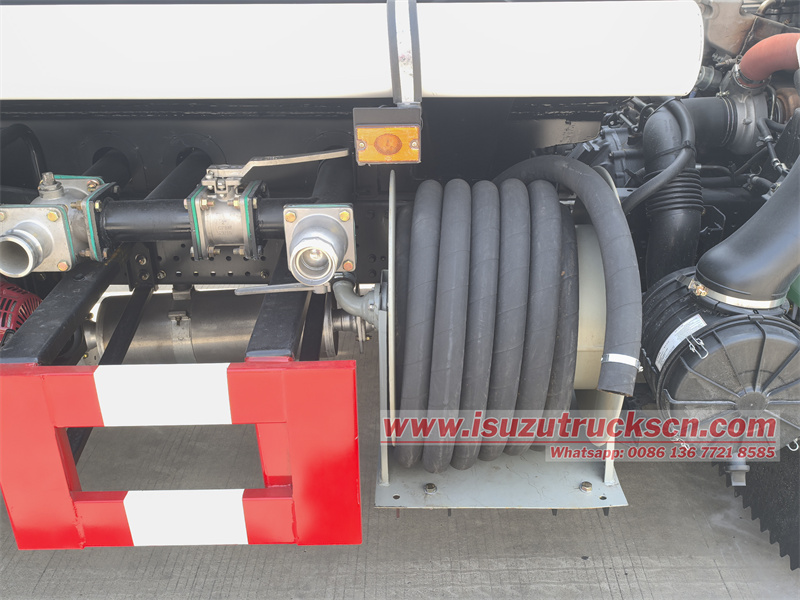

20M fire hose |
||
|
2pcs drain hose |
||
|

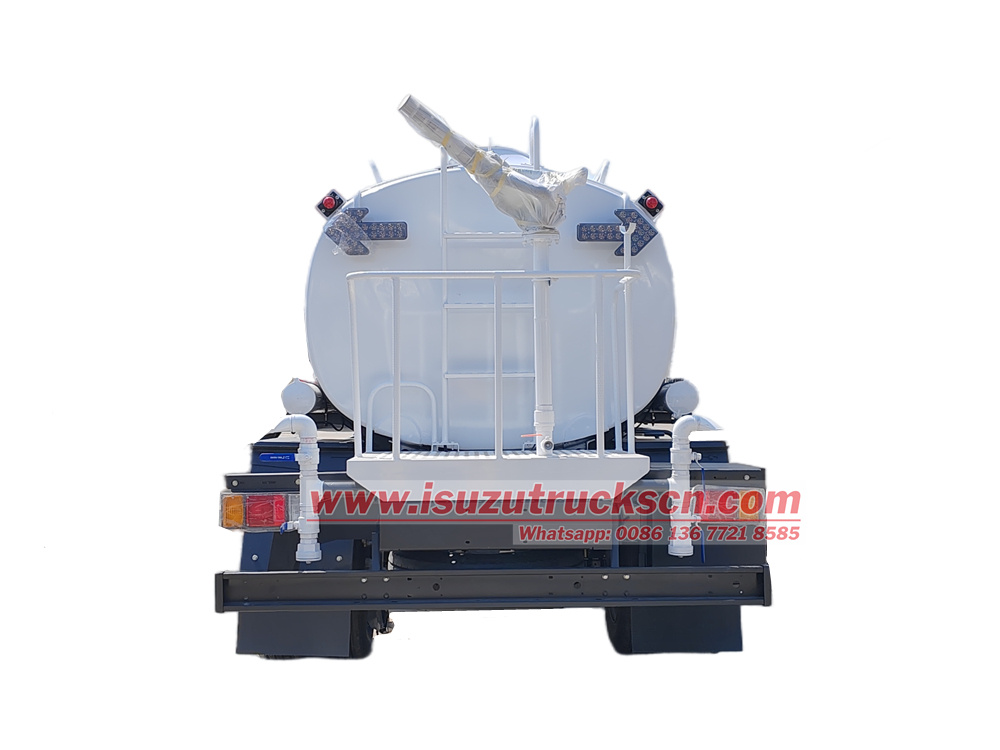

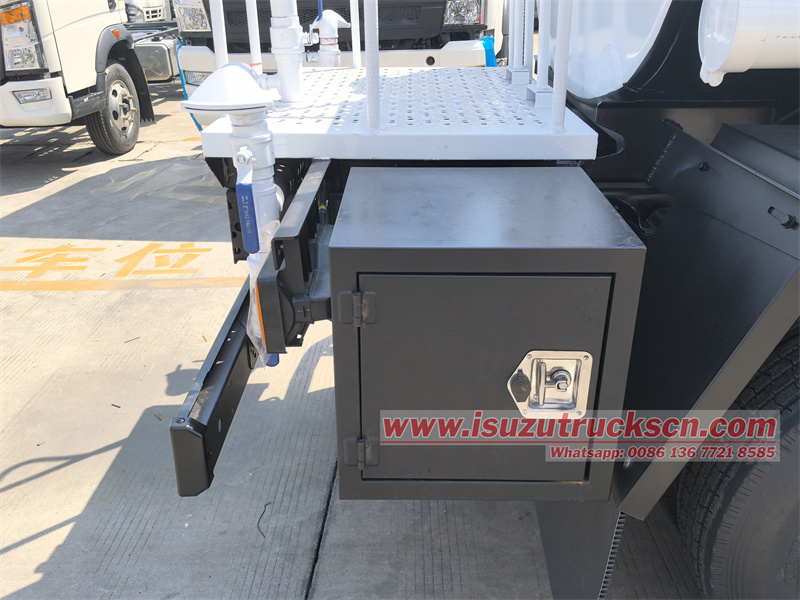

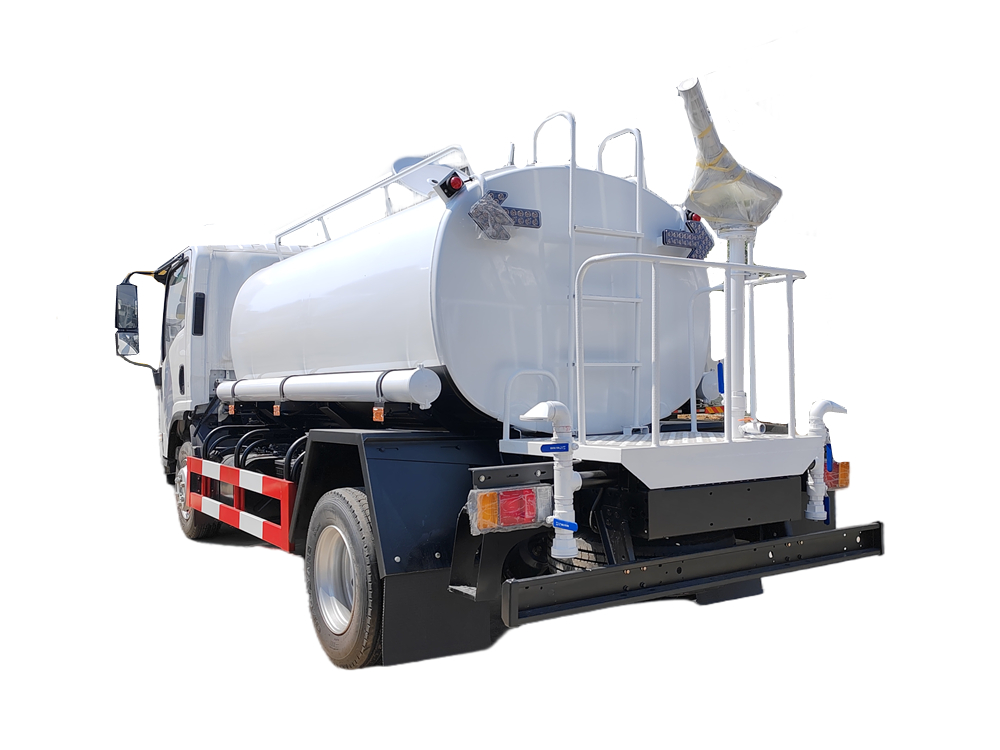

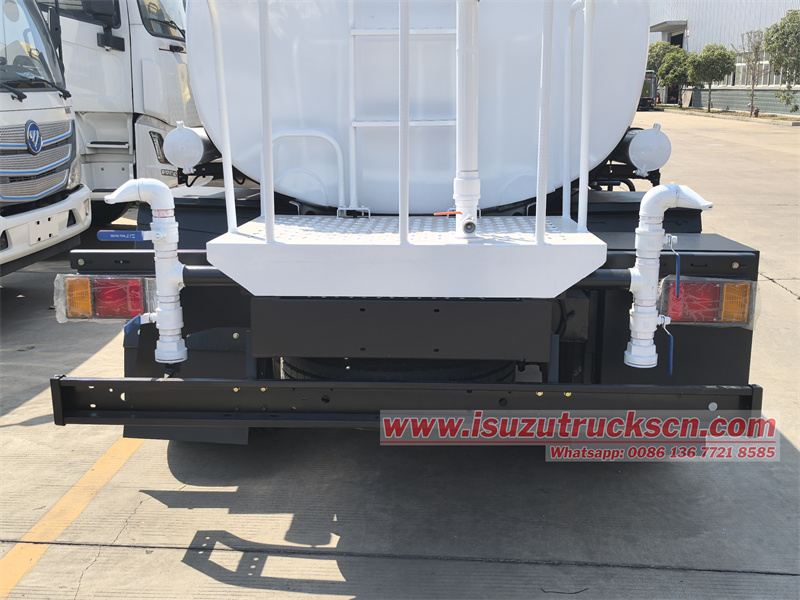

Tail with ladder,side and rear lights,side fence, carbon steel rear bumper,LED lamps, waterproof plug |
||
|
Water Pump |
Model |
80QSB-60/90 |
|
Flow rate |
60m³/h |
|
|
Lift |
90m |
|
|
Input shaft speed |
1150r/min |
|
|
Self-priming time min/4m |
1 |
|
|
Efficiency |
70% |
|
|
Gasoline Engine |
Model |
Honda /GX390 |
|
Engine type |
4-stroke single cylinder |
|
|
Compression ratio |
8.2 : 1 |
|
|
Net power |

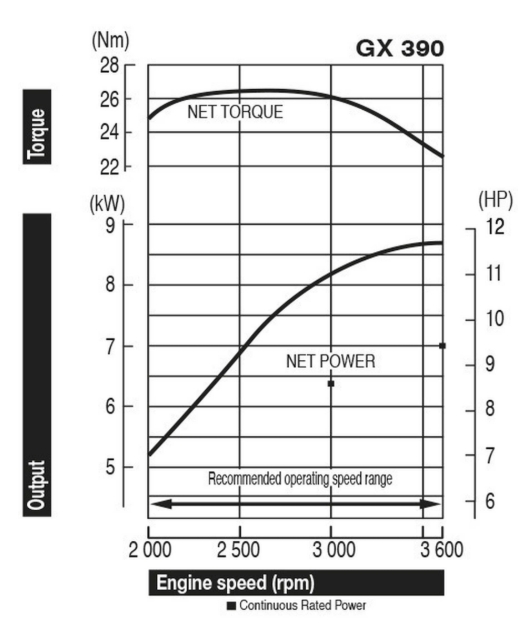

8.7 kW ( 11.7 HP ) / 3600 rpm |
|
|
Flow rate |
1,800L/min |
|
|
Type: |

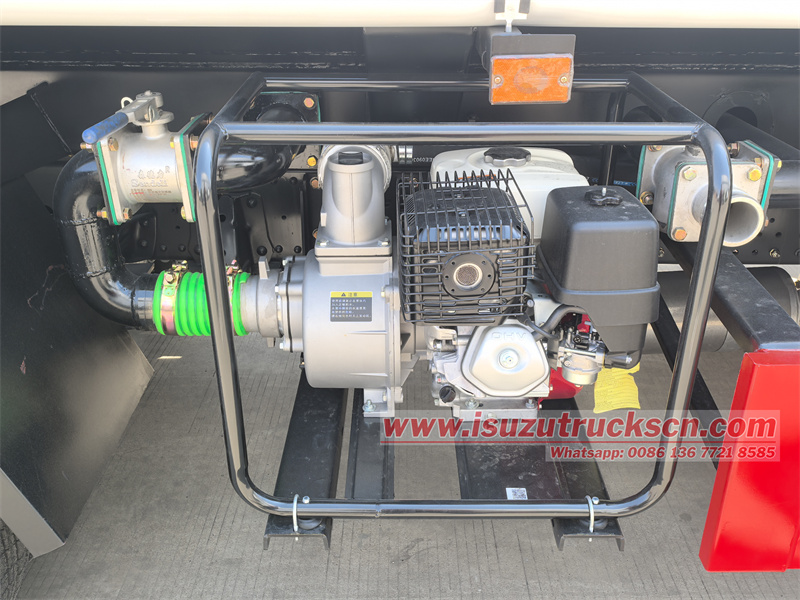

Pump with inlet 4-inch, outlet 4-inch ; Gasoline engine The outer shell of the water pump is aluminum, and the inner core impeller of the water pump is cast iron. |
|
Isuzu 700P6 square water truck is a multifunctional water truck carefully modified based on Isuzu 700P chassis. Its design fully integrates practicality and efficiency, aiming to meet the needs of various operating scenarios such as urban sanitation, landscaping, and construction.
Chassis foundation
• Chassis model: Isuzu 700P, this chassis is famous for its excellent load-bearing capacity and stable driving performance, providing a solid foundation for the modification of the water truck.
• Wheelbase: 3815mm, the reasonable wheelbase design makes the vehicle more stable during driving, while ensuring good passability and controllability.
Power system
• Engine: Equipped with 4HK1-TCG61 190HP engine, this engine is widely praised for its strong power output, low fuel consumption and efficient emission control. It can ensure that the water truck can maintain stable power performance under various working conditions.
• Transmission: Equipped with MLD 6-speed transmission, smooth shifting and high transmission efficiency, allowing the driver to control the vehicle speed and power output more easily during operation.
Upper configuration
• Water tank capacity and material: The upper part is a 6-cubic-meter carbon steel water tank. The carbon steel material has good corrosion resistance and strength, can resist erosion in various harsh environments, and ensure the long-term service life of the water tank. At the same time, the 6-cubic-meter capacity also meets the needs of most operating scenarios. It is neither too large nor too small, which saves space and improves operating efficiency.
• Functional configuration: The water truck has multiple functions such as front flushing, rear spraying, and rear sprinkling. The front flushing function can be used to clean the road surface, flush garbage, etc.; the rear spraying function can be used to irrigate green belts, reduce dust, etc.; the rear sprinkling function can be used to wet the road surface, increase air humidity, etc. The setting of these functions enables the water truck to respond to various operating needs more flexibly, improving the practicality and versatility of the vehicle.
The water tank itself is constructed using carbon steel, a highly durable and corrosion-resistant material, ensuring long-term reliability and protection from harsh elements. The Honda GX390 pump, with a flow rate of 1,800 liters per minute, allows for rapid water delivery, making this truck highly efficient in emergency or operational settings. Additionally, the tank is equipped with a top tank manhole, which facilitates easy inspection and maintenance of the water storage area, promoting vehicle longevity and optimal performance.
Auxiliary equipment

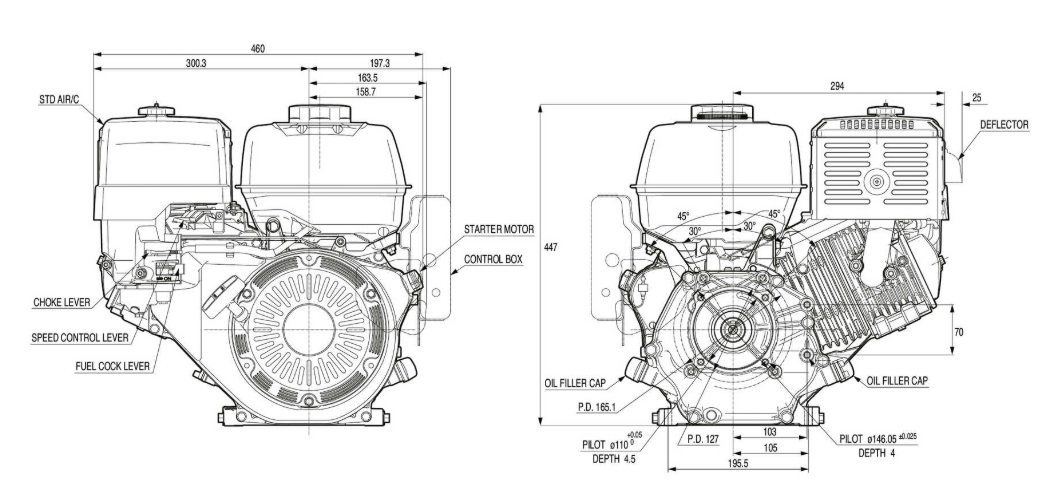

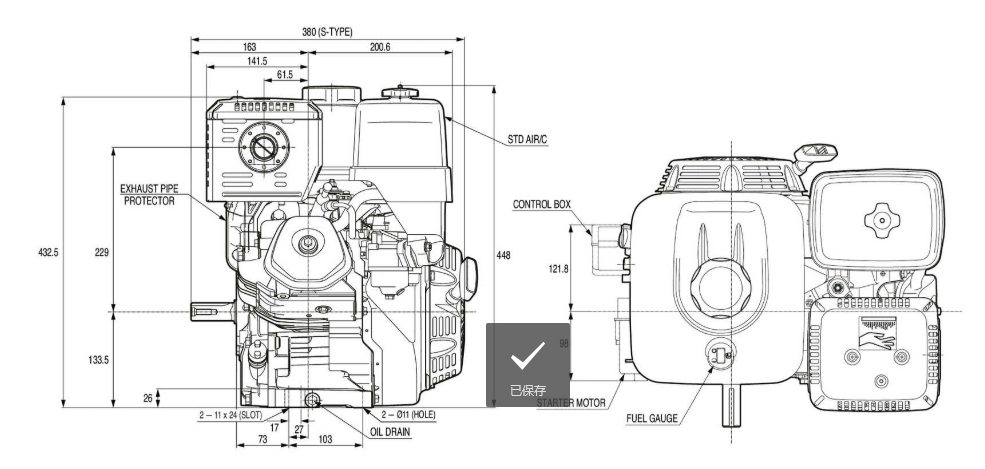

• Gasoline engine: The vehicle is equipped with a Honda /GX390 gasoline engine as the power source of the water pump. Honda gasoline engines are known for their reliable performance, easy maintenance and low noise. Its stable power output can ensure that the water pump can work normally under various working conditions; at the same time, its maintenance cost is also low, saving a lot of money for the owner. In addition, the low-noise design also allows the driver to operate the vehicle more attentively during the operation, improving the safety and efficiency of the operation.
The GX390 engine is suitable for a wide range of heavy-duty applications such as construction equipment, tillers, generators, welders, pumps and other industrial applications.
Engine features:
Wide range of uses
• Urban sanitation: Isuzu 700P6 cubic water truck can be used for cleaning urban roads, flushing garbage, etc., to keep the urban environment clean and beautiful.
• Landscaping: It can be used for watering green belts, maintaining trees, etc., to contribute to the cause of urban greening.
• Construction: At the construction site, it can be used for dust reduction, washing vehicles and equipment, etc., to keep the construction site clean and safe.
• Emergency rescue: In emergency situations such as natural disasters, it can be used for fire fighting and rescue, etc., to provide strong support for emergency rescue work.
