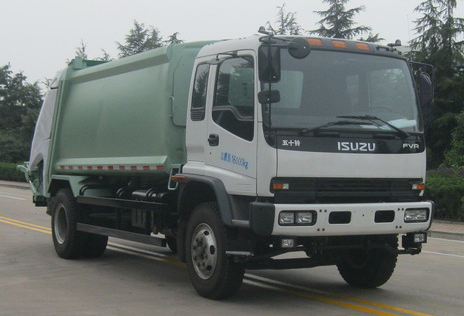

6HK1-TCNG40 177KW isuzu 16 ton trash compactor rubbish compactor garbage truck
Order(MOQ):
16HK1-TCNG40 177KW isuzu 16 ton trash compactor rubbish compactor garbage truck
Garbage Compress Truck
( Rear-loading Rubbish Compression Truck )
The product has such features as large loading and delivering capacity, high-efficiency compression, large compressing force and sealed transport, which can reduce transport times and fuel-consumption. The all-sealed transport mode can also reduce and prevent secondary pollution of cities and roads caused by rubbish, stinks and sewage leakage. With its tail-gas emission up to the EUROPEAN Ⅱ standard, the rubbish compression truck is safe and environment-friendly. It is applicable to the transport of domestic rubbish from places such as cities, large stations, ports and wharfs, airports as well as densely-populated areas like industrial and mining enterprises and military units.
l The whole truck adopts the ISUZU FVR chassis equipped with the 6HK1 engine, which makes it elegant in shape, safe and reliable in performance and comfortable to drive.
l The overall circular-arc outline of the truck hopper is eye-pleasing and elegant.
l The truck is well-known for its bidirectional compression mode, big compression proportion and large loading capacity.
l Equipped with both remote-control and manual control systems, the truck is easy to drive, which guarantees and greatly improves safety at work.
l The chemically and antiseptically treated steel plates together with the high-strength welding technology ensure a long service life.
l The well-designed hydraulic system adopts whole sets of imported hydraulic parts, which ensures quick response, short work cycle, high work efficiency, easy operation and reliable performance.
l The filling device has combined the functions of a skip bucket and a sealing device, which ensures easy operation and better appearance.
Parameters of the complete truck |
Complete truck(L×W×H) |
mm |
7400×2485×2900 |
Truck bucket dischargeable volume |
M3 |
10.5 |
|
Volume of Jam Device |
M3 |
1.5 |
|
Max. total weight(Kg) |
|
12950 |
|
Volume of sewage tank |
L |
402+52 |
|
Discharge time(s) |
|
‹38 |
|
Filling-mouth size |
mm |
1830×1000 |
|
Filling-mouth height |
mm |
900 |
|
Hydraulic pressure system |
System pressure |
Mpa |
16 |
Filling device one -time working cycle time |
s |
‹24 |
|
One-time discharge time |
s |
‹35 |
