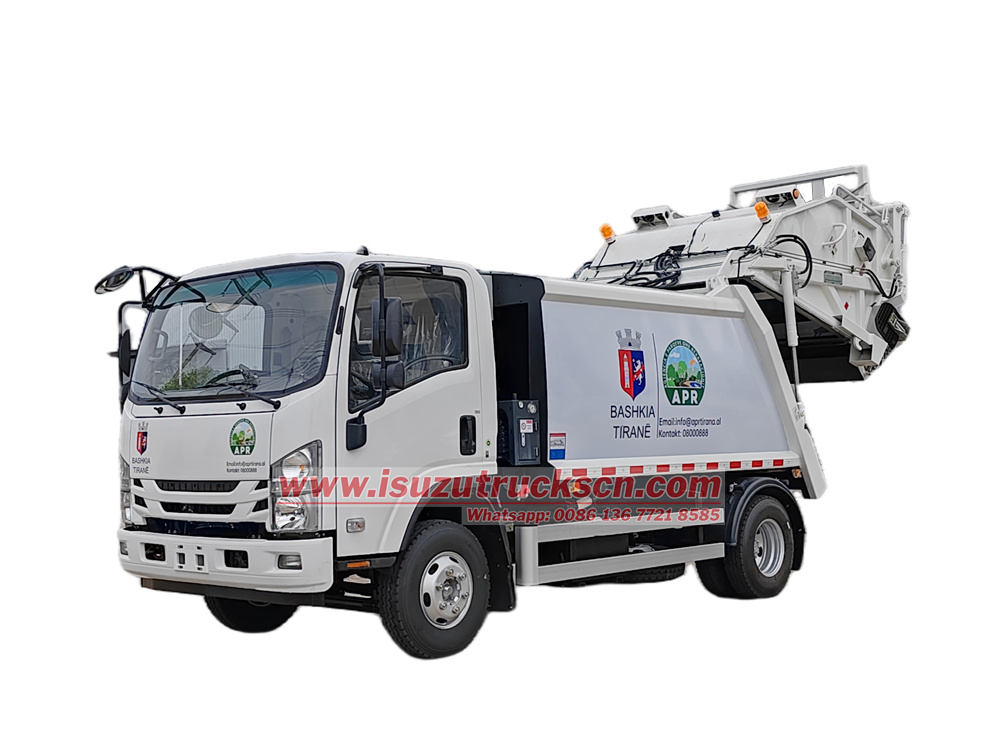

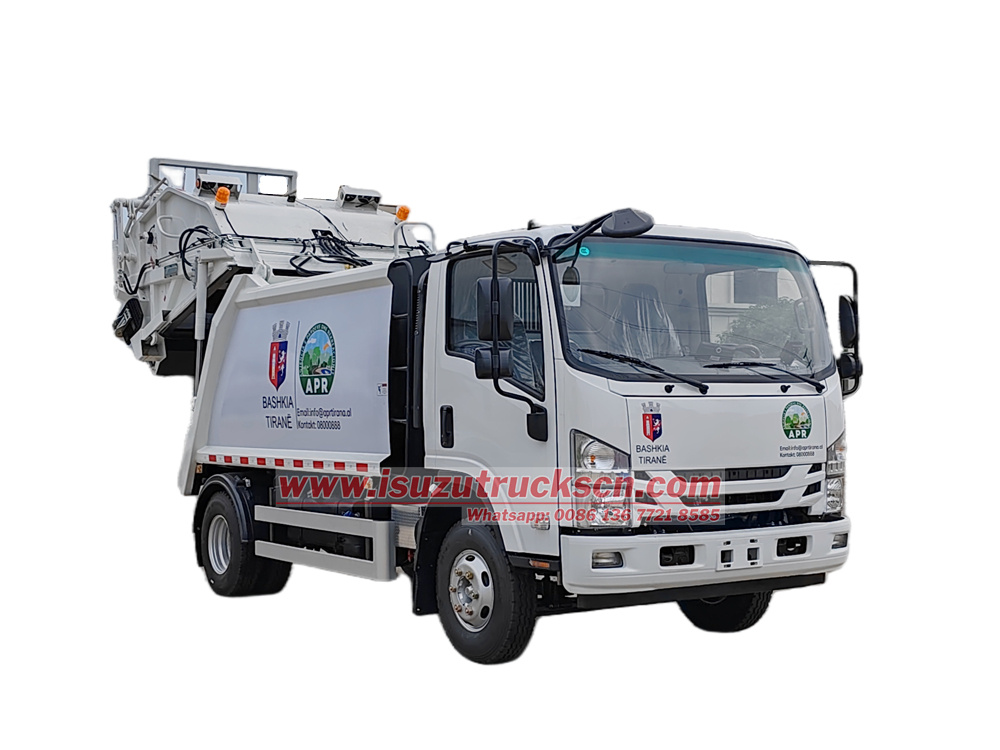

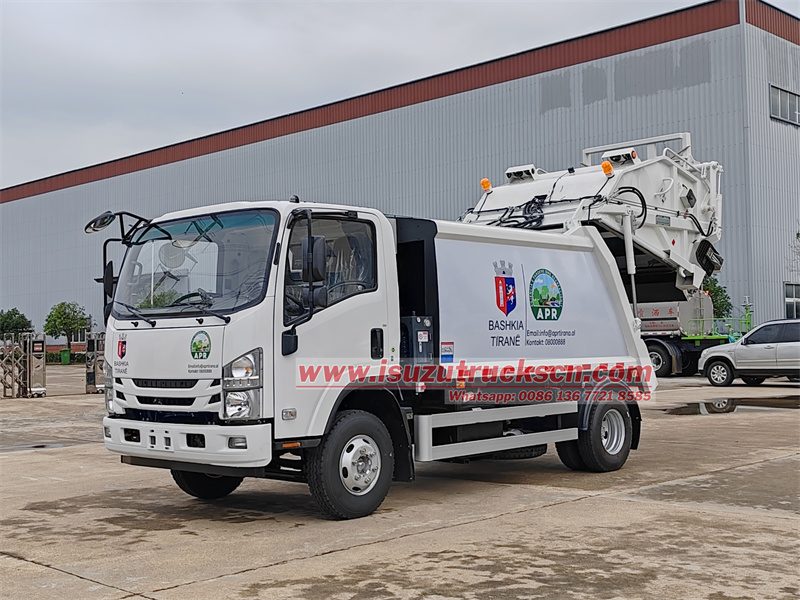

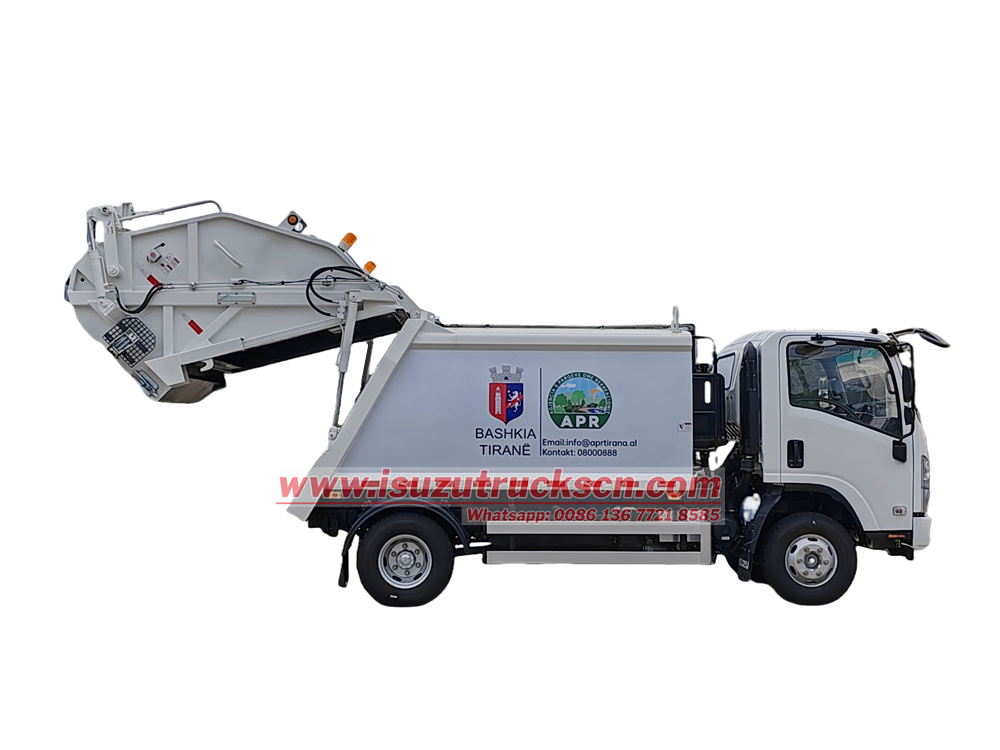

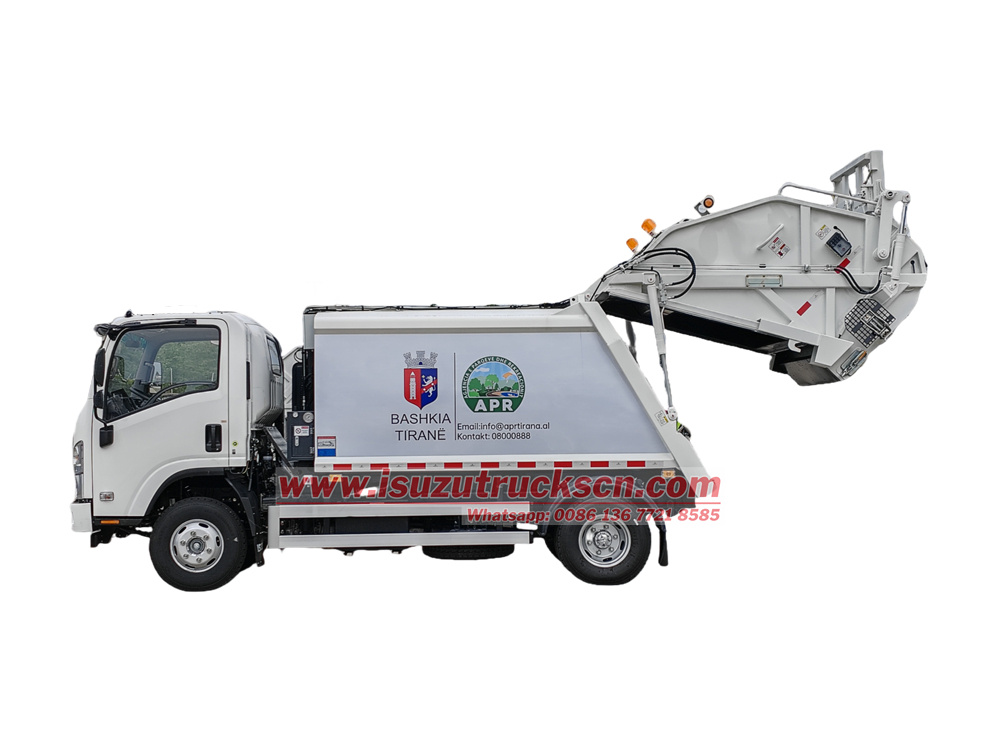

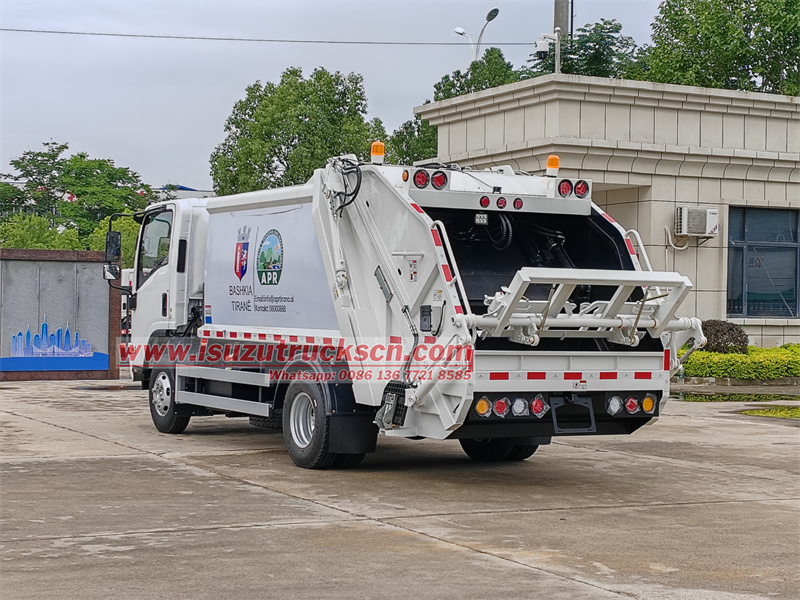

Isuzu KV600 6cbm garbage compactor truck is modified from Isuzu KV600 chassis, with a wheelbase of 3365mm, equipped with Isuzu 4KH1CN6HB 132 horsepower diesel engine and Isuzu MLD 6-speed gearbox, which is powerful and has low fuel consumption. The upper body adopts 6cbm arc carbon steel garbage bins, equipped with hanging bucket flipping mechanism and two-way compression technology to improve loading efficiency and prevent leakage. The vehicle supports three operation modes: cab electronic control, manual hydraulic and tail electronic control to meet different operation needs.
Manufacturer:
Powerstar TrucksWork capacity:
6cbmDimension:
6980 x 2100 x 2490mmCabin type:
Isuzu KV600 3X cabin,3 passengersWheelbase:
3365mmEngine power:
132HP/97 KWEngine type:
Isuzu 4KH1CN6HBAxle drive:
4x2 LHDGear box:
Isuzu MLD 6-speed,manualRemarks:

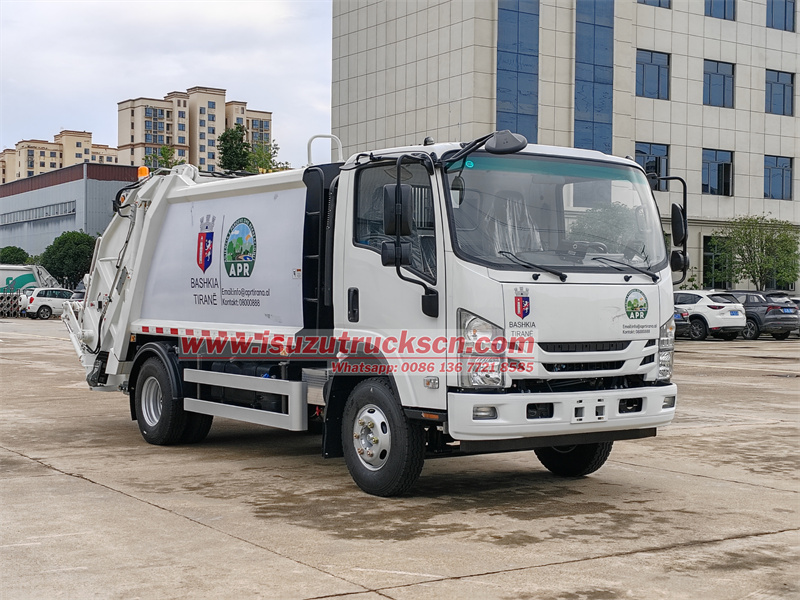

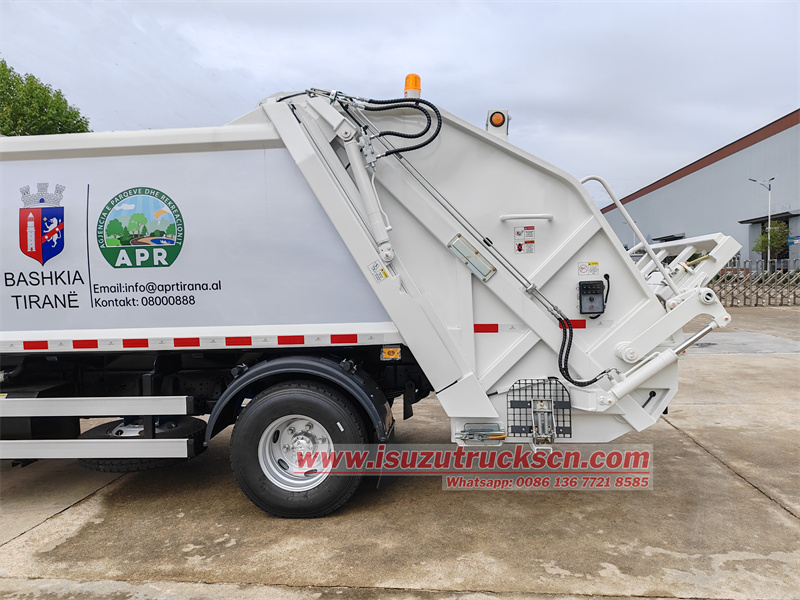

Equipped with hanging bucket flipping mechanismAlbania Isuzu 6 cbm hydraulic compaction truck is an efficient and reliable special vehicle for collecting and transporting urban domestic garbage. It has a wheelbase of 3365mm, is equipped with a 120-horsepower Isuzu engine and a 5-speed gearbox, and is powerful and fuel-efficient. The upper body adopts a 6-cubic-meter arc-shaped carbon steel box, which is anti-corrosion and rust-proof and durable. The tailgate is equipped with a bucket flipping mechanism, which is suitable for 120L/240L standard garbage cans, and is driven by hydraulic cylinders to flip and dump garbage.
The vehicle is equipped with three control systems: the cab electronic control box, the manual hydraulic lever on the driver's side, and the tailgate electronic control box, which can realize operations such as power switch, power take-off, tailgate lifting, push shovel extension, slide up and down, scraper pressing and rotating, loading/unloading mode switching and emergency braking. The vehicle achieves efficient compression (compression ratio ≥3:1) through the linkage of scrapers and slides, has a large loading capacity, and the sealing design prevents leakage, which meets environmental protection standards.
● China best Isuzu rear loader truck factory
● 30 years experience on garbage compactor truck designing
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. High compression ratio: The compression cycle time is about 25-30 seconds, and the compression density can reach 0.6-0.8 tons/cubic meter, which significantly reduces the volume of garbage and improves transportation efficiency.
2. Safety design: The maximum working pressure of the hydraulic system is 16Mpa, which is limited by the overflow valve on the multi-way reversing valve to prevent system overload. The key components of the electrical and hydraulic systems often use imported components to improve reliability.
3. Intelligent control: It adopts a mechanical, electrical and hydraulic joint control system, supports automatic and manual operation modes, and is convenient for debugging, maintenance and troubleshooting. The engine power output can be automatically controlled to meet the needs of different working conditions and reduce fuel consumption.
4. Humanized operation: The cab electronic control box, the manual hydraulic operating lever on the driver's side and the electronic control box at the tailgate provide multi-position control. Operators can flexibly choose according to actual needs to improve the convenience of operation.
Rear loading compaction truck also called garbage compactor truck,rear lifting compactor truck,trash compactor truck, truck mounted garbage compactor, rear load dumpster truck,is a special vehicle designed for waste management and sanitation purposes.
» Ⅱ.Product Parameter for Isuzu KV600 rear loader truck:
|
Isuzu KV600 6 cbm waste compactor truck |
||
|
Truck model |
PT5080ZGH |
|
|
Cabin |
Isuzu KV600 3X cabin,driving type 4*2 LHD,single row,3 passengers, air conditioner,USB |
|
|
Overall Size |
6980*2100*2490 mm |
|
|
Bin capacity |
6CBM |
|
|
Wheel base |
3365mm |
|
|
GVW |
8280kg |
|
|
Curb weight |
5560kg |
|
|
Axle loading |
3000/5280kg |
|
|
Engine |
Model |
Isuzu 4KH1CN6HB |
|
Type |
4-stroke direct injection,4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Hose Power(HP) |
132HP/97 KW |
|
|
Displacement |
2999ml |
|
|
Emission standard |
Euro 6 |
|
|
Max speed |
105km/h |
|
|
Tire |
750R16(6+1 tire) |
|
|
Transmission |
Isuzu MLD 6-speed,manual |
|
|
Superstructure |
Body capacity |
6cbm |
|
Box material |
Side 4mm,bottom 5mm |
|
|
Design |
Whole unit with Leakage Proof Design |
|
|
Sewage tank |
200 liters |
|
|
Filling work cycling time |
20~25 s |
|
|
Garbage Compact Ratio |
≥3:1 |
|
|
Discharge model |
Horizontal Ejection |
|
|
Control system |
The system is controlled from the PLC control box, which enables, start, stop, 1-cycle, continuous cycles, and rescue activities. 3 operate modes: cab electric control box,drive side manual joystick,tailgate electric control box |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,handrail, fire extinguisher, basic tool kit, English manual... |
||
|
Electrics |
Operating voltage:24V,negative grounded Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
|
» Ⅲ. Product Details & Advantages:
Chassis performance: efficient power and stable load
• The vehicle is based on the Isuzu KV600 Class II chassis, with a wheelbase of 3365mm, taking into account both maneuverability and load balance.
• The front axle allows a load of 3 tons and the rear axle 5.28 tons, and the reinforced leaf spring suspension ensures the load stability during garbage transportation.
• Equipped with Isuzu 4KH1CN6HB 132 horsepower diesel engine, displacement 3.0L, maximum power 132 horsepower, strong and stable power output, excellent fuel economy.
• Equipped with Isuzu MLD 6-speed gearbox, smooth shifting and easy operation.
Upper structure：large capacity and durable structure
• The upper body adopts 6 square arc carbon steel material trash can. Carbon steel material has the characteristics of high strength and corrosion resistance. It can withstand the heavy pressure of garbage and the erosion of harsh environment, extending the service life of the trash can.

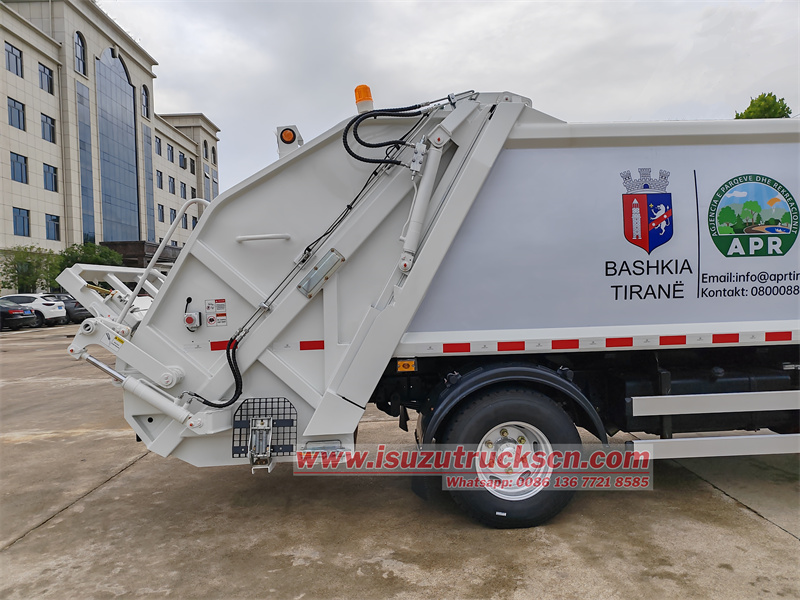

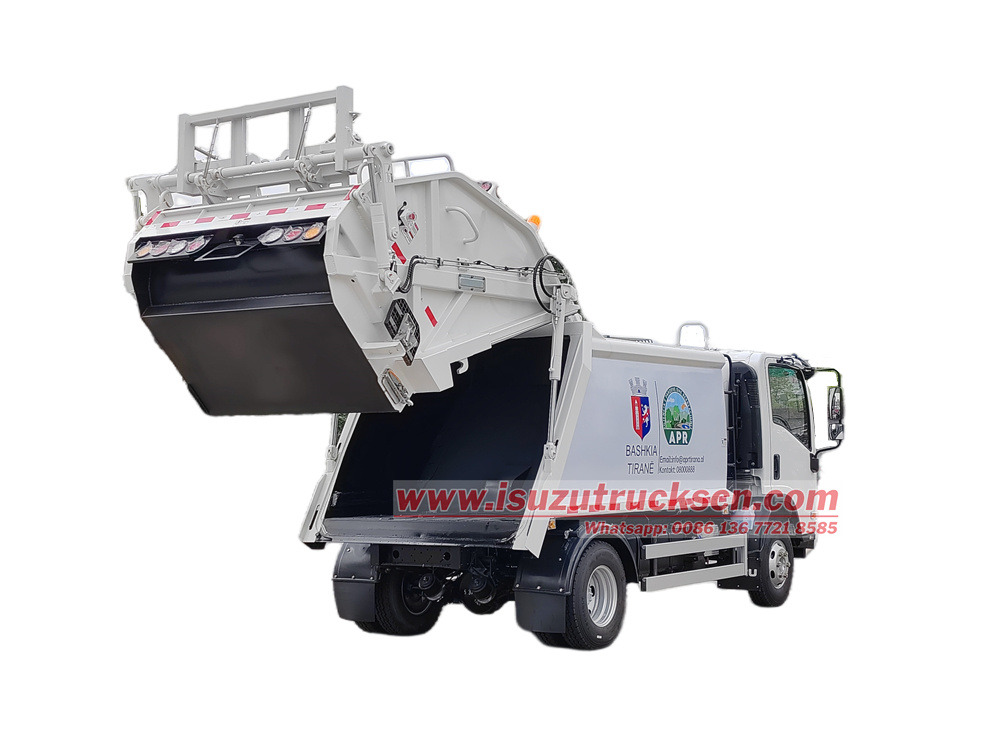

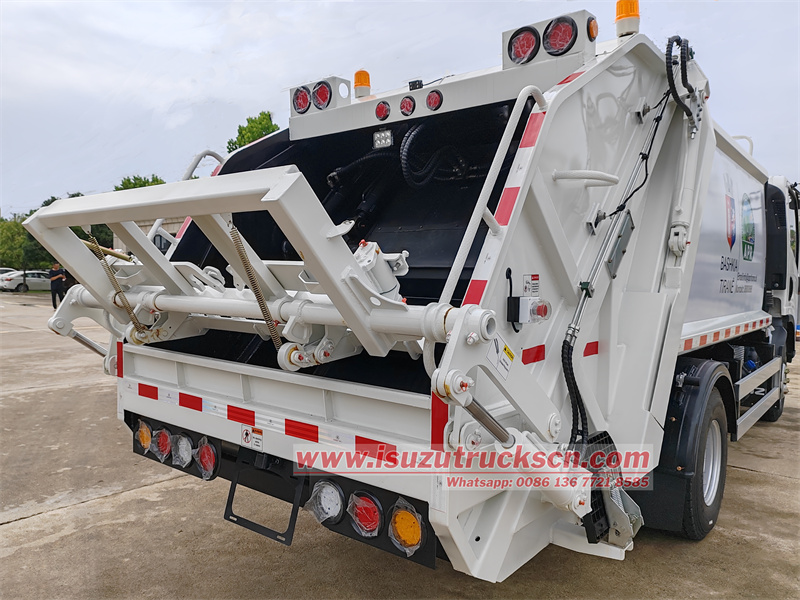

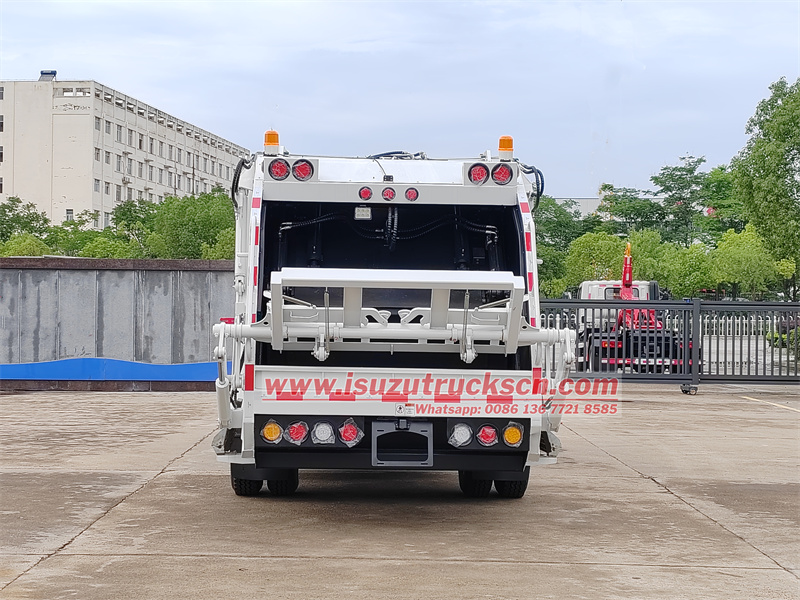

• The tail is equipped with a bucket flipping mechanism, which can be adapted to 120/240L standard trash cans. It can automatically grab, lift and dump through hydraulic drive. The single cycle operation time is ≤25 seconds, which improves the collection efficiency. The compression mechanism adopts bidirectional compression technology, with a compression ratio of 3:1, which effectively increases the loading capacity. The tailgate hydraulic locking device is equipped with a sealing strip to prevent sewage dripping during transportation.
Multi-mode control system
The vehicle is controlled by a PLC electronic control system and provides three operation modes to meet the needs of different scenarios:

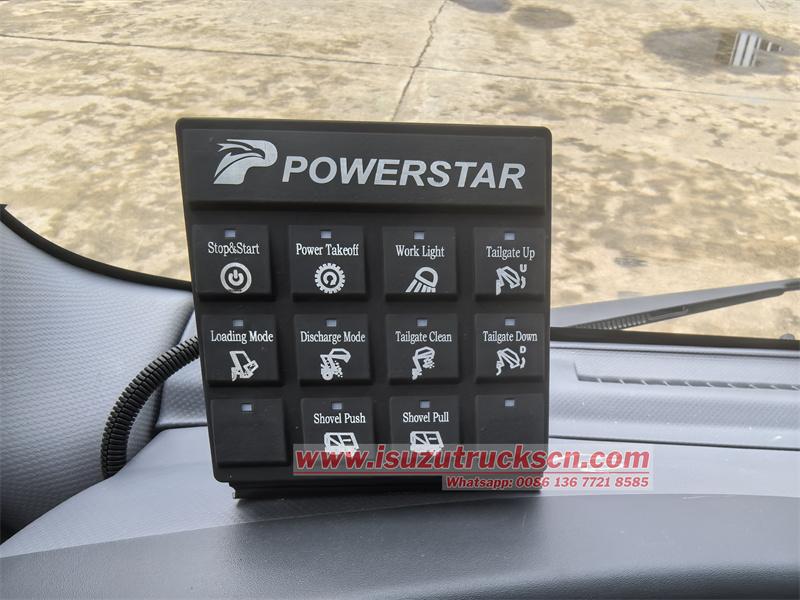

1. Cab electronic control box: integrated button panel, which can complete the control of power switch, power take-off, work light, tailgate lifting, loading/unloading mode switching, push shovel push/retract action, tailgate cleaning and other processes with one button

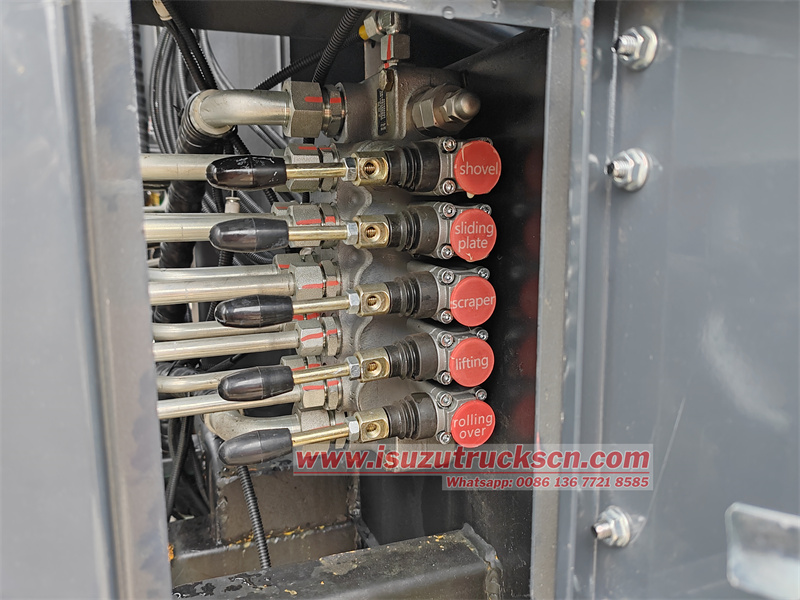

2. Manual hydraulic operating lever (driver's side): mechanical control, control push shovel push/retract, tailgate lifting action, easy to operate

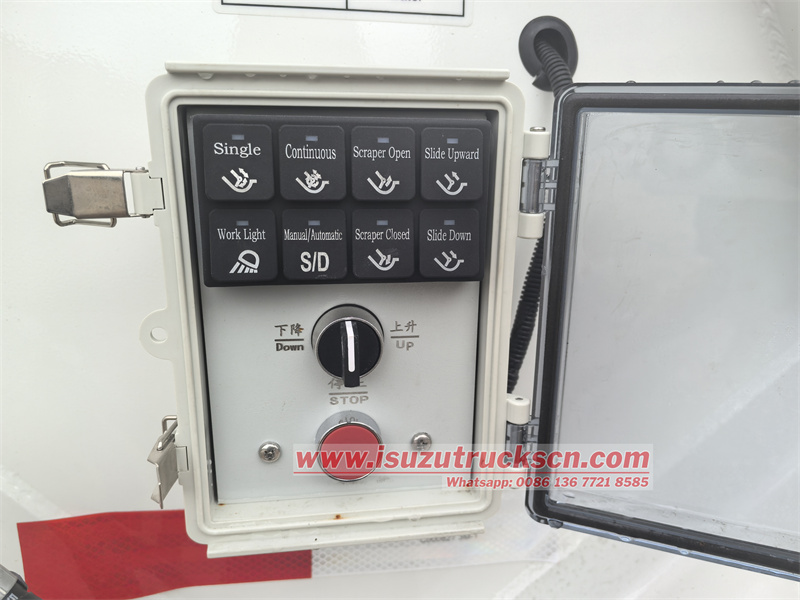

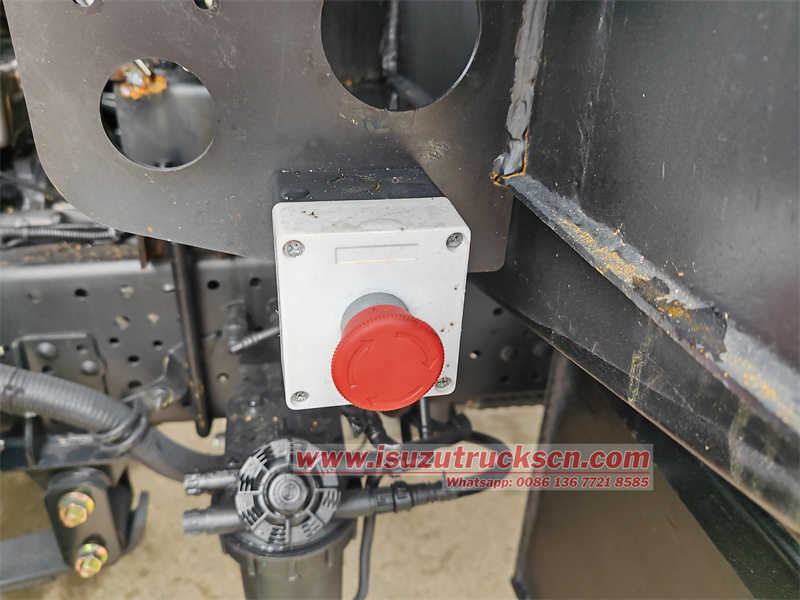

3. Tailgate electric control box: It is convenient for close-range control of loading and unloading, supports single/continuous cycle operation mode, controls the linkage of scraper (press down and rotate up) and slide plate (up and down), can switch between manual/automatic mode, and is equipped with emergency stop function to ensure safety.
The hydraulic system uses a Chinese-made gear pump with a working pressure of 16MPa and a flow rate of 25L/min. It has a quick response and low noise.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» Ⅳ.Professional Design and Production:
1. POWERSTAR R & D Department for design:
100% customized appearance, design the compactor bin capacity, operation methods and location, also the whole truck size can be customized.
2. Working principle for production:
●. The power of Isuzu KV600 compression garbage truck comes from the engine, which drives the oil pump through the power take-off and transmission shaft to convert mechanical energy into hydraulic energy, and distributes hydraulic oil through the multi-way reversing valve to drive each cylinder to work.

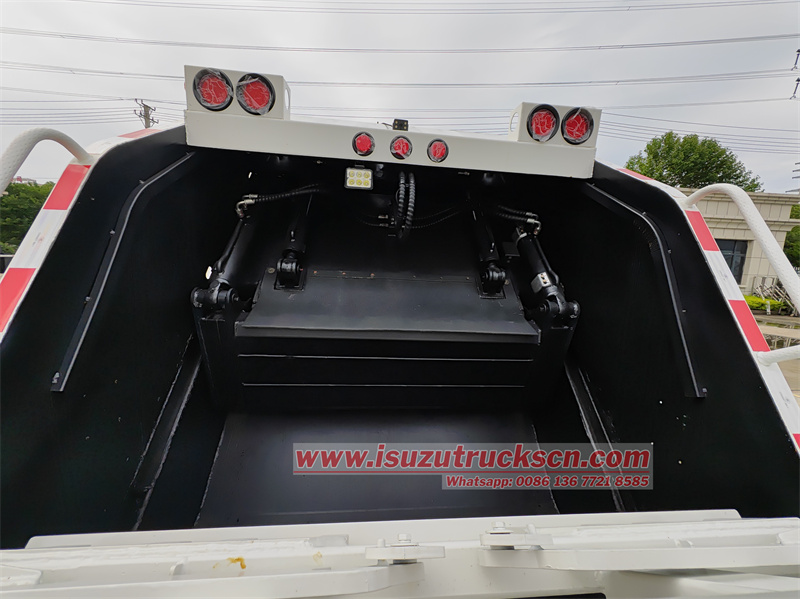

●. When filling the garbage, the scraper and slide plate cooperate to first crush and compress the garbage in the hopper for the first time, and then further compact and fill it into the garbage bin, and the shovel retreats to evenly distribute the garbage. During transportation, the garbage bin is completely closed, and the sewage collection tank at the bottom of the filler prevents sewage leakage and avoids secondary pollution.

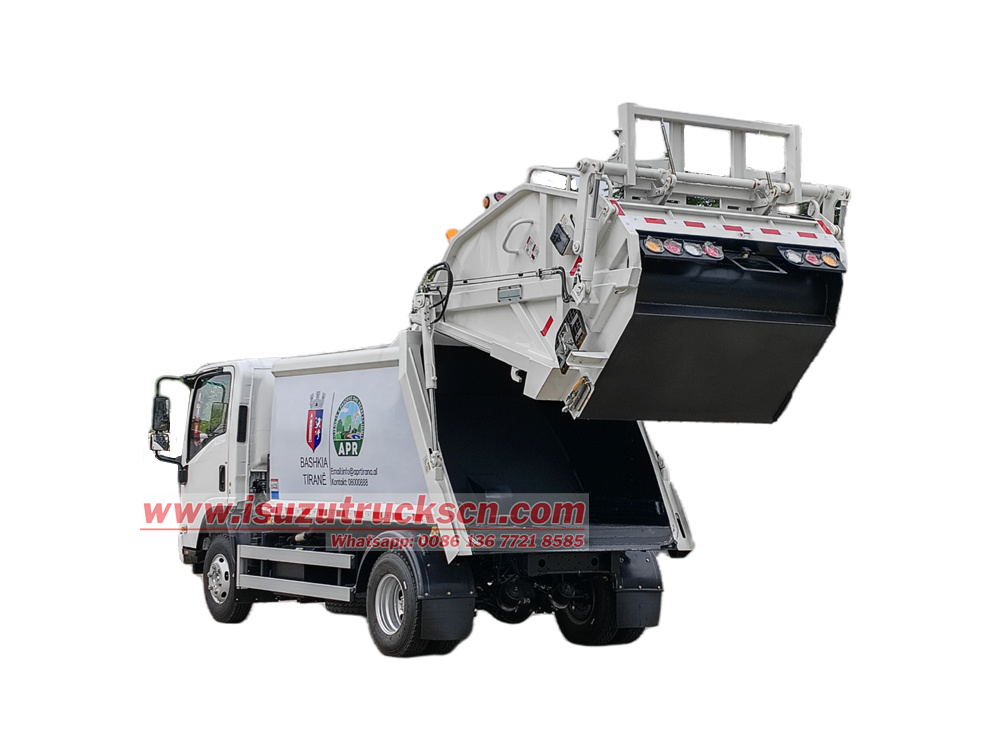

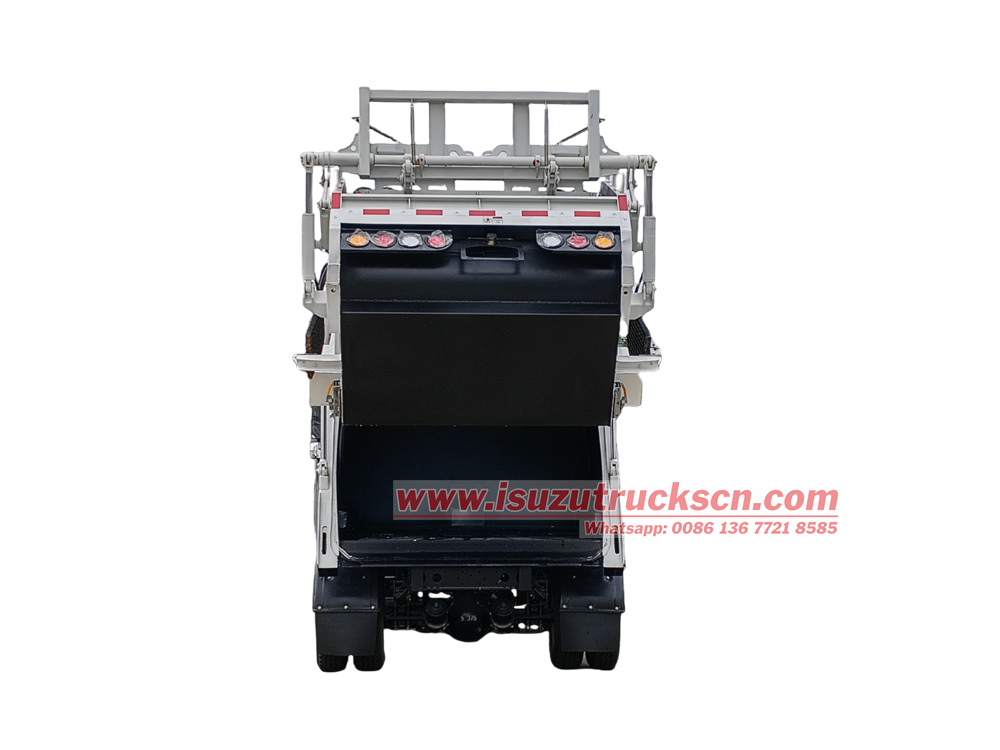

●. During the unloading process, first lift the filler to open the rear end of the garbage bin, and then the unloading cylinder pushes the push plate to quickly push the garbage out. The unloading is completed in about 40 seconds, and then the filler and push plate are reset.
» Ⅴ.Factory Testing:
Isuzu KV600 6CBM waste compactor truck factory testing before shipment
