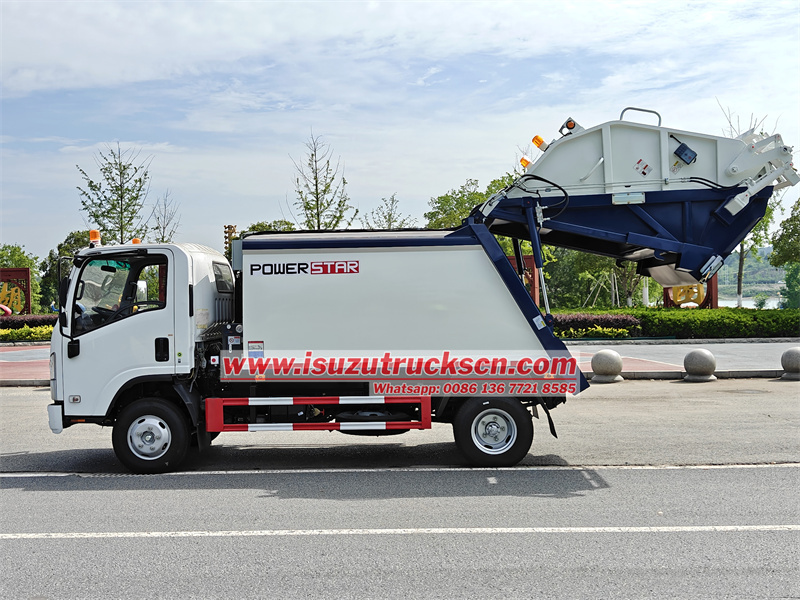

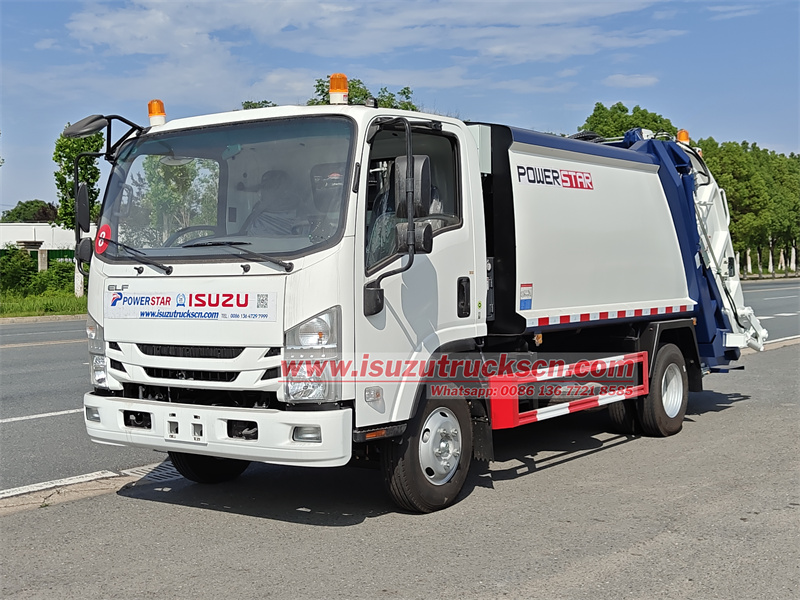

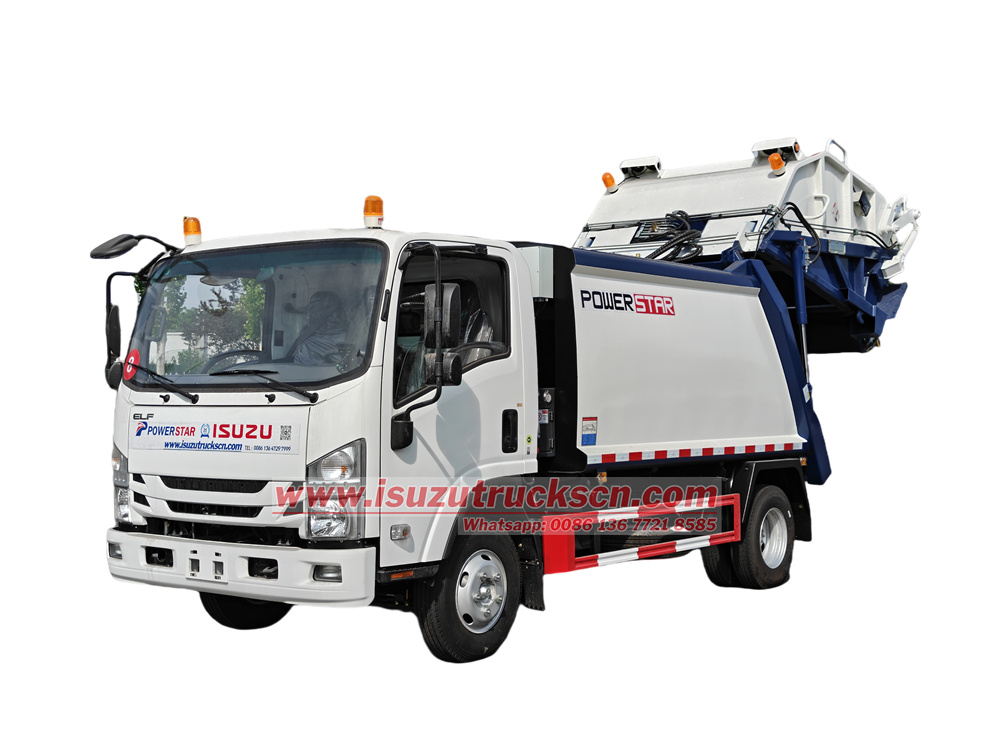

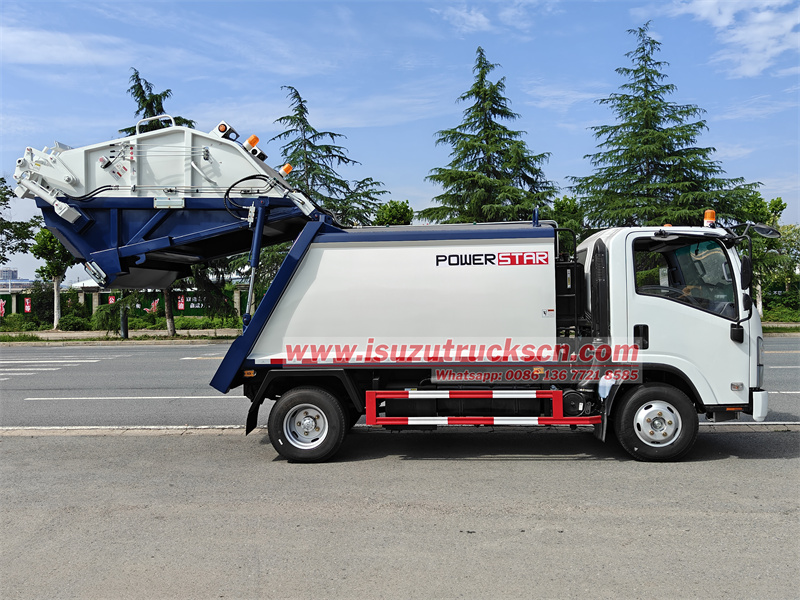

POWERSTAR Isuzu 6cbm rear loading compaction truck

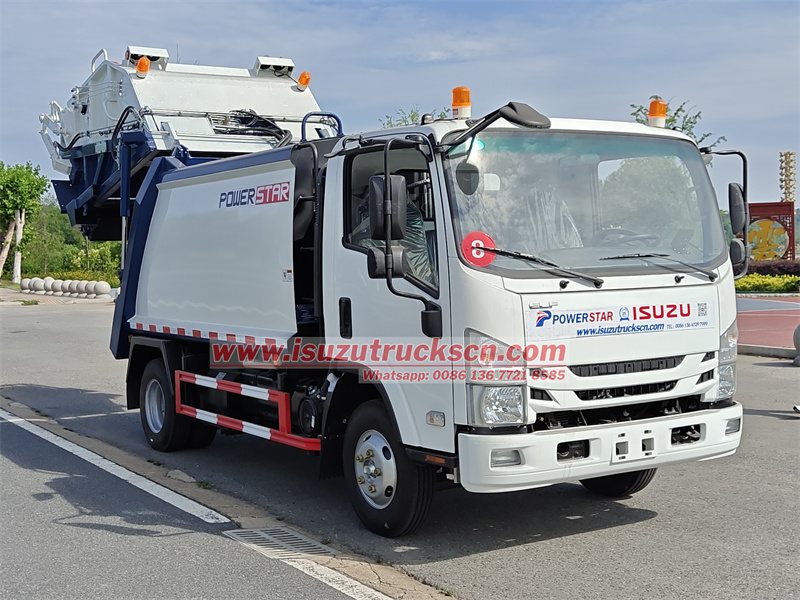

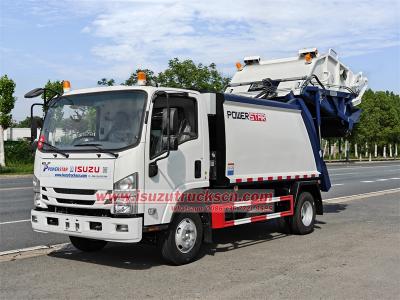

The Isuzu KV100 6cbm rear lifting compactor truck is modified on the basis of Isuzu KV100 chassis, 3365 mm wheelbase, equipped with Isuzu 4KH1CN6LB 120HP engine, Isuzu MSB 5-speed gearbox, the upper body is an arc-shaped carbon steel box, anti-corrosion and anti-rust treatment, the box can load 6 cubic compression garbage, the tailgate adopts a hanging bucket flip mechanism, equipped with a scraper, a slide plate, and a hydraulic cylinder, which can scrape the garbage poured into the filler by the hanging bucket of the flip mechanism into the garbage box. The vehicle is equipped with three control methods: the cab electronic control box, the driver's side manual hydraulic operating lever, and the tailgate electronic control box.
Manufacturer:
Powerstar TrucksWork capacity:
6cbmDimension:
6980 x 2100 x 2490 mmCabin type:
Isuzu KV100 3X cabin,single row,3 passengersWheelbase:
3365mmEngine power:
120HP/88KWEngine type:
Isuzu 4KH1CN6LBAxle drive:
4x2,LHDGear box:
Isuzu MSB 5-speed,manualRemarks:
4x4 drive,RHD drive avaiablePOWERSTAR Isuzu 6cbm rear loading compaction truck is mainly used for small and medium-sized garbage collection and transportation. In terms of chassis performance, its wheelbase is 3365mm, equipped with a 120-horsepower Isuzu engine and a 5-speed gearbox, which is powerful and fuel-efficient. The upper body adopts a 6-cubic-meter arc-shaped carbon steel box, which is anti-corrosion and rust-proof and durable. The tailgate is equipped with a bucket flipping mechanism, which is suitable for 120L/240L standard garbage cans, and is driven by hydraulic cylinders to flip and dump garbage.
The vehicle is equipped with three control systems: the cab electronic control box, the driver's side manual hydraulic lever and the tailgate electronic control box, which can realize operations such as power switch, power take-off, tailgate lifting, push shovel extension, skateboard up and down, scraper pressing and rotating, loading/unloading mode switching and emergency braking. The vehicle achieves efficient compression (compression ratio ≥2.5:1) through the linkage of scrapers and skateboards, has a large loading capacity, and the sealing design prevents leakage, which meets environmental protection standards. Its short wheelbase design makes the turning radius small, which is suitable for garbage collection and transportation operations in narrow street communities.
● China best Isuzu rear loader truck factory
● 30 years experience on garbage compactor truck designing
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Efficient compression, large loading capacity:
The 6-square box is equipped with a hydraulic scraper/slide plate system, which can compress and process more garbage in a single time and reduce the frequency of transportation.
2. Flexible operation and strong adaptability:
3365mm short wheelbase design, small turning radius, suitable for complex road conditions such as old residential areas, back streets and alleys.
3. Reliable and durable, low maintenance cost:
Isuzu power chain is mature and stable, and the upper hydraulic system is optimized with low failure rate and long service life.
4. Triple control, safe and worry-free:
Electric control + manual + tailgate independent control to meet the needs of different scenarios, and the emergency braking function can ensure the safety of operation.
5. Environmental compliance:
Tailgate sealing design to prevent garbage leakage; National VI emission engine, in line with environmental protection standards.

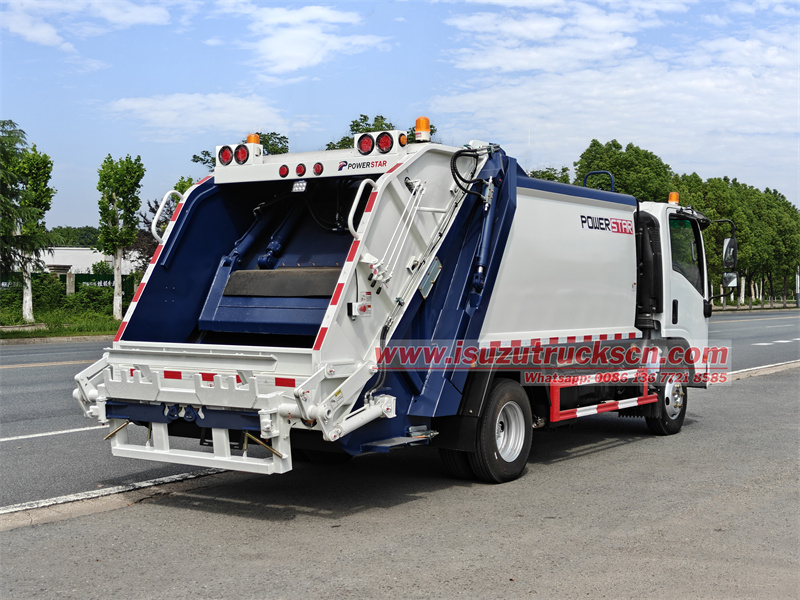

POWERSTAR Isuzu 6cbm rear loading compaction truck also called Isuzu ELF garbage compactor truck,Isuzu KV100 6cbm rear lifting compactor truck,Isuzu KV100 trash compactor truckIsuzu ELF 6CBM light truck mounted garbage compactor,Isuzu 6cbm rear load dumpster truck,is a special vehicle designed for waste management and sanitation purposes.

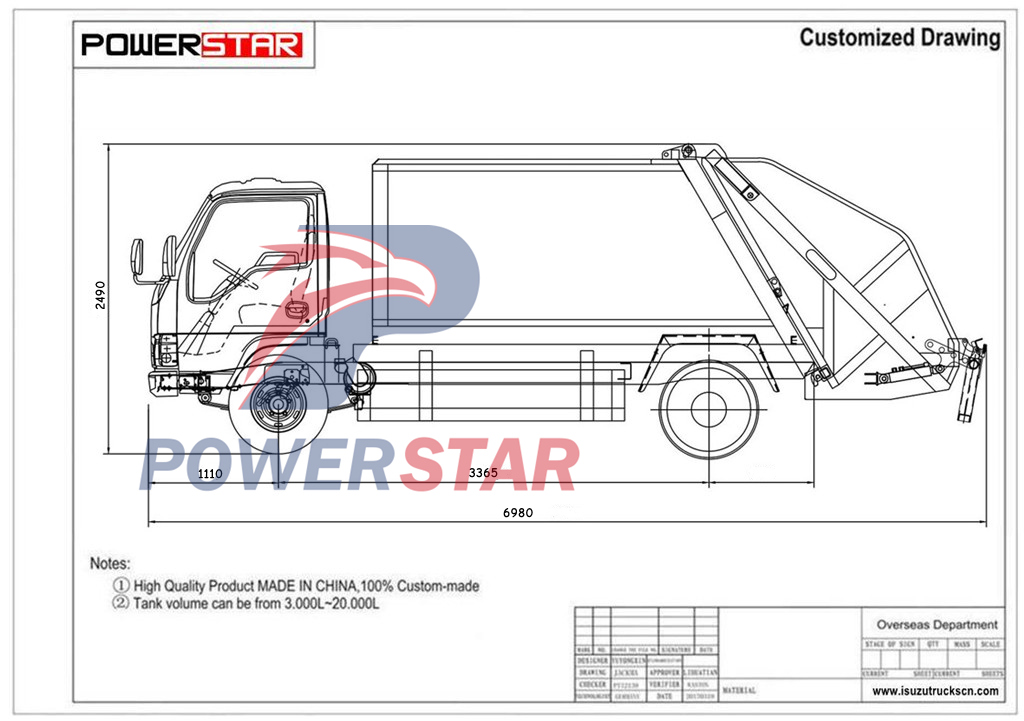

» Ⅱ.Product Parameter for Isuzu KV100 waste compactor truck:
|
Isuzu KV100 6 cbm waste compactor truck |
||
|
Truck model |
PT5085ZYS |
|
|
Cabin |

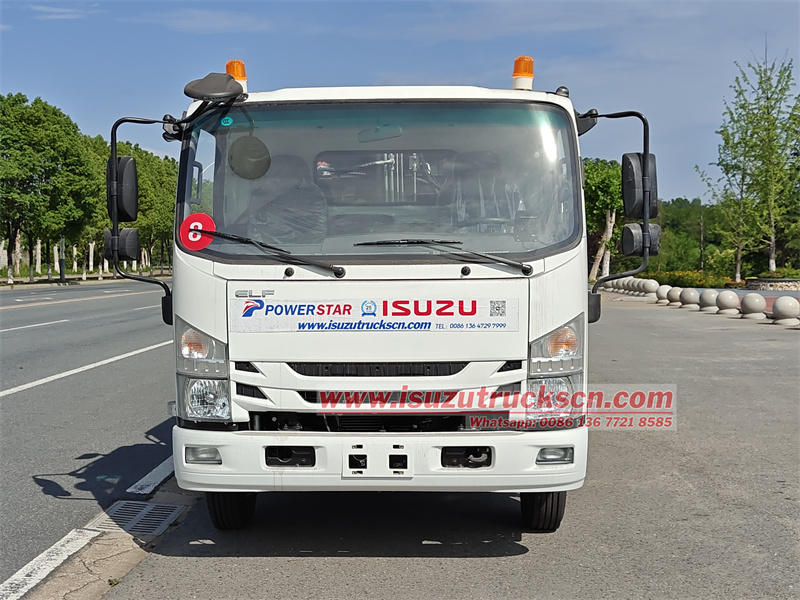

Isuzu KV100 3X cabin,driving type 4*2 LHD,single row,3 passengers, air conditioner,USB |
|
|
Overall Size |
6980*2100*2490 mm |
|
|
Bin capacity |
6CBM |
|
|
Wheel base |
3365mm |
|
|
GVW |
8500kg |
|
|
Curb weight |
5560kg |
|
|
Engine |
Model |
Isuzu 4KH1CN6LB |
|
Type |
4-stroke direct injection,4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Hose Power(HP) |
120HP/88KW |
|
|
Displacement |
2999ml |
|
|
Emission standard |
Euro 6 |
|
|
Max speed |
110km/h |
|
|
Tire |
700R16(6+1 tire) |
|
|
Transmission |
Isuzu MSB 5-speed,manual |
|
|
Superstructure |
Body capacity |
6cbm |
|
Box material |
Side 4mm,bottom 5mm |
|
|
Design |
Whole unit with Leakage Proof Design |
|
|
Sewage tank |
200 liters |
|
|
Filling work cycling time |
20~25 s |
|
|
Garbage Compact Ratio |
≥2.5:1 |
|
|
Discharge model |
Horizontal Ejection |
|
|
Control system |
The system is controlled from the PLC control box, which enables, start, stop, 1-cycle, continuous cycles, and rescue activities. Tailgate and ejector controls are in front of the body. All devices for loading control are mounted on the tailgate right side, and all are manual control for safety purposes. Compaction is controlled electrically via push-buttons, and manually in case |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,handrail, fire extinguisher, basic tool kit, English manual... |
||
|
Brake system |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
|
Electrics |
Operating voltage:24V,negative grounded Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
|
» Ⅲ.Product Details & Advantages:
●. Power system: Equipped with Isuzu 4KH1CN6LB engine, 120 horsepower (National VI emission), matched with Isuzu MSB 5-speed gearbox, powerful and fuel-efficient.
●. Upper structure:

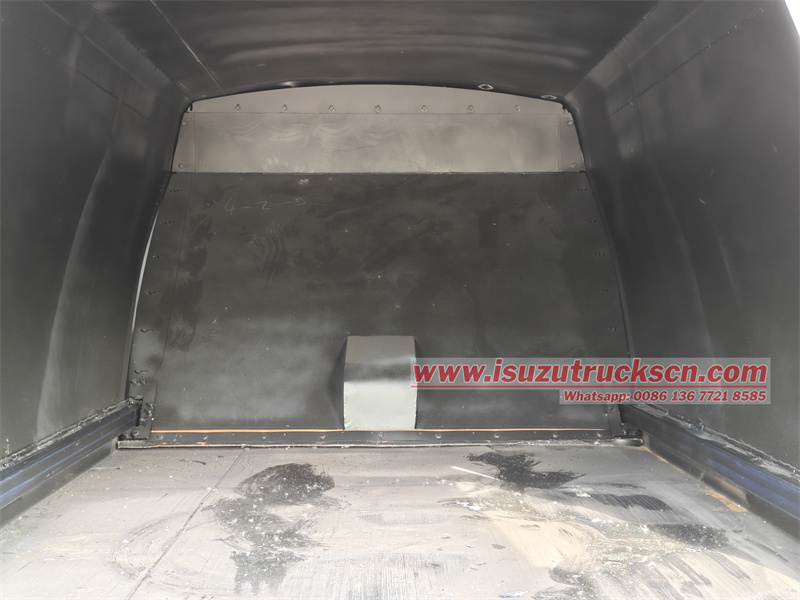

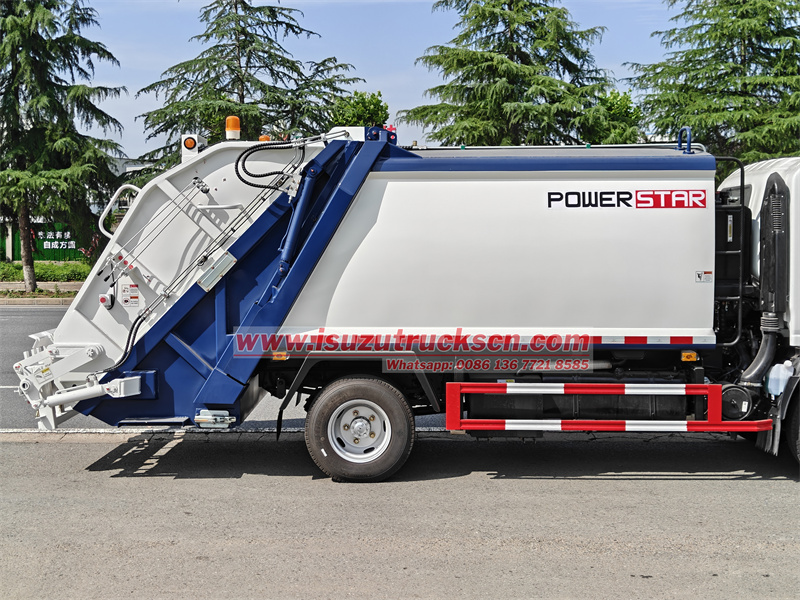

◇ Box: arc-shaped carbon steel material, the shovel works more smoothly, anti-corrosion and anti-rust treatment, capacity of 6 cubic meters, strong pressure resistance and deformation resistance.

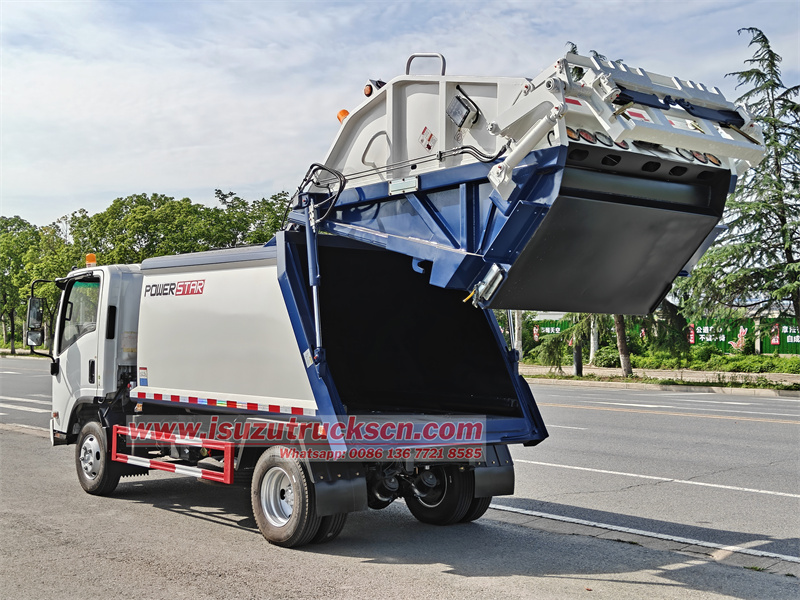

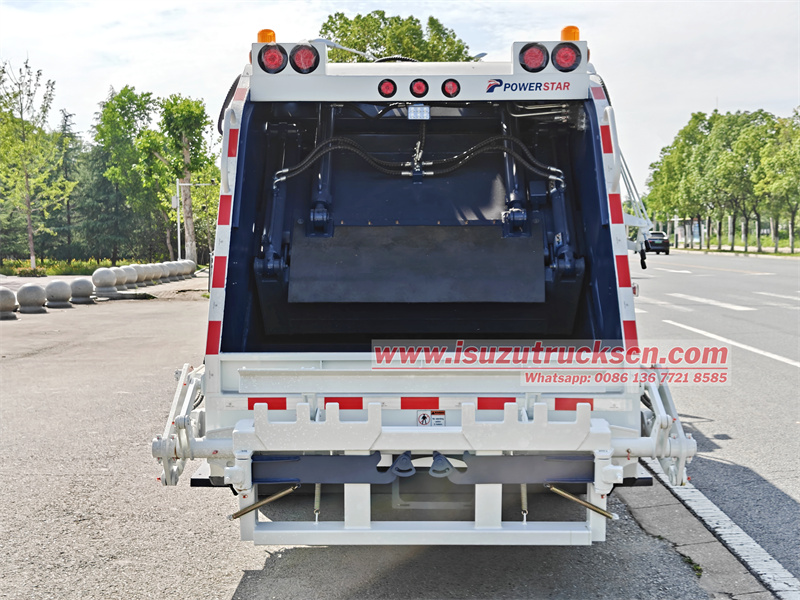

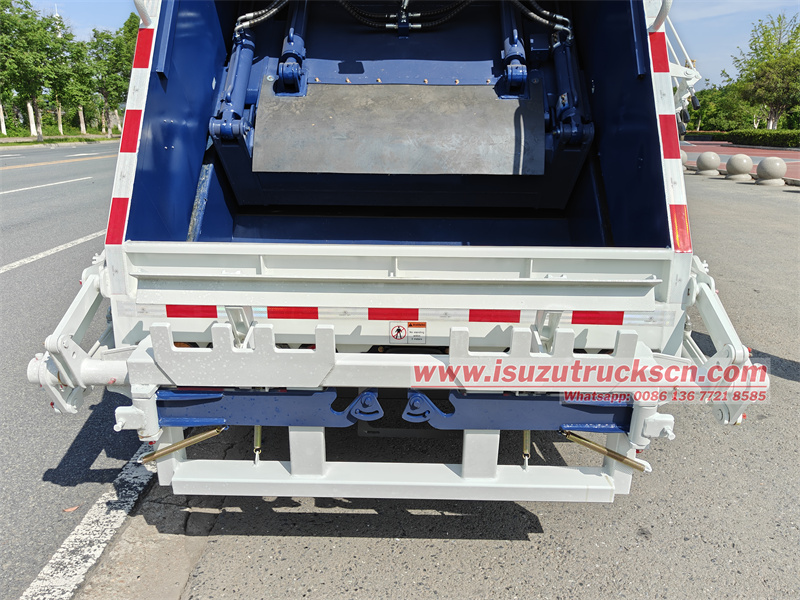

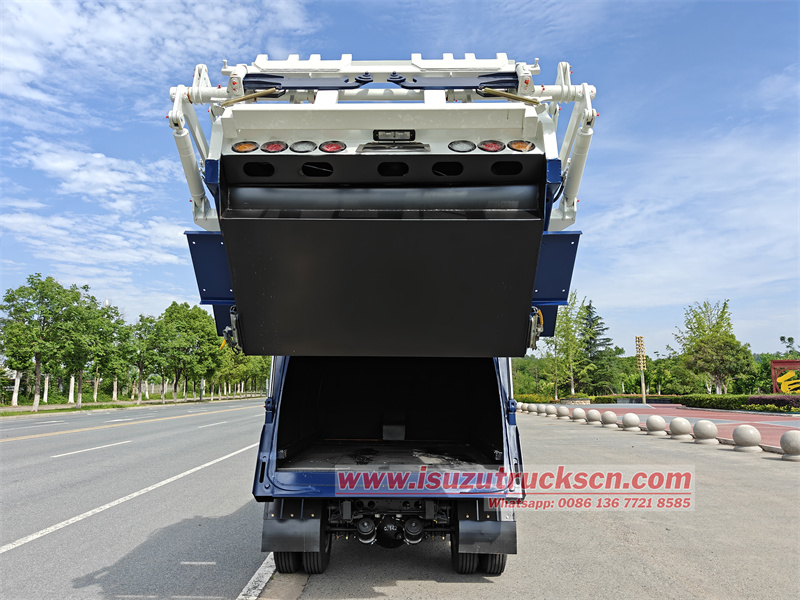

◇ Tailgate mechanism: adopts hanging bucket flip design, suitable for 120L/240L standard trash cans, and is driven by hydraulic cylinders to flip and dump.

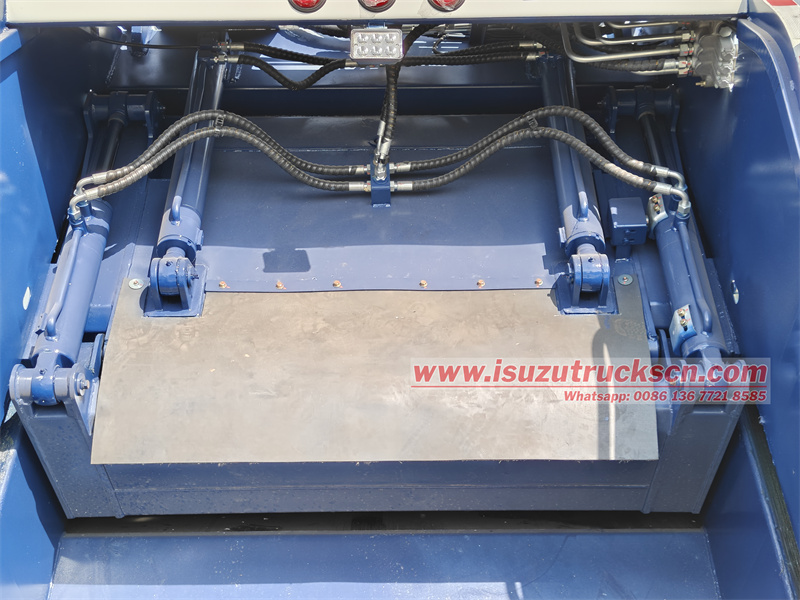

◇ Core components: scrapers, slides, and shovels are all driven by hydraulic cylinders to realize the automation of the entire process of garbage compression, loading, and unloading.
★ Control system

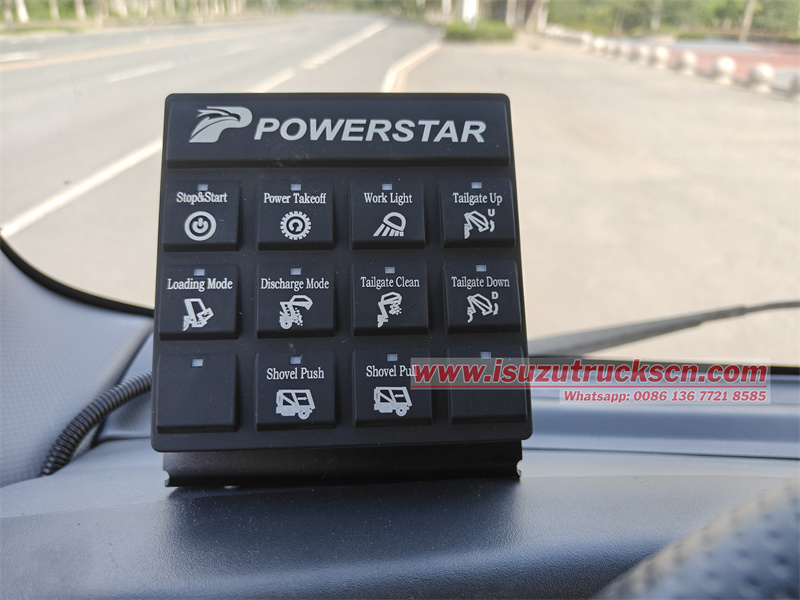

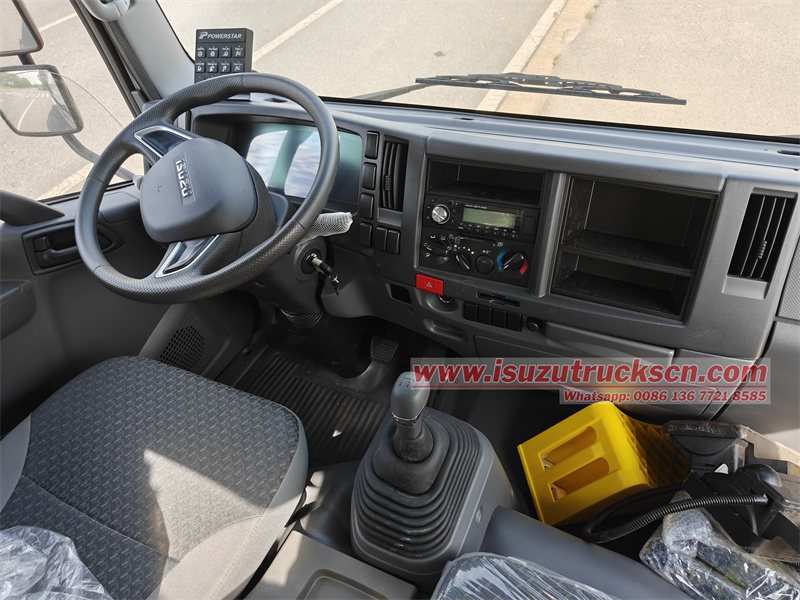

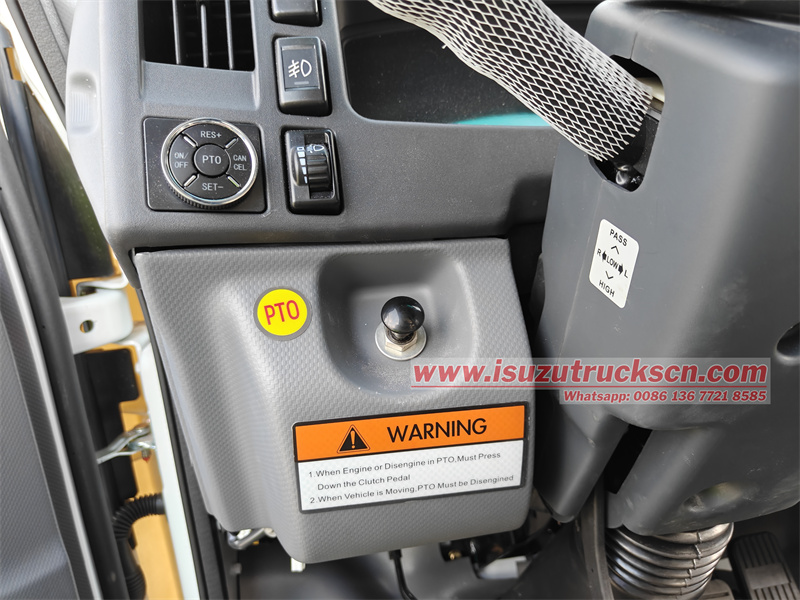

●. Cab electronic control box:
◇ Control power switch, power take-off, work light, tailgate lifting, loading/unloading mode switching, push shovel push/retract action, tailgate cleaning and other buttons.

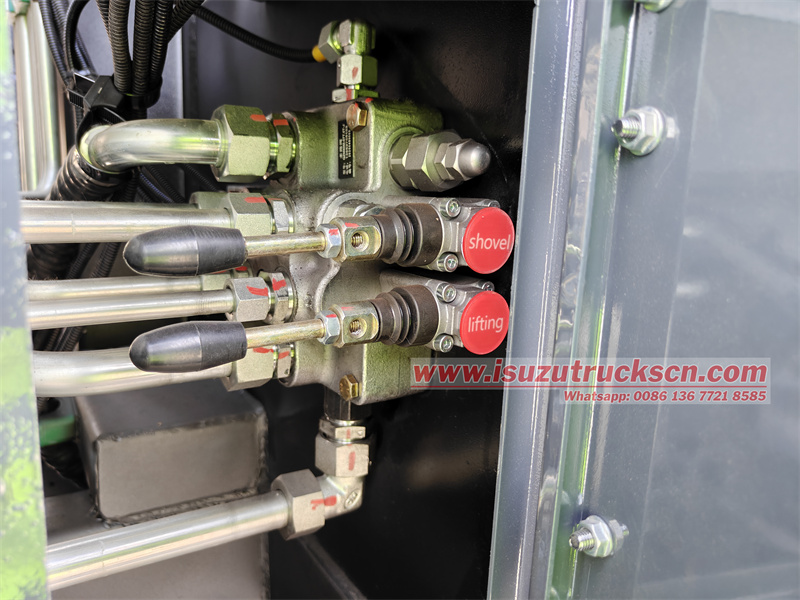

●. Driver side manual hydraulic lever:
◇ Manual push shovel push/retract action and tailgate lifting action can be operated on the ground, which is easy to operate.

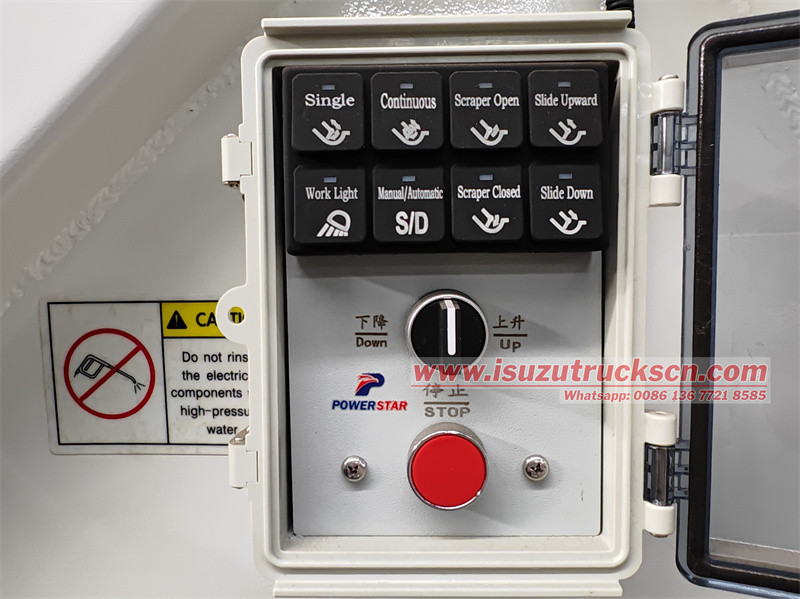

●. Tailgate electronic control box:
◇ Support single/continuous cycle operation mode, control the scraper (press down and rotate up), slide plate (up and down) linkage, and achieve efficient garbage compression (compression ratio ≥2.5:1).
◇ Equipped with manual/automatic mode switching, emergency braking, lifting mechanism lifting and other functions to meet different working conditions.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» Ⅳ.Professional Design and Production:
1. POWERSTAR R & D Department for design:
100% customized appearance, design the compactor bin capacity, operation methods and location, also the whole truck size can be customized.
2. Working principle for production:

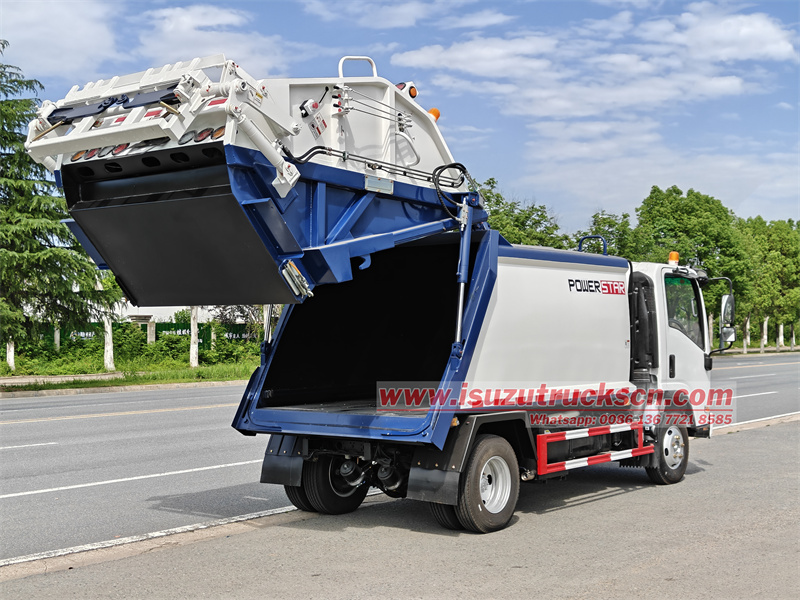

The hanging bucket flipping mechanism lifts the garbage bucket above the filler, the hydraulic cylinder pushes the garbage bucket to flip, and the garbage is dumped into the filler.
●. Compression loading:
The scraper scrapes the garbage into the box, and the slide plate presses down to complete the initial compression; repeat the scraper-slide plate action until the box is full.
●. Transportation and transfer:
The push shovel pushes the compressed garbage to the front of the box, maintaining the space at the rear of the box for continuous loading.
●. Unloading operation:
The tailgate is opened, and the push shovel is pushed forward to completely unload the garbage and complete the operation cycle.
3. Application scenarios
• Daily garbage collection and transportation in urban streets, communities, schools, commercial areas, etc.;
• Operations in narrow alleys, underground garages and other space-constrained areas;
• Transfer connection between garbage transfer stations and terminal treatment facilities.
» Ⅴ.Factory Testing:

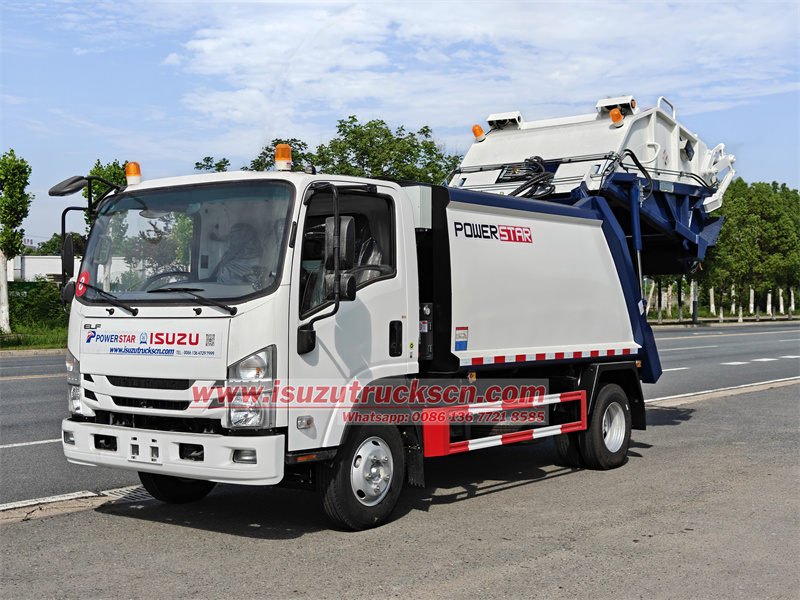

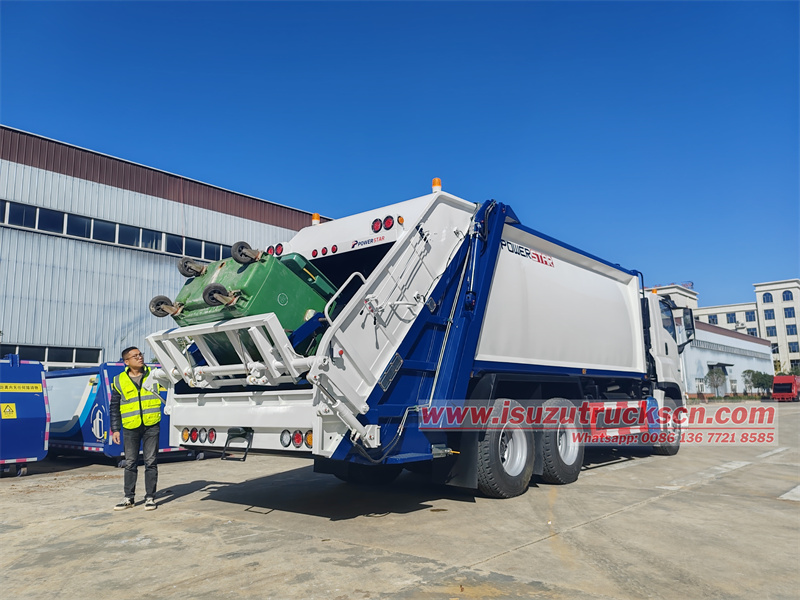

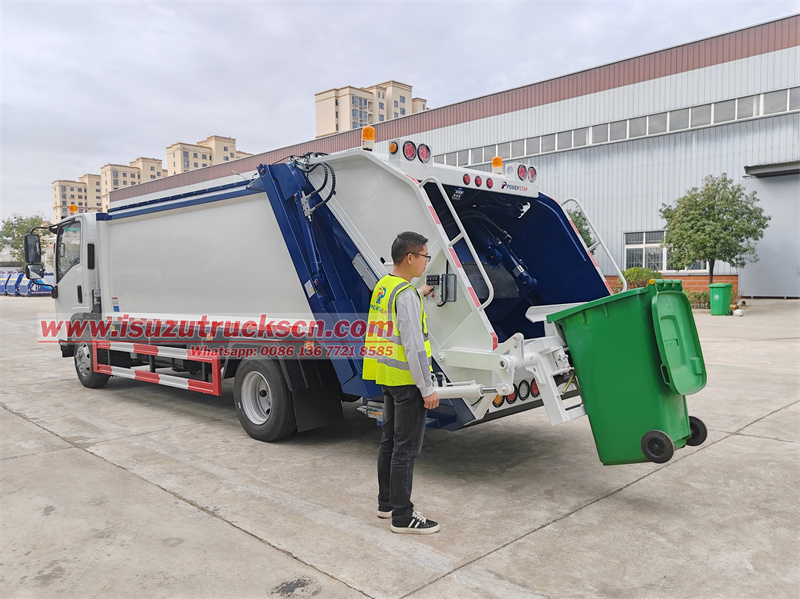

Isuzu KV100 6CBM waste compactor truck factory testing before shipment
» Ⅵ.Rear Loader Truck For Shipment:

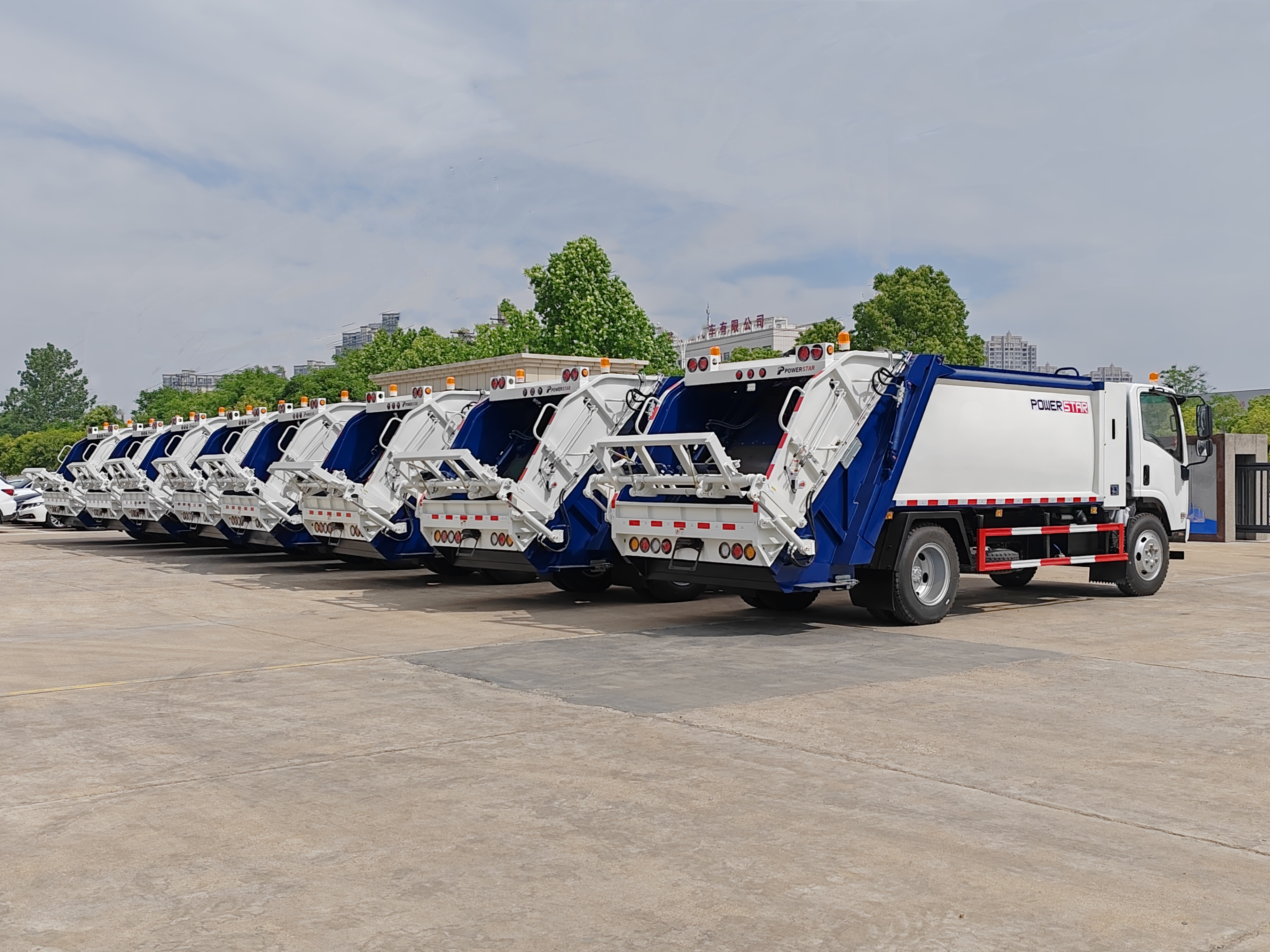

8 units Isuzu KV100 rear loader compactor export to Albania
Brand new ISUZU 6 cubic meters 4x4 garbage compactor truck mounted on ISUZU 4x4 truck chassis, ISUZU LHD 6cbm compactor garbage truck 2 axles wast management truck.Collection way of garbage compactor truck is simple, can eliminate the second pollution, compression ratio high,large loading capacity,high automation operation, good economy, double insurance system, high efficiency.There are three kinds of mechanism options available to the customer,barrel turnover mechanism,panel turnover mechanism and tipping mechanism.By the user of hydraulics,the barrel is locked during the overturning process.which is very safe and reliable. Isuzu 120HP 4x4 truck mounted 6cbm garbage compactor.
