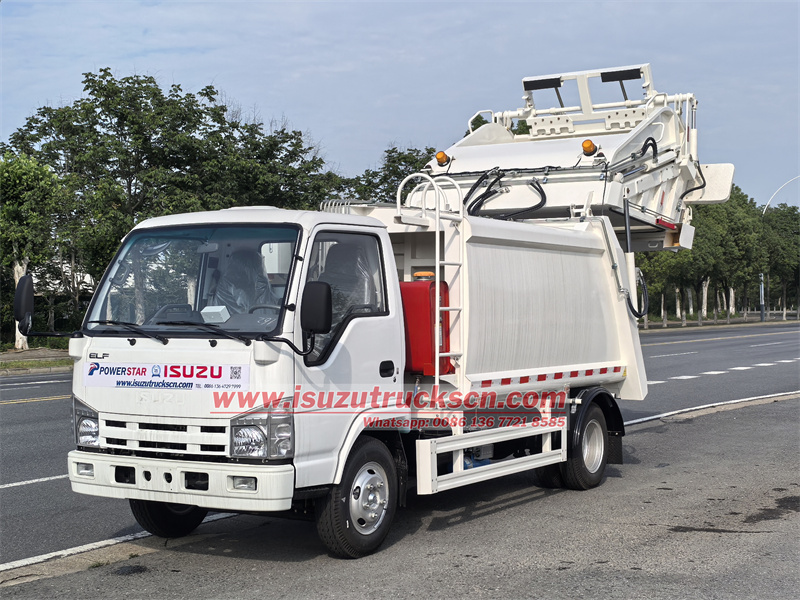

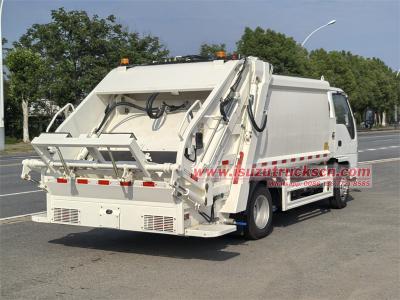

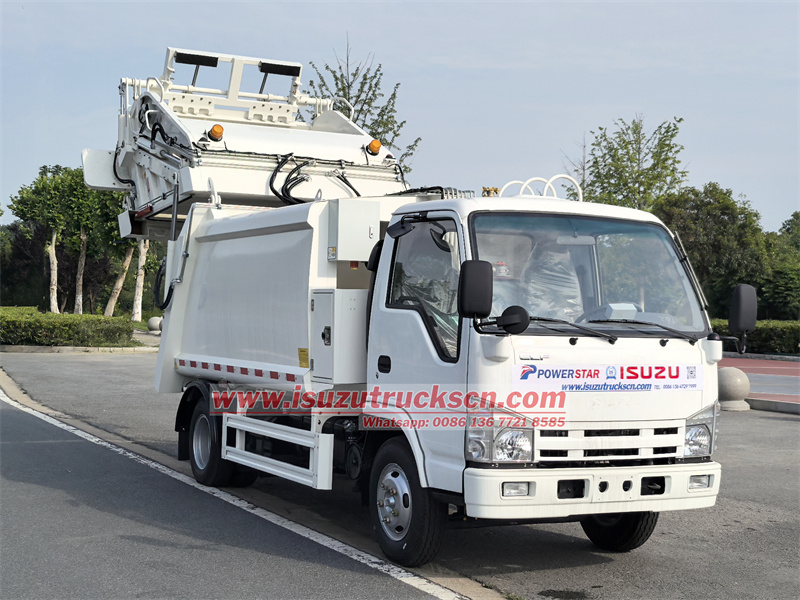

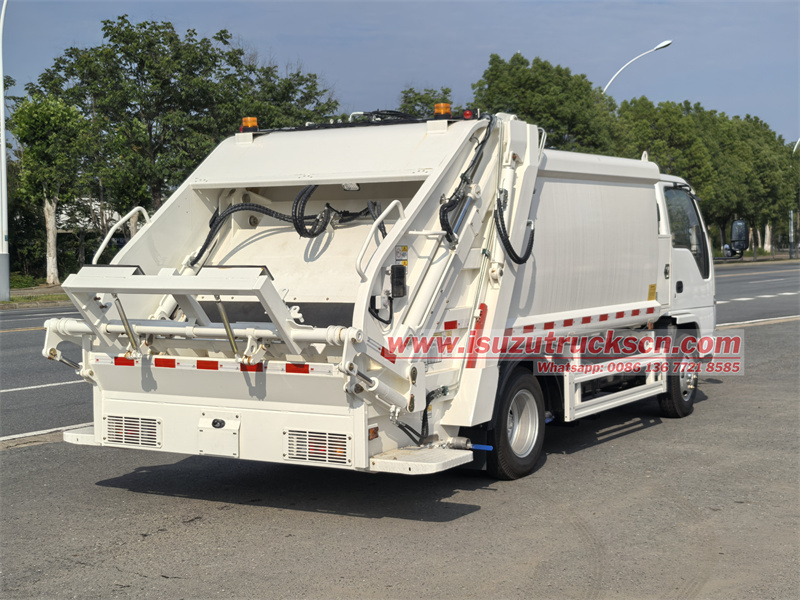

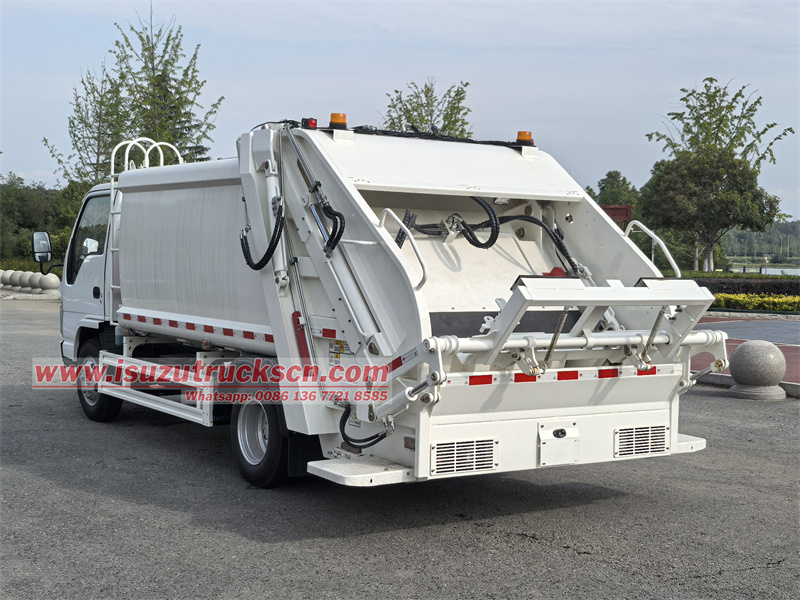

The Isuzu 100P 6cbm rear loader compactor is modified on the basis of Isuzu 100P Euro 4 chassis, 3360mm wheelbase, equipped with Isuzu 4JB1CN Euro 4 98hp engine, 2771ml displacement, Isuzu MSB 5-speed gearbox, the upper body is a 6 cubic compactor garbage box, the tail hanging bucket flip mechanism can hang 240L standard garbage can, the top of the cab is equipped with a warning light, the vehicle is also equipped with LCM-9L 12V DC variable frequency air compressor, rated exhaust pressure 0.8MPa, power 550W, electric-pneumatic control system controls garbage loading and unloading, including the cab electronic control box, the driver's side manual hydraulic operating lever, the tailgate electronic control box three operating positions.
Manufacturer:
Powerstar TrucksWork capacity:
6cbmDimension:
6250X2150X2490mmCabin type:
Isuzu 100P Euro 4 single row, 2 seats,with A/CWheelbase:
3360mmEngine power:
98 HP / 72kWEngine type:
Isuzu 4JB1CNAxle drive:
4x2,LHDGear box:
ISUZU MSB 5 forward gears& 1 reverse,manualRemarks:

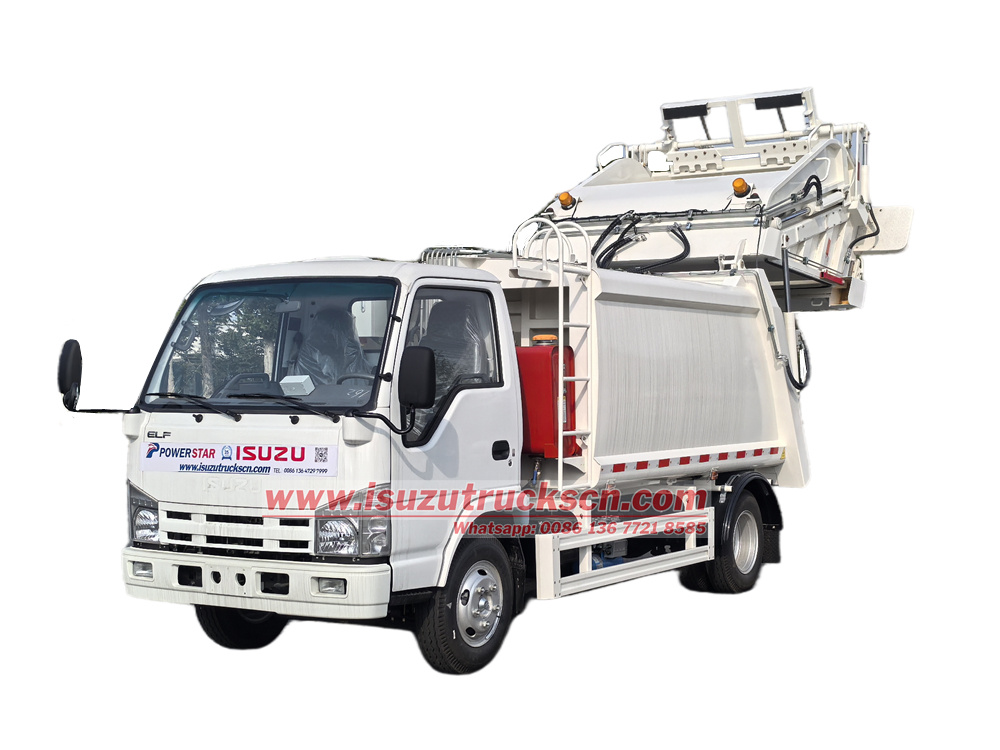

Equipped with hanging bucket flip mechanismIsuzu 6 cbm single axle rear loader is an efficient and reliable municipal sanitation vehicle equipped with Isuzu 4JB1CN turbocharged engine (98 horsepower) and MSB five-speed gearbox. It is powerful, energy-saving and environmentally friendly. The vehicle is equipped with a 6-cubic-meter large-capacity compression box and adopts oblique push plate compression technology with a compression ratio of 3:1, which can significantly increase the garbage loading capacity and reduce the frequency of transfer. Its intelligent three-mode control system (cab electronic control box, tailgate electronic control box and manual hydraulic valve) ensures flexible and efficient operation, while also having emergency support capabilities. The vehicle adopts a modular design, key components are wear-resistant and durable, maintenance is convenient, operating costs are low, and the fully sealed tailgate and Euro IV emission standards make it more environmentally friendly and compliant.
● China best Isuzu rear loader truck factory
● 30 years experience on garbage compactor truck designing
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
|
Isuzu 100P 6cbm rear loader compactor truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
6250X2150X2490mm |
|
|
GVW |
7300kg |
|
|
Curb weight |
4850kg |
|
|
Loading weight |
3tons |
|
|
Chassis brand |
ISUZU |
|
|
Traction type |
4*2; Left hand drive |
|
|
Up-parts Specification |
||
|
Dustbin volume |
6cbm |
|
|
Material & thickness |
Side: 3mm Q345; Bottom: 4mm Q235A |
|
|
Sewage water tank |
200L |
|
|
Type of Rear garbage filler |
Hanging trash bin flip mechanism |
|
|
Control system |
Pneumatic- electrical control system |
|
|
Type of compactor |
Fill, push and compression |
|
|
Cycle of loading |
≤40s |
|
|
Cycle of discharge |
≤45s |
|
|
Hydraulic pressure system working pressure |
16 MPa |
|
|
PLC |
Importation PLC (Programmable controller) |
|
|
Gear pump |
Made in China |
|
|
Multi-way valve |
Air controlled, Made in China |
|
|
Hydraulic oil cylinder |
Made in China |
|
|
Hydraulic rubber hose |
Made in China |
|
|
Chassis Description |
||
|
Chassis brand |
Isuzu |
|
|
Cab |
Isuzu 100P,single row, 2 seats,with A/C,USB,direction assistance |
|
|
Wheelbase |
3360mm |
|
|
Tire specification |
700R16 |
|
|
Tire quantity |
6+1 units |
|
|
Engine |
Type |
Inline 4-cylinder 4-stroke, supercharged, intercooled, water-cooled |
|
Model |
Isuzu 4JB1CN |
|
|
Emission level |
Euro 4 |
|
|
Displacement/output |
2771ml |
|
|
Horse power |
98 HP / 72kW |
|
|
Rated speed |
3400rpm |
|
|
Max torque |
220N.m |
|
|
Max torque speed |
1700rpm |
|
|
Gear box |
Model |
ISUZU MSB |
|
Number of gears |
5 forward gears& 1 reverse |
|
|
Brake system |
Oil brake |
|
|
Max speed |
95Km/h |
|
|
Axle |
Front |
2580kg |
|
Rear |
4720kg |
|
|
Suspension |
Leaf springs |
|
|
Fuel tank |
Type |
Iron fuel tank, with lockable cap |
|
Capacity |
100L |
|
|
Optional |
Back alarm and Camera can be equipped |
|
|
Italy mulit-valve can be choose. |
||
|
240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose |
||
★ Chassis performance: The reliability gene of Isuzu Euro IV platform
The Isuzu ELF 100P 6CBM rear loader compactor is built on the Isuzu 100P Euro IV chassis. It is equipped with a 4JB1CN turbocharged diesel engine at its core. Its 2.771L displacement can output 98 horsepower and a peak torque of 220N·m (1700rpm). The engine adopts high-pressure common rail technology and is equipped with an EGR exhaust gas recirculation system. It not only meets the Euro IV emission standards, but also has low-speed and high-torque characteristics, which is particularly suitable for the frequent start-stop requirements of garbage collection and transportation conditions. It is matched with the original MSB five-speed manual transmission, the gear ratio is optimized, and the first gear ratio reaches 5.094, which ensures the power output efficiency when starting with heavy load.

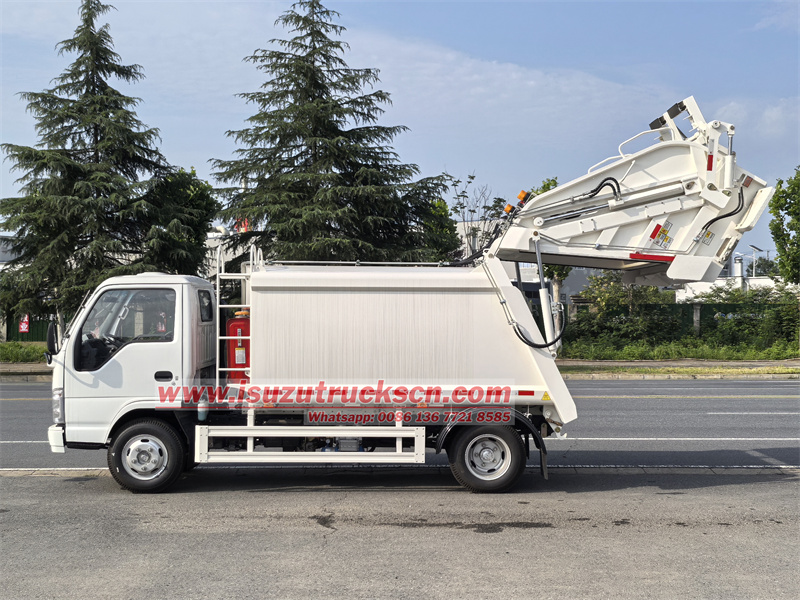

★ Upper system: Modular compression box and intelligent control system

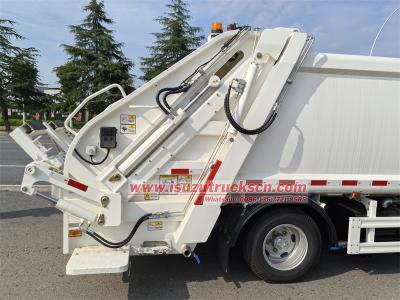

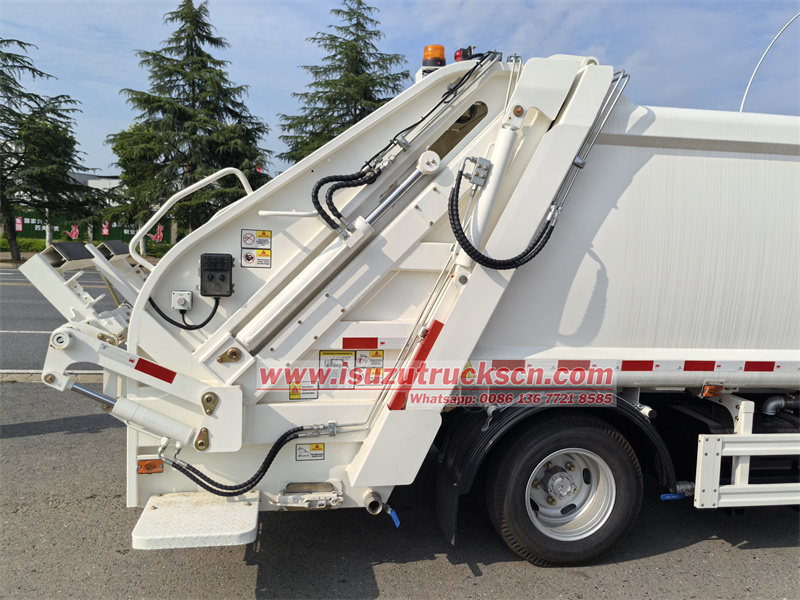

The 6 cubic meter compactor box is made of high-strength wear-resistant steel plate (Q345B material, 4mm thickness), and the compression mechanism adopts an inclined push plate design with a compression ratio of 3:1. With a two-stage compression cylinder (cylinder diameter 140mm/rod diameter 85mm, working pressure 16MPa), the garbage density can be increased to more than 0.8t/m³. The tailgate adopts fully sealed hydraulic locking technology, and the rubber sealing strip has a weather-resistant temperature range of -40℃ to 120℃ to ensure that there is no leakage during transportation.

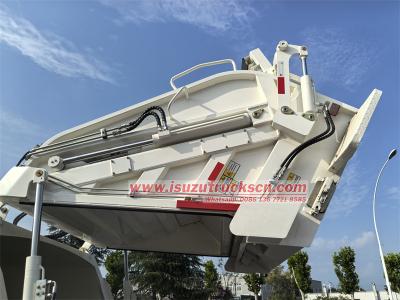

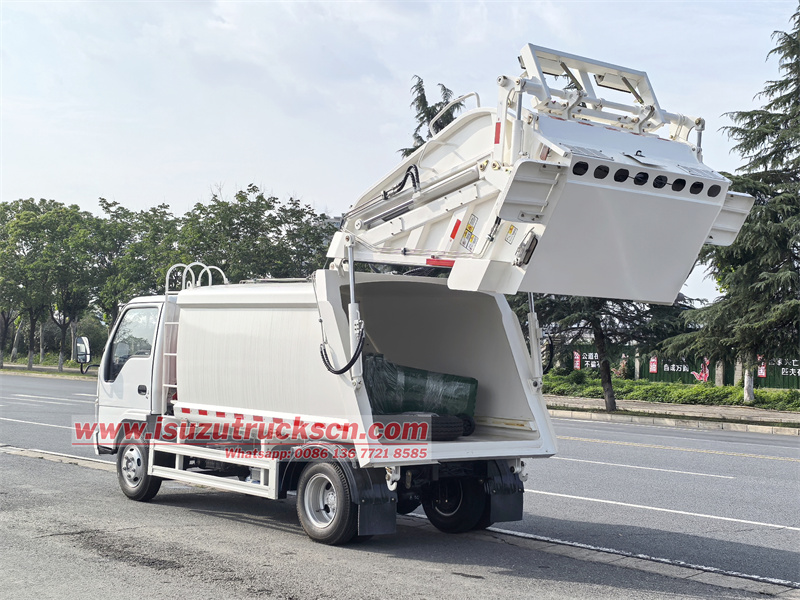

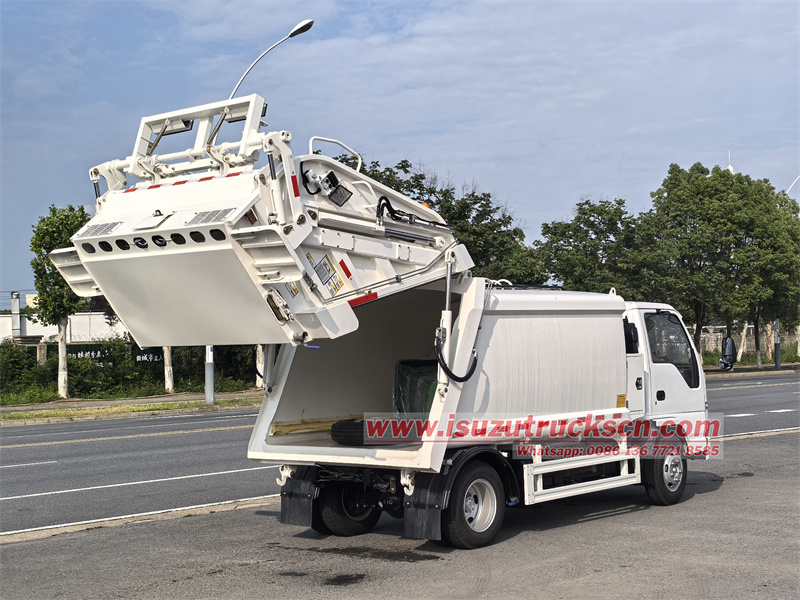

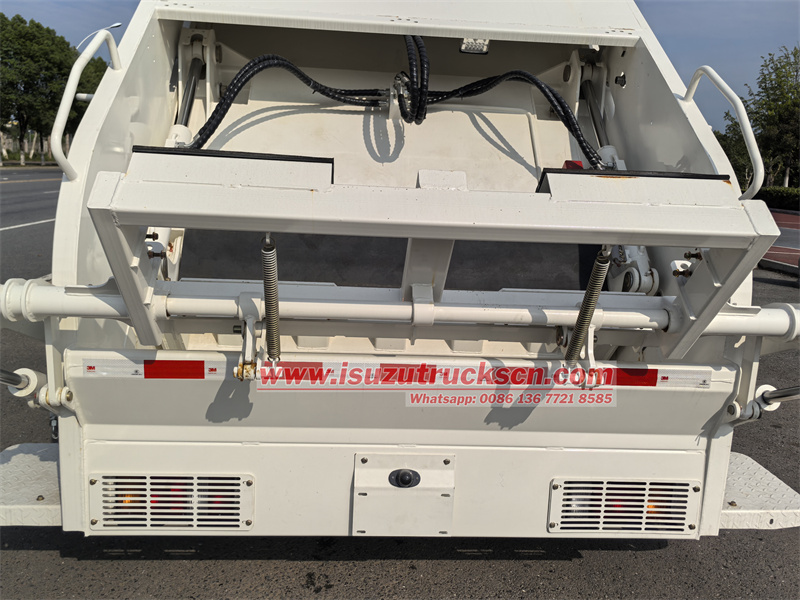

The loading system is equipped with a fully automatic hanging bucket flipping mechanism, which is suitable for 240L European standard round trash cans (DIN30700 standard), the maximum inclination angle of the lifting frame is 120°, and the single cycle time is ≤25 seconds. The key articulated parts use self-lubricating bearings, and the maintenance-free cycle exceeds 5,000 actions. The LED warning light group installed on the top of the cab has an effective warning distance of 200 meters.
★ Pneumatic-electric integrated control system

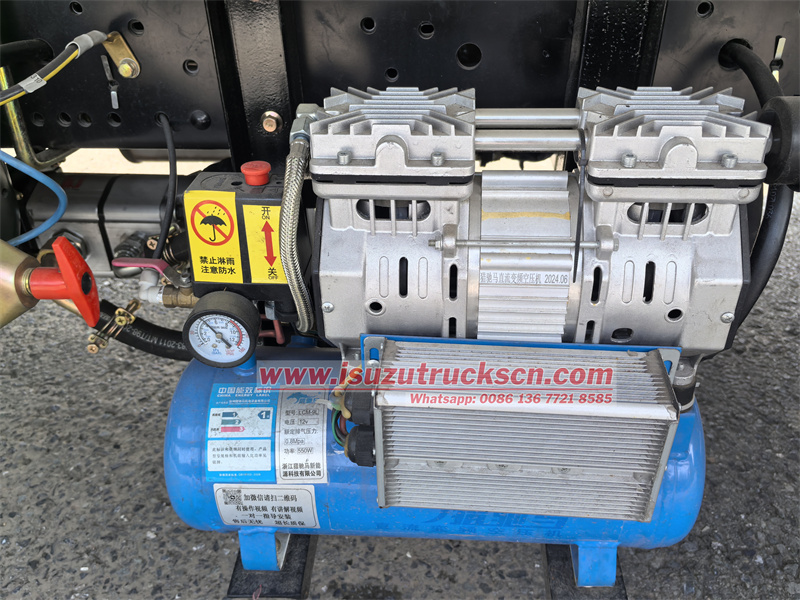

● Power unit: LCM-9L DC variable frequency air compactor adopts permanent magnet synchronous motor, with a displacement of 900L/min (0.8MPa working condition) at 550W power, which is 30% more energy-efficient than traditional piston air compactor. Built-in PID intelligent pressure regulating module, pressure control accuracy ±0.02MPa.
● Three-mode control:

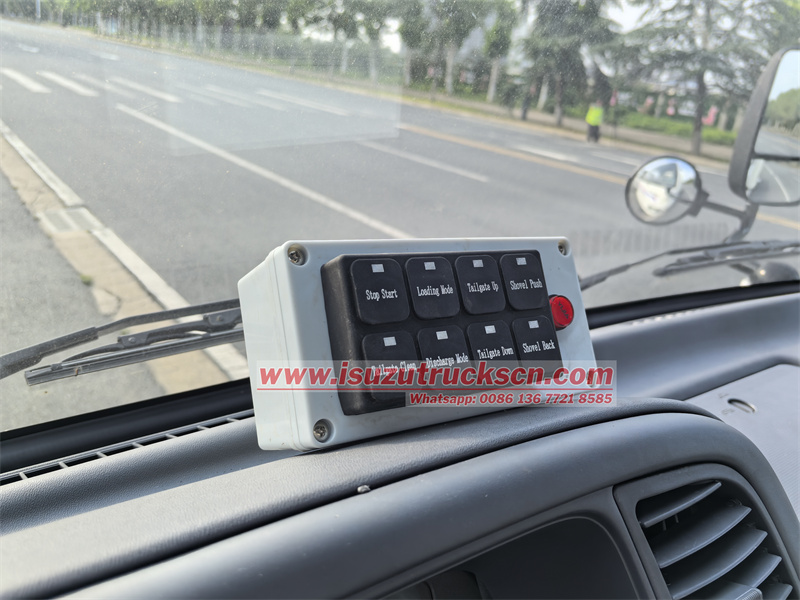

◇ Cab electronic control box: including switch, loading mode, unloading mode, tailgate lifting/cleaning, push shovel push out/retract buttons.

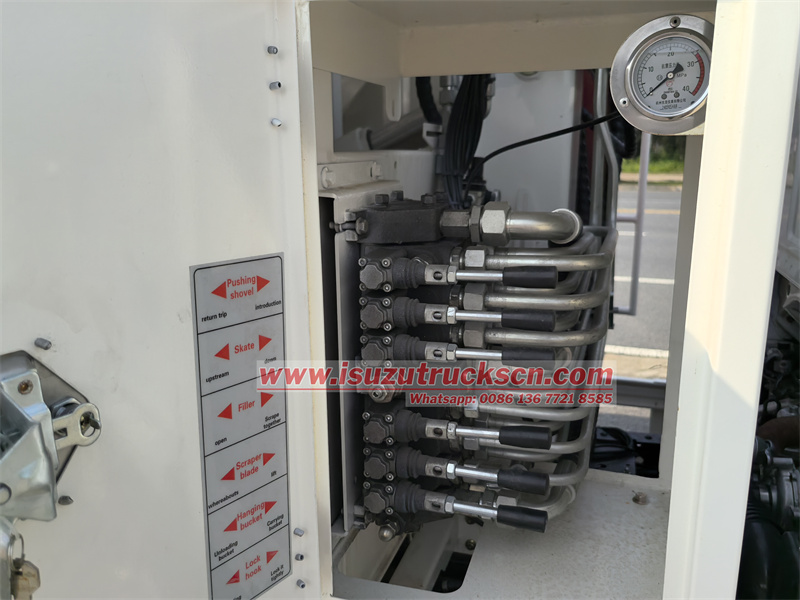

◇ Driver side manual operating lever: including push shovel push out/retract, slide up and down, filler open/scrape, scraper up and down, bucket hanging and trash can operations

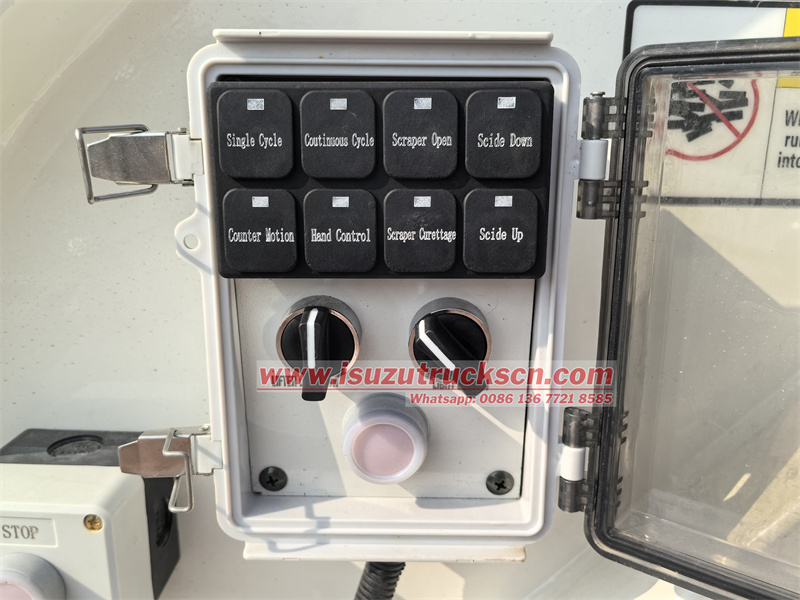

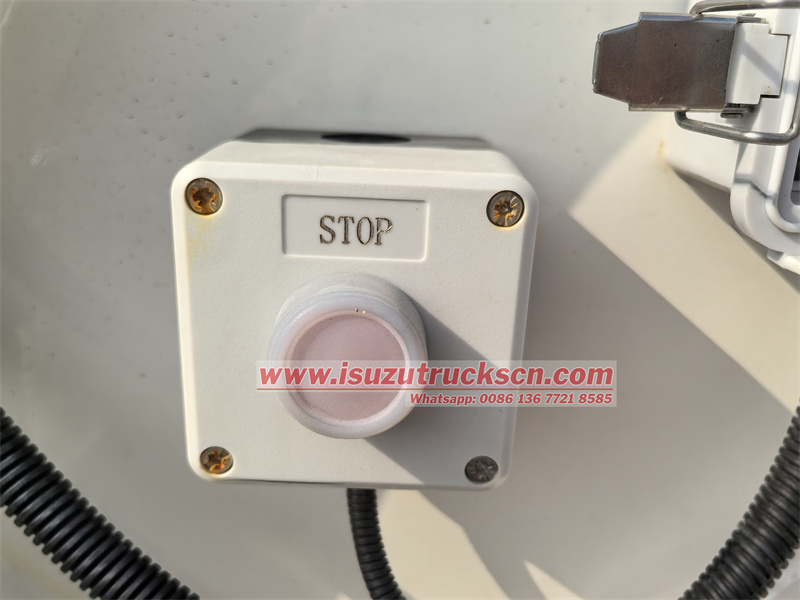

◇ Tailgate electronic control box: including single cycle, continuous cycle, scraper open/scrape, slide up and down, counter motion, manual mode and other operation buttons, flip mechanism flip knob, emergency brake button, etc.
