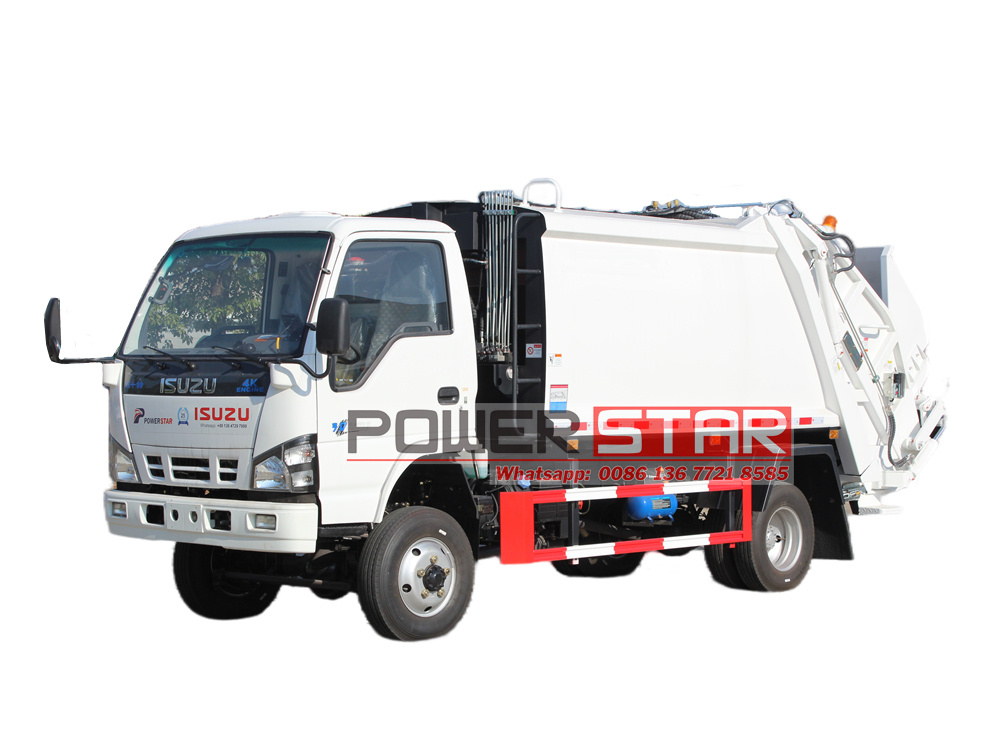

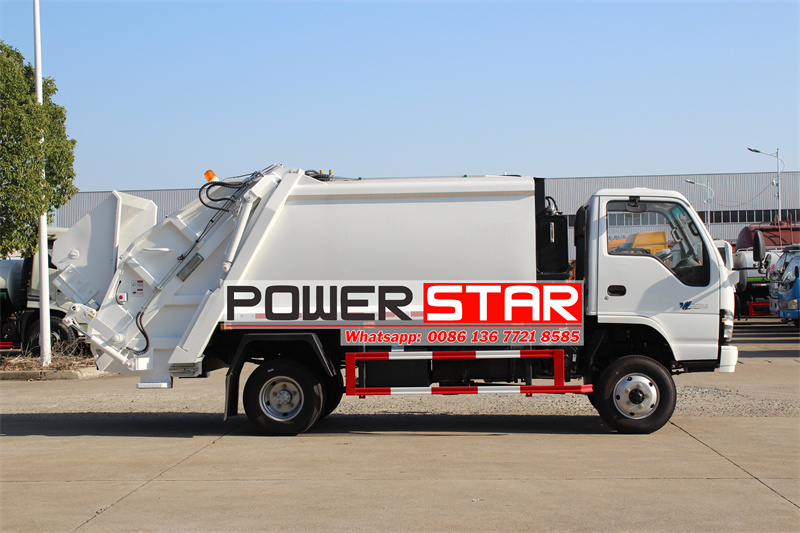

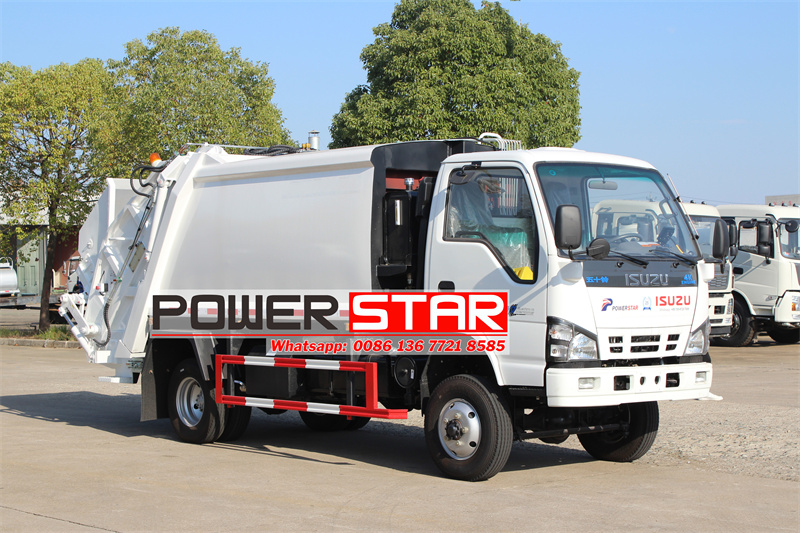

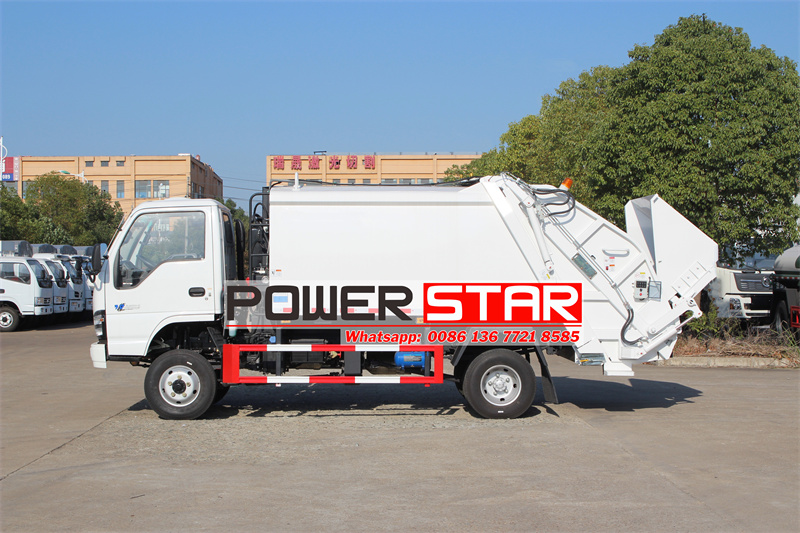

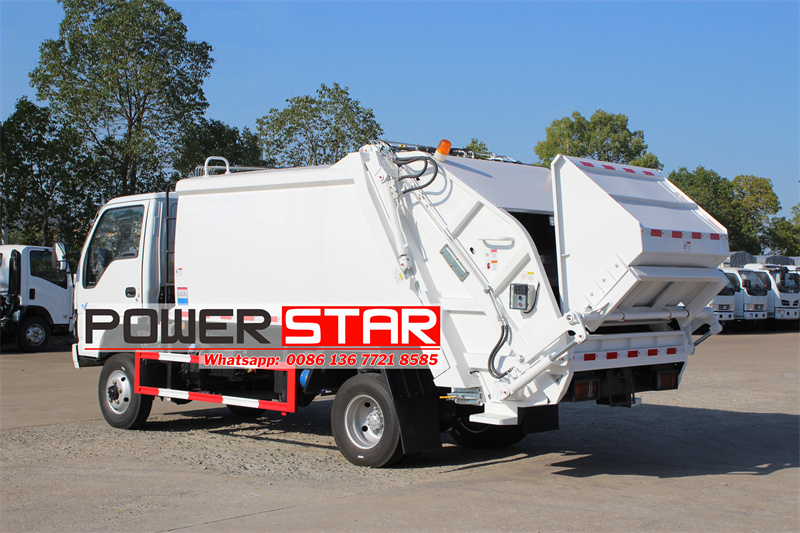

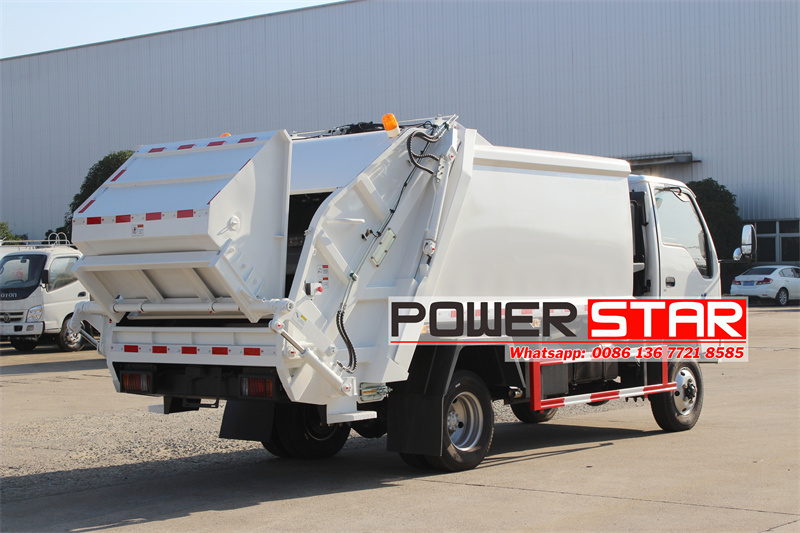

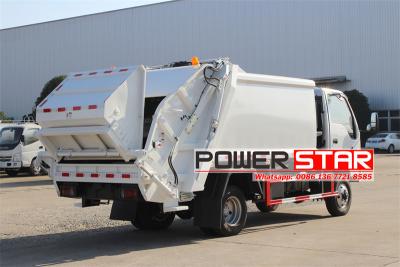

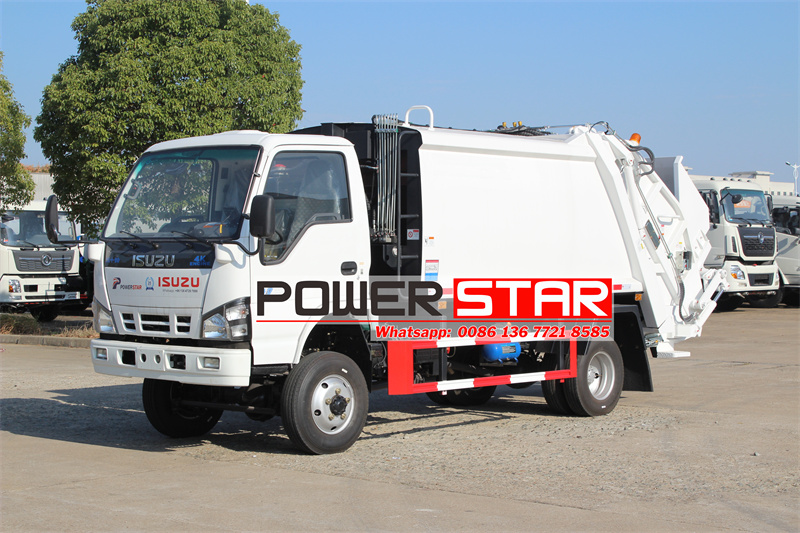

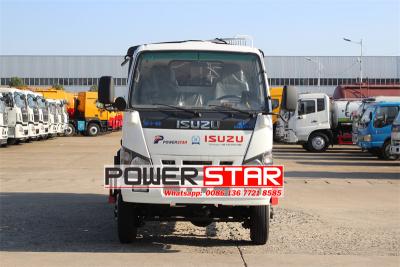

Isuzu 600P all-wheel drive 5 cubic garbage compactor truck is a special vehicle for garbage collection and disposal. It is modified on the Isuzu 4x4 600P chassis,with A/C,USB,direction assistance. The chassis equipped with 4KH1CN6LB 120HP engine,2999ml Euro 6 emission,Isuzu MSB 5-speed gearbox.The upper is a 5 cbm carbon steel garbage bin, a triangular bucket semi-sealed flip mechanism at the tail, with PLC electronic control system, hydraulic valve control system.
Manufacturer:
Powerstar TrucksWork capacity:
8CBMDimension:
7300 × 2250 × 2300mmCabin type:
Isuzu 600P 4x4 single row, 2 seatsWheelbase:
3360mmEngine power:
120HPEngine type:
Isuzu 4KH1CN6LBAxle drive:
4X4Gear box:
Isuzu MSB 5-speed,manualRemarks:
Semi-sealed bucket flip mechanismIsuzu 4x4 drive garbage rear loader is a professional model designed for efficient urban garbage collection and treatment. It is equipped with a powerful all-wheel drive system and can adapt to various complex road conditions. It has a 5-cubic-meter large-capacity garbage bin and an efficient compression mechanism, which can greatly improve the efficiency of garbage collection and transportation. It integrates powerful power performance, advanced garbage compression technology and convenient control system, and is suitable for garbage collection and transportation under various complex road conditions.
● China best Isuzu rear loader truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
Product Parameters
|
Isuzu 600P 4x4 garbage compactor truck |
||
|
Drive type |
4x4, New condition, LHD |
|
|
Vehicle Main Dimensions |

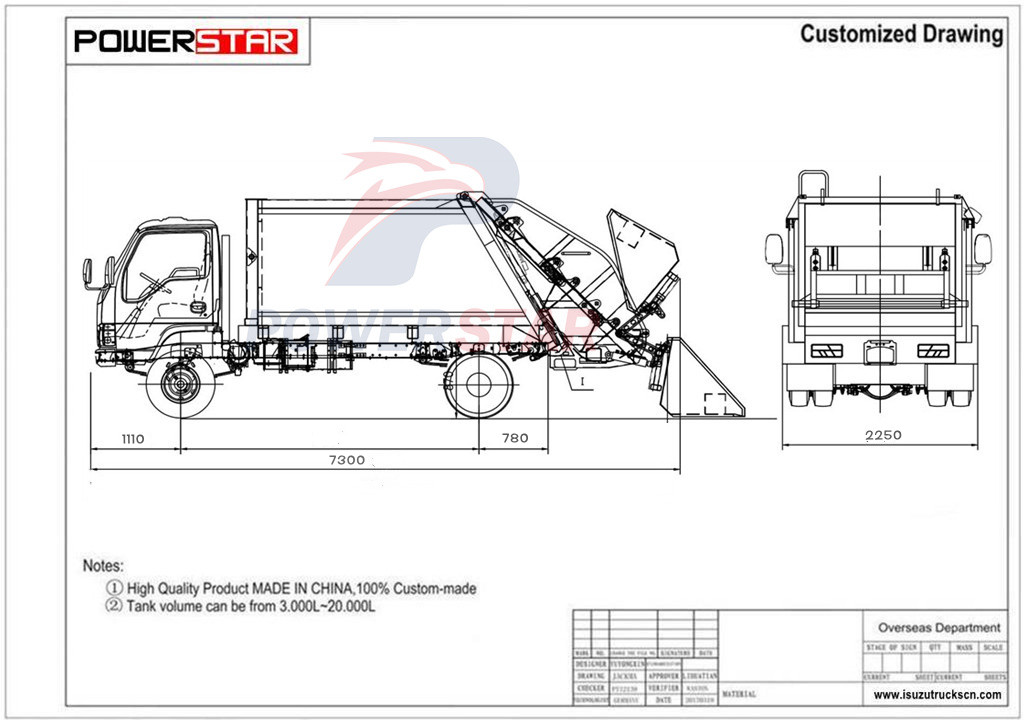

Overall dimensions(L x W x H) |
7300×2250×2300mm |
|
Wheel base |
3815mm |
|
|
F/R track |
1504/1525mm |
|
|
overhang |
1110/2375mm |
|
|
Weight in KGS |
Curb Weight |
4050kg |
|
GVW |
7300kg |
|
|
F/R axle-load |
2580/4720 kg |
|
|
Max. driving speed(km/h) |
110 |
|
|
Engine |
Brand |
Isuzu |
|
Model |
4KH1CN6LB |
|
|
Type |
4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling;diesel |
|
|
Horse Power(HP) |
120HP/88Kw |
|
|
Max torque |
290N.m |
|
|
Displacement |
2999ml |
|
|
Emission standard |
Euro VI |
|
|
Gearbox |
Isuzu MSB 5 forwards& 1 reverse |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Brake system |
Oil brake |
|
|
Fuel tank |
100L |
|
|
Tire |
700R16, 7 pc including 1 spare tire |
|
|
Steering Gear |
power steering, hydraulic steering with power assistance |
|
|
Equipment for Garbage Compactor |
||
|
Garbage Box Material |
Carbon Steel Q235 |
|
|
Garbage Box Volume |
8cbm |
|
|
Body material |
Floor plate 5mm and side plate 4mm |
|
|
Waste water tank |
200L |
|
|
Filling container volume |
500L |
|
|
Loading cycle |
25~30s |
|
|
Unloading cycle time |
20~25s |
|
|
Hydraulic System |
Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board. |
|
|
Control system |
PLC electronic control system, hydraulic valve control system |
|
|
Push Panel |
Used to push and squeeze garbage,works together with the skid way in the box |
|
Product Applications
Isuzu 600P all-wheel drive rear loader garbage truck, with its powerful off-road capability and efficient garbage disposal capacity, has become an ideal choice for garbage collection in cities and complex terrain areas. The all-wheel drive system ensures the vehicle's stable driving in various road conditions, whether it is flat city streets or rugged country roads, it can easily cope with it.
Body design
Body structure: The main body of the garbage bin is made of high-quality carbon steel material, which is known for its high strength, good corrosion resistance and wear resistance, and is very suitable for garbage compression and transportation.
Arc design: The exterior of the garbage bin adopts an arc design, which not only optimizes the volume utilization of the garbage bin, but also reduces wind resistance and improves the fuel economy of the vehicle. At the same time, the arc design can better disperse the pressure and reduce the deformation and wear of the garbage bin during the compression process.
Thickness: The side plate thickness of the garbage bin is 4mm and the bottom plate thickness is 5mm. Such a thickness design ensures that the garbage bin can withstand greater compression and impact force and prolongs its service life.
Anti-rust treatment: The inner and outer walls of the garbage bin are specially anti-rust treated to extend the service life of the garbage bin.

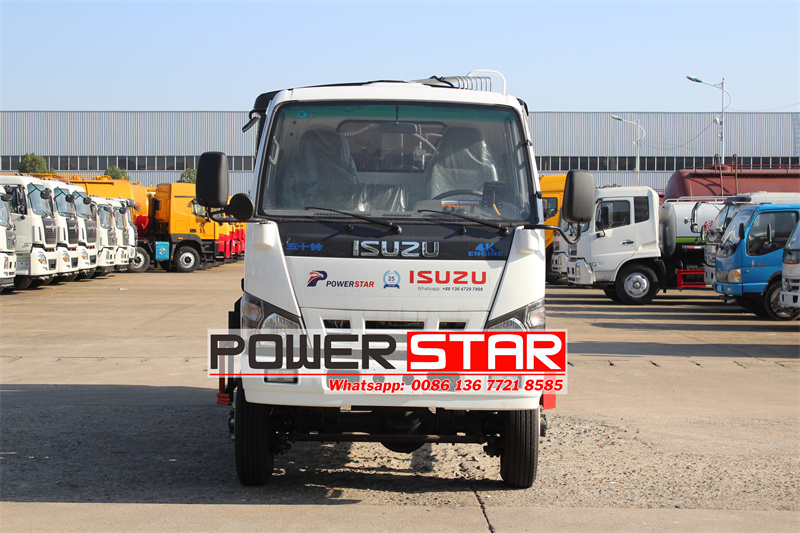

Cab and comfort
• Cab design: The spacious and bright cab provides a good view and operating space. The seat is ergonomically designed, which can maintain comfort even for long driving.
• Maneuverability: The steering wheel is flexible and the pedal layout is reasonable, so the driver can easily control the vehicle and improve work efficiency.
• Environmental adaptability: The cab is equipped with air conditioning to ensure that the driver can maintain a comfortable working environment under different climatic conditions.
Power configuration:
• Engine: The vehicle is equipped with a 4KH1CN6LB diesel engine with a rated power of 120 horsepower (about 88 kilowatts), which not only provides sufficient power output, but also takes into account fuel economy and low emission requirements, and meets modern environmental protection standards.
• Transmission: Matched with Isuzu MSB series 5-speed manual transmission, it has smooth shifting and high transmission efficiency. It can flexibly adjust the speed ratio according to driving needs, further improving the vehicle's driving performance and fuel efficiency.
Upper configuration:
• Trash bin: A carbon steel trash bin with a capacity of 8 cubic meters is used, which is high in strength and corrosion-resistant. It can effectively carry and compress garbage, increase the single transportation volume, and reduce the transportation frequency.

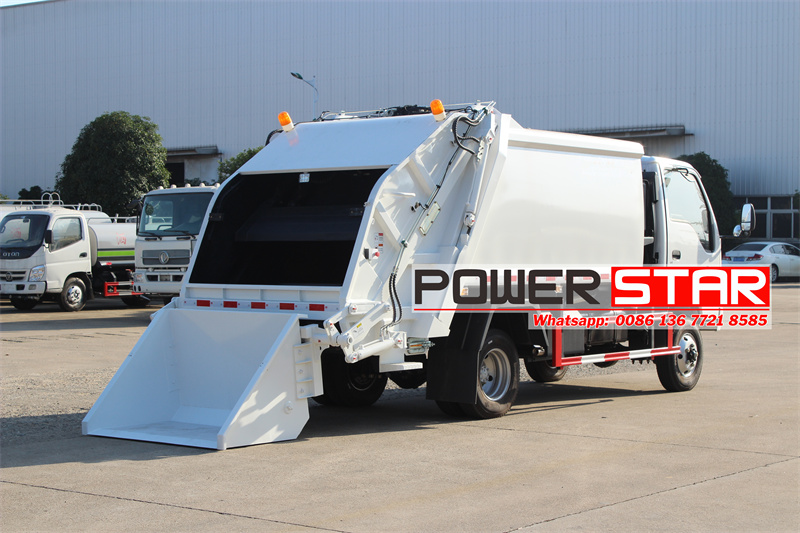

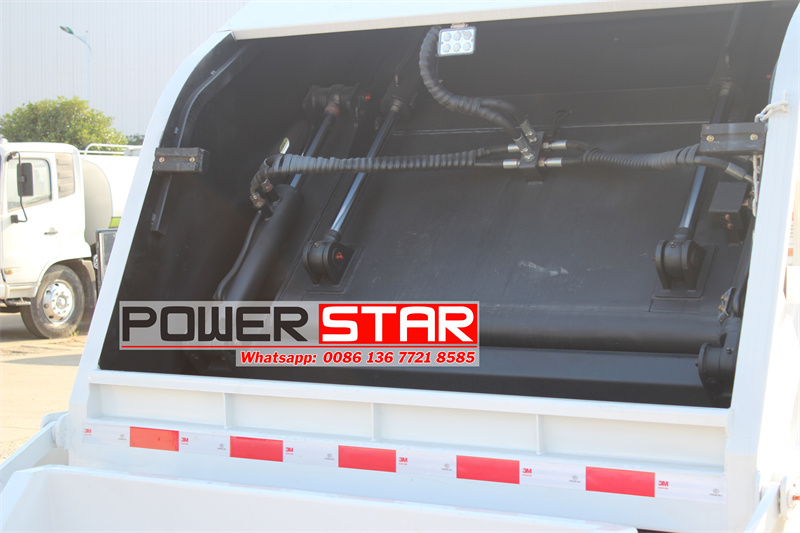

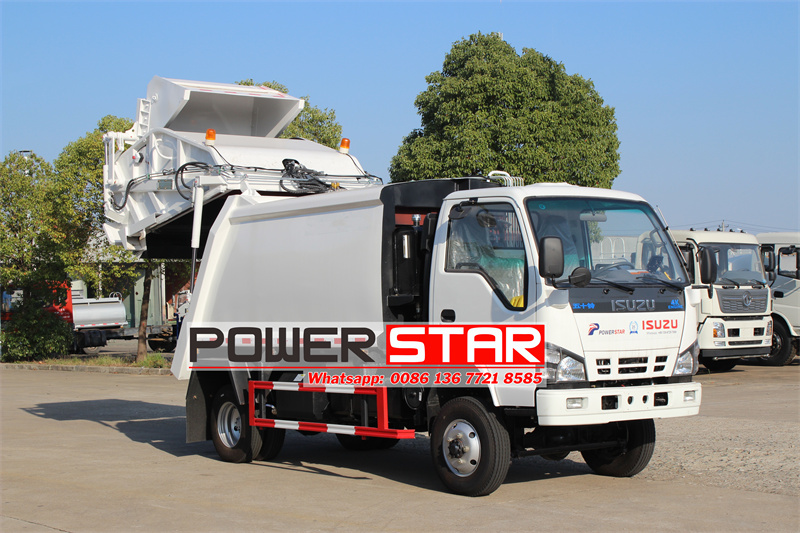

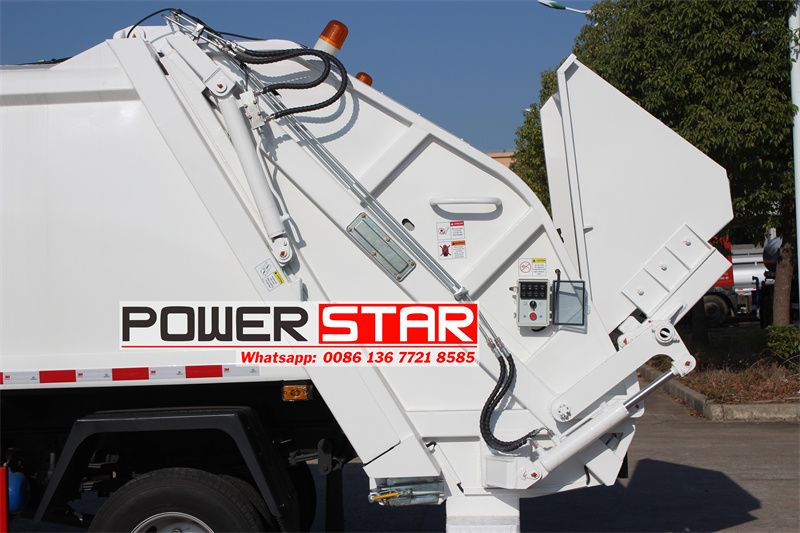

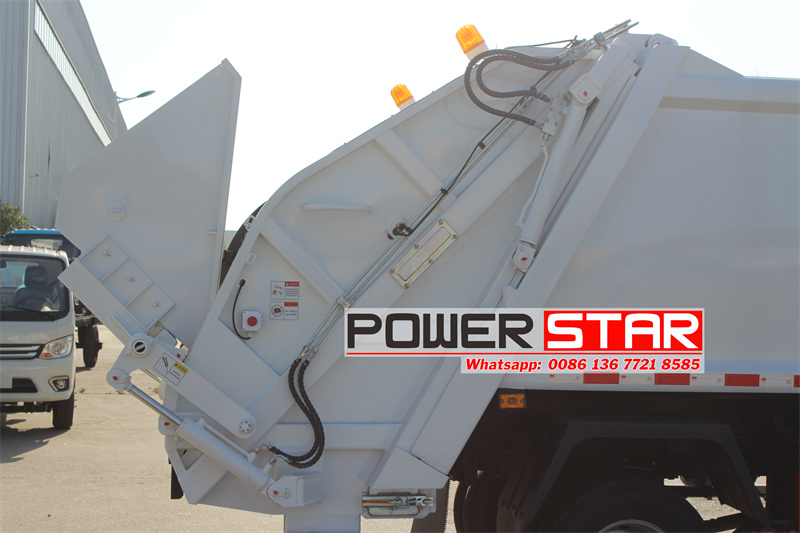

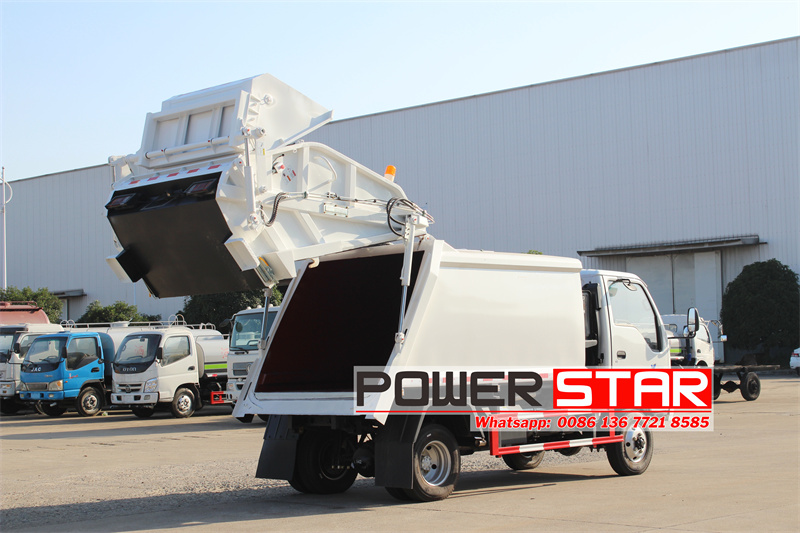

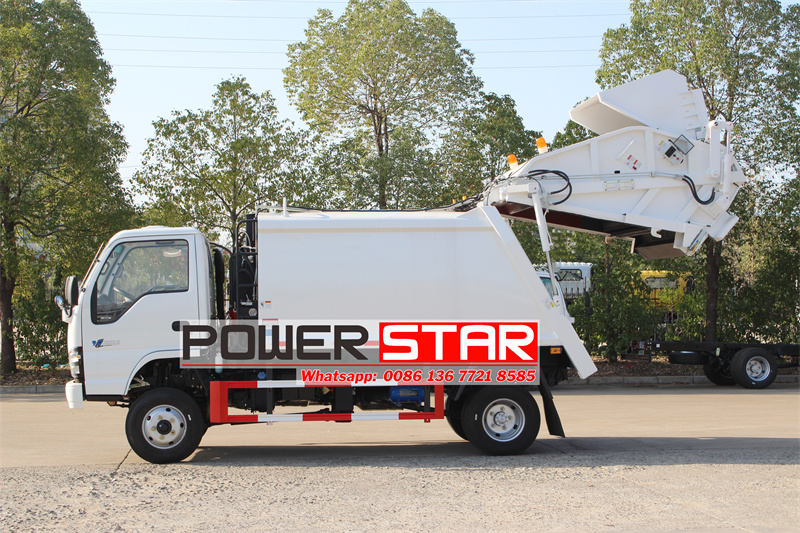

• Turning mechanism: The tail is equipped with a triangular bucket semi-sealed turning mechanism, which is cleverly designed and easy to operate. It can realize the rapid and safe turning of the trash bin, facilitate the dumping and loading of garbage, and reduce the scattering of garbage and the spread of odor.
Control system:

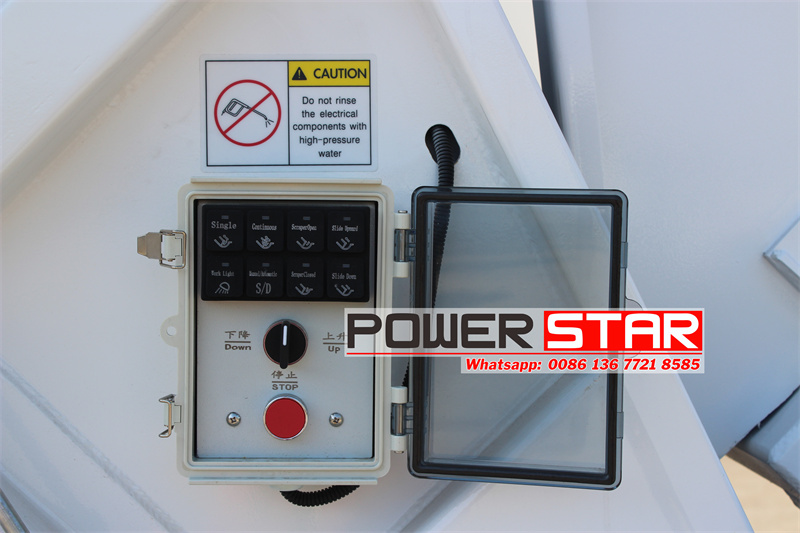

PLC electronic control system: Integrates advanced programmable logic controller (PLC) to realize intelligent control of various functions of the vehicle, including compression, unloading and other actions. The operation interface is intuitive and easy to use, which improves the operation efficiency and safety.

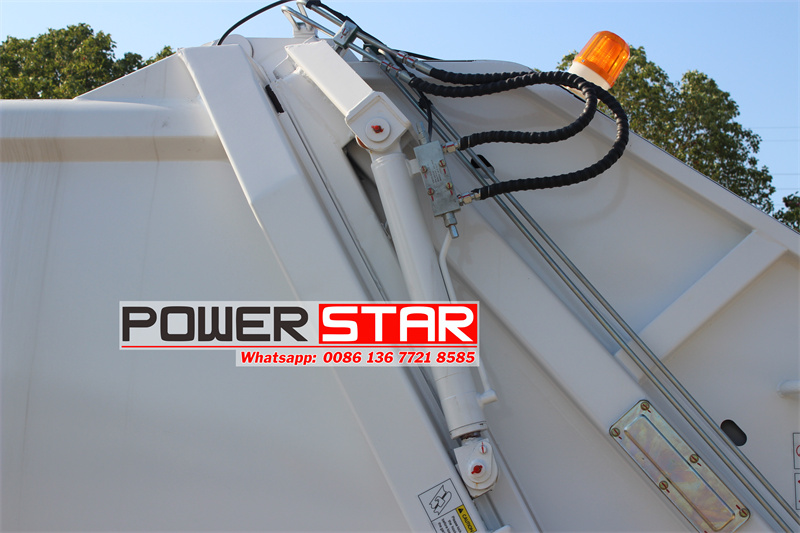

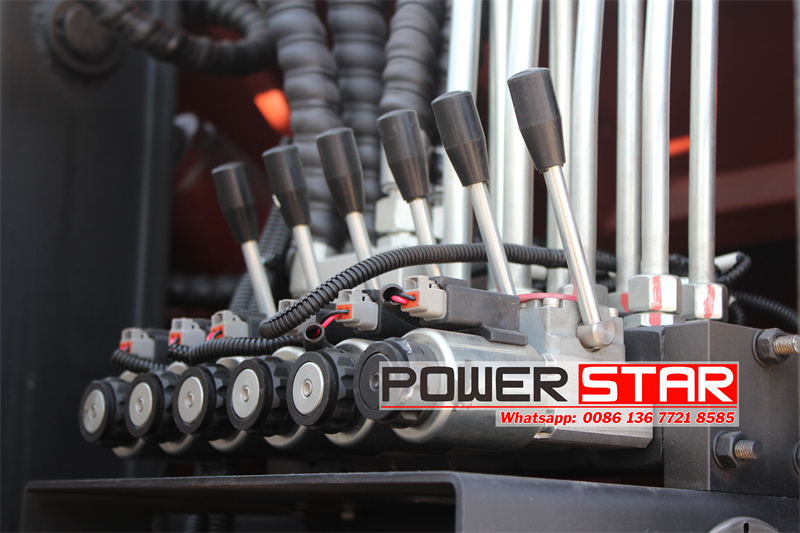

Hydraulic valve control system: Adopts high-performance hydraulic valve group to accurately control the compression, lifting and other actions of the trash bin, ensuring smooth and rapid operation, low energy consumption and easy maintenance.
Efficient compression mechanism
High-density loading: The compression mechanism adopts advanced design, which can efficiently compress the garbage into the trash bin, increase the amount of garbage transported in a single time, and reduce the number of round trips.
Fast Cycle: The compression cycle time is short, typically between 25-30 seconds, ensuring a fast and efficient waste disposal process.
