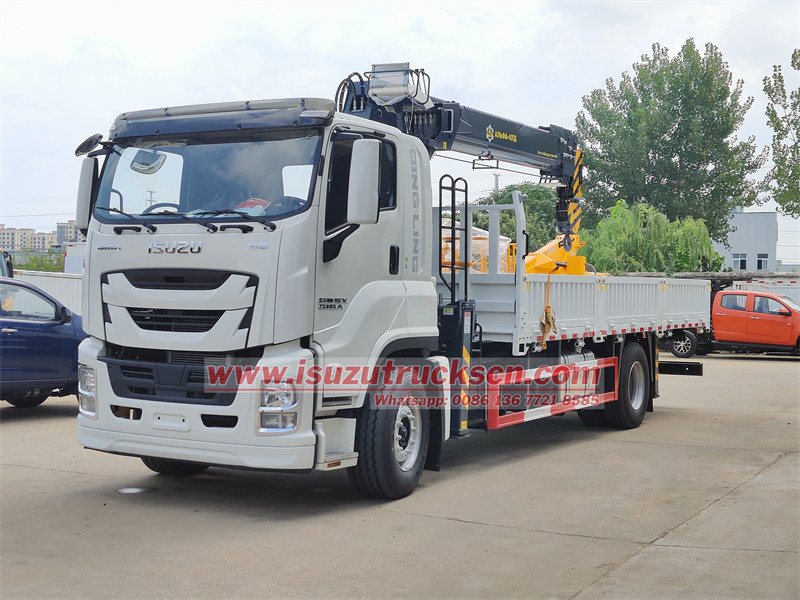

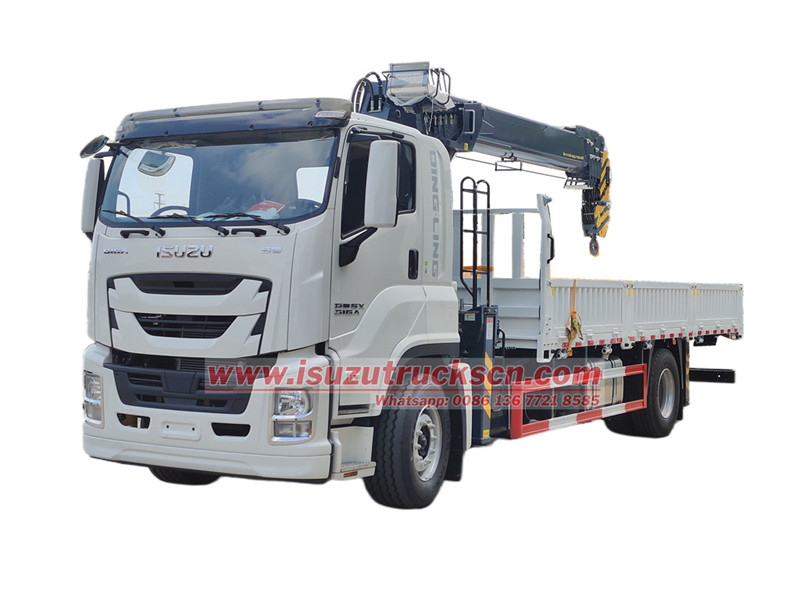

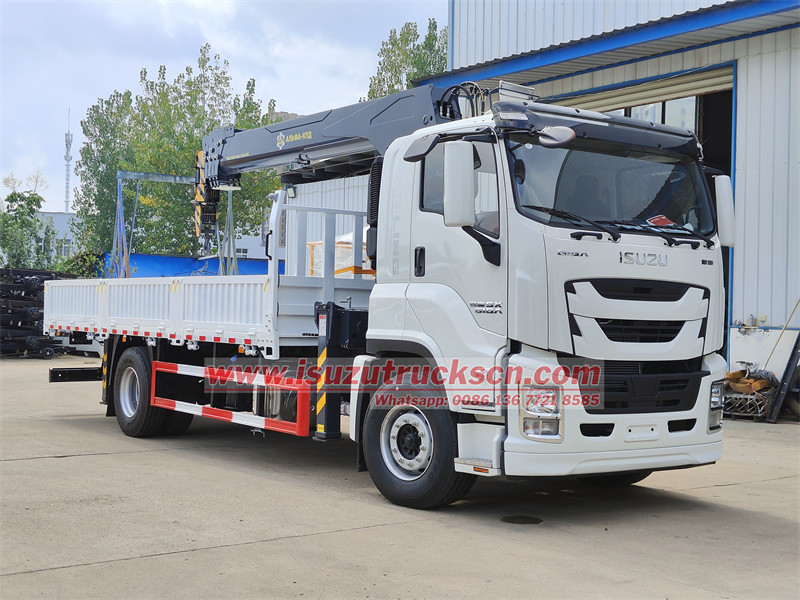

The ISUZU FVR 8-ton crane truck is a professional engineering vehicle built on the ISUZU FVR 4×2 chassis, powered by a 240HP 6HK1-TCG61 diesel engine compliant with Euro VI emission standards. Equipped with an XCMG SQ8 four-section telescopic boom crane, it offers a maximum lifting capacity of 8 tons and 14.5m maximum lifting height with 360° full rotation. The 5600×2500×600mm high-strength cargo box features cold riveting technology for excellent load-bearing capacity. With overall dimensions of 8535×2500×3650mm, 4500mm wheelbase and 18-ton GVW, it combines urban road accessibility with heavy-duty operation capability, making it ideal for construction material transport and equipment installation.
Manufacturer:
POWERSTARWork capacity:
8 tonDimension:
8535x2500x3650 mmCabin type:
ISUZU GIGA 5XWheelbase:
4500 mmEngine power:
240HPEngine type:
6HK1-TCG61Axle drive:
4×2, left hand driveGear box:
FAST 8-speed,manualRemarks:
Knuckle boom crane is optionalThe ISUZU FVR 8-ton boom crane truck is a heavy-duty engineering vehicle that integrates efficient transportation with professional lifting capabilities. It is meticulously built on the ISUZU FVR 4×2 chassis. With overall dimensions of 8535 × 2500 × 3650 mm and a wheelbase of 4500 mm, the vehicle boasts a gross weight of 18 tons, striking a perfect balance between urban road accessibility and heavy-duty operational requirements. Powered by a 6HK1-TCG61 diesel engine delivering 240 horsepower and paired with an 8-speed manual transmission, it achieves a top speed of 90 km/h while complying with Euro VI emission standards. Customizable body colors and professional structural design make it a versatile asset in the field of engineering transportation.

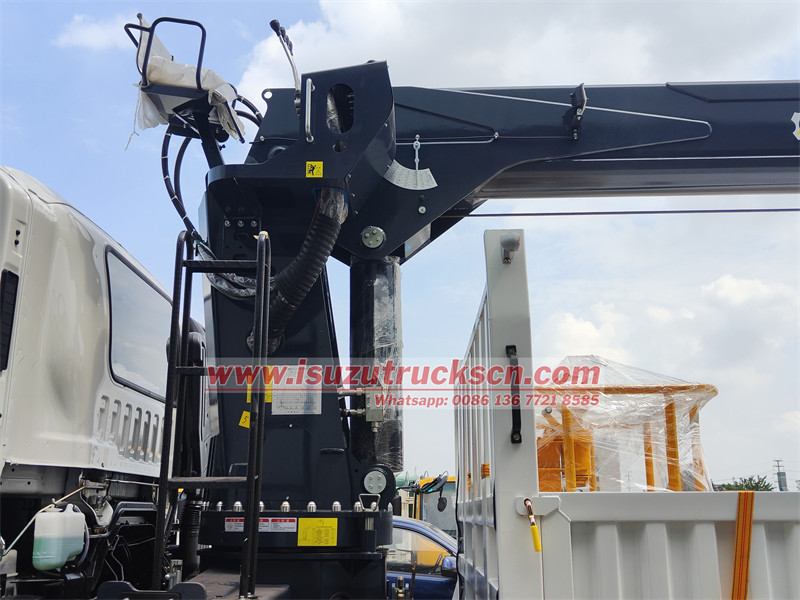

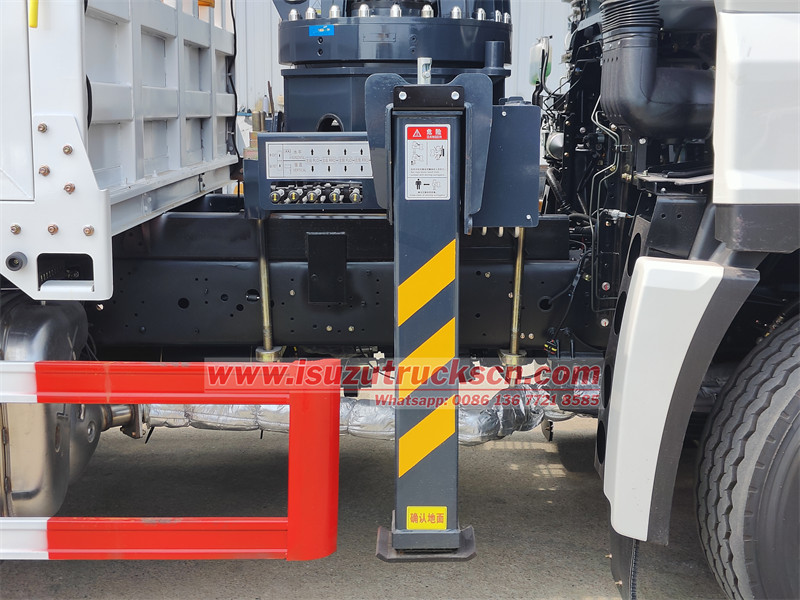

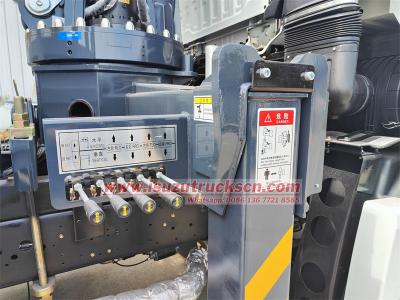

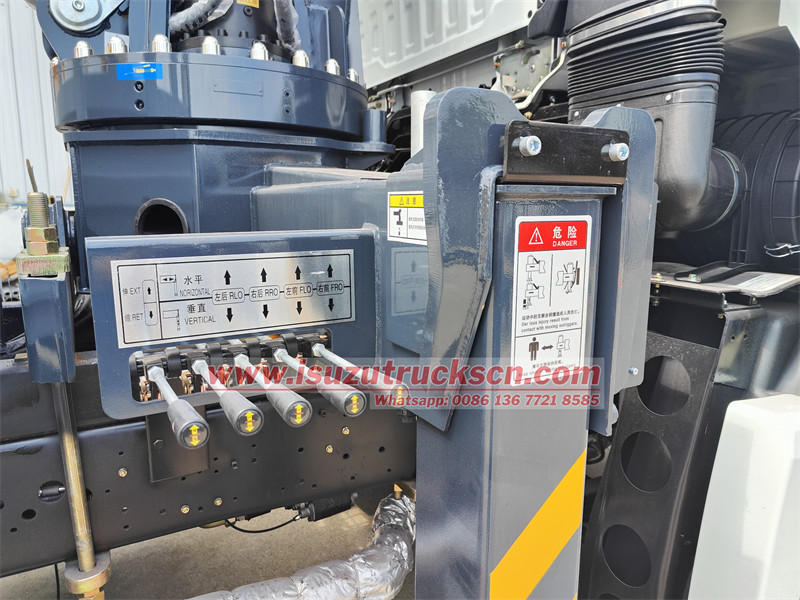

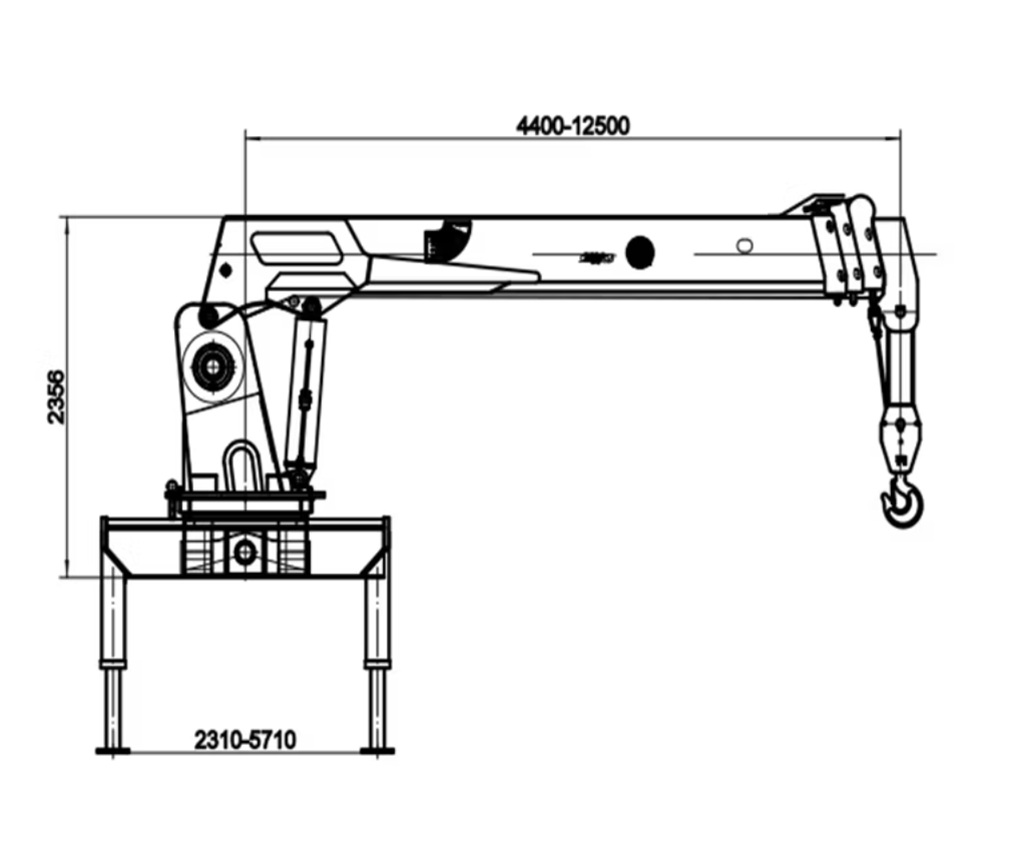

The core equipment of this ISUZU utility truck mounted crane is the SQ8 hydraulic telescopic boom crane. Featuring a four-section U-shaped high-strength steel boom and single-cylinder pin-type telescopic technology, it enables stepless adjustment of the boom length from 8.3 to 14.5 meters. With a maximum lifting moment of 200 kN·m, it can handle 8-ton loads at a 2.5-meter working radius, while maintaining a 600 kg lifting capacity at the maximum working radius of 12.5 meters, meeting the demands of precision tasks such as cross-floor lifting and long-distance equipment positioning. The outrigger system adopts a hydraulically operated two-stage telescopic structure, with a lateral span adjustable from 2310 to 5710 mm. The longitudinal span is achieved through a combination of front V-type and rear H-type outriggers for multi-stage extension. The outrigger control panel integrates a level gauge and pressure sensors to display real-time load status, while hydraulic safety valves and balance valves prevent overload and tipping, ensuring operator and equipment safety.

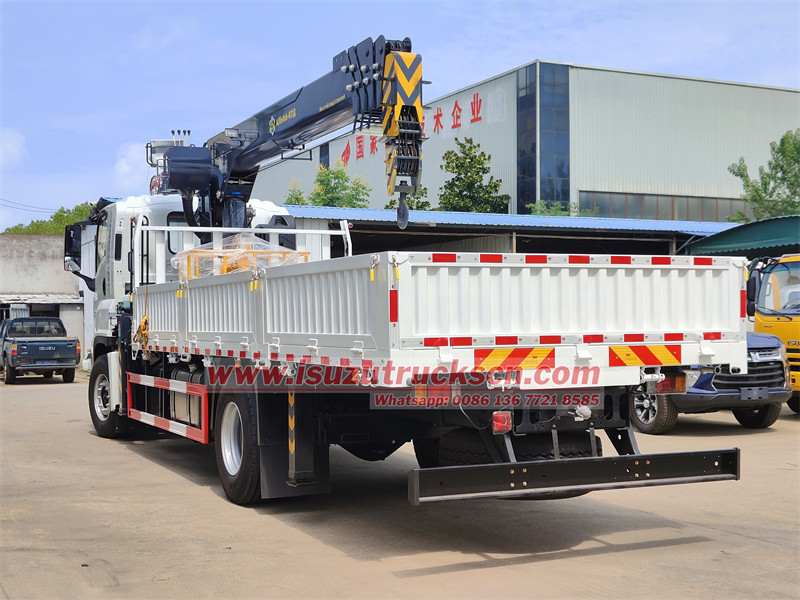

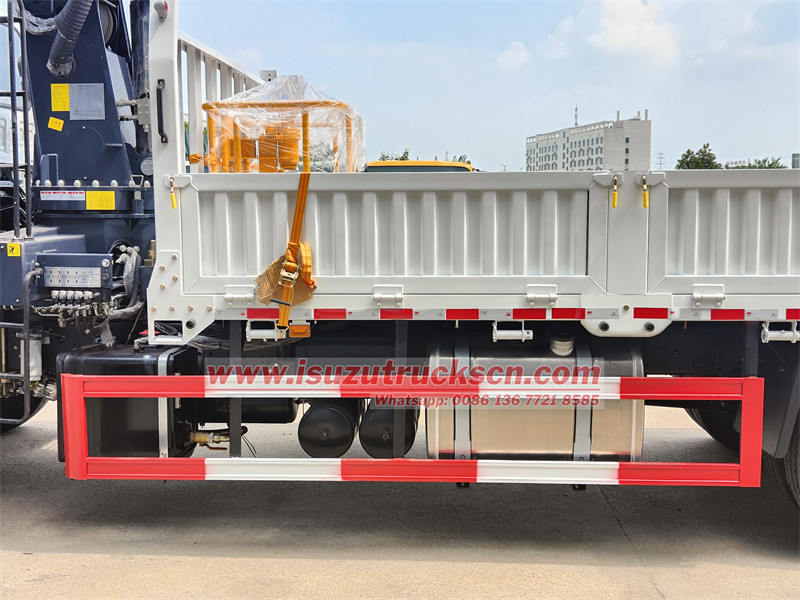

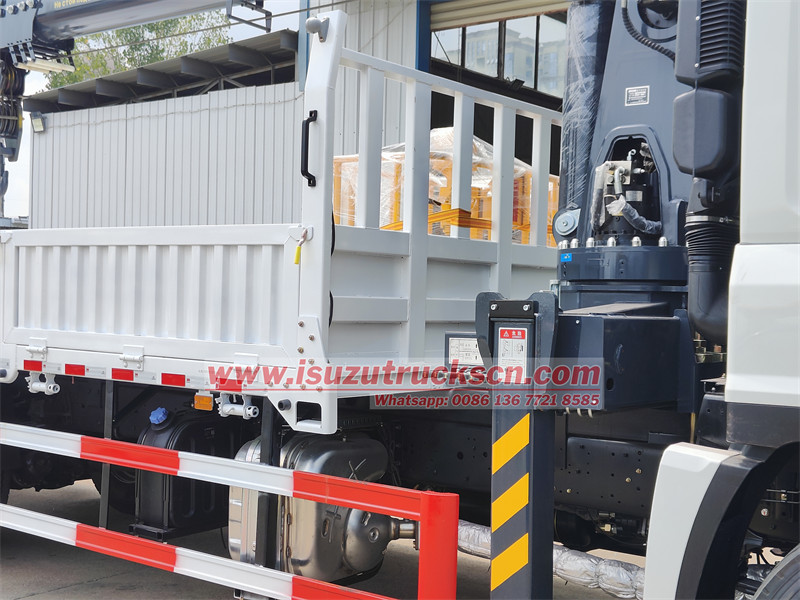

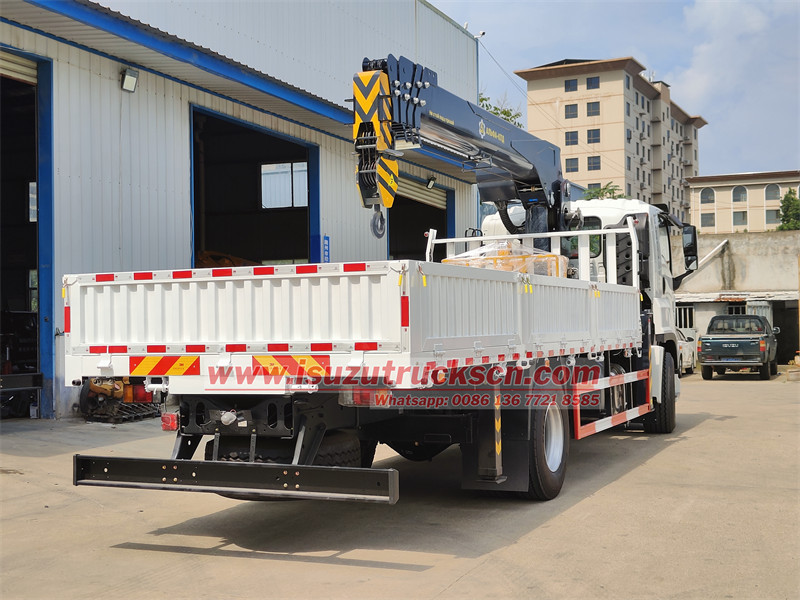

As an auxiliary unit of the crane truck, the cargo box’s structural strength and space utilization directly impact overall efficiency. The ISUZU FVR truck-mounted crane’s cargo box measures 5600 × 2500 × 600 mm and is constructed from Q345B high-strength carbon steel plates using cold riveting technology, avoiding thermal deformation issues associated with traditional welding and enhancing fatigue resistance. The side panels are 3 mm thick, and the floor is 4 mm thick, reinforced with stiffeners and U-shaped longitudinal beams to form a cage-like frame structure, ensuring no permanent deformation under full 8-ton load conditions.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu boom crane truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
Product Specifications
|
Vehicle Specifications |
||
|
Chassis brand |
ISUZU |
|
|
Cabin |
Driving type: 4x2, Left hand drive |
|
|
Color is optional |
||
|
Overall Dimensions |
Overall size (L x W x H) |
8535x2500x3650 mm |
|
Wheelbase |
4500 mm |
|
|
Weight in KGS |
GVW |
18000 kg |
|
Tare weight |
12380 kg |
|
|
Front axle loading capacity |
6500 kg |
|
|
Rear axles loading capacity |
11500 kg |
|
|
Engine |
Type |
Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
Model |
6HK1-TCG61 |
|
|
Horse Power |
240HP (177kw) |
|
|
Displacement |
7790 ml |
|
|
Emission standard |
Euro 6 |
|
|
Max Speed |
90 km/h |
|
|
Gearbox |
FAST, manual gearbox with 8 forwards & 1 reverse |
|
|
Tire |
295/80R22.5 tubeless tire, 7 pieces including one spare tire |
|
|
Crane Specifications |
||
|
Model |
SQ8 |
|
|
Max Lifting moment |
200Kn.m |
|
|

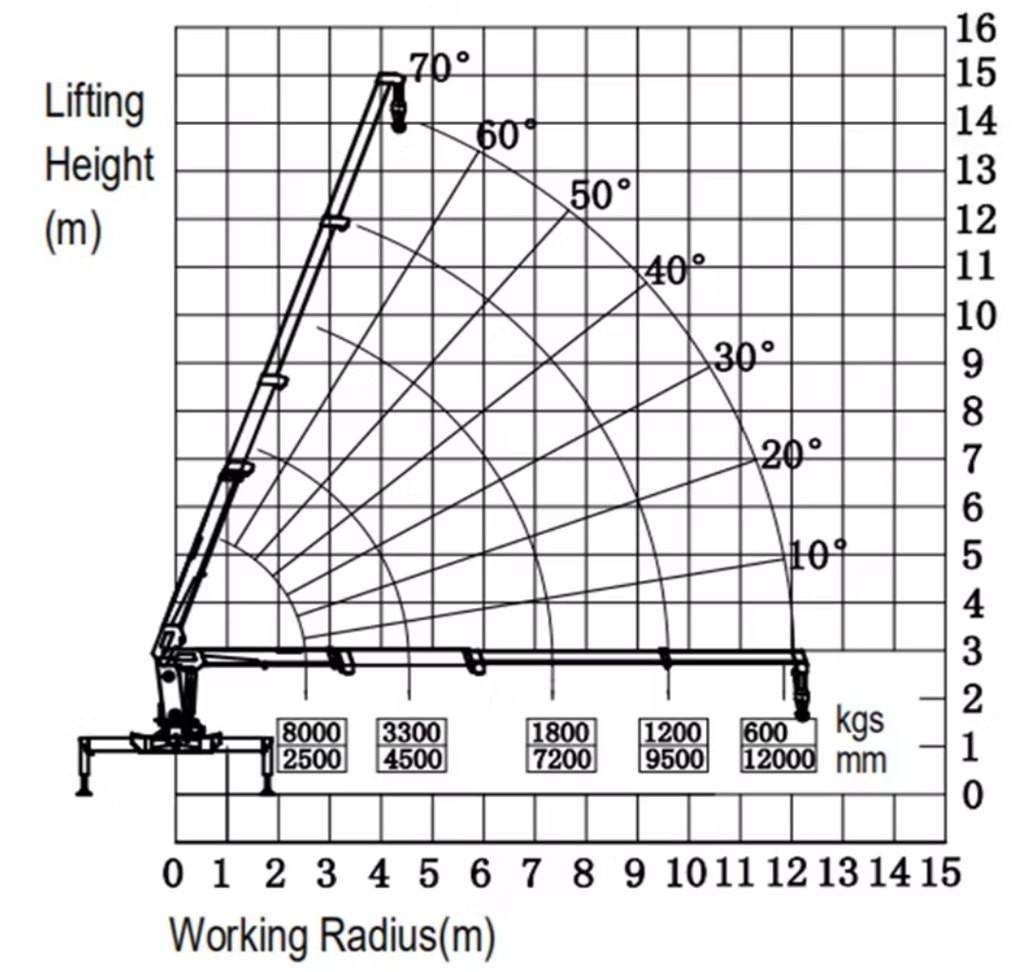

Max Lifting Capacity (kg/m) |
8000/2.5 |
|
|
3300/4.5 |
||
|
1800/7.2 |
||
|
600/12 |
||
|
Max Lifting Height |
14.5m |
|
|
Working Radius |
12.5m |
|
|
Boom Section |
4 stages |
|
|
Rotation Angle |
360°All Rotation |
|
|
Working Pressure |
20mpa |
|
|
Rated Oil Flow |
63L/min |
|
|
Oil tank Capacity |
150L |
|
|
Winch type |
Hydraulic |
|
|
Swing type |
Planetary gear reduction. |
|
|
Outrigger |
adjustable, Hydraulic operating. |
|
|
Outrigger Span |
2310-5710mm |
|
|
Crane Weight |
3400 kg |
|
|
Installation Space |
1350mm |
|
|
Safety Device |
Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
|
|
Cargo Box Specifications |
||
|
Size |
5600×2500×600 mm |
|
|
Material |
Carbon steel |
|
|
Thickness |
Side walls: 3mm; floor: 4mm |
|
Product Features
High-Efficiency Operation Capability
1. High Lifting Capacity and Long Working Radius: The ISUZU FVR truck with crane is equipped with an 8-ton hydraulic telescopic boom crane, capable of effortlessly handling heavy construction materials, prefabricated components, and other large-tonnage cargo.
2. Multi-Section Telescopic Boom and Precise Control: The multi-section telescopic boom design allows flexible adjustment of boom length. Combined with the precise control of hydraulic operating valves, it enables composite operations such as lifting, luffing, slewing, and telescoping, significantly improving efficiency.
Reliable Load-Bearing Performance
1. High-Strength Chassis and Powertrain: Built on the high-load-bearing ISUZU FVR 4×2 chassis, the vehicle has a gross weight of 18 tons and a curb weight of 12.38 tons.

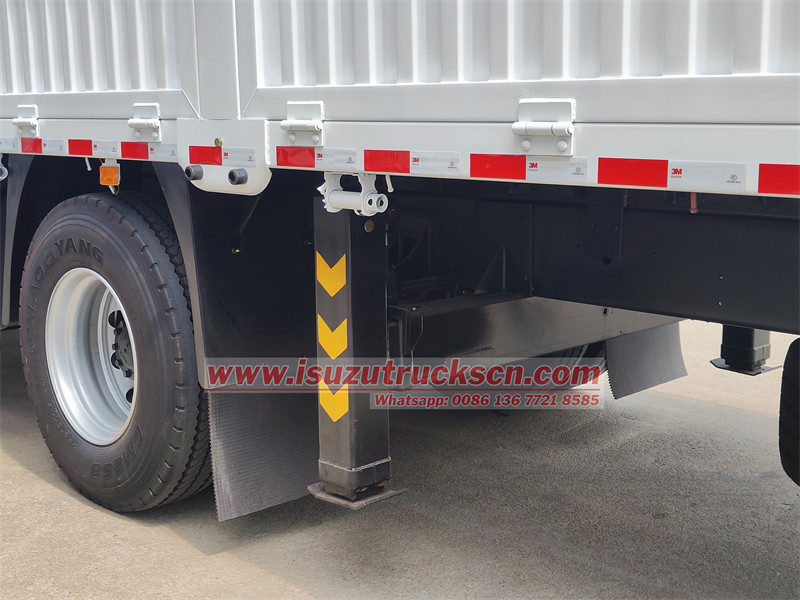

2. Stable Hydraulic and Outrigger System: The hydraulic system operates at a rated pressure of 25 MPa and a flow rate of 63 L/min, with proportional valves enabling synchronized multi-function control for smooth lifting operations. The outrigger system features a hydraulically operated two-stage telescopic structure, with a lateral span adjustable from 2310 to 5710 mm and a longitudinal span achieved via front V-type and rear H-type outriggers.
Flexible Operation Experience
1. Ergonomic Control Interface: Dual-side operation is supported, with integrated control panels on both the left and right sides of the cab. Symmetrically arranged crane control levers and outrigger valves allow operators to choose the control side based on job requirements, enabling obstruction-free operation.
2. Wireless Remote Control Option: An optional wireless remote control system enables operations within a 100-meter range, particularly useful in confined or hazardous areas, enhancing operator safety and flexibility.
Safety Protection Mechanisms
1. Multi-Layer Protection Systems: The crane control system includes a load indicator for real-time monitoring of weight and moment percentage, with audible and visual alarms for warnings. Hydraulic safety valves automatically lock cylinders in case of hose rupture to prevent boom drops. An automatic slewing brake instantly locks the turntable to avoid inertial swings. The hook safety device uses a spring latch to prevent wire rope disengagement, ensuring comprehensive operational safety.
2. Optimized Structural and Material Design: Key components are welded from Q690 high-strength steel plates, offering high strength and reduced weight to minimize vehicle load. The slewing mechanism employs an external planetary gear reducer for smooth driving and reliable braking.
