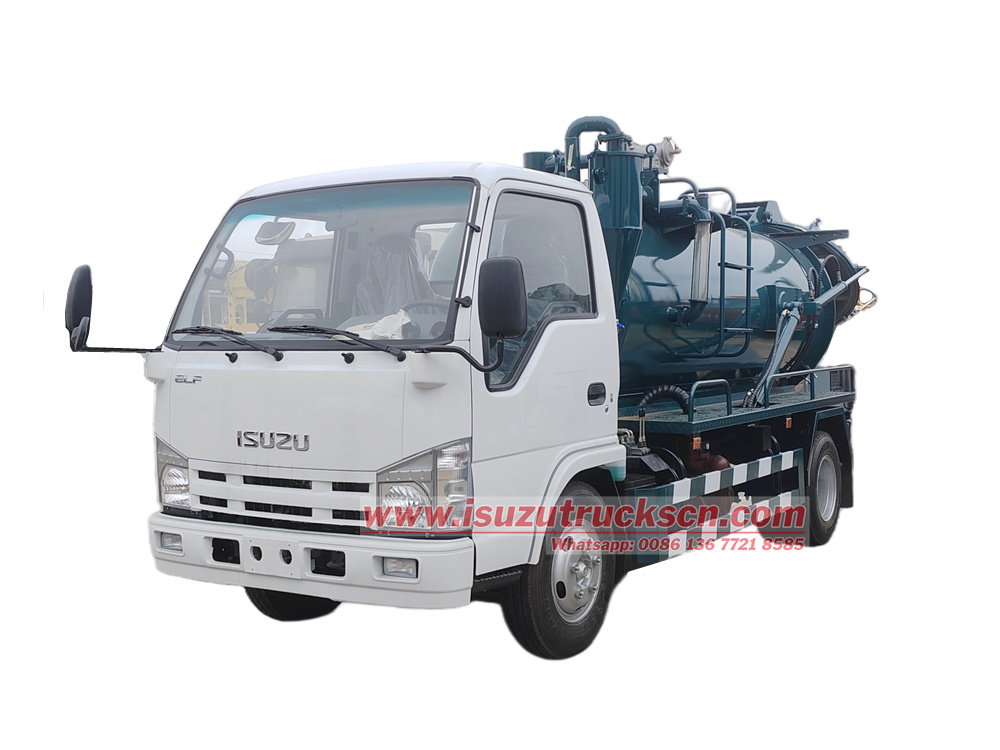

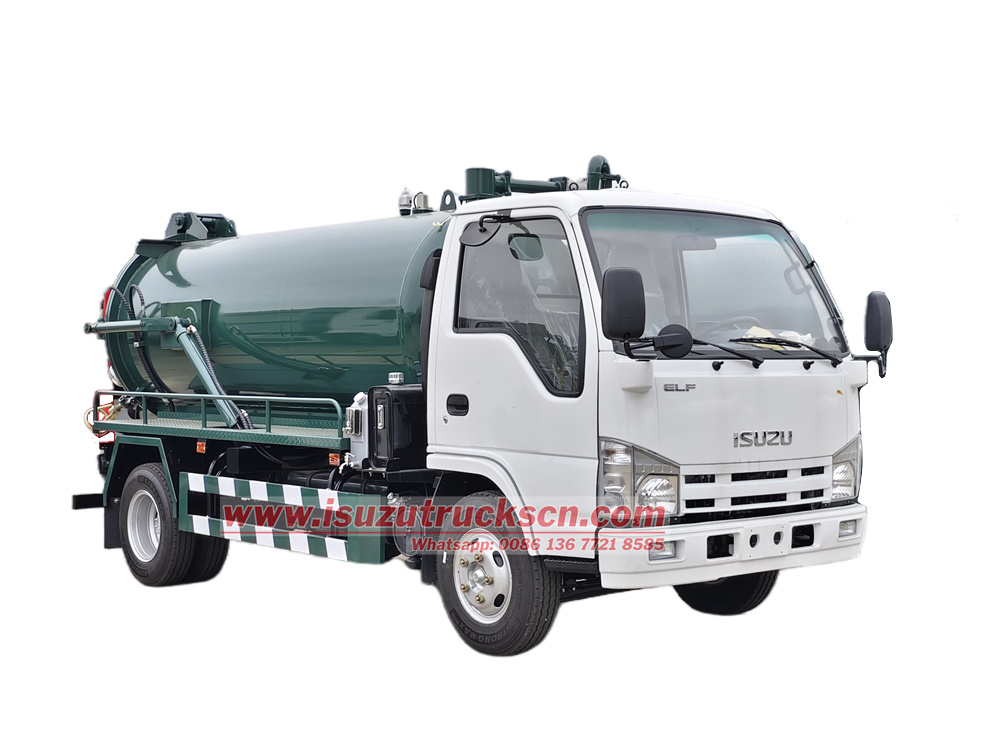

Algeria Isuzu 3000 liters septic tanker truck

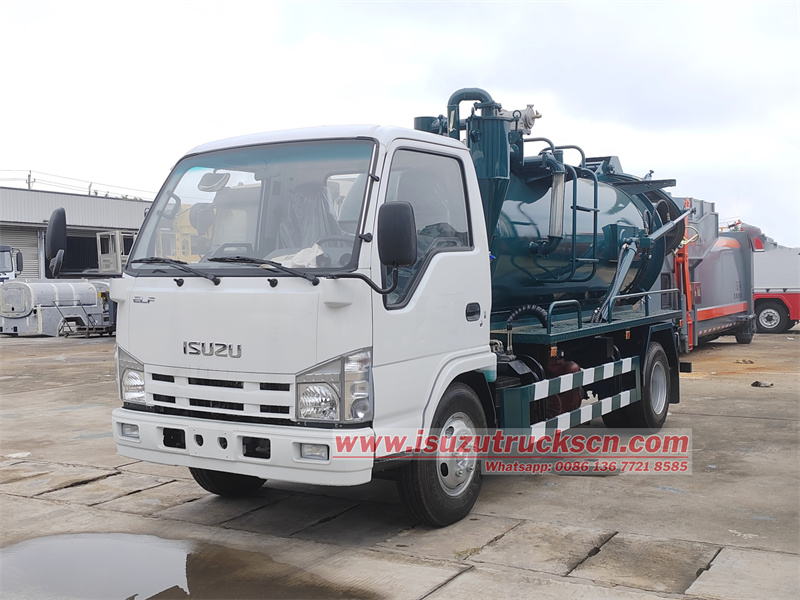

The Isuzu 100P sewage suction truck uses an Isuzu 100P chassis with a 3360mm wheelbase. It is equipped with an Isuzu 4JB1CN engine and an MSB 5-speed gearbox. The upper part is a 3-square arc-shaped carbon steel sewage suction tank with anti-corrosion and rust-proof treatment. It is equipped with a MORO PM60A vacuum pump, hydraulic oil tank, secondary filter, sewage sight pipe, ladder, tailgate discharge valve, liquid sight glass, and a manual hydraulic operating lever on the driver's side to control the opening and closing of the tailgate and the lifting and lowering of the tank.
MarketPrice:
$21960Manufacturer:
Powerstar TrucksWork capacity:
3,000 litersDimension:
5950*2000*2450 mmCabin type:
Isuzu 100P cab,2 seatsWheelbase:
3360mmEngine power:
98HP/72kWEngine type:
ISUZU 4JB1CNAxle drive:
4X2,LHDGear box:
Isuzu MSB 5-speed,manualRemarks:
Tank capacity can be customizedThe Algeria Isuzu 3000-liter septic tanker truck is a specialized sanitation equipment that combines efficient suction, reliability, durability, and flexible operation. It is designed for applications such as urban pipe dredging, septic tank cleaning, and industrial wastewater extraction. Its core upper body is a three-sided curved carbon steel tank body treated with corrosion and rust prevention, making it suitable for harsh working conditions. Equipped with an Italian MORO PM60A vacuum pump, it offers fast suction speeds and a high vacuum level, capable of suctioning sewage at depths of up to 7 meters. The hydraulic system integrates manual controls on the driver's side, allowing for easy opening and closing of the tailgate and raising and lowering of the tank. Details such as a liquid sight glass and a secondary filter enhance safety and durability.
● China best Isuzu sewage suction truck factory
● 30 years experience on vacuum pumper truck designing
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Key Features and Advantages
• Golden Powertrain: The classic Isuzu chassis and engine ensure high availability and economical operation.
• Powerful Sewage Suction Capacity: Equipped with an Italian MORO vacuum pump, it delivers fast suction speeds and a high vacuum level, effectively handling semi-fluids, sludge, and other materials.
• Sturdy and Durable Tank: Constructed of high-quality carbon steel and undergoing special anti-corrosion treatment, it offers a long service life.
• User-Friendly Operation: Major operations can be performed from the cab side, ensuring safety and effortless operation.
» Ⅱ.Product Parameter for Isuzu 100P sewage suction truck:

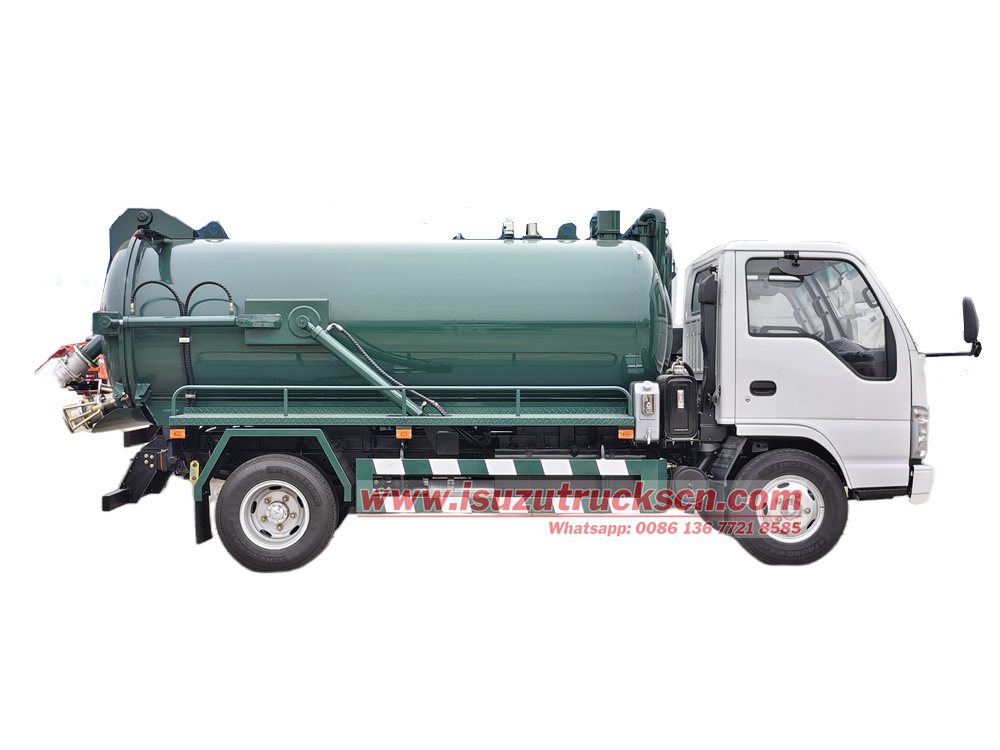

| Isuzu 100P 3CBM vacuum suction truck | |||
|
General |
Vehicle Brand |
POWERSTAR TRUCKS |
|
|
Vehicle Model |
PT5070GXH |
||
|
Chassis Brand |
ISUZU |
||
|
Overall Dimension |
5950 x 2000 x 2450 mm |
||
|
GVW / Kerb Weight |
7300 kg / 3850 kg |
||
|
Axle loads |
2580/4720 kg |
||
|
Cab |
Cab Capacity |
ISUZU ELF 100P cabin,single row, with A/C,USB, direction assistance |
|
|
Engine |
Fuel Type |
Diesel, 4 cylinders in-line, 4-stroke, supercharged, intercooled, water-cooled, Bosch 1600bar high-pressure common rail, DOC+POC |
|
|
Brand |
ISUZU |
||
|
Model |
4JB1CN |
||
|
Power |
98 HP/ 72kW |
||
|
Rated speed |
3400rpm |
||
|
Max torque |
220N·m |
||
|
Max torque speed |
1700rpm |
||
|
Displacement |
2.771L |
||
|
Emission Standard |
Euro 4 |
||
|
Chassis |
Drive Type |
4x2, left hand drive |
|
|
Transmission |
Isuzu MSB 5-speed transmission, manual |
||
|
Wheelbase |
3360mm |
||
|
Number of axle |
2 |
||
|
Tyre Specification |
7.00R16 |
||
|
Tyre Number |
6 tyres and 1 spare tyre |
||
|
Max Speed |
95 km/h |
||
|
Fuel tank |
100L |
||
|
Paint |
Metallic paint |
||
|
Superstructure |
Tank |
Tank Capacity |
3000 liters |
|
Tank Material |
4mm carbon steel with antiseptic treatment |
||
|
Tank lifting angle |
≥45° |
||
|
Vacuum Pump |
Vacuum Pump |
MORO PM60A |
|
|
Free air capacity |
7200L/min,254cfm |
||
|
Air capacity at 15" Hg/50% vacuum |
13.5 m³/min |
||
|
Max. Pressure |
29 psig |
||
|
Max. Vacuum |
28 Hg |
||
|
Power required at 15" of vacuum |
10 hp |
||
|
Power required at max. pressure |
29 hp |
||
|
Rotation speed |
1100 rpm |
||
|
Suction Head |
7m length with DN 80 mm |
||
|

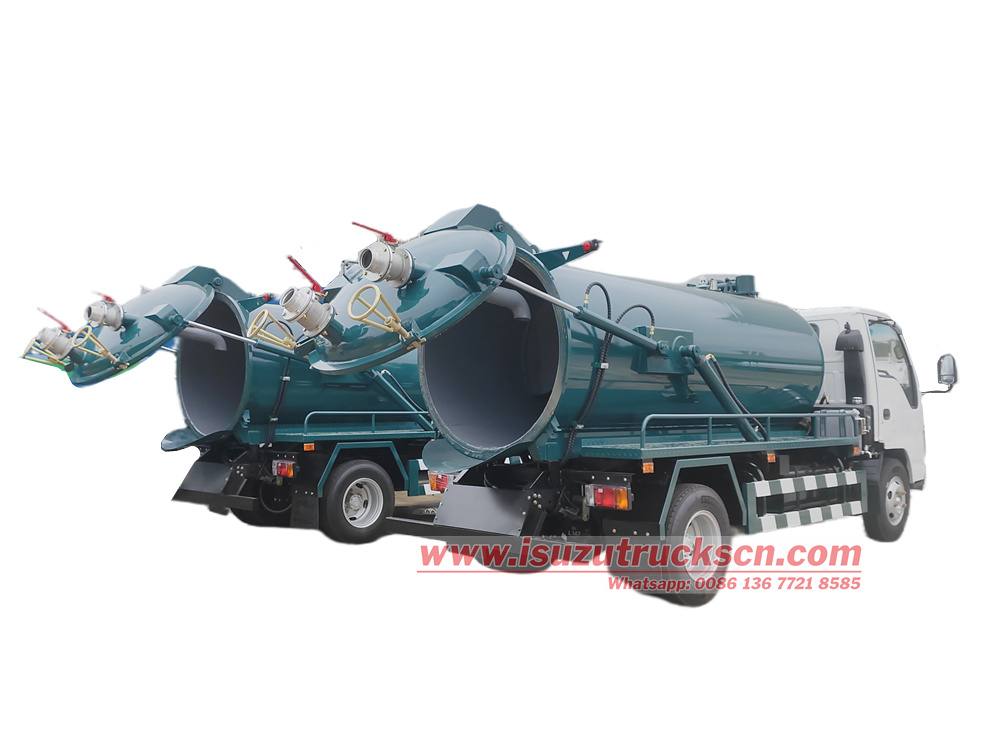

Rear door can be hydraulic opened for complete discharge of solid stuff. |
|||
|
All standard accessories: manhole, tool kit, English manual..... |
|||
|
Optional |
** Tank material could be stainless steel. |
||
» Ⅲ. Product Details:
Chassis Configuration
1. Utilizes the Isuzu 100P classic light truck chassis, offering a compact structure and strong adaptability.
2. Powertrain
o Engine: Equipped with the Isuzu 4JB1CN inline four-cylinder diesel engine, with a displacement of 2.771L and a maximum power of 72kW (98 horsepower), it boasts strong low-speed torque and excellent fuel economy.
o Transmission: Equipped with an MSB 5-speed manual transmission, it offers smooth shifting, high reliability, and adaptability to frequent start-stop operations.
3. Wheelbase and Roadworthiness
The 3360mm golden wheelbase design balances cornering agility with driving stability.
Upperbody Configuration

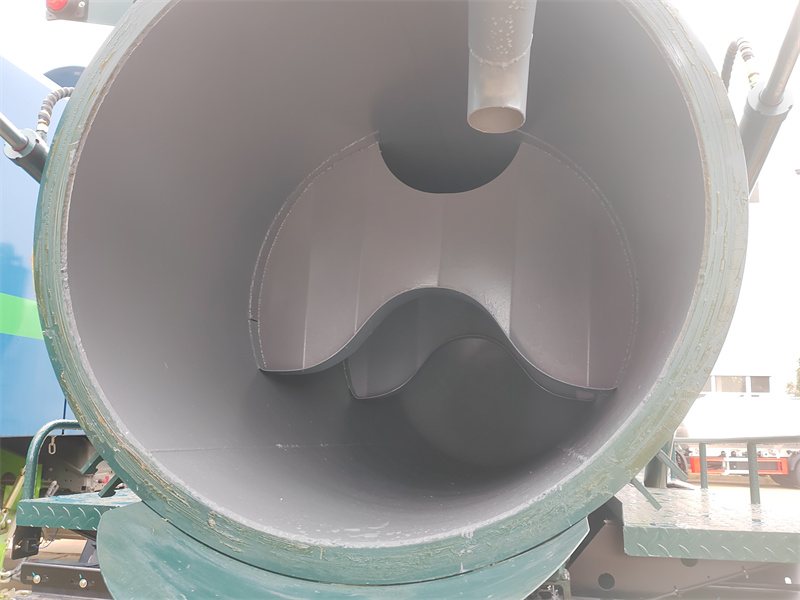

• Sewage Suction Tank:
o Capacity: 3 cubic meters
o Material: High-quality carbon steel, with a curved cross-section for enhanced structural strength and improved drainage.
o Treatment Process: Professional internal anti-corrosion and rust-proofing effectively resists corrosion from sewage and biogas, significantly extending the tank's service life.

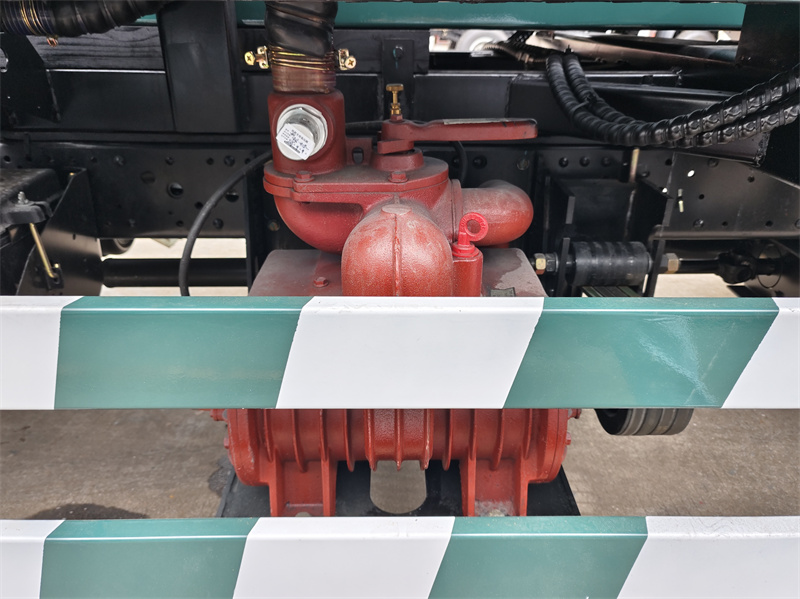

• Vacuum Pump System:
o Model: MORO PM60A rotary vane vacuum pump
o As the core of the sewage suction truck, this pump offers powerful suction and high efficiency, quickly creating an ultra-high vacuum for rapid suction.
o Hydraulic Drive: Driven by an independent hydraulic system, it operates smoothly and delivers efficient power transmission.
• Hydraulic System:

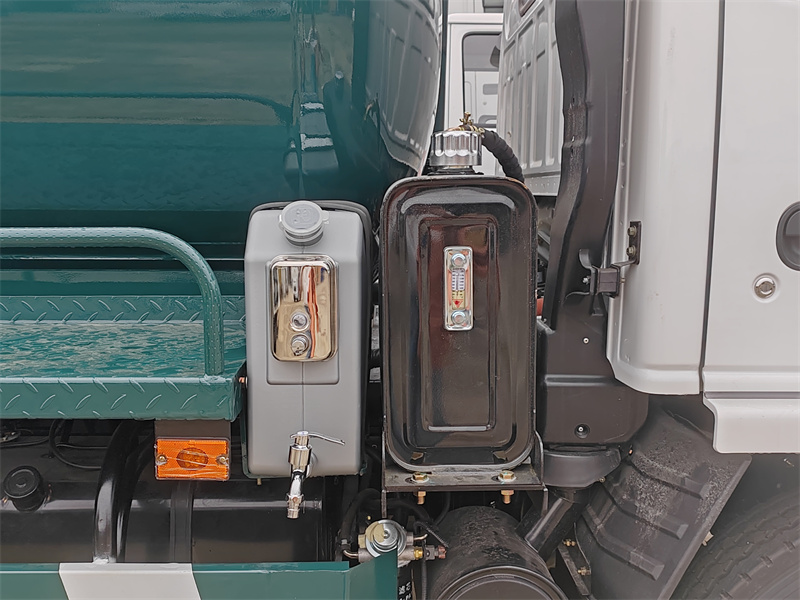

o Equipped with a separate hydraulic oil tank, it provides stable power for the vacuum pump and tank lift.
• Safety and Filtration Devices:

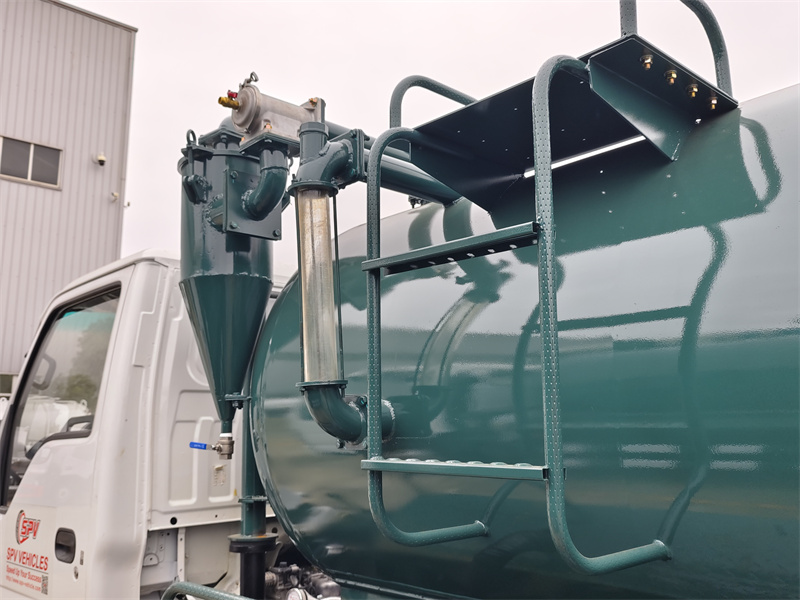

o Secondary filter: Effectively prevents dirt and liquids from being drawn into the vacuum pump, protecting core components and extending the pump's service life.

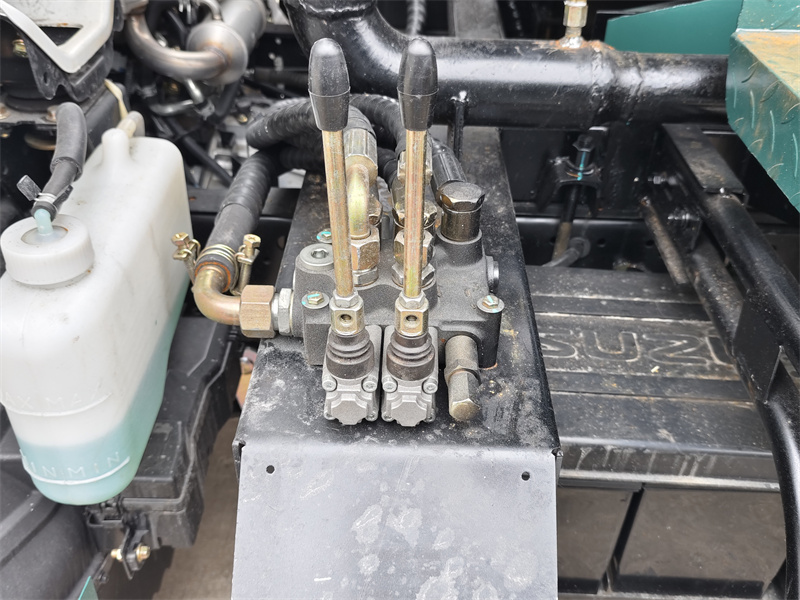

• Operation and Control System:

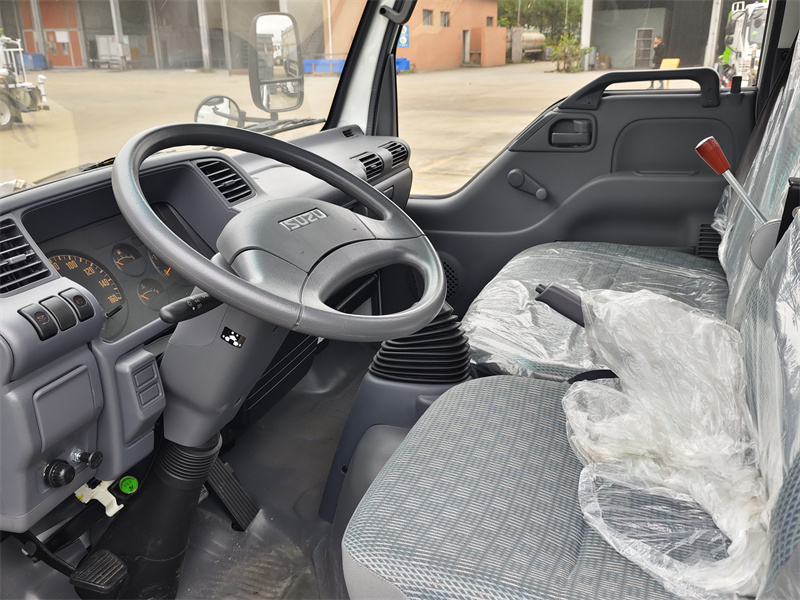

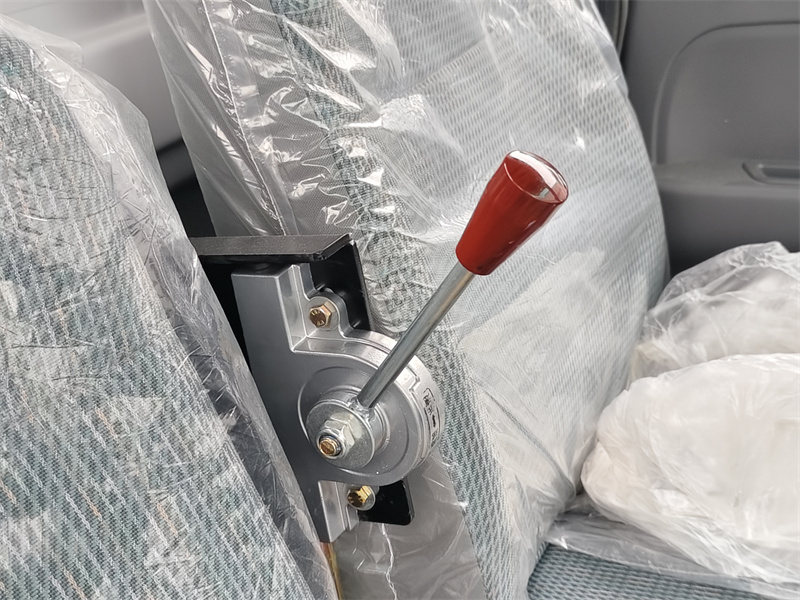

o Operation: Manual hydraulic joystick on the driver's side
o The operator can control the start and stop of the vacuum pump and the raising and lowering of the tank using joysticks from the cab side, greatly improving operational safety and convenience.
• Observation and Drainage System:

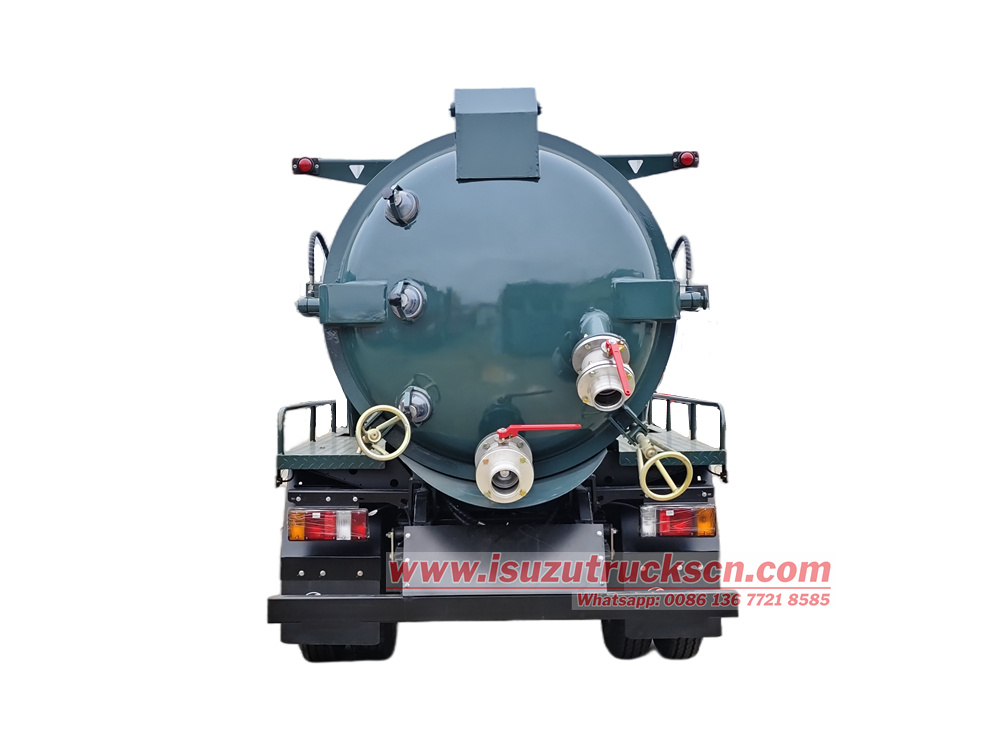

o Sewage Pipe/Liquid Sight Glass: A transparent pipe on the left side and multiple spherical windows on the tailgate provide a visual inspection of the liquid level in the tank to prevent overloading.
o Ladder: Convenient access to the tank roof for inspection or cleaning.

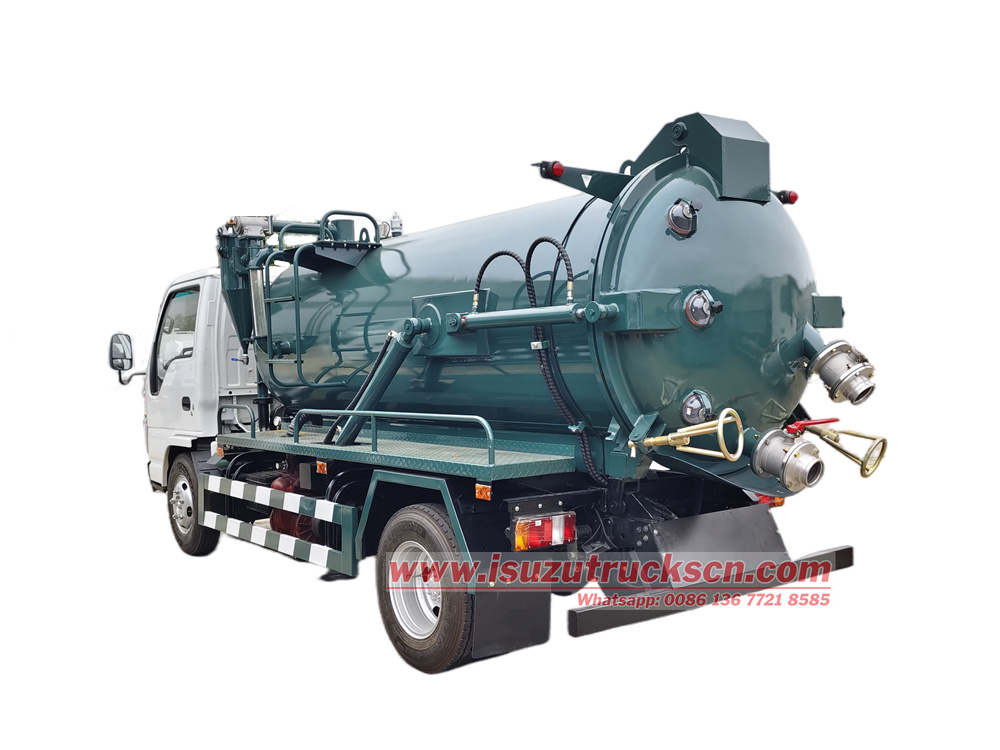

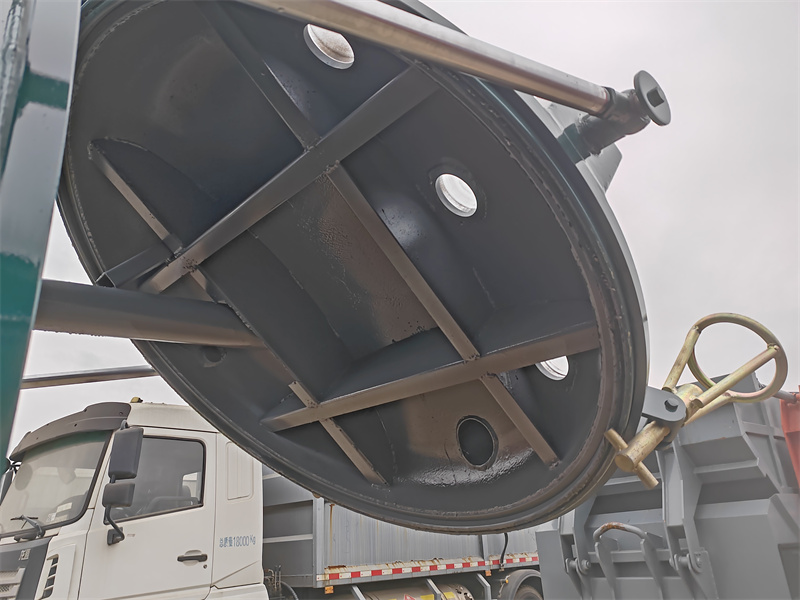

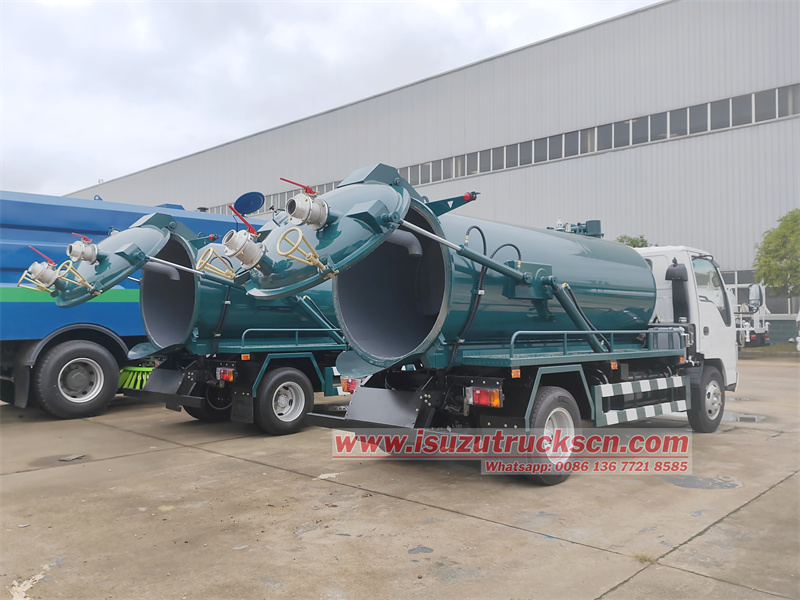

o Tailgate Drain Valve:
Hydraulically controlled, opening and closing with a manual lever on the driver's side.
Excellent sealing performance allows for self-flowing discharge or assisted discharge using tank pressure for complete drainage.
» Ⅳ. Working Principle:
After starting the engine, the MORO PM60A vacuum pump operates, extracting air from the tank, creating a negative pressure (up to -0.092 MPa). External atmospheric pressure then forces waste (such as septic tank slurry) into the tank through the suction pipe. A secondary filter purifies the exhaust gas, preventing impurities from damaging the pump. During transport, the tailgate and suction valve are closed to seal the tank and prevent leakage. During discharge, the tailgate is opened using the driver's side manual hydraulic lever, and waste is emptied using gravity or reverse pressure from the vacuum pump. A sight glass displays the liquid level in real time, ensuring safe operation. This design integrates vacuum extraction, hydraulic control, and a corrosion-resistant tank, making it highly efficient and reliable for use in urban pipe networks, septic tanks, and other applications.
» Ⅳ. Application scenarios:
1. Urban Sanitation Management: Algeria's cities are rapidly expanding. The Isuzu 100P Sewage Suction Truck efficiently handles waste from septic tanks and sewers. Its 3-cubic-meter tank and vacuum pump combination meet the needs of small and medium-sized areas, and its maneuverability accommodates narrow streets.
2. Industrial Wastewater Treatment: Designed for wastewater extraction in the petroleum, chemical, and other industries, its corrosion-resistant carbon steel tank and secondary filtration system handle corrosive liquids and minimize equipment wear.
3. Infrastructure Maintenance: During road construction and pipeline laying, the truck quickly removes mud and construction waste. Its hydraulically-operated tank facilitates loading and unloading, improving operational efficiency.
