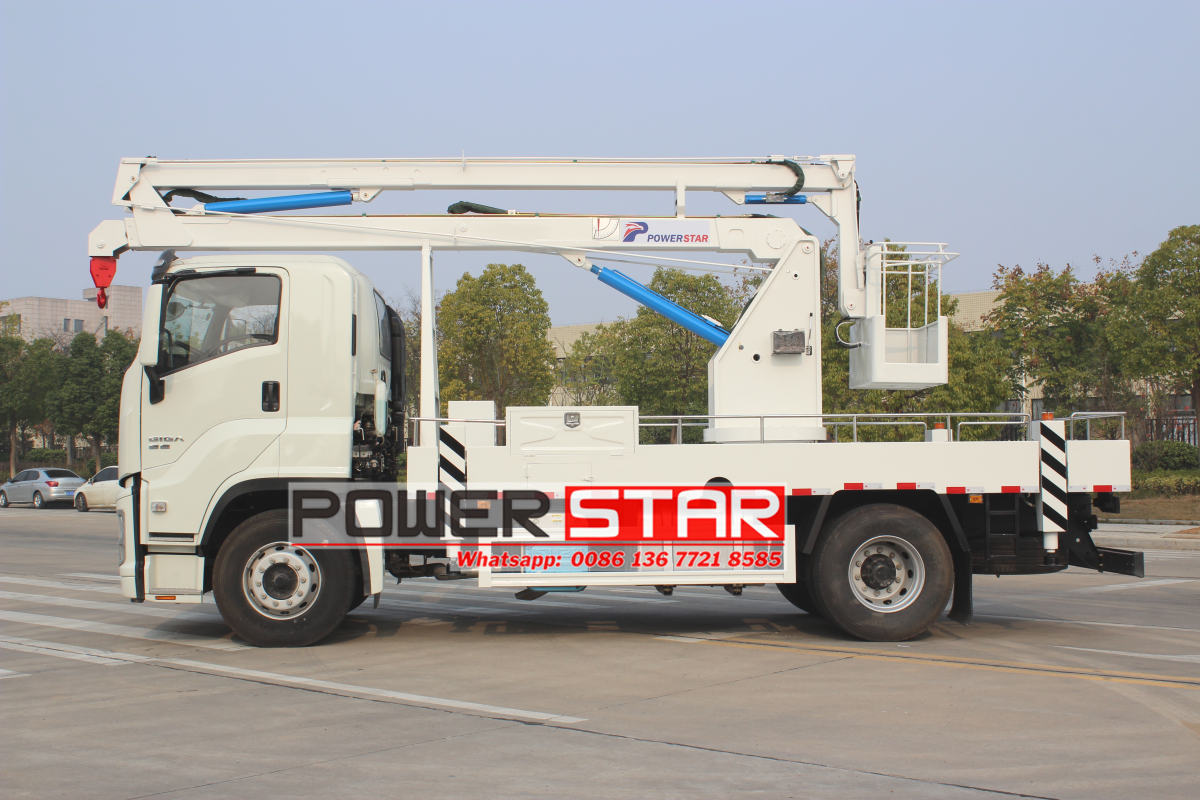

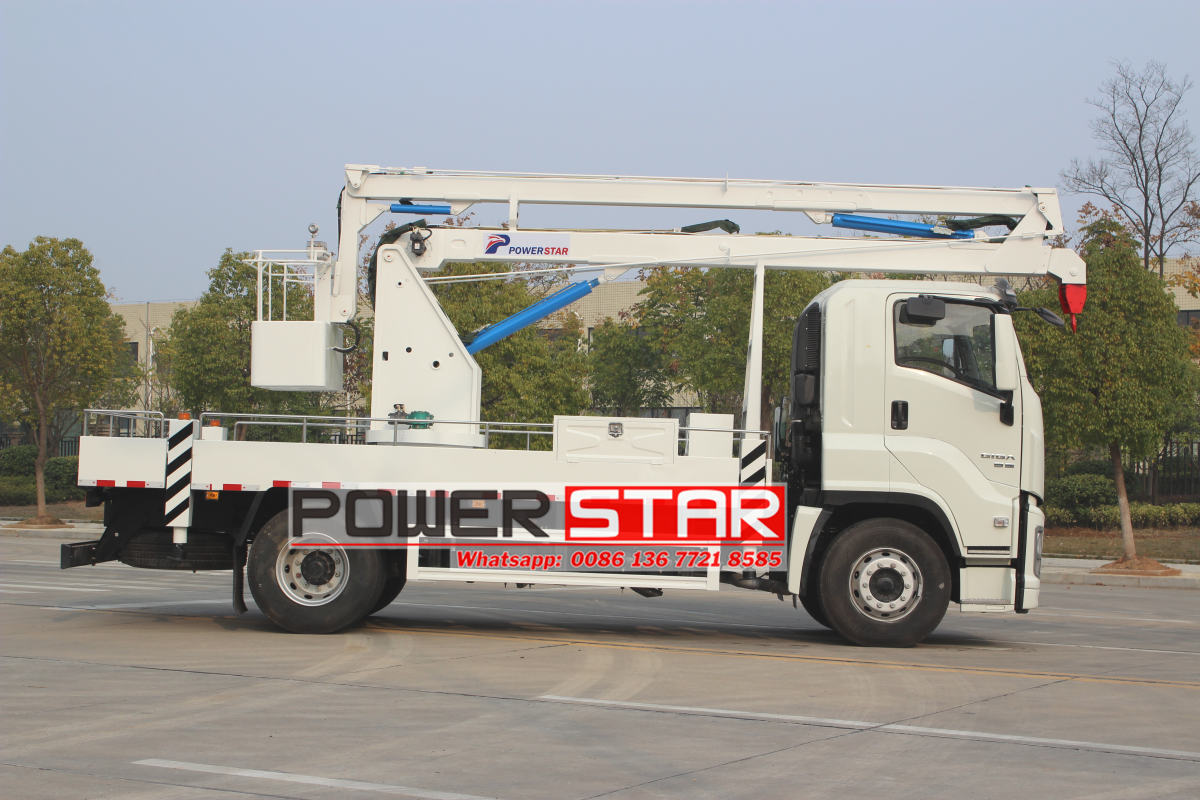

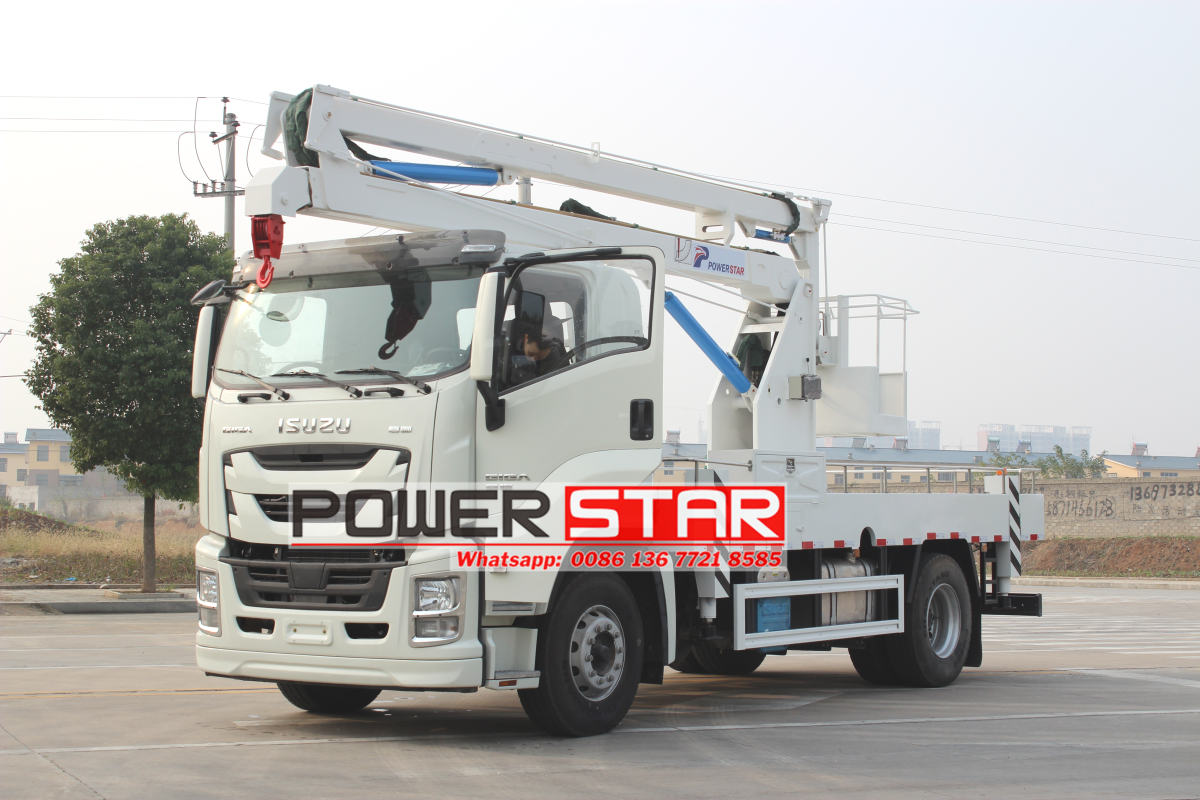

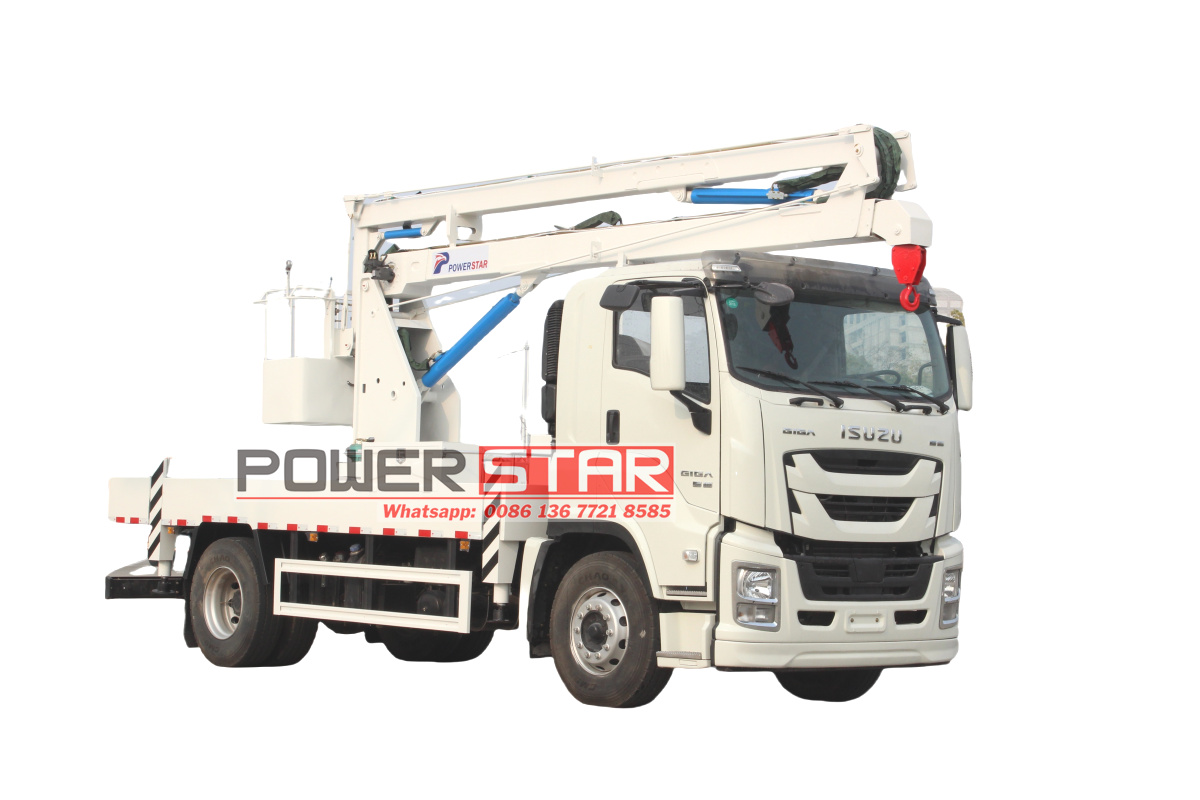

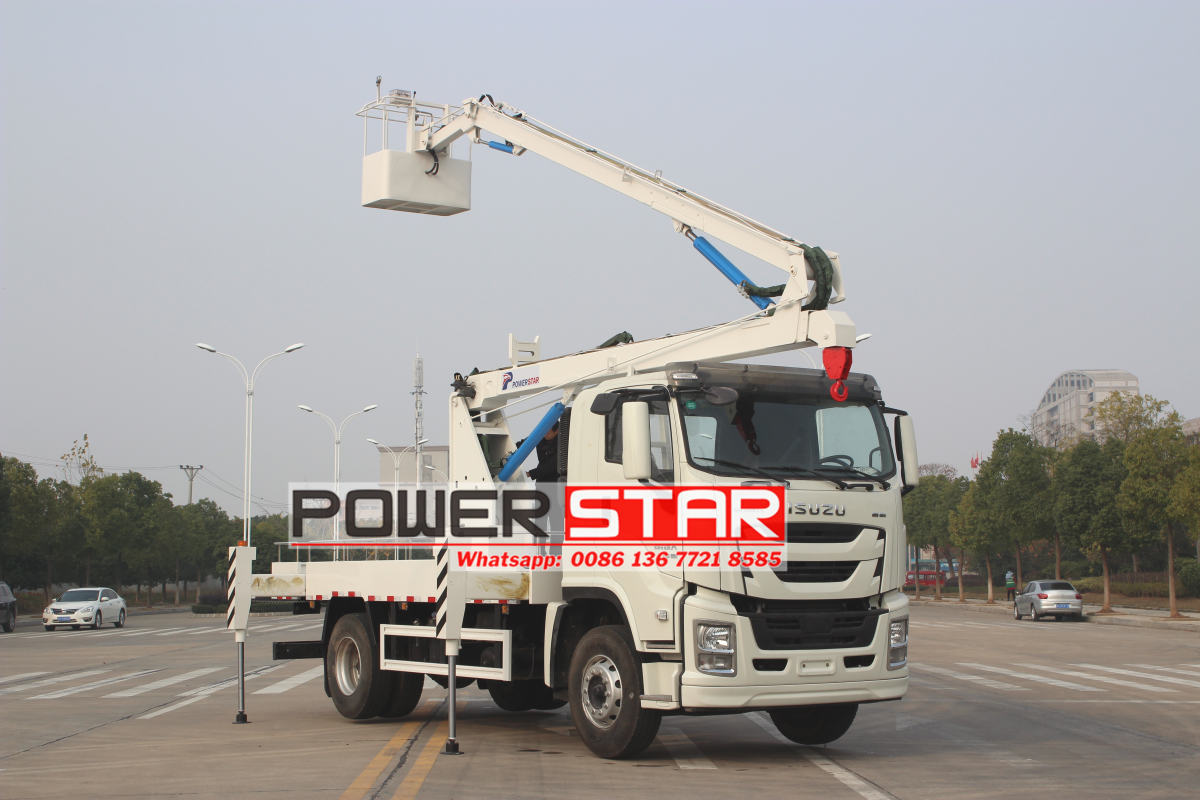

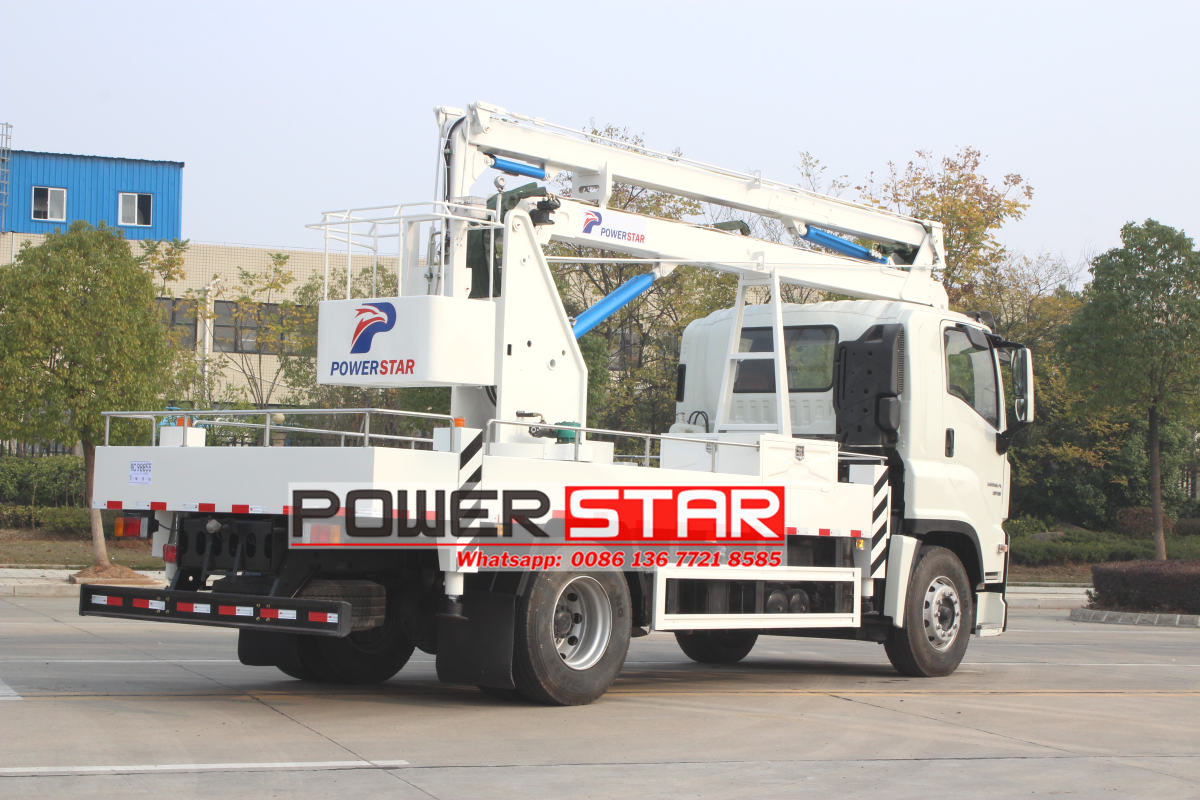

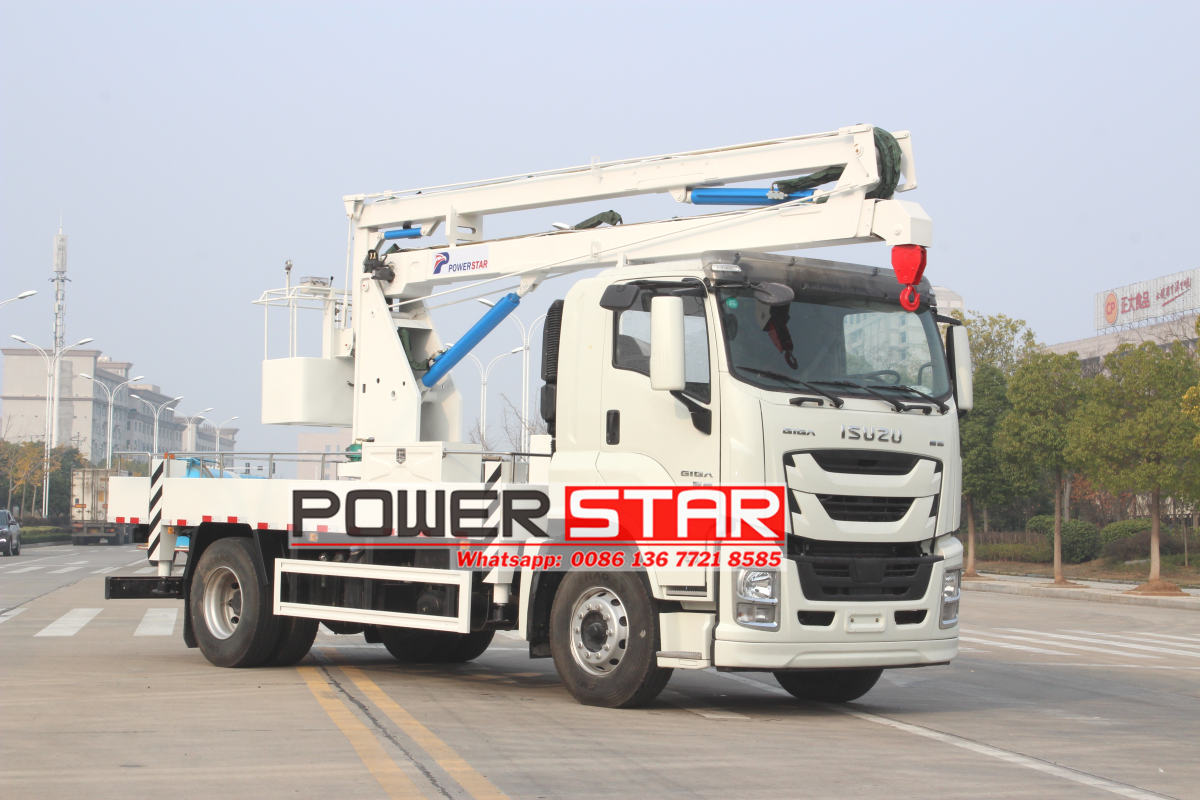

New or used bucket trucks Isuzu, can be also called as heavy bucket truck Isuzu or Aerial bucket vehicle Isuzu, is simply a utility truck fitted with a hydraulic pole (boom) that has a man-carrying bucket at its end. The bucket helps keeps the worker safe as the boom lifts him up to where he can comfortably use his tools and safely perform his job. Having long been used to perform traditional aerial tasks in sectors such as telecommunication, utility, signage, forestry, and construction, bucket trucks are becoming even more commonplace.
Manufacturer:
Powerstar TrucksWork capacity:
16m to 25mDimension:
8440 x 2350 x 3400mmCabin type:

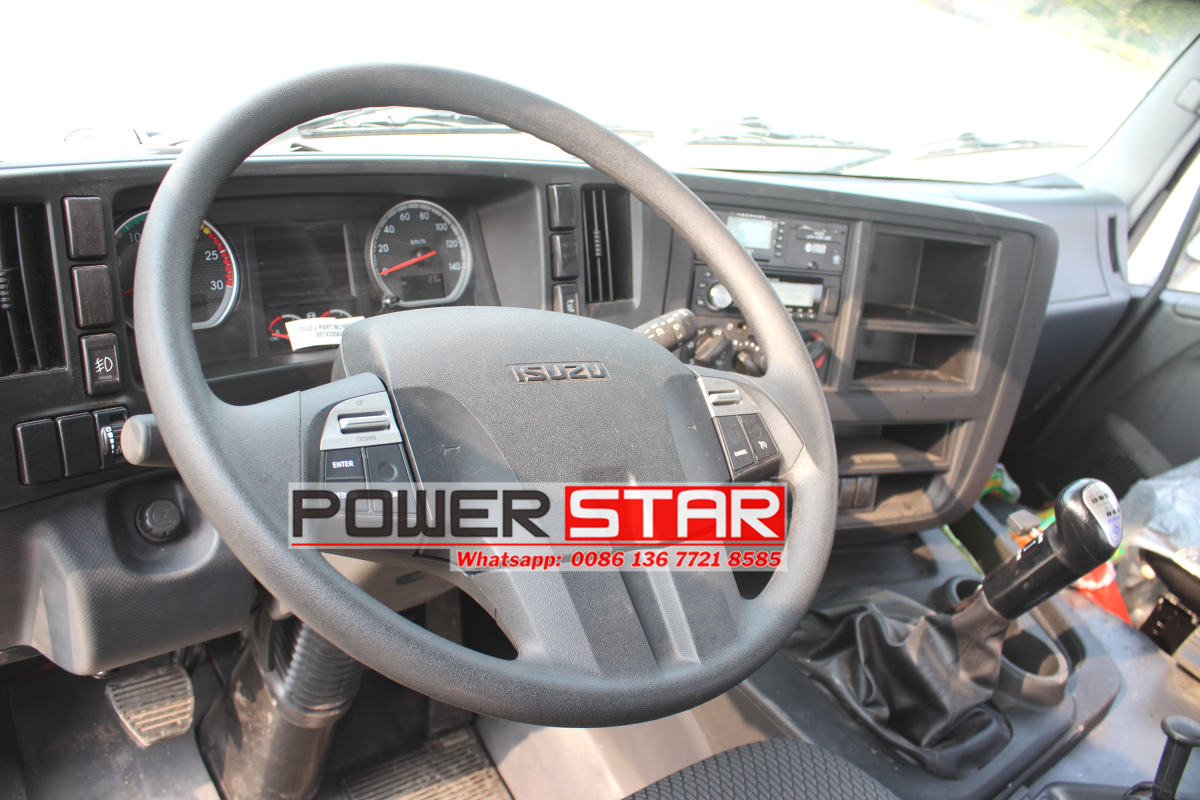

Isuzu GIGA VC61 cabin,one and half rowWheelbase:
4500mmEngine power:
240HPEngine type:
ISUZU 6HK1Axle drive:
4x2Gear box:
FAST 8-shiftRemarks:
Insuated and working height can be optional2025 New Isuzu Giga bucket truck, also named Isuzu Bucket-type aerial work vehicles or Aerial bucket truck Isuzu are based on general engineering vehicles and achieve high-altitude working capabilities by adding hydraulic telescopic arms and end-manged work buckets. Its core safety design includes a mechanical self-balancing system and a hydraulic locking device to ensure that operators can still operate tools stably at an altitude of 20 meters.
● China best Isuzu Aerial Bucket truck factory
● Working height 10m, 12m, 16m,20m,30m, 45m Available
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
Funtions:
---- Japan chassis ensures perfect driving performance;
---- Japan engine, super powerful; reliable performance, no overhaul within 100,000 km;

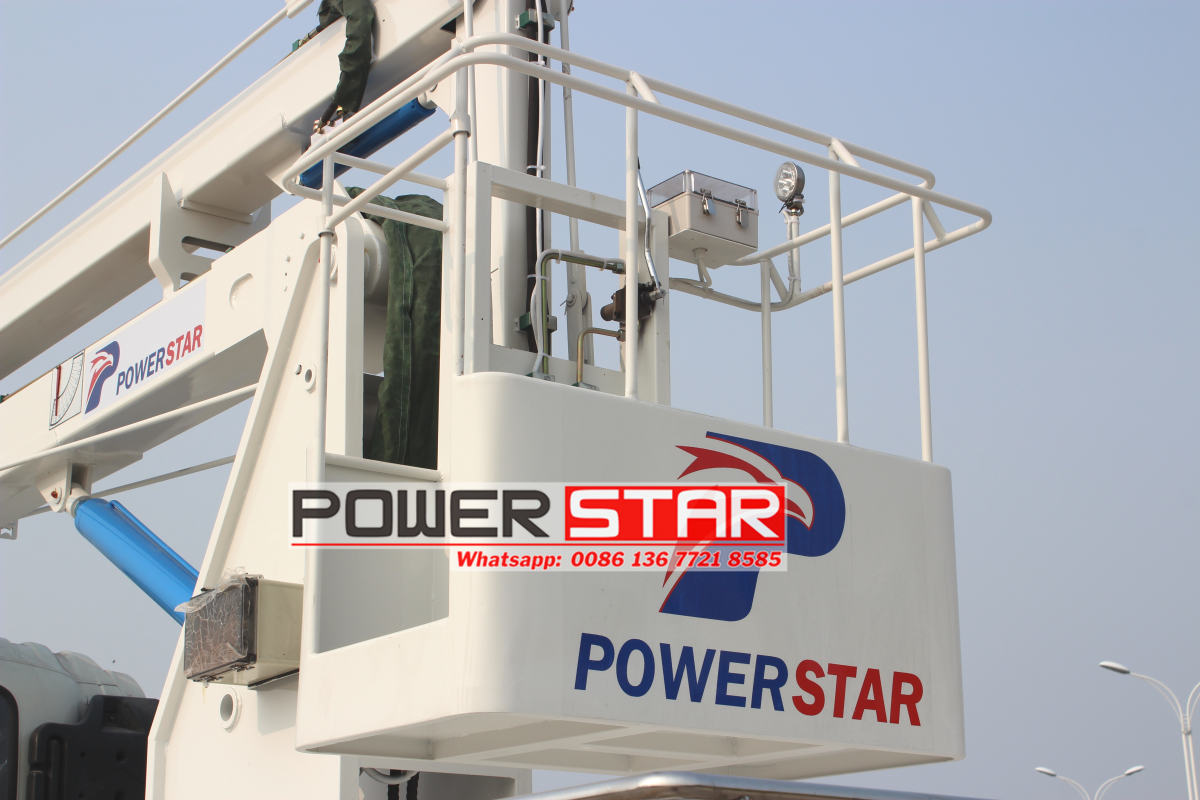

---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.
Big Bucket Truck Isuzu Giga: "Iron Dancer" in the Sky of the City
1. The Secret of the Giant Steel Arm
This "Aerial Ballet" weapon consists of three sets of exquisite modules:
01, Folding joints and mechanical skeletons

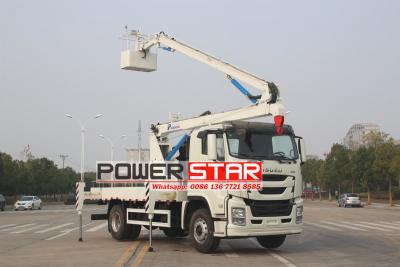

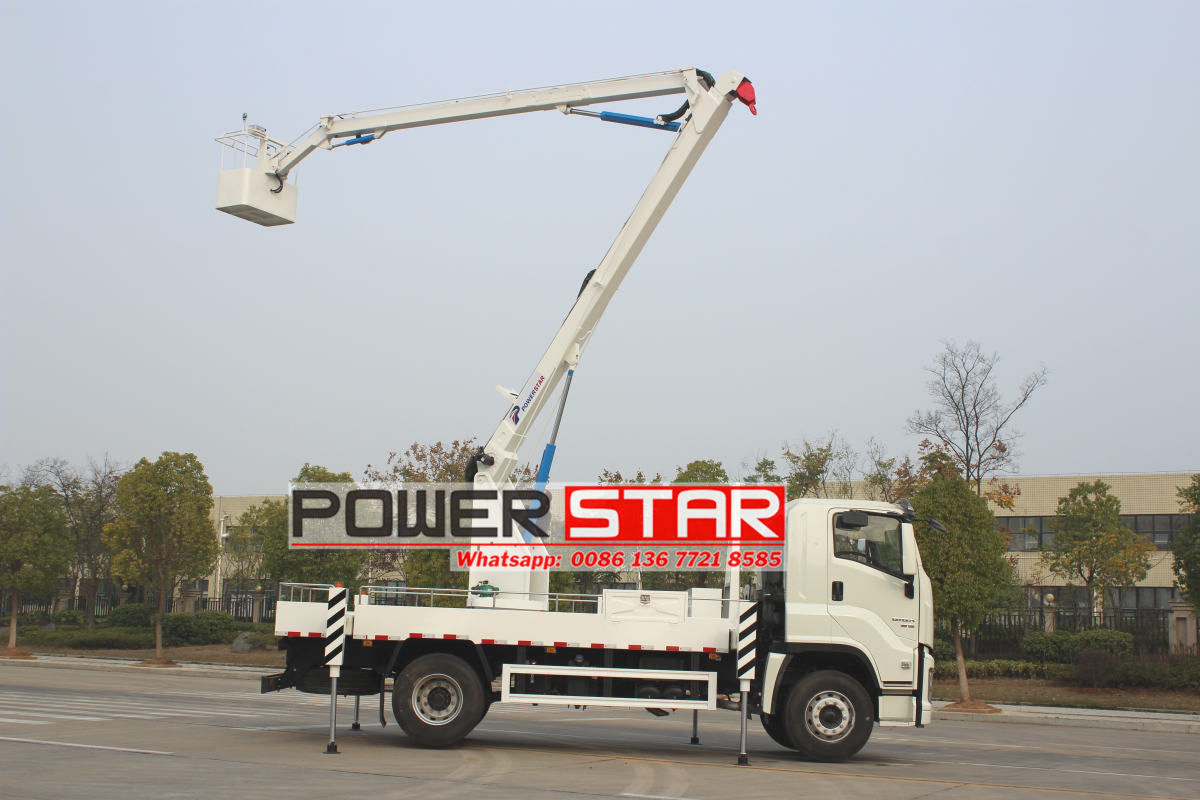

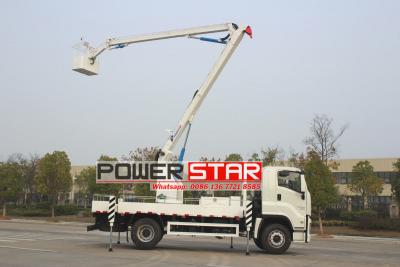

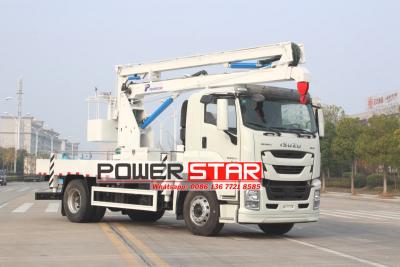

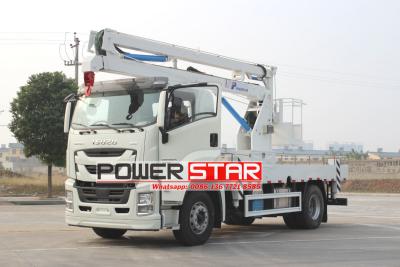

Like the arm of a Transformer, the three-section folding arm (14-22m model) is flexibly extended through hydraulic joints, drawing an elegant arc in the forest of reinforced concrete. The 360° rotation capability allows the work bucket to sweep through every corner like a searchlight, and the H-shaped legs are like the steel claws of a spider firmly adhering to the ground.
02, The lifeline of flowing energy

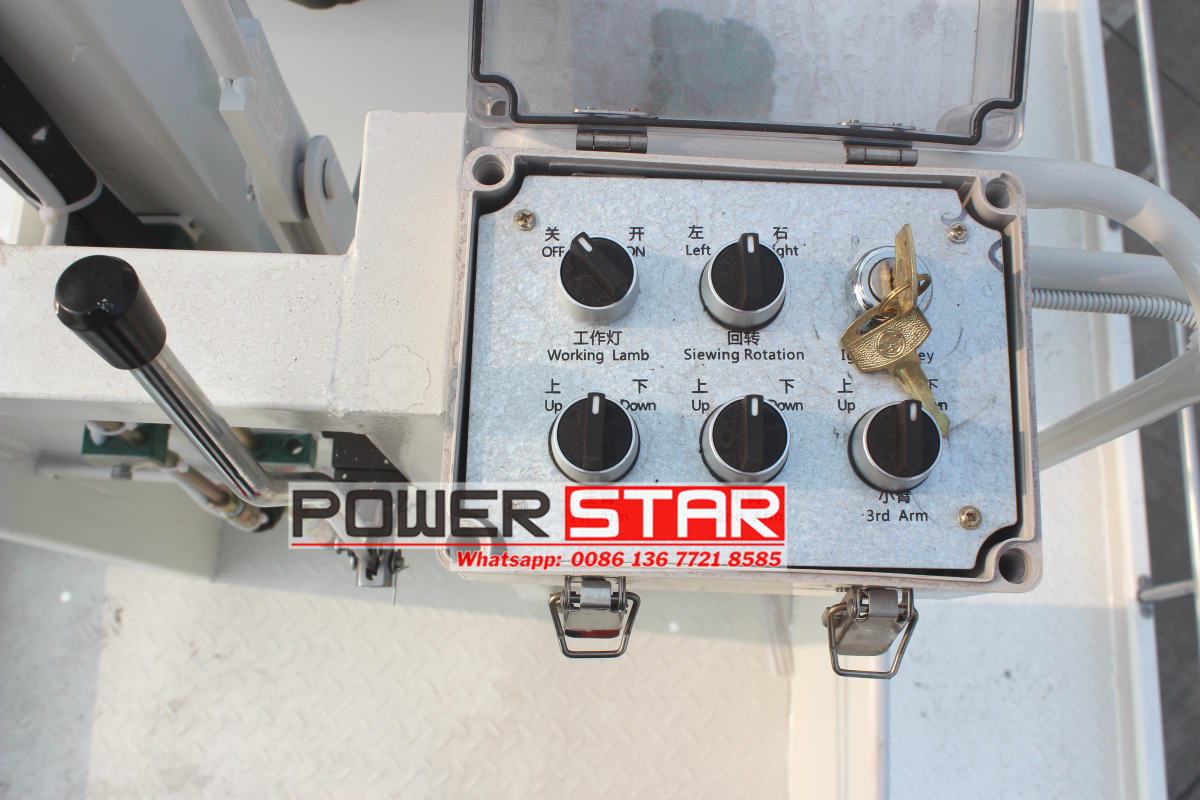

The hydraulic system runs through the body like surging blood, and the two-way balance valve and multi-way valve are like a sophisticated nervous system, making the operation at a height of 15 meters smoother than the elevator button. The upper and lower double operating console design makes the driver feel like he is driving a space capsule, and the dual perspectives of the ground and the sky can be switched freely.
03, Intelligent protective armor
The outrigger interlocking system is like a vigilant guard, locking immediately at the slightest shake; the mechanical self-balancing work bucket is as stable as a tumbler, and can remain level even when working on a slope. When the working lights are on at night, the entire vehicle is like wearing starlight armor, illuminating the night sky of the city
2. Big Bucket Truck Isuzu Giga, the guardian of the city skyline
This "iron spider" is changing the DNA of urban operation and maintenance:

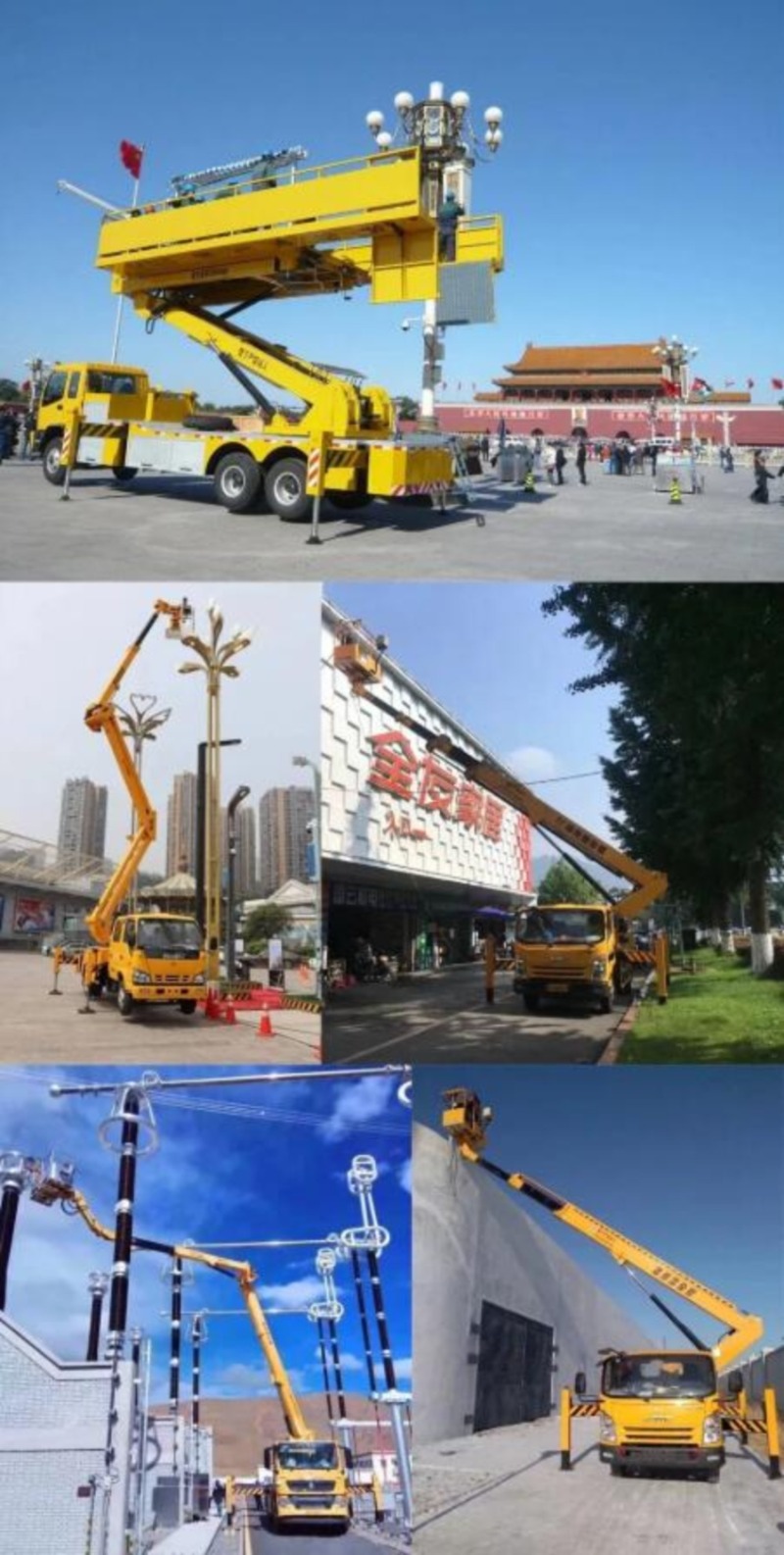

Shuttling between the crowns of sycamore trees, trimming branches and leaves like a giant pair of scissors by a gardener, and gently lifting 300 kg of broken branches with a hook like picking flowers
When repairing street lights in heavy rain, the folding arm is like a white crane spreading its wings to cross the accumulated water, and the engineer welds the circuit in the work bucket like performing precision surgery
On the glass curtain wall of the commercial building, it carries cleaners to draw the "mirror of the sky", and the installation accuracy of advertisements at a height of 20 meters is comparable to embroidery
Special skills are even more amazing: the 65° downward movement of the forearm allows maintenance personnel to explore the bottom of the viaduct like a woodpecker; the uneven terrain adaptive system allows it to walk on flat ground in old alleys
II.SPECIFICATION OF AERIAL WORKING TRUCK
Similar Key Words: Isuzu Aerial working platform (truck mounted), aerial bucket truck with platform, articulated telescopic extension boom, articulated platform, articulated basket platform.
| ISUZU 16 meters High Altitude Aerial Working Platform Insulated Bucket Trucks | |||
| Product name | aerial platform truck | Chassis model | ISUZU GIGA |
| Lift height customization | 16 to 20 meter | Total mass (kg) | 8410 |
| Engine horsepower | 240HP | Rated load mass (Kg) | 200 |
| Engine name | ISUZU 6HK1 | Emission Standards | Euro 5 |
| Dimensions (MM) | 8440x2350x3400 | Fuel type | Diesel |
| Number of tires | 6 | Tire specifications | 10.00R20 |
| Wheelbase (MM) | 4500 | Maximum speed (km/h) | 95 |
| Front track | 1910 | Rear track | 1940 |

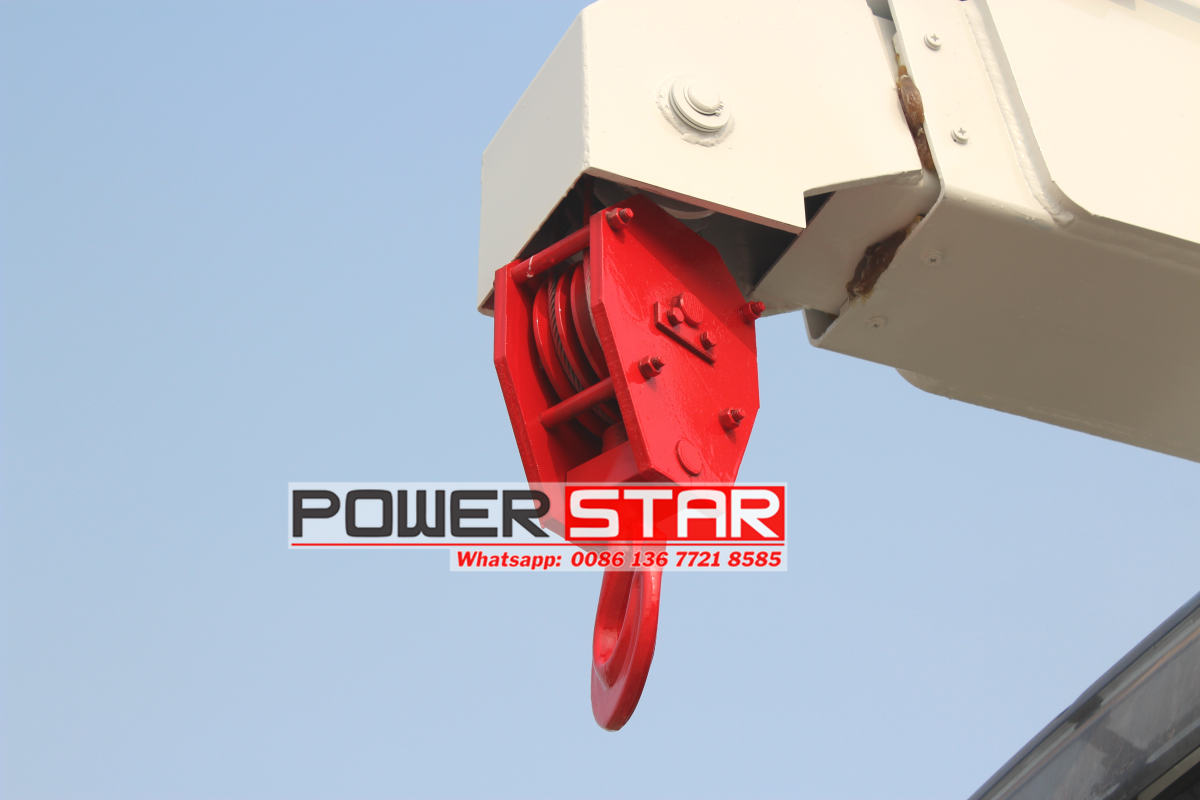

| Performance profile | Imported reversing valve and hydraulic cylinder are used for commutation and balance, and the operation is flexible and convenient. Four H-type hydraulic legs are installed in the vehicle, which can be lifted and lowered at the same time to ensure the stability and safety of the whole vehicle during operation. It can be operated up and down, and the hook is installed. The maximum lifting weight of the hook is 200kg. The full telescopic is the working arm and the 360 degree rotation. Up and down two sets of operating systems, complete a variety of work on the work bucket and turntable, optional 14-32 meters series straight arm aerial work. | ||
| Dedicated configuration | Blue brand telescopic boom aerial work car function introduction: | ||
| 1. The front V rear H-shaped legs have good stability and can be operated simultaneously or separately to adapt to various working conditions. | |||
| 2, the main supporting hydraulic and electrical components: load-sensitive proportional valves, balancing valves, controllers, etc. are produced by well-known domestic manufacturers. | |||
| 3. The chassis is equipped with Jiangling Guosan chassis, equipped with air conditioning, and the steering wheel is hydraulically assisted. | |||
| 4. Configure the vehicle level to ensure the level of the vehicle and ensure safety. | |||
| 5, computer control, automatic limiting, dangerous work alarm, excellent safety performance. Get off the vehicle and display the real-time operating conditions. | |||
| 6. Hexagonal working arm, synchronous telescopic, compact structure, high working efficiency and large working range. The telescopic cylinder is external and the chain telescopic mechanism makes it easier to observe the fault point and facilitate maintenance. | |||
| 7. The whole vehicle electrical appliance adopts CAN bus control system, and the line is neat and simple. There are two operations in the whole vehicle: platform operation, ground operation, safe and reliable, and high work efficiency. | |||
| 8. The slewing mechanism adopts adjustable type for easy adjustment. | |||
| 9. Optional 14, 16 , 18, 20, 22,24,26,28,30,32 meters series of aerial work. | |||
3. Future Evolution Map Big Bucket Truck Isuzu Giga
This "industrial pearl" is pregnant with subversive transformation:
01, Smart brain implant
The new model of 2025 is equipped with AR operation interface, and maintenance personnel can see through the internal structure of the building by wearing glasses. The drone coordination system in the test turns the aerial vehicle into a "mothership" to command the swarm of drones to inspect high-voltage lines
02, Green gene upgrade
Silent electric models are replacing diesel models, and late-night construction on the Bund in Shanghai no longer disturbs sleep. Solar charging panels and energy recovery systems reduce the burden on the earth with every lift.
03, Transformer Mode
The modular design allows the vehicle to switch modes in seconds: in the early morning, it is a garden vehicle for trimming sycamore trees; at noon, it turns into an advertising installation platform; at night, it can load searchlights and become an emergency rescue vehicle.
04, Bio-mimetic breakthrough
The latest concept car draws on the joint structure of mantis shrimp, and the folding arm extension speed is increased by 40%; the bionic gecko suction cup legs allow the vehicle to climb the glass curtain wall for vertical operation.
This dancing steel giant is transforming high-altitude operations from dangerous labor to urban performances full of technological aesthetics at an efficiency innovation rate of 15% per year. When the sun rises, its metal body reflects the light of the smart city and continues to compose the aerial poems of industrial civilization.
4 Technical iteration direction of Big Bucket Truck Isuzu Giga
Intelligent control: The test model has integrated AR-assisted operating system, which can display the load limit of the equipment and obstacle warning in real time
Module compatibility: Multifunctional accessories such as grab buckets and hooks can be quickly replaced to expand complex functions such as emergency rescue and material handling
Human-machine interaction: The new work bucket is equipped with a touch screen and IoT interface to support remote data transmission and equipment status monitoring
Isuzu Chassis 14m Truck Mounted Aerial Working Platform Isuzu Brand 14M Telescopic Boom Aerial Working Platform Technical Parameters (PT5061JGK10S GKS-14QX) Working Condition 1, Altitude: 0-1000m 2, Temperature: -25° C--+45° C, environmental relative humidity ≤ 90% 3, Allowed working condition: Solid, stable land, the vehicle should be horizontal 4, Wind force: ≤ 6 degree (wind speed ≤ 12.5m/s ) Working Range PT5061JGK Telescopic Boom Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on. The structure type is telescopic boom and the lifting boom is flexible, convenience and performance with the negative point, more suitable for narrow site conditions or other special operations. Bulletin No. KFM5061JGK10S Type GKS-14QX External dimensions ( mm ) 7050×2020×3250 Structure type Three-section telescopic boom Working Cage Internal size ( mm ) 1200×600×1100 Rated loading ( kg ) 200 ( or 2 persons ) Max. Working height ( mm ) 14000 Max. Height from ground ( mm ) 12300 Max. Working radius ( mm ) 9300 Working radius when doing the highest height ( mm ) 1320 Working Boom Lifting angle of main boom ( º ) -24_78° Out rate speed ( mm/sec ) 8500/50 Ret rate speed ( mm/sec ) 8500/50 Boom rack rotation angle ( º ) 360 Boom rack rotation speed ( r/min ) 1.0 Outrigger Vertical span ( mm ) 3050 Horizontal span ( mm ) 3600 Traveling of vertical outrigger ( mm ) 450 Adjustment Single adjustable
