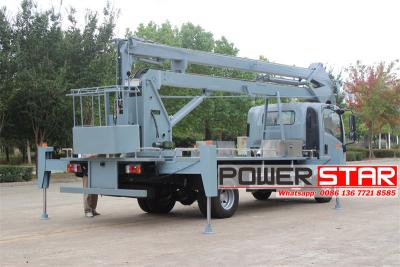

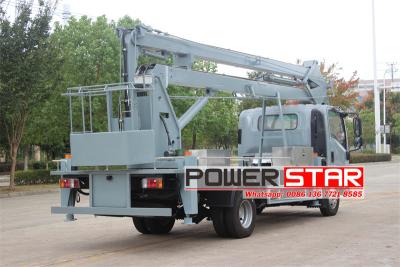

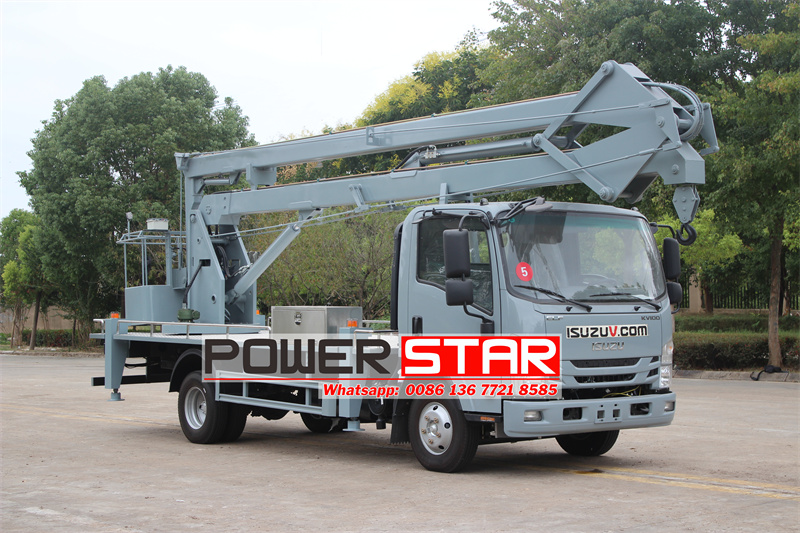

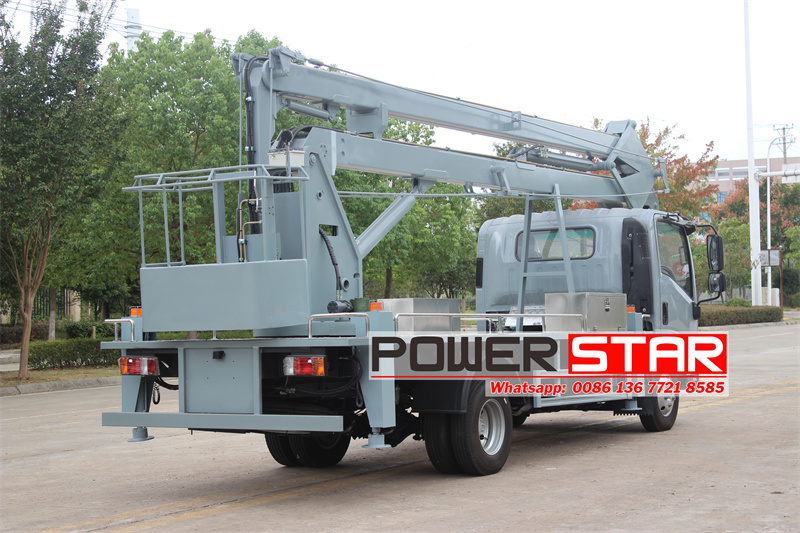

Isuzu 14m aerial platform with manlifter

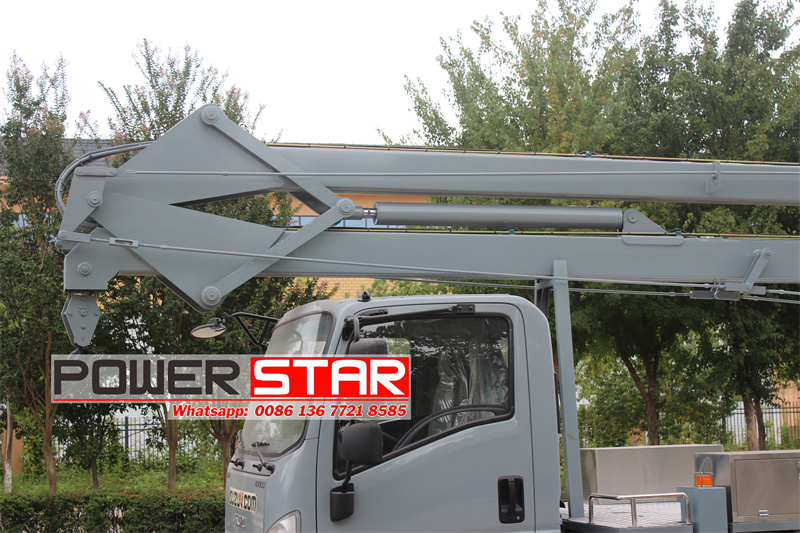

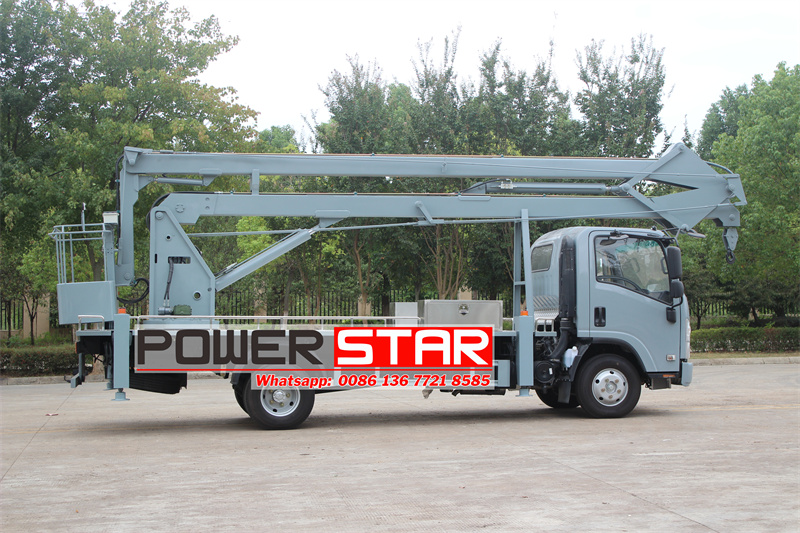

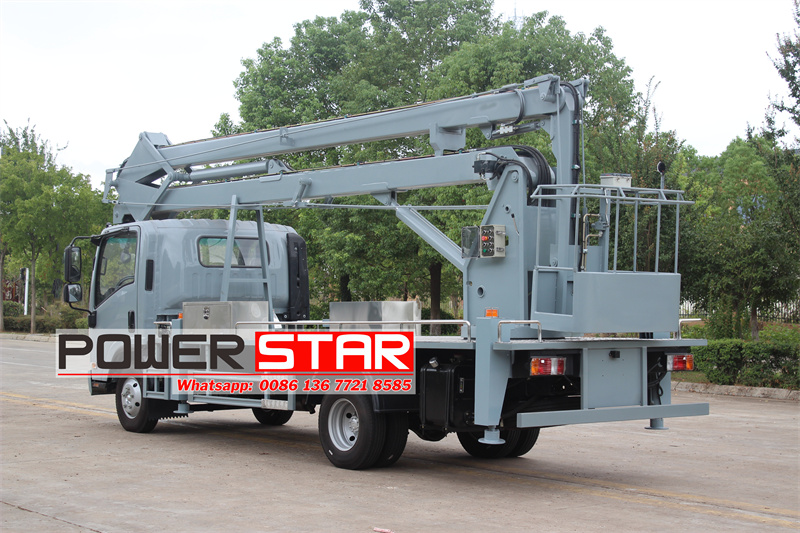

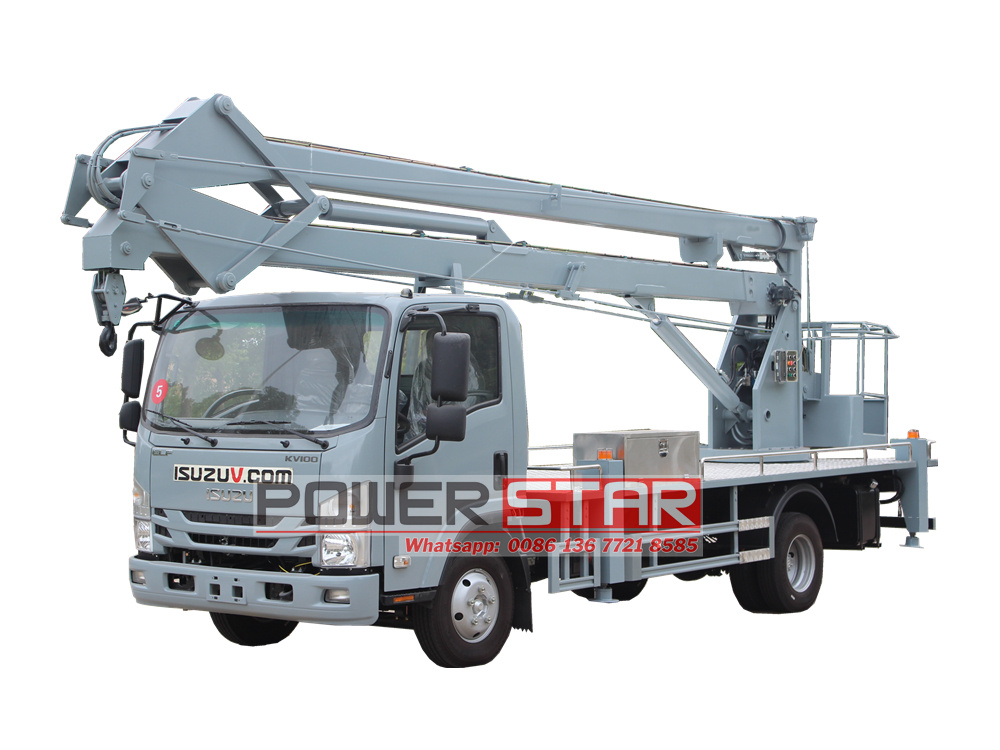

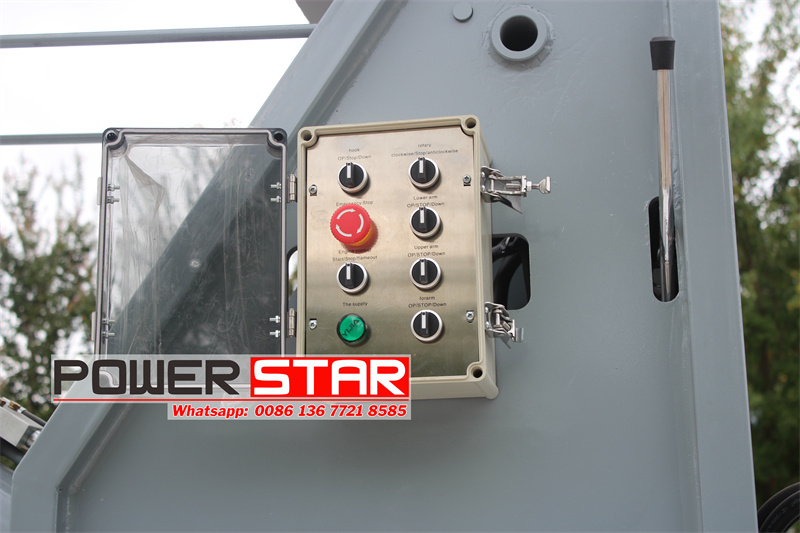

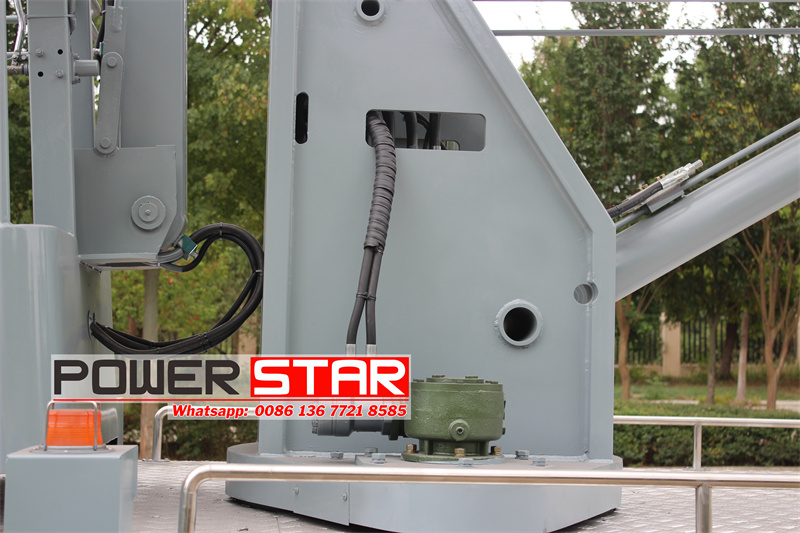

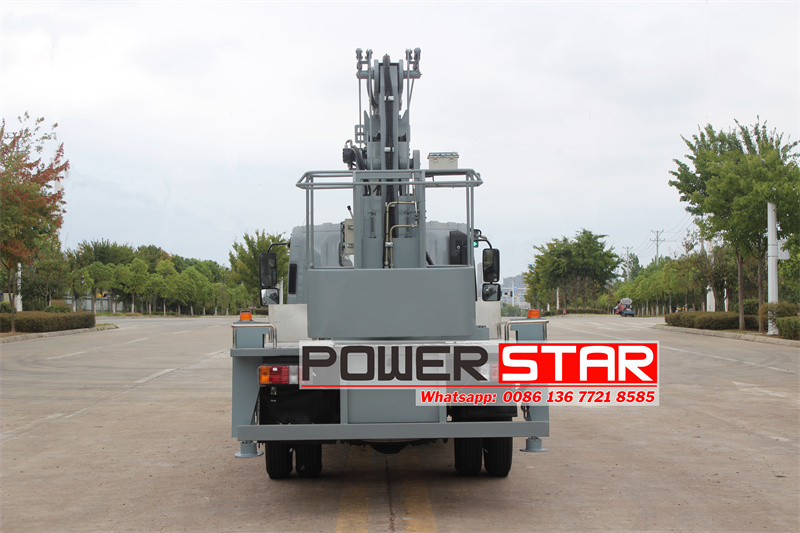

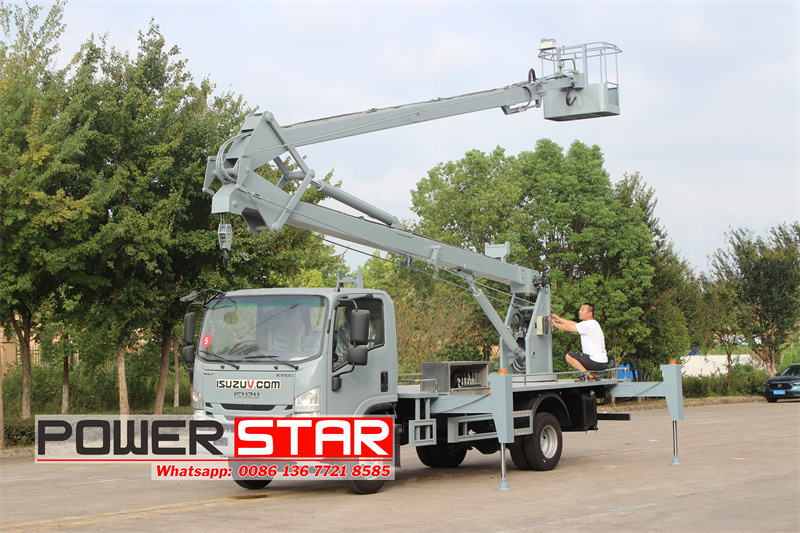

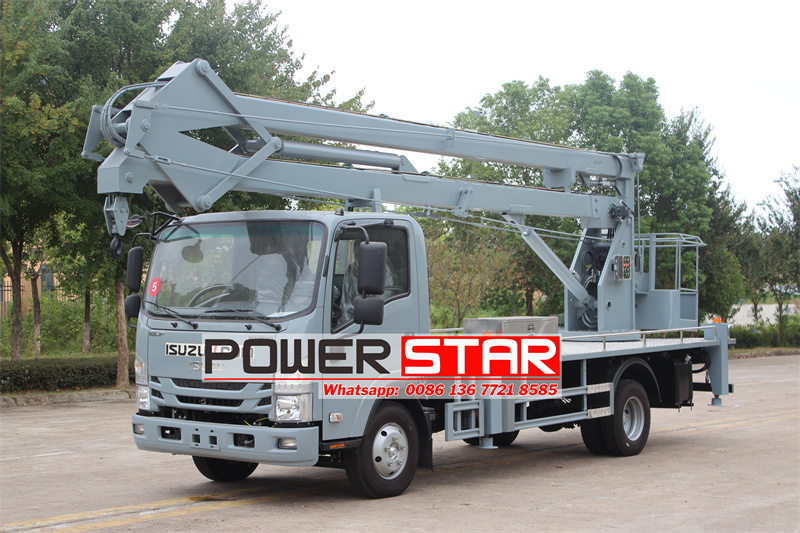

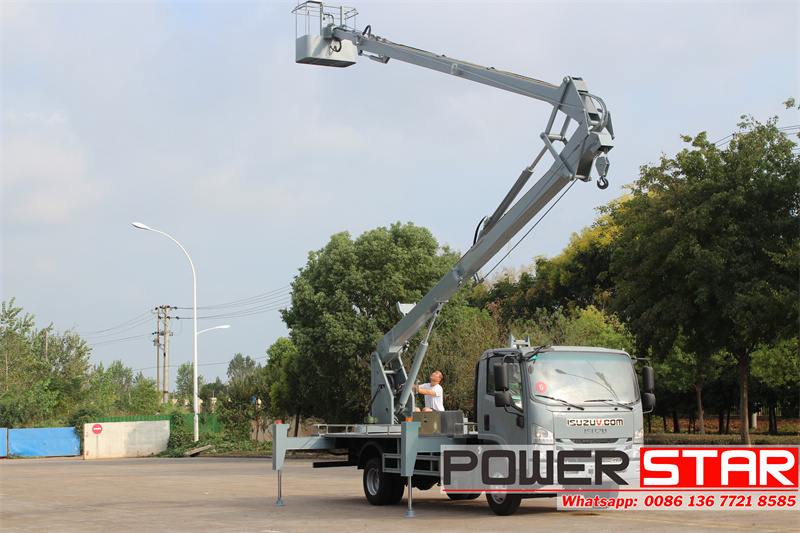

Isuzu KV100 14m aerial platform truck is used for aerial working.It is modified on the Isuzu KV100 single row cab chassis,3 seats,with A/C,USB, Power steering,the chassis is equipped with a 120hp Isuzu 4KH1CN6HB engine,an Isuzu MLD 6-shift gearbox,the max speed of the vehicle is 105Km/h.The upper body is a 3-section folding boom,with a bucket at the rear of it,which can loading 200kg,the aerial platform truck has 4 outriggers to support the balance and weight.There has a electric control box on the rotating mechanism and a wireless remote control box.
Manufacturer:
Powerstar TrucksWork capacity:
14mDimension:
7280 x 2250 x 3350mmCabin type:
Isuzu KV100 3X-class wide-body cab,3 seatsWheelbase:
3815mmEngine power:
132HPEngine type:
Isuzu 4KH1CN6HBAxle drive:
4x2Gear box:
Isuzu MLD 6-speed,manualRemarks:
200kg loading bucket ,anti-slip floorIsuzu 14m aerial platform with manlifter is an efficient, flexible and safe professional equipment, widely used in construction, municipal administration, electricity, communications and other fields. It is equipped with Isuzu 4KH1CN6HB engine with a maximum power of 132 horsepower and Isuzu MLD 6-speed gearbox, which is powerful and stable in operation. The three-section folding boom design enables its maximum operating height to reach 14 meters, with a large working range, which can easily cross obstacles and adapt to complex working environments. The vehicle is equipped with a full range of safety devices, such as overload protection, emergency stop and level detection, to ensure safe and reliable operation. At the same time, the humanized working platform design provides operators with a comfortable operating experience and reduces fatigue. Whether it is exterior wall construction, street light maintenance, power maintenance, or fire rescue, filming,the Isuzu KV100 14m aerial platform truck can do it, becoming an ideal choice in the field of aerial work.
● China best Isuzu aerial platform truck factory
● More than 500 workers, large and advanced production
● We have strong professional design team
● Promptly delivery. any order is welcome
● 24 months long guarantee time assurance
|
Isuzu KV100 14m aerial working truck |
|||||
|
Vehicle Description |
|||||
|
Vehicle model |
Platform Truck |
Overall dimensions |
7280*2250*3350mm |
||
|
GVW |
8280kg |
Operational height |
14m |
||
|
Curb weight |
5580kg |
Max. Speed |
105 km/h |
||
|
Chassis Description |
|||||
|
Chassis brand |
ISUZU |
||||
|
Cab |
Isuzu KV100 single row cab,3 seats, with A/C,USB |
||||
|
Wheel base |
3815mm |
||||
|
Number of axles |
2 |
||||
|
Axle |
Front axle |
3000kg |
|||
|
Rear axle |
5280kg |
||||
|
Front/rear wheel track |
1690/1655mm |
||||
|
Front/rear overhang |
1120/2345mm |
||||
|
Traction system |
4x2 |
||||
|
Operation control system |
Power steering |
||||
|
Braking system |
Oil brake |
||||
|
Transmission |
Isuzu MLD 6-speed,manual |
||||
|
Tire specification |
7.50R16LT 14PR |
||||
|
Tire quantity |
6+1 |
||||
|
Engine Descriptions |
|||||
|
Engine manufacture |
ISUZU Engines |
||||
|
Engine model |
4KH1CN6HB |
||||
|
Horse power |
132HP/97kw |
||||
|
Type |
Water-cooled four-stroke, 4 cylinder inline, supercharged inter-cooling,diesel |
||||
|
Displacement |
2999ml |
||||
|
Emission standard |
Euro 6 |
||||
|
Up-parts Description |
|||||
|
Working condition |
|||||
|
Max. working height |
14m |
||||
|
Working radius at Max. height |
2.2m |
||||
|
Max. working radius |
7.1m |
||||
|

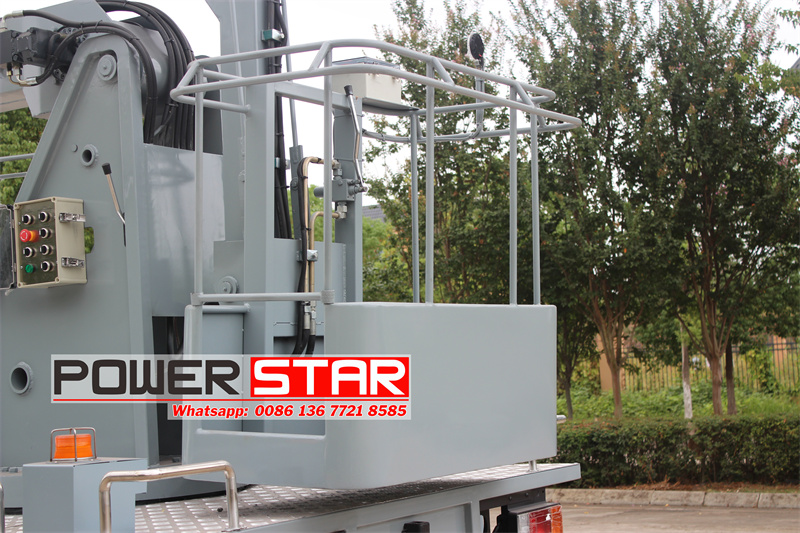

Bucket |
|||||
|
Rated loading |
200kg,anti-slip floor |
||||
|
Size |
1080*610*1100mm |
||||
|
Material |
Stainless steel |
||||
|
Adjusting balance mode |
Hydrostatic Leveling System |
||||
|
Safety belt |
1 set |
||||
|

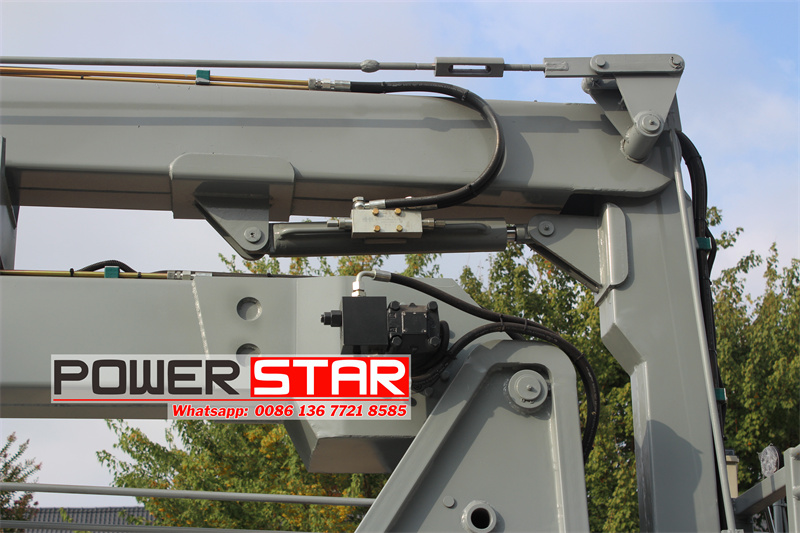

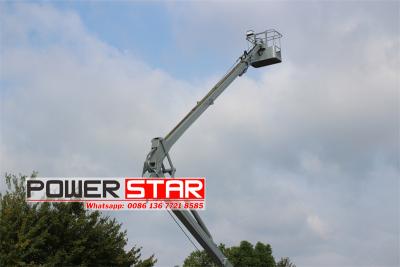

Boom |
|||||
|
Type |
Folding arm type |
||||
|
Section |
3 |
||||
|
Rotation Angle |
360 |
||||
|
Thickness of boom plate |
4mm |
||||
|
Max. rising angle of boom |
0º ~ +80° |
||||
|

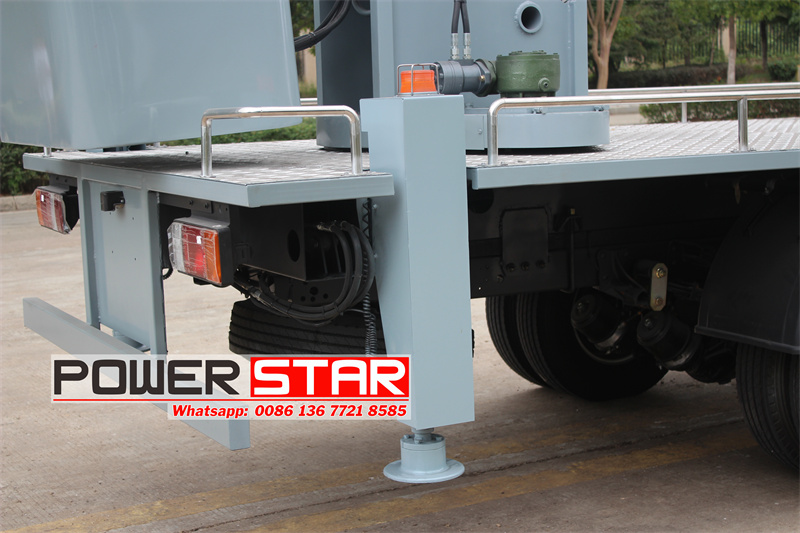

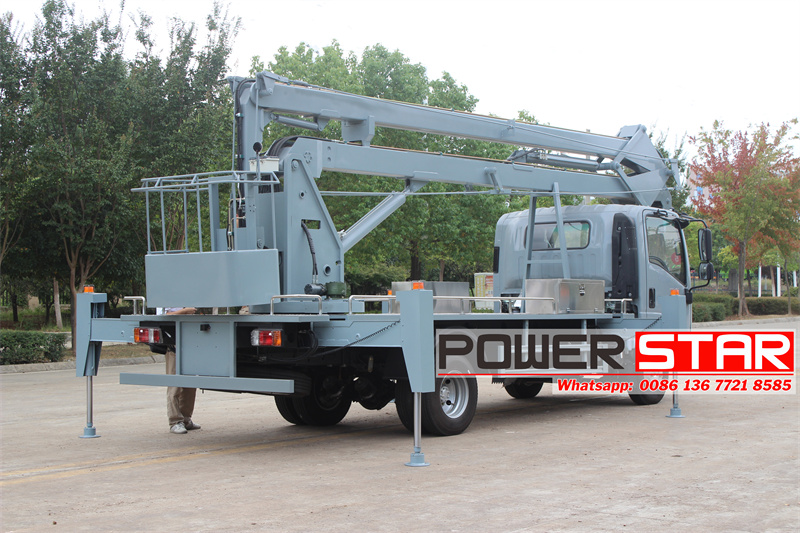

Outrigger |
|||||
|
Type |
Front V type / Rear H type |
||||
|
Number |
4 |
||||
|
Adjustment |
Adjusted separately |
||||
|

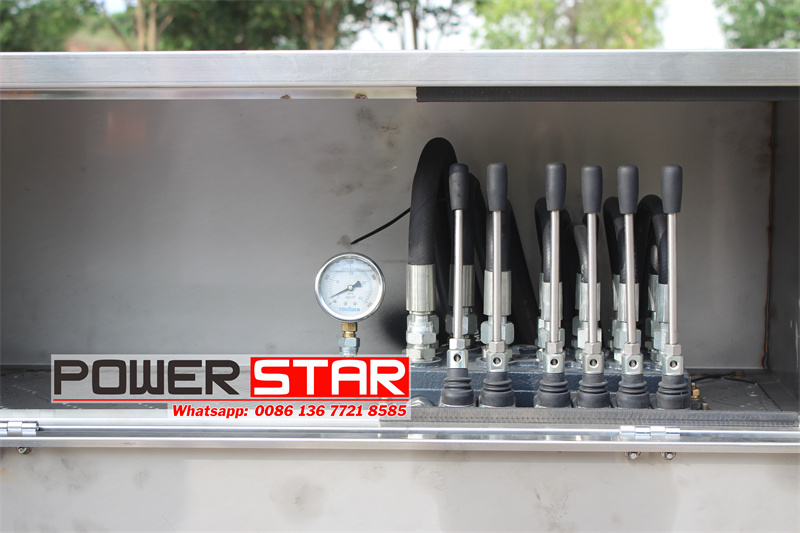

Supporting leg Control mode |
Manual hydraulic operation |
||||
|
Hydraulic lock |
Two-way hydraulic lock for four legs |
||||
|
Strobe light on rear landing legs |
Two yellow lights |
||||
|
Main body structure |
|||||
|
Material |
High quality carbon steel and profiles, with slip-proof decorative steel plates |
||||
|

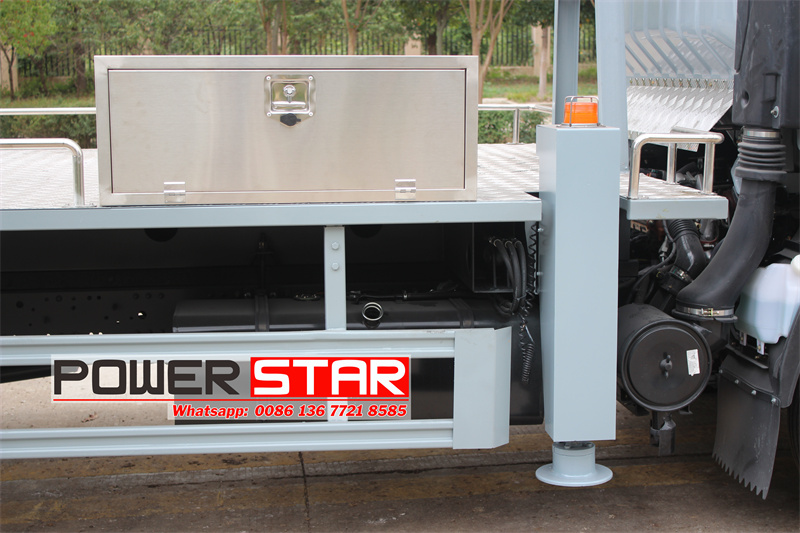

Tool box |
Mould stamping door with stainless steel door lock |
||||
|
Fencing |
Stainless steel tube |
||||
|
Guard railing |
High quality cold bending carbon steel profile; High strength |
||||
|
Wheel casing |
Injection mold molding, beautiful, high strength |
||||
|
Security configuration |
|||||
|
Automatic interlock device for different operating position |
Prevent the risk of misoperation |
||||
|
Hand-operated emergency pump |
When the engine and the main pump failure, through the emergency system to send the worker back to the ground and the vehicle back to the running state |
||||
|
Emergency stop device for working platform |
Used for emergency stop operation and restricted boom operation |
||||
|
Automatically limit work range |
When the working range reaches the specified value, the dangerous direction is automatically restricted. |
||||
|
Leakage protection device |
Equipped with leakage protector to ensure the safety of power supply and power tools |
||||
The Isuzu KV100 14M folding boom aerial work vehicle is a special vehicle that combines the reliable technology of Isuzu Motors with aerial work capabilities. It is designed to meet a variety of aerial work needs and has excellent stability, flexibility and efficiency.
Chassis configuration
● Isuzu KV100 Chassis
● 4KH1CN6HB Engine
● 2.999L Turbo Diesel | 132HP | 280Nm Torque
● Euro 6 Emission Compliant
● Isuzu 6-speed Manual Transmission
● Power steering
● Oil Brake System with ABS
● Wheelbase 3,815mm

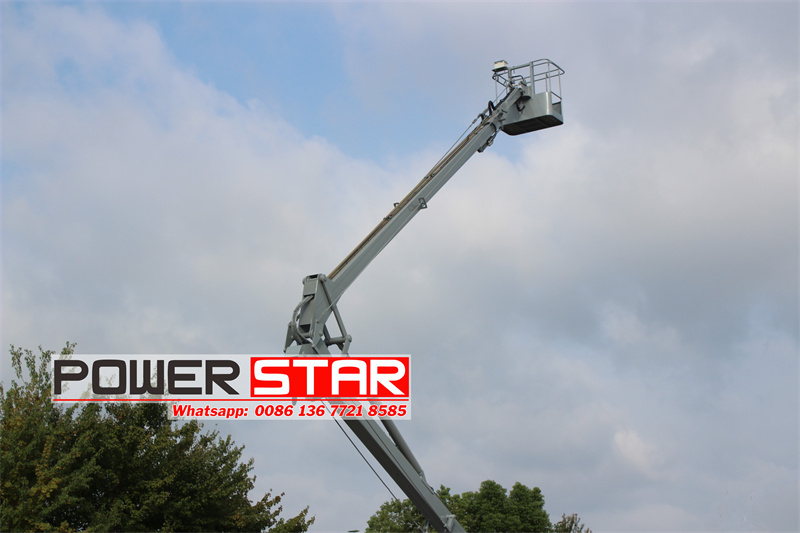

Safe and Reliable Boom Lift System
● PT14 Knuckle Boom System
● 3-Section Folding Arm,high-strength steel
● 360° continuous rotation
Oversized Platform
● 1080x610x1000mm bucket
● Anti-slip diamond plate flooring
Smart Control
● Wireless remote (150m range)
● Proportional electro-hydraulic valves
Engineered Safety
● Triple-Layer Protection
● Mechanical Safeguards
● Interlock system (platform/base)
● Hydraulic balance valves
● Wind speed monitor (auto shutdown at 12.5m/s)
● Load moment indicator
Emergency Protocols
● Backup power unit
● Tilt alarm (<3° auto correction)
The Isuzu KV100 14M articulating boom aerial work platform, with its flexibility, efficiency, and safety features, has a wide range of applications in the following fields:
