Brand new ISUZU NKR 3cbm-5cbm Isuzu Road Sweeping Vehicle
4-10cbm Road Sweeper Truck with Cleaning Brushes and Water spraying Functio,JAPAN ISUZU EQ5141G 4x2 VACUUM ROAD SWEEPER TRUCK,ISUZU sweeper truck road cleaner sweeping truck
Japan ISUZU RHD 4X2 floor sweeper new tow road sweeper for road sweeper truck,
Order(MOQ):

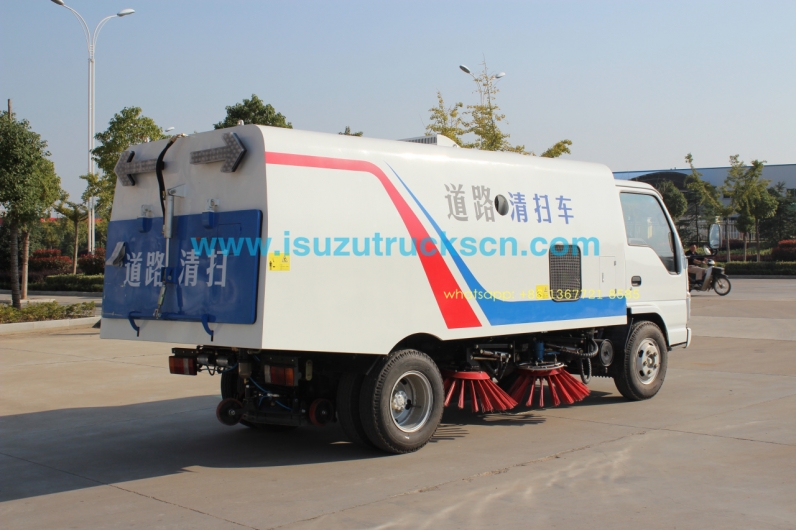

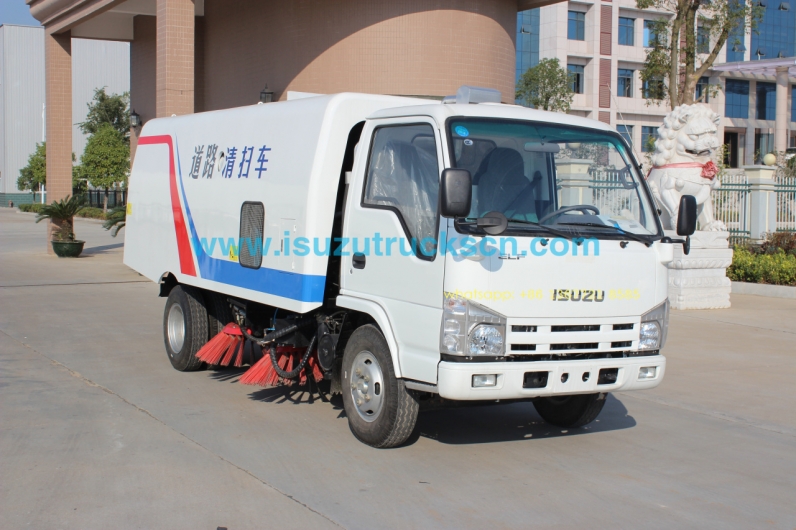

1Brand new 3cbm-5cbm Isuzu Road Sweeping Vehicle

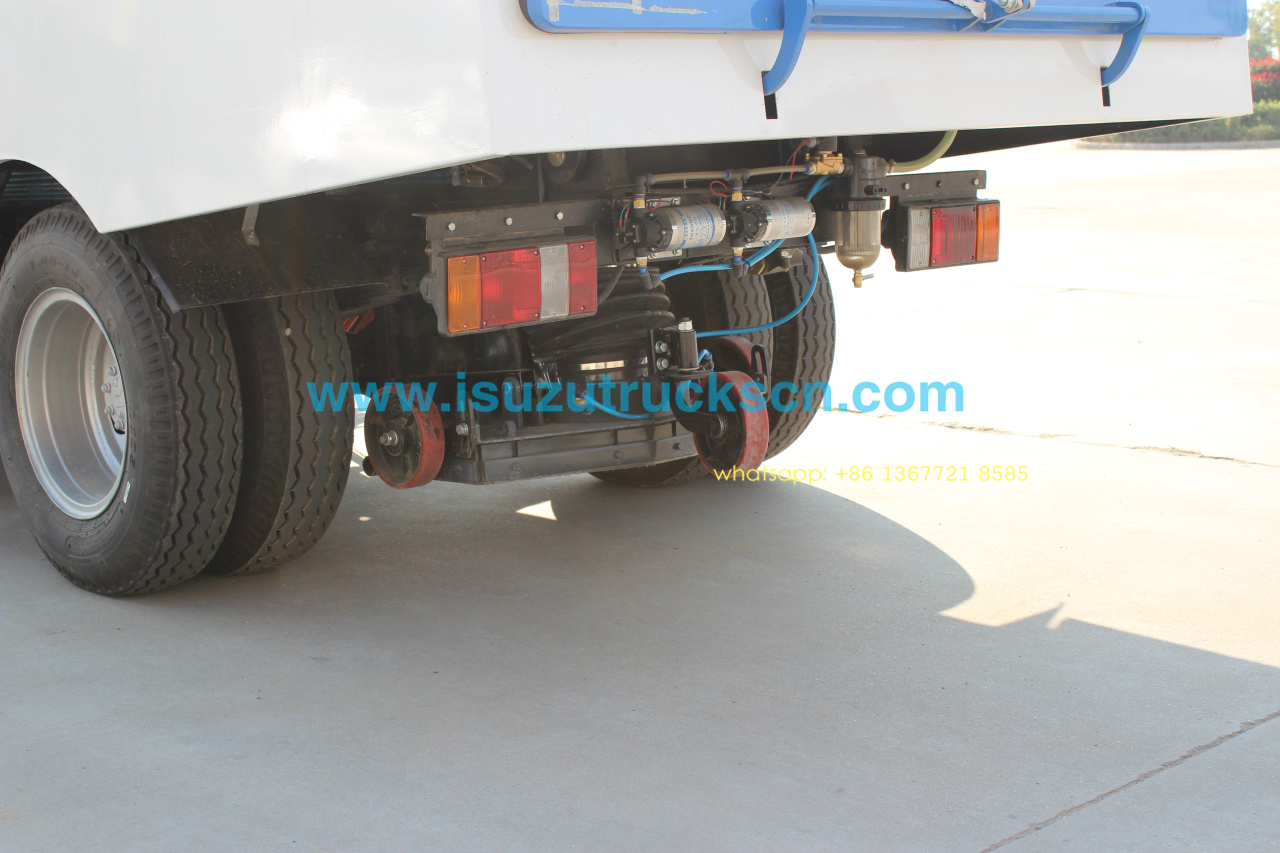

Road brush sweeper truck (also called as road sweeping vehicle, vacuum road sweeper, street sweeper truck, brush road sweeper, customer made road sweeper, high vacuum road sweeper truck, new road sweeper truck, road waste sweeping trucks) This Isuzu road sweeper truck has a simple and proper structure with four brushes in the middle and a suction port at the back part of the vehicle. The efficient suction system makes low noises when the vehicle is working. The whole vehicle is stable in performance.

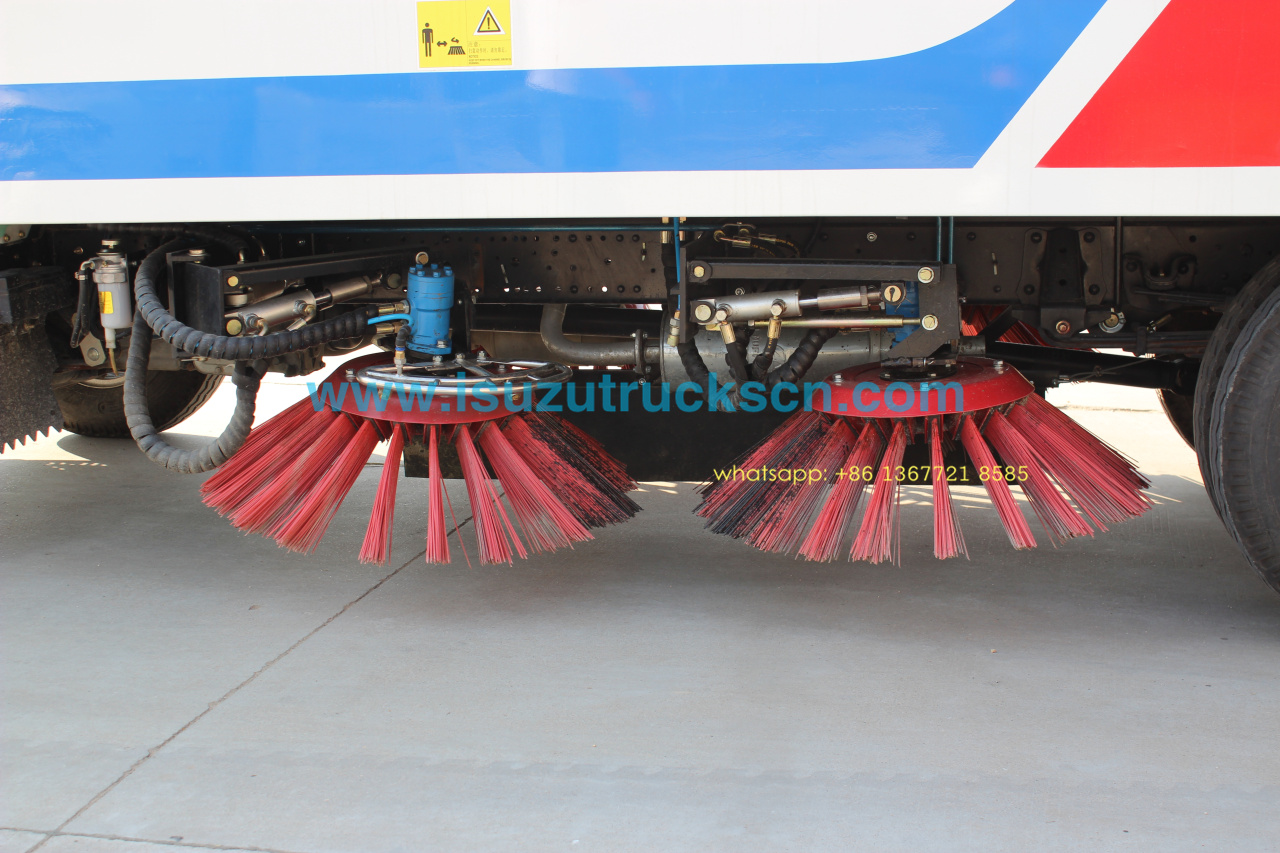

With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.
The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
ISUZU NKR Chassis, Durable & Performance.
Sweeping, Sprinkling and garbage transportation
Stainless steeel garbage bin & Stainless water tank, longer service life
Fuel Dispenser, Flow meter, Level gauage can be optional
POWERSTAR 20 years’ experience on road sweeper truck exporting.
|
PT5070TSL |
||
|
Driving Type |
4x2 (Left hand drive) |
|
|
Wheelbase |
3360 mm |
|
|
Overall Dimension |
5935X1980X2430 mm |
|
|
Cab |
Forward control over engine, all-steel-welded construction |
|
|
Sweeping System |
Auxiliary engine |
Isuzu tech engine |
|
Stainless Steel Hopper Effective Volume |
5 CBM |
|
|
Stainless Steel Water Tank Volume (L) |
1200 |
|
|
Sweeping Width (mm) |
3000 |
|
|
Sweeping speed (km/h) |
3~20 |
|
|
Sweeping Capacity (m2/h) |
16500~82500 |
|
|
Blower rated rotation speed (rpm) |
1800 |
|
|
Blower air capacity (m3/h) |
8000 |
|
|
Blower air pressure (Pa) |
7000 |
|
|

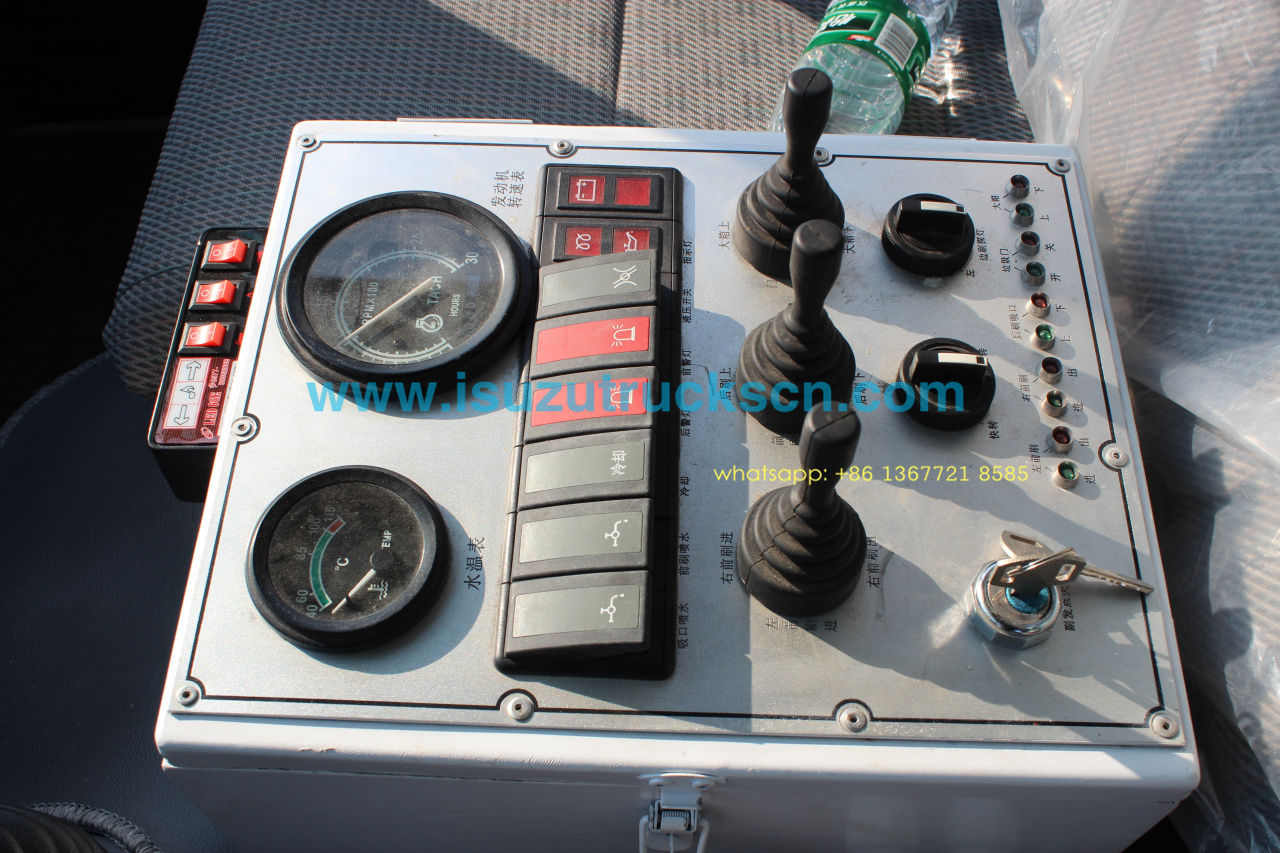

Side Brush Sweeping Brush Drive and Control |
Electric control lever and switch control, Hydraulic driving |
|
|
Engine |
Model |
4JB1CN |
|
Type |
Diesel, turbo charged inter-cooled, 4 cylinder |
|
|
Max. Power |
72 KW (98 HP) |
|
|
Gearbox |
MSB 5-shift, mechanical type, 5 forward and 1 reverse with |
|
|
Tire |
7.00-16 |
|
|
Color |
Red (Any color & logos up to wish) |
|
|
Max Speed |
100 km/h |
|
Huge ISUZU Road sweeper truck chassis in store
 |
 |
| Sweeper truck chassis Front left review |
Left side review |
 |
 |

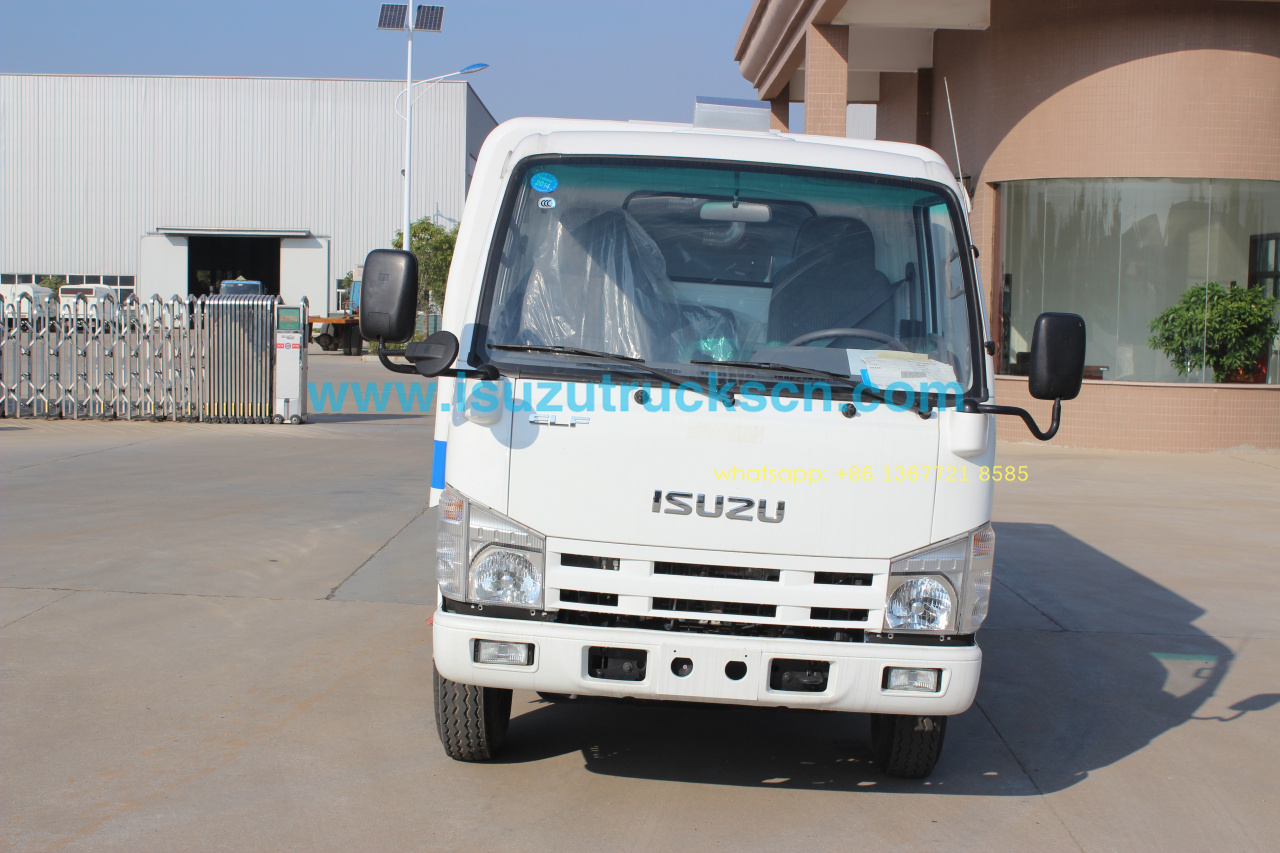

| Sweeper truck chassis Front review | Sweeper truck chassis Front left review |

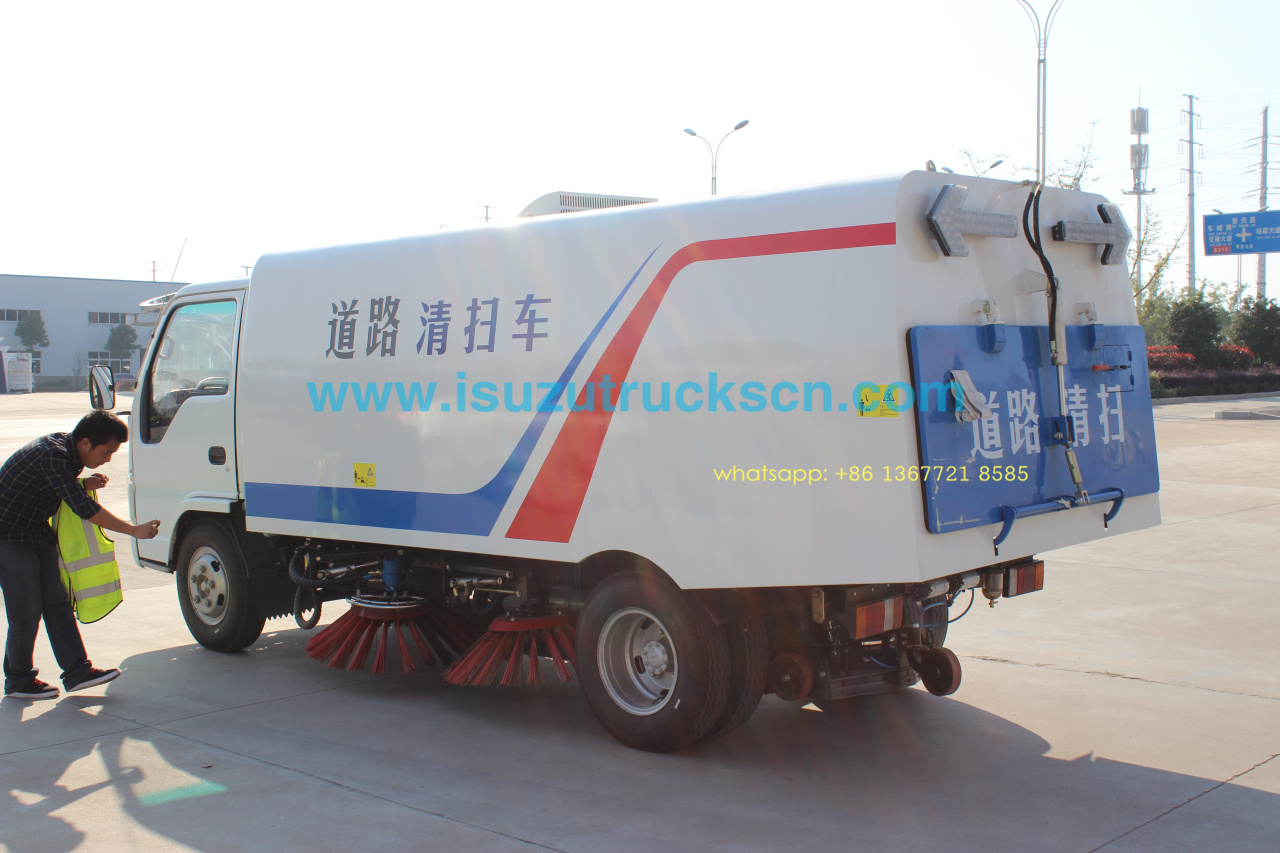

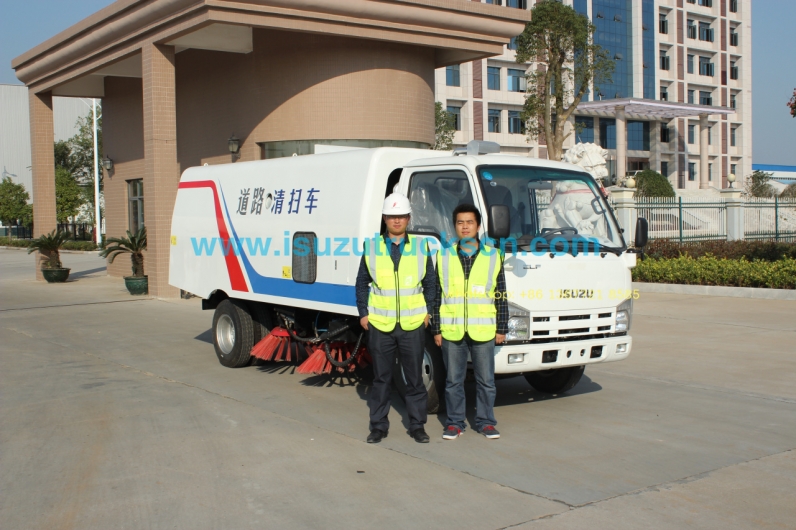

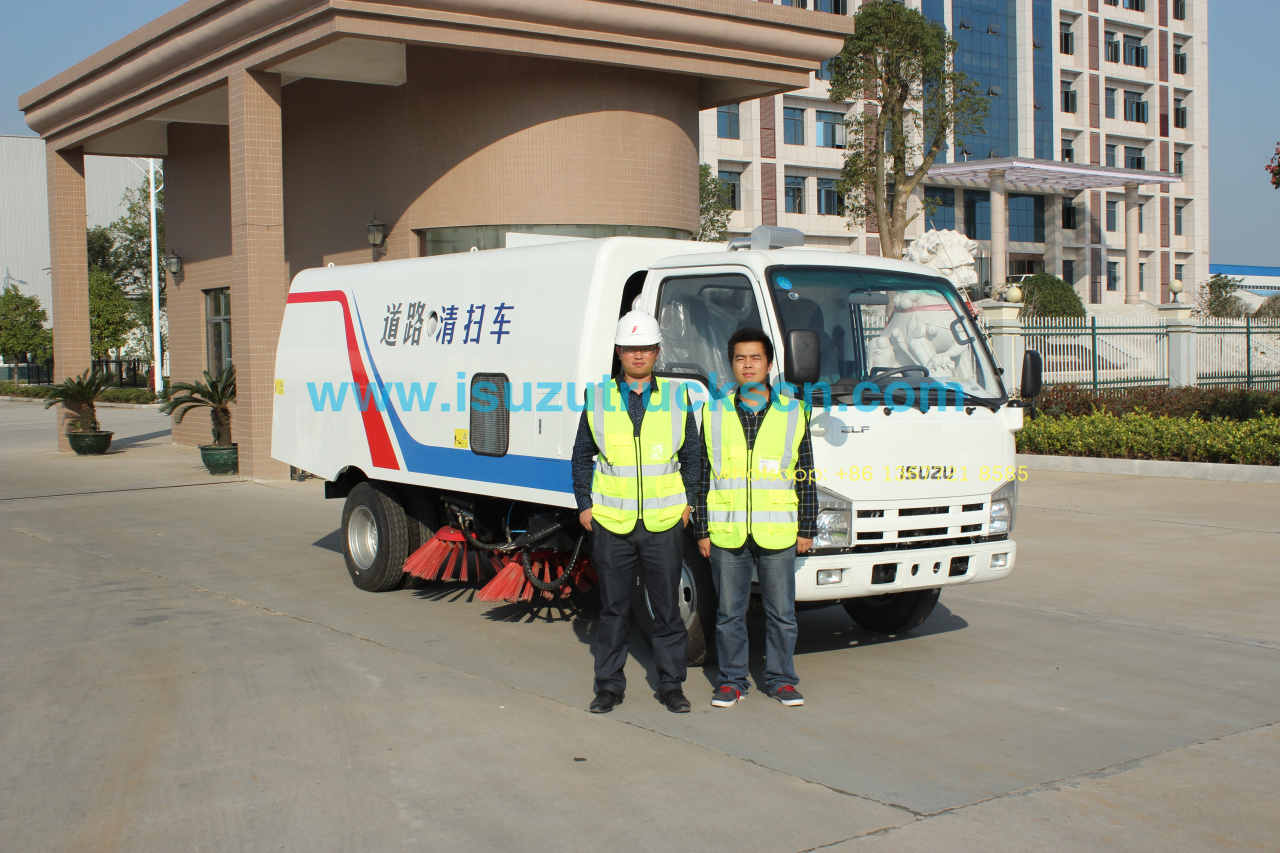

Customer build example:
 |
 |

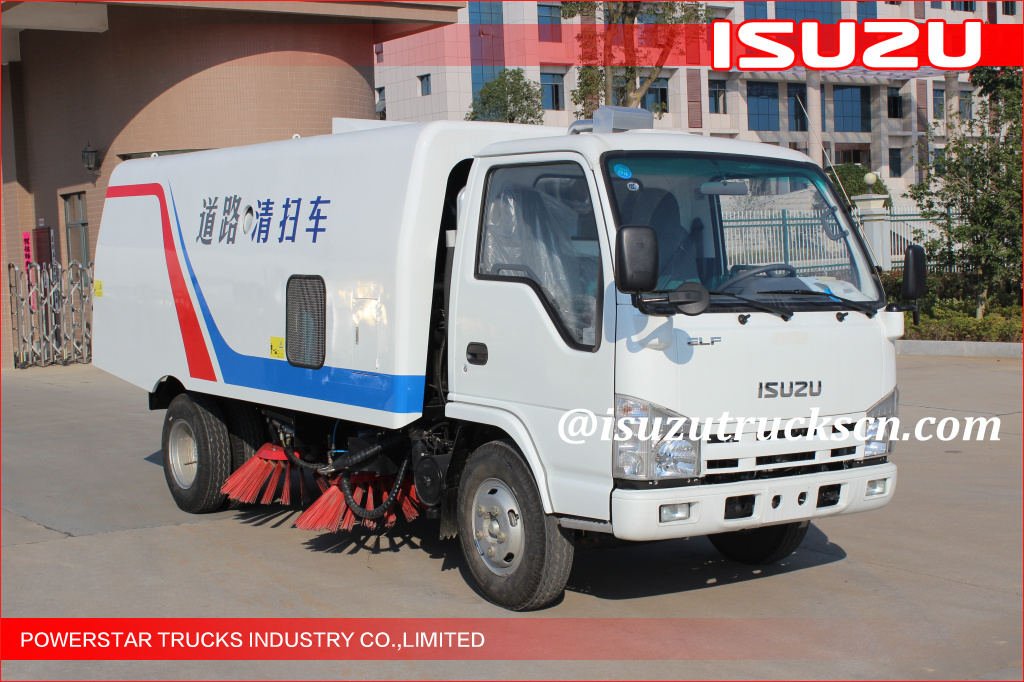

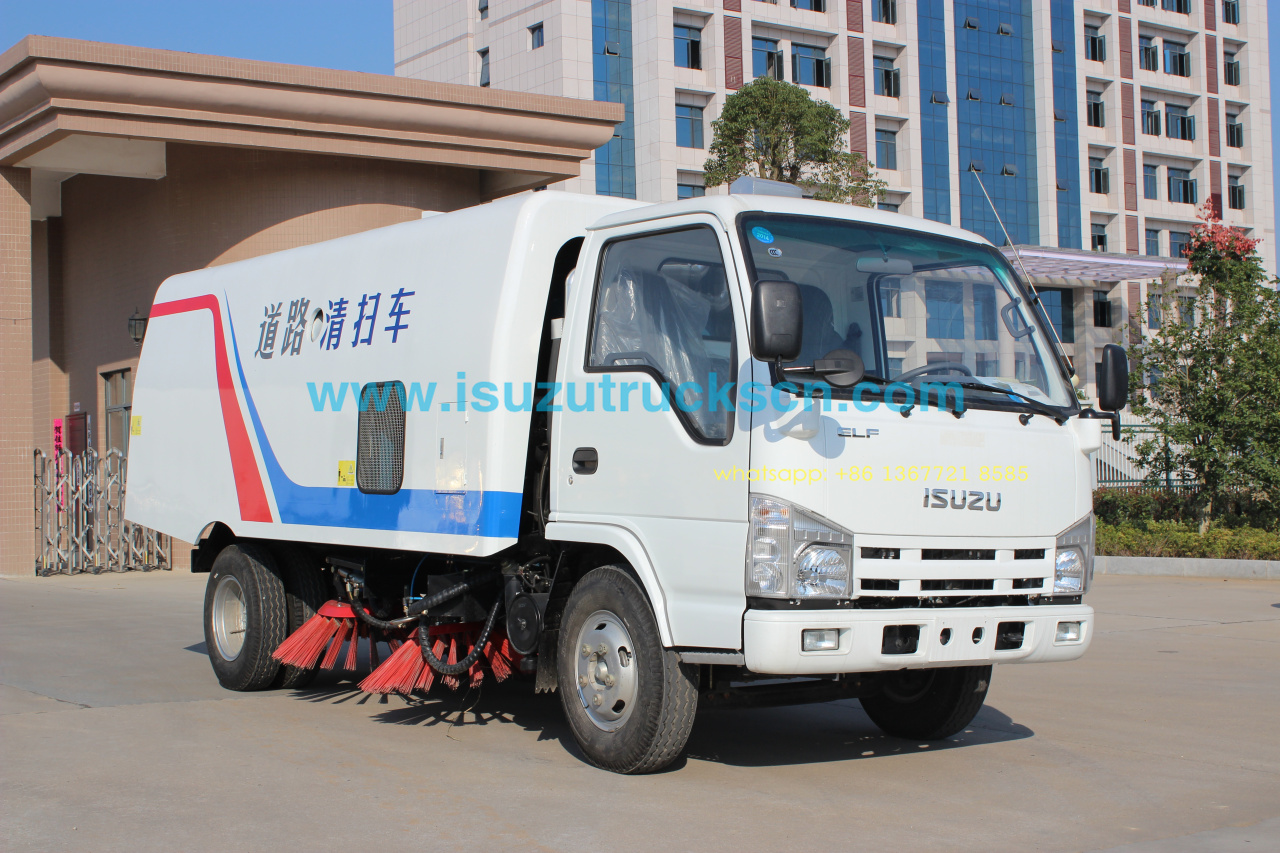

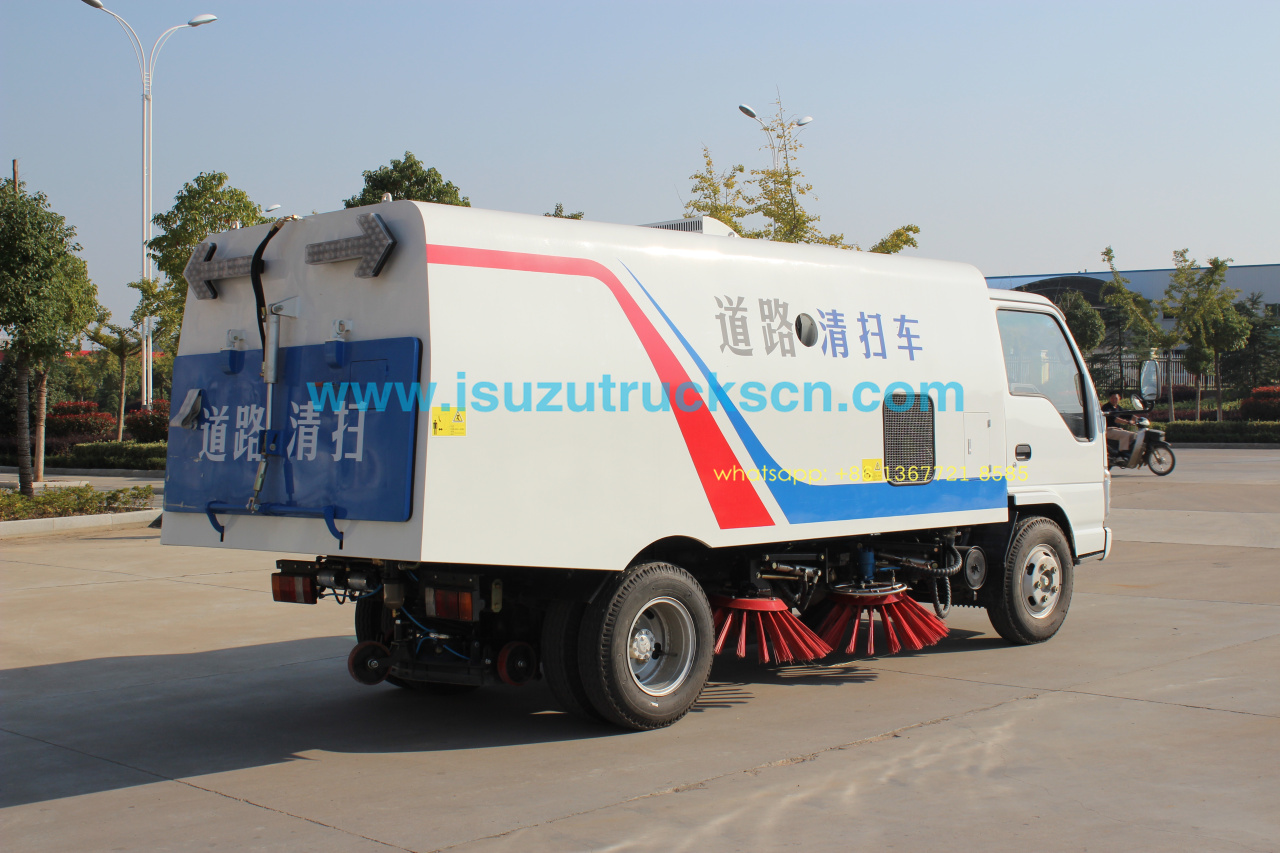

| Front right view |

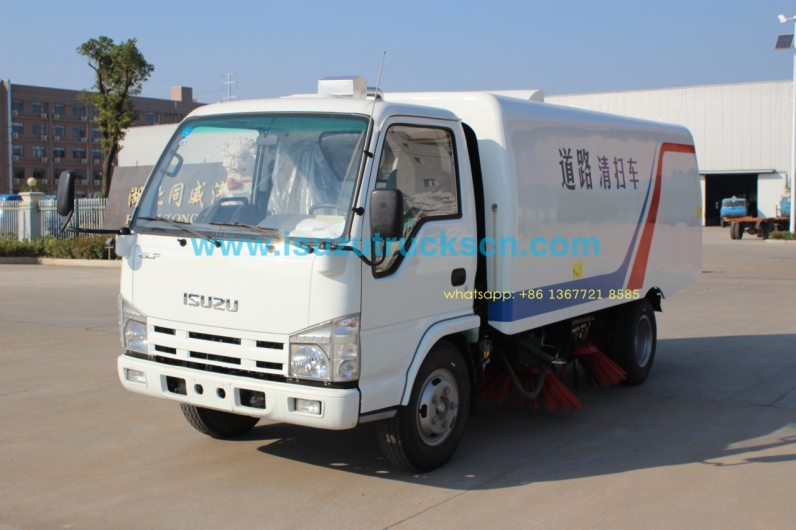

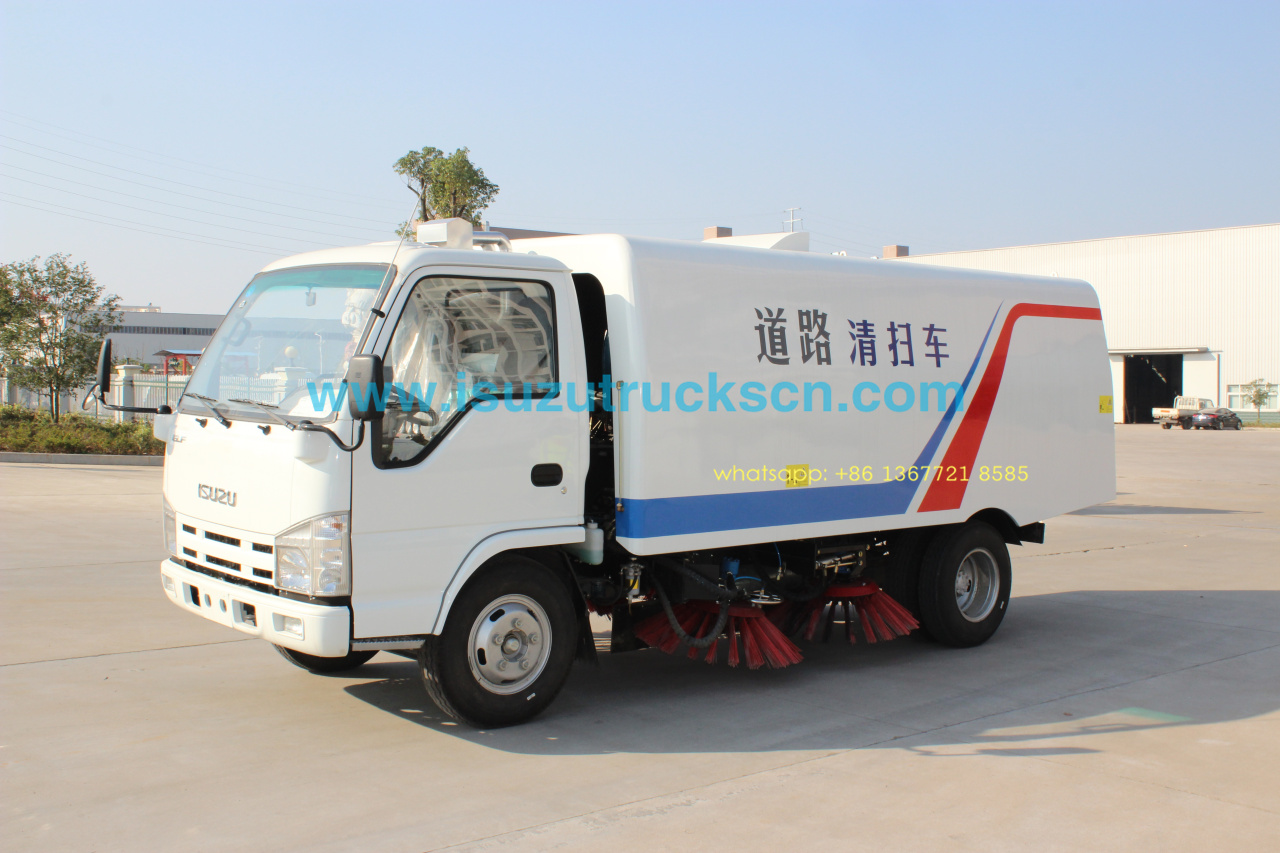

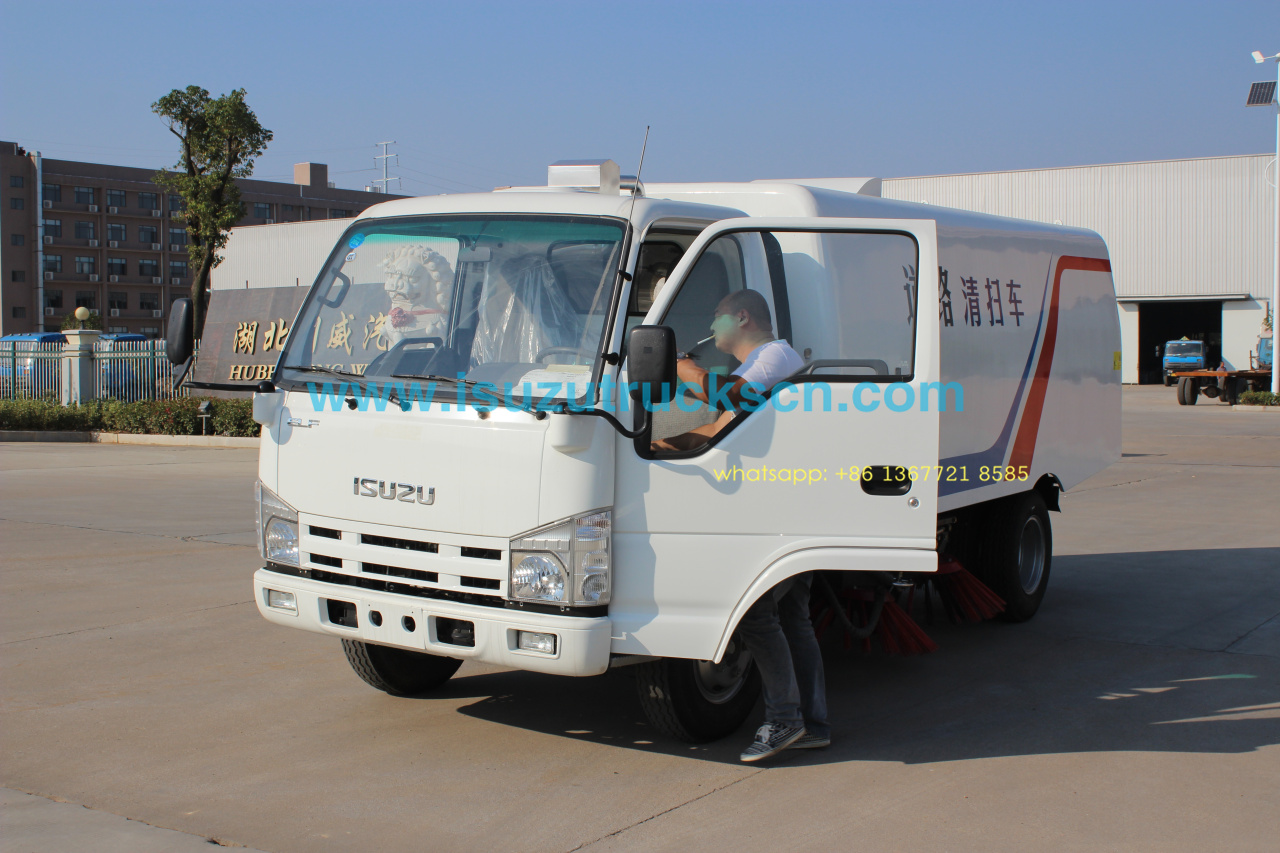

Front left view |
 |
 |

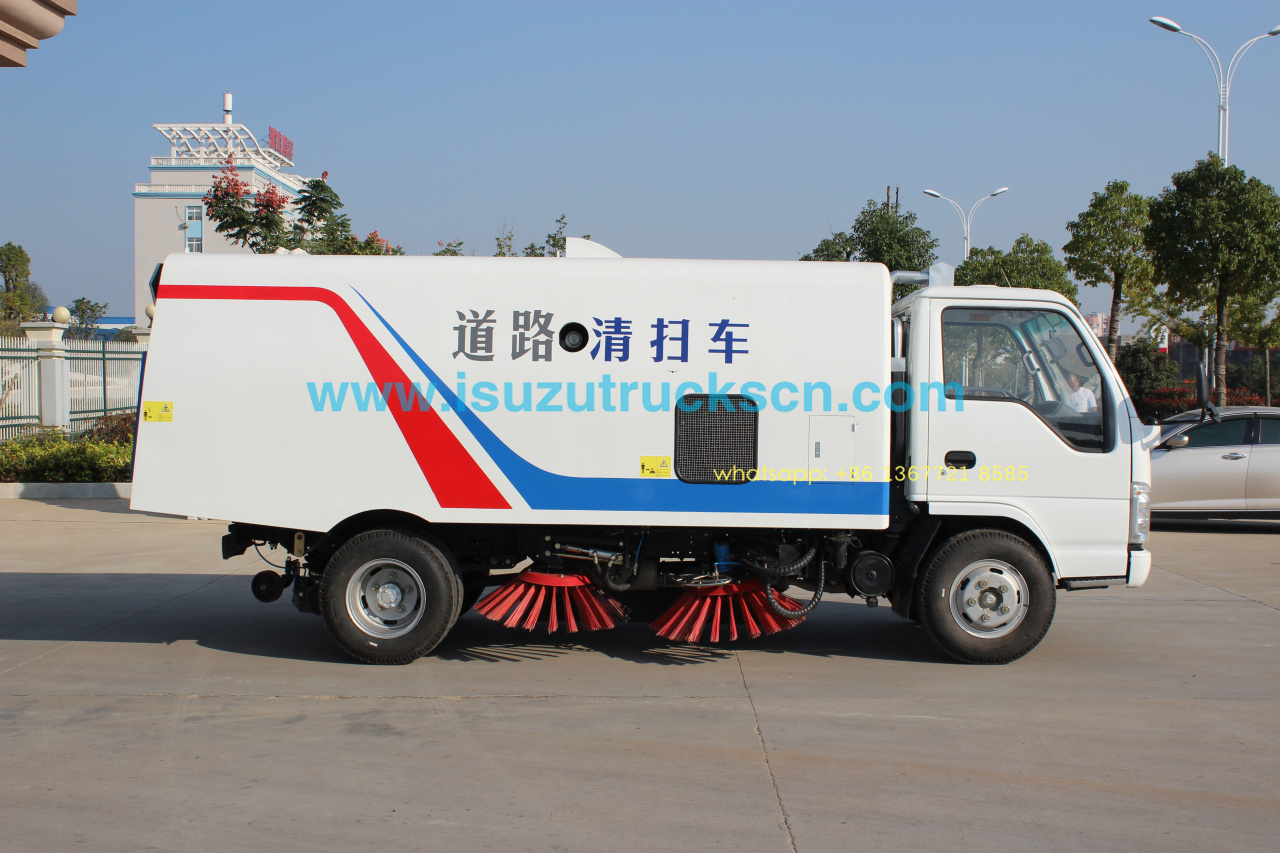

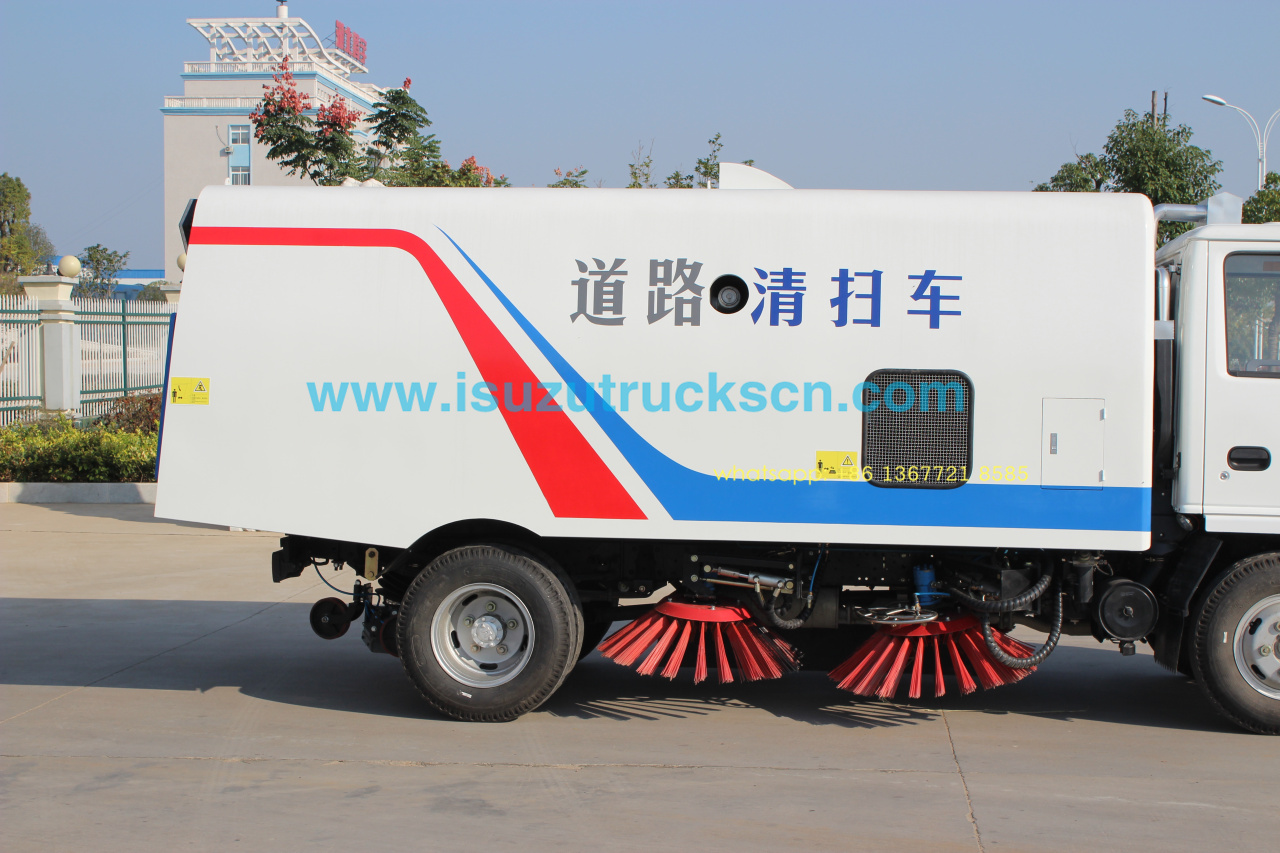

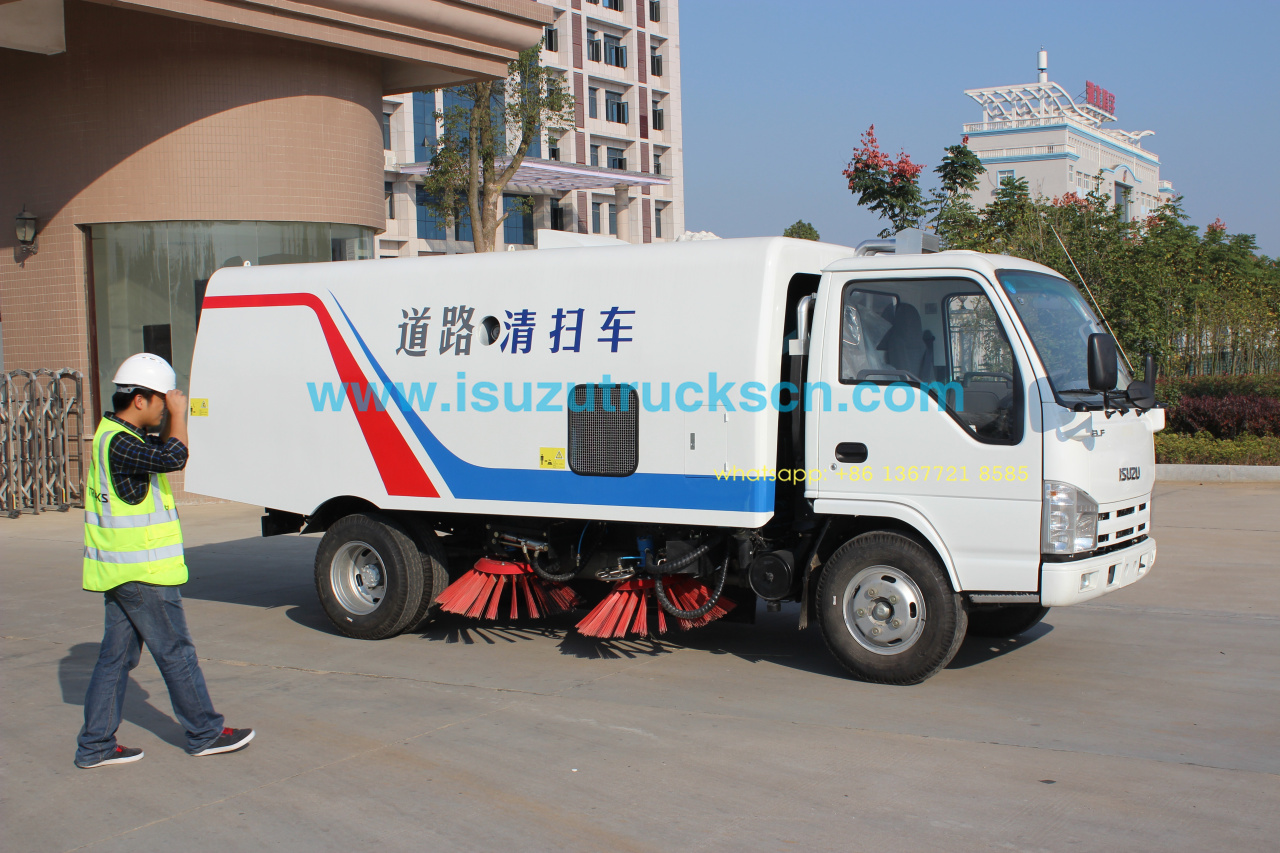

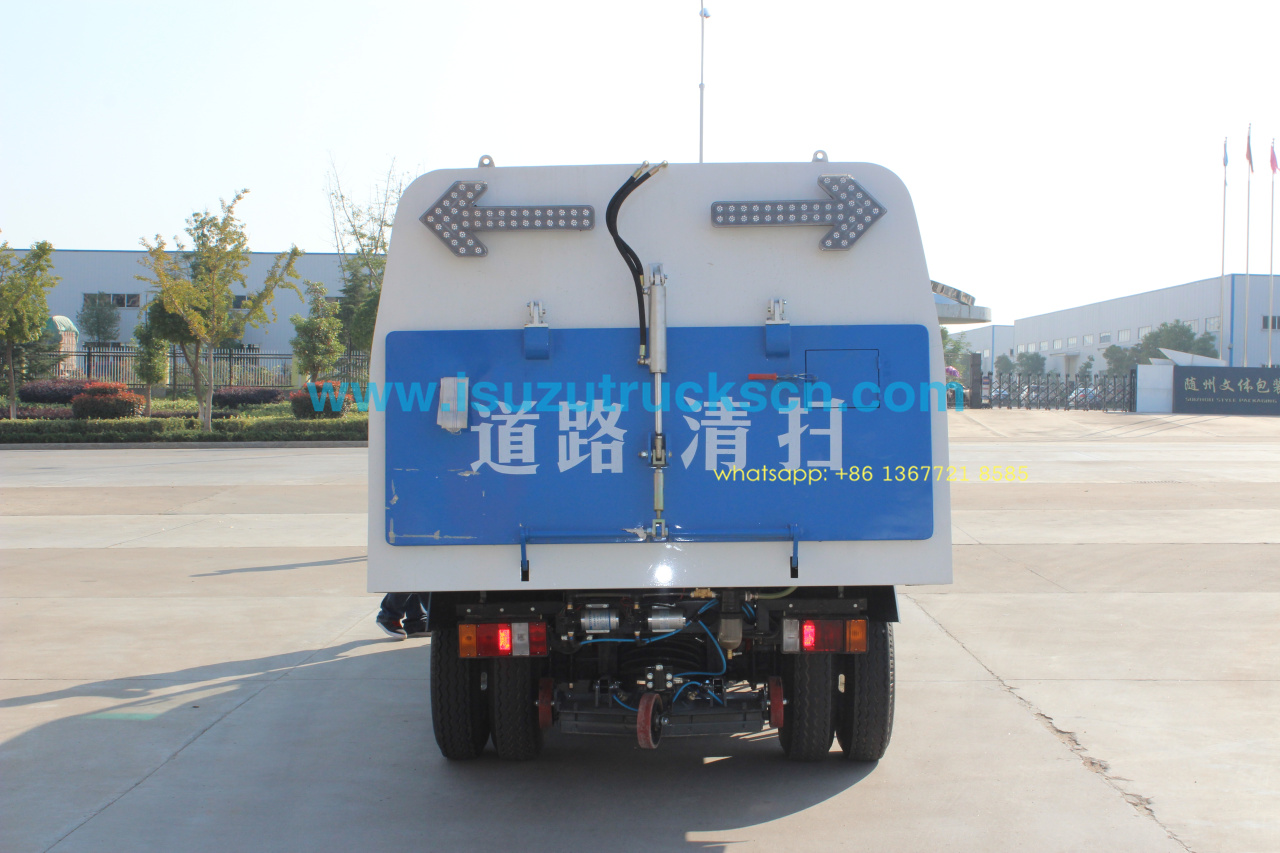

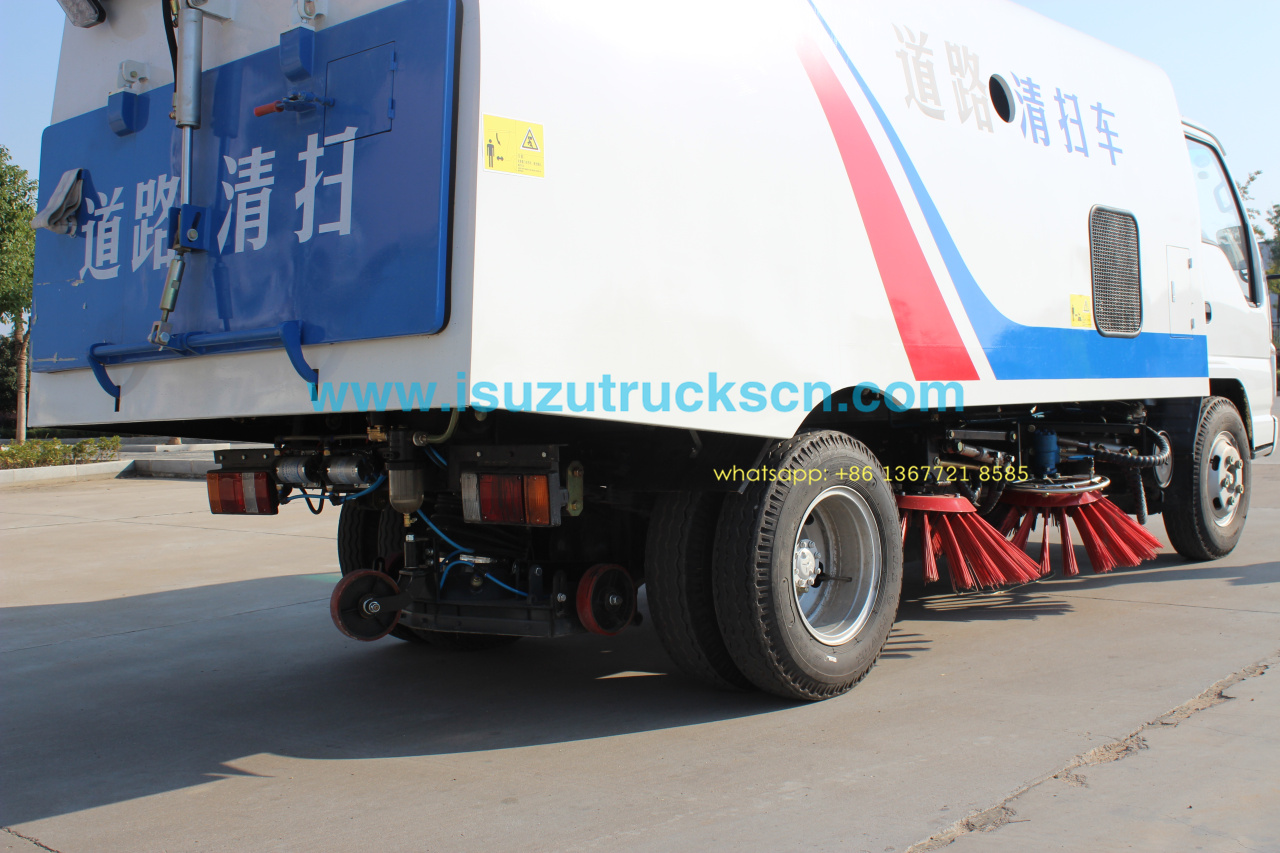

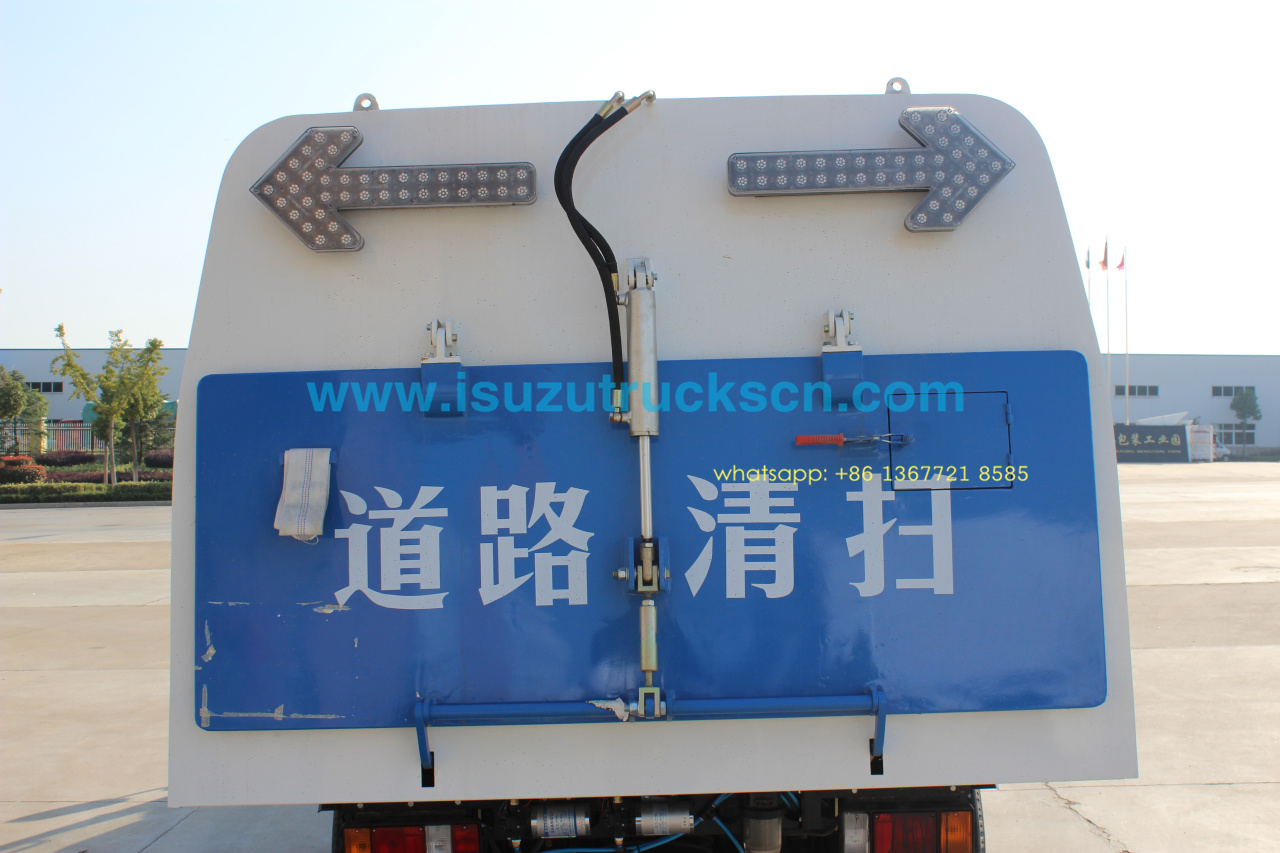

| Right side view | Rear right view |
