Model

PT5250GJY

Driving Type

6x4   (Left hand drive)

Wheelbase

4350+1300 mm

Engine

206 kw (280hp)

Tyre

12.00-20

Tank

Material:

Carbon steel(Q345)

Shell Body

5 mm nominal thickness

Head

6 mm nominal thickness

Baffles

3mm nominal thick, wave shape, four pieces with Ø 500mm service port

Tank shape

Ellipse

Capacity

Full capacity 18000L

Compartment

No

Shell Finish

Shot blasted with 1anti-rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.

Testing Pressure

36kPa, Water pressure test

Tank Fittings

Top inlet port

2pieces

Manhole Cover

Aluminum alloy, 20” self-latching manhole cover, with air-van.

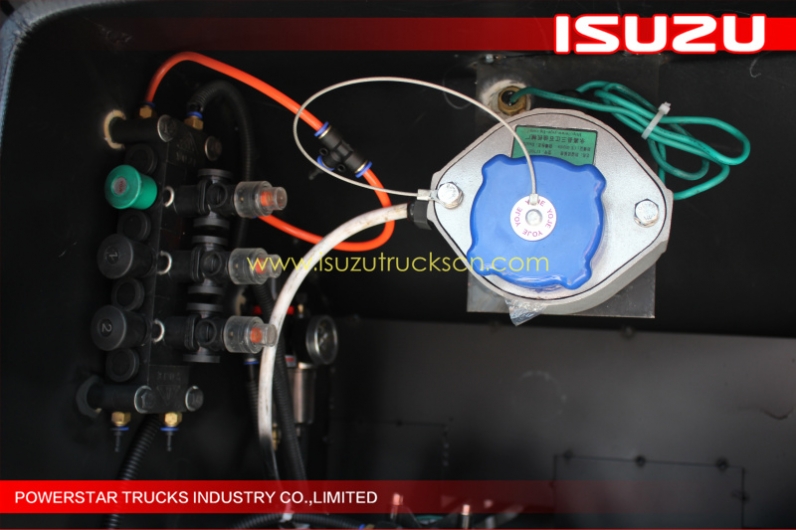

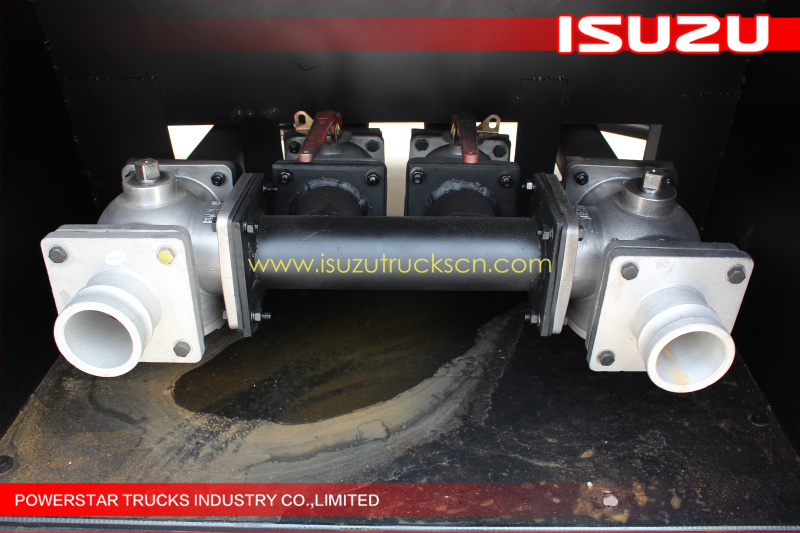

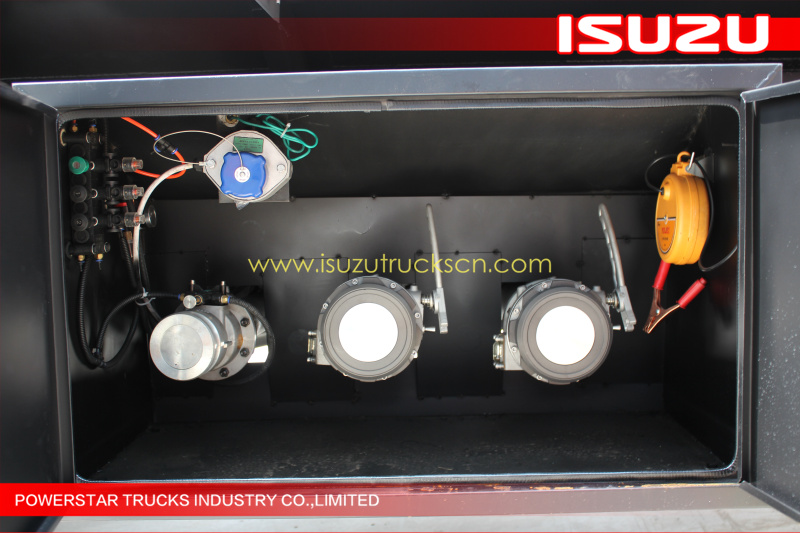

Outlet port:

One pneumatic sea valve which at the front of tank, the size of outlet port is 3 inches, fix all connector.

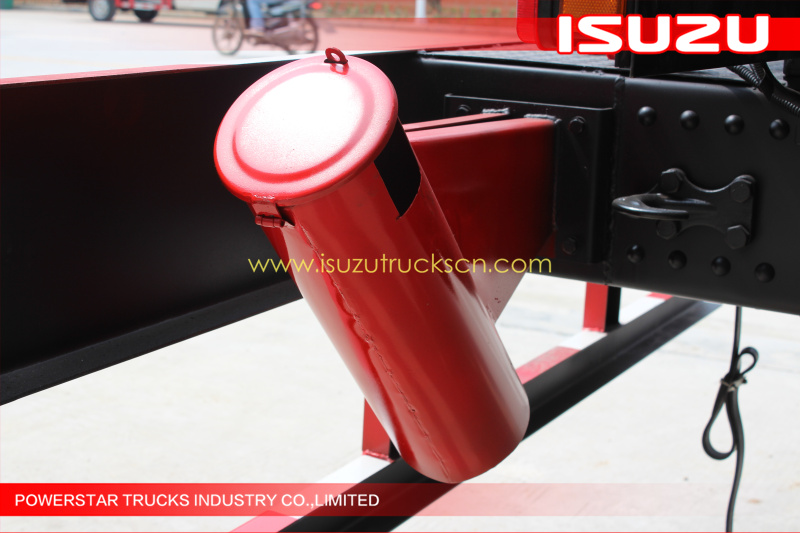

Pipe box:

It made of PVC material, round shape which on the both sides of tank, one plastic pipe (5m)

Anti –Static System:

Static electricity plate , copper plate and earth cable reel

Tank Accessories

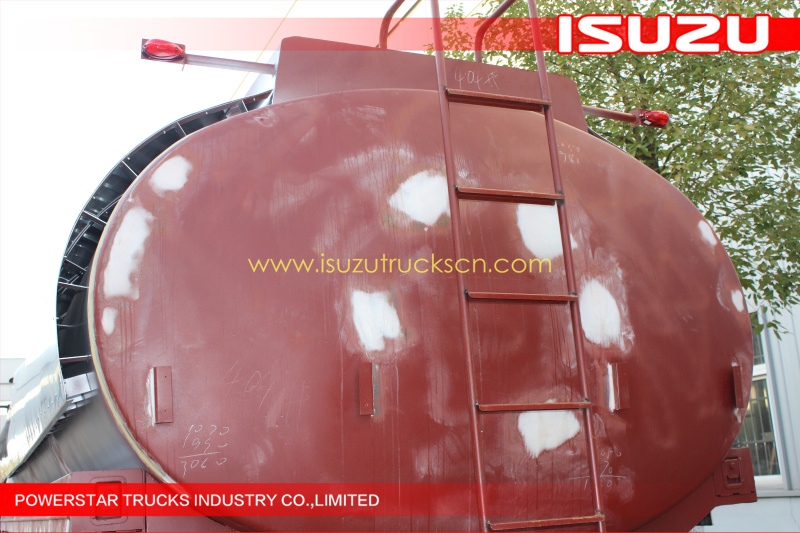

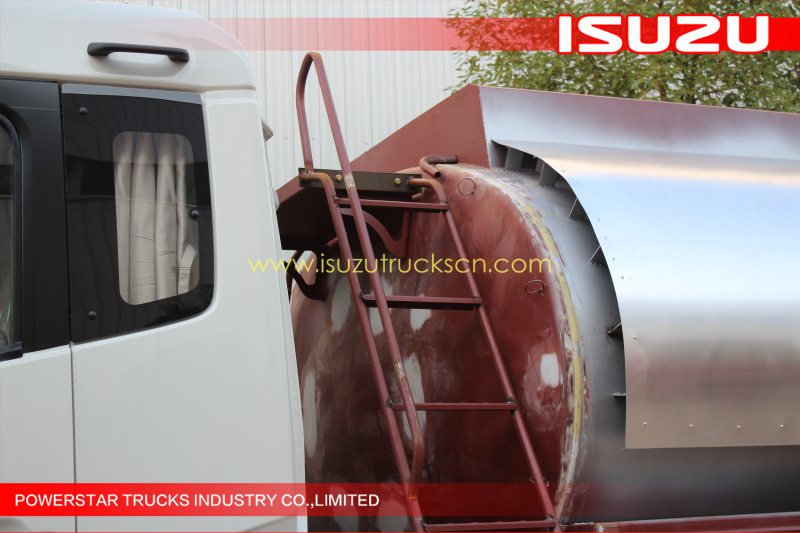

Ladder:

Stainless Steel ladder fixed at rear of tank

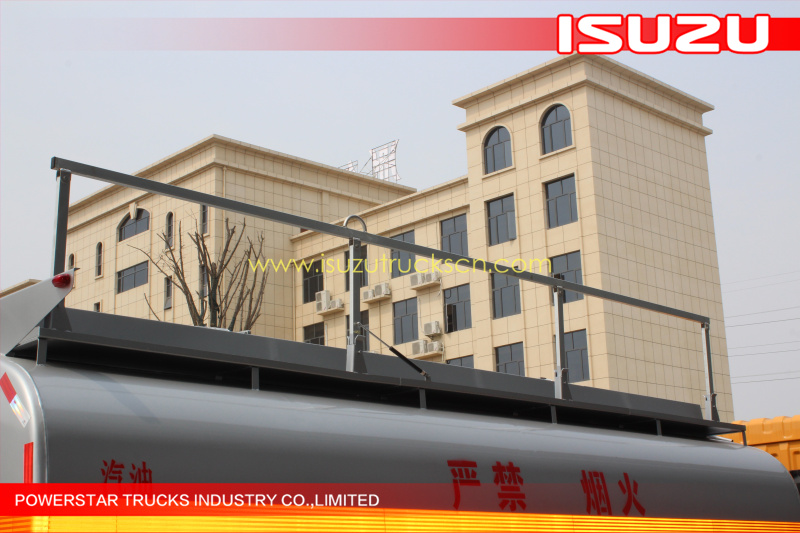

Walkway Platform:

It fixed on the top of tank with anti – skid surface treatment.

Handrail:

No

Fire Extinguisher Housing:

2 units, suitable for 4 kg’s fire extinguisher

Pump Device

Yes

Flow meter

Yes

Tool box

Small box

Color

As option
