20000L Custom Aluminum Alloy Fuel Oil Tank Truck Isuzu

ISUZU Mobile Refueling Oil tank truck 6x4, Oil Delivery Trucks 20000L


20000L Custom Aluminum Alloy Fuel Oil Tank Truck Isuzu

 20000L Custom Aluminum Alloy Fuel Oil Tank Truck Isuzu


Aluminium alloy tank truck Isuzu (also called Fuel tank truck, oil tank truck, Fuel tank delivery truck, oil delivery truck, fuel tanker truck, Fuel dispenser tank truck, oil trucks, light fuel truck, oil fuel tankers) is used to transport oil, diesel, gasoline, kerosene, etc.

Our range of refueling tank truck is designed for the transport and storage of gasoline, light diesel oil, kerosene and other fuels which boast no corrosive action on the tank body, oil pump and oiling machine, etc. It has found a wide range of applications. For instance, it can be used for refueling of itself and other vehicles as well, and it can serve as a pump to transfer fuels to other containers. Hence, our refueling tank truck is commonly seen in filling stations and transport companies.

The refueling tank truck manufactured by PowerStar Trucks is designed based on latest technologies and production techniques, and it comes with rational structure, reliable performance, esthetical appearance and simple operation, etc.



Areas of Application and Use:

  Gasoline transport and delivery

  Diesel transport and delivery

  Kerosene transport and delivery

  Other liquid fuel material

  Mobile refueling vehicle of Filling stations



Key Features:

  World-class ISUZU heavy duty Chassis, High power and Fuel efficiency, Reliability, Uptime

  High-power, Lighten weight, Nice performance, widely used in oil station and some logistic companies

 We use OEM fittings, makes the tanker solid and durable, and reduce the cost to operate and maintain.

  The liquid tanker is produced with the special equipments such as automatic welding machine(8m) and CNC plasma cutting and automatic submerged arc welding forming which can realize welding by one side in shape by two sides, having the merits of stable quality, less cost, and good-looking.

  Carbon Steel, Stainless Steel, and Aluminum Tanks Available

  Colors can be customized.

  Tank capacity can be customized.   5000L to 25000Liters


Main specifications:



Driving Type

6x4    (Left hand drive)


4350+1300 mm


206 kw (280hp)





Carbon steel(Q345)

Shell Body

6 mm nominal thickness


7 mm nominal thickness


3mm nominal thick, wave shape, four pieces with Ø 500mm service port

Tank shape



Full capacity 20000L



Shell Finish

Shot blasted with 1anti-rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.

Testing Pressure

36kPa, Water pressure test

Tank Fittings

Top inlet port


Manhole Cover

Aluminum alloy, 20” self-latching manhole cover, with air-van.

Outlet port:

One pneumatic sea valve which at the front of tank, the size of outlet port is 3 inches, fix all connector.

Pipe box:

It made of PVC material, round shape which on the both sides of tank, one plastic pipe (5m)

Anti –Static System:

Static electricity plate , copper plate and earth cable reel

Tank Accessories


Stainless Steel ladder fixed at rear of tank

Walkway Platform:

It fixed on the top of tank with anti – skid surface treatment.



Fire Extinguisher Housing:

2 units, suitable for 4 kg’s fire extinguisher

Pump Device


Flow meter


Tool box

Small box


As option


Optional Equipment of ISUZU Fuel Tanker Truck

 5 cubic meter Fuel tank truck Isuzu    5 cubic meter Fuel tank truck Isuzu    5 cubic meter Fuel tank truck Isuzu   5 cubic meter Fuel tank truck Isuzu
 Computer Fuel Dispenser    API Adaptor Valve    Bottom Valve    Manhole Cover
 Ball Valve    Three Ways Set Ball Valve    Level Gauge    Oil and Gas Recovery Valve

Recently Built Fuel Tank Trucks:

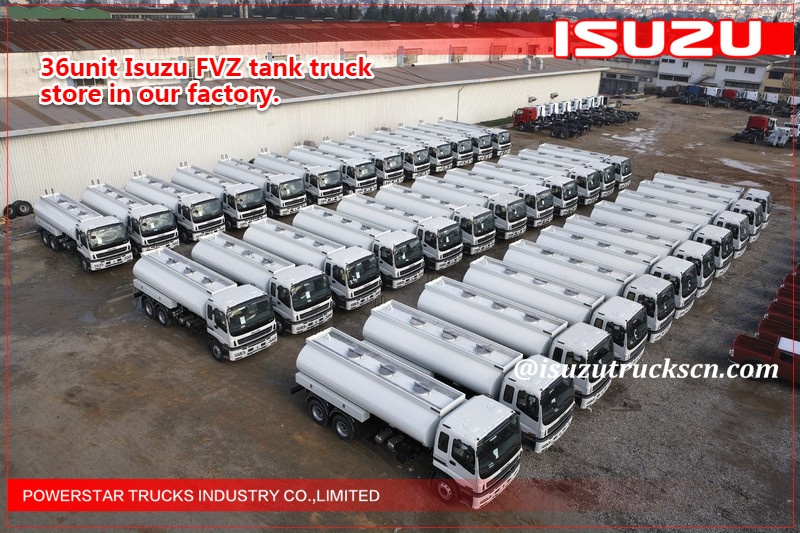

36unit 6x4 20000L Isuzu Fuel oil diesel tanker trucks for sale

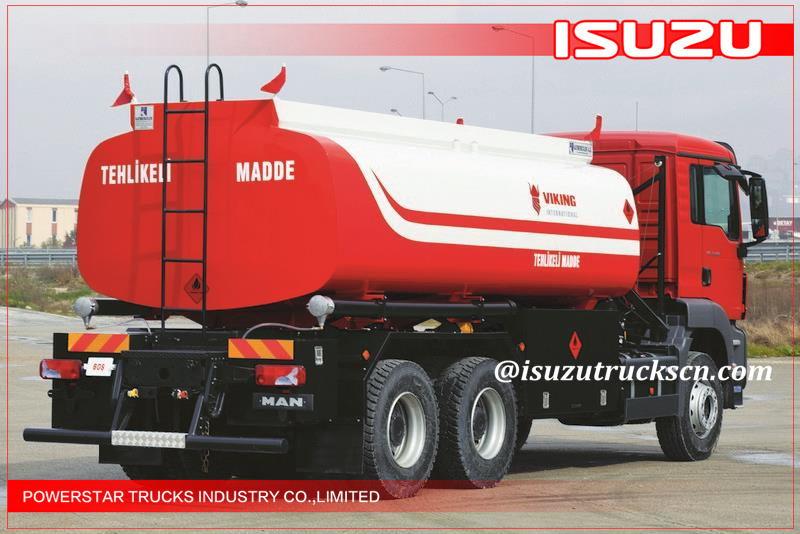

0000L Custom Aluminum Alloy Fuel Oil Tank Truck Isuzu

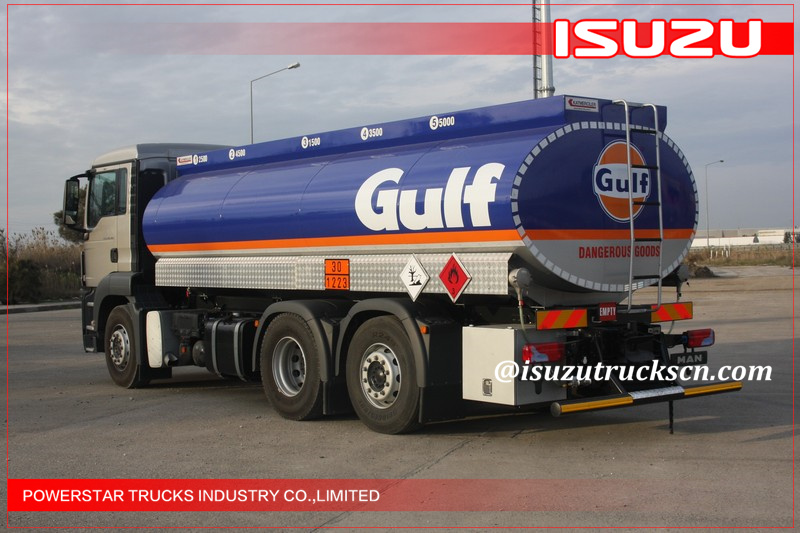

0000L Custom Aluminum Alloy Fuel Oil Tank Truck Isuzu

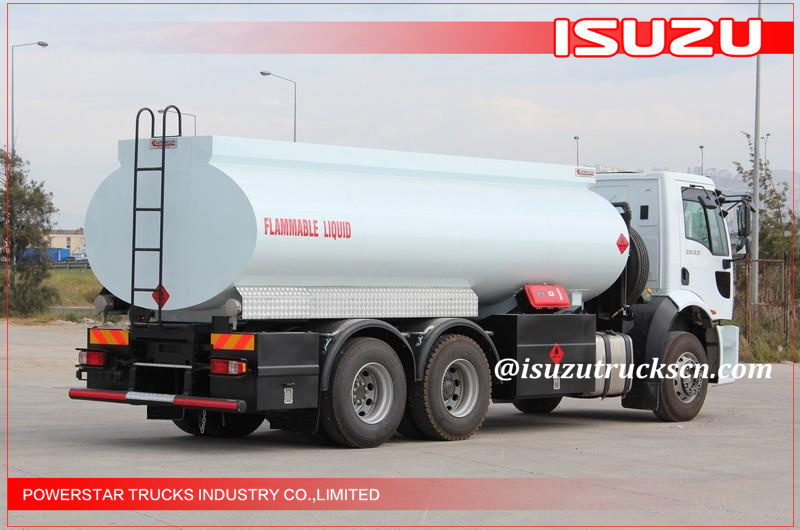

0000L Custom Aluminum Alloy Fuel Oil Tank Truck Isuzu

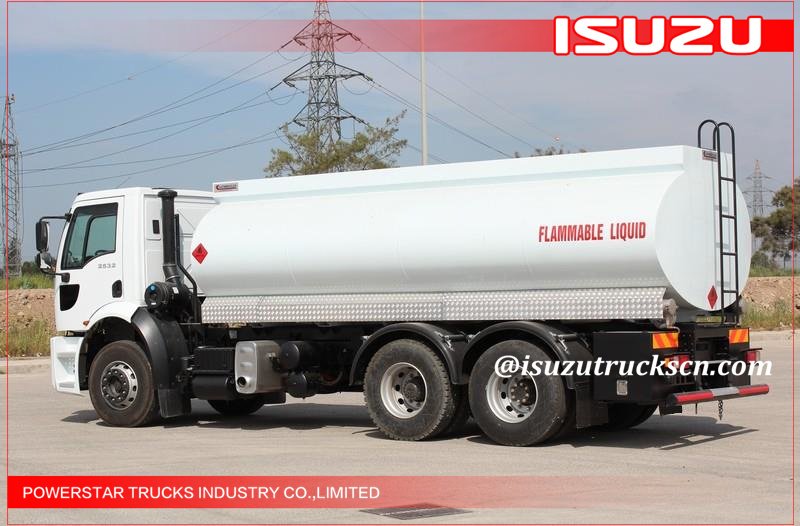

0000L Custom Aluminum Alloy Fuel Oil Tank Truck Isuzu


HOT sale Isuzu Trucks

 Isuzu Fuel Tank Truck Excellent Quality for Africa Market  8000L ISUZU NPR refueling tanker trucks  Isuzu ELF water fire fighting trucks Isuzu ELF water fire fighting trucks
 Isuzu foam fire vehicle for export  Japan Isuzu water foam fire fighting tender fire engine  Philippines custom made 5tons street cleaning sweeper truck Isuzu  Japan high performance Isuzu sweeping vehicle
 5tons city used garbage compactor truck Isuzu trucks  Japan quality Isuzu rubbish compactor trucks  Customized 5tons Isuzu trucks mounted crane for sale  Africa ghana order Isuzu heavy duty truck with crane
 Japan 16Meters Isuzu Aerial plaftform trucks  Isuzu Water Jetting high pressure truck for sale  Isuzu 3tons flatbed tow wrecker trucks  Customized fuel oil tanker semi trailer made in china

Previous :5000L ELF Refuel Tanker Truck ISUZU

Next :15000L Ghana Isuzu Carbon Steel Oil Tank Transportation for Light Petroleum/Diesel Delivery
