Giga fire truck Isuzu

Isuzu Giga fire truck, also known as Isuzu Giga fire tender,Isuzu Giga fire engine, is a vehicle specially used for fire fighting or other emergency rescue purposes. The Isuzu Giga fire trucks are usually stationed in the fire station, and firefighters drive them to the scene when an alarm occurs. The Giga fire truck Isuzu in most areas are painted bright red (some areas also have bright yellow fire trucks), with sirens and flashing lights on the roof. Fire truck is a general term for all types of fire-fighting vehicles equipped with various fire-fighting equipment and fire-fighting appliances. It is currently the main tool for firefighting forces to fight fires and is the basic mobile fire-fighting equipment. The quality level of fire trucks reflects the level of a country's fire protection equipment and even the level of the country's entire fire protection industry.

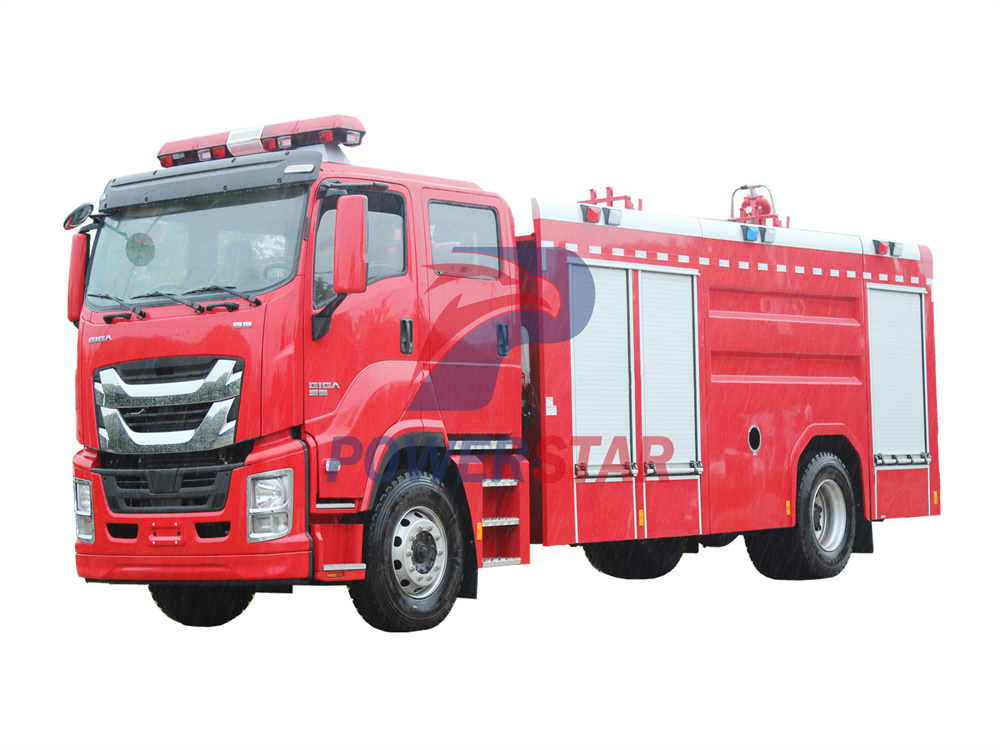

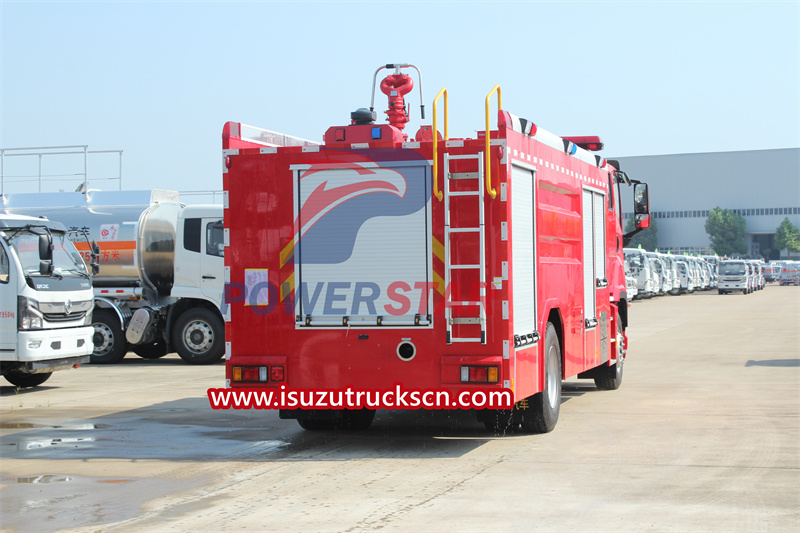

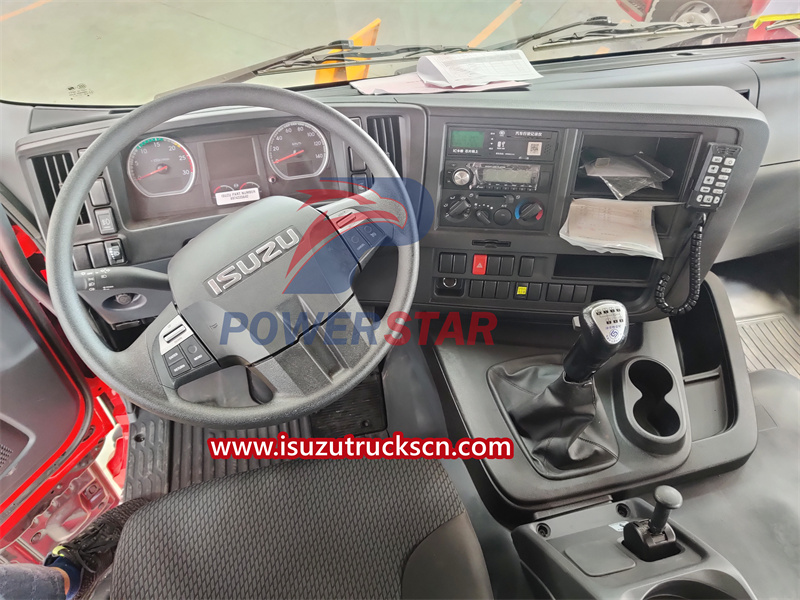

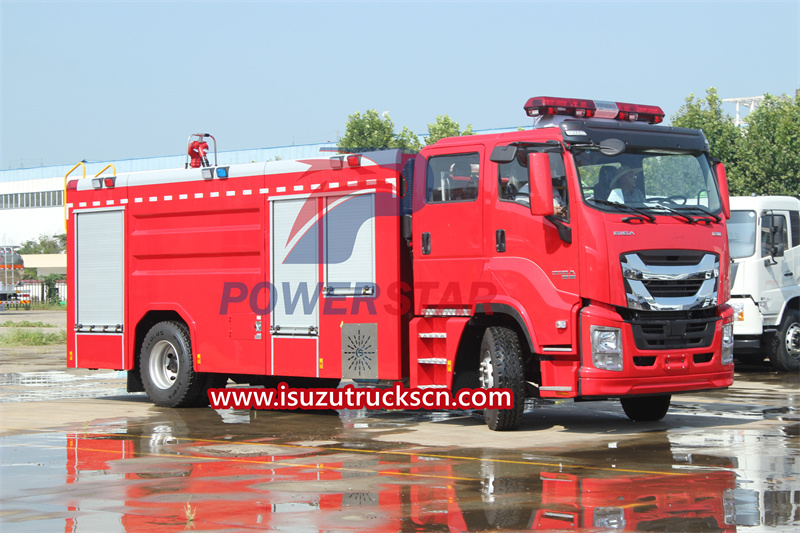

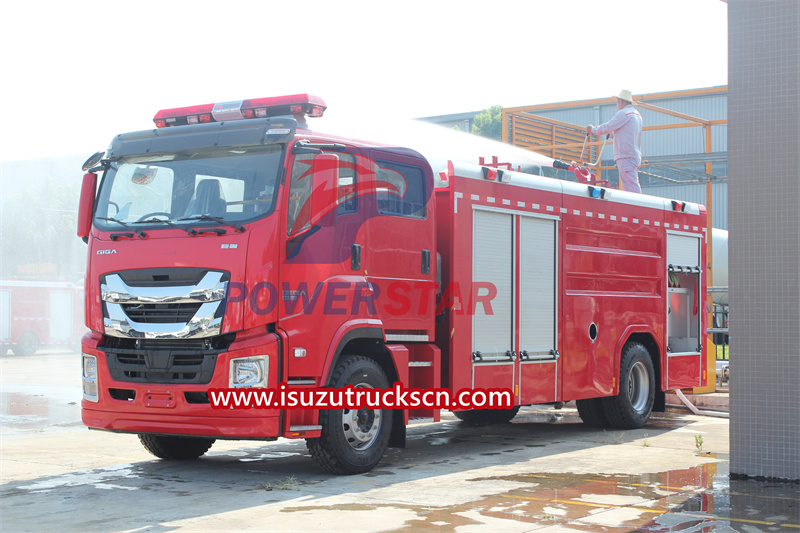

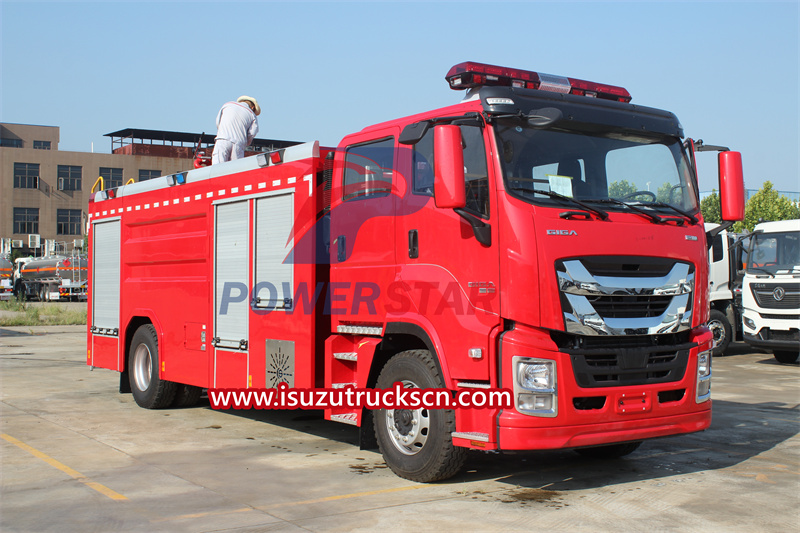

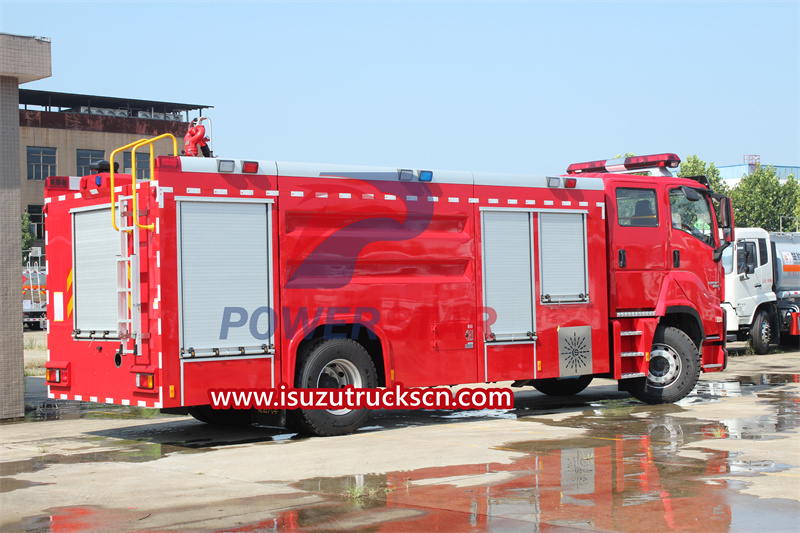

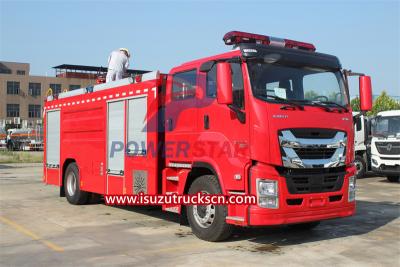

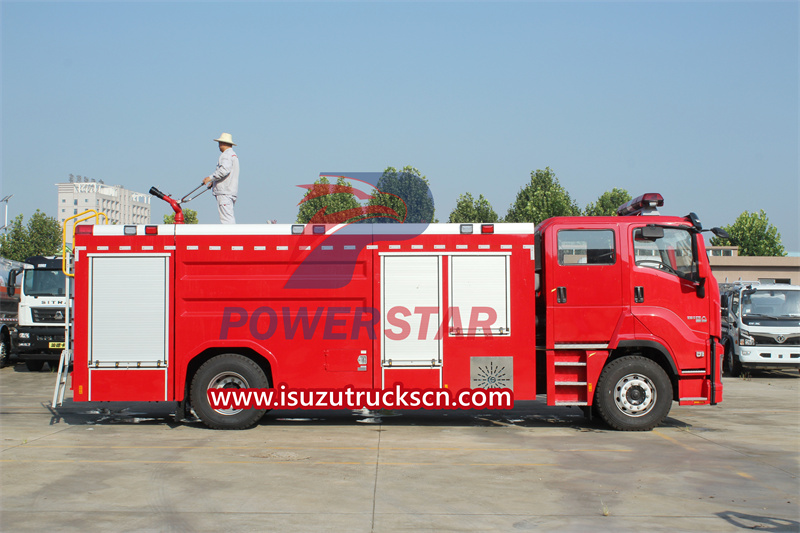

The Isuzu Giga water tank fire truck modified by Powerstar company is modified with the Qingling Isuzu GIGA 4x2 fire truck chassis (model QL1180EQFRY). The cab is changed from the original single row to a double row with four doors, and can accommodate 2+3 people. The Giga fire truck cab of the vehicle uses air bags for shock absorption. The vehicle has an exposed tank structure, with an equipment box in the front, a tank in the middle, and a pump room in the rear. The liquid-carrying tank is made of high-quality carbon steel and is elastically connected to the chassis. It can carry 7000kg of water. It is equipped with a CB10.40 medium and low-pressure fire pump produced by Shanghai Xiongzhen Fire Equipment Co., Ltd. with a rated flow of 40L/S/1MPa and is installed on the roof. The PL432 vehicle fire monitor produced by West Fire Machinery Co., Ltd. has a range of ≥60m. The biggest features of this vehicle are its large fluid capacity, good maneuverability and easy maintenance. It can be widely used in public security fire brigades, factories, mines, communities, docks and other places to fight large oil fires or general material fires.

Main equipment of Isuzu Giga fire truck:

1. The special part consists of liquid tank, pump room, equipment box, power output and transmission system, pipeline system, electrical system, etc.

2. The fire truck adopts a double-row integrated structure, with a wide field of vision, a large number of passengers, and can seat 5 people; the fire truck can extinguish fires while traveling, has a long range, and has strong fire-fighting effectiveness.

3. Optional normal pressure fire pump, medium and low pressure fire pump.

4. The carriage is made of high-quality steel and high-strength aluminum alloy profiles. The inner and outer skins are made of corrugated aluminum plates. The tank body is designed with multiple wave-proof plates.

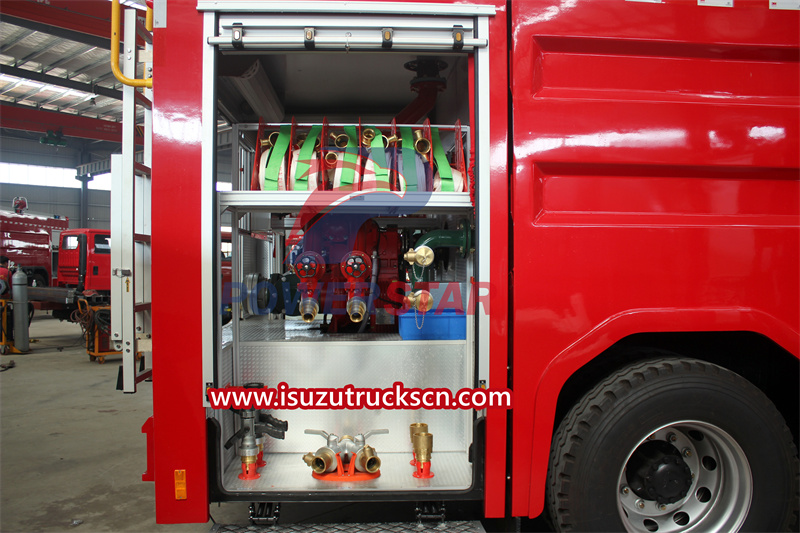

5. The outer frame of the equipment compartment is made of high-quality carbon steel plates, the inner frame is made of high-strength aluminum alloy profiles, and is designed and manufactured with a built-in overlap structure. The interior panel is made of patterned aluminum plate, and the surface is anodized, making it strong and durable. In terms of structure, the equipment compartment is reasonably arranged and the equipment is more convenient to access. The special clamp fixing device makes the equipment storage more secure.

6. The rolling shutter door of the equipment compartment is designed and made of high-quality aluminum alloy, with flexible opening and closing, low noise, good sealing and beautiful appearance.

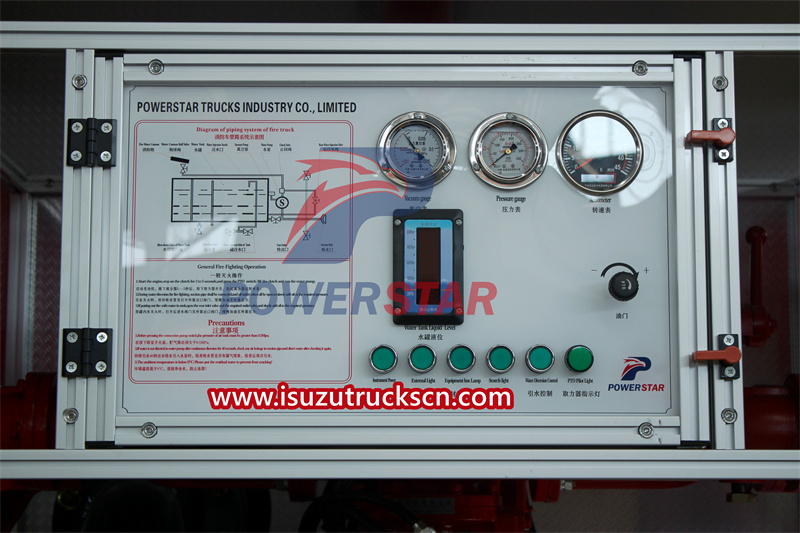

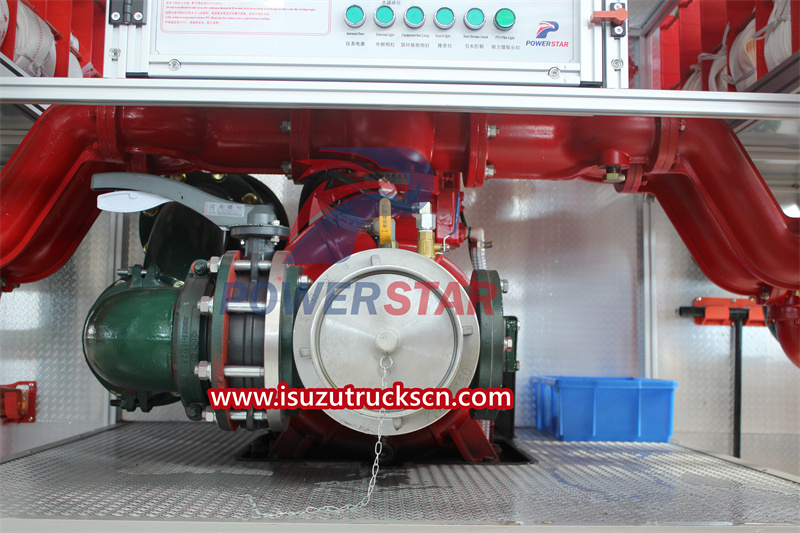

7. The pump room is equipped with water pump system, various instruments, indicator lights, liquid level gauges, pressure gauges, vacuum gauges and other devices.

Isuzu Giga fire pump operating instructions:

Preparation before operation of Isuzu Giga fire truck

1. Check the lubricating oil level in the bearing box and diversion pump. If insufficient, replenish it.

2. Close all drain cocks and valves.

Isuzu Giga fire trucks divert and inject water

1. When using water from the pond, remove the suction pipe, connect one end to the pump suction port, connect the other end to the water filter and put it into the pond, close the rear water inlet butterfly valve, open the water diversion valve, and then add water to the water tank. Fill with water.

2. When using water from the fire hydrant, use a water hose to connect the fire hydrant to the water injection interface outside the water tank, and the water is directly injected into the water tank.

Isuzu Giga fire trucks discharges water

When the fire truck uses water from the water tank, open the rear water inlet butterfly valve, start the fire pump, and perform the following operations:

1. Low pressure water outlet

After the fire pump is working, open the low-pressure water outlet ball valve to realize low-pressure water outlet.

2. Cannon comes out of water

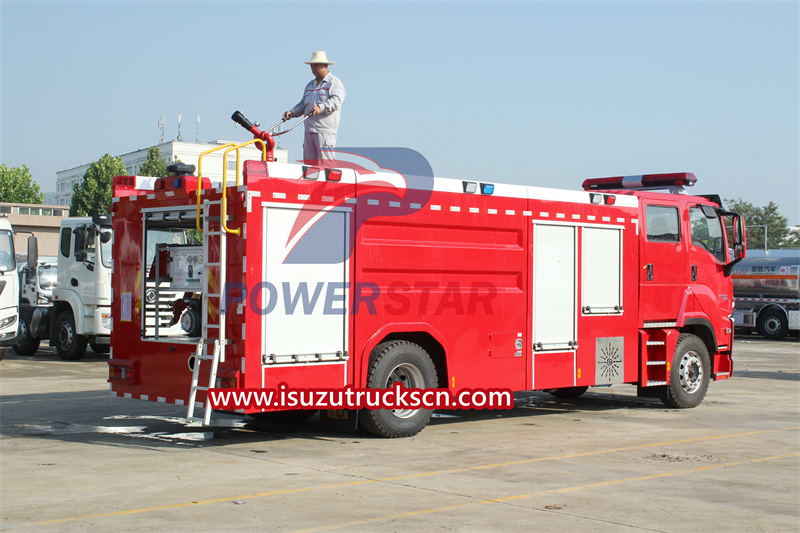

When working at low pressure, close the low-pressure water outlet ball valve and open the cannon ball valve to realize the water discharge from the cannon to extinguish the fire.

Precautions for Isuzu Giga fire trucks

1. After using the fire truck water pump, open all the residual water drain switches on the pump to drain the remaining water in the pump. After the remaining water is drained, close all switches to facilitate anti-freezing and next use.

2. After the water pump has been used in seawater, sewage, corrosive water flow and foam mixture, it should be run with clean water for more than 1 minute to clean out the residual liquid in the pump.

3. Check the lubrication condition in the bearing regularly. If it is lower than the oil level, make up for it.

4. After using the fire pump of the fire truck in winter, run the piston pump several times to drain the remaining water in the piston pump to prevent freezing.

5. The water pump is strictly prohibited from idling without water for a long time (more than 1 minute).
