Giga Pumper Fire Truck ISUZU

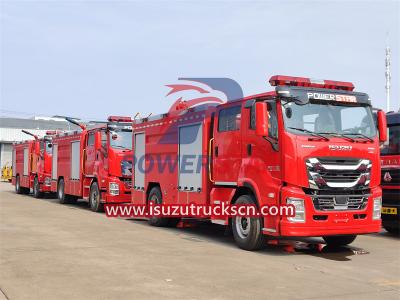

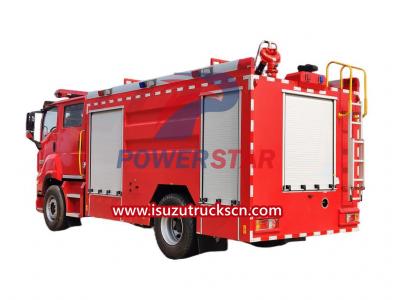

ISUZU fire truck GIGA pumper fire engine
ISUZU fire truck GIGA pumper fire engine
ISUZU fire truck GIGA pumper fire engine
ISUZU fire truck GIGA pumper fire engine
ISUZU fire truck GIGA pumper fire engine
ISUZU fire truck GIGA pumper fire engine
ISUZU fire truck GIGA pumper fire engine
ISUZU fire truck GIGA pumper fire engine
ISUZU fire truck GIGA pumper fire engine
ISUZU fire truck GIGA pumper fire engine
ISUZU fire truck GIGA pumper fire engine
ISUZU fire truck GIGA pumper fire engine
ISUZU fire truck GIGA pumper fire engine
ISUZU fire truck GIGA pumper fire engine

Giga Pumper Fire Truck ISUZU

ISUZU GIGA fire engine is a specialized firefighting rescue vehicle used for fire extinguishing and emergency rescue missions. Based on National Fire Protection Association (NFPA), the GIGA fire pumper truck Isuzu is fire apparatus with a powerful fire pump and capacity over 3000L/min, equipped with water tanker, foam tanker, body structure, pump room and whole fire fighting equipment. Isuzu Giga fire tender with CB10/60 fire pump and PL48 fire monitor, which play an important role in the field of fire prevention and rescue.

  • Work capacity:

    4200 Liters
  • Truck model:

    PT5220GXFP2M
  • Engine power:

    6UZ1-TCG61
  • Engine type:

    380 HP
  • Axle drive:

    4×2
  • Gear box:

    FAST 12-speed
  • Remarks:

    CB10/60 fire pump, PL48 fire monitor, 4000L SS304 water tanker and 200L PP foam tanker

Isuzu GIGA fire truck also called Isuzu Giga fire engine, Isuzu Giga fire tender. Which is a specialized firefighting vehicle designed and produced by POWERSTAR, and mainly service for fire extinguishing and emergency rescue missions. Giga fire pump truck ISUZU equipped with a powerful engine 6UZ1 model and fire-fighting equipment, including breath apparatus, aluminum ladder, wireless interphone, water guns, Siren, foam generators, etc., The newly designed Isuzu GIGA rescue fire truck has high maneuverability and stability and can quickly respond to fires. Isuzu GIGA fire engines perform well in responding to various fire scenarios and are often used for emergency rescue and fire prevention and control. Isuzu fire tender with high quality, reliability and adaptability make the Isuzu wildland fire truck one of the preferred firefighting vehicles. Isuzu GIGA fire trucks play an important role in the field of fire prevention and rescue and play a key role in ensuring public safety.

Below videos showing the Isuzu giga fire trucks chassis and ready for delivery to Seaport:





Philippines customer purchased GIGA pumper fire truck ISUZU is designed based on original Japanese technology ISUZU GIGA 4×2 chassis, which should equipped with 6 wheelers and left hand drive model. Isuzu giga fire engine with tank system should be 4000Liters of water with stainless steel SS304 material and 200Liters of foam with PP material. The Giga fire tender Isuzu is equipped with top 1 Chinese brand CB10/60 fire pump, PL48 fire cannon for water and foam injection, and Isuzu rescue fire truck is equipped with commonly used fire-fighting equipment. The ISUZU firefighting truck has the characteristics of strong power, good maneuverability, easy operation and long range. It is suitable for fire brigade, community streets, villages and towns, and industrial parks, campuses, enterprises, scenic spots, museums and other places.

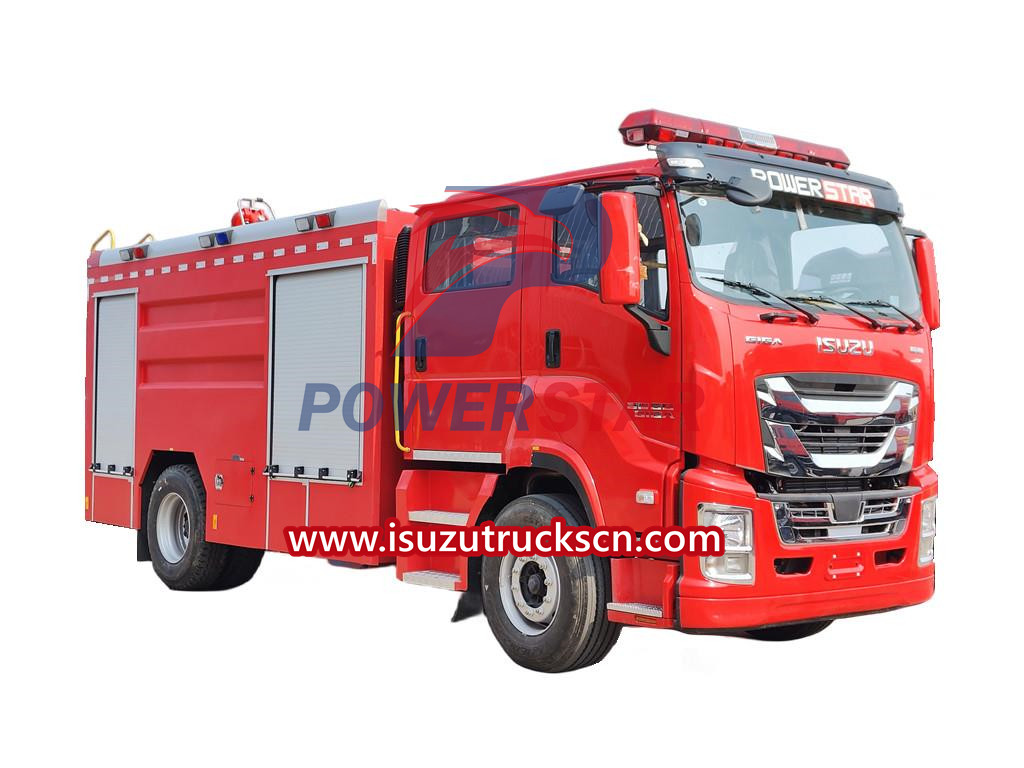

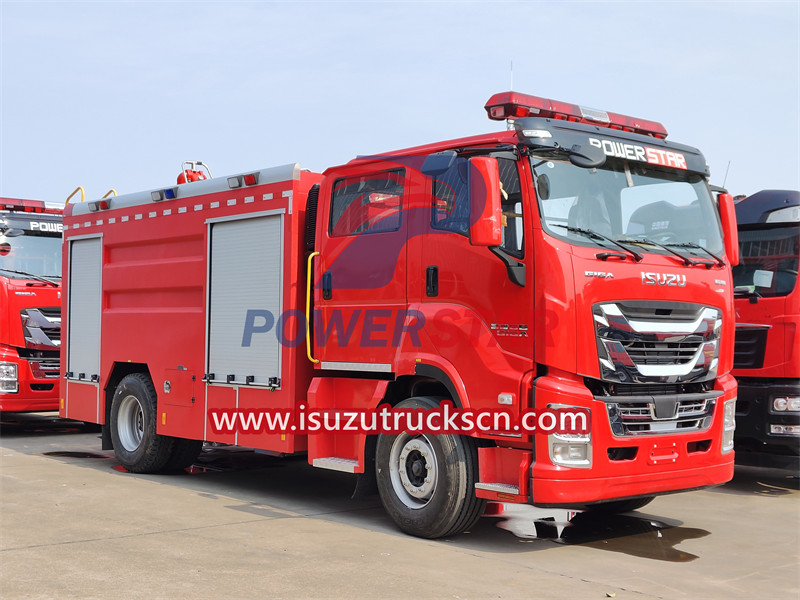

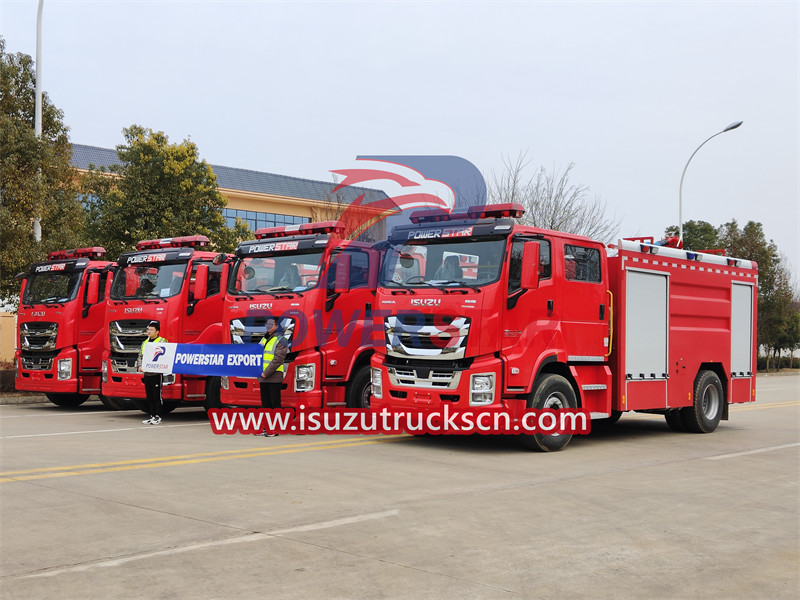

Isuzu GIGA fire truck

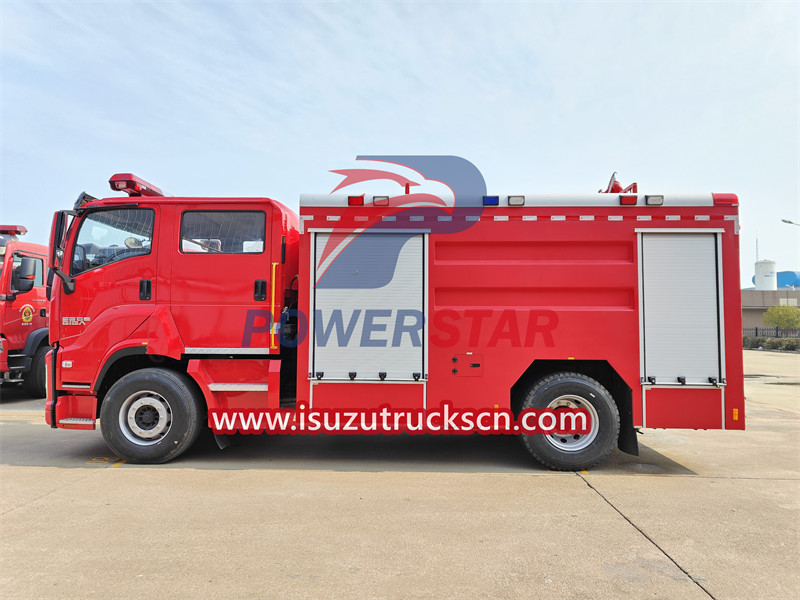

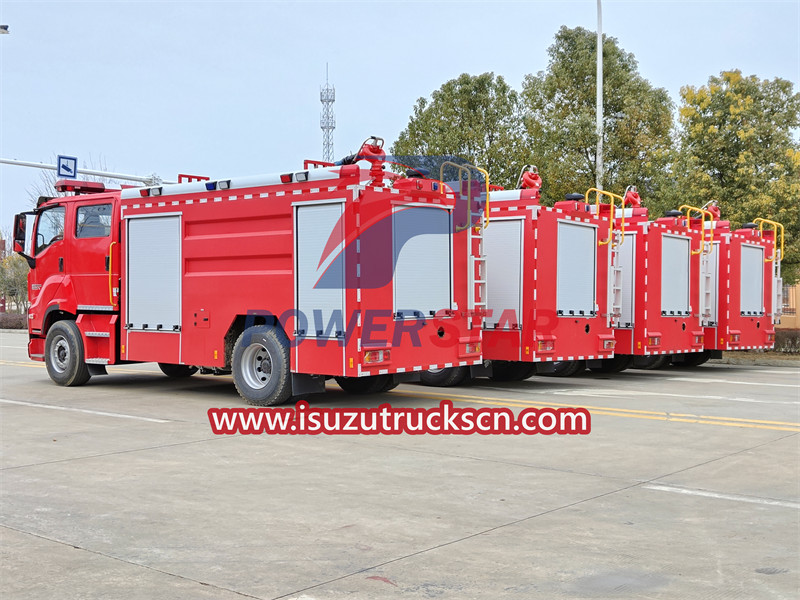

Isuzu fire truck

Product Technical Specifications for GIGA pumper fire truck ISUZU:

Isuzu GIGA fire trucks are very popular in the Philippines not only because of their powerful firefighting functions and performance advantages, but also because of their high adaptability, reliability and professional technical support. These factors make Isuzu GIGA fire engines from POWERSTAR an important fire-fighting and rescue tool in the Philippines, playing a key role in maintaining public safety and fighting disasters.

ISUZU GIGA Water Foam Combined Fire Truck ( 4m3 water tank & 0.2m3 foam tanker)
General Vehicle Brand POWERSTAR
Chassis Brand ISUZU
Overall Dimension 7800*2500*3350mm
GWW Kerb Weight 22,000kg/10,500kg
Cab Cab Capacity 2+4 persons allowed
Air Conditioner Air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine, 6UZ1-TCG61
Power 380Ps(280KW)
Displacement 9839 ml
Emission Standard Euro 5/6
Chassis Drive Type 4X2,left hand drive
Transmission 12-speed forward, 2 reverse
Wheelbase/No.ofaxle 4600mm / 2
Tyre Specification 385/65R22.5, 315/80R22.5
Tyre Number 6 tyres and 1 spare tyre
Max Speed 90km/h
Paint Metallic paint
Superstructure Water Tank Capacity 4,000Litres
Foam Tank Capacity 200litres
Tank Material Wate tank: Stainless steel SS304
Foam tank: PP
Fire Pump Flow speed CB10/60 model with flow rate 60L/S
Pressure 1.0MPa
Fire Cannon Flow speed P48 fire monitor with flow rate 48Ls
Shot Water ≥60m
foam ≥55m
Suction Head 6m
Hose High quality,wire strengthened hose,with cooper wire,
anti-static
All standard accessories: Typical modern fire apparatus carries equipment for a
wide range of firefighting and rescue tasks .These include shovel,pike poles,
axes and cutting equipment ,halligan bars...
Optional Ladders, fire apparatus, fire fighting uniform...

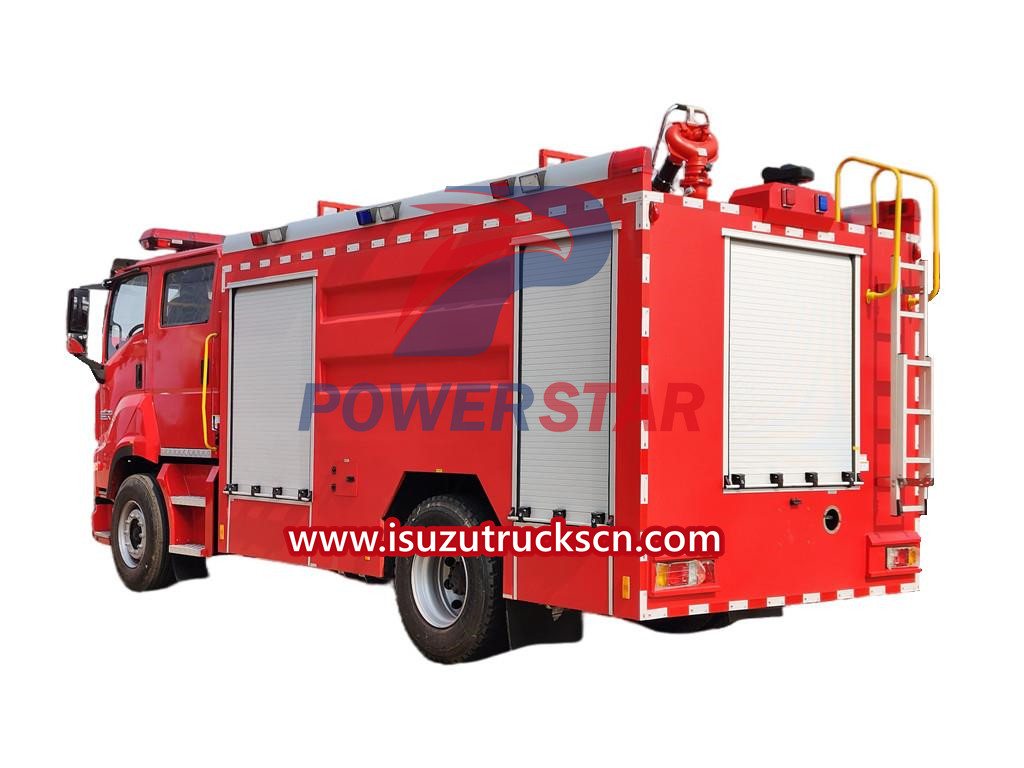

Isuzu rescue fire truck

Isuzu rescue fire truck



Technical & Process Advantages for Giga Pumper Fire Truck ISUZU:

ISUZU Fire truck (also called fire truck, fire fighting truck, water tank fire truck ,foam tank fire truck,fire sprinkler truck, fire pump truck,
fire rescue truck, fire fighter truck, fire alarm truck, fire ladder truck, fire foam truck, fire water cannon, fire engine, fire monitor, fire fighting vehicle,
water tanker fire truck, foam tanker fire truck, multifunctionnal fire truck, water carrier fire truck ) is mainly used to emergency fire fighting.

1. Optional Complete Aluminum Compartment and Never Rust.  The Isuzu fire truck GIGA compartment uses high-quality aluminum alloy profile, and the integral welded frame structure is made by the patented technology. It has a built-in bolt connection and the space could be adjusted easily. Isuzu fire engine has the advantages of high strength, corrosion resistance and light weight. All harnesses are preset in the groove to avoid wear.
2. High-Quality PP Composite Material Liquid Tank and Never Rust.  PP is a special plate made of polymer composite materials to create a liquid tank for fire truck. which made Isuzu GIGA fire tender has the advantages of high strength, impact resistance, low temperature resistance and corrosion resistance.
3. Modular Control System.  The control system of GIGA pumper fire truck adopts PLC intelligent program design and full electronic control operation. Different control program modules are available to choose according to the vehicle configuration. With waterproof and dustproof design, the protection level can reach IP56 or higher.

4. Modular Standard Parts.  Water pumps, fire monitors, aluminum roller shutter doors, storage racks and pipelines are all manufactured by POWERSTAR with modular design. It can not only ensure the quality of parts and the best match with the whole vehicle, but also ensure generalization and flexibility. Details of our GIGA fire trucks advantages as below showing:

  • Isuzu giga fire truck

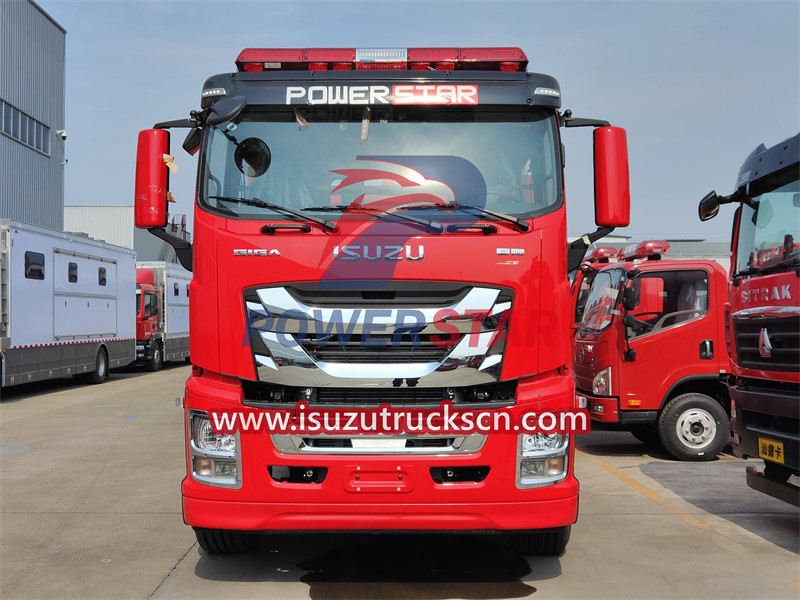

    ISUZU GIGA truck cabin with chrome plate surface
  • Isuzu giga fire truck

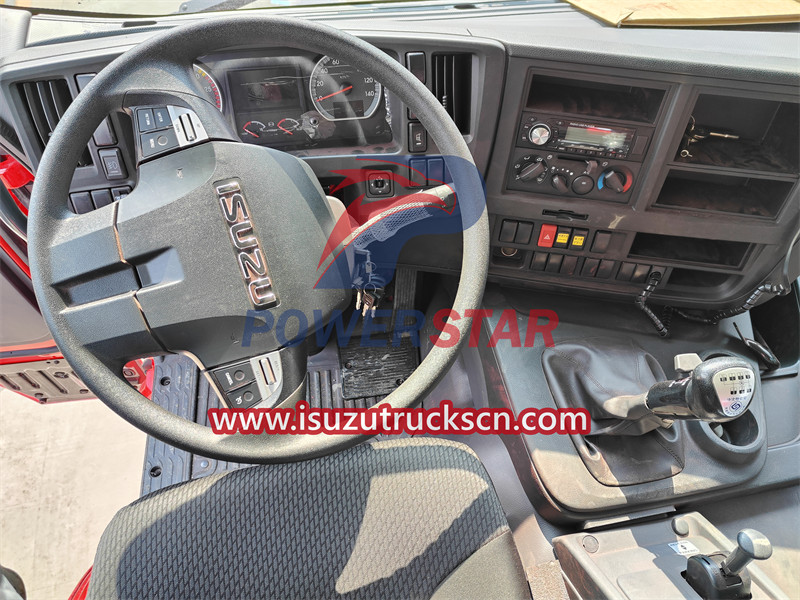

    Original ISUZU GIGA truck cabin with comfortable driving feeling
  • Isuzu giga fire truck

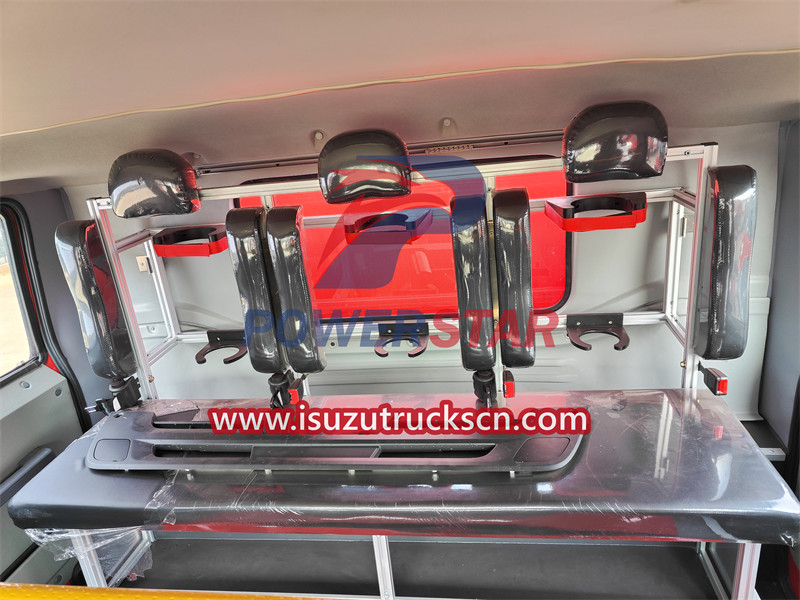

    Fire fighting seats and service for breath apparatus
  • Isuzu giga fire truck

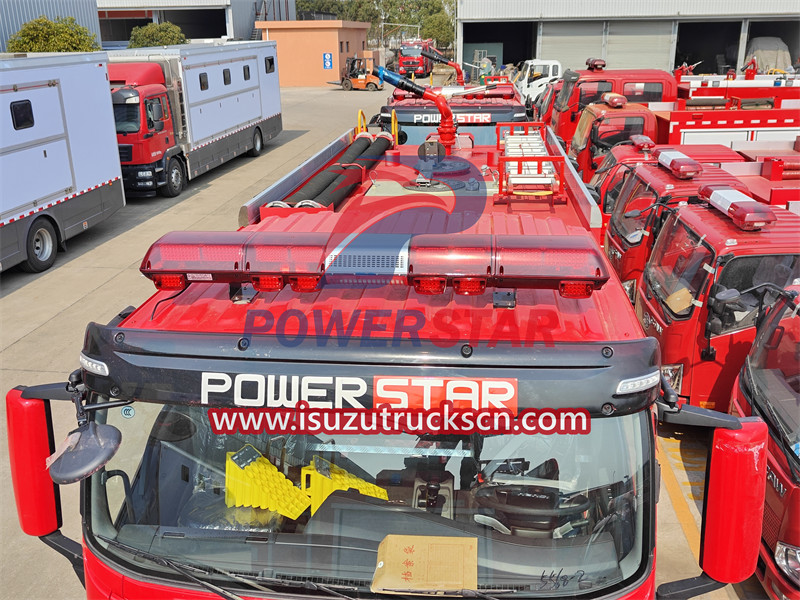

    Top view for Isuzu GIGA fire truck
  • Isuzu giga fire truck

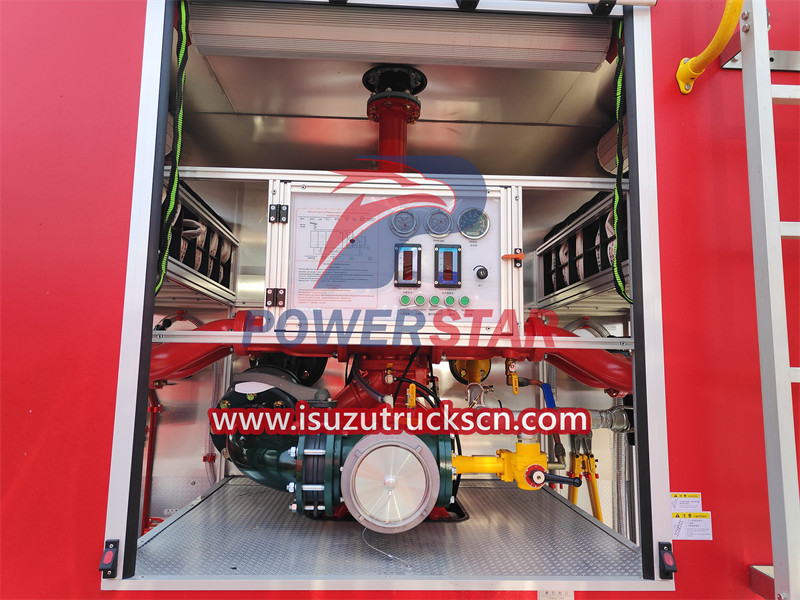

    Pump room and control panel
  • Isuzu giga fire truck

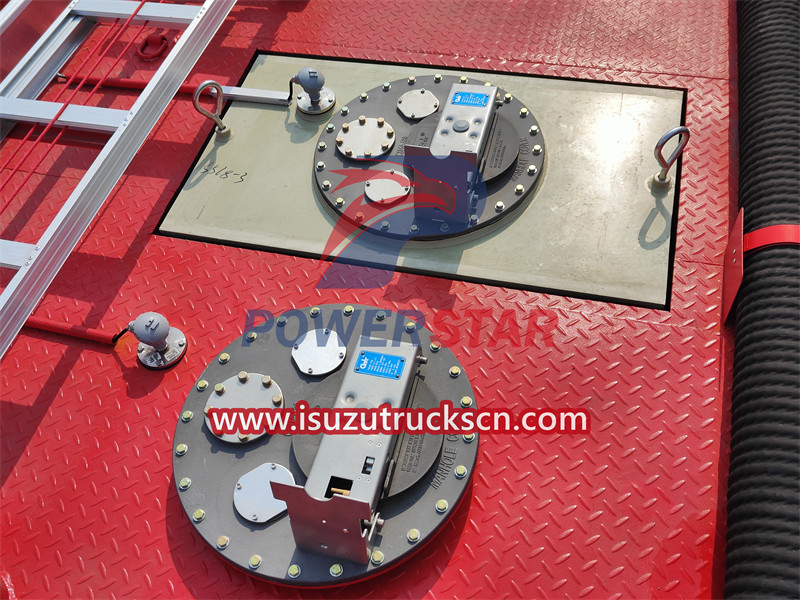

    Euro standard Manhole for safety



  • Isuzu giga fire truck

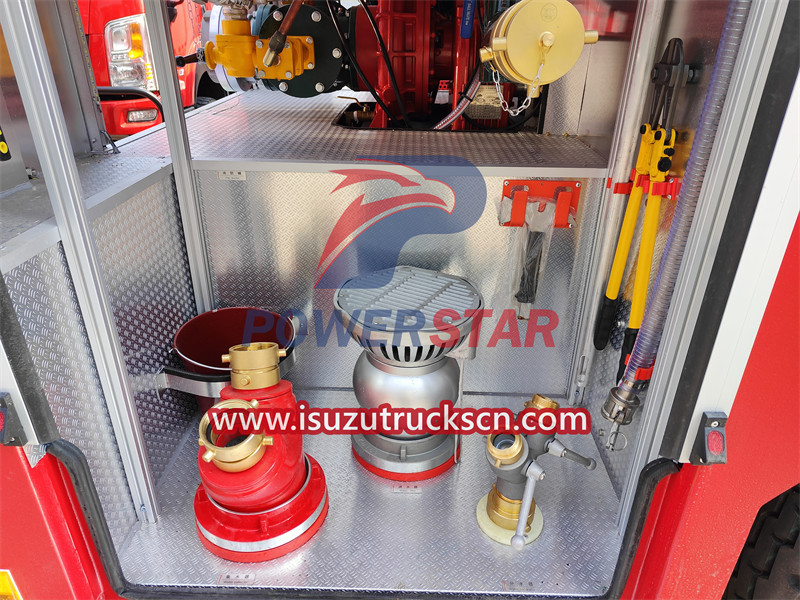

    Fire fighting equipment 1
  • Isuzu giga fire truck

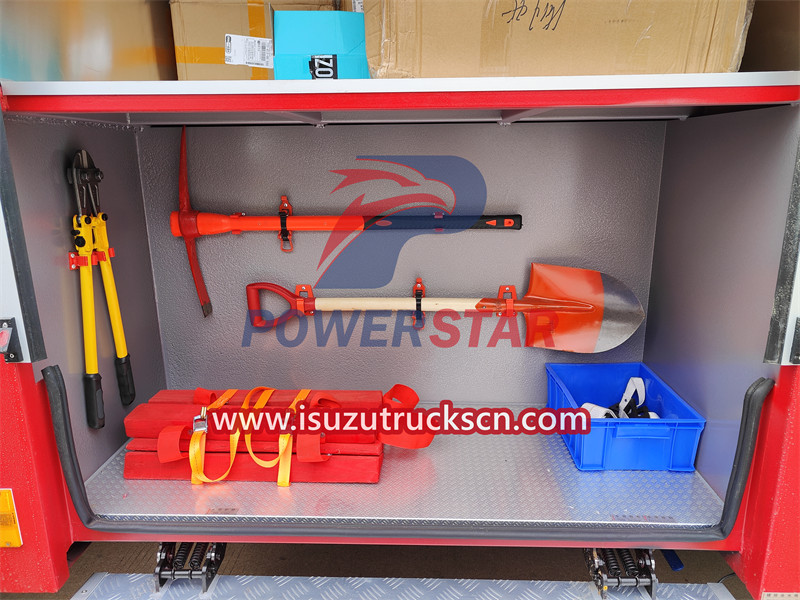

    Fire fighting equipment 2
  • Isuzu giga fire truck

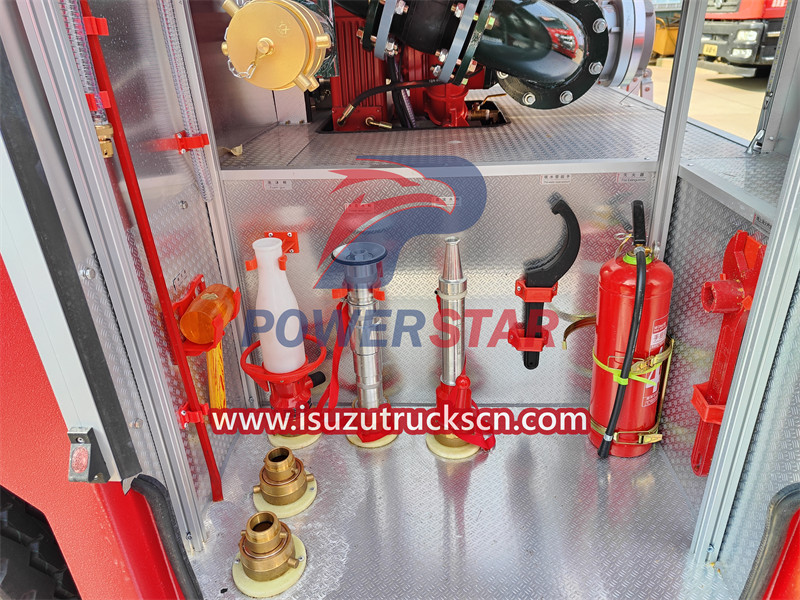

    Fire fighting equipment 3

Why GIGA pumper fire truck ISUZU is popular in Philippines:

Strong adaptability: The Philippines is often threatened by natural disasters and fires. Isuzu GIGA fire trucks are multi-functional and efficient, capable of quickly responding to various emergencies and effectively preventing and fighting fires.

High-power engine and reliability: Isuzu fire engines GIGA are equipped with powerful and reliable engines, with excellent power performance and operational stability, and can quickly respond to sudden fires and emergency situations.

Reliability and quality assurance: As a well-known automobile manufacturer, Isuzu is known for its high-quality and reliable products. The high performance and stability of Isuzu GIGA fire tenders have won the trust and praise of users.

High mobility: The Isuzu GIGA fire truck has good maneuverability and control performance. It can drive flexibly on narrow streets or complex terrain and quickly reach the fire scene to carry out rescue work.

Professional technical support: In addition to high-quality products, the professional after-sales service and technical support provided by Isuzu are also important factors that attract Filipino users. This service, including training, maintenance and upkeep, ensures the widespread use of Isuzu fire trucks in the Philippines.

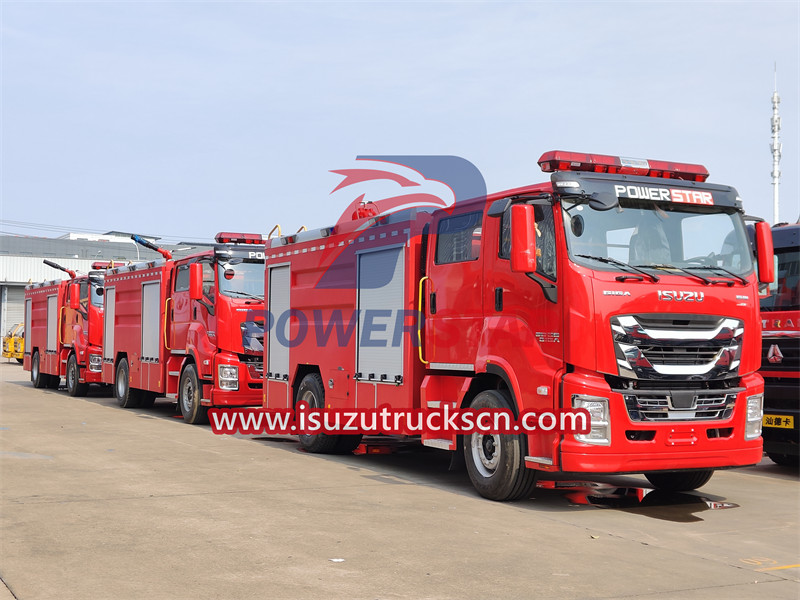

Isuzu fire truck



Isuzu fire truck



Isuzu fire truck



Isuzu fire truck



Isuzu fire truck
